The X-Series

Thank you for choosing the NVX X-Series. Our X-Series is a crowning achievement of modern loudspeaker

engineering – decades of research, development and installation experience have combined to create a truly

remarkable subwoofer. Our uncompromising approach to manufacturing is unique in the industry, and shines

through brightly in the quality and performance of the X-Series. We are proud to build the nest subwoofers

on the market today, and we are condent you will soon be proud to own one.

Great loudspeakers begin with great engineers, and for the X-Series we partnered with the very best, bringing together

experts from around the world. The X-Series began in Denmark as a vision of our extraordinary engineers who

transformed decades of knowledge and experience into a state-of-the art subwoofer with accuracy, transient response,

and tonal quality that is stunning. To mold our woofers into high delity bass machine, we brought them home to the

United States. We refused to compromise the sound, output or durability, so we assembled a team of engineers who

have designed some of the most groundbreaking and celebrated products in subwoofer history. Our US team added

patented technologies to dramatically increase our subwoofers’ output potential without sacricing the sound accuracy

we worked so hard to capture.

Read on to learn about the features incorporated into our X-Series subwoofers that separate them from the competition.

Cone

After testing scores of different cone materials, we decided on a custom blend of nely milled pulp & Egyptian Papyrus

bers. This stiff yet lightweight material produces spectacularly accurate bass with a rich, natural tonal quality prized by

audiophiles. The smooth matte nish of the cone offers a sleek, modern accent to the interior of any car.

Surround/Suspension

The X-series include oSd surround technology (U.S. Patent #7,031,487 B2) which is an innovative design where

the surround is attached vertically. As a result, the X-Series have an extra 8-12% more surface area than competing

subwoofers with the similar mounting dimensions. The surround itself is constructed with a multi-radius elliptical edge,

which keeps the inward movement of the surround perfectly symmetrical with the outward movement. This contributes

to a more predictable and consistently linear cone movement for smooth, even bass every time.

Aluminum Shorting Ring

Perhaps the most distinguishing component of the X-Series subwoofers is the innovative aluminum shorting ring sys-

tem. This technology prevents a rise in inductance caused by the movement of the driver, which has several positive

impacts on the subwoofers’ performance:

1. Improved power delivery to the voice coil

2. Decreased inductive distortion

3. Improved cone linearity

4. Improved high-end extension

5. Decreased risk of overheating

What is this shorting ring?

The shorting ring is a conductive aluminum ring placed in the air gap between the pole piece and the voice coil former

to reduce inductance. Inductance can best be understood as the change in magnetic energy that occurs as the voice

coil moves in and out of the air gap. In most subwoofers this energy is absorbed by the voice coil, causing impedance

rise, introducing distortion and reducing the woofer’s ability to play at the top of the bass spectrum. In the X-Series

subwoofers, the shorting ring simply absorbs changes in inductance, optimizing the sound quality, output potential

and frequency response of the woofer.

B. Aluminum Shorting Ring

So why does it work?

●Improved power delivery to the voice coil

►Any increase in inductance correlates to an increase in voice coil impedance, meaning increased resistance to

the input power. By preventing inductance rise, we effectively increase the amount of power carried to the voice

coil, increasing the output potential of the woofer with each given watt.

●Decreased inductive distortion

►When inductive energy is introduced into the motor structure, it causes the subwoofer to produce sounds and

artifacts at higher frequencies around the 500-1,000 Hz range. Our aluminum shorting ring absorbs these changes

in inductive energy, resulting in crisp, distortion-free bass.

●Improved cone linearity

►A great deal of care was taken during the research and development process to ensure that the movement of the

cone is as linear as possible. Since inductance is a change in magnetic energy, it’s easy to see how undesired

inductance can alter the movement of the cone. By using our shorting ring, we absorb these changes in magnetic

ux and prevent modulation of the cone resulting in tighter, more accurate bass.

● Improved high-end extension

►The low-pass lter in a standard crossover network is basically just a coiled conductive wire with an iron core

very similar to the design of a voice coil. When the inductance of the voice coil increases, it begins to lter out notes

at the top of the woofer’s frequency range. Our aluminum shorting ring eliminates these variations in inductance,

allowing the woofer to play as it was intended.

●Decreased risk of overheating

►In addition to the positive impact the shorting ring has on the subwoofer’s sound quality, it also acts as an effective

heat sink to carry heat away from the voice coil, which contributes to improved performance and durability.

If it’s so great, why don’t others use it?

Where we see an opportunity to build a better product, other manufacturers see an opportunity to maximize prots.

Shorting rings require additional materials and add complexity to the manufacturing process. Rather than skimp on the

shorting ring and make inferior woofers, we ultimately decided to create a masterpiece. The most experienced engi-

neering team in the industry has painstakingly designed our X-Series subwoofers, and we rmly believe that you will

hear the difference.

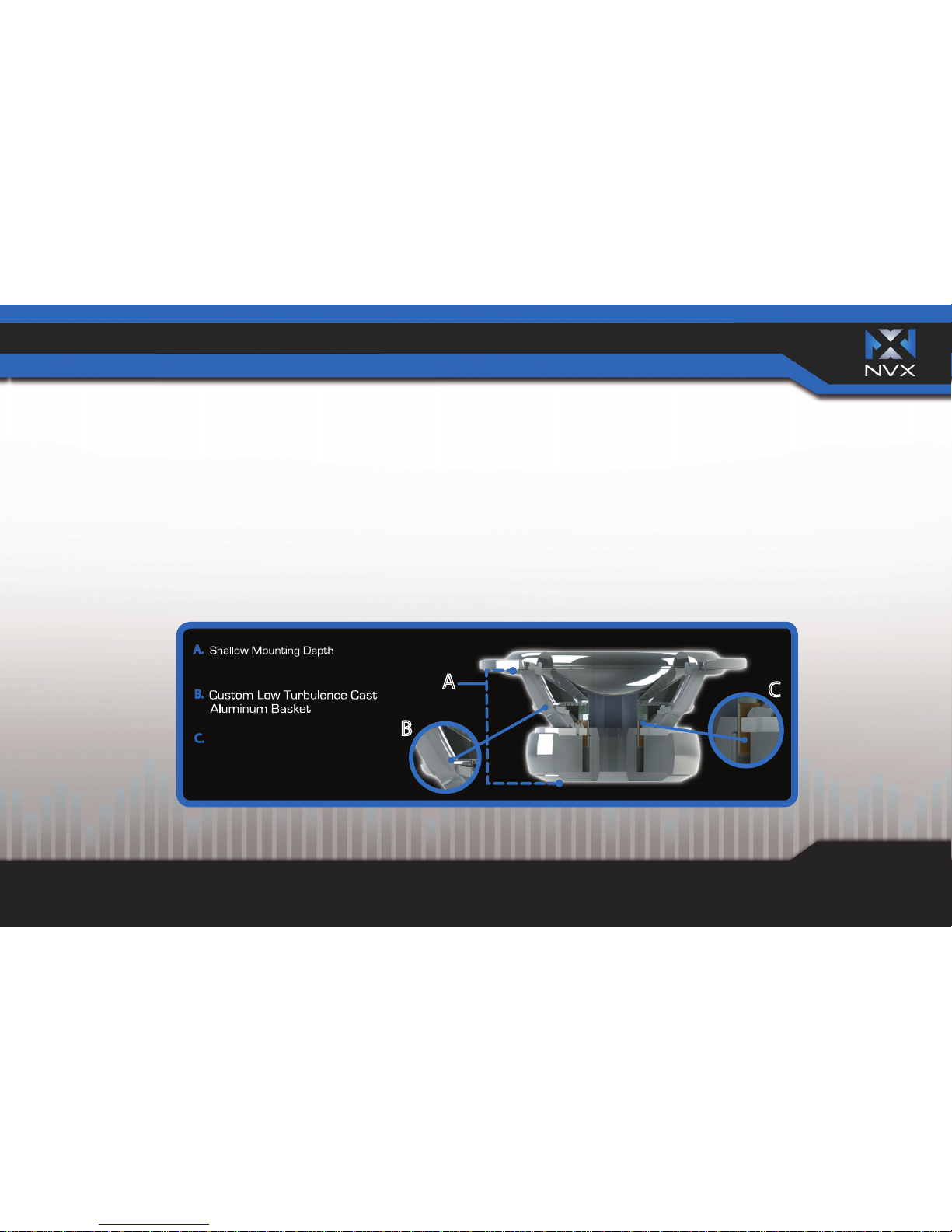

Optimized for Small Enclosures

While the NVX X-Series are not the only subwoofers on the market that thrive in small enclosures, they also offer an

unparalleled combination of deep bass and shallow mounting depth. The truth is, while some competitive woofers may

work well in small volume enclosures, they require as much as 8-inch of depth, far too much to t behind a truck seat

or in a small trunk. Our subwoofers produce deep bass and sound great in enclosures as shallow as 5-inch. The NVX

X-Series is the discerning listener’s alternative to anemic shallow-mount subwoofers and costly vehicle-specic

solutions.

3-inch High Temperature Voice Coil

The X-Series subwoofers are capable of handling a robust amount of wattage (500 watts RMS for the 10-inch and

600 watts RMS for the 12-inch) due in large part to the 3-inch voice coil. The voice coil is composed of an oxygen-free

copper coil wrapped around a high-temperature aluminum former for maximum conductivity and heat dissipation. This

coil is large enough to drive the cone with strict control and impressive linearity, yet efcient enough to permit a compact

magnet structure for increased installation exibility.

Custom Low Turbulence Cast Aluminum Basket

Our custom basket offers several distinct advantages over traditional designs. We purposefully chose an especially

open basket to improve airow to reduce compression of the motor structure for both improved cone control as well as

reduced back-wave interference. The 3-dimensional cast design dramatically increases the strength and rigidity of the

basket while simultaneously reducing resonance. We chose aluminum, the industry standard for cast speaker baskets,

as it offers an exceptional strength-to-weight ratio and is non-ferrous, thus eliminating risk of magnetic interference with

the motor structure. The unique cast aluminum mounting ring offers a sleeker and more modern aesthetic than typical

bulky rubber or plastic designs.

C. High Temperature Voice Coil

High-Excursion Strain-Relieved Tinsel Leads

There is perhaps no better example of our relentless attention to detail than the unique attachment method of our tinsel

leads. Whereas the leads of most subwoofers are simply glued atop the spider, ours are glued at the basin of each

fold in the spider with enough slack on top for unrestricted excursion. This prevents damage to the leads as there is no

tugging or pulling from the movement of the suspension, while keeping the leads anchored to prevent cone slap and

mechanical noise.

Installer-Friendly Terminals

The X-series subwoofers were optimized for both sound quality and ease of installation. The subwoofers feature dual

voice coils, and we placed all four terminals on one side for simple and hassle-free wiring. To solve complex wiring

challenges, a pair of jumper cables is included to allow the subs to easily be congured in parallel, series or any

combination necessary.

Specifications

Specications subject to change without notice, please refer to our website at: nvx.com

*Power Handling varies based on enclosure type and volume. See page 12 & 13.

Sealed Box - X-Series Subwoofers were specically

designed for use in sealed enclosures to obtain optimal

SQ performance. A sealed enclosure offers improved

acoustic suspension and cone control, which reduces

distortion and increases the power handling capabilities of

the subwoofer. They are smaller than their ported

counterparts, and offer atter bass response with more

consistency across the frequency range.

Enclosures

The enclosure designs listed below will give you the best possible performance from your X-Series subwoofer. NVX

woofers are optimized for use in both ported and sealed enclosures, each of which has distinct sonic characteristics.

Specications subject to change without notice, please refer to our website at: nvx.com

Ported Box - A ported box features a vent or port

to couple the woofer’s back-wave with the front-wave. This

results in markedly improved efciency and low frequency

response.

These enclosures are somewhat larger than the sealed

alternative.

Enclosures Continued

Specications subject to change without notice, please refer to our website at: nvx.com

Terminal Jumper System: Series Connection

To wire your X-Series subwoofer in a series

conguration, connect one jumper cable from

VC1(-) to VC2(+)..

Specications subject to change without notice, please refer to our website at: nvx.com

Terminal Jumper System: Parallel Connection

To wire your X-Series subwoofer in a parallel

conguration, connect one jumper cable from

VC1(-) to VC2(-), and a second jumper from

VC1(+) to VC2(+).

Specs subject to change without notice, please refer to our website at: nvx.com

Recommended Components:

Specications subject to change without notice, please refer to our website at: nvx.com

A. XNET2

►X-Series 2-way / Bi Ampable Networks

B. XSPTW

►29mm X-Series Soft Dome Tweeters

C. XSP525

►5.25” X-Series Midbass Drivers

D. XSP65

►6.5” X-Series Midbass Drivers

A. B.

Warranty

NVX warrants to the original retail purchaser that this product is to be free from defective materials and

workmanship for a period of one (1) year from

the date of purchase, if it is properly used and maintained.

If this product proves defective in either material or workmanship, NVX, at it’s discretion, will

(a) repair the product, or (b) replace the product, at no charge for parts or labor. If the product model is no longer available and cannot be repaired

effectively or replaced with an identical model, NVX at it’s sole option may replace the unit with a current model of equal or greater value. To obtain

a repair or replacement under the terms of this warranty, please return to dealer rst, if possible, and the dealer will direct you accordingly for repairs

or replacement. You will be required to submit a copy of the original receipt. Return shipping for exchanges/repairs is the sole responsibility of the

original retail purchaser.

Limitations:

• This limited warranty does not cover failure of the product resulting improper installation, misuse, abuse, accident, negelect, mishandling, or wear

from ordinary use or environmental deterioration.

• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to ordinary use or environmental

deterioration.

• This limited warranty does not cover cosmetic damage, including paint damage, or consequential damage to other components or premises which

may result for any reason from the failure of the product.

• This limited warranty is null and void for products not used in accordance with NVX’s instructions.

• This limited warranty is null and void for products with altered or missing serial numbers and for products not purchased from an authorized dealer.

• This limited warranty terminates if you sell or otherwise transfer this product to another party.

• This limited warranty is null and void for any speaker or subwoofer that has been damaged due to over-powering causing burnt voice coils and /or

mechanical failures such as ripped spiders or surrounds.

Warranty Continued

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO

STATE, JURISDICTION TO JURISDICTION, OR COUNTRY TO COUNTRY. NVX’S RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN

HARDWARE IS LIMITED TO REPLACEMENT OR REPAIR AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED

WARRANTIES FOR THE

PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A

PARTICULAR PURPOSE, ARE LIMITED IN TIME TO THE TERM OF THIS WARRANTY. SOME STATES, JURISDICTIONS, OR COUNTRIES

DO NOT ALLOW THE EXCLUSION OF CERTAIN IMPLIED WARRANTIES OR CONDITIONS, OR LIMITATIONS ON HOW LONG AN IMPLIED

WARRANTY OR CONDITION LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU. NVX DOES NOT ACCEPT LIABILITY FOR SPECIAL,

INDIRECT, CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING WITHOUT LIMITATION, ANY LIABILITY FOR THIRD PARTY CLAIMS

AGAINST YOU FOR DAMAGES OR FOR PRODUCTS NOT BEING AVAILABLE FOR USE. THE MAXIMUM LIABILITY FOR WHICH NVX MAY

BE RESPONSIBLE WILL BE NO MORE THAN THE AMOUNT

YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF THE CLAIM.

SOME STATES,

JURISDICTIONS, OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL, INDIRECT,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

Warranty Outside the U.S.

The Warranty on this product shall comply with applicable law when sold to a consumer outside of the United States. To obtain any applicable

warranty service, please contact the dealer from which you purchased this product, or the distributor that supplied this product.

Defective products should be returned to the place of purchase. Your Authorized NVX Dealer is trained to handle and expedite any warranty

claim. Assistance in locating an Authorized Dealer can be found at www.nvx.com or by contacting NVX directly.

Alternatively, if it becomes necessary for you to return defective product directly to NVX, please refer to the following instructions for

warranty service:

�Receive your RA Number from NVX online at www.nvx.com/support

�Package all defective components in the original packaging (if available) or in a package that will prevent shipping damage.

�Package the original packaging in an additional shipping container to avoid shipping damages and to comply with most shipping

couriers such as UPS and FedEx.

�Insure your return at the price paid as NVX is not responsible for insurance losses or damages occurring in shipment to our facility.

�Clearly mark RA Number on the outside shipping container.

� Return only defective components as the return of functioning items increases your return freight charges.

- Non-defective returns or products not eligible for warranty service will be returned freight collect.

� Include a copy of the original receipt with the purchase date clearly visible, and a “proof-of-purchase” statement listing the customer’s

name, dealer’s name and invoice number, and product purchased.

- Warranty expiration on items without proof-of-purchase will be determined from type of sale and the manufacturing date code.

� Ship your package freight prepaid to the address below. Items sent freight collect or COD will be refused.

NVX

15303 Ventura Blvd.

9th Floor

Sherman Oaks, CA 91403

Failure to follow the steps listed above may void your warranty. Any questions can be directed via email to [email protected] or via mail at the address listed above.

What To Do If You Need Warranty or Service
