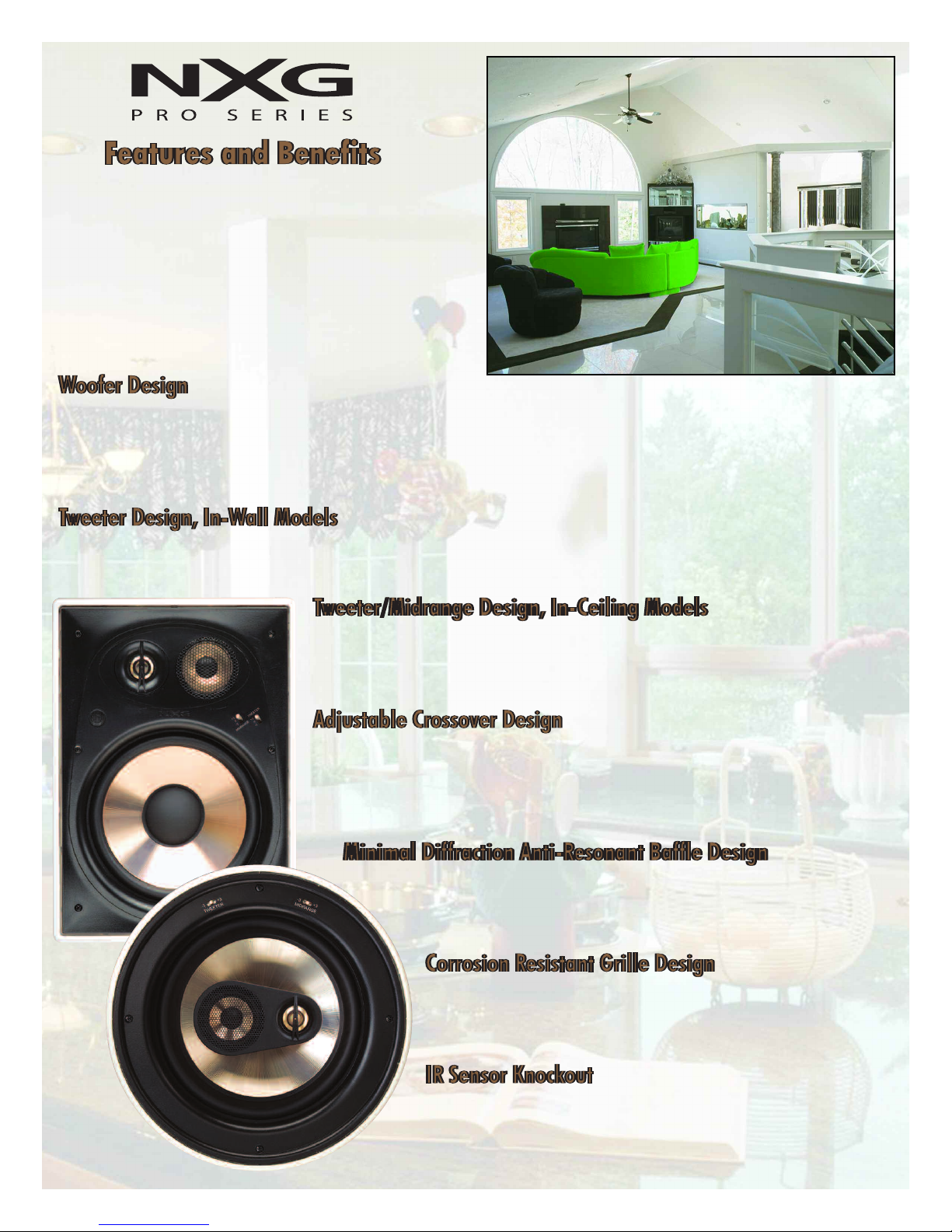

Nxg PRO 1030 User manual

Designed for the ultimate in performance, the new NXG Pro Series line of
in-wall and in-ceiling speakers utilizes a new minimal diffraction infinite baffle
design. It also features rubber-edged gold metallic anodized injection-molded
woofers with radiative cone technology (RCT), along with 1˝ fluid-cooled
ultra-wide dispersion pivoting metallic anodized dome tweeters, and
adjustable 12dB per octave electro-acoustic crossovers. The result is a high per-
formance speaker line that delivers improved efficiency, reduced distortion,
dynamic low bass extension, coloration free midrange, and optimum high-fre-
quency imaging, regardless of where the speakers are installed in the room.
All NXG Pro Series In-Wall and In-Ceiling Speaker Systems use our metallic anodized injection molded RCT cone. Our radiative cone technology makes the
cone extremely rigid while still maintaining a very low cone mass. When coupled with its rubber surround, this design increases efficiency,reduces distortion,
and improves linearity, resulting in a coloration free midrange and extended low bass response. To ensure consistent performance, Pro Series speaker systems
utilize a finely perforated woofer basket design to keep insulation and/or debris from coming in contact with the rear of the woofer cone.
All NXG Pro Series In-Wall Speaker Systems use our pivoting 1˝ fluid-cooled, ultra-wide dispersion, metallic anodized dome tweeters allowing for up to 20º of
tilt for optimum high-frequency imaging regardless of where the speakers are installed in the room.
Designed for optimum performance, all Pro Series Ceiling Speakers utilize our exclusive ultra-low diffraction,
tilt-pivot tweeter / midrange island design which allows for up to 25º of tilt and 90º of rotation for optimum
high-frequency imaging regardless of where the speakers are installed in the room.
All NXG Pro Series Speaker Systems use a 12dB per octave, electro-acoustic crossover design. To reduce distortion
and improve definition and linearity, NXG utilizes the finest components such as air core coils, mylar capacitors,
and gold-plated input terminals. To further enhance performance, baffle-mounted tweeter and midrange level
adjustments allow you to custom tailor the speaker’s response to better match the acoustics of the room.
NXG Pro-Series In-Wall and In-Ceiling Speaker Systems utilize our exclusive minimal diffraction, rear
gusseted, infinite baffle design. This design minimizes edge diffraction, increases rigidity, reducing
resonance and resulting in reduced distortion, extended low bass and superior sonic accuracy.
All NXG Pro-Series In-Wall and In-Ceiling Speaker Systems incorporate corrosion
resistant, powder-coated aluminum grilles with an open cell foam inner grille backing
to hide the speaker components from view.
All NXG Pro Series In-Wall Speakers have an infrared sensor mounting area molded in to the
baffle (IR knockout). The knockout hole is designed to accommodate standard 1⁄2˝ (IR) sensors.

5-120 watts
40 Hz-22,000 Hz
8Ωnominal, 6 Ωmininal
90dB 1W/1m
6.5˝
NA
1˝ pivoting
121/8
˝H x 85/8 ˝W x 31/2 ˝ D
107/8 ˝H x 71/2˝W
NX-PRO6220 NX-PRO6330 NX-PRO8330 NX-PRO5520CLR
NX-PRO1030NX-PRO6020 NX-PRO6222DVC NX-PRO8020 NX-PRO8030
5-120 watts
38 Hz-22,000 Hz
8Ωnominal, 6 Ωmininal
90dB 1W/1m
6.5˝
2˝
1˝ pivoting
12˝ H x 85/8˝W x 31/2˝ D
107/8 ˝H x 71/2˝W
5-150 watts
35 Hz-22,000 Hz
8Ωnominal, 6 Ωmininal
90dB 1W/1m
8˝
21/2˝
1˝ pivoting
14˝ Hx101/2˝Wx31/2˝ D
123/4˝H x 83/4˝W
5-120 watts
45 Hz-22,000 Hz
8Ωnominal, 6 Ωmininal
89dB 1W/1m
Two 5.25˝
NA
1˝ pivoting
73/8˝Hx153/16˝W x 31/2˝ D
63/8˝x133/4˝
5-120 watts
40 Hz-22,000 Hz
8Ωstereo, 4 Ωmono
90dB 1W/1m
6.5˝ dual voice coil
NA
Dual 3/4˝(tilt/pivot)
91/4˝(dia.) x 33/4˝ D
81/8˝ (dia.)
5-120 watts
37 Hz-22,000 Hz
8Ωnominal, 6 Ωmininal
90dB 1W/1m
8˝
NA
1˝ pivoting
103/4˝ (dia.) x4˝ D
91/2˝ (dia.)
5-150 watts
35 Hz-22,000 Hz
8Ωnominal, 6 Ωmininal
90dB 1W/1m
8˝
21/2˝(tilt/pivot)
1˝ (tilt/pivot)
103/4˝(dia.) x 4˝ D
91/2˝ (dia.)
5-150 watts
28 Hz-22,000 Hz
8Ωnominal, 6 Ωmininal
90dB 1W/1m
10˝
33/4˝(tilt/pivot)
1˝ (tilt/pivot)
13˝ (dia.) round x 51/2˝ D
113/4˝ (dia.)
5-120 watts
40 Hz-22,000 Hz
8Ωnominal, 6 Ωmininal
90dB 1W/1m
6.5˝
NA
1˝ pivoting
91/4˝(dia.) x 33/4˝ D
81/8˝ (dia.)
Power Handling
Frequency Response
Impedance
Efficiency
Woofer
Midrange
Tweeter
Overall Dimensions
Required Ceiling Cutout
Power Handling
Frequency Response
Impedance
Efficiency
Woofer
Midrange
Tweeter
Overall Dimensions
Required Wall Cutout
•Pivoting liquid-cooled metallic anodized dome tweeters
•Metallic anodized mylar cone midranges (some models)
•Metallic anodized injection-molded radiative cone woofers with rubber surrounds
•Tilt/Pivot tweeter and midrange (some models)
•Perforated woofer baskets help shield drivers from insulation and debris
•12dB electro-acoustic crossovers
•Gold plated input terminals
•Minimum diffraction anti-resonate baffles
•Baffle-mounted midrange and/or tweeter level adjustments
•Corrosion resistant, powder coated aluminum grilles
•Baffle-mounted IR capability (in-wall models only)
Specifications
Specifications
Designed for the ultimate in performance, the new
NXG Pro Series line of in-wall/in-ceiling speakers
utilizes our new minimal diffraction infinite baffle
design. When coupled with their state of the art
driver and crossover designs, the result is a high
performance speaker line that delivers dynamic low
bass extension, coloration free midrange, and
optimum high-frequency imaging regardless of
where the speakers are installed in the room.
NX-PRO6220 NX-PRO6330 NX-PRO8330 NX-PRO5520CLR
Specifications
NX-PRO1030NX-PRO6020 NX-PRO6222DVC NX-PRO8020 NX-PRO8030
Specifications
