Nyos TORQ Body 0.75 User manual

TORQ®Dock & TORQ®Body 0.75 | 1.0 | 2.0
TORQ®
system reactor for filter media
INSTRUCTIONS

2
CONGRATULATIONS
We congratulate you on the purchase of your new NYOS®TORQ®
media reactor.
Please read the instructions and safety information carefully
before you use the device.
CONTENTS
SAFETY INFORMATION ................................................................ 3
WARRANTY................................................................................. 4
INSTALLATION AND OPERATION .................................................. 6
RECOMMENDED MEDIA CAPACITIES AND TANK SIZES............... 12
FAQ AND TROUBLE SHOOTING................................................... 13
GENERAL INFORMATION.............................................................14
MAINTENANCE AND CLEANING.................................................. 15

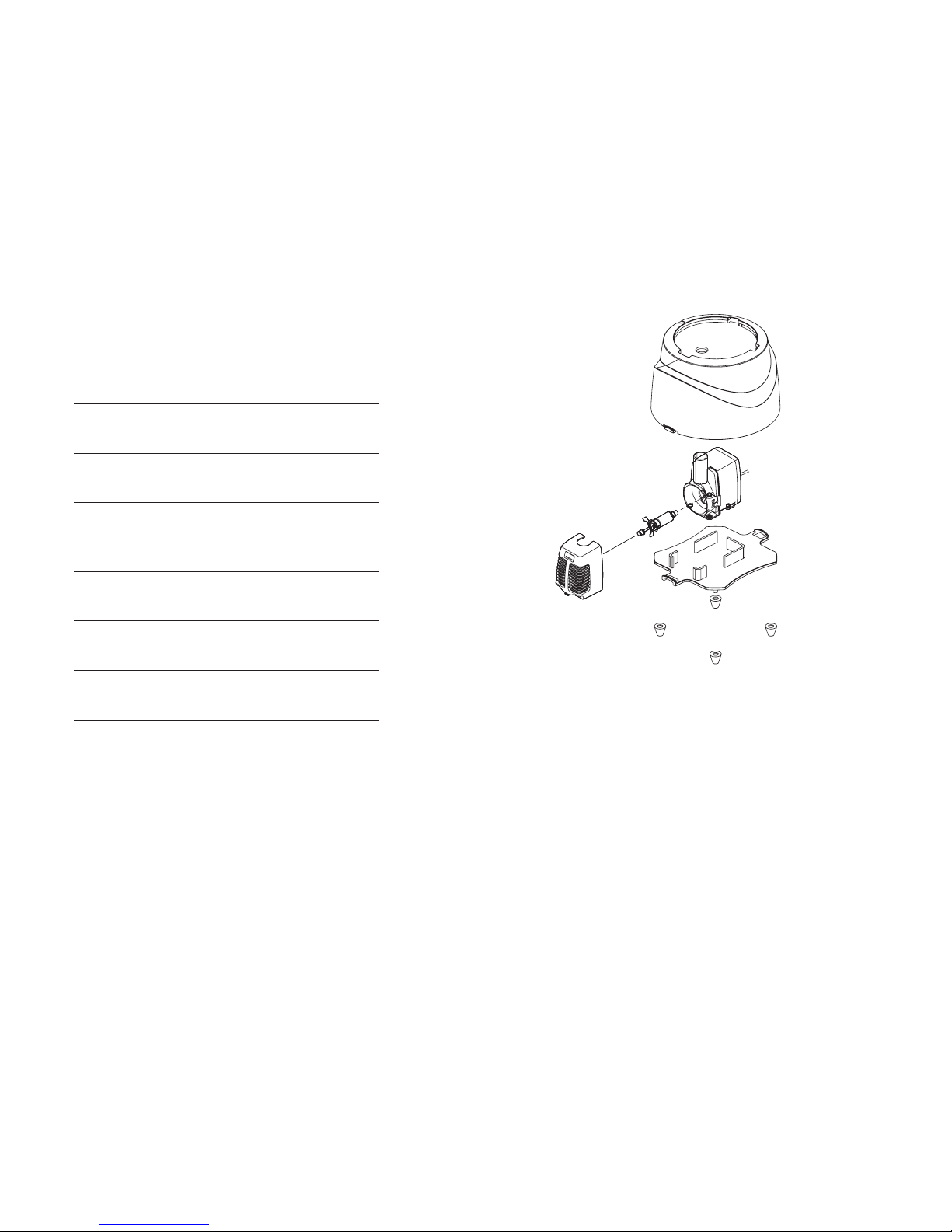

SPARE PARTS AND EXPLODED DRAWINGS ................................ 16

3
EN
SAFETY INFORMATION
• Only connect the unit if the electrical data of the unit and
the power supply coincide. The unit data is to be found
on the unit type plate.
• The dock may only be connected to an outlet with earth
contact.
• The pump must be supplied through a residual current
device (RCD) with a rated residual current of no more than
30 mA. Ask your electrician.
• Unplug all devices submerged in the water prior to any
contact with aquarium water.
• This device is only approved for inside use and only for
aquarium purposes.
• The power cord of this device cannot be replaced. If
damaged, the device must be scrapped. Do not bend the
power cord and do not carry device on power cord.
• The device may not run dry. It may only be used for liquids
between the temperatures of +4°C to +35°C (39°F to
95°F). The pump motor is protected from overheating.

4
• This device is not intended for the use by persons (inclu-
ding children) with limited physical, sensory or mental
capacities, unless they are supervised by a person respon-
sible for the safety or this person instructed them on how
to use the device. Children must be supervised to ensure
they do not play with the device.
The device may not be disposed of in the
standard household rubbish. It must be
professionally disposed.
WARRANTY
The consumer receives for this product a 12-month warranty
for material defects and assembly errors from the date of
purchase.
For being granted the warranty, the device must be submitted
completely and together with the sales slip. Any shipments to
us must be postage paid. If the warranty claim is justified, the
defective part is at our discretion either repaired or replaced.

5
EN
EXCLUSION OF WARRANTY
This warranty does not cover:
• Soiling and lime scale deposits
• Dry running of the pump
• Wear and tear damages on wear and tear parts (e.g. rotor,
seals)
• Improper handling and use (including the use of products
from other manufacturers)
• Any kind of damages (e.g. wires of electrical devices)
• Technical changes and modifications to any of the compo-
nents
• Faulty installation
• Consequential damages from improper use, lack of main-
tenance or non-compliance with safety regulations

6
INSTALLATION AND OPERATION
Thoroughly check the product after you receive it to ensure
that it is complete and has not been damaged in transit. Any
damage must immediately be reported to the relevant seller.
STEP 01 Positioning the Nyos®TORQ®Dock in your sump
• You receive your Nyos®TORQ®Dock as plug-and-play
model. The pump has already been installed.
• Nyos®TORQ®has been designed for in sump use. The unit
cannot be used outside the sump.
• Put Nyos®TORQ®Dock in your sump. Please ensure that
the bottom of the sump is even. This helps ensure that
the water can run off evenly. A constant water level in
the sump is not required.

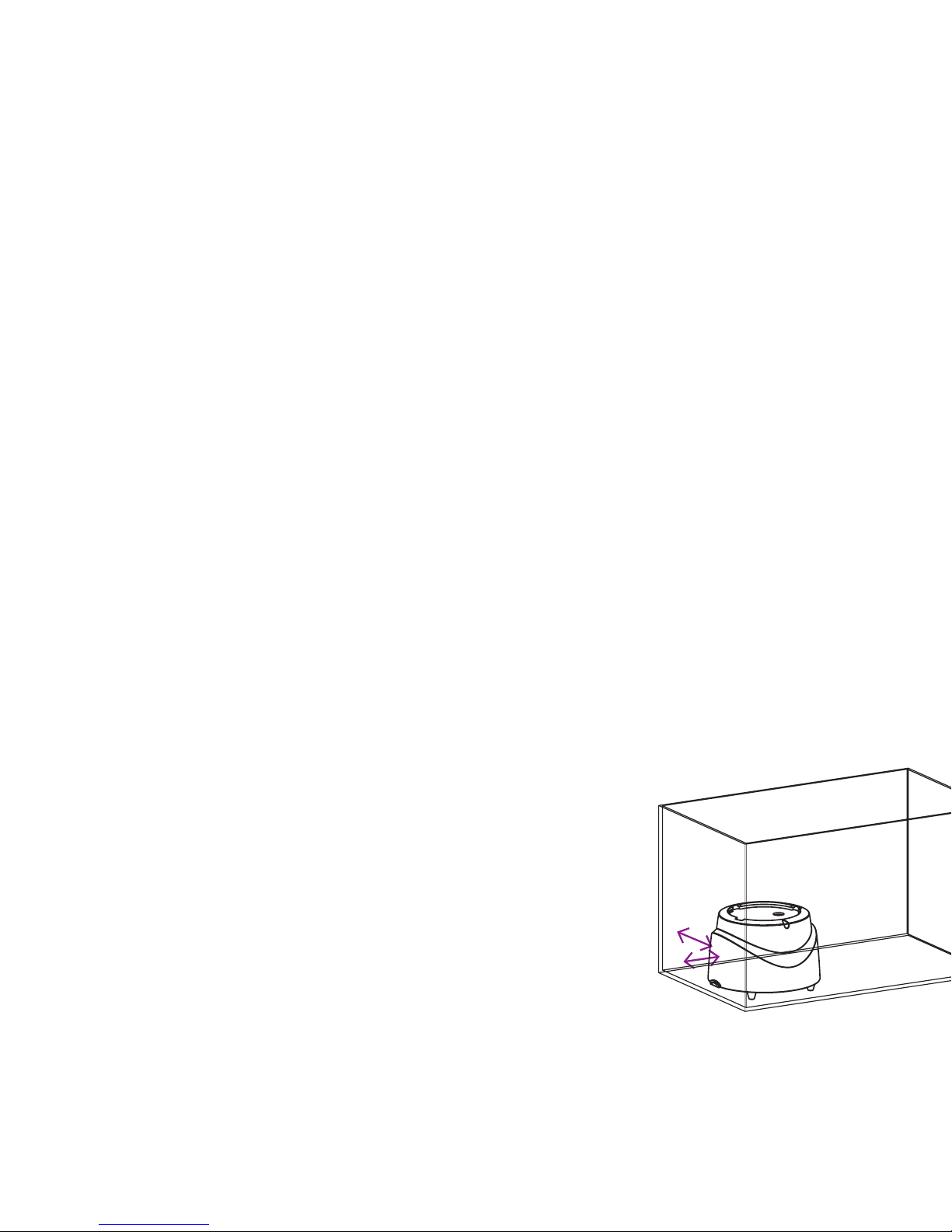

• The unit must not be in contact with the side panes of
the sump (Fig. 1).
• Only plug in the device when body has been placed on the
dock (see Step 03).
(Fig. 1)

7
EN
STEP 02 Filling the TORQ® Bodies
General information on filling Nyos®TORQ®bodies

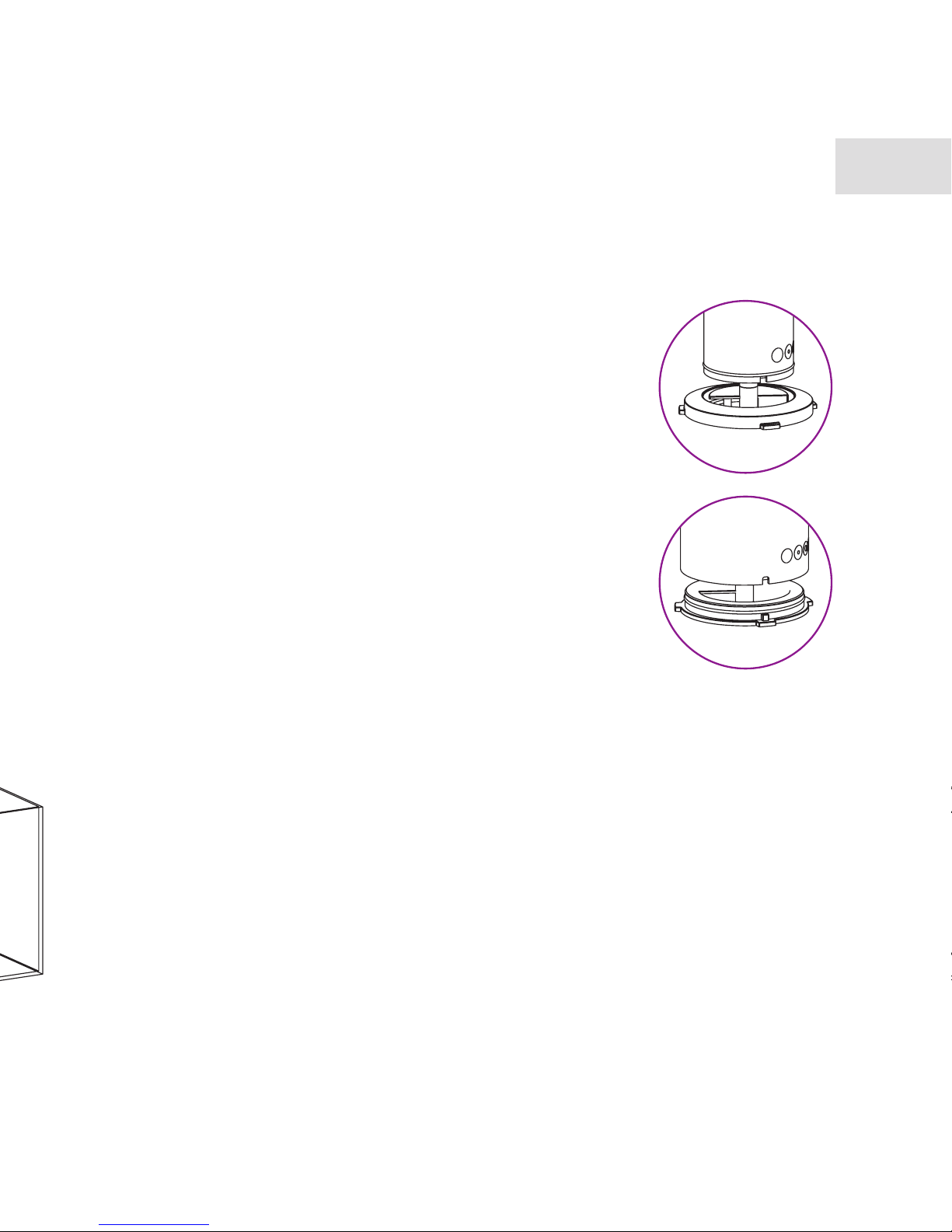

• At the screen insert, there is a lug. The screen insert can
only be inserted into the acrylic pipe if the lug is in the
groove of the acrylic pipe (Fig. 2).
• The filter sponge for the lid should always be used.
• For small-grain filter media (such as Nyos®PHOSI-EX) we
recommend that you leave the black filter sponge on the
screen insert.
• For larger filter media (such as Nyos®ZEO), the filter
sponge on the screen insert can be removed.
• Please refer to the filling quantities in the table on page
12.
(Fig. 2)

8
Filling with one filter media
1. Remove the lid by slightly pressing it
upwards. The lid is fixated only with an O-ring
by clamping effect.
2. The separating screen included with Body 1.0
and 2.0 (part no. 6) can be removed when one
filter media is used.
3. Add the filter media from the top. Put the lid
back on
Filling with two filter media (Body 1.0 and Body
2.0 only)
1. Turn the body upside down and remove the
screen insert, both filter sponges, and the
separating screen.
2. Add the filter media to the top chamber. We
recommend placing the filter media with the
shorter operating time in the top chamber
because this lets you replace it more easily.
3.1.
(Fig. 3)

9
EN

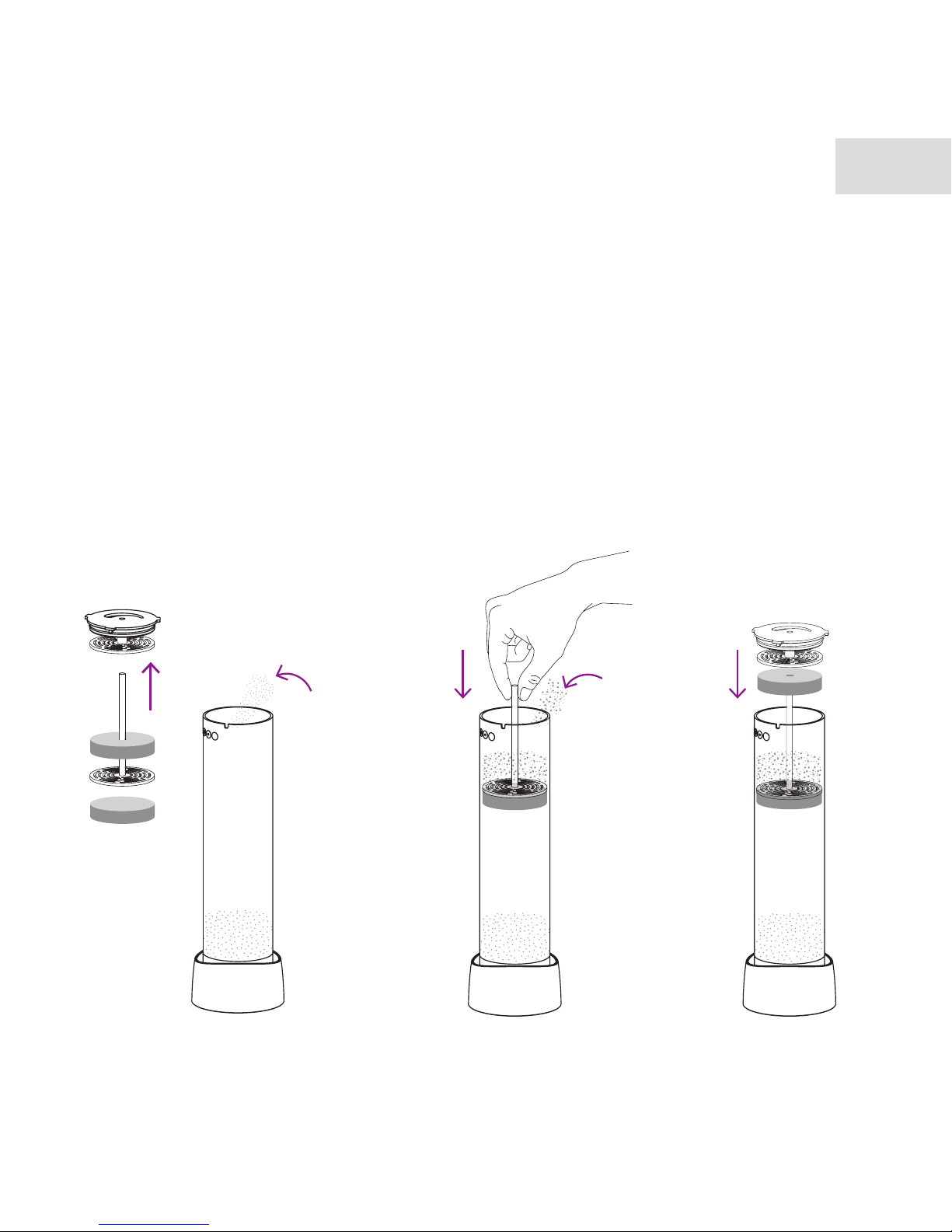

3. For the second filter media, please proceed as follows:
Insert the filter sponge without hole into the tube. Push
the filter sponge a few centimeters into the tube by using
the separating screen. Keep hold of the acrylic stick, and
insert the second filter media.
4. Push the filter sponge with hole onto the acrylic stick.
Put the screen insert on the acrylic stick and close the
body.
3.
1.
4.
(Fig. 4)
2.

10

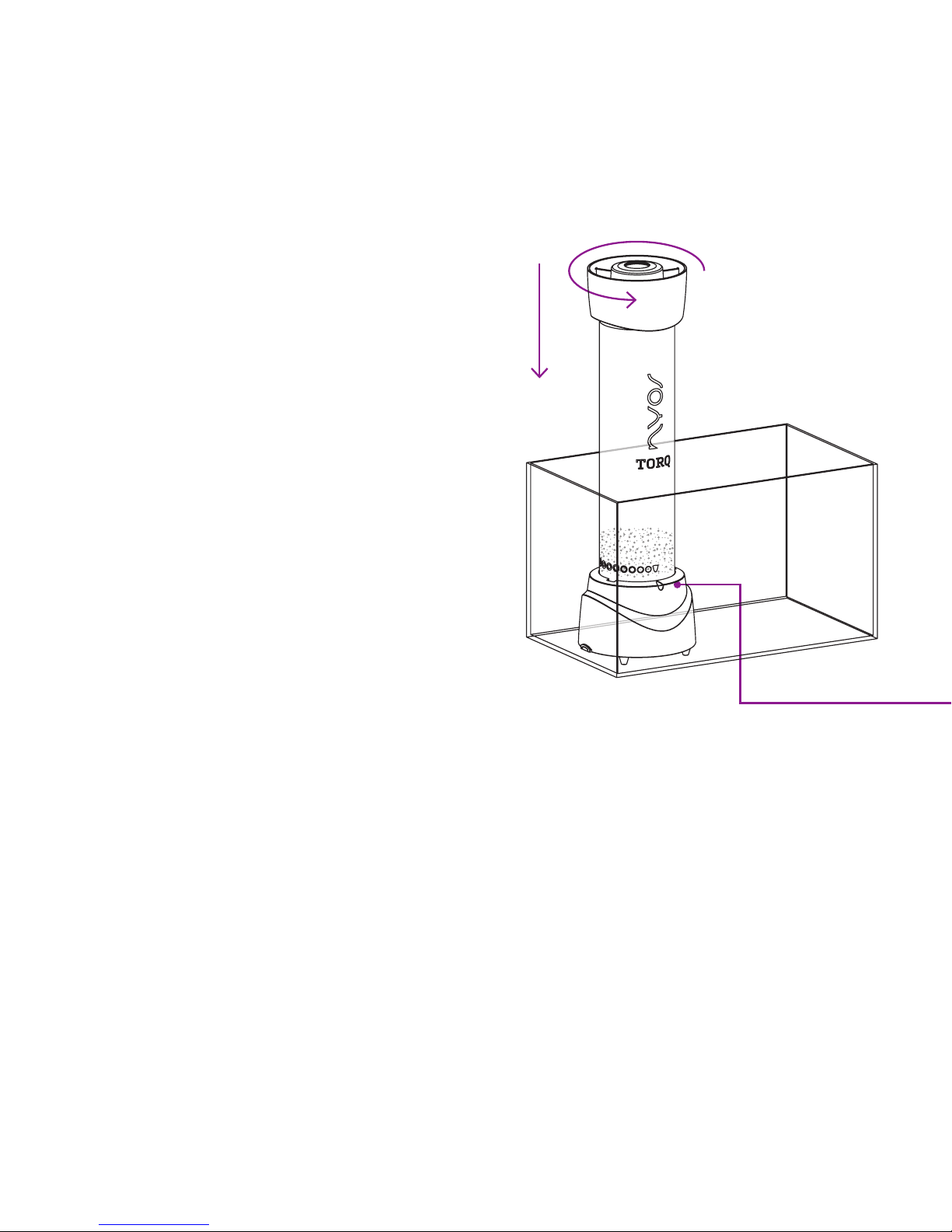

STEP 03 Insert body and start operation
• Place the filled body on the dock. The
body can only be placed on the dock if
the two violet markings point to each
other. This is the position for removal and
insertion. In this position, the flow rate
is zero.
• Plug in the pump. By turning the body
counter-clockwise, you can increase the
flow rate. The flow rate can be read from
the scale at the bottom end of the body.
• The filter media (exception: zeolite)
should be hold in suspense at all times. If
the filter media collects at the top spon-
ge, the flow rate is too high. If you cannot
detect any motion in the filter media, the
flow rate is too low.
(Fig. 5)

11
EN
• The Nyos®TORQ®media reactor was desi-
gned in such a way that it is virtually bub-
ble-free and silent at optimum use. This
requires a run-in period of several days.
A smear layer is created on the outside of
the body, so that the water fully moistens
the body.

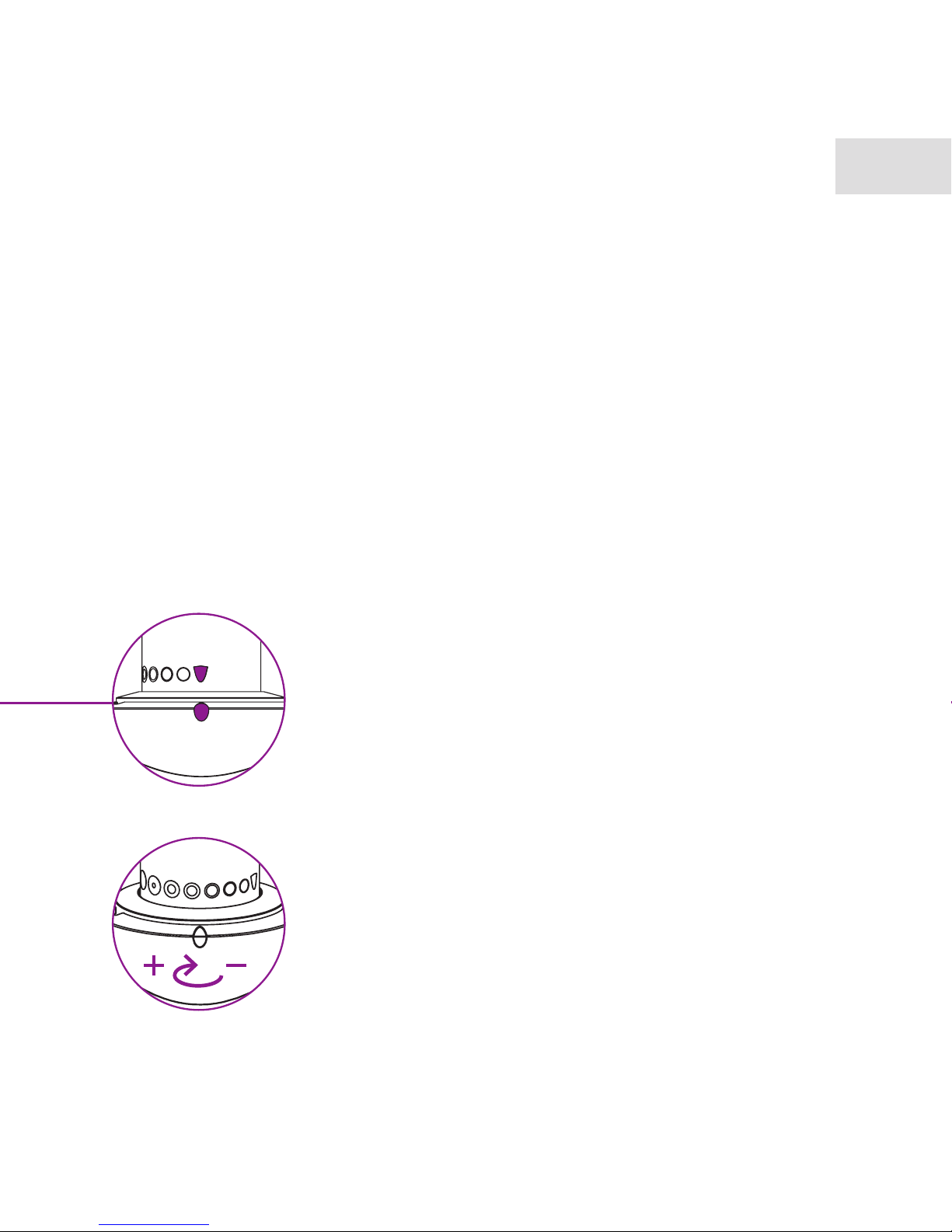

Removal position
Setting the flow rate
TIP
Within a few days a perfect smear layer will
appear if you leave the body in the sump for
a few days.

12
TORQ®Body 0.75 TORQ®Body 1.0 TORQ®Body 2.0
Usage of one filter media
Phosphate remover (Nyos®PHOSI-EX)
Maxium capacity 450 ml (15 fl oz) 750 ml (25 fl oz) 1.500 ml (50 fl oz)
Optimal capacity 350 ml (12 fl oz) 500 ml (17 fl oz) 1.000 ml (34 fl oz)
Tank size up to 675 l (180 gal) 1.125 l (300 gal) 2.250 l (600 gal)
Activated Carbon (Nyos®ACTIVE CARB)
Maxium capacity 650 ml (22 fl oz) 900 ml (30 fl oz) 1.800 ml (60 fl oz)
Optimal capacity 450 ml (15 fl oz) 650 ml (22 fl oz) 1.300 ml (44 fl oz)
Tank size up to 650 l (170 gal) 900 l (240 gal) 1.800 l (475 gal)
Zeolite (Nyos®ZEO)
Maxium capacity 750 ml (25 fl oz) 1.000 ml (34 fl oz) 2.000 ml (68 fl oz)
Tank size up to 300 l (80 gal) 400 l (100 gal) 800 l (200 gal)
Usage of two filter media
Phosphate remover (Nyos®PHOSI-EX)
Maxium capacity – 375 ml (12.5 fl oz) 750 ml (25 fl oz)
Optimal capacity – 250 ml (8.5 fl oz) 500 ml (17 fl oz)
Tank size up to – 550 l (145 gal) 1.125 l (300 gal)
Activated Carbon (Nyos®ACTIVE CARB)
Maxium capacity – 450 ml (15 fl oz) 900 ml (30 fl oz)
Optimal capacity – 300 ml (10 fl oz) 650 ml (22 fl oz)
Tank size up to – 450 l (120 gal) 900 l (240 gal)
Zeolite (Nyos®ZEO)
Maxium capacity – 500 ml (17 fl oz) 1.000 ml (34 fl oz)
Tank size up to – 200 l (50 gal) 400 l (100 gal)
RECOMMENDED MEDIA CAPACITIES AND TANK SIZES

PROBLEM CAUSE SOLUTION
Bubbles in the outlet and
splattering
Water does not fully moisten
the outside of the body
Wait for a few days (even after
cleaning) to allow the smear layer on
the outside of the body to regenerate
itself
Flow rate is too high Reduce flow rate
Alternatively: Fully insert the body
into the sump for a few days.
TORQ®is uneven Place TORQ®on an even surface
Filter media is not being properly
floated
Flow rate is too low Increase flow rate
Pump is clogged Clean the pump
Use of too much filter media Reduce amount of filter media
(see table on page 12)
Filter media collects at the top filter
sponge and clogs it
Flow rate is too high Reduce flow rate
Too much filter media is used Reduce amount of filter media
(see table on page 12)
Filter media goes into sump Filter media is too fine Use a larger filter media
If necessary add filter floss to the
lid (Fig. 6)
Flow rate is too high Reduce flow rate
Use of too much filter media Reduce the amount of filter media
(see table on page 12)
Lid or screen insert can only be pla-
ced on acryic tube with difficulty
Clamp effect too strong Rub the silicone rings with Vaseline,
silicone grease or similar
13
EN
FAQ AND TROUBLE SHOOTING

14
GENERAL INFORMATION
Emergency overflow
The lid of Nyos®TORQ®has an emergency overflow on the
top for when the filter sponge in the lid is clogged.
Using filter floss
For very dirty or abrasive filter media, you can use filter
floss in the free space of the lid (Fig. 6). Generally speaking,
however, this is not necessary.
Reducion in pump performance
At the time of delivery, the pump is set to a maximum per-
formance of 1.000 l/h (264 gph). Should you use very little
filter media in the long term, you can regulate your pump
downwards manually in order to achieve finer nuances in
the setting. To do this, please take the pump out of the
dock and turn the slider on the suction side of the pump.
Usually, however, this will not be necessary.

15
EN
MAINTENANCE AND CLEANING
• Nyos®TORQ®Bodies can be cleaned easily with tap water.
There is no need to use detergents.
• The grid of the pump should be cleaned regularly in order
to ensure constant performance. To do this, please remove
the pump from the dock. The grid of the pump can be
removed easily.
Filter floss in case of seve-
re soiling
(Fig. 6)

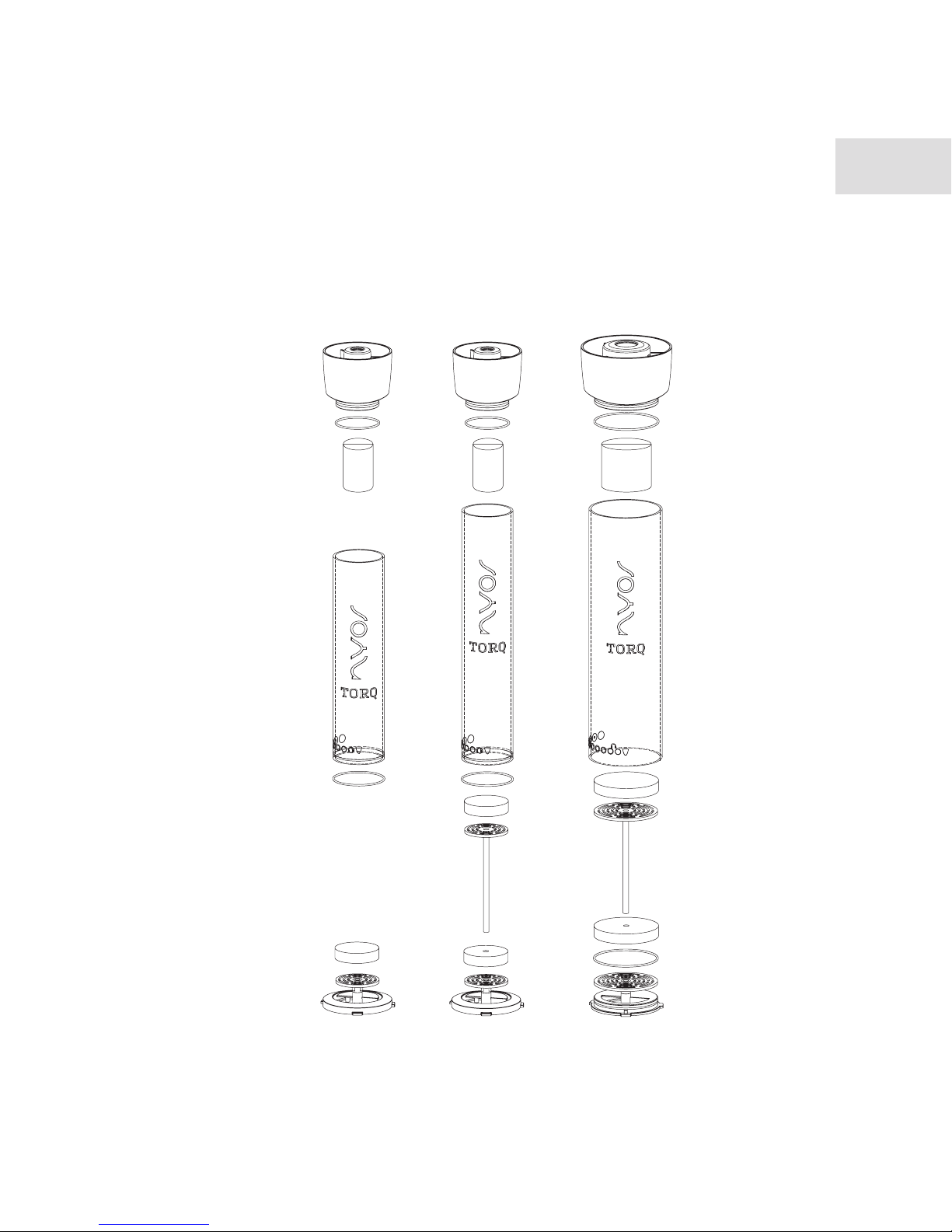

16
Number TORQ®Body 0.75 TORQ®Body 1.0 TORQ®Body 2.0
1Lid 70
Part No.: T-BSP_2511
Lid 70
Part No.: T-BSP_2511
Lid 100
Part No.: T-BSP_2528
2
Filter sponge for
lid 70
Part No.: T-BSP_2535
Filter sponge for
lid 70
Part No.: T-BSP_2535
Filter sponge for
lid 100
Part No.: T-BSP_2542
3
O-Ring
for lid 70
Part No.: T-BSP_2559
O-Ring
for lid 70
Part No.: T-BSP_2559
O-Ring
for lid 100
Part No.: T-BSP_2566
4Tube 750ml
Part No.: T-BSP_2573
Tube 1.000ml
Part No.: T-BSP_2580
Tube 2.000ml
Part No.: T-BSP_2597
5
Filter sponge without
hole 70
Part No.: T-BSP_2603
Filter sponge without
hole 70
Part No.: T-BSP_2603
Filter sponge without
hole 100
Part No.: T-BSP_2610
6
Separating screen
with acrylic stick 70
Part No.: T-BSP_2627
Separating screen
with acrylic stick 100
Part No.: T-BSP_2634
7
Filter sponge with
hole 70
Part No.: T-BSP_2641
Filter sponge with
hole 100
Part No.: T-BSP_2658
8Screen 70
Part No.: T-BSP_2665
Screen 70
Part No.: T-BSP_2665
Screen 100
Part No.: T-BSP_2672
9Insert 70
Part No.: T-BSP_2689
Insert 70
Part No.: T-BSP_2689
Insert 100
Part No.: T-BSP_2696
10
O-Ring
for insert 70
Part No.:T-BSP_2702
O-Ring
for insert 70
Part No.: T-BSP_2702
O-Ring
for insert 100
Part No.: T-BSP_2719
PARTS LIST TORQ®BODIES

17
EN
TORQ®Body 0.75 TORQ®Body 2.0TORQ®Body 1.0
4
5
5
6
7
7
8
9
8
9
1010
10
6
8
9
4 4
3 33
5
2 2
11
2
1
EXPLODED DRAWINGS TORQ®BODIES

18
17
16
15
11
12, 13, 14
18
Number TORQ®Dock
11 Motor block
Part No.: T-DSP_Motor
12 Impeller
Part No.: T-DSP_Imp
13 Shaft
Part No.: T-DSP_2740
14 Bearing
Part No.:T-DSP_2757
15
Pump housing with
slider
Part No.: T-DSP_2764
16 Dock housing
Part No.:T-DSP_2771
17 Dock base plate
Part No.:T-DSP_2788
18 Silicone feet
Part No.: T-DSP_2795
PARTS LIST AND EXPLODED DRAWING TORQ®DOCK
TORQ®DOCK

19
EN
NOTES

www.facebook.com/nyos.aquatics
Manufactured by
Nyos®Aquatics GmbH,
Siemensstr. 26,
70825 Korntal-Muenchingen, Germany
www.nyos.info, [email protected]
Patents pending in EU, US and elsewhere. TORQ®is a protected
trademark of Nyos®Aquatics GmbH.
