NZ MADE EDEN 5 DRAWER TALLBOY User manual

Job No.
Instruction Manual
NZ Made
EdEN 5 Drawer Tallboy
C o n g r a t u l a t I o n s on t h e p u r c h a s e
of y o u r …….

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
……your furniture is manufactured right here in New Zealand - by New Zealanders, for New Zealanders. Honest Kiwi Quality that
is backed by our signature 5 Year Guarantee*. If by any chance you have a problem during this period, OUR promise to YOU is
that we will repair or replace. Additionally, being based right in here New Zealand our experienced team’s expertise is near at
hand; if you have any problems at all during the assembly process, you can give us a call on our Freephone number (0800
100858) or email us at [e-mail] during normal working hours and we will be happy to step you through the
process.
Constructed from NZ made MDF, a renewable resource from sustainably managed pine forests. This means you can have
complete confidence that with This white bedroom collection, you are making an environmentally responsible choice.
If you have any questions please visit www.compacfurniture.co.nz or call the manufacturers direct on 0800 100 858.
WHERE TO ASSEMBLE YOUR Cabinet
Assemble your Tallboy on a clean and smooth surface, free of anything which may damage the finished surfaces. A clean,
carpeted floor is ideal. If assembling on a workbench or table we suggest you cover it with the carton the Tallboy was packaged
in.
Warning! Never leave hardware parts where children can reach them. Small parts may be a choking hazard!
*5 YEAR GUARANTEE
Your furniture carries a 5-year guarantee against defective material or workmanship, excluding misuse and normal wear and
tear. As this unit is customer-assembled our guarantee does not cover cabinet failure or damage from incorrect assembly. All
claims need proof of purchase – please keep a copy of your receipt.
Follow the assembly instructions carefully and take note of the precautions below.
•Avoid direct sunlight wherever possible.
•Keep cabinet in a dry place.
•Wipe off spilt liquids immediately.
•Avoid placing hot items directly on the surface.
•Clean with a slightly damp cloth and buff dry with a soft dry cloth - microfibre is ideal.
•Do not allow nail polish, removers, deodorant or other damaging chemicals to come into contact with the
surface.
Did you know……

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
PARTS LIST
Please check you have all the necessary parts before beginning to assemble your cabinet. The measurements provided will help
you to identify each part. If any parts are missing or damaged please contact the manufacturers directly, either via our website
or our 0800 number. Do not call the store you bought the cabinet from as they will be unable to help you.
QTY PART NAME MEASUREMENTS NOTES
1
Top
775 x 396 x 15mm
Finished on one side. Blue mark.
1 LH End 1123 x 378 x 15mm Finished on both sides. Green mark.
1 RH End 1123 x 378 x 15mm Finished on both sides. Red mark.
1 Back Panel 698 x 339 x 4 Plain MDF.
1 Toeboard 738 x 80 x 15 Finished on one side.
4 Drawer Rails 738 x 50 x 15mm Finished on one side.
2 Back Rails 738 x 80 x 15mm Plain MDF.
DRAW PARTS
5 LH Drawer Sides 340 x 135 x 12 Plain MDF. Green mark.
5 RH Drawer Sides 340 x 135 x 12 Plain MDF. Red mark.
5 Drawer Fronts 764 x 189 x 15 Finished on one side.
5 Drawer Backs 688 x 130 x 12 Plain MDF.
5 Drawer Bottoms 698 x 339 x 4 Plain MDF.
COLOUR CODING
To help identify the parts, the main components are colour coded with a pen mark on the back edge of the panel. (The
unfinished edge.)
RED Right Hand Parts. (E.g. RH End, RH Division, RH Drawer Side.)
GREEN Left Hand Parts. (E.g. LH End, LH Division, LH Drawer Side.)
BLUE Tops

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

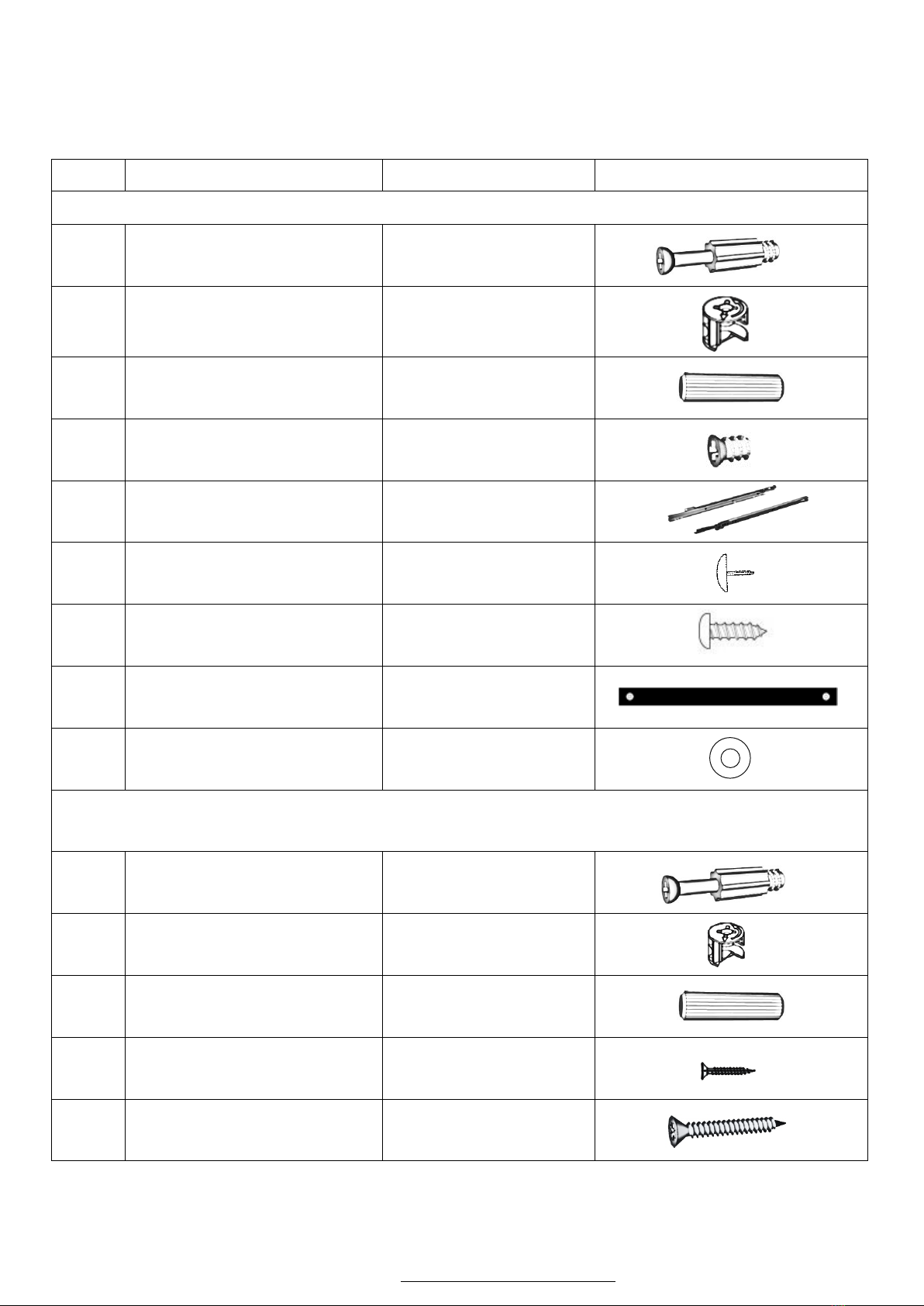

HARDWARE LIST
QTY
PART NAME
ASSEMBLY CODE
CABINET HARDWARE
18 Connecting Bolts H1
18 15mm Cams H2
18 Large Dowels H15
20 Drawer Slide Screws H4
5 Metal Drawer Slide sets H21
4 Nail on glide feet H37
5 Pan head Screw H7
1 Safety strap
2 Washer
DRAWER HARDWARE
15 Connecting Bolts H1
15 12mm Cams H3
10 Large Dowels H15
20 Small Screws H6
25 Gold Screws H9

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

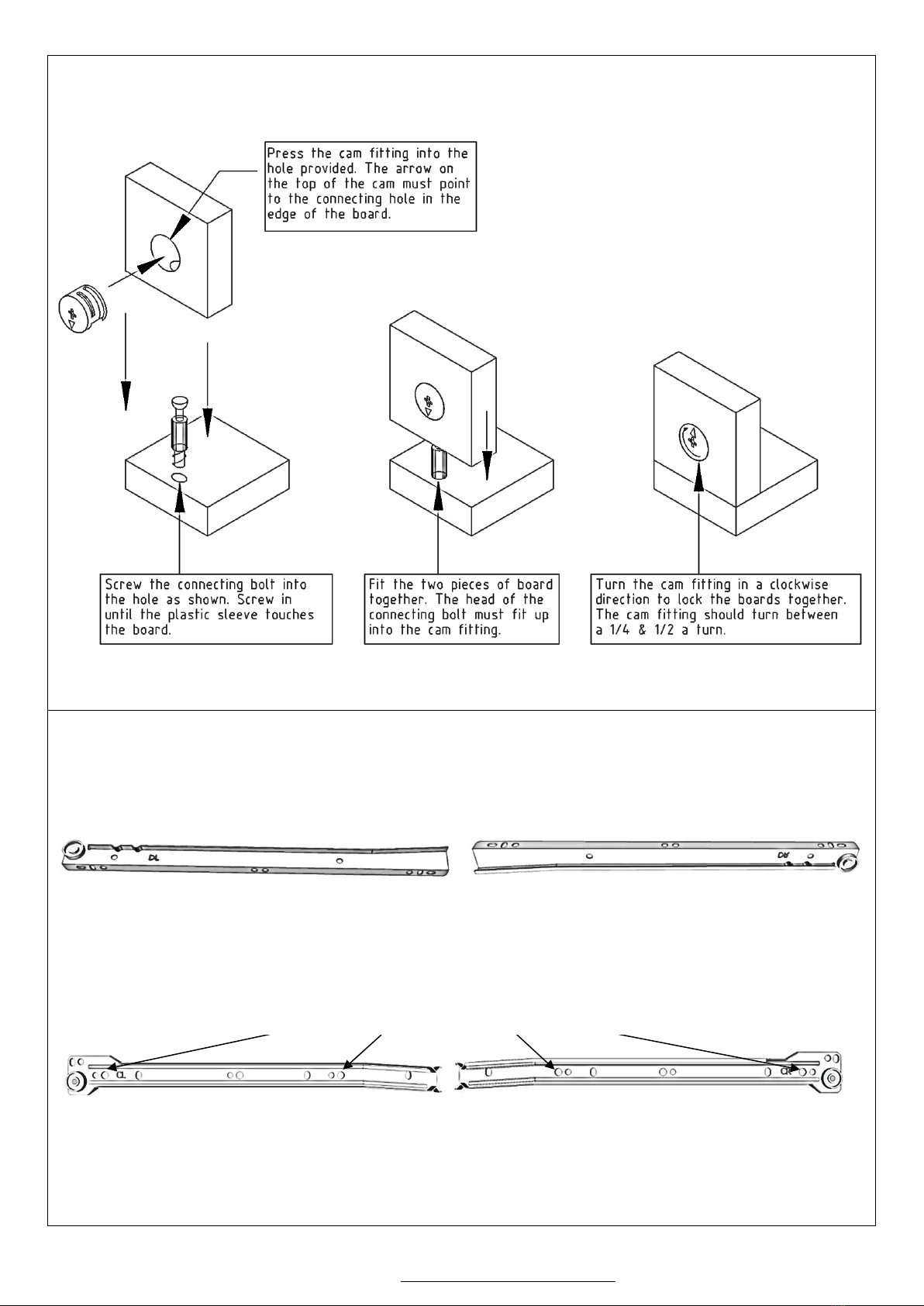

CAM INSTALLATION & OPERATION GUIDE
The Cam and Connecting Bolt system is used to put your unit together. Below is an explanation of how this system works.
To see a demonstration, click on the assembly assistance tab at www.compacfurniture.co.nz.
DRAWER SLIDES GUIDE
Your pack will contain 5 sets of Metal Drawer Slides. These are bundled together with adhesive tape. Each set comprises of 4
components. Undo the tape on one set at a time and separate the parts.
LEFT HAND PART (DL) RIGHT HAND PART (DR)
The Drawer Slide components shown above are attached to the drawer. They have the letters DL or DR stamped on them to
indicate left hand or right hand components. Put these parts aside for attaching to the drawer later on.
LEFT HAND PART (CL) RIGHT HAND PART (CR)
The Drawer Slide components shown above are to be attached to the cabinet. They have letters CL or CR stamped on them to
indicate left hand or right hand components. You will need these for steps 2 and 3.
Use these holes

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
INSTALL THE HARDWARE

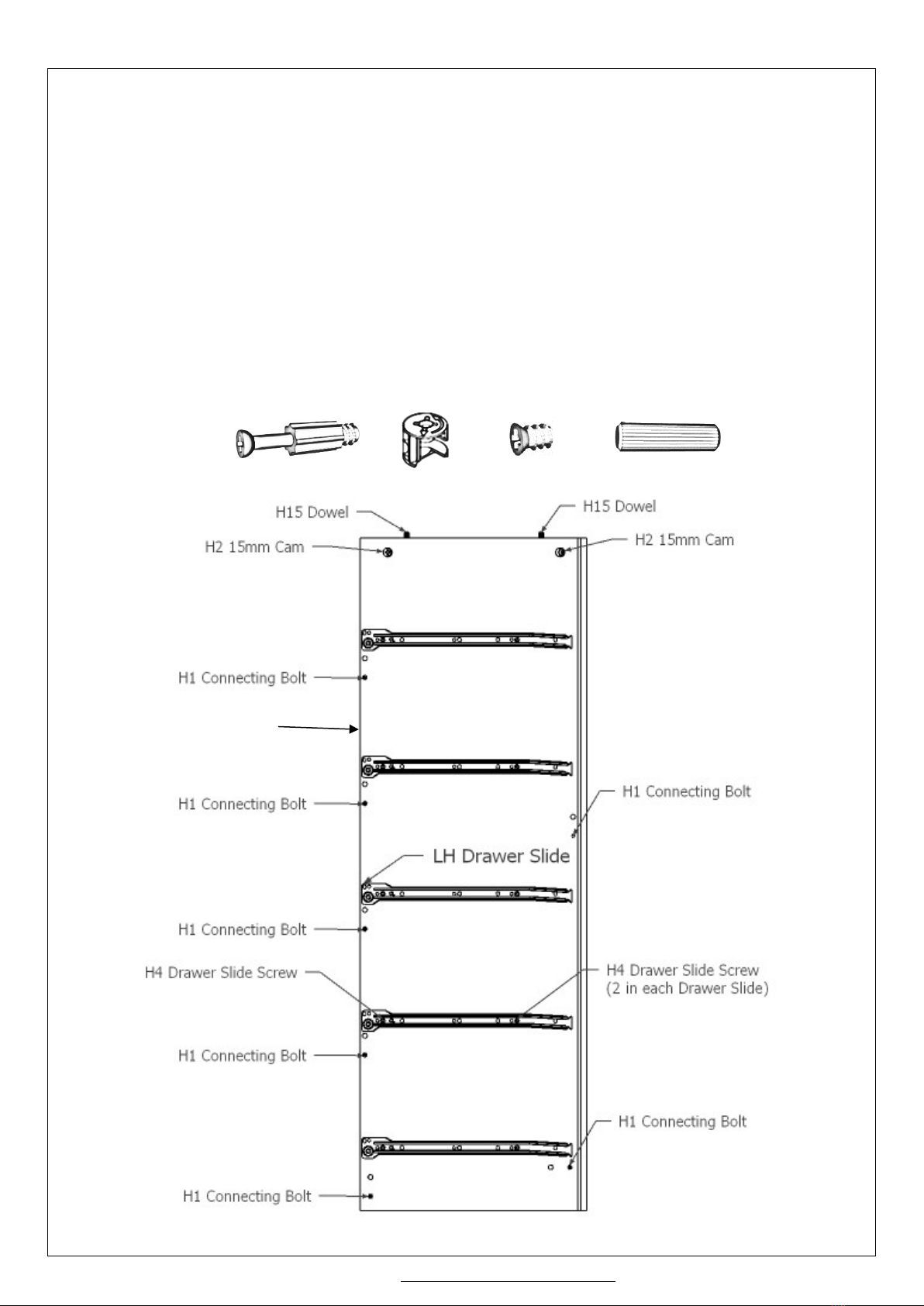

STEP 1 – LH End
•Lay the LH End on a smooth clean surface with holes facing upwards.
•Attach five LH Drawer Slides (CL) to the LH End using the H4 Drawer Slide Screws. Use the holes as indicated in
the diagram below - each slide requires two screws. Ensure that the end of the Slide with the wheel faces towards
the finished edge of the LH End.
•Insert two H2 Large Cams as shown in diagram. Ensure the arrow on the top of the Cam points towards the top edge
of the End.
•Push two H15 Dowels into the top edge of the End.
•Screw five H1 Connecting Bolts into the holes indicated on the diagram below.
H1
H2
H4
H15
Front Edge

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

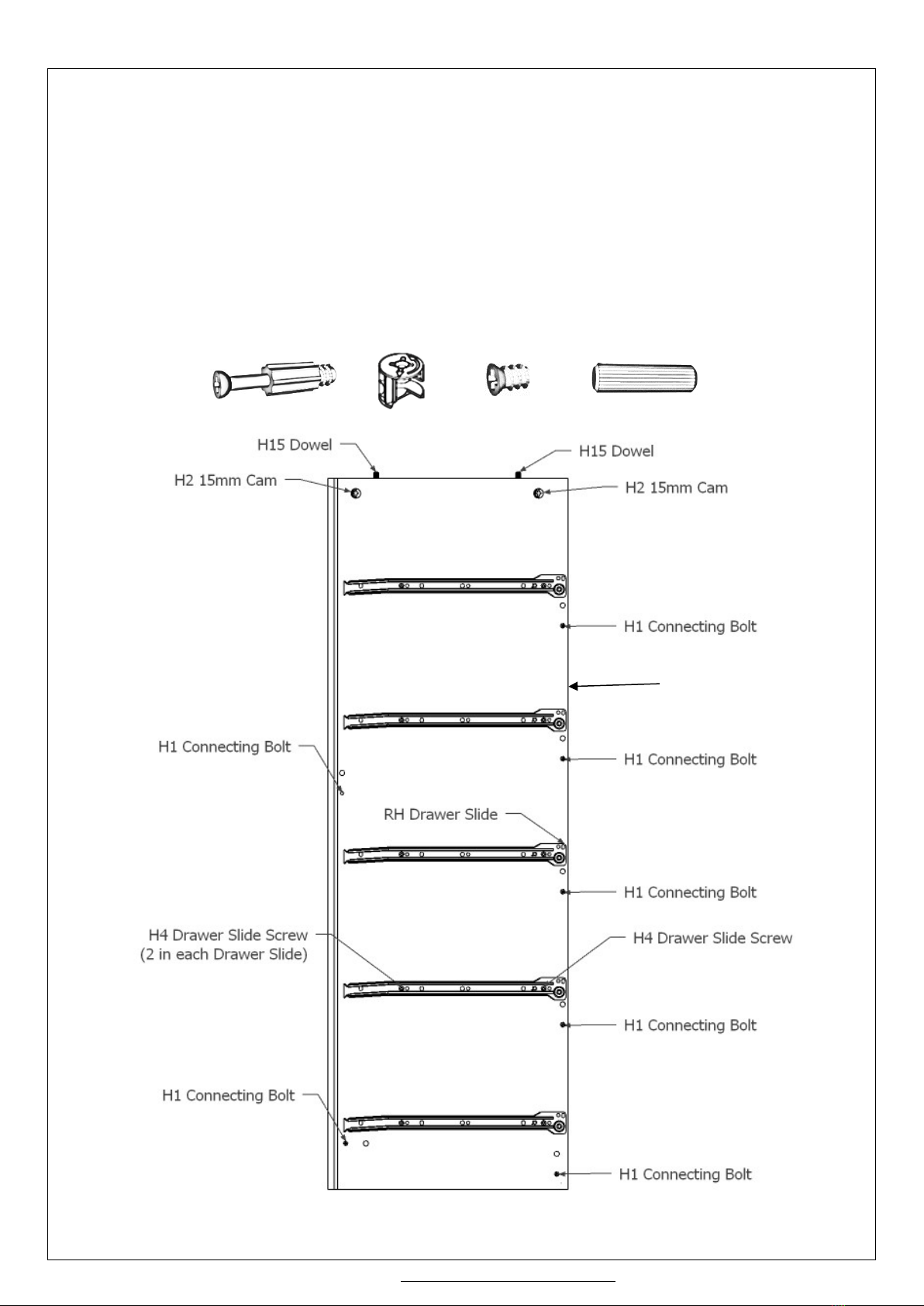

STEP 2 – RH END
•Lay the RH End on a smooth clean surface with holes facing upwards.
•Attach five RH Drawer Slides (CR) to the RH End using the H4 Drawer Slide Screws. Use the holes as indicated
in the diagram below - each slide requires two screws. Ensure that the end of the Slide with the wheel faces
towards the finished edge of the LH End.
•Insert two H2 Large Cams as shown in diagram. Ensure the arrow on the top of the Cam points towards the top edge
of the End.
•Push two H15 Dowels into the top edge of the End.
•Screw five H1 Connecting Bolts into the holes indicated on the diagram below.
H1
H2
H4
H15
Front Edge

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

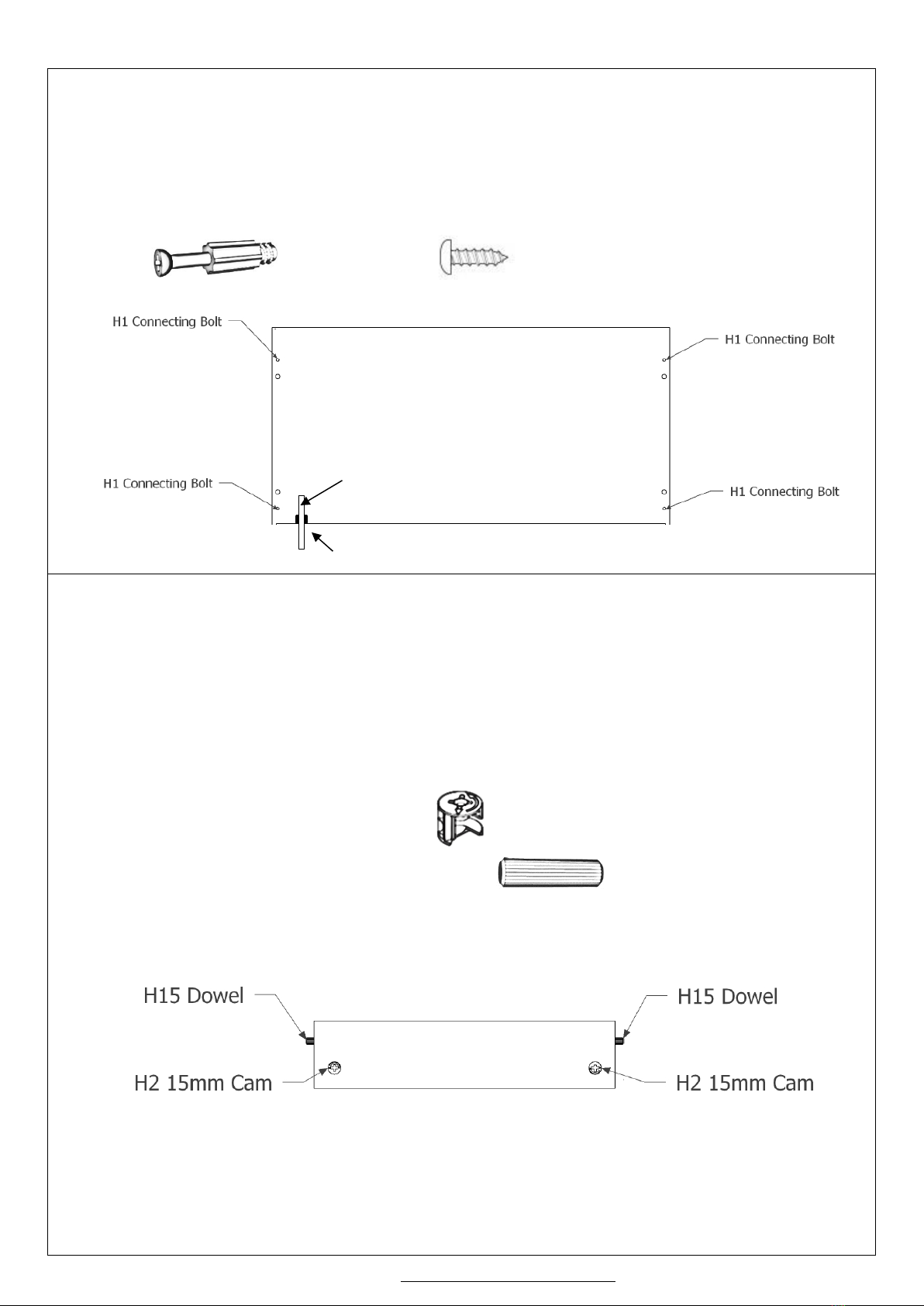

STEP 3 – TOP
•Lay the Top of the unit finished side down on a clean, clear surface.
•Screw four H1 Connecting Bolts into the holes indicated in the drawing below.
•Using the Pan head screw, attach the Safety Strap as shown by screwing it first through the washer and then through
the eyelet in the Strap, into the hole in the left-hand side of the Top. Make sure that the Strap is positioned so that the
tail end falls through the hole in the edge of the Top as shown below.
STEP 4 – RAILS AND TOEBOARDS
Your pack will contain:
•4 x Drawer Rails
•1 x Toeboard
•2 x Back Rails
To distinguish the difference between the various boards, please see the parts list on page three if this instruction booklet.
•Install two H2 Cams into each piece as indicated
•Push the H15 Dowels into each of the boards as indicated
The hardware is installed into each board in the same manner.
H2 Large Cams
H15 Dowels
H1 Connecting Bolt
H7 Pan head
Safety Strap
Screw the H7 Pan head screw through
the washer

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
ASSEMBLE THE UNIT
STEP 5 – RAILS AND TOEBOARDS
Please see Parts list to distinguish the difference between the parts.
•Lay the LH End finished side down on a clean surface that is free of anything that may damage the woodgrain
finish. A clean carpeted floor is ideal for this.
•Position the Drawer Rails and Toeboard and Back Rails over the Connecting Bolts installed in the End – take note of
the
drawing below to get them in the correct place. Ensure the finished surface of the Toeboard faces towards the
Front Edge of the unit so the cams cannot be seen when the unit is completed. Make sure the Large Cams face
towards the top of the End.
•Tighten all three Cams in a clockwise direction to lock Rails and Toeboards to the LH End. The Large Cams should
turn at least a ¼ of a turn.
Back Rails
Drawer Rails

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
STEP 6 – ATTACH RH END
•Fit the RH End to the Rails and Toeboards as shown in the drawing below.
•Lock the RH End to the Rails and Toeboards by tightening all the Cams in the Rails and
Toeboards in a clockwise direction
RH End
LH End

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

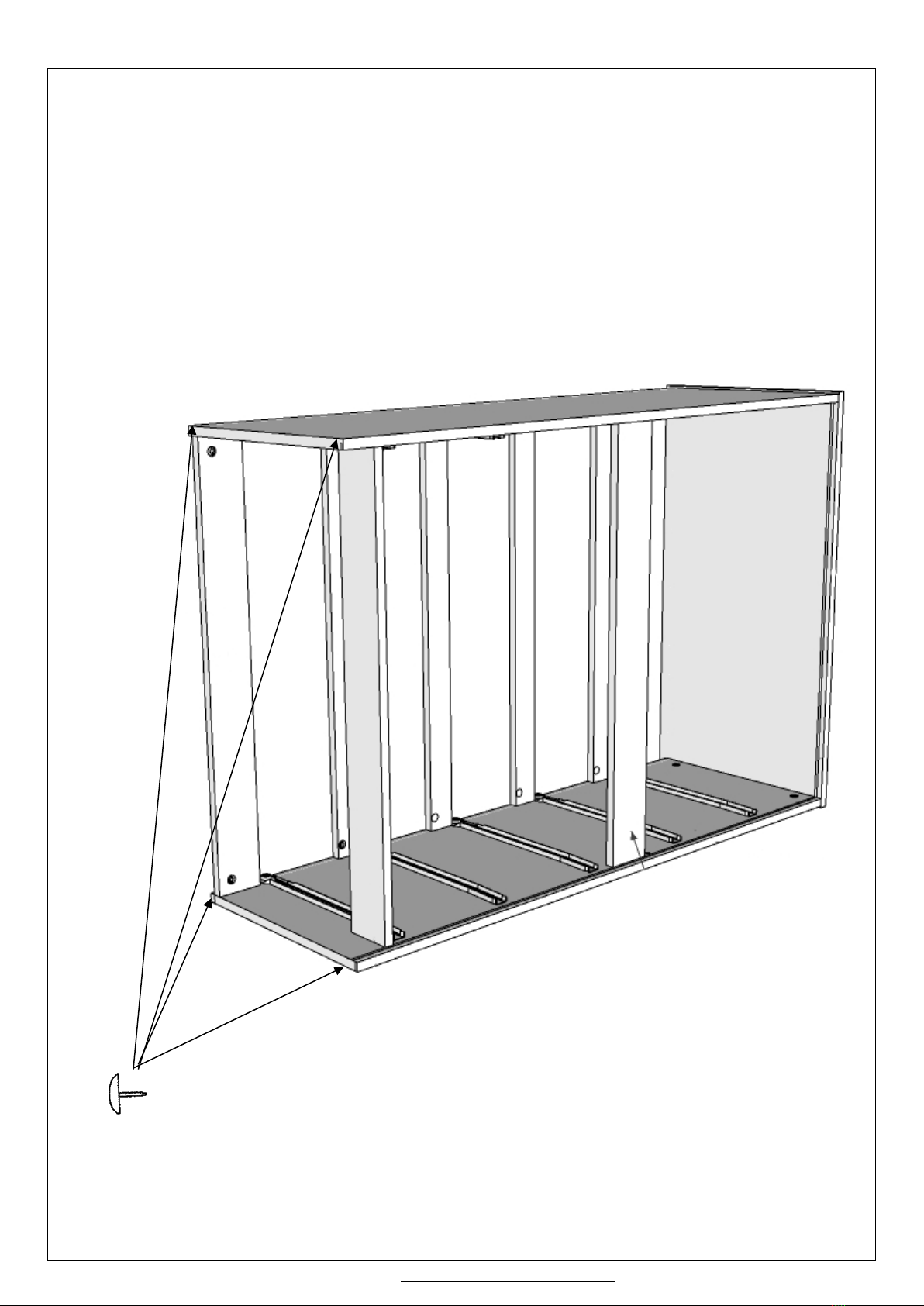

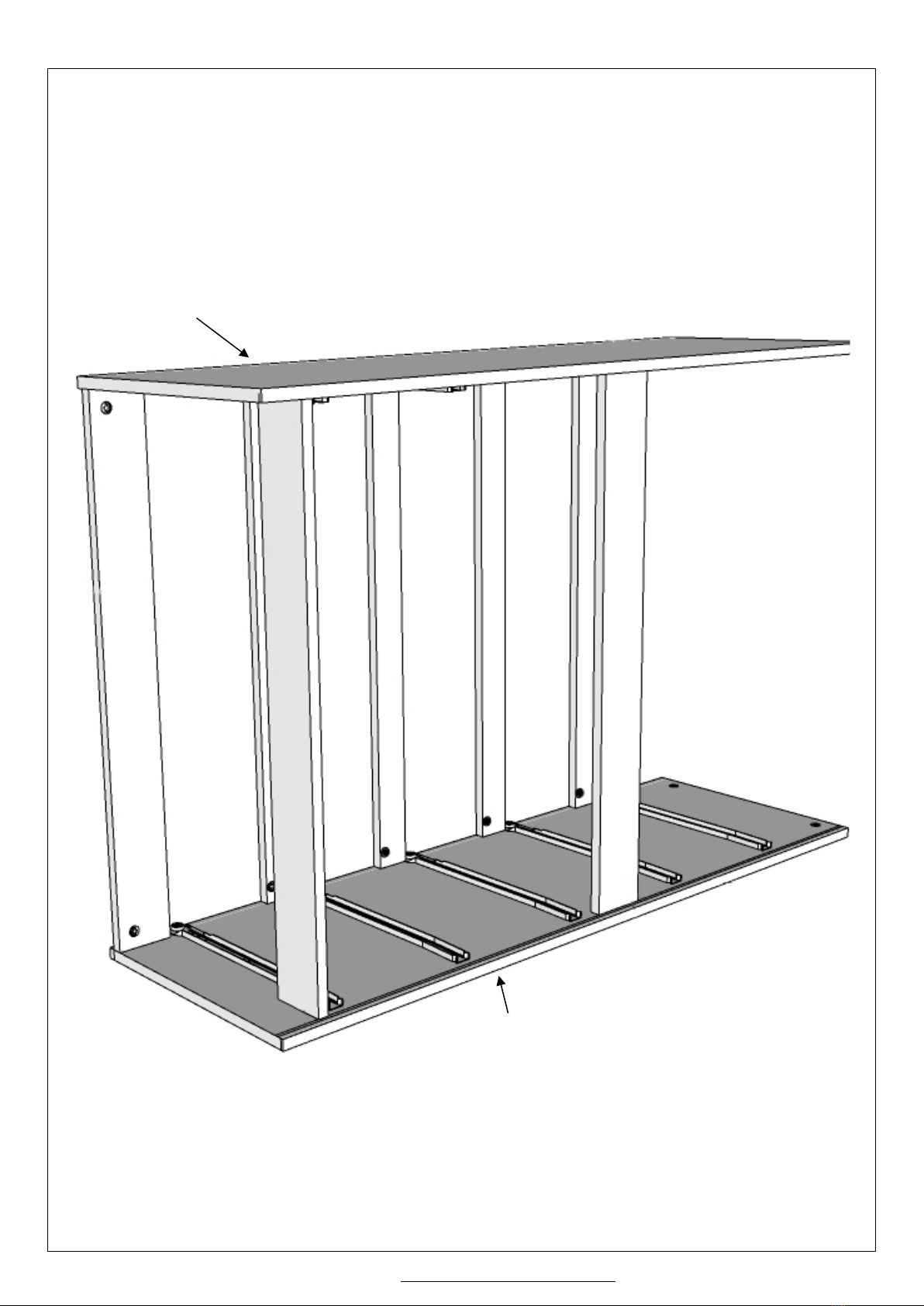

STEP 7 – ATTACH TOP TO ENDS
•Fit it the Top onto the Ends as shown below. The Connecting Bolts in th e To p will fit into the Cams in the
Ends.
•Turn all four Cams in a clockwise direction to lock the Top to the Ends.
•Tap the 4 x Nail on Furniture Glides into the end of the Ends. Space them about 20mm in from the edge.
Nail on Furniture Glides

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

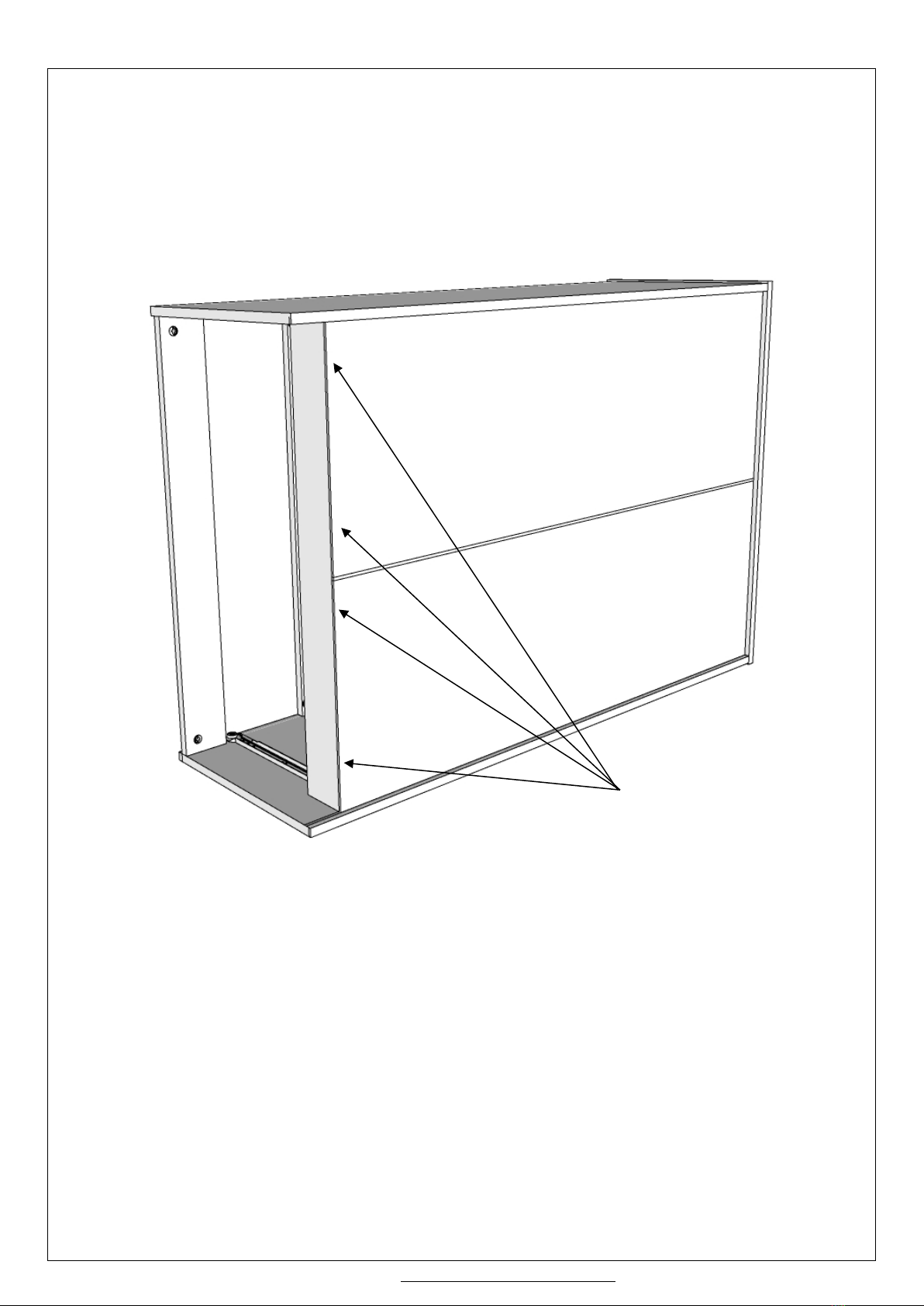

STEP 8 – BACK PANEL
•Slide the Back Panel into place between the two grooves in the Ends. This will fit into the groove in the Top.
•Screw the Back Panel to the Brace Rail as shown below, using the H7 Panhead Screws and the pre-drilled holes.
•Carefully stand the Tallboy upright.
H7 Panhead Screws

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
ASSEMBLE THE DRAWERS
Your tallboy has five drawers. All Drawers are constructed from the same parts and are therefore assembled the same way.

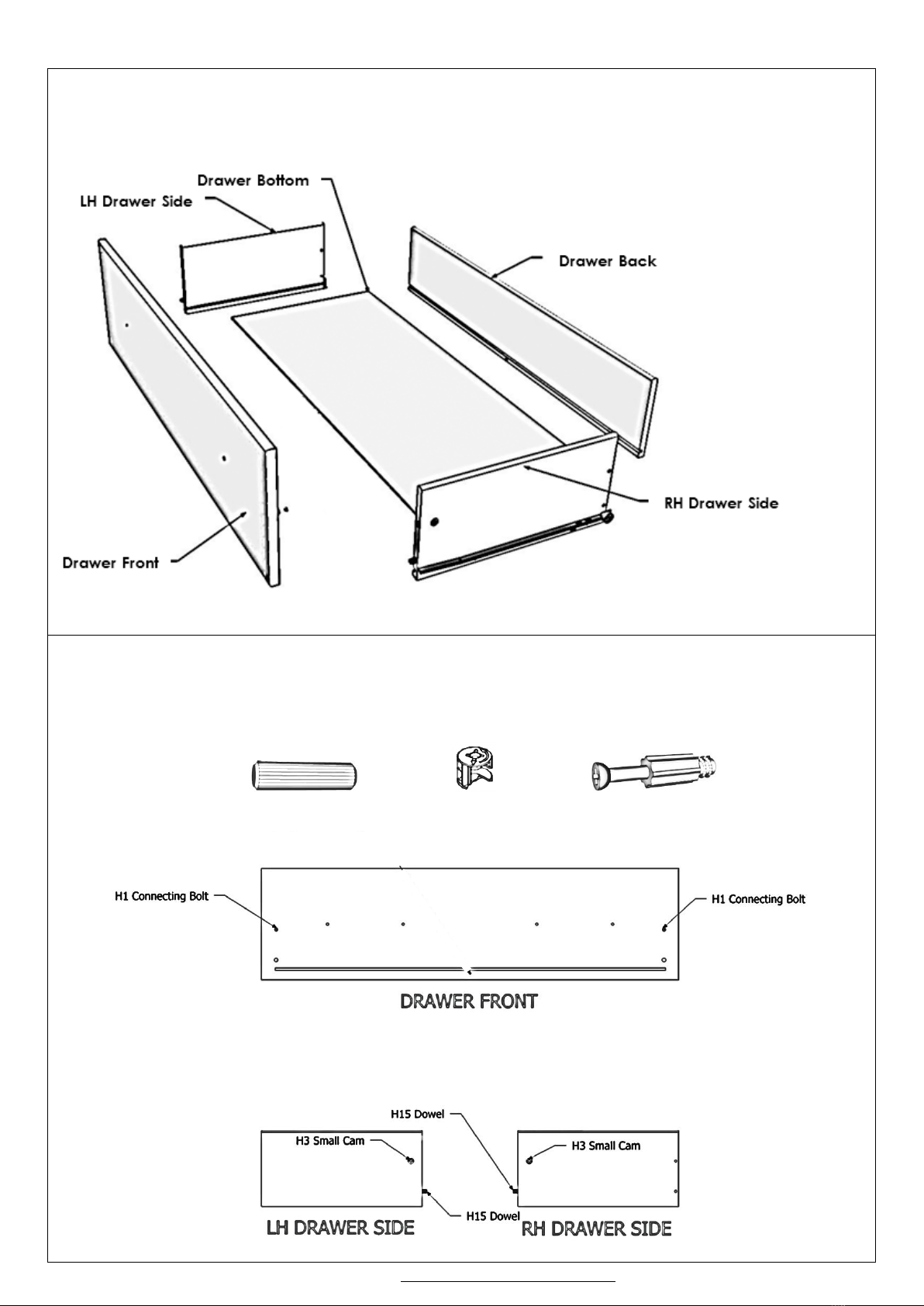

STEP 9 - INSTALL HARDWARE /DRAWERS
•Install the hardware in the drawer parts as shown below.NOTE: Be sure that the arrow on the Small Cam points to the
end of the drawer side nearest it.
H15H3 H1
H15 Dowel
DRAWER FRONT
H1 Connecting Bolt
RH DRAWER SIDE
LH DRAWER SIDE
H1 Connecting Bolt
H3 Cam
H3 Cam
H3 Cam
H15 Dowel
H1 Connecting Bolt
DRAWER BOTTOM SUPPORT

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

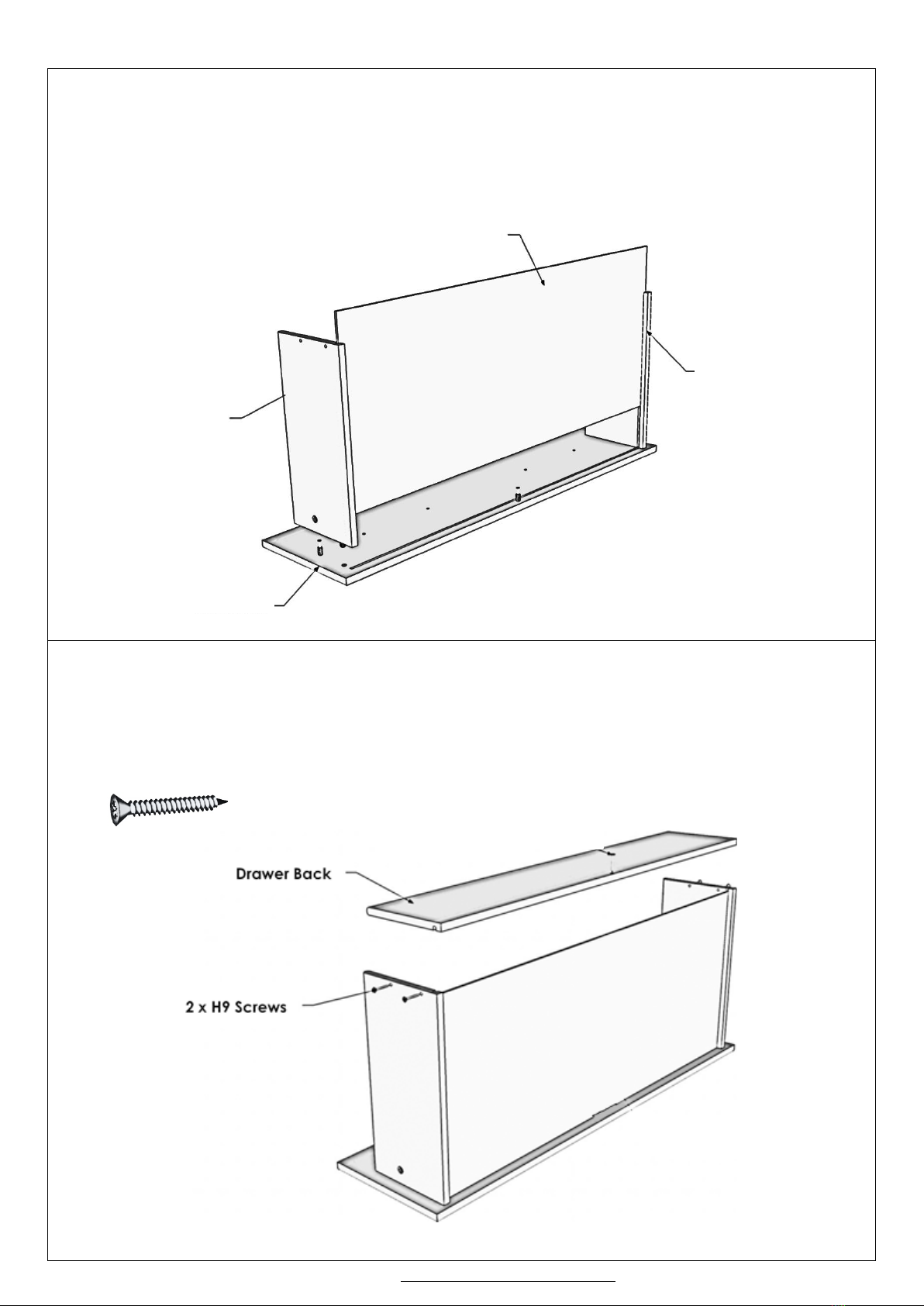

STEP 10 – sides and bottom
•Lay the Drawer Front face down on a smooth, clean surface.
•Attach the LH and RH Drawer Sides by fitting them into place over the Connecting Bolts installed in the Drawer Front.
•Turn the Small Cams clockwise to lock the Drawer Sides in place.
•Slide the Drawer Bottom into place in the grooves in the Drawer Sides and Drawer Front.
STEP 11 - ATTACH DRAWER BACK
•Fit the Drawer Back into place between the Drawer Sides. The groove in the Drawer Back will fit over the end of the
Drawer Bottom.
•Secure the Drawer Sides to the Drawer Back with five H9 Screws as shown below.
Drawer Bottom
RH Drawer Side
LH Drawer Side
Drawer Front
H9
Screw

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

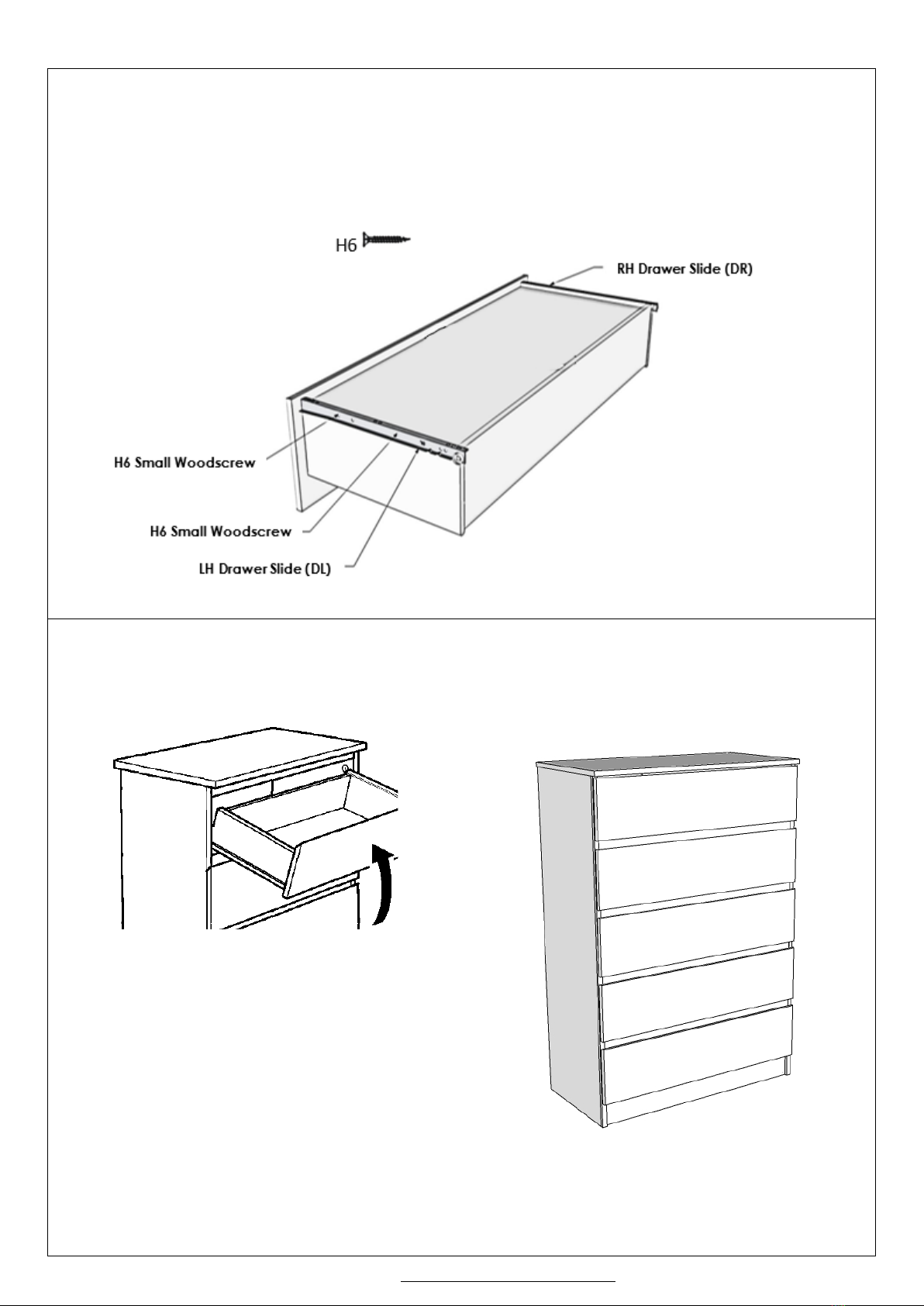

STEP 12 - ATTACH THE DRAWER SLIDES
•Turn the drawer upside-down as shown and attach the Drawer Slides (DR and DL) with the four H6 Small Woodscrews
as shown below. Ensure that the ends of the slides without the wheels are hard up against the back of the Drawer Front
as shown. Each slide requires two screws.
STEP 13 - ATTACH HANDLES AND FIT DRAWERS INTO CABINET
•Fit the drawers into the cabinet. Start with the top drawers and work your way down.
Angle the drawer slightly to ensure that the wheel
at the back of the drawer slide goes behind the
front wheel on the cabinet slide. Then lift the
drawer up and slide it into the channel of the
drawer slide.

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
STEP 14 – ATTACH SAFETY STRAP AND SECURE TO WALL
Compac Furniture strongly recommends using a Safety Strap on all furniture, especially if small
children are around.
Secure your unit to the wall using the Safety Strap and a screw suitable for your wall (not supplied).
We recommend you screw into a stud. If you cannot locate a stud, use a wall anchor appropriate for
your wall.
Please note: This is a precautionary measure. The use of tip-over restrains may only reduce but not
eliminate the risk of tip over. Compac Furniture can take no responsibility.
CONGRATULATIONS, YOUR EDEN 5 Drawer Tallboy IS NOW COMPLETE.
THANK-YOU FOR SUPPORTING NEW ZEALAND MADE FURNITURE
Top
Wall
Use a screw suitable
for your wall (not
supplied)
Fabric Strap
(supplied)
Washer (supplied)
2. Slide unit sideways to cover the Strap once installed.
1. Screw through the washer then the strap into the wall at one side
of the unit.
