NZ MADE EDEN 6 DRAWER LOWBOY User manual

Job No. 203193
Instruction Manual
NZ Made
EDEN 6 Drawer Lowboy
C o n g r a t u l a t I o n s on t h e p u r c h a s e of
y o u r …….

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
……your furniture is manufactured right here in New Zealand - by New Zealanders, for New Zealanders. Honest Kiwi Quality that
is backed by our signature 5 Year Guarantee*. If by any chance you have a problem during this period, OUR promise to YOU is
that we will repair or replace. Additionally, being based right in here New Zealand our experienced team’s expertise is near at
hand; if you have any problems at all during the assembly process, you can give us a call on our Freephone number (0800
100858) or email us at [e-mail] during normal working hours and we will be happy to step you through the
process.
Constructed from NZ made MDF, a renewable resource from sustainably managed pine forests. This means you can have
complete confidence that with This white bedroom collection, you are making an environmentally responsible choice.
If you have any questions please visit www.compacfurniture.co.nz or call the manufacturers direct on 0800 100 858.
WHERE TO ASSEMBLE YOUR Cabinet
Assemble your Lowboy on a clean and smooth surface, free of anything which may damage the finished surfaces. A clean,
carpeted floor is ideal. If assembling on a workbench or table we suggest you cover it with the carton the Lowboy was packaged
in.
Warning! Never leave hardware parts where children can reach them. Small parts may be a choking hazard!
*5 YEAR GUARANTEE
Your furniture carries a 5-year guarantee against defective material or workmanship, excluding misuse and normal wear and
tear. As this unit is customer-assembled our guarantee does not cover cabinet failure or damage from incorrect assembly. All
claims need proof of purchase –please keep a copy of your receipt.
Follow the assembly instructions carefully and take note of the precautions below.
•Avoid direct sunlight wherever possible.
•Keep cabinet in a dry place.
•Wipe off spilt liquids immediately.
•Avoid placing hot items directly on the surface.
•Clean with a slightly damp cloth and buff dry with a soft dry cloth - microfibre is ideal.
•Do not allow nail polish, removers, deodorant or other damaging chemicals to come into contact with the
surface.
Did you know……

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
PARTS LIST
Please check you have all the necessary parts before beginning to assemble your cabinet. The measurements provided will help
you to identify each part. If any parts are missing or damaged please contact the manufacturers directly, either via our website
or our 0800 number. Do not call the store you bought the cabinet from as they will be unable to help you.
QTY
PART NAME
MEASUREMENTS
NOTES
1
Top
1143 x 396 x 15
Finished on one side. Blue mark.
1
LH End
699 x 378 x 15
Finished on both sides. Green mark.
1
RH End
699x 378 x 15
Finished on both sides. Red mark.
2
Toeboards
538 x 80 x 15
Finished on one side.
2
Back Rails
538 x 80 x 15
Plain MDF.
4
Drawer Rails
539 x 50 x 15
Finished on one side.
6
Drawer Fronts
564 x 189 x 15
Finished on one side.
6
LH Drawer Sides
340 x 135 x 12
Plain MDF. Green mark.
6
RH Drawer Sides
340 x 135 x 12
Plain MDF. Red mark.
6
Drawer Backs
488 x 130 x 12
Plain MDF.
6
Drawer Bottoms
498 x 339 x 4
Plain MDF.
1
Back Panel
644 x 1126 x 4
Plain MDF.
1
LH Division
699 x 362 x 15
Finished on both sides. Green mark.
1
RH Division
699 x 362 x 15
Finished on both sides. Red mark.
COLOUR CODING
To help identify the parts, the main components are colour coded with a pen mark on the back edge of the panel. (The
unfinished edge.)
RED Right Hand Parts. (E.g. RH End, RH Division, RH Drawer Side.)
GREEN Left Hand Parts. (E.g. LH End, LH Division, LH Drawer Side.)
BLUE Tops

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

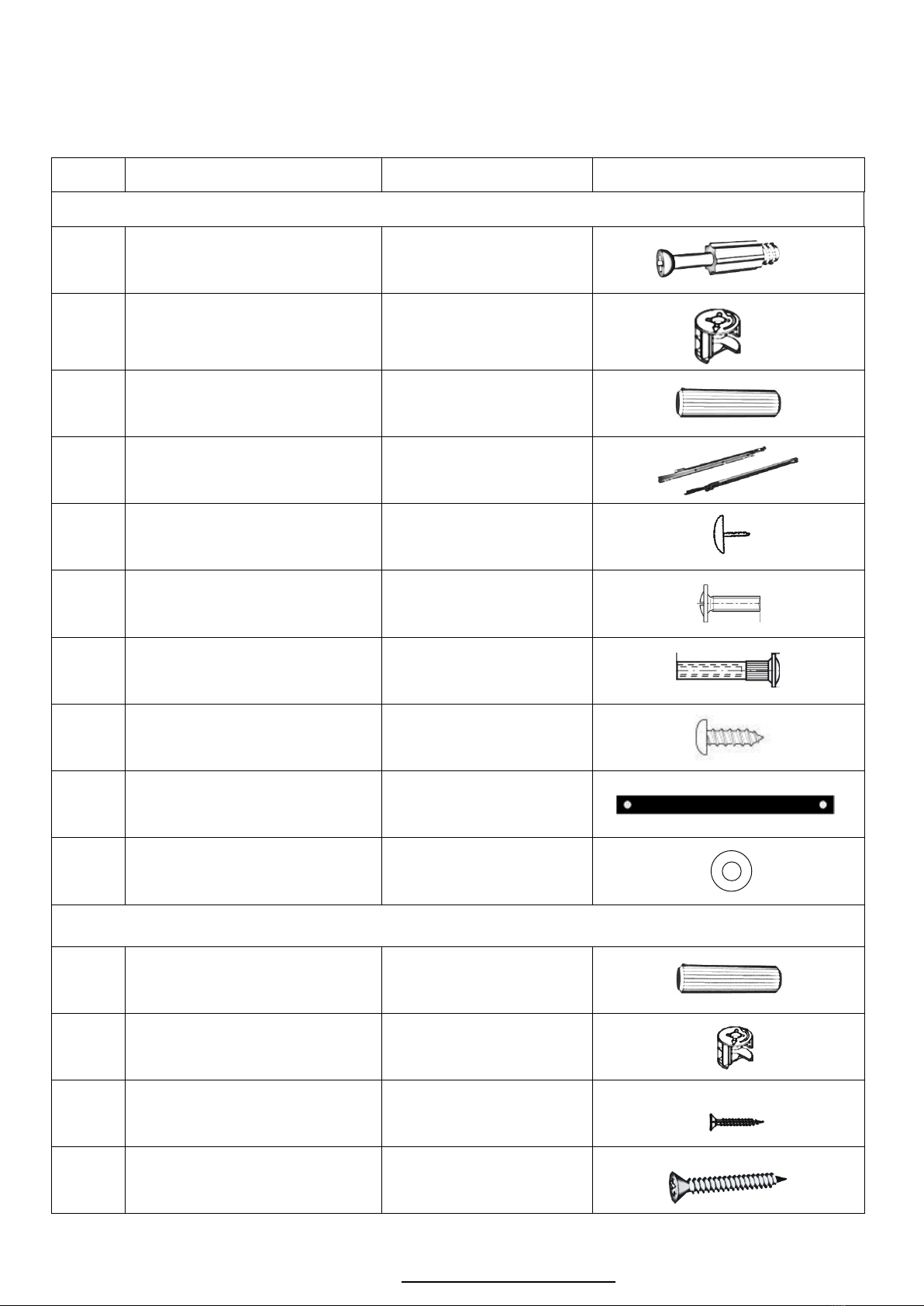

HARDWARE LIST
QTY
PART NAME
ASSEMBLY CODE
CABINET HARDWARE
24
Connecting Bolts
H1
24
15mm Cams
H2
24
Large Dowels
H15
6
Metal Drawer Slide sets
H21
8
Nail on Glides
H37
2
15mm Connecter Screw
2
Connecter Sleeve
4
Pan Head Screw
H7
1
Safety Strap
2
Washer
DRAWER HARDWARE
12
Large Dowels
H15
16
Small Cams
H3
24
Small Screws
H6
28
Gold Screw
H9

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
CAM INSTALLATION & OPERATION GUIDE
The Cam and Connecting Bolt system is used to put your unit together. Below is an explanation of how this system works.
To see a demonstration, click on the assembly assistance tab at www.compacfurniture.co.nz.

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

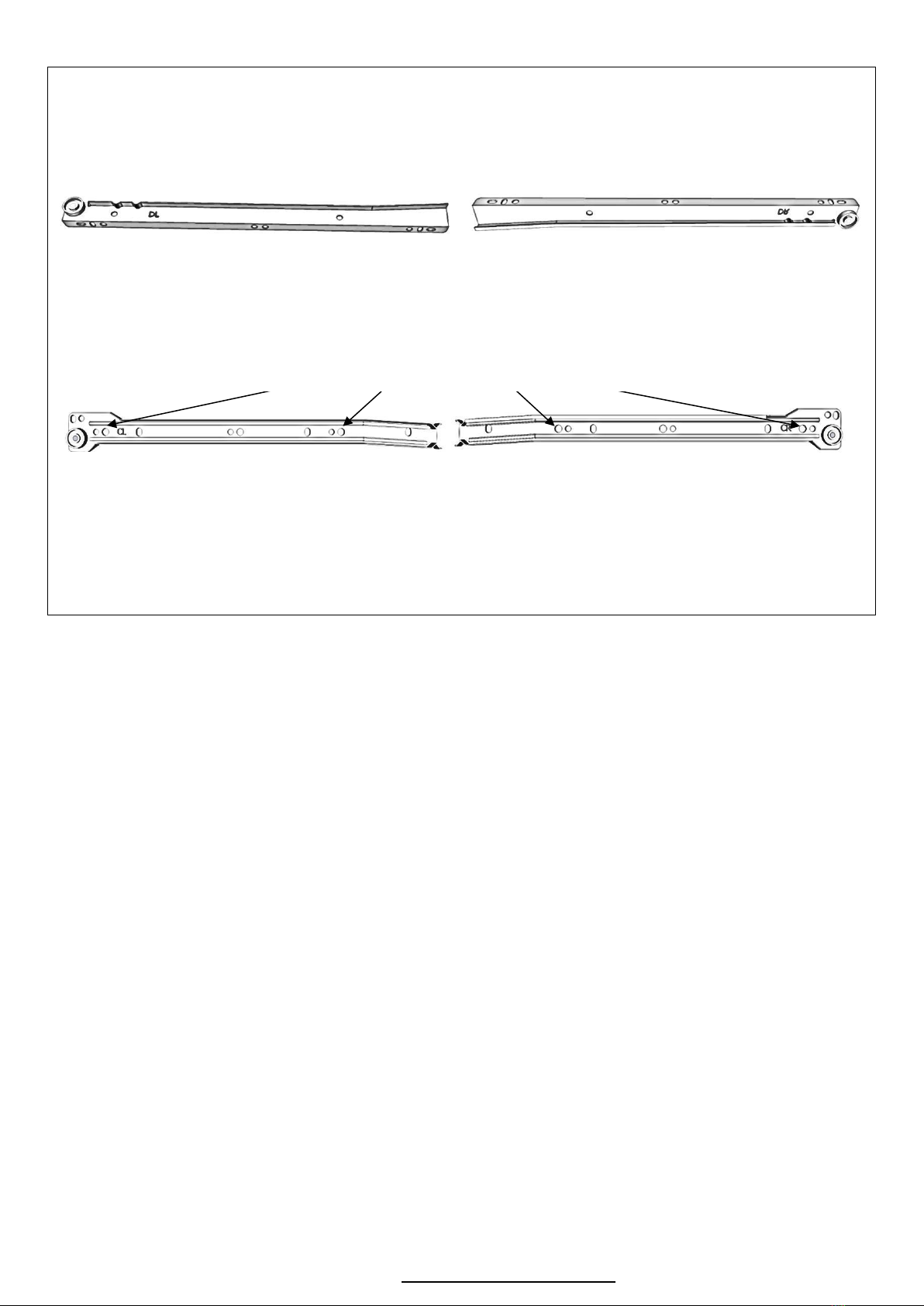

DRAWER SLIDES GUIDE
Your pack will contain 5 sets of Metal Drawer Slides. These are bundled together with adhesive tape. Each set comprises of 4
components. Undo the tape on one set at a time and separate the parts.
LEFT HAND PART (DL) RIGHT HAND PART (DR)
The Drawer Slide components shown above are attached to the drawer. They have the letters DL or DR stamped on them to
indicate left hand or right hand components. Put these parts aside for attaching to the drawer later on.
LEFT HAND PART (CL) RIGHT HAND PART (CR)
The Drawer Slide components shown above are to be attached to the cabinet. They have letters CL or CR stamped on them to
indicate left hand or right-hand components. You will need these for steps 2and 3.
Use these holes

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
INSTALL THE HARDWARE
STEP 1 – LH End & RH Division
•Lay the LH End on a smooth clean surface with holes facing upwards.
•Attach five LH Drawer Slides (CL) to the LH End using the H4 Drawer Slide Screws. Use the holes as indicated in
the diagram below - each slide requires two screws. Ensure that the end of the Slide with the wheel faces towards
the finished edge of the LH End.
•Insert two H2 Large Cams as shown in diagram. Ensure the arrow on the top of the Cam points towards the top edge
of the End.
•Push two H15 Dowels into the top edge of the End.
•Screw three H1 Connecting Bolts into the holes indicated on the diagram below.
•Repeat this process for the LH Division.
H1
H2
H4
H15
H1 Connecting Bolt
H1 Connecting Bolt

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

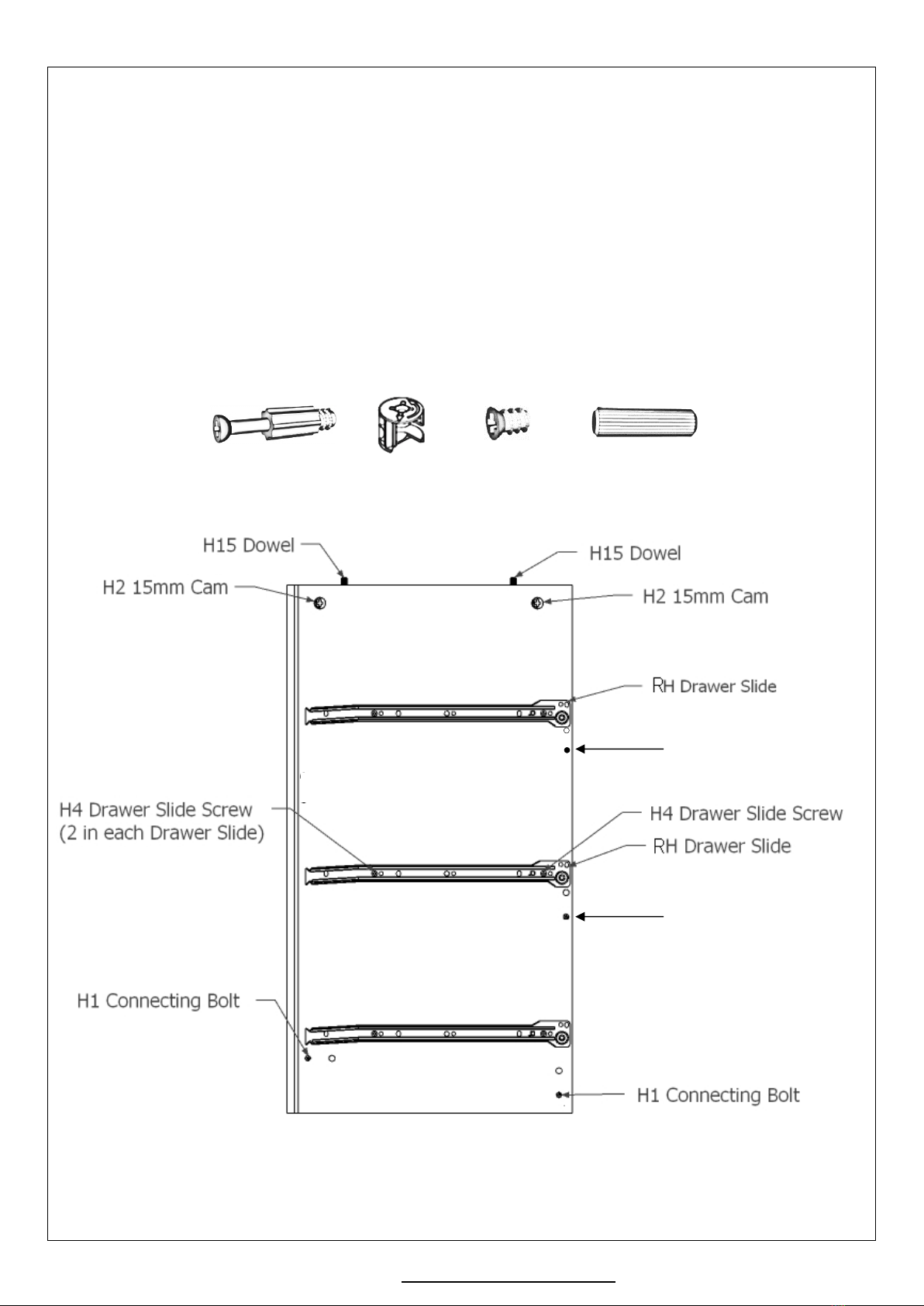

STEP 2 –RH End & LH Division
•Lay the RH End on a smooth clean surface with holes facing upwards.
•Attach five RH Drawer Slides (CR) to the RH End using the H4 Drawer Slide Screws. Use the holes as indicated
in the diagram below - each slide requires two screws. Ensure that the end of the Slide with the wheel faces
towards the finished edge of the LH End.
•Insert two H2 Large Cams as shown in diagram. Ensure the arrow on the top of the Cam points towards the top edge
of the End.
•Push two H15 Dowels into the top edge of the End.
•Screw three H1 Connecting Bolts into the holes indicated on the diagram below.
•Repat this process for the RH Division.
H1
H2
H4
H15
H1 Connecting Bolt
H1 Connecting Bolt

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
STEP 3 –TOP
•Lay the Top of the unit finished side down on a clean, clear surface.
•Screw four H1 Connecting Bolts into the holes indicated in the drawing below.
•Using the Pan head screw, attach the Safety Strap as shown by screwing it first through the Washer and then through
the eyelet in the Strap, into the hole in the left-hand side of the Top. Make sure that the Strap is positioned so that the
tail end falls through the hole in the edge of the Top as shown below.
STEP 4 –RAILS AND TOEBOARDS
Your pack will contain:
•4 x Drawer Rails
•2 x Toeboards
•2 x Back Rails
To distinguish the difference between the various parts, please see the Parts List’ on page 3. The hardware is installed in each
board the same way.
•Install two H2 Cams into each piece as indicated
•Push the H15 Dowels into each of the boards as indicated
H2 Large Cams
H15 Dowels
H1 Connecting Bolt
H7 Pan head
Safety Strap
Screw the H7
Pan head screw
through the
Washer

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
ASSEMBLE THE UNIT

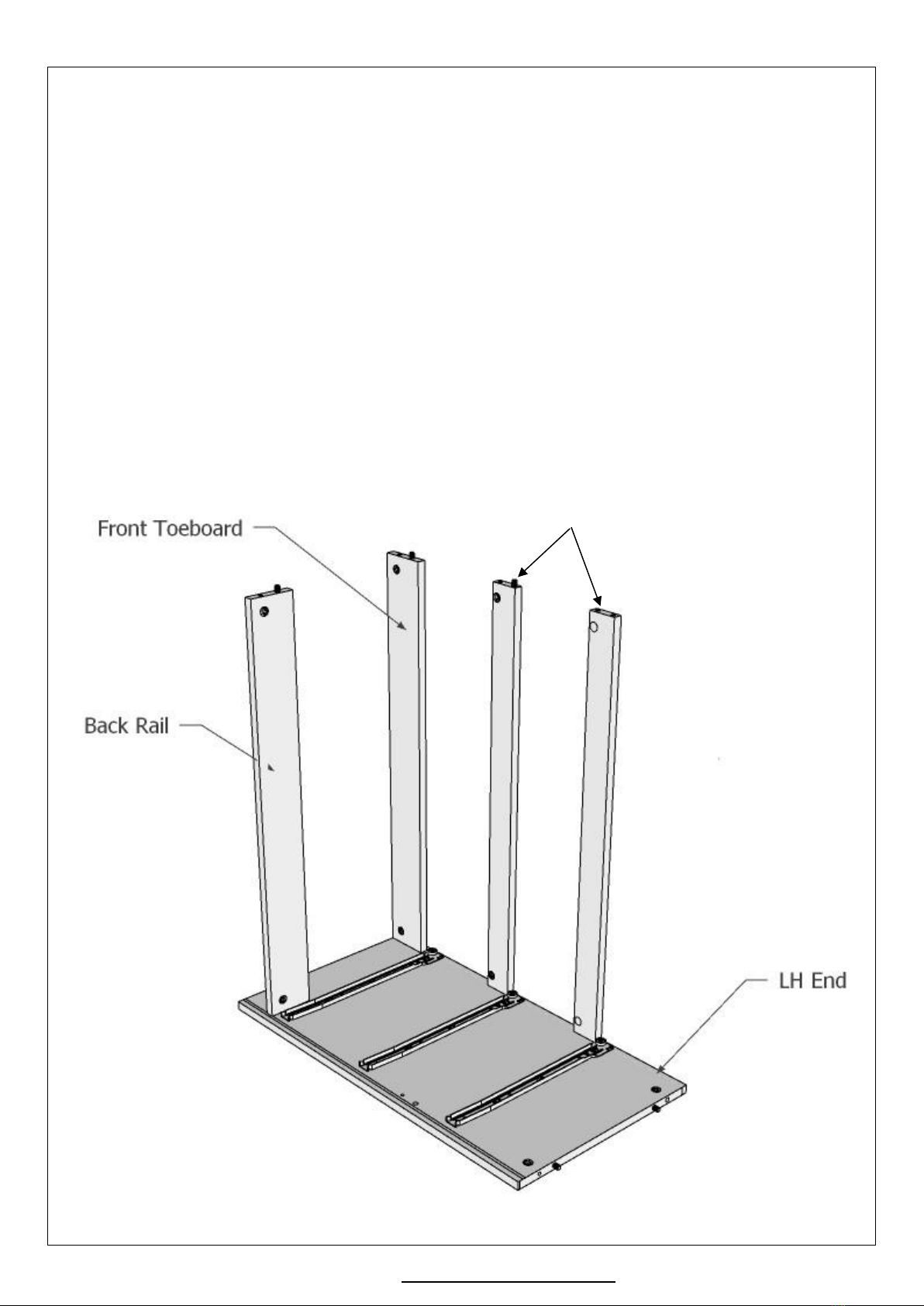

STEP 5 –RAILS AND TOEBOARDS
Please see Parts list to distinguish the difference between the parts.
•Lay the LH End finished side down on a clean surface that is free of anything that may damage the woodgrain
finish. A clean carpeted floor is the most ideal for this.
•Position the Drawer Rails and Toeboard and Brace Rails over the Connecting Bolts installed in the End –take note of
the drawing below to get them in the correct place. Ensure the finished surface of the Toeboard faces towards the
Front Edge of the unit so the cams cannot be seen when the unit is completed. Make sure the Large Cams face
towards the top of the End.
•Tighten all three Cams in a clockwise direction to lock Rails and Toeboards to the LH End. The Large Cams should
turn at least a ¼ of a turn.
Drawer Rails

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
STEP 6 –ATTACH LH DIVISION
•Fit the RH Division to the Rails and Toeboards as shown in the drawing below.
•Lock the RH Division to the Rails and Toeboards by tightening all the Cams in the Rails and
Toeboards in a clockwise direction
Repeat steps 6 and 7 for the RH side using the RH End and LH Division.
R

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

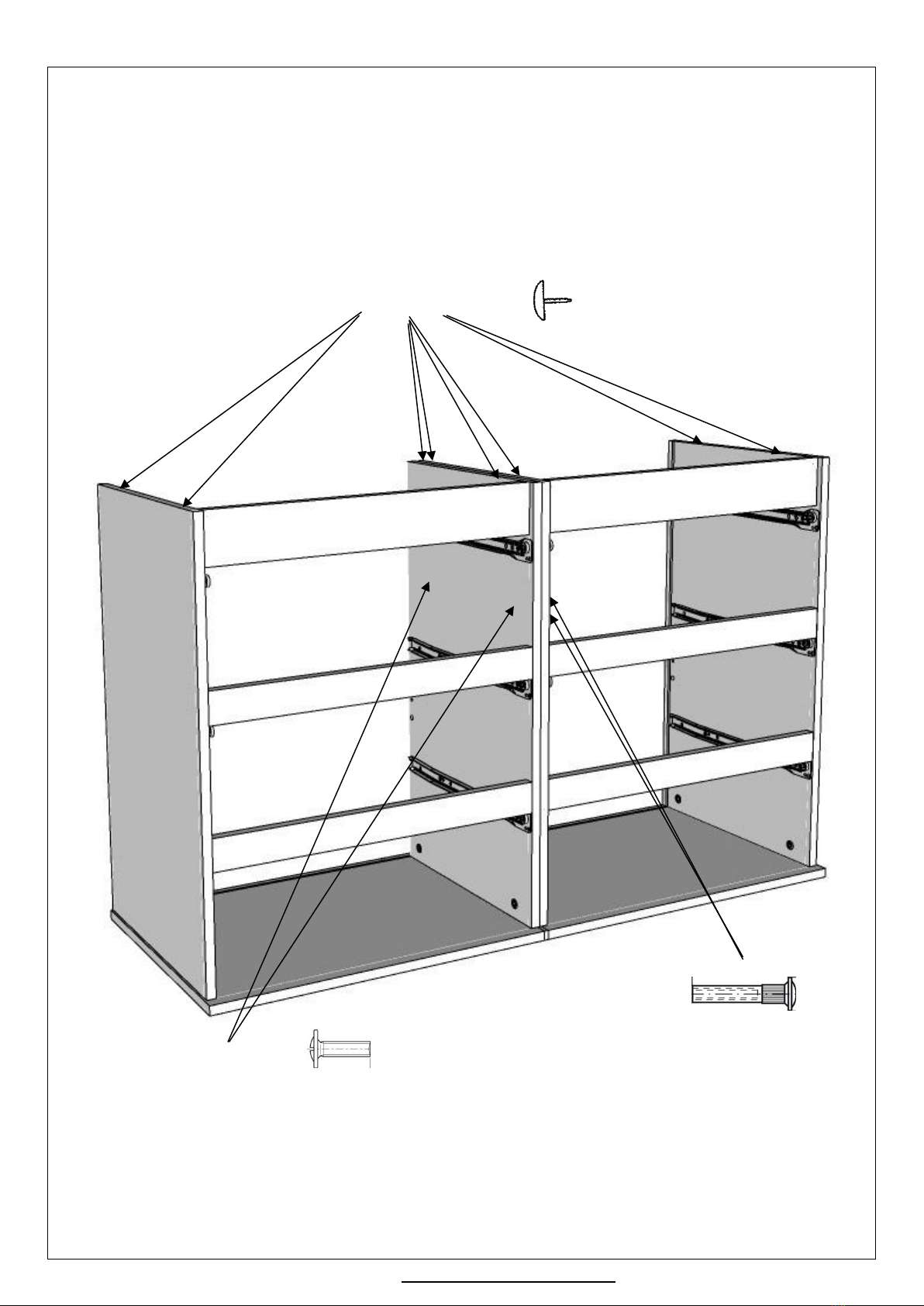

STEP 7 –ATTACH THE LEFT AND RIGHT SIDES
•Carefully place the LH & RH sides of the unit on the Top, fitting the four Connecting Bolts installed in the Top into the
Cams in the Ends. Tighten all eight Cams to lock the Top to the Ends.
•Insert a Connecter Sleeve into the two holes in the divisions indicated below, note these may need a small knock with
a hammer to them push all the way through. Screw the 15mm Connecter Screws into the Connector Sleeves from the
other side.
•Tap the four H37 Nail on Glides into the bottom of the Ends as indicated below. Space them about 20mm in from the
front and back edges.
H37 Nail on Furniture Glides
15mm Connecter Screw
Connecter Sleeve

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
STEP 8 –BACK PANEL
•Slide the Back Panel into place between the two grooves in the Ends. This will fit into the groove in the Top.
•Screw the Back Panel to the Back Rail as shown below, using the H7 Panhead Screws and the predrilled
holes. Carefully stand the unit upright.
H7 Panhead Screws

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
ASSEMBLE THE DRAWERS
Your tallboy has five drawers. All Drawers are constructed from the same parts and are therefore assembled the same way.
STEP 9 - INSTALL HARDWARE /DRAWERS
•Install the hardware in the drawer parts as shown below. NOTE: Be sure that the arrow on the Small Cam points to the
end of the drawer side nearest it.
H15H3 H1
DRAWER FRONT
H1 Connecting Bolt
H3 Cam
H3 Cam
H3 Cam

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
STEP 10 –sides and bottom
•Lay the Drawer Front face down on a smooth, clean surface.
•Attach the LH and RH Drawer Sides by fitting them into place over the Connecting Bolts installed in the Drawer Front.
•Turn the Small Cams clockwise to lock the Drawer Sides in place.
•Slide the Drawer Bottom into place in the grooves in the Drawer Sides and Drawer Front.
STEP 11 - ATTACH DRAWER BACK
•Fit the Drawer Back into place between the Drawer Sides. The groove in the Drawer Back will fit over the end of the
Drawer Bottom.
•Secure the Drawer Sides to the Drawer Back with five H9 Screws as shown below.
H9
Drawer Bottom
RH Drawer Side
LH Drawer Side
Drawer Front

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858

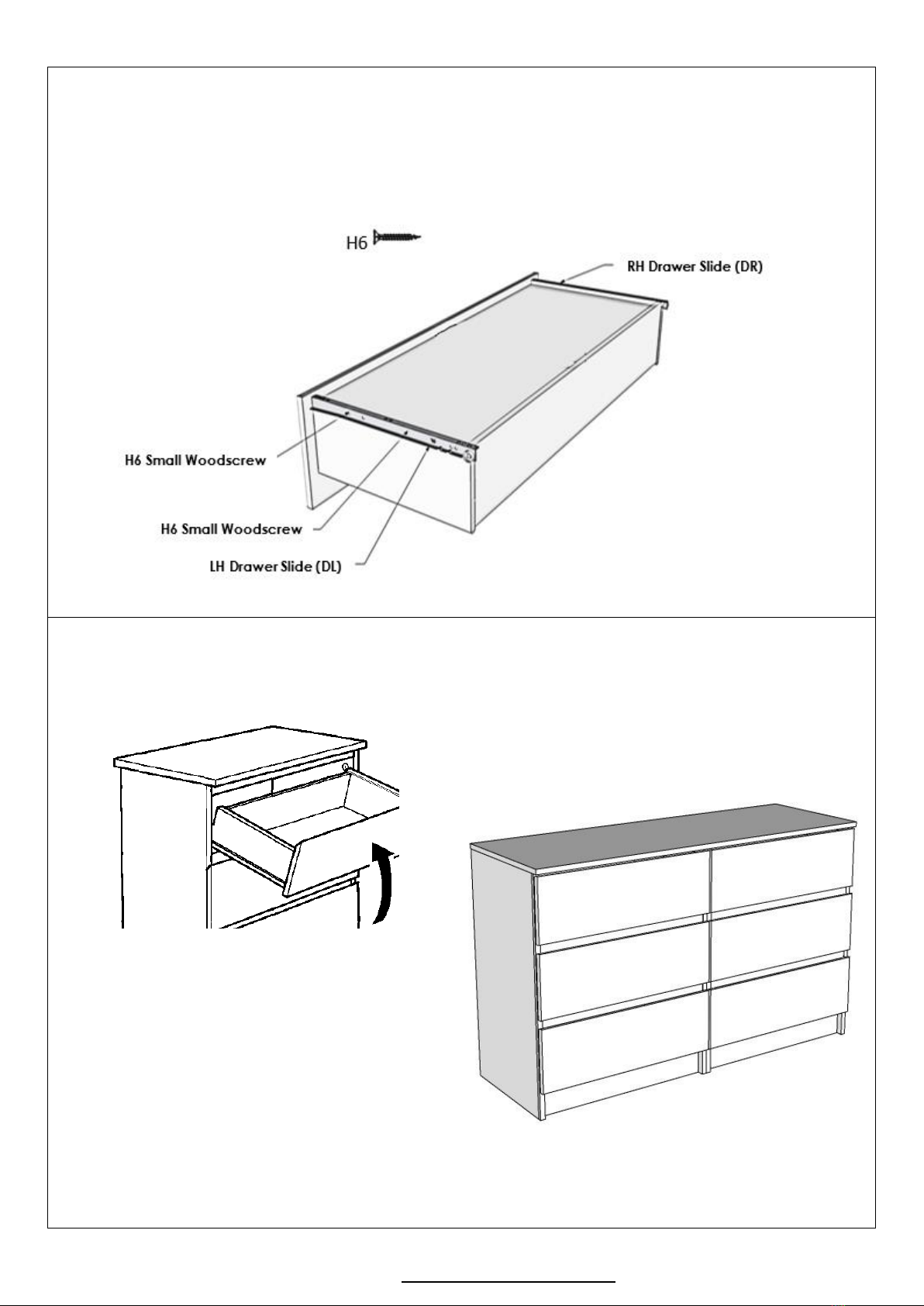

STEP 12 - ATTACH THE DRAWER SLIDES
•Turn the drawer upside-down as shown and attach the Drawer Slides (DR and DL) with the four H6 Small Woodscrews
as shown below. Ensure that the ends of the slides without the wheels are hard up against the back of the drawer front
as shown. Each slide requires two screws.
STEP 13 - ATTACH HANDLES AND FIT DRAWERS INTO CABINET
•Fit the drawers into the cabinet. Start with the top drawers and work your way down.
Angle the drawer slightly to ensure that the wheel
at the back of the drawer slide goes behind the
front wheel on the cabinet slide. Then lift the
drawer up and slide it into the channel of the
drawer slide.

THE EDEN COLLECTION
For assembly advice or parts go www.compacfurniture.co.nz or call 0800 100 858
STEP 14 –ATTACH SAFETY STRAP AND SECURE TO WALL
Compac Furniture strongly recommends using a Safety Strap on all furniture, especially if small
children are around.
Secure your unit to the wall using the Safety Strap and a screw suitable for your wall (not supplied).
We recommend you screw into a stud. If you cannot locate a stud, use a wall anchor appropriate for
your wall.
Please note: The is a precautionary measure. The use of tip-over restrains may only reduce but not
eliminate, the risk of tip over. Compac Furniture can take no responsibility.
CONGRATULATIONS, YOUR EDEN 6 Drawer Lowboy IS NOW COMPLETE.
THANK-YOU FOR SUPPORTING NEW ZEALAND MADE FURNITURE
