O'Donnell Z01B User manual

TM
®
ASSEMBLY INSTRUCTIONS

2
iO’DONNELL HISTORY
2
2
2
ii WARRANTY
• O’Donnell®guarantees this kit to be free from defects in both
material and workmanship at the date of purchase. O’Donnell will
warranty this kit for 90 days after the purchase date. O’Donnell
will repair or replace, at no charge, the incorrectly made part.
• Make sure you save the receipt or invoice you were given when you
bought your model! It is your proof of purchase and we must see
it before we can honor the warranty. Further, O’Donnell reserves
the right to change or modify this warranty without notice.
• In that O’Donnell has no control over the final user assembly or
material used for final user assembly, no liability shall be assumed
nor accepted for any damage resulting from the use by the user
of the final user-assembled product. By the act of using the user-
assembled product, the user accepts all resulting liability.
To return your Z01B for repairs covered under warranty you should
send your buggy to:
Hobby Services
3002 N. Apollo Drive Suite 1
Champaign, Illinois 61822
Attn: Service Department
Phone: [phone]:00 am-5:00 pm Central Time M-F
E-mail: [email protected]
www.hobbyservices.com
If the buyer is not prepared to accept the liability associated
with the use of this product, the buyer is advised to return
this kit immediately in new and unused condition to the place
of purchase.
Every dream has a beginning and an end. This one just happened
to start out in the O’Donnell family garage back in 1980. Young
Steve O’Donnell wasn’t satisfied with the mediocre products
that the RC industry had to offer, so he set out to build the best
engineered and manufactured products available. Lucky for us, his
dream is far from over…
O’Donnell took his vast knowledge of nitro engine tuning and soon
designed products that would complement his talents. First came
his custom designed and machined aluminum cooling heads for
the on-road racing scene. Finding another void in the industry, he
also began producing custom tuned pipes to better utilize all of the
power these nitro burning monsters could produce.
The efforts of O’Donnell did not go overlooked. Some of the major
R/C manufacturers went to O’Donnell Manufacturing to have their
trick aluminum parts machined. O’Donnell’s meticulous standards
and overwhelming knowledge of the products made it a natural fit.
Over the past 24 years, O’Donnell Manufacturing has produced parts
for such notable companies as Team Associated and Team Losi.
O’Donnell Manufacturing took another major step forward in 1988
when they introduced O’Donnell Racing Fuel…the name that
made them famous with racers around the world. Once again,
O’Donnell saw a need — for a high-quality fuel specifically blended
for the demands of nitro burning car engines. From that point on,
O’Donnell Racing Fuel became synonymous with winning. To this
day, no other fuel has won as many national championships as
O’Donnell Racing Fuel.
To complement the racing fuel, O’Donnell set out in 2000 to design
a glow plug that would out-perform and out-last all the competitors.
The result? Two U.S. patents and a World Championship. Not
bad for someone who started out in his parents’ garage. Today,
O’Donnell glow plugs are the choice of champions worldwide.
Not afraid to take chances on long shots, in 1999 O’Donnell spotted
a little kid from the hills of California who had a great deal of driving
talent. This kid would later become a National Champion in both
electric and nitro. He would also go on to TQ and win the IFMAR
World Championships. That kid was the one and only Jared Tebo.
The name Tebo quickly became associated with O’Donnell and
winning. He’s known around the world for his race-winning talent.
O’Donnell’s dreams moved to the next level when he embarked
on the ultimate journey…the design and creation of a new 1/8
off-road nitro racing buggy. The plan was simple: Don’t try to “re-
invent the wheel”, just refine it…all of it.
Now, after extensive development, refinement, testing, and on-
track race-winning results, we are proud to introduce the Ultimate
Racing Machine –
Designed by O’Donnell, Tested by Tebo….the Z01-B.

3
iii SAFETY PRECAUTIONS
3
3
3
iv GENERAL BUILDING TIPS
Use care and good sense at all times when operating this radio
controlled buggy. Failure to use this vehicle in a safe, sensible
manner can result in injury or damage to property. You and you
alone must insure that the instructions are carefully followed and
all safety precautions are obeyed.
• Do not operate the Z01B near people. Spectators should be
behind the driver or at a safe distance away from the vehicle.
• Water can cause the electronics to short out and can cause
permanent damage.
• Always turn on the transmitter before turning on the receiver.
• Fully extend the transmitter antenna before operating your vehicle.
• Before turning on your radio system, check to make sure that no
one else is running on the same frequency.
• The engine and exhaust produce quite a bit of noise. Do not run
this vehicle when or where it can disturb others.
• The engine and exhaust can become very hot. Avoid touching
any of these parts during use and until they have cooled down.
• Model engine fuel is poisonous. Make sure you read and follow
all of the precautions on the fuel container. Keep fuel out of the
reach of children.
• Model engine fuel is flammable and when ignited has a flame
that is difficult to see. Avoid sparks, flames, smoking, or any
other ignition source when fuel is near.
• The engine emits harmful fumes just like real vehicles. Do not
operate this model indoors.
• Avoid running the buggy in cold weather.The plastic and metal parts
can become brittle at low temperatures. In addition, grease and oil
become thick, causing premature wear and poor performance.
• Read the instructions carefully before starting assembly.
• We recommend building the kit on a towel to help prevent small parts and screws from rolling off your work surface.
• Before turning on your radio system, check to make sure that no one else is running on the same frequency.
• Do not use an electric screwdriver/drill for assembling the kit. This could cause parts to strip out from overtightening.
• Use a quality threadlock where specified in the manual.
• Apply threadlock to screw(s) indicated. IMPORTANT: Clean oil or film from screws before applying threadlock.
Threadlock
• Parts for step included in this parts bag.
• Apply grease to part(s) indicated. Note: Always use black moly grease on areas indicated.
Grease
1

4
4
4
4
vREQUIRED ACCESSORIES
Servo
High Torque
Steering Servo
5-Cell Receiver
Hump Pack
Tire Inserts
Header & Pipe
Tires
Engine
Receiver
Transmitter

5
5
5
5

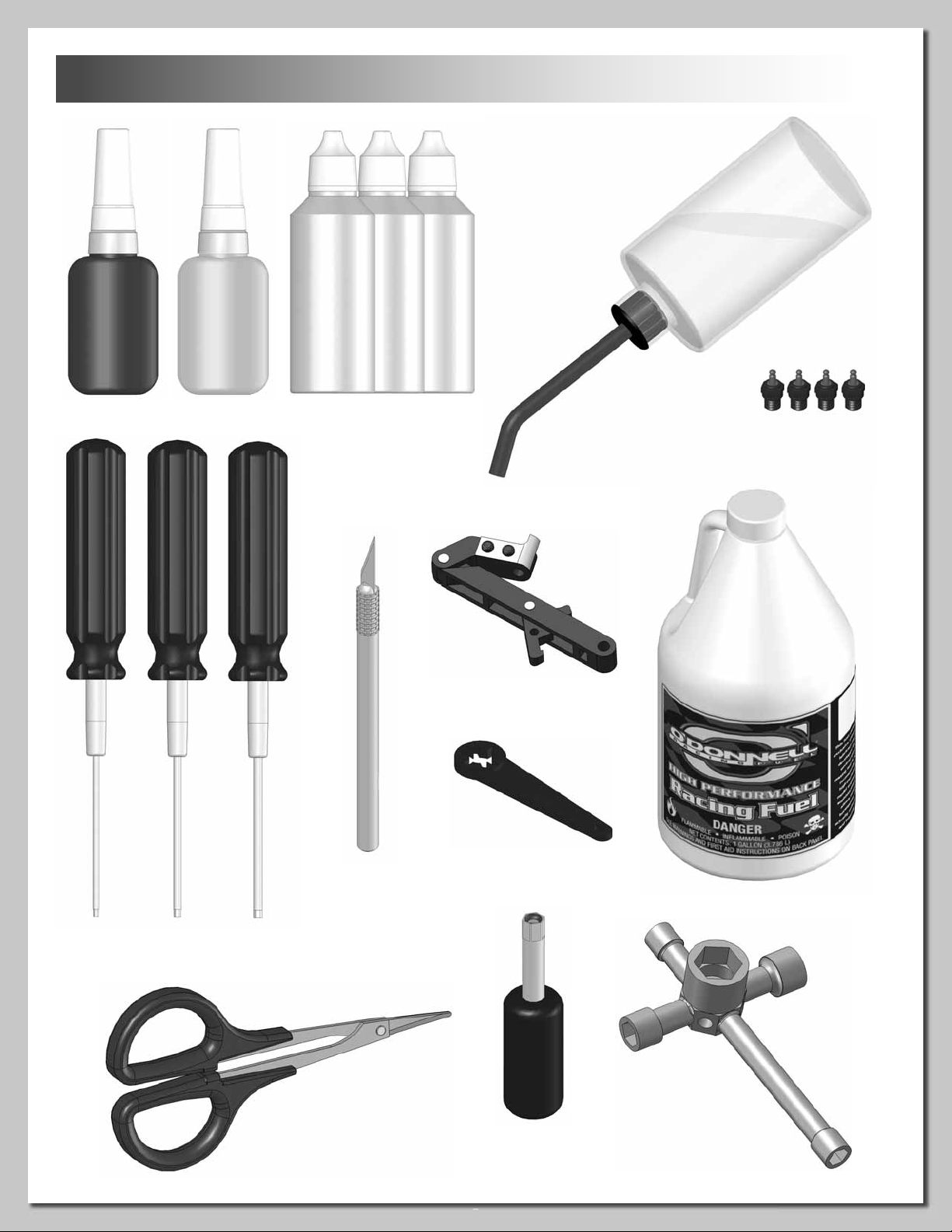

vi REQUIRED TOOLS & TRACK EQUIPMENT
Threadlock CA Tire Glue Diff, Shock & Air Filter Oils
1.5mm Hex
Wrench
2.0mm Hex
Wrench
2.5mm Hex
Wrench
Hobby
Knife
Glow Plug
Ignitor
Fuel
Bottle
Flywheel
Wrench
Body
Scissors
Fuel
4-Way
Wrench
Clutch Tool
Glow Plug
(and spares)

6
1DIFF HOUSING
HARDWARE
6
6
6
2DIFF PLANETARY GEARS
HARDWARE
Make sure the flat spots on
the planetary gear shafts
interlock when installing.
Make sure the bearing is fully
seated on the diff housing.
Apply grease in the groove
and a light film of grease
on the shaft of all outdrives.
Front/Rear (x2)
Center (x1)
Apply a small amount of included
grease to the O-ring before installing.
This will help prevent damage to the
O-ring when installing the drive joint.
Diff Outdrive O-Ring
Sun Backing Washer
8x16mm Bearing
Satellite Backing
Washer
(x3)
(x3)
(x3)
(x12)
Slide the pin in place using
needle-nose pliers.
Grease
Grease
1
1

7

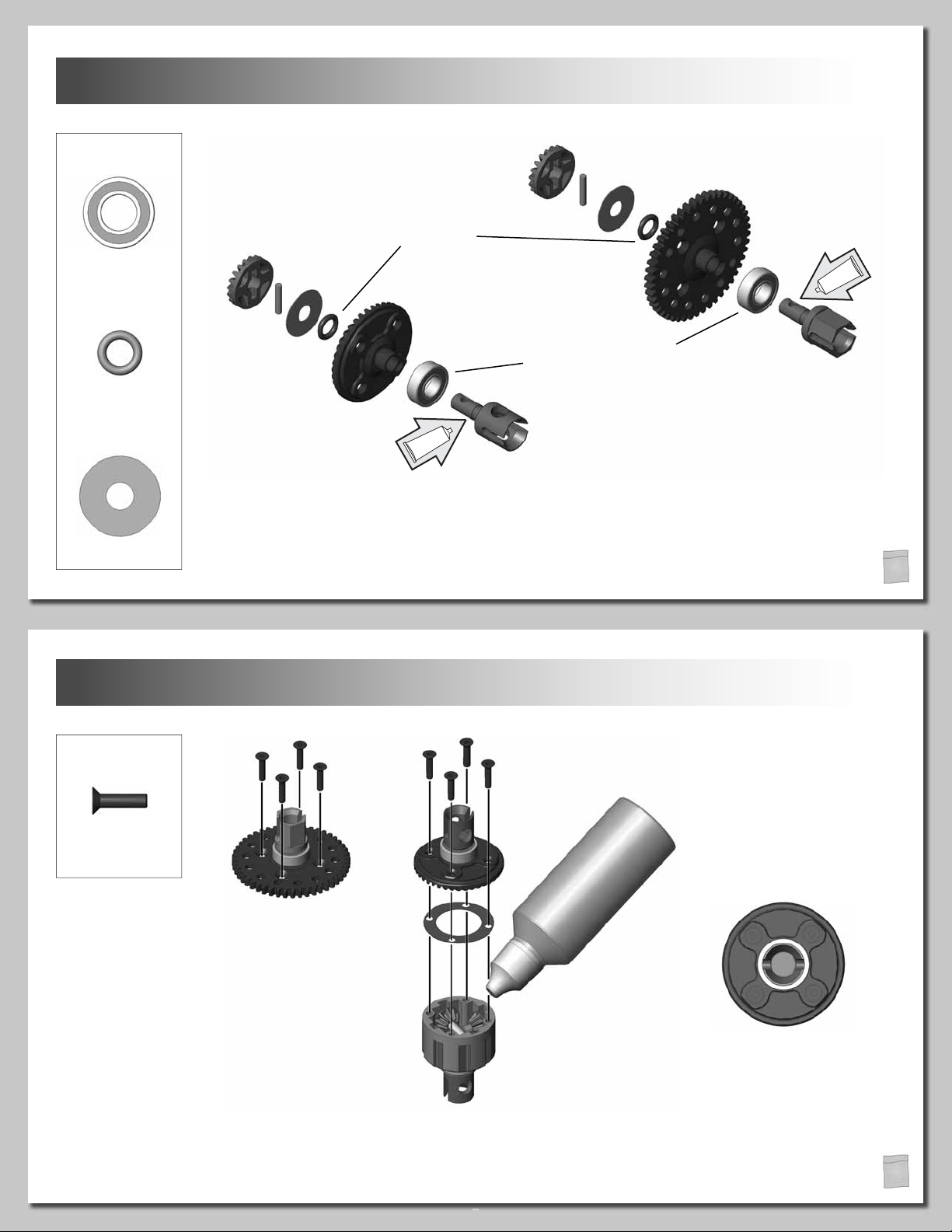

3SPUR/DIFF GEARS
HARDWARE
7
7
7
4DIFF OIL
HARDWARE
Fill the diff until the planetary
gear shafts are completely
covered with diff oil. When
using heavy oils, you need to
allow the oil to settle and add
oil if necessary. Do not overfill!
(Note: See set-up sheet for
recommended diff oils.) Finish tightening the diff
gear screws in order. This
will help make sure the gear
is mounted flat on the diff
housing and the housing is
properly sealed.
1
2
3
4
Make sure the bearing is
fully seated on the gear.
Front/Rear x2
Center
Apply a small amount of the included
grease to the O-ring before installing.
This will help prevent damage to the
O-ring when installing the drive joint.
DIFF OIL
DIFF OIL
Diff Outdrive O-Ring
Sun Backing Washer
8x16mm Bearing
3x12mm FH
Screw
(x3)
(x3)
(x3)
(x12)
Grease
Grease
1
1
Build the front, rear and center diffs.
Apply grease in the groove
and a light film of grease
on the shaft of all outdrives.

8

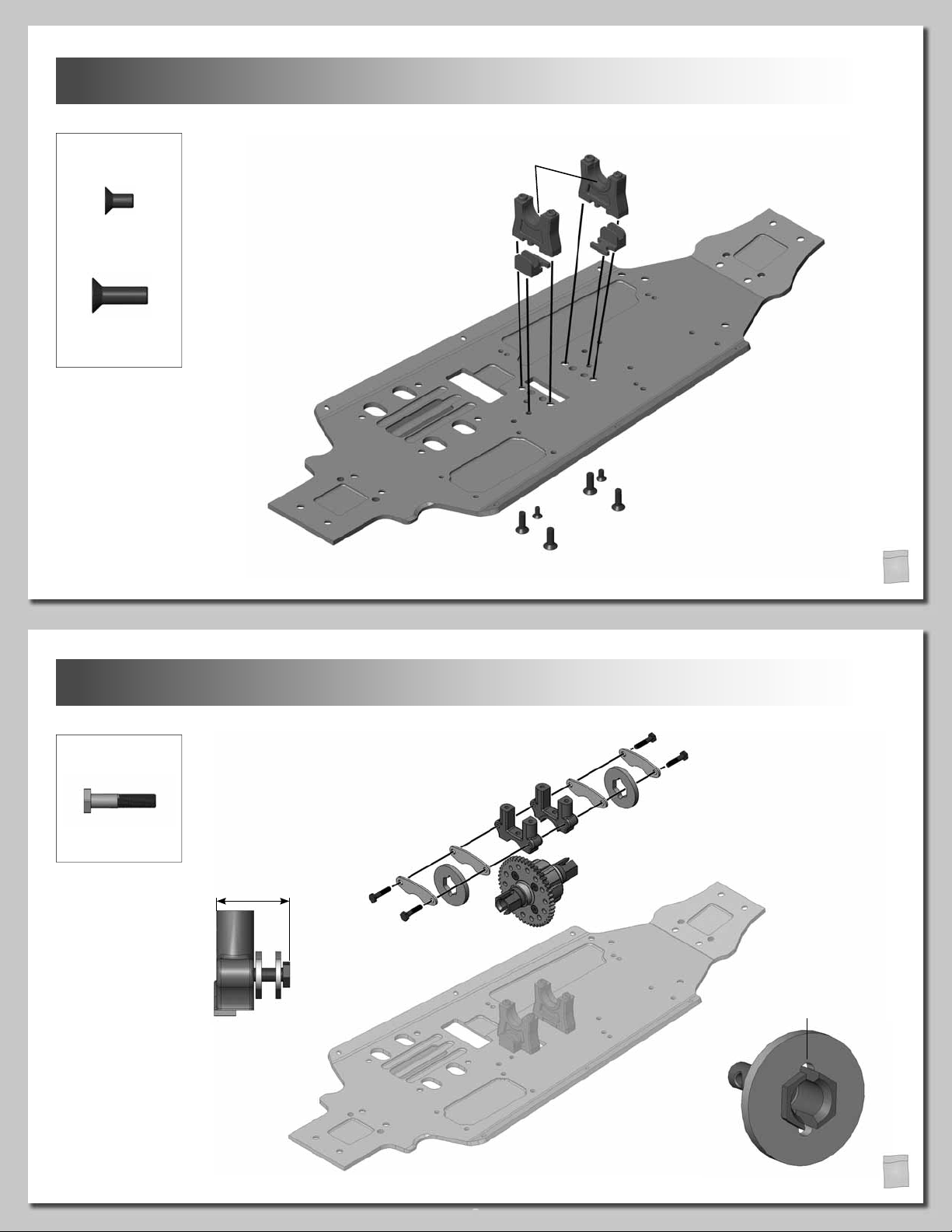

5CENTER DIFF MOUNTS
HARDWARE
8
8
8
6MOUNT THE CENTER DIFF
HARDWARE
3x6mm FH
Screw
4x12mm FH
Screw
Brake Pad Bolt
Large
Small
3x6mm FH
4x12mm FH
4x12mm FH
(x2)
(x4)
(x4)
Front
Line up brake disc notch.
16.75mm
2
2
IMPORTANT!
IMPORTANT!
The grooves for the diff
bearings face inward.
Make sure the brake disc guides
are interlocked with the diff
mounts before installing.
IMPORTANT!
IMPORTANT!
Brake pad bolt adjustment
must be correct.

9
9
9
7BRAKE ACTUATOR & FUEL FILTER MOUNT
HARDWARE
Install the brake actuator rods
into the brake actuators and
secure them with 3mm set
screws before installing the
upper plate.
The angled side of the brake
actuator faces the brake plate.
Front
IMPORTANT!
IMPORTANT!
Mount the fuel filter mount to the center
upper brace before installing the center
upper brace to the center diff mounts.
Long
Short
Threadlock
Threadlock
3x35mm BH
Screw
5x8mm Flanged
Bearing
3x4mm Set
Screw
3x8mm BH
Screw
(x4)
(x2)
(x2)
(x2)
5.5mm
4.25mm
2

10
8REAR DIFF JOINT
HARDWARE
10
10
10
9REAR DIFF HOUSING
HARDWARE
Use the included shims to space gears properly
in the diff case. Adjust the gear mesh for smooth
rotation without excessive play. The number of
shims needed, and the side on which they must
be placed, may vary.
IMPORTANT!
IMPORTANT!
Apply a 1/4" strip of the included
grease to three locations on the
ring gear.
Make sure the bearings are
fully seated in the case.
Threadlock
4x40mm FH
Screw
4x16mm BH Screw
Diff Shim
4x14mm FH
3x14mm FH
4x14mm FH
Screw
(x2)
8x16mm Bearing
(x2)
5x5mm Set
Screw
(x1)
3x14mm FH
Screw
(x2)
(x2)
(x2)
(x2)
Pinion Shaft Shim
(x2)
3
3
Grease

11

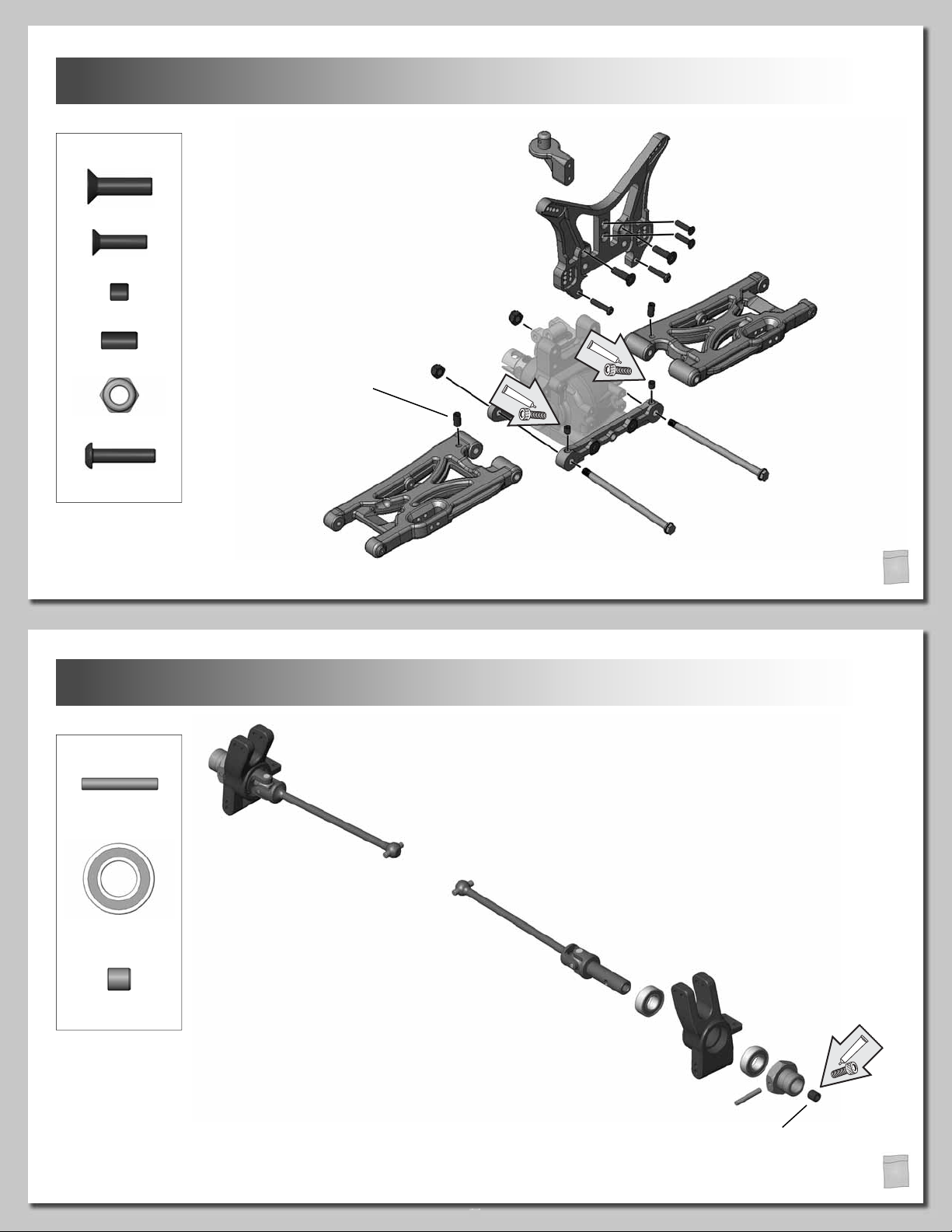

10 REAR SHOCK TOWER
HARDWARE
11
11
11
11 REAR OUTDRIVES
HARDWARE
Refer to the setup sheets
for droop settings.
Left
Right
Make sure the bearings are
fully seated in the hub.
Use the shorter universals
for the rear.
Secure the axle pin in the drive
hub using the 5mm set screw.
Threadlock
4x14mm FH Screw
3x12mm FH Screw
4x4mm Set Screw
4x8mm Set Screw
4mm Lock Nut
3x14mm BH Screw
Wheel Hub Pin
5x5mm Set Screw
8x16mm Bearing
3x12mm FH
3x14mm BH
4x14mm FH
4x8mm SS
4x4mm SS
(x2)
(x2)
(x2)
(x2)
(x2)
(x2)
(x2)
(x4)
(x2)
Threadlock
Threadlock
3
3

12
12 REAR UPPER LINK
HARDWARE
12
12
12

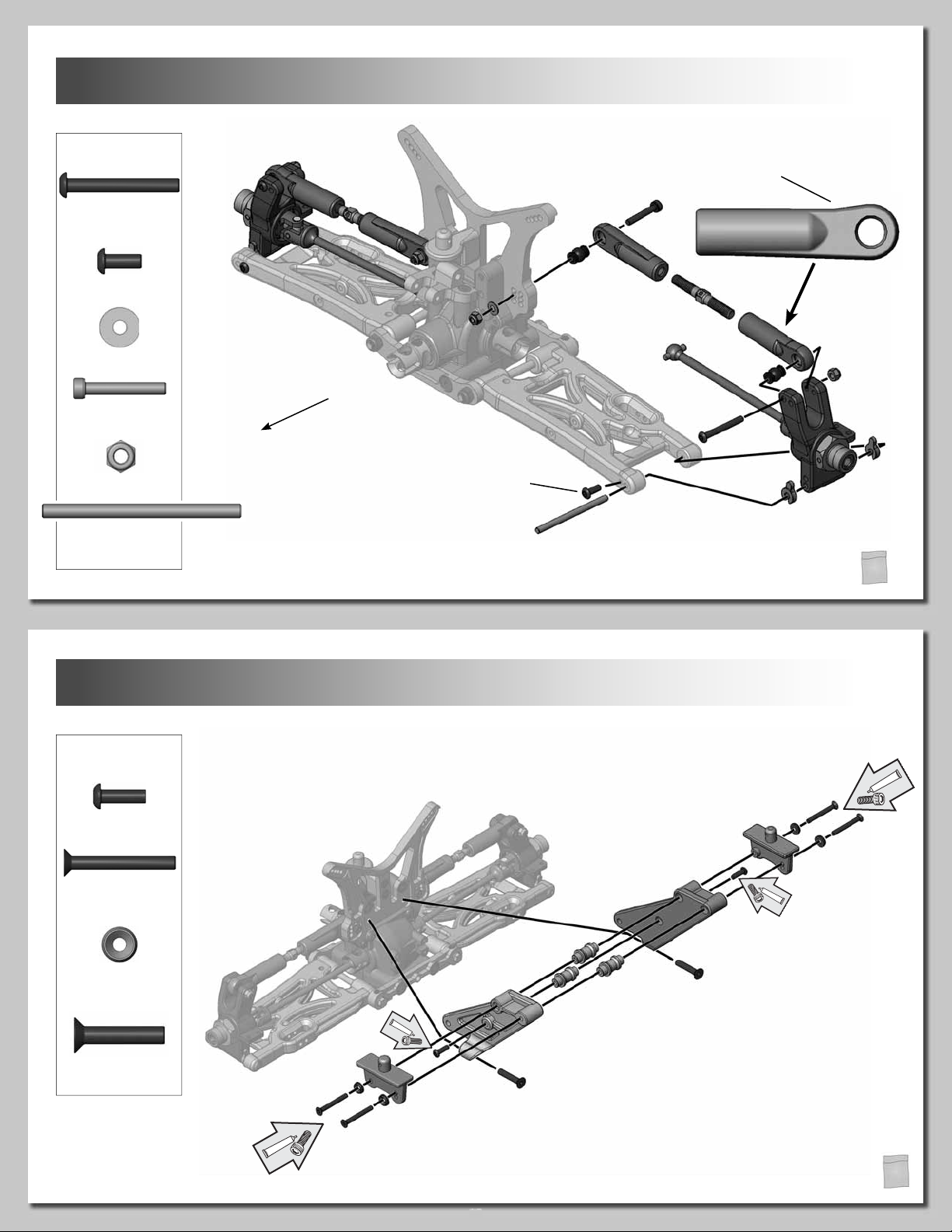

13 WING MOUNT
HARDWARE
Threadlock
Threadlock
3x25mm BH Screw
3x6mm BH Screw
3mm Washer
Outer Lower Rear
Hinge Pin
3mm Lock Nut
3x18mm SH Screw
3x10mm BH Screw
3x25mm FH Screw
3mm Countersunk
Washer
4x20mm FH Screw
4x20mm FH
(x2)
(x2)
(x2)
(x2)
(x4)
(x2)
(x2)
(x2)
(x4)
Threadlock
Threadlock
Secure the hinge pin in place
with the 3x6mm BH screw.
Notched link end goes on the
hub for wheel clearance.
Front of buggy
4x20mm FH
3x25mm FH 3x10mm BH
3x10mm BH
3x25mm FH
3x25mm BH
3x18mm SH
3
4

13
14 REAR SWAYBAR
HARDWARE
13
13
13
15 REAR SWAYBAR LINKS
HARDWARE
Make sure the swaybar links are set at equal
distances from the end of the swaybar.
Install the swaybar bushings
onto the swaybar.
The swaybar
goes over
the axles.
2.5x8mm SH Screw
3x16mm BH
3x25mm SH
3x25mm SH
4x30mm BH
(x4)
4x10mm Set Screw
(x2)
3x3mm Set Screw
(x2)
Shock End Ball
(x2)
3x16mm BH Screw
(x2)
3x25mm SH Screw
(x2)
4x30mm BH Screw
(x1)
Threadlock
4mm Lock Nut
(x1)
4x10mm SS
3
3
IMPORTANT!
IMPORTANT!
There are three sizes of swaybars and swaybar bushings. Be
sure to use the correct bushing with its corresponding swaybar.
Rear Swaybar Bushing
Soft .093" OD ................................Small
Medium .100" OD ...................... Medium
Firm .105" OD................................Large
25mm

14

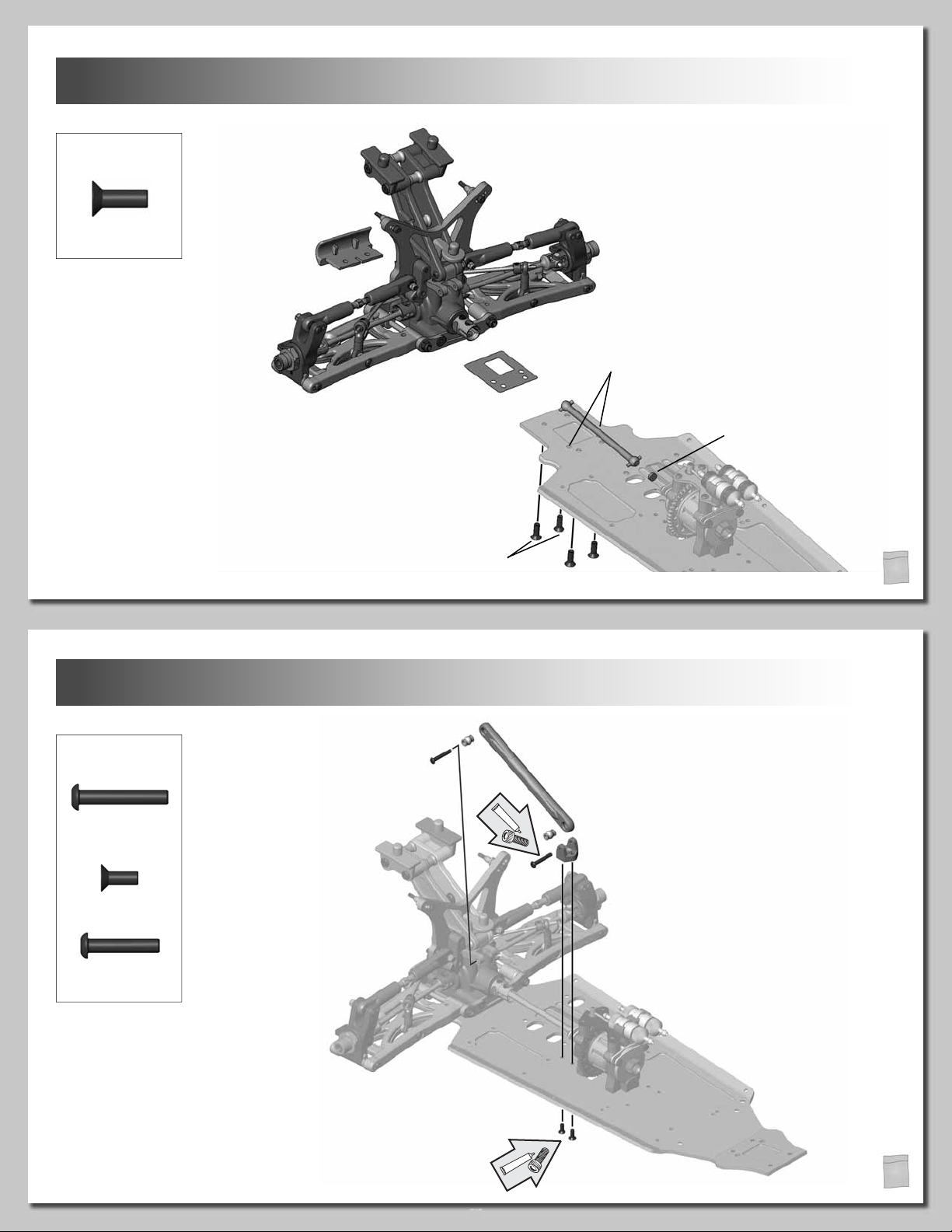

16 REAR SUSPENSION
HARDWARE
14
14
14
17 REAR CHASSIS BRACE
HARDWARE
Threadlock
Make sure the rear bumper is installed
before installing these screws.
Position the gasket
between the gearbox
and chassis.
Make sure the tabs on the
bottom of the gearbox key
into the chassis.
Install a 2mm dogbone
spacer inside the drive cup.
4x12mm FH Screw
3x20mm BH Screw
3x20mm BH
Rear Bumper
3x16mm BH
3x8mm FH
(x4)
(x1)
3x8mm FH Screw
(x2)
Threadlock
3x16mm BH Screw
(x1)
3
3

15
18 FRONT DIFF HOUSING
HARDWARE
15
15
15
19 FRONT SHOCK MOUNTS
HARDWARE
Make sure the bearings are
fully seated in the diff housing.
Threadlock
Threadlock
Threadlock
5x5mm Set Screw
4x4mm Set Screw
4x16mm BH Screw
4x40mm FH Screw
Diff Shim
Pinion Shaft Shim
4x14mm FH Screw
HARDWARE
8x16mm Bearing
3x25mm SH Screw
Threadlock
Make sure the inserts are fully
seated in the shock tower.
4x14mm FH
4x16mm BH
4x40mm FH
4x4mm SS
5x5mm SS
(x2)
(x2)
(x2)
(x2)
(x2)
(x1)
(x2)
(x2)
(x2)
Bushing A
(centered)
5
5
IMPORTANT!
IMPORTANT!
Apply a 1/4" strip of the included
grease to three locations on the
ring gear.
Use the included shims to space gears properly
in the diff case. Adjust the gear mesh for smooth
rotation without excessive play. The number of
shims needed, and the side on which they must
be placed, may vary.

16
16
16
16
21 LEFT & RIGHT FRONT STEERING BLOCKS
HARDWARE
Make sure the bearings are fully
seated in the steering blocks.
Note: The front universals
are longer than the rear.
Threadlock
8x16mm Bearing
4x10mm BH Screw
Wheel Hub Pin
5x5mm Set Screw
20 FRONT SHOCK TOWER
HARDWARE
4x14mm FH Screw
3x14mm BH Screw
4x14mm FH
4x14mm FH
3x14mm BH
3x14mm BH
(x4)
(x2)
(x4)
(x2)
(x4)
(x2)
Threadlock
Threadlock
5
5

17
22 FRONT SUSPENSION
HARDWARE
Threadlock
4mm Lock Nut
4x4mm Set Screw
3x6mm BH Screw
Outer Lower Front
Hinge Pin
17
17
17
23 FRONT UPPER LINKS
HARDWARE
Make sure to use
the correct part.
Note the direction.
Actual Size
3x25mm BH Screw
3x10mm BH Screw
3x10mm FH Screw
3mm Lock Nut
Standard Rod
End Ball
3x25mm BH
3x10mm FH
3x10mm FH
3x10mm BH
(x2)
(x2)
(x2)
(x2)
(x2)
(x1)
(x6)
(x2)
(x6)
10° Caster Block
5
5
8.5mm

18
18
18

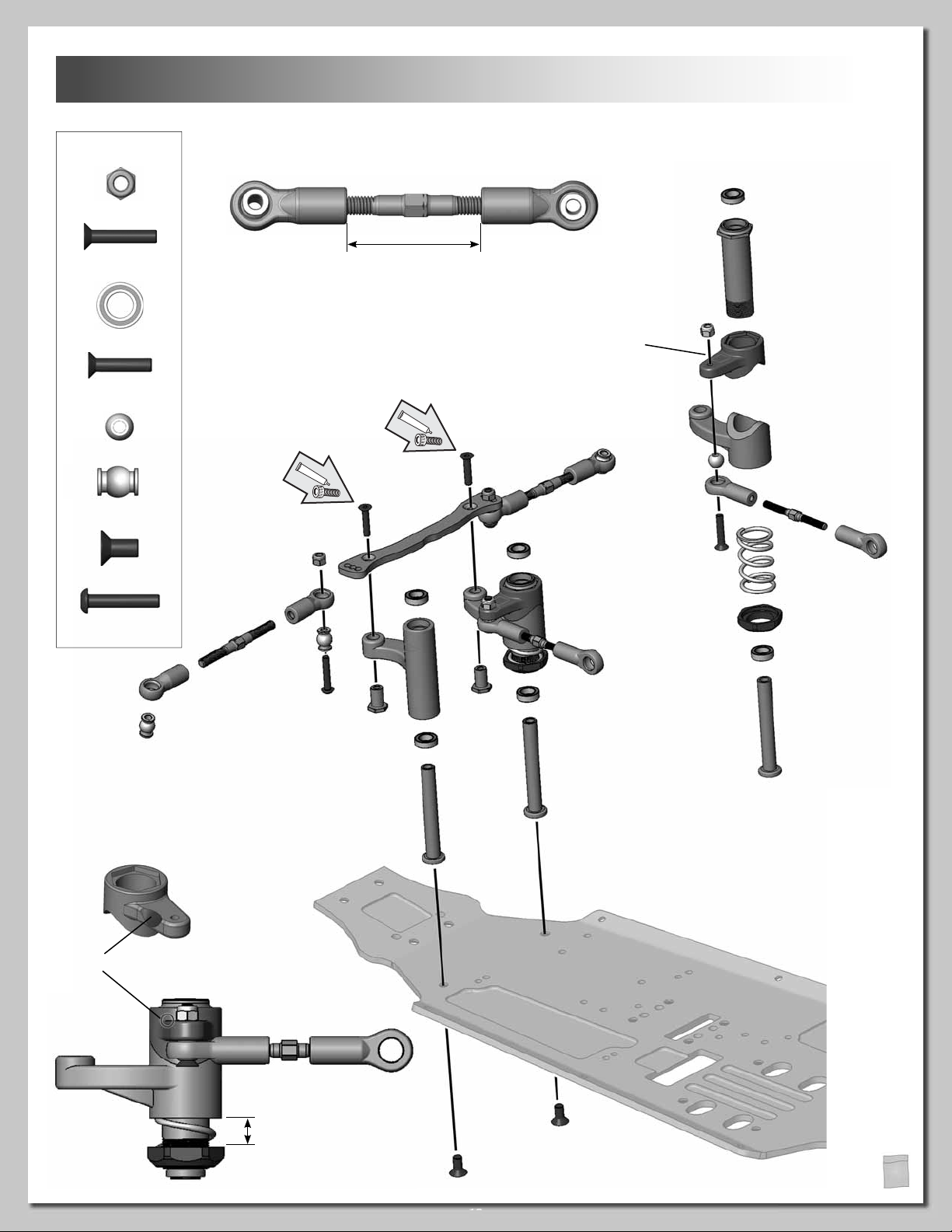

24 STEERING ASSEMBLY
Threadlock
HARDWARE
Note the direction
of the arms.
Trim this edge if
there is interference
at full steering.
Standard Rod
End Ball
3x16mm FH Screw
6x10mm Bearing
Shock End Ball
3x14mm FH Screw
3mm Lock Nut
4x8mm FH Screw
3x16mm BH Screw
3x16mm FH
3x16mm BH
3x14mm FH
4x8mm FH
(x2)
(x2)
(x2)
(x4)
(x4)
(x1)
(x3)
Threadlock
3x14mm FH
6
Actual Size
78mm
Make sure the bearings
are fully seated.
6.5mm
Servo Saver
Trimmed Edge

19
25 FRONT CHASSIS BRACE
HARDWARE
19
19
19
26 FRONT END
Threadlock
Threadlock
Threadlock
Make sure the tabs on the
bottom of the gearbox key
into the chassis.
3x16mm BH
3x16mm BH
3x8mm FH
3x8mm FH Screw
(x2)
Standard Rod
End Ball
(x2)
3x16mm BH Screw
(x2)
Make sure the dogbone is placed
under the steering rack bar.
7
7
HARDWARE
4x12mm FH Screw
(x2)
Position the gasket
between the gearbox
and chassis.
Install a 1.5mm dogbone
spacer inside drive cup.

20

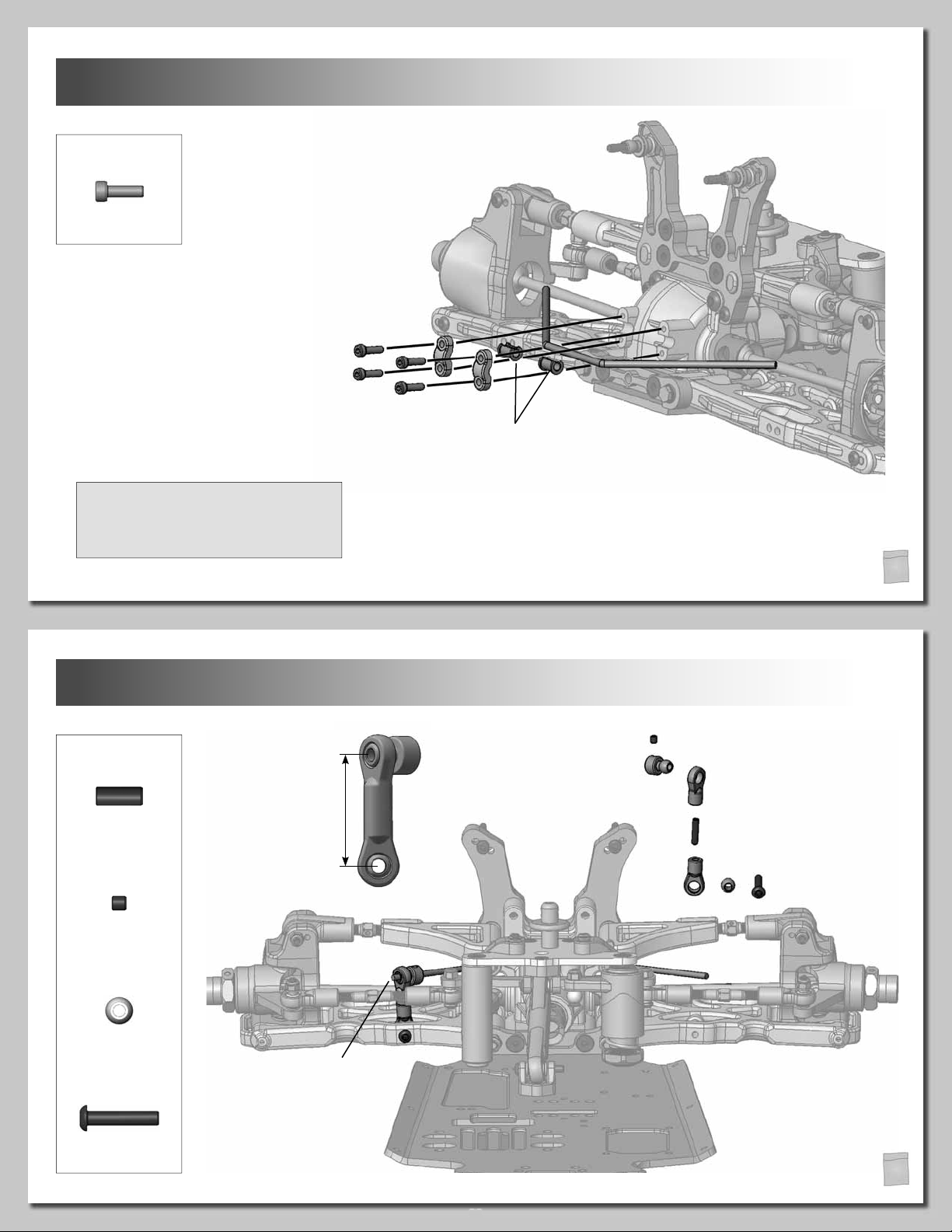

27 FRONT SWAYBAR
Install the correct swaybar
bushings onto the swaybar.
The swaybar goes
over the axles.
5
HARDWARE
2.5x8mm SH Screw
(x4)
IMPORTANT!
IMPORTANT!
There are three sizes of swaybars and swaybar
bushings. Be sure to use the correct bushing with
its corresponding swaybar.
Front Swaybar Bushing
Soft .093" OD ................................Small
Medium .100" OD ...................... Medium
Firm .105" OD................................Large
20
20
20
28 FRONT SWAYBAR LINKS
HARDWARE
Make sure the swaybar
links are set at equal
distances from the end
of the swaybar.
4x10mm Set Screw
(x2)
3x3mm Set Screw
(x2)
Shock End Ball
(x2)
3x16mm BH Screw
(x2)
4x10mm SS
3x16mm BH
5
25mm
