Oben BA Series User manual

1
BASeries
Single Action Ballhead
You’reonsteadyground™

2
Thank You forchoosingOben!
This Oben BA Series ballhead is a compact and
lightweight head that provides nimble, reliable
operation. The single lock makes it easy to rapidly
adjust the ball and calibrated base. A snap-in quick-
release plate is included for eortless mounting
and dismounting of the camera. The dual-locking
quick-release keeps the camera securely attached
to the ballhead and prevents the camera from being
accidentally released. For additional security, the
ballhead is constructed with extra tension to oer
greater control when repositioning the camera.
Integrated bubble levels ensure accurate alignment
of the camera with the horizon. The calibrated base
of the ballhead allows for full 360° panning, as well
as precise placement of the camera.
Please read through this entire manual before using the
BA series ballhead.
Note: Images are for illustrative purposes only. Actual
product may vary.
INTRODUCTION

3
Key Features 4
MountBallheadToTripod 5
Converting MountingThread 5
MainLockingKnobOperation 5
Calibrated Base 6
Dual-LockingQuick-Release 6
MountQuick-Release Plate 6
MountCamera 7
Warnings 7
TABLE OF CONTENTS

4
Quick-ReleasePlate
Dual-LockingQuick-Release
SingleLock
1/4″-20 UNCMounting Screw
BaseWith 360° Markings
Bubblelevels
90°Groove
KEY FEATURES
A
A
B
B
F
F
G
G
E
E
D
D
C
C

5
The single Locking Knob locks
and unlocks the ballhead, which
allows you to change the position
of the camera. When changing
camera position using the Locking
Knob, always keep one hand
on the camera. Turn the knob
counterclockwise to unlock the
head and clockwise to lock it.
Ensure that the knob is firmly
tightened before letting go of the
camera.
For tripods with a 1/4″threaded
mounting stud: insert the
supplied Reducer Bushing into
the threaded mounting hole of the
head to enable a proper fit.
OPERATION
To mount the ballhead on the
tripod, first tighten the locking
knob on the head. Then, being
careful to properly align the
tripod stud and the ballhead hole
to avoid damaging them, rotate
the ballhead clockwise onto the
tripod, and tighten it by hand.
1.Mount BallheadTo Tripod
2.ConvertingMountingThread
3.Main LockingKnobOperation

6
The BA series is designed with
a dual-locking quick-release
latch to keep the camera
securely in place on the head.
To unlock the quick-release,
press the small latch while
pulling outward on the main
latch at the same time.
Mount the Quick-Release Plate
to the threaded hole on the
base of your camera. The plate
utilizes a 1/4″-20 screw that
will fit most cameras. After
tightening the screw, fold the
thumbscrew flat against the
bottom of the quick-release plate.
The base of the ballhead can
be rotated a full 360° and
is controlled by the single
locking knob on the side of
the ballhead. Twist the knob
counterclockwise to unlock
the base. Rotate the base to
the desired position, and lock
the base by turning the knob
clockwise. Calibrated degree
markings on the base of the
ballhead mark the position of
the camera precisely.
4.Calibrated Base
5.Dual-LockingQuick-Release
6.Mount Quick-ReleasePlate
OPERATION

7
Visit our website at ObenSupports.com
for more Oben products.
!Warnings:
• Do not exceed the ballhead’s maximum
load capacity (see packaging for details).
• Ensure that all appropriate locks are
engaged when necessary.
• Ballhead should only be used in
temperatures ranging between -22° and
140° F (-30° and 60° C). Do not operate in
saltwater. Dry ballhead if it becomes wet.
• Remove the camera from the ballhead
during setup or transport.
• Keep out of reach of children.

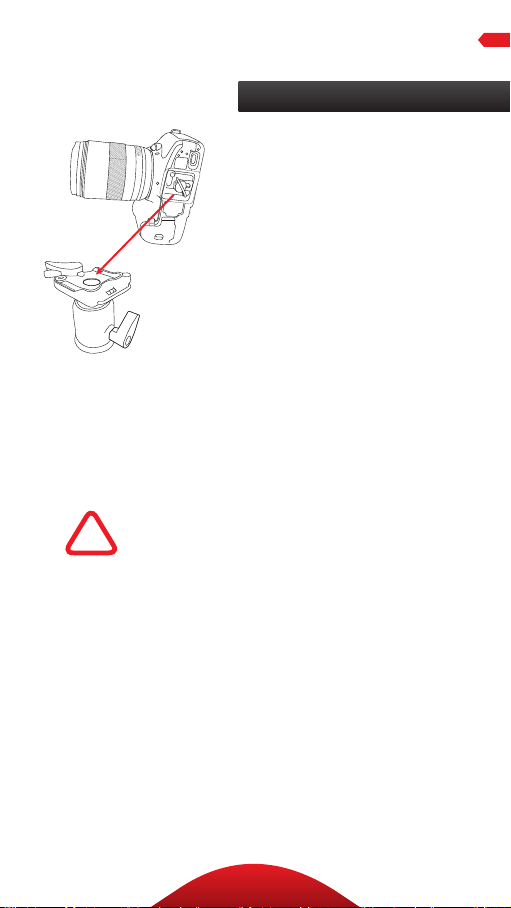

After mounting the quick-release
plate to your camera, ensure that
the locking knob on the ballhead
is securely tightened. To mount
the camera to the ballhead, first
insert the side of the Quick-
Release Plate that is opposite the
quick-release latch. Then, press
down on the side of the quick-
release plate nearest the quick-
release latch. The quick-release
latch will automatically lock into
place when the plate is pushed
into the groove.
Warning: Always use one hand to
secure the camera while adjusting
the ballhead, and ensure that the
lock is engaged before letting go of
the camera.
OPERATION
7.Mount Camera
