Obid Id isc.prh200 User manual

Date: 2012-06-11

Vers. no. 1.12

m. dudde hochfrequenz-technik

Rottland 5a

D-51429 Bergisch Gladbach/ Germany

Tel: +49 2207-96890

Fax +49 2207-968920

Annex no. 5

Functional Description /

User Manual

INSTALLATION

draft – public (B)

2014-04-28 – M31210-2e-ID-B.docx

ID ISC.PRH200

Mobile Reader

(English)

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 2 from 37 M31210-2e-ID-B.docx

Note

FEIG ELECTRONIC GmbH

Lange Strasse 4

D-35781 Weilburg

Tel.: +49 6471 3109-0

http://www.feig.de

With the edition of this document, all previous editions become void. Indications made in this manual may be

changed without previous notice.

Copying of this document, and giving it to others and the use or communication of the contents thereof are

forbidden without express authority. Offenders are liable to the payment of damages. All rights are reserved

in the event of the grant of a patent or the registration of a utility model or design.

Composition of the information in this document has been done to the best of our knowledge. FEIG

ELECTRONIC GmbH does not guarantee the correctness and completeness of the details given in this

manual and may not be held liable for damages ensuing from incorrect or incomplete information. Since,

despite all our efforts, errors may not be completely avoided, we are always grateful for your useful tips.

The instructions given in this manual are based on advantageous boundary conditions. FEIG ELECTRONIC

GmbH does not give any guarantee promise for perfect function in cross environments and does not give

any guaranty for the functionality of the complete system which incorporates the subject of this document.

FEIG ELECTRONIC call explicit attention that devices which are subject of this document are not designed

with components and testing methods for a level of reliability suitable for use in or in connection with surgical

implants or as critical components in any life support systems whose failure to perform can reasonably be

expected to cause significant injury to a human. To avoid damage, injury, or death, the user or application

designer must take reasonably prudent steps to protect against system failures.

FEIG ELECTRONIC GmbH assumes no responsibility for the use of any information contained in this docu-

ment and makes no representation that they free of patent infringement. FEIG ELECTRONIC GmbH does

not convey any license under its patent rights nor the rights of others.

OBID®and OBID i-scan®are registered trademarks of FEIG ELECTRONIC GmbH.

my-d®is a registered trademark of Infineon Technologies AG

I-CODE®is a registered trademark of Philips Electronics N.V.

Tag-itTM is a registered trademark of Texas Instruments Incorporated.

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 3 from 37 M31210-2e-ID-B.docx

Contents

1Safety Instructions / Warning - Read before Start-Up 5

1.1 Safety Instructions / Warning - Lithium-ion battery .................................................6

1.2 Lithium-ion batteries – Return and Transport ..........................................................7

1.3Maintenance................................................................................................................8

1.4 Assembly of the wrist strap.......................................................................................8

2Performance Features of the mobile Reader ID ISC.PRH200 9

2.1 Performance Features................................................................................................9

2.2 Available Reader Types............................................................................................10

2.3 Available Spare Parts...............................................................................................10

2.4 Delivery contents......................................................................................................10

3Start-up 11

3.1 Side view, Button & LED‘s .......................................................................................11

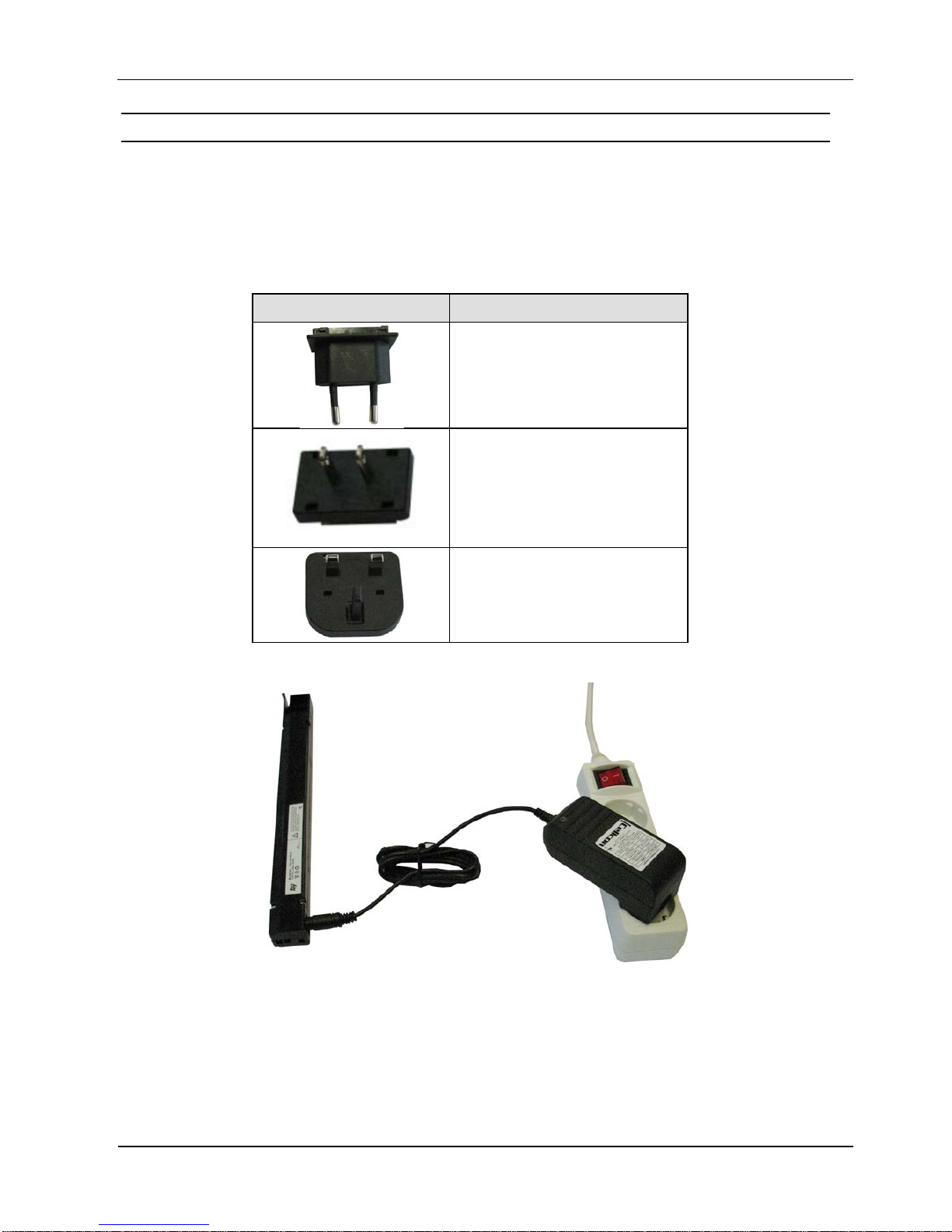

3.2 Charge the battery....................................................................................................12

4First Wi-Fi connection with the Reader and scanning transponder 13

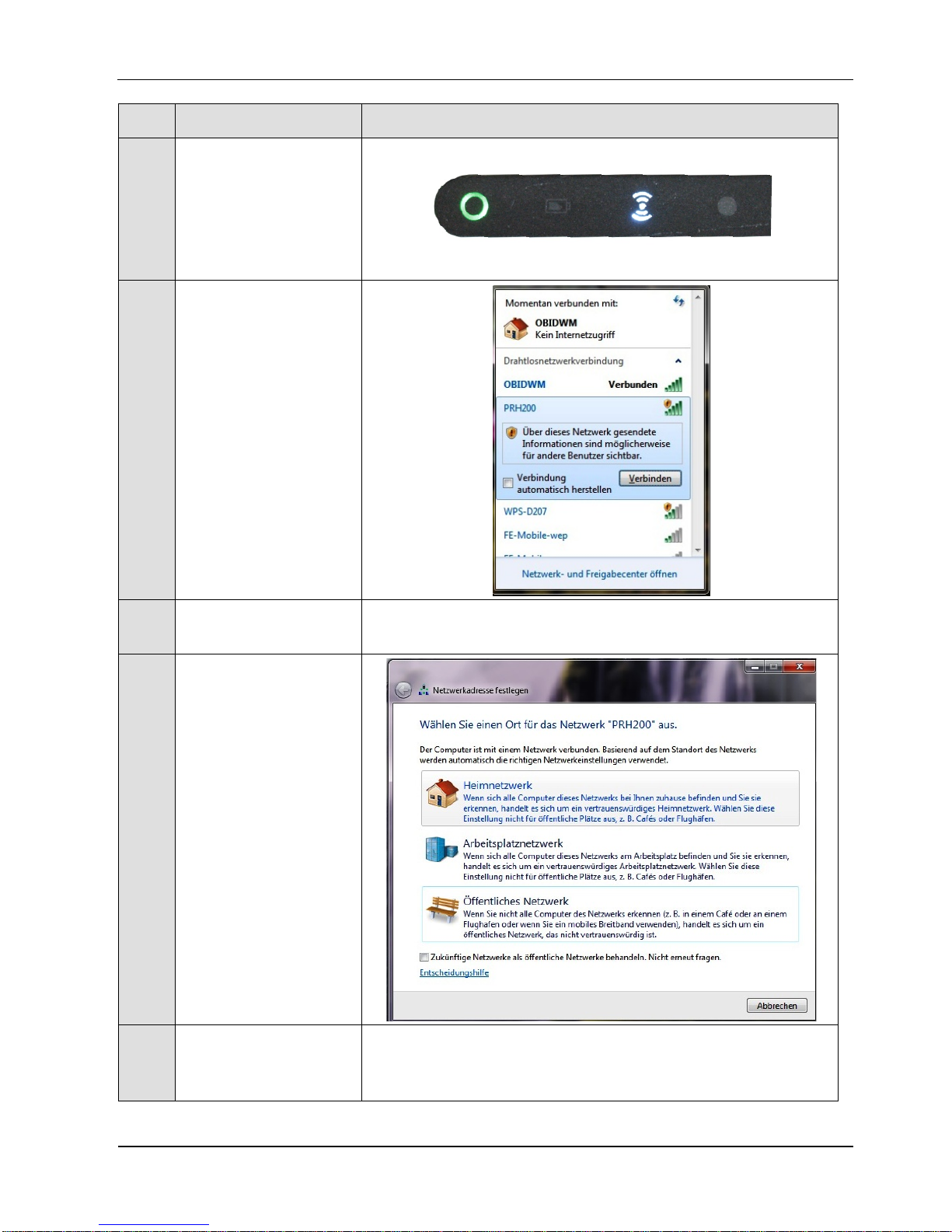

4.1 Connection in Access point Mode...........................................................................13

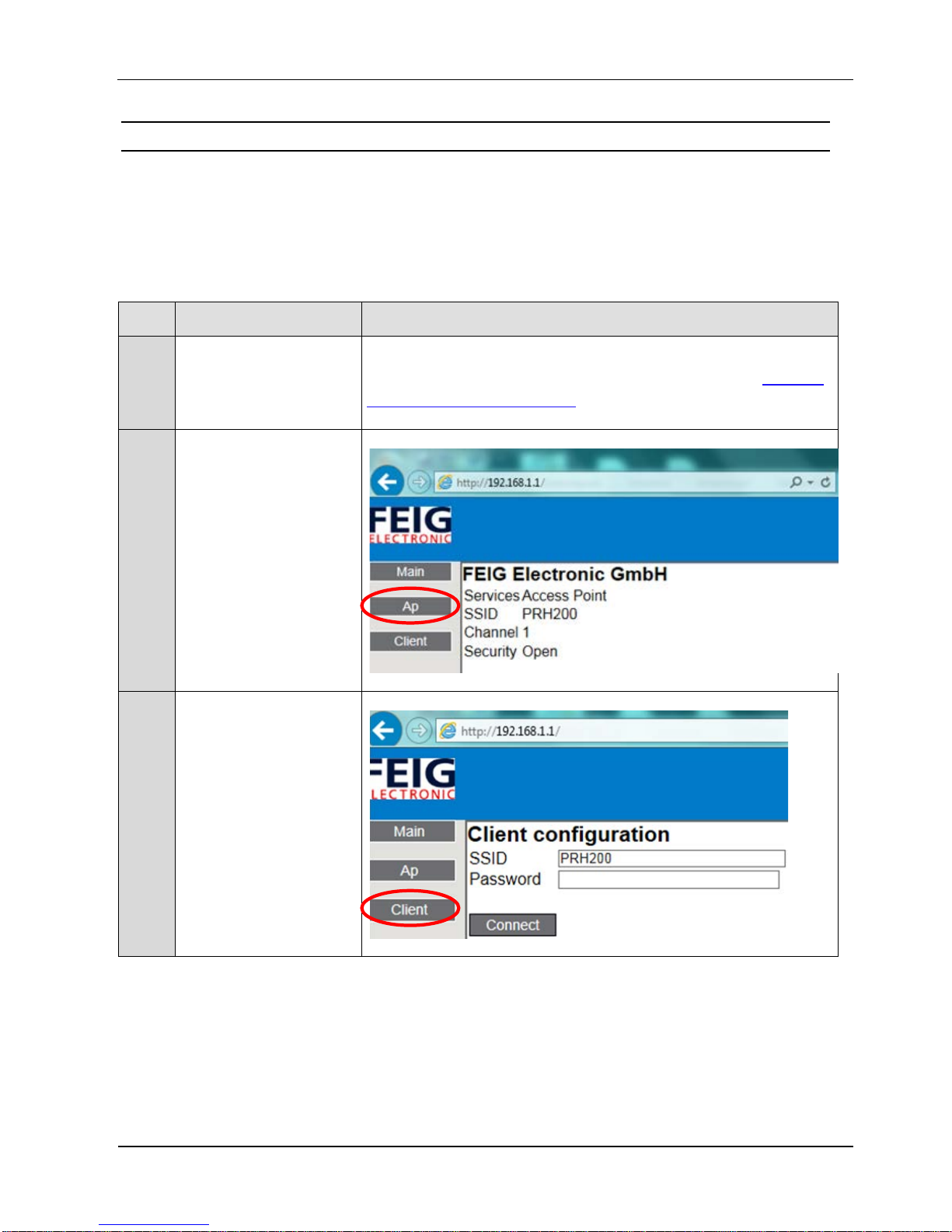

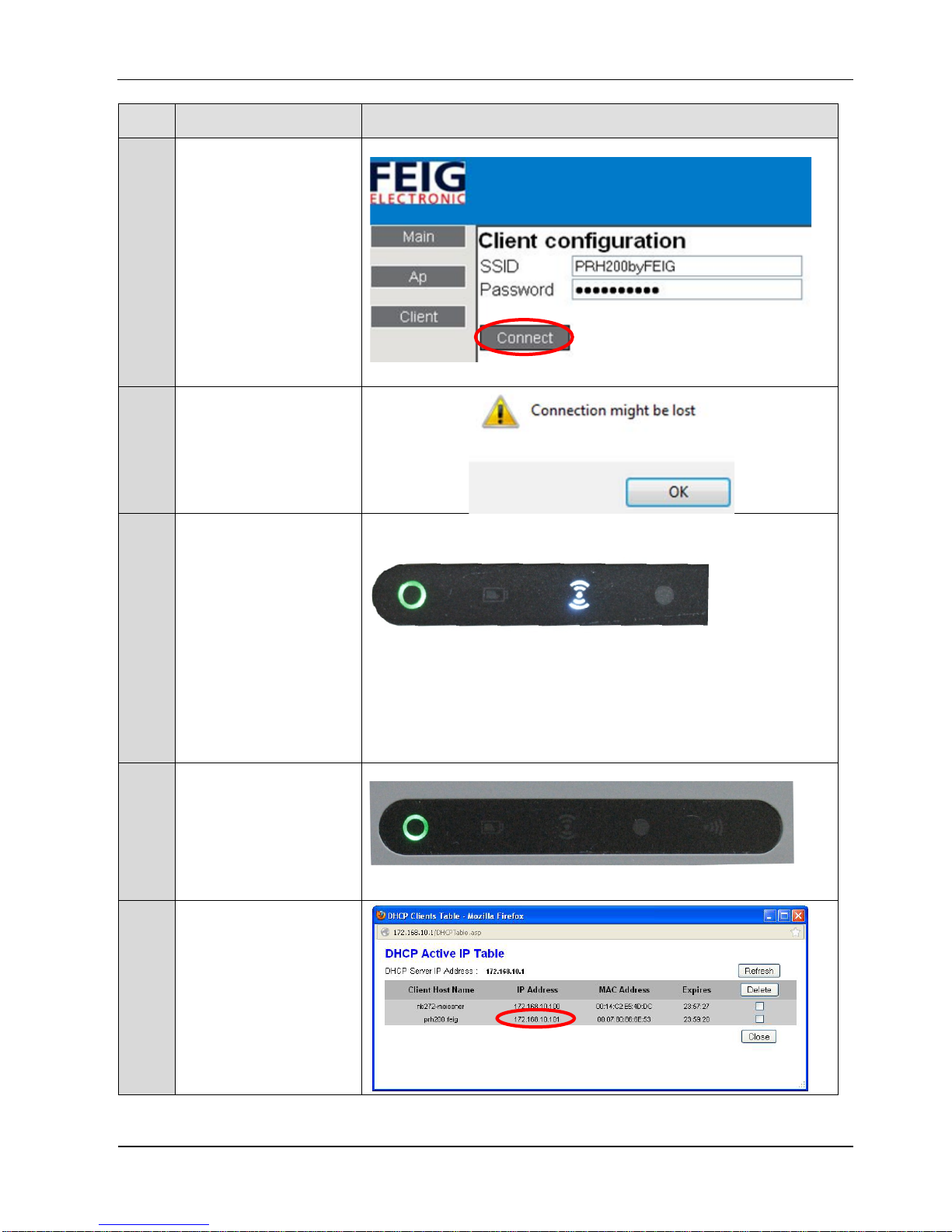

4.2 How to configure the Reader in client mode...........................................................16

4.3 Set Wi-Fi parameter to default .................................................................................18

4.4 Wi-Fi Interfaces.........................................................................................................20

5Control and Display Elements 21

5.1 Buttons......................................................................................................................21

5.1 HF-ON Motion Detector ............................................................................................22

5.2 LEDs ..........................................................................................................................23

5.3 Buzzer........................................................................................................................24

6Configuration and testing the Reader using ISOStart 25

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 4 from 37 M31210-2e-ID-B.docx

7Approvals 30

7.1 Europe (CE)...............................................................................................................30

7.2 USA (FCC) and Canada (IC) .....................................................................................31

7.3 Label Information Reader ID ISC.PRH200...............................................................33

7.3.1 USA (FCC) and Canada (IC) approved antennas...................................................34

8Technical Data 35

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 5 from 37 M31210-2e-ID-B.docx

1 Safety Instructions / Warning - Read before Start-Up

•The device may only be used for the intended purpose designed by for the manufacturer.

•The operation manual should be conveniently kept available at all times for each user.

•Unauthorized changes and the use of spare parts and additional devices which have not been

sold or recommended by the manufacturer may cause fire, electric shocks or injuries. Such

unauthorized measures shall exclude any liability by the manufacturer.

•The liability-prescriptions of the manufacturer in the issue valid at the time of purchase are valid

for the device. The manufacturer shall not be held legally responsible for inaccuracies, errors,

or omissions in the manual or automatically set parameters for a device or for an incorrect

application of a device.

•Repairs may only be executed by the manufacturer.

•Installation, operation, and maintenance procedures should only be carried out by qualified

personnel.

•Use of the device and its installation must be in accordance with national legal requirements

and local electrical codes .

•When working on devices the valid safety regulations must be observed.

•Please observe that some parts of the device may heat severely.

•For installation and dismantling you should wear suitable safety gloves, because parts of

antenna housing could be sharp-edged.

The device is not water proof and should not be exposed to rain or humidity.

Under extreme circumstances water could seep into the device and damage the electronic

circuits.

Special advice for wearers of cardiac pacemakers:

•Although this device doesn't exceed the valid limits for electromagnetic fields you should

keep a minimum distance of 25 cm between the device and your cardiac pacemaker. Do

not holding the reader antenna for any length of time in an immediate proximity of the car-

diac pacemakers

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 6 from 37 M31210-2e-ID-B.docx

1.1 Safety Instructions / Warning - Lithium-ion battery

•Use the battery only in the intended device from Typ ID ISC.PRH200.

•Improper use, damaged chargers or battery packs of injury and fire hazard

•Expose the battery pack for no deviating from the technical data of environmental influences.

Moisture and water, dust, heat, shocks and pressure can damage or destroy the battery pack.

•To use a damaged, deformed or not original sealed battery pack is prohibited. You must be

disposed of properly and Expertly and may no longer be shipped in Packet

•Lithium-ion batteries must not be in the trash, they must be disposed of separately. Find out.

upon the local authorities to suitable collection

•Charge the battery only with the original by FEIG ELECTRONIC GmbH supplied battery

charger.

•During charging, the ambient temperature should be between 10°C and maximum 45 °C. A

slight warming of the battery during charging and in use is normal.

•Store your battery in a cool, dry place. Permitted temperature range according to technical

data.

•The battery pack must never be shorted out. A short-circuit the battery pack can be very hot,

break and break explosively

•Avoid reverse polarity of positive and negative poles. The battery pack may be damaged or

destroyed.

•Do not heat or throw the battery pack of in fire. Do not charge and leave the battery pack at the

high temperature. The battery pack may ignite explosively and break

•Never disassemble the battery pack. If disassembled battery pack, safety protection circuit may

cause breaking and not operated safety system for charge and discharge. May cause heating,

igniting and breaking of cell.

•Do not solder to terminal of battery pack. Safety protection circuit may cause breaking and may

be not operated safety system for charge and discharge. If heat up battery pack over 90°C,

plastic parts may be melting and cell may be leaking and may cause heating, igniting and

breaking by short-circuit internally.

•Do not subject the battery and replace the battery, no strong shocks or a strong impact.

•Do not leave the battery unattended during charging.

•Make sure that the battery label always remain on the battery pack. The information’s printed

on the label have to be visible during handling the battery pack.

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 7 from 37 M31210-2e-ID-B.docx

1.2 Lithium-ion batteries – Return and Transport

Please note the following instructions for disposal or return and transport of Li-Ion batteries:

•Do not load or transport Li-Ion batteries if damaged. If you have any doubts, please contact

our technical support under obid-[email protected] or phone +49 (0) 6471 3109 421.

•If the packaging is damaged, the packaging must be replaced by an undamaged original

packaging before further transport.

•Li-Ion Batteries may only be returned in their original condition and packaging.

•The shipping regulations must be observed.

•In the case of a return, the following label is clearly visible attached to the parcel:

Print out this sheet in A4 format in color, cut it out and attach the label clearly visible on the pack-

age.

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 8 from 37 M31210-2e-ID-B.docx

1.3 Maintenance

The reader ID ISC.PRH200 is a design product with high quality surfaces, and should always be

handled with caution. The Device was designed to work reliably and flawlessly for years without

special maintenance.

Attention! The surfaces should be cleaned with a clean, soft cloth dampened in a dishwash-

ing liquid – water solution.

To improve the durability and the appearance, please follow the instructions below:

•Keep the reader clean and take care the reader is not scratched. Also regularly apply specific

antistatic products for acrylic surfaces.

•Regularly remove dust and other impurities with a soft cloth and a solution of water with a little

dishwashing liquid.

•Keep the reader dry. All kinds of moisture should be avoided during operation and storage.

Precipitation, humidity and liquids contain minerals that will corrode electronic circuits and

damaging transparent plastic parts.

•Avoid storing or operating the reader at dirty or wet locations. The surfaces or electronic com-

ponents may be-damaging.

If any device not working properly, please contact the appropriate representative.

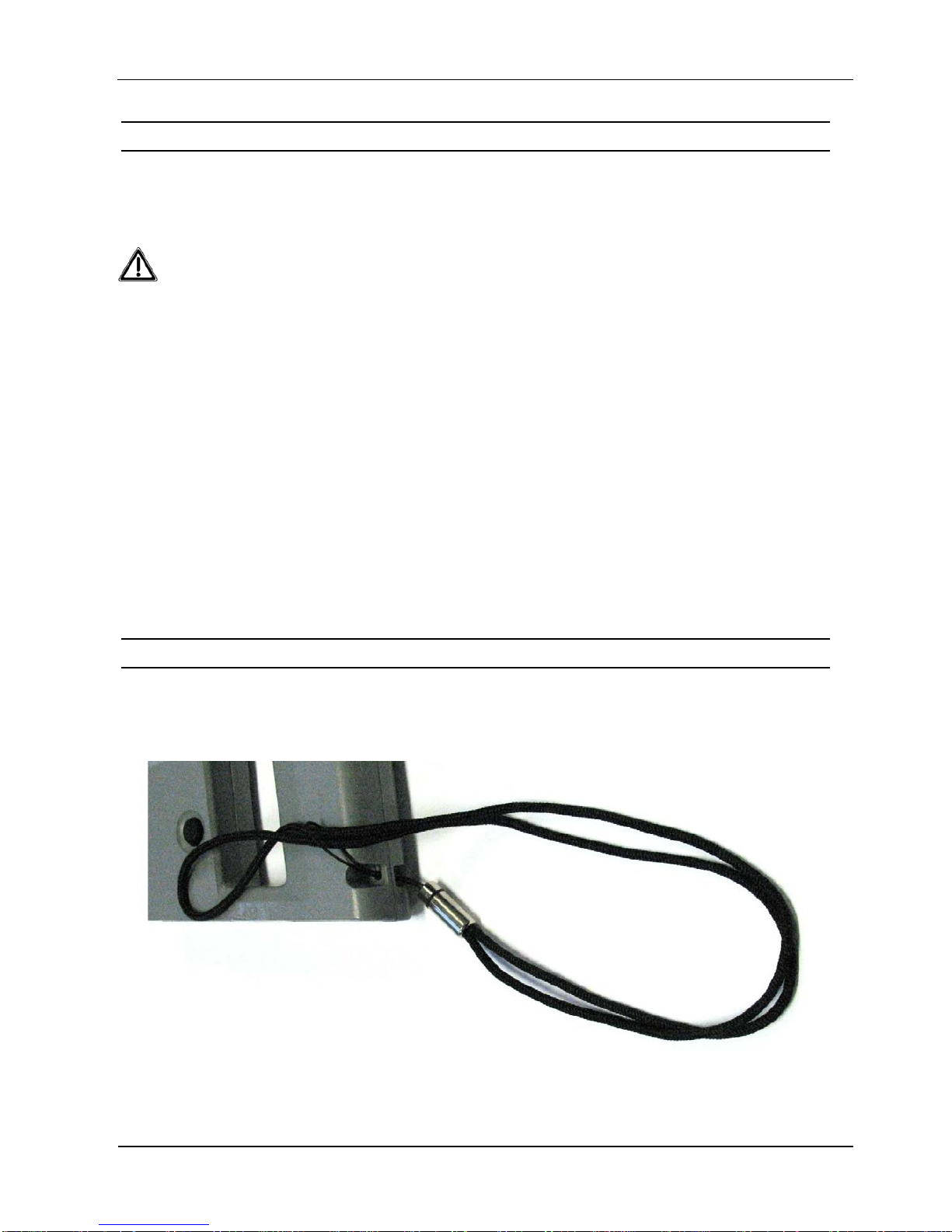

1.4 Assembly of the wrist strap

The included hand strap is mounted on the provided eyelet and tightened.

To avoid damage, the hand strap to secure it against falling should always be used.

Fig. 1: Assembly of the wrist strap

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 9 from 37 M31210-2e-ID-B.docx

2 Performance Features of the mobile Reader ID ISC.PRH200

2.1 Performance Features

ID ISC.PRH200 is a compact, wireless handheld reader, designed for contactless data exchange

with ISO 15693 transponders, especially in libraries. Typical applications are:

•Inventory (Inventory books or other media in the shelf)

•Sorting of books or media in a shelf

•Locate a book or media in a shelf or box,

•automatic checking / rewriting of the AFI bytes of all media.

Further applications are laundries, logistical processes as well as document and asset manage-

ment. In these areas it is possible to work with ISO 18000-3M3 transponders, optionally.

Depending on the type of media and the reading distance, the output power can be switched be-

tween two levels (Standard Mode: 1.5 W and Boost Mode: 4 W). Power supply is a Lithium Ion

rechargeable battery that allows for operating times up to 16 hours*.

If necessary, the battery can be replaced easily and quickly.

5 multi-colored LED lights and an integrated sounder act as display elements. Thereby all relevant

states are visible on both sides of the device.

Communication with a data base or computer take place through a Wi-Fi interface on the reader,

that supports the most common encryption protocols.

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 10 from 37 M31210-2e-ID-B.docx

2.2 Available Reader Types

Article No. Reader Description

4213.000.00 ID ISC.PRH200 Mobile Reader with rechargeable battery

and Wi-Fi-Interface

Table 1: Available Reader Types

2.3 Available Spare Parts

Article No. Spare part Description

4214.000.00 ID ISC.SRB Spare Rechargeable Battery Spare or additional battery-pack

4215.000.00 ID CHA.Li-Ion Recharger Spare charger for battery-pack

Table 2: Available Spare parts

2.4 Delivery contents

•Mobile Reader with battery and Wi-Fi-Interface

•Lithium-ion battery pack

•Wall power charger & Adapter Set for international socket-outlet

•Wrist strap

•Installation instructions

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 11 from 37 M31210-2e-ID-B.docx

3 Start-up

3.1 Side view, Button & LED‘s

Fig. 2: Housing ID ISC.PRH200

RF-ON

LED RF-ON

LED MODE

Eyelet for

wrist strap

Power-ON

LED Wi-Fi

LED BATT

LED APPL

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 12 from 37 M31210-2e-ID-B.docx

3.2 Charge the battery

The battery pack is charged using the supplied charger. For this, the Mini-DIN connector from the

charger is plugged into the side the battery pack. After installation of the adapter socket for the

charger, the charger must be connected to the mains. The charging will take 2-4 hours. The battery

is fully charged when the green LED remains lit on the power supply.

The device is supplied with three different removable adapter / plug:

Adapter Country of use

US / Canada / Japan

Great Britain

Table 3: Removable adapter for the charger

Fig. 3: Charger with battery pack

Note:

A new battery is delivered almost uncharged. Therefore, it must be fully charged before use.

A new battery has not until after the second or third charging / discharging the full capacity. This

also applies after a break of operation of a few months.

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 13 from 37 M31210-2e-ID-B.docx

4 First Wi-Fi connection with the Reader and scanning transponder

Before first use, the battery pack should be charged. See 3.2 Charge the battery. The battery pack

must be connected to the charger. The charging will take 2-4 hours. The battery is fully charged

when the green LED remains lit on the power supply.

To configure the Reader you will need the software tool ISOStart Version 9.07 or higher on a

personal computer running under Microsoft®Windows®with Wi-Fi interface The service tool can

be downloaded from the Download Area of the FEIG Homepage www.feig.de.

The delivered reader is set on to the factory default settings and works as a "Access Point" and

generates its own wireless network with the name (SSID) "PRH200" without encryption. The wire-

less interface of the corresponding PC or laptop must be configured to "Client Mode" and DHCP

"ON".

4.1 Connection in Access point Mode

No. Step Note

1. Boot the Computer boot

with Wi-Fi on.

Adopt the battery pack

plug into the slot on the

reader. The battery pack

clicks into place.

Reader ON: Short press

on Power-ON Button.

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 14 from 37 M31210-2e-ID-B.docx

No. Step Note

LED MODE (green) will

light and LED Wi-Fi

flashes slowly. After

about 5 seconds, the

Wi-Fi LED flashes with

about 8 Hz

Open window "Wireless

Connections" on your

PC and search for the

network name (SSID)

PRH200.

6. Connect to the network

PRH200.

Confirm the network

"PRH200" as a home or

workplace network.

8. Your Computer

connects to the Reader

PRH200, now

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 15 from 37 M31210-2e-ID-B.docx

No. Step Note

The white LED Wi-Fi is

off, the green LED

MODE remains on.

10.

For the configuration and testing the Reader the demo program “ISOStart” can be

used (Version 9.7.1 or higher). The next steps are described in the chapter:

Configuration and testing the Reader using ISOStart

As an alternative the demo tool „PRH200-Demo“ can be used. The description for

this tool you will find in the document H40310-0e-ID-B.pdf

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 16 from 37 M31210-2e-ID-B.docx

4.2 How to configure the Reader in client mode

For using the Reader in an existing WLAN infrastructure it will be necessary to configure the reader

into the Client Mode. For configuring the reader into the Client Mode the WEB-interface of the

reader can be used. With the help of a standard Browser on a Laptop, Smartphone or Tablet PC

you can get access to the reader Web-interface by using the reader default IP address

192.168.1.1.

No. Step Note

Connect the Reader ID

ISC.PRH200

Connect the Reader in the Access Mode via WLAN to a Laptop,

Smart Phone or Tablet PC as described in the chapter 4.1 Con-

nection in Access point Mode

Open a Browser and

write the TCP/IP

Adresse 192.168.1.1.

Choose the „Client“

button

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 17 from 37 M31210-2e-ID-B.docx

No. Step Note

Set the SSID and the

Password (Key) of the

WLAN network (Router)

and confirm with

“Connect” button.

The IP address and the

deciphering keys will be

programmed

automatically into the

reader.

Confirm the warning

message with a click on

the „OK“ button.

The Reader performs a

reset.

Afterward the Mode LED

(green) lights and the

WLAN LED flashes

slowly. After approx. 5

seconds the WLAN LED

flashes with approx. 4

Hz.

As soon as the WLAN

LED goes off the WLAN

connection is ready to

use.

Check the WLAN Client-

List in the router WEB-

interface. There the new

IP address assigned by

DHCP will be shown.

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 18 from 37 M31210-2e-ID-B.docx

4.3 Set Wi-Fi parameter to default

Are the Wi-Fi parameter unknown or should the device be integrated into other network, all

parameters to the factory settings can be set to default by a hardware reset..

No. Step Note

Insert a thin wire (e.g. pa-

per clip) in the hole for the

reset button and hold it

down.

At the same time press

button Power ON shortly

2. Hold the Reset Button for

5 seconds. The Reader starts and the 5 LEDs flash alternately

Now, all LEDs flash at 2 Hz

at the same time

Now: Release the Reset

Button

Immediately afterwards,

press the Button Power-ON

for 5 Seconds.

-> The Reader switched off

OBID

i-scan

Installation

ID ISC.PRH200

FEIG ELECTRONIC GmbH Page 19 from 37 M31210-2e-ID-B.docx

No. Step Note

Short press on Power-ON

Button to reboot the reader

The Wi-Fi Modul is on de-

fault values, now.

SSID: PRH200

Unsecured Wireless Net-

work

Mode: Access Point

Table of contents

OBID ID ISC.PRH200 User manual

Popular Card Reader manuals by other brands
