PYROLINE®Con BSK fire protection duct
I30-I120 classification according to DIN 4102-11
E30-E90 classification according to DIN 4102-12

© 2022 OBO Bettermann Holding GmbH & Co. KG
All the personal designations used in the document are to be considered gender-neutral.
PYROLINE® Con is a registered brand of OBO Bettermann Holding GmbH & Co. KG
PYROLINE® Con BSK fire protection duct
Mounting instructions

3 | EN
Mounting instructions, PYROLINE® BSK fire protection duct
Table of contents
Table of contents
1 About these instructions . . . . . . . . . . . . . . . . . . . . . 5
1.1 Target group . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.2 Relevance of these instructions . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Types of warning information . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Applicable documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.6 Basic standards and regulations . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
1.7 General safety information . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1.8 Personal protective equipment . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Necessary tools . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Product description, PYROLINE® Con BSK fire protection duct
8
1.9 Product features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.10 Product overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
1.10.1 PYROLINE® Con D BSK for direct wall or ceiling mounting . . . . . . . . . . . . . . . . 9
1.10.2 PYROLINE® Con S BSK for mounting with a support system . . . . . . . . . . . . . . 10
5 Selecting the fire protection duct . . . . . . . . . . . . . . . 12
1.11 Fire protection duct for direct wall/ceiling mounting . . . . . . . . . . . . . . . 12
1.12 Fire protection duct for mounting with a support system . . . . . . . . . . . . 12
6 Planning an installation . . . . . . . . . . . . . . . . . . . . 13
1.13 Structural conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.14 Approved fastening materials . . . . . . . . . . . . . . . . . . . . . . . . . . 13
1.15 Approved cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
7 Mounting PYROLINE® Con D BSK on a wall/ceiling . . . . . 16
1.16 Mounting the duct trough . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
1.17 Mounting the duct cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1.18 Creating a corner connection . . . . . . . . . . . . . . . . . . . . . . . . . .20
1.18.1 90° internal corner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
1.18.2 90° external corner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
1.19 Creating a 90° flat angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
1.20 Creating a T connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
1.21 Creating a cross-connection . . . . . . . . . . . . . . . . . . . . . . . . . .28
1.22 Creating other fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
1.23 Mounting an end piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
1.24 Running a cable out of the fire protection duct . . . . . . . . . . . . . . . . .32
1.25 Creating a wall connection . . . . . . . . . . . . . . . . . . . . . . . . . . .33
8 Mounting the PYROLINE® Con S BSK with a support system .
36
1.26 Mounting the wall bracket . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

4 | EN OBO Bettermann
Table of contents
1.27 Mounting the suspended support and bracket . . . . . . . . . . . . . . . . .38
1.28 Mounting the threaded rod and support rail . . . . . . . . . . . . . . . . . . .39
1.29 Mounting the duct trough . . . . . . . . . . . . . . . . . . . . . . . . . . . .40
1.30 Mounting the duct cover . . . . . . . . . . . . . . . . . . . . . . . . . . . .42
1.31 Mounting fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43
1.31.1 Mounting a vertical bend on a bracket or support rail . . . . . . . . . . . . . . . . . . 45
1.32 Mounting separating retainers . . . . . . . . . . . . . . . . . . . . . . . . .45
1.33 Mounting threaded rods for maintenance of electrical function class E30 . . .46
1.34 Mounting an end piece . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
1.35 Running a cable out of the fire protection duct . . . . . . . . . . . . . . . . .48
1.36 Creating a wall connection . . . . . . . . . . . . . . . . . . . . . . . . . . .49
1.37 Combining PYROLINE ® Con S BSK with PYROLINE® Con D BSK . . . . . .55
9 Labelling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
10 Retrofitting . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
11 Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . 57
12 Dismantling PYROLINE® Con BSK . . . . . . . . . . . . . . 57
1.38 Dismantling PYROLINE® Con D BSK . . . . . . . . . . . . . . . . . . . . . .57
1.39 Dismantling PYROLINE® Con S BSK . . . . . . . . . . . . . . . . . . . . . . 57
13 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . 59

5 | EN
Mounting instructions, PYROLINE® BSK fire protection duct
About these instructions
1 About these instructions
1.1 Target group
These instructions are intended for specialists and/or instructed technical
personnel (e.g. engineers, architects, heads of construction, and mount-
ing and installation engineers) who have had fire protection training and
are charged with the installation of the fire protection duct.
1.2 Relevance of these instructions
– These instructions are based on the standards valid at the time of
compilation (October 2021).
– Follow these instructions to ensure correct and safe use.
– Any images are intended merely as examples. Mounting results may
look different.
– We will not accept any warranty claims for damage caused through
non-observance of these instructions.
– In these instructions, cables and lines are referred to simply as ca-
bles.
– These instructions describe standard solutions for mounting the PY-
ROLINE® Con BSK fire protection duct. Special solutions for specific
structural conditions are possible, but must be planned on-site with
the authorities.
– To find out more about planning and mounting the product, we recom-
mend a comprehensive training course.
1.3 Types of warning information
Type of risk!
Shows a risky situation. If the warning information is not observed, then
serious or fatal injuries may occur.
Type of risk!
Shows a risky situation. If the warning information is not observed, then
medium or minor injuries may occur.
Type of risk!
Shows a hazardous situation. If the safety instruction is not observed,
then damage to the product or the surroundings may occur.
Note! Indicates important information or assistance.
1.4 Intended use
The PYROLINE® Con BSK fire protection duct is used for the installa-
tion and guidance of cables up to a maximum diameter of d = 52 mm in
escape and rescue routes in interior areas of buildings. It protects emer-
WARNUNG
VORSICHT
ACHTUNG

6 | EN OBO Bettermann
About these instructions
gency and escape routes in building interiors against the effects of a cable
fire or, if there is a fire, secures the maintenance of electrical function of
safety-relevant electrical systems. The PYROLINE® Con PLC fire protec-
tion duct can be mounted on solid walls and ceilings, either directly or with
a support system.
Mounting must take place with fastening material with fire protection test-
ing. Ceilings and walls at the mounting location must be made of masonry,
concrete, reinforced concrete or porous concrete, and have a minimum
thickness of 12.5 cm (walls) or 12.5 cm (ceilings). Only then can the cor-
rect function of the fire protection duct be guaranteed.
The PYROLINE® Con BSK fire protection duct is not suitable for any pur-
pose other than that stated here.
The fire protection duct is not designed to support walls in wall penetra-
tions. Ensure that the wall penetrations can support themselves. Mount-
ing of the fire protection duct on dry or lightweight construction walls or
suspended ceilings shall not be considered proper.
1.5 Applicable documents
– General construction test certificate P-3109/0998-MPA BS
– General construction test certificate P-3320/381/14-MPA BS
– Surveyor reports GA-2020/029-Mey, GA-2020/030-Mey, GA-
2021/051-Mey, GA-2021/052-Mey
– Safety data sheets of the products (www.obo-bettermann.com)
1.6 Basic standards and regulations
– DIN 4102-1: 1998-05
Fire behaviour of building materials and building components; building
materials, concepts, requirements and tests
– DIN 4102-2: 1977-09
Fire behaviour of building materials and building components; building
components, definitions, requirements and tests
– DIN 4102-4: 2016-05
Fire behaviour of building materials and building components – Part
4: Synopsis and application of classified building materials, compo-
nents and special components
– DIN 4102-11:1985-12
Fire behaviour of building materials and building components; pipe
encasements, pipe bushings, service shafts and ducts, and barriers
across inspection openings
– DIN 4102-12:1998-11
Fire behaviour of building materials and building components: Circuit
integrity maintenance of electric cable systems; requirements and
testing
– Sample Administrative Provision, Technical Construction Regulations:
2020/1

7 | EN
Mounting instructions, PYROLINE® BSK fire protection duct
Safety
2 Safety
2.1 General safety information
Observe the following basic safety information on handling the PYRO-
LINE® Con BSK fire protection duct:
– All the appropriate regulations and technical regulations of other units,
in particular those for electrical engineering, must be complied with.
– The fire protection duct may not be subjected to weights or used as a
support.
– The maximum permitted cable load should be selected according to
the total weight of the fire protection duct. The approved cable load
may not be exceeded, as otherwise the support and function capabili-
ty is no longer guaranteed.
2.2 Personal protective equipment
List of personal protective equipment to be used:
Wear safety shoes!
The weight of the fire protection duct can lead to contusions. Wear suita-
ble safety shoes during transport and mounting, in order to avoid contu-
sions or crushing injuries.
Wear head protection!
The weight of the fire protection duct can lead to head injuries when
working overhead. Wear a safety helmet when performing overhead
work.
Wear breathing protection!
If there is a fire, burning cable insulation can create corrosive gases. When dis-
posing of fire protection ducts which have been subjected to a fire, wear breath-
ing protection.
3 Necessary tools
List of required tools:
– Mounting lift, if the spatial conditions permit it
– Standard hand or coping saw with coarse saw blade, also suitable for
metal, to process the fire protection duct
– Manual machines with the option of connecting a vacuum cleaner for
automatic suction
– Drill
– Screwdriver
– Battery-operated screwdriver

8 | EN OBO Bettermann
Product description, PYROLINE® Con BSK fire protection duct
4 Product description, PYROLINE® Con BSK fire
protection duct
4.1 Product features
The PYROLINE® Con BSK is installed on interior walls and ceilings, to
route cables within. The fire-resistant material of the PYROLINE® Con
BSK fire protection duct fulfils the existing fire protection requirements
and, if there is a fire, prevents
– a fire from jumping to the cables and, as a consequence, electrical
systems failing, causing the creation of toxic smoke gases or
– toxic smoke gases spreading in rooms and escape routes.
The PYROLINE® Con BSK fire protection duct stands out through the
following properties:
– PYROLINE® Con D BSK version for direct wall or ceiling mounting
– PYROLINE® Con S BSK version, for wall and ceiling mounting with
support system of wall brackets or suspended supports and brackets
or threaded rods and profile rails
– Maintenance of electrical function for up to 90 minutes (maintenance
of electrical function class E30‒E90)
– Fire load encapsulation up to 120 minutes (I90–I120 classification)
– Material made of non-combustible fibre glass lightweight concrete,
water and frost-resistant, non-electrically conductive
– Hard, smooth and anti-friction compacted surface
– PYROLINE® Con D BSK version, primed at the factory, surface refine-
ment possible through plastering, wallpapering, painting
– Processing with standard tools such as hand saw or coping saw
– Fittings for corner connection, T connection, vertical jumps for the
PYROLINE® Con S BSK version
– Simple creation of standard and special fittings according to individual
requirements with the PYROLINE® Con D BSK version
– Mounting on OBO support systems
– Simple inspection and retrofitting
– I duct: Routing of standard cable types up to a maximum diameter of d
= 52 mm
– E duct: Routing of cable types with a rated voltage of max. 1 kV up to
a maximum diameter of d = 52 mm, no special cables with integrated
maintenance of electrical function required

9 | EN
Mounting instructions, PYROLINE® BSK fire protection duct
Product description, PYROLINE® Con BSK fire protection duct
4.2 Product overview
4.2.1 PYROLINE® Con D BSK for direct wall or ceiling mounting
The PYROLINE® Con BSK product version is mounted directly on the
wall or ceiling and consists of the following product elements:
Abb. 1:
123
4
5
6
7
A
A
B
8
10
11
12
13
14
9
BETTERMANN
BETTERMANN
15
Product overview, PYROLINE® Con D BSK
No. Product element Function
1
Duct trough made up of duct
walls
A
and duct base
B
Cable seat, connection with wall or
ceiling
2
Sealing strip Sealing of joints and duct cover
3
Duct cover (Straight) connection of the fire protec-
tion duct
4KTM mortar Sealing of connection joints and cracks
5Doubler Necessary for exits of individual cables
and cable bundles
6
Separating clamp To accept cables for the mounting of the
fire protection duct under ceilings
7Separating bracket To accept cables for the mounting of the
fire protection duct on walls
8Cable bracket, vertical To accept cables for vertical mounting of
the fire protection duct
9Countersunk head screw Fastening of doubler and cover on duct
trough
10 MMS bolt tie for masonry Screwing of the fire protection duct to
wall or ceiling
11 Bolt tie for concrete
12 End piece End closure of the fire protection duct
13
MIW-S mineral wool Sealing of wall penetrations

10 | EN OBO Bettermann
Product description, PYROLINE® Con BSK fire protection duct
No. Product element Function
14 KS-E identification plate Approved labelling of a cable system for
maintenance of electrical function
according to DIN 4102-12
15 KS-K identification plate Optional identification as installation
duct according to DIN 4102-11
Tab. 1: Product elements, PYROLINE® Con D BSK
4.2.2 PYROLINE® Con S BSK for mounting with a support system
The PYROLINE® Con S BSK product version is mounted directly on the
wall or ceiling and consists of the following product elements:
2 3 456
8
9
10
11
12
A
B
C
13
14
15
16
18 17
A
D
1
19
20
BETTERMANN
BETTERMANN
21
22 23
7
24
Abb. 2: Product overview, PYROLINE® Con S BSK

11 | EN
Mounting instructions, PYROLINE® BSK fire protection duct
Product description, PYROLINE® Con BSK fire protection duct
No. Product element Function
1Duct trough made up of
duct walls
A
and duct base
B
Cable seat,
support on support system
With connector
C
Connection of the joints of two fire
protection duct troughs
2Duct cover with side and
joint overlap
D
(Straight) connection of the fire protec-
tion duct
3Sealing strip Sealing of joints and duct cover
490° bend Creation of corner connections
5Vertical bend, falling Creation of vertical jumps in falling
version
6
Vertical bend, rising Creation of vertical jumps in rising
version
7T-piece Creation of cable branches
8Spacer Stiffening of suspended support
9
Support rail Support for fire protection duct, mount-
ing with threaded rods
10 Wall bracket and support
bracket
Mounting on wall or on suspended
support, support for fire protection duct
11
Support Mounting on ceiling, support of the
bracket
12 Protective cap for support Edge protection
13 Threaded rod Suspension for profile rail
14
End piece End closure of the fire protection duct
15 Countersunk head screw Fastening of doubler
Optional fastening of duct covers
16
MMS bolt tie for masonry Fastening of wall brackets
17
Bolt tie for concrete Fastening of wall brackets, suspended
supports or threaded rods
18 Separating retainer with separation of cables of different voltages
or functions
Separating retainer connec-
tor
Connection and stabilisation of the joints
of separating retainers
19 Doubler Necessary for exits of individual cables
and cable bundles
20
KTM mortar Sealing of connection joints and cracks
21 MIW-S mineral wool Sealing of wall penetrations
22 Identification plate KS-E Approved labelling of a cable system for
maintenance of electrical function
according to DIN 4102-12
23 KS-K identification plate Optional identification as installation
duct according to DIN 4102-11
24
KGA threaded rod adapter Seat of the threaded rod for require-
ments according to DIN 4102-12.
Tab. 2: Product elements, PYROLINE® Con S BSK

12 | EN OBO Bettermann
Selecting the fire protection duct
5 Selecting the fire protection duct
Depending on the required classification, fire protection ducts with differ-
ent wall thicknesses and mounting systems are used.
5.1 Fire protection duct for direct wall/ceiling mounting
Direct wall and ceiling mounting is particularly appropriate when no
pipes need to be refitted, buildings refurbished or surface refinement is
required, in order to integrate the duct visually into the appearance of the
room. The duct covers are screwed to the duct trough.
Fire resist-
ance /
maintenance
of electrical
function class
Duct type
PYROLINE®
Con D BSK
Internal
dimen-
sions h x
w in mm
External
dimensions
h x w in
mm
Weight/m in kg
without cable
assignment
I90/E30 BSKD09-K0506 50 x 60 110 x 140 11. 0
I90/E30 BSKD09-K0511 50 x 110 110 x 190 13.3
I90/E30 BSKD09-K0521 50 x 210 110 x 290 18.8
I90/E30 BSKD09-K1021 105 x 210 165 x 290 22.0
I120/E90 BSKD12-K0506 50 x 60 130 x 180 16.7
I120/E90 BSKD12-K0511 50 x 110 130 x 230 20.0
I120/E90 BSKD12-K0521 50 x 210 130 x 330 26.4
I120/E90 BSKD12-K1021 105 x 210 185 x 330 31.0
Tab. 3: Fire protection ducts for direct wall/ceiling mounting for maintenance of electrical
function/fire resistance classes E30/I90 and E90/I120
5.2 Fire protection duct for mounting with a support system
Mounting with a support system is particularly useful if obstacles such as
heating, ventilation or water pipes or joists must be refitted. The support
system can consist of
– wall supports,
– suspended supports with support brackets and threaded rods,
– or threaded rods and support rails.
With wall supports, it is possible to compensate for greater differences in
uneven walls or avoid vertical cables or pipelines. Support systems with
a suspended support and support bracket are easier to fill with cables.
If suspended with threaded rods, a smaller mounting area under the
ceiling is required. The selection of the support system is aligned to the
local conditions.
The duct covers are not screwed to the duct trough, thus allowing rapid
inspection and refilling.

13 | EN
Mounting instructions, PYROLINE® BSK fire protection duct
Planning an installation
Fire resist-
ance /
maintenance
of electrical
function class
Duct type
PYROLINE®
Con S BSK
Internal
dimen-
sions h x
w in mm
External
dimensions
h x w in mm
Weight/m in
kg without
cable assign-
ment
I90/E30 BSKH09-K0506 50 x 60 130 x 140 14.6
I90/E30 BSKH09-K0511 50 x 110 130 x 190 17. 7
I90/E30 BSKH09-K0521 50 x 210 130 x 290 24.6
I90/E30 BSKH09-K1021 105 x 210 185 x 290 28.3
Tab. 4: Fire protection ducts with support system for maintenance of electrical function/
fire resistance classes E30/I90
6 Planning an installation
To ensure the functionality of the fire protection duct, installations and
installation locations must fulfil technical and structural requirements.
6.1 Structural conditions
If there are uncertainties about the load capacity of walls and ceilings,
then a structural engineer must be consulted.
– Walls must be made of concrete, reinforced concrete or masonry (e.g.
calcareous sandstone, porous calcareous sandstone, full brick) with a
minimum thickness of 12.5 cm.
– Ceilings must be made of concrete, reinforced concrete or porous
concrete with a minimum thickness of 12.5 cm.
– Lightweight walls/partitions and wooden ceilings, as well as steel
structures and trapezoidal roofs, are not suitable for the mounting of
fire protection ducts.
– Walls and ceilings serving as a mounting surface must have at least
the same fire resistance length as the mounted fire protection duct.
– Mounting surfaces must be flat to avoid crack formation in the fire
protection ducts during mounting.
– The maximum approved tension in the suspended supports or thread-
ed rods is 9 N/mm² for the E30 maintenance of electrical function
class.
– If various electrical voltage levels are to be separated in a fire pro-
tection duct, the spacing of the various electrical voltage levels must
be at least 10 mm. Choose a fire protection duct with the appropriate
width/height and use separating clamps or brackets.
6.2 Approved fastening materials
Installed fastening materials must be fire protection-tested and certified
for the appropriate fastening substrate:

14 | EN OBO Bettermann
Planning an installation
– For direct wall/ceiling mounting, e.g. OBO bolt ties, type MMS-plus P
7.5x80, or similar with a rounded head, to avoid damage to the cables.
– For mounting on support systems, select the fastening material
according to the substrate and the requirements of the fire protection
duct to be fulfilled.

15 | EN
Mounting instructions, PYROLINE® BSK fire protection duct
Planning an installation
6.3 Approved cables
PYROLINE® Con BSK fire protection duct for fire encapsulation (I90/
I120)
All cable types up to a rated voltage of 1 kV can be routed.
Note! Cables with integrated maintenance of electrical function may not be
routed in the same duct with cables for general power supply.
PYROLINE® Con fire protection duct for maintenance of electrical
function (E30/E90)
All cable types up to a rated voltage of 1 kV can be routed. There are no
special requirements for the fire behaviour of the cables.
Note! When dimensioning the cables, note that the electrical resistance of the
conductors in the cable is increased through heating. A larger conductor
cross-section may be required.
Comply with the maximum approved cable load (see Table 5). The
approved cable load is dependent on the classification and the mounting
version of the fire protection ducts:
Classification
Wall/ceiling mounting Mounting
with
support
system
Cable load
Cable
directly on
top
Cable mounting
with separating
bracket/separat-
ing clamp
Maintenance
of electrical
function E
– X – ≤ 18.0 kg/m
Maintenance
of electrical
function E
X – – ≤ 11.0 kg/m
Maintenance
of electrical
function E
– – X ≤ 35.0 kg/m
Fire resist-
ance class I
– X – ≤ 35.0 kg/m
Fire resist-
ance class I
X – – ≤ 11.0 kg/m
Fire resist-
ance class I
– – X ≤ 35.0 kg/m
Tab. 5: Maximum approved cable load

16 | EN OBO Bettermann
Mounting PYROLINE® Con D BSK on a wall/ceiling
7 Mounting PYROLINE® Con D BSK on a wall/
ceiling
The PYROLINE® Con D BSK fire protection duct is mounted directly on
the wall in conjunction with separating brackets or under the ceiling with
separating clamps. The cables are later routed on the separating brack-
ets and separating clamps.
Danger of heavy components!
Fire protection ducts are very heavy and can cause serious injuries if they fall on
your head or other parts of the body.
Always work with a partner or work with mounting aids, such as scaffolding or
a mounting lift. Wear safety shoes. If mounting on the ceiling, wear protective
helmets.
Danger of cracking!
If the walls/ceilings are uneven, this can cause crack formations in the duct
trough if the means of fastening is too tight and the duct trough becomes
warped. Eliminate or compensate for uneven areas of the mounting substrate
before mounting.
Note! When shortening or notching out duct sections, take the width of a max.
3 mm joint with sealing strip into account.
7.1 Mounting the duct trough
≤100 mm ≤100 mm
≤ 400 mm ≤ 400 mm
1
Abb. 3: Drill hole spacings for wall/ceiling mounting
1. Drill three holes in the duct trough base along the marking lines
1
. The diameter of the drill hole is dependent on the selected means
of fastening, e.g. Ø 6 mm for the MMS-plus P 7.5x80 bolt tie. Drill the
holes alternately on the top and bottom marking line. Drill a hole half-
way along and the two other holes at a maximum of 100 mm to the
end of the duct section.
WARNUNG
VORSICHT

17 | EN
Mounting instructions, PYROLINE® BSK fire protection duct
Mounting PYROLINE® Con D BSK on a wall/ceiling
K1 2
2
2
Abb. 4: Duct trough mounting
2. Place the first duct trough
K1
directly on the wall at the end of the
room.
3. Draw the drill holes.
4. Drill drill holes in the wall/ceiling according to the selected means of
fastening (dimensions at least M6), e.g. for the MMS-plus P 7.5x80
bolt tie with Ø 6 mm.
5. Apply sealing strips
K1
to the front side of the duct trough
2
.
A
3mm
2
B
3mm
2
C
3mm

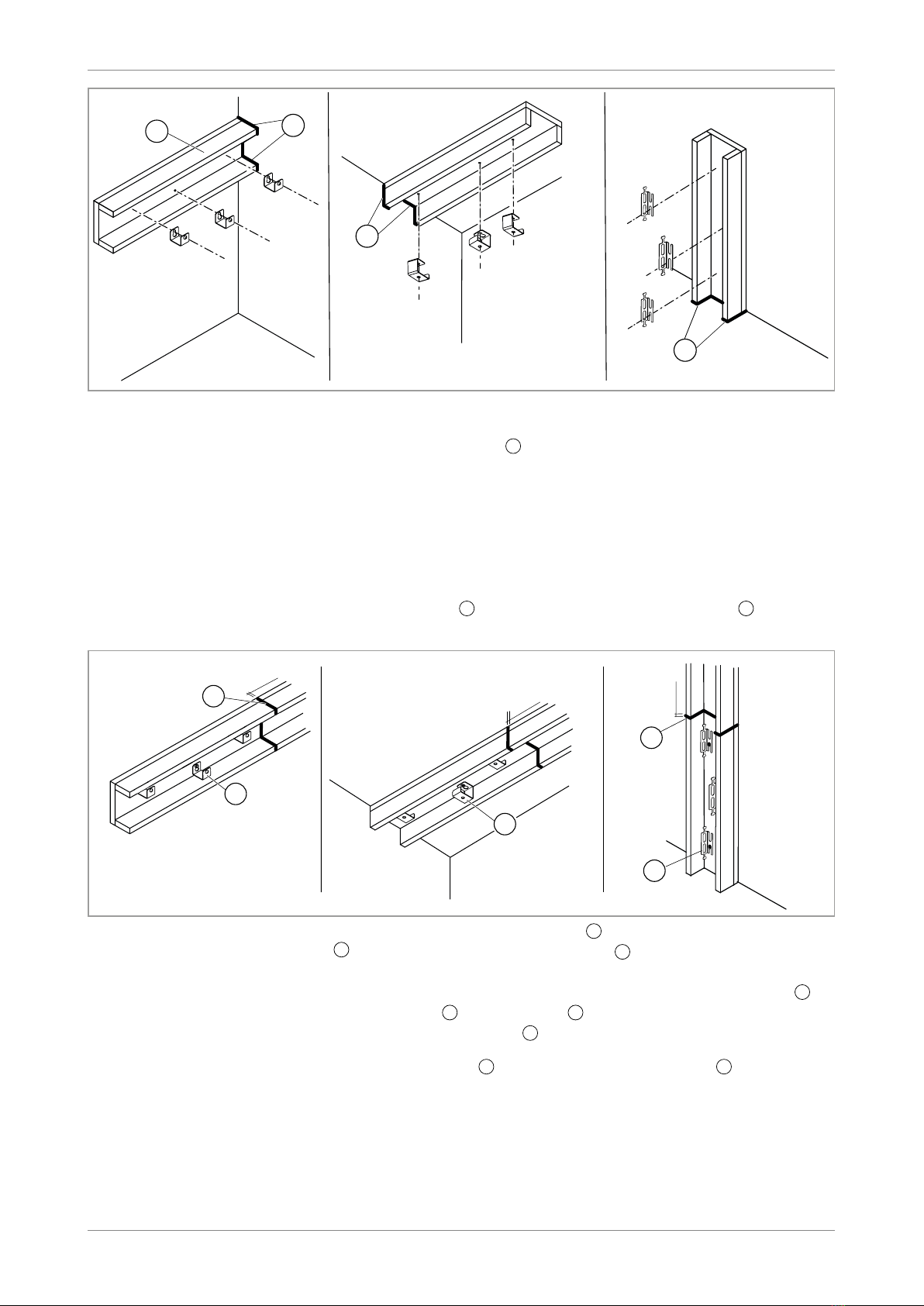

Abb. 5: Wall mounting with separating brackets
A
, Ceiling mounting with separating
clamps
B
Vertical wall mounting with cable brackets
C
6. Mount the duct trough in conjunction with the separating bracket
A
/
separating clamp
B
/cable bracket
C
and MMS bolt tie. During mount-
ing, compress sealing strips
2
to a maximum of 3 mm.
7. Attach the duct trough K2 to the end of the duct trough
K1
and mount in
the manner described in points 3–6.
8. Shorten the last duct trough to the wall with a hand or coping saw,
removing 3 mm from the residual length for the necessary joints.
9. Apply sealing strips to both front ends of the last duct trough.
10. Mount the last duct trough and ensure a joint of 3 mm to the previous

18 | EN OBO Bettermann
Mounting PYROLINE® Con D BSK on a wall/ceiling
duct trough.
3
3
3
Abb. 6: Wall connection
11. Fully close the joint to the wall with KTM mortar
3
.
12. Close off joints between two duct troughs which are insufficiently
compressed or tight with KTM mortar.
13. Close off joints between the duct base and the wall with KTM mortar.
The cables can be routed when the duct troughs are fully mounted.
Note! With the vertical cable brackets
C
, the cables can be fastened using
cable ties on the lugs or in the slots of the holder.

19 | EN
Mounting instructions, PYROLINE® BSK fire protection duct
Mounting PYROLINE® Con D BSK on a wall/ceiling
7.2 Mounting the duct cover
Before the duct cover is mounted, all the necessary fittings must be cre-
ated and mounted and the cables routed. Mounting of the duct cover can
deviate when fittings are used, see also chapter 7.3 - 7.7.
3 mm
≤ 300 mm
≤ 50 mm
≤ 300 mm ≤ 300 mm
≤ 300 mm
1
2
3
≤ 50 mm
Abb. 7: Duct cover mounting
1. Stick the sealing strip
2
all along the support surface and one front
side
3
of the duct cover.
Risk of damage!
When the duct cover is screwed on, the edges can chip, making the cover
unusable. Pre-drill the duct cover before mounting.
2. Mount the duct cover along the marking lines
1
with countersunk
head screws on the duct trough. Mount the countersunk head screws
at a spacing of max. 300 mm and the spacing of the joints may be a
maximum of 50 mm.
3. Fully close joints to the wall
3
with KTM mortar.
4. Close off joints between two duct covers which are insufficiently com-
pressed or tight with KTM mortar.
The fire protection duct is fully mounted. If the fire protection duct is run
through the wall, or meets the wall, the wall connection must be designed
according to the mounting situation and classification, see chapter „7.10
Wandanschluss herstellen“ auf Seite 33.
ACHTUNG

20 | EN OBO Bettermann
Mounting PYROLINE® Con D BSK on a wall/ceiling
7.3 Creating a corner connection
A
B
Abb. 8:
A
90° internal corner,
B
90° external corner
To run cables around room corners, it is possible to create 90° internal
and external corners with the PYROLINE® Con D BSK product version.
During mounting, proceed as described in „7.1 Kanalwanne montier-
en“ auf Seite 16. The cables must be routed before the duct cover is
mounted.
7.3.1 90° internal corner
A
A + 3 mm
K1 K2
1
K2
2
3
Abb. 9: 90° internal corner duct trough mounting
1. Mount the duct trough K1 with sealing strips
1
bluntly against the wall.
2. Shorten the duct walls of the duct trough
K2
, which is supposed to
continue at a 90° angle, by dimension A plus 3 mm (inner height of
duct walls plus sealing strip).
