Observa Telecom BHS-RTA S User manual

BHS-RTA S
ADSL Home Station
User´s Manual (Ed.1.0)
OBJETIVOS Y SERVICIOS DE VALOR
AÑADIDO S.L.
Made by:
Name
Arancha Gómez /Maribel Ferrer
Charge
Product Manager / SW Manager
Date
18/07/2014

BHS-RTA S User´s Manual
E
Ed di it ti io on n
E
Ed d 1 1. .0 0
Page 2 of 52
REVISION LIST
EDITION
CHANGES
Ed. 1.0
18/07/2014: Initial Edition BHS-RTA S User´s Manual.

BHS-RTA S User´s Manual
E
Ed di it ti io on n
E
Ed d 1 1. .0 0
Page 3 of 52
CONTENT
1.-INTRODUCTION .......................................................................................................................... 5
1.1.-PACKING LIST ....................................................................................................................... 6
1.2.-SAFETY PRECAUTIONS .......................................................................................................... 6
1.3.-LEDS AND INTERFACES......................................................................................................... 6
1.4.-SYSTEM REQUIREMENTS ....................................................................................................... 8
1.5.-FEATURES ............................................................................................................................ 8
2.-HARDWARE INSTALLATION......................................................................................................... 9
3.-WIZARD ................................................................................................................................ 10
4.-ADVANCED WEB................................................................................................................. 14
4.1.-STATUS............................................................................................................................ 14
4.2.-LAN................................................................................................................................... 15
4.3.-WLAN................................................................................................................................ 15
4.3.1 Basic Configuration....................................................................................................... 15
4.3.2 Advanced Configuration ............................................................................................... 16
4.3.3 Security......................................................................................................................... 17
4.3.4 Access Control.............................................................................................................. 19
4.3.5 WPS.............................................................................................................................. 19
4.3.6 MBSSID........................................................................................................................ 20
4.3.7 WLAN STATUS............................................................................................................ 23
4.4.-WAN.................................................................................................................................. 23
4.4.1 DSL WAN ..................................................................................................................... 23
4.4.2 ATM CONFIGURATION............................................................................................... 25
4.4.3 ADSL CONFIGURATION............................................................................................. 25
4.4.4 3G configuration ........................................................................................................... 26
4.4.5 PIN CONFIGURATION................................................................................................. 27
4.4.6 3G DRIVER .................................................................................................................. 27
4.4.6 3G DRIVER .................................................................................................................. 27
4.4.7 ETH/GRE...................................................................................................................... 27
4.4.7 ETH/GRE...................................................................................................................... 27
4.4.8 VPN: PPTP/L2TP ......................................................................................................... 28
4.5.-SERVICES........................................................................................................................ 28
4.5.1 DHCP............................................................................................................................ 28
4.5.2 DNS .............................................................................................................................. 28
4.5.3 Firewall.......................................................................................................................... 30
4.5.4 UPnP............................................................................................................................. 33
4.5.5 RIP................................................................................................................................ 34
4.5.6 DMS.............................................................................................................................. 34
4.6.-ADVANCED...................................................................................................................... 34
4.6.1 ARP Table .................................................................................................................... 34
4.6.2 Bridging......................................................................................................................... 35
4.6.3 Routing.......................................................................................................................... 35
4.6.4 SNMP............................................................................................................................ 36
4.6.5 IP QoS .......................................................................................................................... 37
4.6.6 Remote access............................................................................................................. 38
4.6.7 Printer ........................................................................................................................... 39
4.6.8 SAMBA ......................................................................................................................... 39

BHS-RTA S User´s Manual
E
Ed di it ti io on n
E
Ed d 1 1. .0 0
Page 4 of 52
4.6.9 Other configuration ....................................................................................................... 40
4.6.10 IPv6............................................................................................................................... 40
4.7.-DIAGNOSTICS...................................................................................................................... 44
4.7.1 Ping............................................................................................................................... 44
4.7.2 Packet Dump................................................................................................................ 45
4.7.3 ATM Loopback.............................................................................................................. 45
4.7.4 ADSL Tone ................................................................................................................... 45
4.7.5 ADSL Conectivity.......................................................................................................... 46
4.8.-ADMINISTRATOR............................................................................................................ 47
4.8.1 Save and Reboot.......................................................................................................... 47
4.8.2 Backup and restore....................................................................................................... 47
4.8.3 Close Session............................................................................................................... 48
4.8.4 System log.................................................................................................................... 48
4.8.5 Password...................................................................................................................... 49
4.8.6 Upgrade Firmware........................................................................................................ 49
4.8.7 ACL............................................................................................................................... 49
4.8.8 Time Zone..................................................................................................................... 50
4.8.9 TR-069.......................................................................................................................... 50
4.9.-STATISTICS......................................................................................................................... 52
4.9.1 Interface........................................................................................................................ 52
4.9.2 ADSL............................................................................................................................. 52

BHS-RTA S User´s Manual
E
Ed di it ti io on n
E
Ed d 1 1. .0 0
Page 5 of 52
1.- Introduction
The device supports multiple line modes. With four 10/100 base-T Ethernet interfaces at the user end,
the device provides high-speed ADSL broadband connection to the Internet or Intranet for high-end users
like net bars and office users. It provides high performance access to the Internet with a downstream rate
of 24 Mbps and an upstream rate of 1 Mbps. It supports 3G WAN, 3G backup, and Samba for USB storage.
The device supports WLAN access, such as WLAN AP or WLAN device, to the Internet. It complies with
specifications of IEEE 802.11, 802.11b/g/n, WEP, WPA2, and WPA/WPA2 Mixed PSK security. The WLAN of
the device supports 2T2R.
FCC STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1）This device may not cause harmful interference.
2）This device must accept any interference received, including interference that may cause
undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
FCC RF Radiation Exposure Statement
This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment.
This device and its antenna must not be co-located or operating in conjunction with any other antenna or
transmitter.
“To comply with FCC RF exposure compliance requirements, this grant is applicable to only Mobile
Configurations. The antennas used for this transmitter must be installed to provide a separation distance of
at least 20 cm from all persons and must not be co-located or operating in conjunction with any other
antenna or transmitter.”
FCC ID: XXXXXXXXXXXX

BHS-RTA S User´s Manual
E
Ed di it ti io on n
E
Ed d 1 1. .0 0
Page 6 of 52
1.1.- Packing List
1 x ADSL Home Station (BHS-RTA S)
1 x PSU 12V-1A
1 x RJ11 telephone cable
1 x RJ45 Ethernet cable
1 x Quick Installation Guide
1.2.- Safety Precautions
Take the following instructions to prevent the device from risks and damage caused by fire or electric
power:
Use the type of power marked in the volume label.
Use the power adapter in the product package.
Pay attention to the power load of the outlet or prolonged lines. An overburden power outlet
or damaged lines or plugs may cause electric shock or fire accidents. Check the power cords
regularly. If you find any damage, replace it at once.
Proper space left for heat dissipation is necessary to avoid damage caused by overheating to
the device. The long and thin holes on the device are designed for heat dissipation to ensure
that the device works normally. Do not cover these heat dissipation holes.
Do not put this device close to a heat source or under a high temperature occurs. Keep the
device away from direct sunshine.
Do not put this device close to an overdamp or watery place. Do not spill fluid on this device.
Do not connect this device to a PC or electronic product unless instructed by our customer
engineer or your broadband provider. Wrong connection may cause power or fire risk.
Do not place this device on an unstable surface or support.
1.3.- LEDs and Interfaces
Front Panel
The following table describes the LEDs of the device:
LED
Color
Status
Description
Power
Red/Green
Off
Router powered off
Blinking 2Hz Red
Failure on power-on self-test
Solid Green
Router powered on correctly.
LAN4-LAN1
Green
On
Ethernet connection is available.
Off
Ethernet connection is unavailable.
WLAN
Green
On
Wi-Fi connection is available.
Off
Wi-Fi connection is unavailable.
Blinking Green
Negotiation or traffic on line.
WPS
Red/Green
Solid Green
WPS active
Blinking 2Hz Green
WPS negotiation open

BHS-RTA S User´s Manual
E
Ed di it ti io on n
E
Ed d 1 1. .0 0
Page 7 of 52
LED
Color
Status
Description
Solid Red (20
seconds)
Problems on WPS registration
USB
Red/Green
Blinking Green
Negotiation
Solid Green
Up
Quick Blinking Green
Tx/Rx traffic on line
Solid Red
Authentication failed
Off
Traffic through broadband interface
ADSL
Green
Off
Router powered off
Blinking 2Hz
No line detected
Blinking 4Hz
Line training
Solid
Line up
Internet
Red/Green
Blinking Green
PPP/DHCP negotiation
Solid Green
PPP/DHCP up
Quick Blinking Green
Tx/Rx traffice on line
Solid Red
Authentication failed
Rear Panel
The following table describes the interface of the device, from right to left:
Interface/Button
Description
Interface connecting to the power adapter. The power
adapter output is: 12V DC, 800mA
On/Off
Push to power on/off the device.
WLAN/WPS
Press the button for more than 1 second to enable
WLAN function.
Press the button for more than 5 seconds to enable
WPS function.
Reset
Reset to the factory defaults. To restore factory defaults,
keep the device powered on and push a paper clip into the
hole. Press down the button for more than 5 seconds and
then release.
USB
Connecting to a 3G data card or other USB storage device
VoIP/LAN4
Ethernet RJ-45 interface connecting to the ATA interface
(VoIP service is optional).
LAN3/LAN2/LAN1
Ethernet RJ-45 interfaces for connecting computer or
ethernet devices.
ADSL
RJ-11 interface connecting to a telephone set through a
telephone cable.

BHS-RTA S User´s Manual
E
Ed di it ti io on n
E
Ed d 1 1. .0 0
Page 8 of 52
1.4.- System Requirements
A 10 baseT/100BaseT Ethernet card is installed on your PC.
A hub or switch (attached to several PCs through one of Ethernet interfaces on the device)
Operating system: Windows Vista, Windows 7, Windows 8, Windows 98SE, Windows 2000,
Windows ME or Windows XP
Internet Explorer V5.0 or higher, Netscape V4.0 or higher, or Firefox 1.5 or higher
1.5.- Features
Various line modes
External PPPoE dial-up access
Internal PPPoE and PPPoA dial-up access
Leased line mode
1483B, 1483R, and MER access
Multiple PVCs (eight at most) and these PVCs can be isolated from each other
A single PVC with multiple sessions
Multiple PVCs with multiple sessions
Binding of ports with PVCs
802.1Q and 802.1P protocol
DHCP server
NAT and NAPT
Static route
Firmware upgrade: Web, TFTP, FTP
Reset to the factory defaults
DNS relay
Virtual server
DMZ
Two-level passwords and user names
Web user interface
Telnet CLI
System status display
PPP session PAP and CHAP
IP filter
IP QoS
Samba
Remote access control
Line connection status test
Remote management (telnet and HTTP, TR069)
Backup and restoration of configuration file
Ethernet interface supports crossover detection, auto-correction and polarity correction
UPnP
3G WAN and 3G Backup
Samba for USB storage

BHS-RTA S User´s Manual
E
Ed di it ti io on n
E
Ed d 1 1. .0 0
Page 9 of 52
2.- Hardware Installation
Step 1 Connect the ADSL port of the device and the Modem port of the splitter with a telephone cable (if
Splitter is available).
Step 2 Connect the phone to the Phone port of the splitter through a telephone cable. Connect the
incoming line to the Line port of the splitter.
The splitter has three ports:
−Line: Connect to a wall phone port (RJ-11 jack).
−Modem: Connect to the DSL port of the device.
−Phone: Connect to a telephone set.
Step 3 Connect an Eth port of the device to the network card of the PC through an Ethernet cable
(MDI/MDIX).
Note:
Use twisted-pair cables to connect the device to a Hub or switch.
Step 4 Plug one end of the power adapter to the wall outlet and the other end to the Power port of the
device.
Connection diagram (with telephone set before the splitter)
Step 4 If Splitter is not available, then plug the RJ11 cable to the ADSL port on the outer in one end, and
to the ADSL socket on the other end.
Installing a telephone directly before the splitter may lead to failure of connection between the device and
the central office, or failure of Internet access, or slow connection speed. If you really need to add a
telephone set before the splitter, you must add a microfilter before a telephone set. Do not connect several
telephones before the splitter or connect several telephones with the microfilter.

BHS-RTA S User´s Manual
E
Ed di it ti io on n
E
Ed d 1 1. .0 0
Page 10 of 52
3.- REDUCED WEB - WIZARD
The following is the detailed description of accesing the device for the first time.
Step 1 Open the WEB Explorer (IE, Chrome, Firefox,Safari) browser and enter http://192.168.1.1

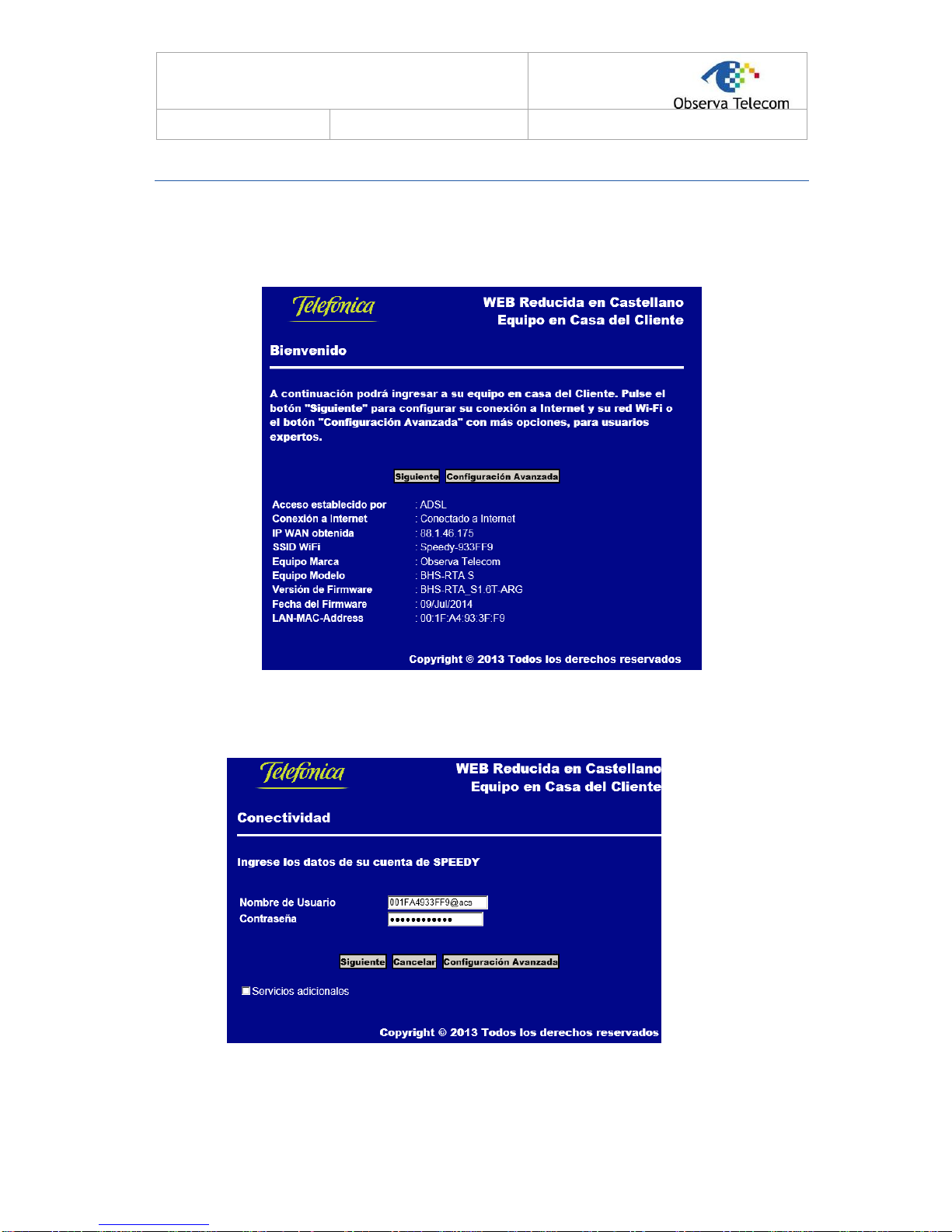

Step 2 The Welcome page is shown in the following figure.

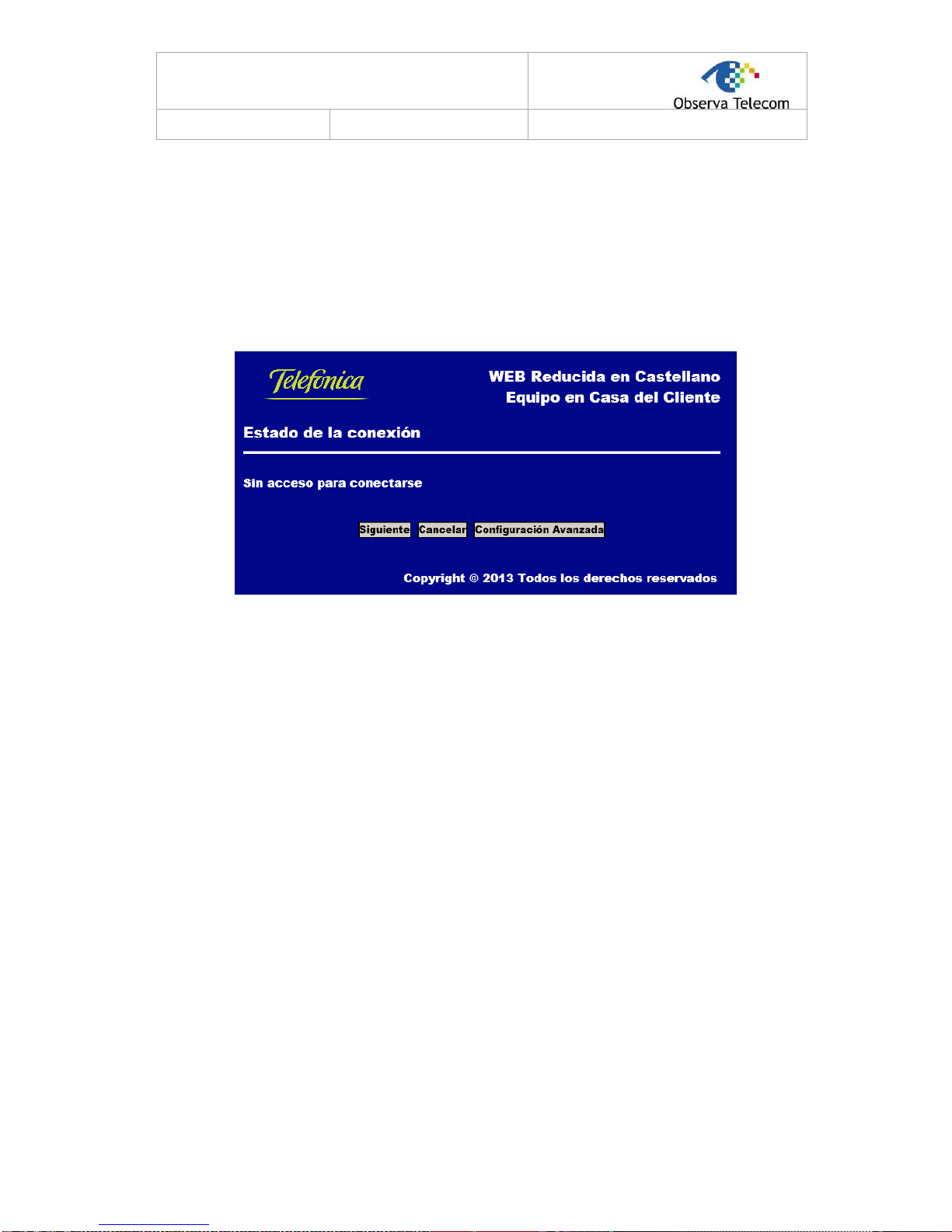

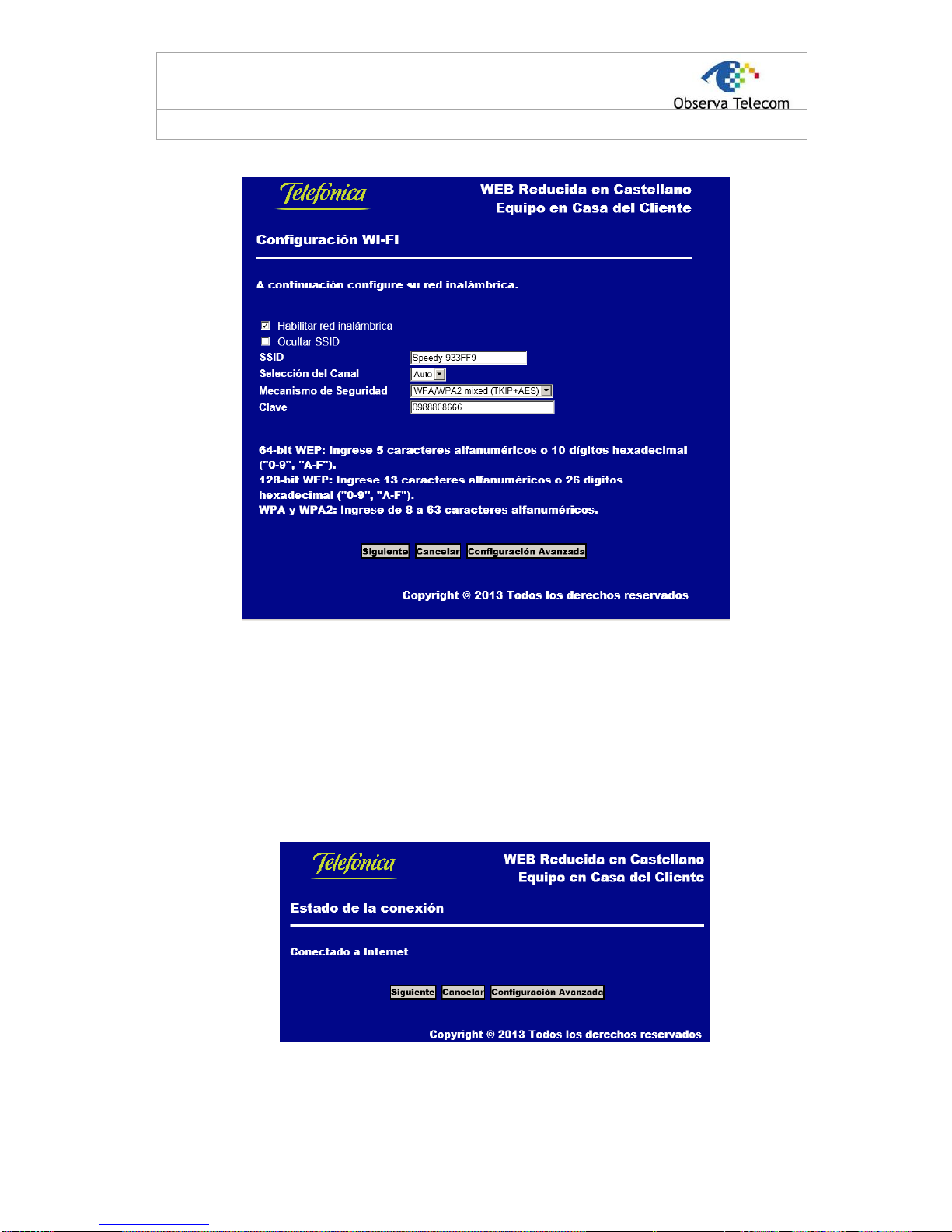

Step 3 Click “Siguiente”to configure your user’s account and Wi-Fi network as shown in the following
Connectivity page, or click “Configuración Avanzada”for more options.
By default, the user’s name is MAC@acs and password is the MAC. The MAC is the equipment’s MAC
Address in upper case.
