OCAM SS2-79-DC Install guide

Fitting instruction
Page 1 of 3
Description：
OCAM Heavy Duty Steel Side Steps
Model：
Toyota Landcruiser 79 Series, Dual Cab, 2012-Current
Item NO.：
SS2-79-DC
Before Installation
l Please read the instruction carefully. They will also help you to avoid scratches or other
potential damage to your vehicle.
l All images are for reference only and may vary slightly with the actual product you received.
Care and Cleaning
l Mild soap may be used also to clean the side steps.
l Please periodically check and retighten all the hardware and keep your investment clean for
!a fresh look..
Standard locking torque
M10 - 80 Nm
Front

Fitting instruction
Page 2 of 3
Parts list
Item
Item NO.
Description
Qty
Item
Item NO.
Description
Qty
○
1
200416642
Side Step Assembly
LHS
1
○
2
200416623
Side Step Assembly
RHS
1
○
3
200430698
M12x1.5mm U-bolt
2
○
4
200429260
Nut Plate M8x25
2
○
5
200416641
Rear Mount Inner
Bracket
2
Hardware kit
Item
Item NO.
Description
Qty
○
6
3000147
Spring washer M8
4
○
7
3000160
Spring washer M10
2
○
8
3000171
Spring washer M12
4
○
9
3000238
Flat washer M8(8x24x2mm)
4
○
10
3000245
Flat washer M10(10x30x2.5mm)
2
○
11
3001546
Hex nut M12x1.5
4
○
12
3002600
Hex head bolt (full thread) M8_30
4
○
13
3003027
Hex head bolt (full thread) M10x1.25_35
2
○
14
3004967
Flat washer M12_32_3
4

Fitting instruction
Page 3 of 3
Installation Steps:

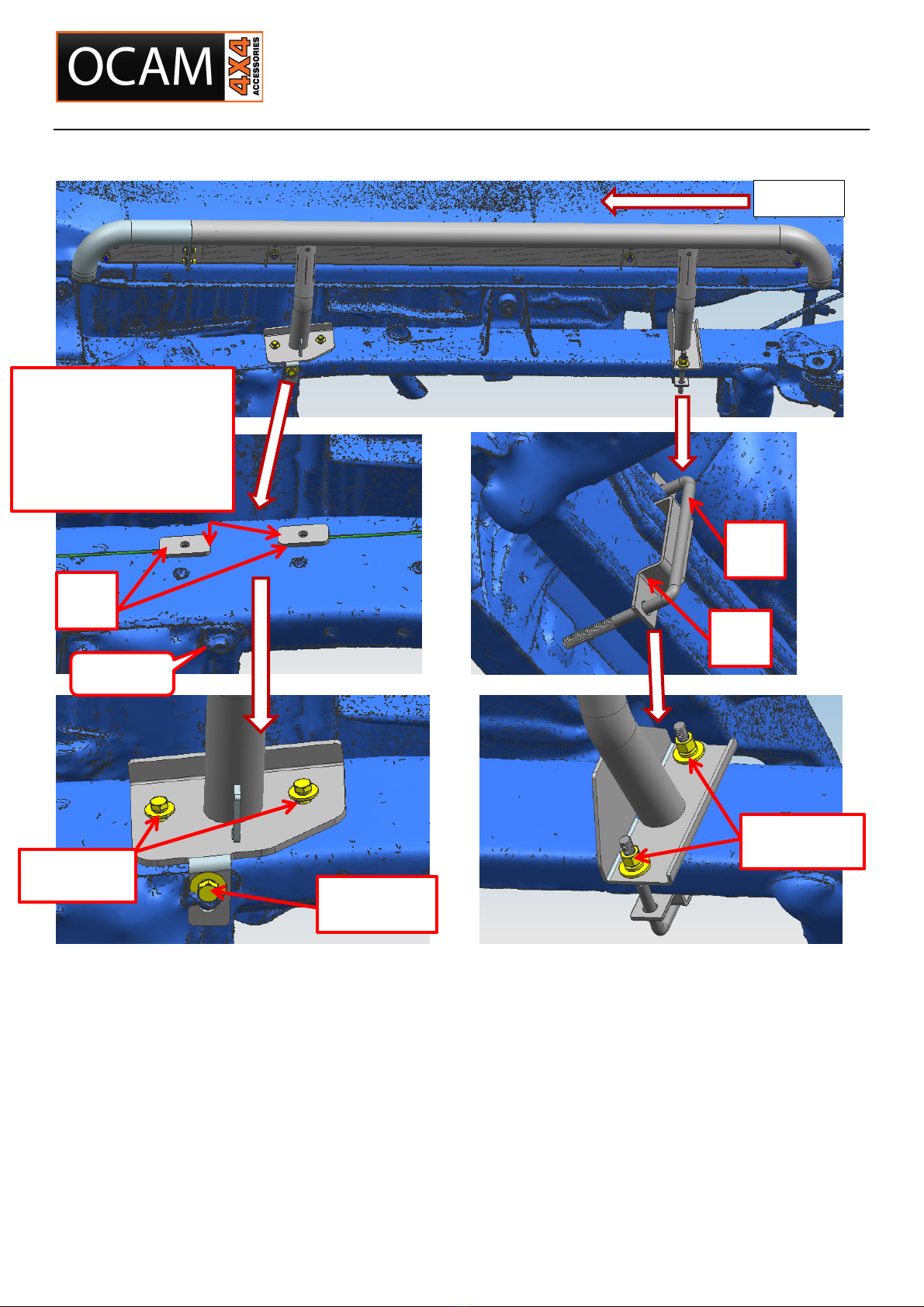

Step 1 : As above illustration, please remove OEM bolt from the chassis rail and place it aside.
Step 2: Please apply ○ 3○ 4○ 5 to the mounting holes as above.
Step 3: Secure the side step with○ 6○ 7○ 8○ 9○ 10 ○ 11 ○ 12 ○ 13 ○ 14 , finger tight only.
Step 4: Adjust the steps at the properate postion then tighten all the fasteners.
Front
○
6○ 9○ 12
○
8○ 11 ○ 14
○
7○ 10 ○ 13
○
5
○
4
○
3
OEM bolt
Apply nut plate to LHS chassis rails
only.
The RHS of chassis rails has
captive nuts inside the chassis rail.
