Oceanled A6 gen2 User manual

OceanLED Marine

Product Support

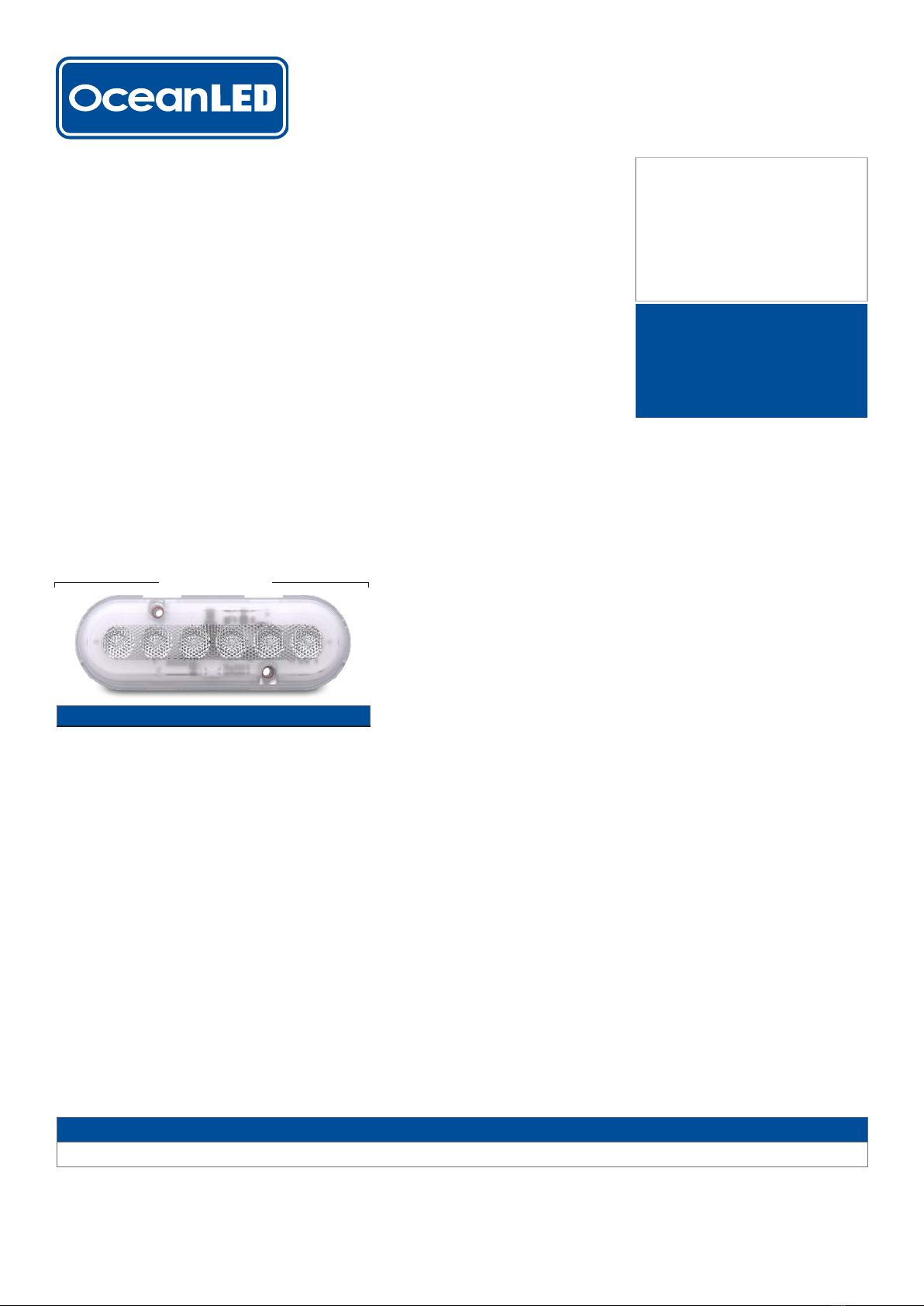

A6 / M6 Gen2

INSTALLATION

MANUAL

Above / Below Water

Kit Includes

M6 or A6 Gen2 Light, Mounting Screws, Fuse Kit

OceanLED

This installation manual covers the following products:

OceanLED INSTALL / M6-A6 / 280417 / v7.0

IMPORTANT: Please read the instructions completely before proceeding with the installation. These

instructions supersede any other instructions if they dier.

Chapter 1.......................................................................................................................................................................................................4

An overview of the installation.

Chapter 2......................................................................................................................................................................................................5

Detailed instructions on how to mount and connect the light.

Chapter 3......................................................................................................................................................................................................8

Maintenance and troubleshooting tips.

Chapter 4 ................................................................................................................................................................................................... 10

Appendix

Chapter 5......................................................................................................................................................................................................11

Warranty statement.

PRETEST

It is always recommended to test the lights prior to installation.

WARRANTY COVERAGE

2 year warranty from time of purchase.

WARNING!

NeverUseSolvents!Cleaners,fuel,paint,sealants,andotherproductsthatmaycontain

strong solvents, such as acetone, that attack many plastics greatly reducing their

strength and irreversibly damaging the special lens coatings and cable sheathings.

WARNING!

Light is for mounting directly to a ﬂat surface on the rig, with the cable passing

through a 1/2" (12.5mm) hole. Do not submerse your cable in water; cable and

connections exposed to underwater submersion will not be covered by warranty.

Mounting the light in any other conﬁguration, other than those described in this

guide, will invalidate its warranty.

OceanLED INSTALL / M6-A6 / 280417 / v7.0

IMPORTANT SAFETY PRECAUTIONS!

ATTENTION INSTALLER:This manual contains important information about the installation,

operation and safe use of this product. This information should be given to the owner and/ or operator of

this equipment.

C CAUTION:Risk Group 2 Possibly hazardous optical radiation emitted from this product. Do not

stare at operating lamp. May be harmful to the eye.

CLASS 3:This equipment is designed to operate at voltages of less than 50v DC.

WARNING:

• Before installing your OceanLED Light, read and follow all warning notices and instructions which are

included. Failure to follow safety warnings and instructions can result in property damage, severe injury

or even death.

• Before installing your OceanLED Light, check local laws for restrictions regarding the use of colored

lights in your area.

• Never Use Solvents! Cleaners, fuel, and other products that may contain strong solvents, such as

acetone, that attack many plastics greatly reducing their strength and irreversibly damaging the special

lens coatings and cable sheathings.

DANGER! Risk of electrical shock or electrocution!

This M6/A6 light must be installed by a Licensed Marine Electrician in accordance with ABYC

(American Boat and Yacht Council), NMMA, and any other applicable standards. Improper installation

will create an electrical hazard which could result in death or serious injury to installers, or others and

may also cause damage to property. Always disconnect the power to the light at the circuit breaker

before servicing the light. Failure to do so could result in death or serious injury to serviceman or

others.

READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL

OceanLED INSTALL / M6-A6 / 280417 / v7.0

CHAPTER

ONE

Chapter 1: Overview

1.1 Identifying your model

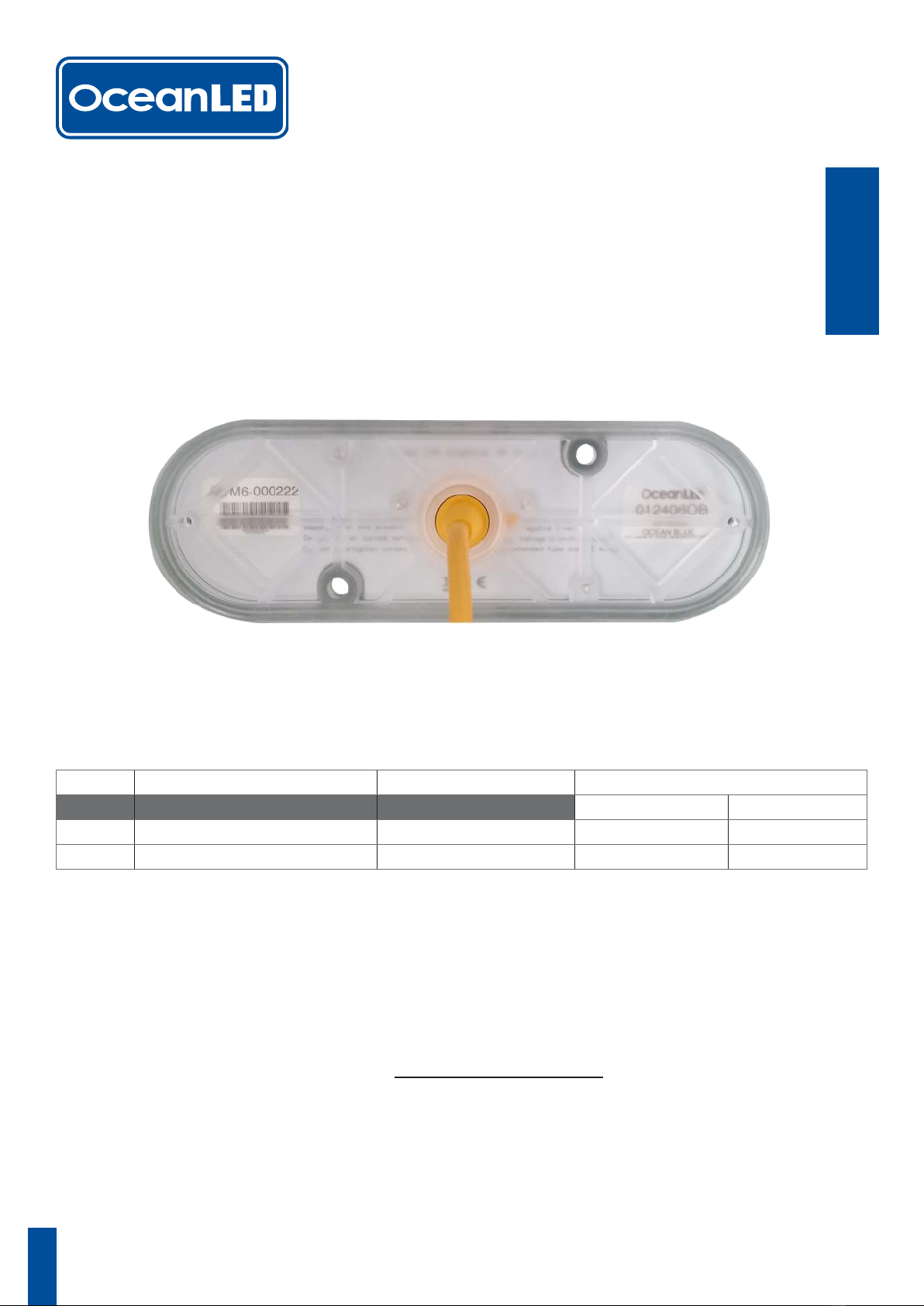

To Identify if your light is an M6 (Mast light) or an A6 (Underwater light) please refer to the packaging or

label on the rear of the PCB.

1.2 DC Power / Fuse Ratings

The majority of installations will utilize onboard 12/24v DC power supply from a marine battery. However,

if AC to DC power supply is being used, allow at least 15% reserve for voltage ﬂuctuations due to variables

beyond your control such as ambient temperature and supply voltage ﬂuctuations to ensure your lights are

always receiving the proper voltage and to ensure the power supply is not “overworked” causing premature

failure. Use chart below in determining power supplies.

Model Power Consumption in Watts 15% reserve in Watts Recommended Fuse Values.

12vDC 24vDC

M6 66.9 3 Amp 3 Amp

A6 12 13.8 3 Amp 3 Amp

1.3 Tools and Materials

• Phillips head screwdriver

• Drill

• Marine sealant - 3M 4200 or equivalent

• Zip-ties

• Waterproof Cable Connectors / Butt Splices and Waterproof Heat Shrink

• Sandpaper

1.4 Finding The Mounting Location - (Both A6 Gen2 Lights)

OceanLED M6/A6 lights are suitable for installation on aluminum, steel or composite structures. Check

compatibility between ﬁxing screws and mounting surface. The M6 light should be placed on mast

spreaders for the best rig illumination. The A6 light should be placed 10-20cm / 4-8” below the waterline.

1.5 Spacing

When installing multiple lights, even spacing is important for the best visual appearance.

M6 - Ensure lights do not foul with any rigging hardware to avoid damage.

OceanLED INSTALL / M6-A6 / 280417 / v7.0

CHAPTER

TWO

Chapter 2: Installation

Note: OceanLED makes every eort to protect our marine and fresh water

environment as well as our natural resources. Please take care to keep packaging away from and out of the

water by ensuring loose packaging materials are secured and not susceptible to being blown into the water.

Please recycle all packaging materials as the sustainability of our environment is everyone's responsibility.

2.1 Preparing the mounting surface

TIP: Always wear safety goggles and a dust mask

1. Drill a 3mm / 1/8” pilot hole square to mounting surface from inside the mounting surface if

possible. If there is a rib, strut, or other irregularity near the selected mounting location, this will

need to be taken into account in the planning phase and the location adjusted accordingly, or the

obstruction safely removed or modiﬁed.

2. Using a suitable drill, make a 1/2" (12-13mm) hole. Ensure the light will ﬁt ﬂush and will be square to

the mounting surface.

3. Sand the area around the hole using a heavy grit sandpaper. Ensure that the sealant will adhere

properly to the mounting surface.

4. Place light ﬁxture into position or use mounting template provided. Mark the screw hole position

and pilot drill using correct sized drill bit for included screws.

5. Always dry ﬁt units before applying any sealant.

2.2 Installation

WARNING:

• Only use screws provided. Never use power tools to secure your light; hand tighten only

• Please check all components prior to installation. If there is any damage to connectors, cables, and/

or any other component, please notify OceanLED BEFORE installation. Failure to notify Ocean- LED

of damage in transit prior to installation will lead to violation of warranty.

• Light is for mounting directly to a ﬂat surface on the spreader for M6 or Mounting surface for A6,

with the cable passing through a 1/2" (12.5mm) hole. Do not submerse your cable in water; cable

and connections exposed to underwater submersion will not be covered by warranty. Mounting the

light in any other conﬁguration, other than those described in this guide, will invalidate its warranty.

• Use existing holes where possible.

• When drilling holes, consideration should be given to structural integrity when determining light

positioning.

TIP:

• Always wear suitable safety equipment.

• Use a suitable marine sealant such as 3M™ Marine Adhesive Sealant Fast Cure 4200FS. When

applying sealant to light ﬁxture, be careful to protect the lens from any abrasive surface/ﬂoor so as

not to remove the protective Tritonium coating.

OceanLED INSTALL / M6-A6 / 280417 / v7.0

1. Apply generous amounts of the sealant you are using to the back perimeter of the light body. Make

sure to generously coat the cable of the light where it meets the back of the light. There should be

an unbroken bead of sealant around the perimeter of the light unit.

2. Insert the light on to the mounting surface, feeding the cable through ﬁrst and seat into place. Press

the light hard into the mounting surface and ensure good adhesion.

3. Once you are satisﬁed that the unit is fully tightened to the mounting surface, you will notice that

sealant has squeezed out from around the perimeter of the light. Using a cloth wipe o excess

sealant to leave a clean seal. If you do not see sealant squeeze out from the body, you have not

used enough sealant or tightened the unit enough to the mounting surface. Carefully examine

the installation to make sure the seal you have installed on the unit is fully water-tight. If in doubt,

remove light, re-apply sealant and re-install.

4. Ensure the cabling is secure

2.3 Connecting the light ﬁxture

Connecting lights to your VDC power source

WARNING:

• OceanLED M6/A6 Lights are not suitable for dimming

• Always consult a qualiﬁed electrician when connecting OceanLED light ﬁxtures.

• When connecting light units, please note that all OceanLED lights will operate to within a speciﬁc

voltage range.

• Never leave the bare cables unprotected. Take care to not leave the bare wire ends in bilge water

before making the waterproof connections. Water deposits in the connectors and cables will cause

corrosion. Over time water can also work its way into the unit along the inside of the cable due to

capillary action causing the light to fail. This will NOT be covered under warranty.

It is recommended to connect the light to the DC power source using a two pole, screw type terminal

block with a minimum voltage rating of 50V and a current rating of at least 5A. The ends of the cable

should be stripped back (if required) and suitable ferrules ﬁtted. The terminal block should be ﬁxed inside a

waterproof enclosure (IP66 minimum).

TIP:

• Switch and breaker need to be robust enough to support light.

• For complete instructions on VDC connections, please refer to ABYC codes of practice and other

applicable codes and ordinances for VDC connections.

1. Depending on the model of lights currently installed you will need to pull the correct sized power

cable from the breaker/fuse panel to the light locations to supply constant power to the units. It is

imperative that the correct sized tinned boat cable is used. (Please Refer to Cable Gauge Chart in

the Appendix)

2. Using waterproof connections or a waterproof junction box, make the connections at either end of

the system to attach the lights to the VDC system. Red is +Ve, Black is -Ve.

NOTE: Corrosion of wire, and/or water ingress into the light unit via cable is NOT covered under warranty.

OceanLED INSTALL / M6-A6 / 280417 / v7.0

3. If you are not installing a custom fuse panel, it is imperative that the OceanLED supplied fuse is

installed on each power line from each light. Please consult electrical speciﬁcation on page 4 to

select the correct fuse.

4. Apply generous amounts of the sealant you are using to the back perimeter of the light body. Make

sure to generously coat the cable of the light where it meets the back of the light. There should be

an unbroken bead of sealant around the perimeter of the light unit.

Connection Diagram

2.4 Finalize your OceanLED installation

Test your lights

Always test the lights BEFORE the boat goes back into the water. Failure to test prior to launch may require

boat to be re hauled out. If you have any issues, please contact your local OceanLED representative.

WARNING:

• Never install a new underwater light and leave the boat in the water unchecked for several days.

• When the boat is placed in the water, immediately check for leaks. Note that very small leaks may

not be readily observed. It is best not to leave the boat in the water for more than 3 hours before

checking it again. If there is a small leak, there may be considerable bilge water accumulation.

CHAPTER

THREE

OceanLED INSTALL / M6-A6 / 280417 / v7.0

Chapter 3: Maintenance, Repair, & Parts

NOTE: M6/A6 lights have active thermal protection. This means that under normal ambient conditions they

run at full power. Moderate dimming may be noticeable if high ambient temperatures are reached to

avoid damage.

3.1 Cleaning Instructions

CAUTION: Harsh cleaning solvents will damage the light and Tritonium coating.

Sea growth can collect quickly on the light and this can reduce the performance in just a few weeks. To

prevent the build-up of sea growth, all OceanLED lights have been coated with a specialized Tritonium

coating which makes the surface of the lens a non-stick layer which helps ward o long term barnacle

buildup. Lights should be cleaned with a boat brush or similar biweekly or as needed to keep the lens of the

light clear. Growth varies greatly around the world and maintenance is imperative to the proper operation

and longevity of the product. This can be done in the water using a plastic scraper. If out of water, moisten

the growth before wiping.

3.2 – Replacement Parts

Lost, broken, and worn parts should be replaced immediately and can be obtained through your dealer or

from the manufacturer.

Troubleshooting Common Problems and Their Solutions

M6 / A6 Gen2 Light

Problem Check Result Fix

Light does

not look

bright.

Check light is clean Dirty light Clean light.

Check voltage supply to the light is between 9

volts and 28vDC.

Voltage is either too

high or too low.

Investigate reason for high

or low voltage and ﬁx.

Check voltage supply is stable and does not

ﬂuctuate.

Voltage is

ﬂuctuating.

Investigate reason for

voltage ﬂuctuation and ﬁx.

Check that the electrical connections between

the light and the supply cable have been made

correctly.

Poor electrical

connection.

Remake connection and

seal joint correctly.

Conﬁrm all LEDs are illuminated. 1 Or more leds are

not working.

Contact your dealer. If the

installation instructions

have not been followed

and as a result the light

has been damaged. This

is not covered by the

warranty.

Check lights to see if water is present inside the

light.

Water present. If water is present

contact your dealer. If the

installation instructions

have not been followed

and as a result the light

has been damaged. This

is not covered by the

warranty.

Light does

not light up.

Check that the electrical connections between

the light and the supply cable have been made

correctly.

Remake connection and

seal joint correctly.

Check that the wiring polarity is correct, red to

positive and black to negative.

Polarity incorrect. Change the wiring polarity

and seal joint correctly.

Check that there is power supply to the light

cable connection.

Poor electrical

connection.

Trace the cables back,

checking at joints until

break has been located.

Then rectify the problem

and seal joint correctly.

Check that the electrical connections between

the supply cable and the light circuit breaker or

fuse have been made correctly.

Poor electrical

connection.

Remake connection and

seal joint correctly.

Check that the inline fuse is intact and not

blown.

Replace fuse. If fuse keeps blowing then

there is a short circuit in

the light system that must

be traced and rectiﬁed.

If no external short can

be located contact your

dealer.

Check that the light supply circuit breaker is

closed or the fuse has not blown.

Close circuit breaker

/ replace fuse.

If breaker / fuse keeps

blowing then there is a

short circuit in the light

system that must be traced

and rectiﬁed. If no external

short can be located

contact your dealer.

Light has

water inside.

Check connections to make sure they are not

submerged in water.

Light will require

replacing.

This is not covered by the

warranty.

Check cable to make sure there is no damage to

the cable.

Light will require

replacing.

This is not covered by the

warranty.

OceanLED INSTALL / M6-A6 / 280417 / v7.0

1010

CHAPTER

FOUR

Chapter 4: Appendix

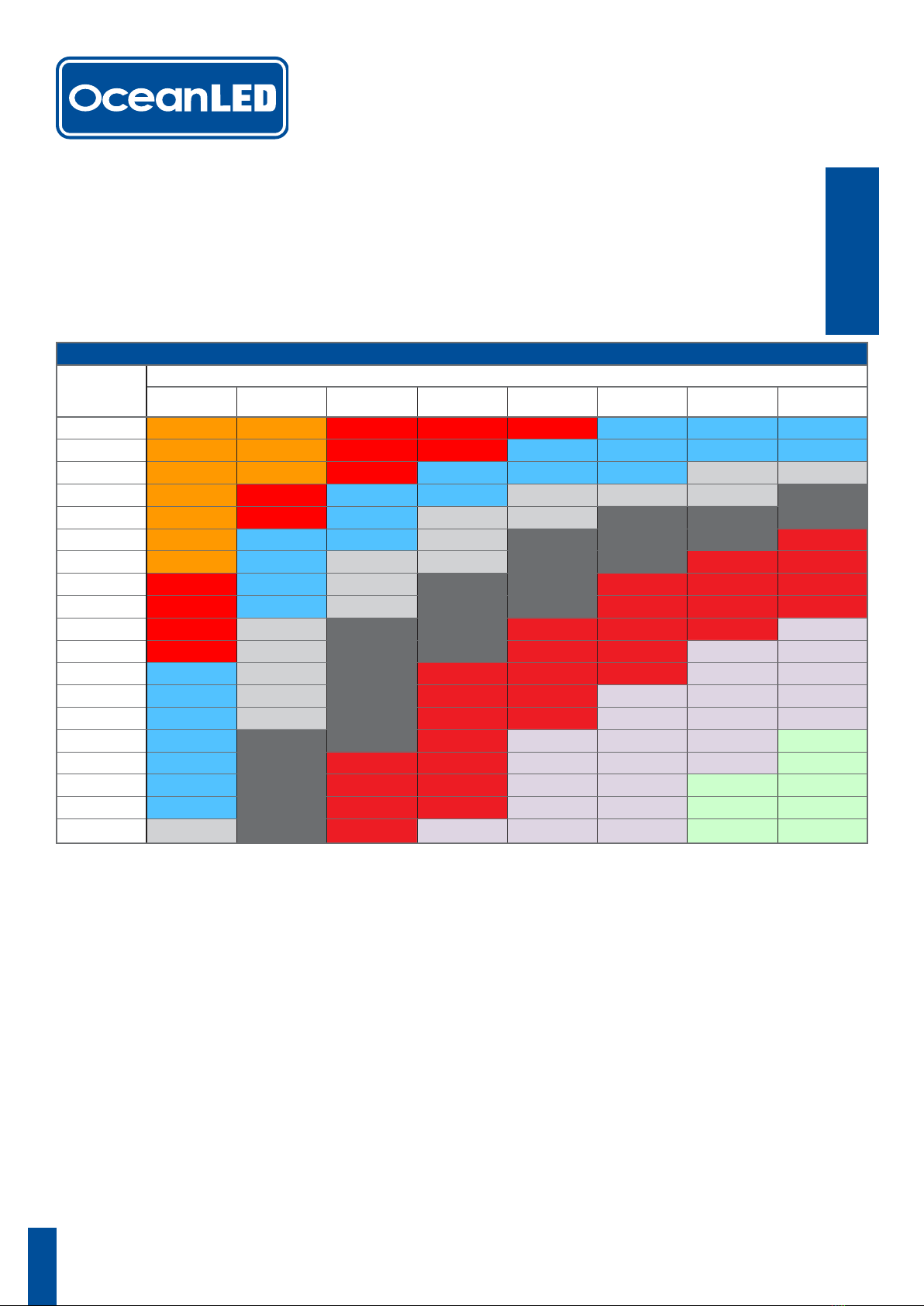

SUPPLY CABLE CONDUCTOR SIZE CHART

CABLE

LENGTH

(FEET)

CIRCUIT CURRENT

2 AMP 4 AMP 6 AMP 8 AMP 10 AMP 12 AMP 14 AMP 16 AMP

0-5 18 AWG 18 AWG 16 AWG 16 AWG 16 AWG 14 AWG 14 AWG 14 AWG

10-15 18 AWG 18 AWG 16 AWG 16 AWG 14 AWG 14 AWG 14 AWG 14 AWG

15-20 18 AWG 18 AWG 16 AWG 14 AWG 14 AWG 14 AWG 12 AWG 12 AWG

20-25 18 AWG 16 AWG 14 AWG 14 AWG 12 AWG 12 AWG 12 AWG 10 AWG

25-30 18 AWG 16 AWG 14 AWG 12 AWG 12 AWG 10 AWG 10 AWG 10 AWG

30-35 18 AWG 14 AWG 14 AWG 12 AWG 10 AWG 10 AWG 10 AWG 8 AWG

35-40 18 AWG 14 AWG 12 AWG 12 AWG 10 AWG 10 AWG 8 AWG 8 AWG

40-45 16 AWG 14 AWG 12 AWG 10 AWG 10 AWG 8 AWG 8 AWG 8 AWG

45-50 16 AWG 14 AWG 12 AWG 10 AWG 10 AWG 8 AWG 8 AWG 8 AWG

50-55 16 AWG 12 AWG 10 AWG 10 AWG 8 AWG 8 AWG 8 AWG 4 AWG

55-60 16 AWG 12 AWG 10 AWG 10 AWG 8 AWG 8 AWG 4 AWG 4 AWG

60-65 14 AWG 12 AWG 10 AWG 8 AWG 8 AWG 8 AWG 4 AWG 4 AWG

65-70 14 AWG 12 AWG 10 AWG 8 AWG 8 AWG 4 AWG 4 AWG 4 AWG

70-75 14 AWG 12 AWG 10 AWG 8 AWG 8 AWG 4 AWG 4 AWG 4 AWG

75-80 14 AWG 10 AWG 10 AWG 8 AWG 4 AWG 4 AWG 4 AWG 2 AWG

80-85 14 AWG 10 AWG 8 AWG 8 AWG 4 AWG 4 AWG 4 AWG 2 AWG

85-90 14 AWG 10 AWG 8 AWG 8 AWG 4 AWG 4 AWG 2 AWG 2 AWG

90-95 14 AWG 10 AWG 8 AWG 8 AWG 4 AWG 4 AWG 2 AWG 2 AWG

95-100 12 AWG 10 AWG 8 AWG 4 AWG 4 AWG 4 AWG 2 AWG 2 AWG

OceanLED INSTALL / M6-A6 / 280417 / v7.0

1111

CHAPTER

FIVE

Chapter 5: Warranty Statement:

This warranty statement is for those products supplied to and sold from all territories internationally.

OceanLED stands by its products. In general terms, the company gives a full 2 year’s manufacturer’s warranty

on all of its products from date of sale from OceanLED.

Warranty replacements shall be covered for a period of 2 years from the date of the original product sale from

OceanLED.

To claim, please contact an authorized OceanLED dealer and complete the troubleshooting guidelines and

warranty claim form (available from www.oceanled.com). Claims may be disputed if the troubleshooting

guidelines are not completed or no defect is found with the product. The detailed terms and conditions of this

warranty are set out below.

However; please note that all metal parts corrode in salt water. The primary factors aecting corrosion are not

directly related to our products and accordingly OceanLED cannot be held responsible for corrosion-related

defects this includes where water has been allowed to enter the cable as a result of immersion in water during

the installation or improper sealing of connections. Please note corrosion will be particularly aggressive if

installation and/or bonding have not been undertaken properly; or if stray currents are active in the vicinity of a

boat.

Color variation occurs within the LED manufacture. While we make every eort to match the color of any

lights there may be a noticeable dierence. OceanLED does not warrant this color variation on lights.

OceanLED reserves the right to change the design, range and components without any prior notiﬁcation

either written or verbal.

OceanLED is not liable for the organisation of or costs such as but not limited to, haul out of vessels,

scaolding and scissor lifts etc.

1: WARRANTY OF QUALITY

1.1 In the case of goods manufactured and sold by Ocean LED Marine Ltd, a company incorporated in

England and Wales (registered number 8927130) and whose registered oce is at Unit 1 Jacknell

Road, Dodwells Bridge Ind. Est. Hinckley, Leicestershire, LE10 3BS (the “Goods” and the “Company”,

respectively), the Company warrants to the purchaser of the Goods (the “Buyer”) Conditions and

unless otherwise notiﬁed) upon delivery (whether installed or not), that goods supplied shall be of

satisfactory quality within the meaning of the Sale of Goods Act of 1979.

1.2 the Company shall not liable for a breach of the warranty in Condition 1.1 unless:

1.2.1 the Buyer gives written notice of the defect to the Company, and to the carrier if the defect is as a

result of damage in transit, within 14 days of the time when the Buyer discovers or ought to have dis-

covered the defect; and

1.2.2 the Buyer has the obligation to provide all the requested information where is reasonably possible

and provided a truthful statement of all information requested in relation to the claim.

1.2.3 the Buyer returns such Goods to the Company’s place of business at the Buyers cost, regardless of

the outcome of the claim.

1.2.4 the Company is given a reasonable opportunity after receiving the returned Goods for the examina-

tion to take place at the Company’s place of business.

1.3 the Company shall not be liable for a breach of the warranty in Condition 1.1 if:

1.3.1 the Buyer makes any further use of such Goods after giving such notice; or

1.3.2 the defect arises because the Buyer failed to follow the Company’s oral or written instructions as to

storage, transportation, installation, commissioning, modiﬁcation, use or maintenance of the Goods or

OceanLED INSTALL / M6-A6 / 280417 / v7.0

(if there are none) good trade practice; or the defect arises from the corrosion of metal parts or the

failure of the Buyer to ensure that Goods are installed correctly, bonded correctly and that there are

no active stray currents in the vicinity; or

1.3.3 the defect arises as a result of any default of, or caused by, the Buyer or (without limitation) as a result

of misuse, abuse, improper installation, neglect, improper shipping by a party other than the Com-

pany; or

1.3.4 the Buyer alters, repairs or modiﬁes such Goods without written consent of the Company; or

1.3.5 the defect arises due to a cause beyond the Company’s reasonable control, such as: act of God, ex-

plosion, ﬂood, tempest, ﬁre or accident, including without limitation lightning; war or threat of war,

national emergency, sabotage, terrorism, insurrection, protest, riot, epidemic, civil disturbance or req-

uisition; Acts, restrictions, regulations, by-laws, prohibitions or measures of any kind on the part of any

governmental, parliamentary or local authority; import or export regulations or embargoes; strikes,

lock-outs or other industrial actions or trade disputes (whether involving employees of the Company

or of a third party); restraints or delays aecting carriers or inability or delay in obtaining supplies of

adequate or suitable materials; or power failure or breakdown in machinery.

1.3.6 where the Company has notiﬁed the Customer directly of in service modiﬁcation(s) deemed neces-

sary to further protect the Goods from damage have not been followed.

1.3.7 where a claim has been made where the Goods ownership is in dispute.

1.3.8 where the parts where not purchased from an authorized outlet.

1.3.9 where the goods where purchased via the internet from the United States but were not shipped to an

address or ﬁtted in the United States.

1.4 Subject to Conditions 1.2 and Condition 1.3, if any of the Goods do not conform with the warranty

in Condition 1.1 the Company shall at its option repair or replace such Goods (or the defective part)

without charge for labor or parts or refund the price of such Goods at the original purchase price. The

Company shall pay for the return transportation to the Buyer of such repaired or replaced Goods.

1.5 Any Goods replaced shall belong to the Company and any such repaired or replacement Goods shall

be guaranteed on these terms for the unexpired portion of the warranty period of the warranty in

Condition 1.1.

2: LIMITATION OF LIABILITY

2. These Conditions set out the entire ﬁnancial liability of the Company (including any liability for the

acts or omissions of its employees, agents and sub-contractors) to the Buyer in respect of:

2.1.1. Any breach of these Conditions;

2.1.2 any defect in the Goods;

2.1.3 any use made or resale by the Buyer of any Goods, or of any product incorporating any of Goods; and

2.1.4 any representation, statement or tortuous act or omission including negligence arising or in connec-

tion with the contract with the Buyer.

2.2. All warranty, conditions and other terms implied by both UK law are, to the fullest extent permitted by

law, excluded from the contract with the Buyer.

2.3. Nothing in these conditions excludes or limits the liability of the Company;

2.3.1. for death or personal injury caused by the Company’s negligence;

2.3.2 under both UK law;

2.3.3 for any matter which it would be illegal for the Company to exclude or attempt to exclude its liability;

2.3.4 for fraud or fraudulent misrepresentation.

OceanLED INSTALL / M6-A6 / 280417 / v7.0

2.4. Subject to the above Condition 2.3:

2.4.1 the Company’s total liability in contract, (including without limitation negligence or breach of statu-

tory duty), misrepresentation, restitution or otherwise, arising in connection with the performance

or contemplated performance of the contract with the Buyer or (without limitation) in respect of the

Goods shall be limited to the original purchase; and

2.4.2 the Company shall not be liable to the Buyer for any pure economic loss, loss of proﬁts, loss of busi-

ness, loss of contracts, damage to property, depletion of goodwill or otherwise, in each case whether

direct, indirect or consequential, or any claims for consequential whatsoever (however caused) which

arise out of or in connection with the contract with the Buyer or (without limitation) the Goods.

3: THIRD PARTY RIGHTS

No term of any Contract formed between the Buyer and the Company shall be enforceable by virtue

of the Contracts (Rights of Third Parties) Act 1999 by any person that is not a party to it.

4: APPLICABLE LAW

Each of (a) the sale of the Goods to the Buyer, (b) these conditions, and (c) any disputes or claims

arising there from or in connection therewith shall be governed by and construed in accordance with

the law of England; and the Buyer and the Company irrevocably agree that the Courts of England

have exclusively jurisdiction to settle any dispute or claim that arises out of or in connection with the

foregoing.

5: GREY MARKET INTERNET POLICY

Grey marketed products continue to be a threat to our worldwide distribution and dealer network. In

order to proactively discourage this activity by Internet resellers of our product, OceanLED will not

honor the warranty of products purchased via the grey market through internet resellers. The follow-

ing notice will be added to OceanLED’s warranty cards, website and all internet sellers will be required

to post the same notice.

WARRANTY NOTIFICATION: OceanLED products purchased by an end-user from a United States

dealer via the Internet are covered by this warranty, only if the products are delivered and installed

within the United States. The warranty is void if the product is delivered or installed outside the

United States. Proof of purchase and installation will be required. Product installed by OEM will be

warranted when shipped as part of a new boat package.

6: MAKING A CLAIM

6.1 Irrespective of how the products where ﬁtted or by whom when you discover that there may be a

problem with the products you must notify either your local dealer or ourselves within 14 days.

6.1.1 When you discover a problem we ask that the products that have a problem are not used. This will

minimize any further damage. We recommend (especially with the pro series) that the product be

disconnected to prevent accidental use by removing the power feed from the driver box and covering

the end of the power lead with a waterproof solution ( e.g. a taped up plastic bag) to prevent water

entering the cable connectors.

6.1.2 If a claim is accepted the part will be replaced on a “like for like basis”. No refunds will be given.

6.1.3 If you feel unhappy with any part of the process of claiming please let us know.

6.2 Products supplied and ﬁtted by a dealer

6.2.1 If you had the products installed by one of our dealers we ask that you contact them and ask that

they check the installation and establish the cause of the problem. If you are not local to the installer

please visit our website (www.oceanled.com) to ﬁnd the authorized dealer closest to you. This is

because many problems are due to issues with the installation or the electrical aspects external to the

lighting system, and can be resolved without the need for the removal of the product.

6.2.2 You should locate your purchase invoice for the products when you believe there is a problem and

contact the dealer you purchased the products and / or who ﬁtted them.

6.2.3 Your dealer will contact us and together we will resolve your issues and together we will investigate.

6.2.4 If the problem is found not to be due to the manufacture of the product, this will fall outside of the

warranty cover and the buyer will be liable for all costs.

OceanLED INSTALL / M6-A6 / 280417 / v7.0

6.3 Products supplied by a dealer but ﬁtted by the Buyer

6.3.1 If you installed the products yourself, before making contact we ask that you follow the troubleshoot-

ing chart for your product, when following the appropriate troubleshooting chart we ﬁnd that it is

helpful to complete the appropriate warranty claim information sheet. Copies can be found in the

troubleshoot section of the manual included with the product or alternatively it can be download

from our website (www.oceanled.com/documents).

6.3.2 If after following the troubleshoot guide, you still believe that the problem still exists with our product

you will need to contact the dealer that you purchased the product(s) from, however if you are unable

to do this you may contact any dealer / distributor in your local area (a list can be obtained either

from our website (www.oceanled.com) or by contacting our Head Oce.

6.3.3 When will be required to provide the information recorded on the warranty claim information sheet

and have the copy of your purchase invoice for the products.

6.3.4 When contacting your dealer you will be asked for the details from the warranty claim information

sheet. During this time the dealer will complete the appropriate warranty claim form that will be re-

turned along with the part.

6.3.5 When you have made contact with the dealer please follow their instructions.

6.3.6 If you are unable to contact a dealer you may wish to contact OceanLED directly. To contact the Ser-

vice Manager either call our UK oce on +44 1455637505 or email sales@oceanled.com.

6.4 If you are unable to locate a dealer close by or purchased directly from OceanLED.

6.4.1 Before making contact we ask that you follow the troubleshooting chart for your product, when fol-

lowing the appropriate troubleshooting chart we ﬁnd that it is helpful to complete the appropriate

warranty claim information sheet. Copies can be found in the troubleshoot section of the manual

included with the product or alternatively it can be download from our website (www.oceanled.com).

6.4.2 If after following the troubleshoot guide, you still believe that the problem still exists with our product

you will need to contact the Service Manager at OceanLED for your region.

If you are located in either North, Central or South America please contact the Warranty Department at:

OceanLED USA LLC

778 South Military Trail

Deerﬁeld Beach

Florida

FL 33442-3025

United States

Tel:+1(954) 523-2250

Fax:+1(954) 523-2249

Email sales@oceanledusa.com

Or if you are located in any other area please contact the Warranty Department at our UK Head Oce at:

Ocean LED Marine Ltd

Unit 1 Jacknell Road

Dodwells Bridge Industrial Estate

Hinckley

Leicestershire LE10 3BS

United Kingdom

Tel: +44 1455 637505

Fax: +44 1455 238553

OceanLED INSTALL / M6-A6 / 280417 / v7.0

NOTES

__________________________________________________________________________

OceanLED INSTALL / M6-A6 / 280417 / v7.0

Ocean LED Marine LTD

Unit 1 Jacknell Road

Dodwells Bridge Industrial Estate

Hinckley,

Leicestershire LE10 3BS

United Kingdom

Tel: +44 (0) 1455 637505

Fax: +44 (0) 1455 238553

[email protected]om

OceanLED USA

778 South Military Trail

Deerﬁeld Beach

Florida

FL 33442-3025

USA

Tel: +1 954.523.2250

Fax: +1 954.523.2249

[email protected]om

Specifications are subject to change

without notice.

Trademarks are the property of

Ocean LED Marine LTD

Please remove this page and keep for your les

For technical assistance:

Europe: service@oceanled.com

The Americas: warranty@oceanledusa.com

Warranty Serial Code(s):

OceanLED INSTALL / M6-A6 / 280417 / v7.0

This manual suits for next models

Table of contents

Popular Marine Lighting manuals by other brands

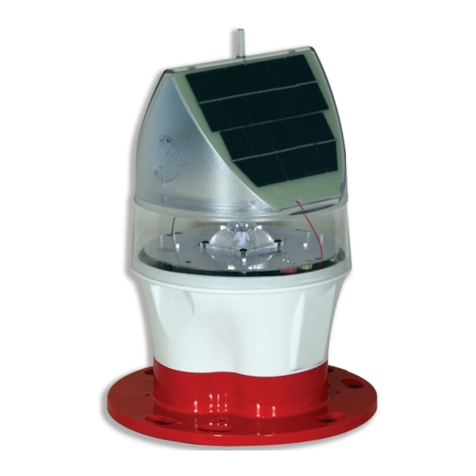

Sealite

Sealite SL-300-1D5 Series Installation & service manual

Attwood

Attwood 3592 instructions

Pioneer

Pioneer UD-ME650LED instruction manual

ETI

ETI 504091120 Use and care guide

Sealite

Sealite SL-75 quick start guide

Oceanled A6 Gen2 User manual

Popular Marine Lighting manuals by other brands
