ODG R-7 User manual

1
USER GUIDE
R-7 SMART GLASSES

2
R-7 User Guide
Rev 1.1.5 Nov 2015
ODG Part #: 580-00016

3
Thank you for purchasing the world’s
rst fully integrated, 3D, see-through,
mobile computing eye wear. This
User Guide is available for download
on the ODG Support website below.
It can also be found on the glasses
within the Gallery application under
PDF Documents .
Welcome
For questions, additional information not
found within this guide, or to open a support
ticket visit our Support site:
Documentation and development guidance
can be accessed through the ReticleOS
Developer Center:
support.osterhoutgroup.com
developer.osterhoutgroup.com
Customer Support
Developer Support

4
Your ODG R-7 device has been designed and manufactured to stringent
quality and safety standards. You should, however, be aware of the follow-
ing important precautions for the safe use of the glasses and accessories.
Warning: This device contains magnets and should be kept
at a distance from persons with any metallic, electronic, or
magnetic device implants in the body.
This device contains lithium ion batteries, which can explode
or cause burns if disassembled or exposed to re or high heat.
Batteries must be disposed and recycled safely and properly.
If battery swelling or deformation occurs immediately stop
using the device.
Read and heed all of these instructions and warnings carefully.
The design and manufacture of ODG R-7 Glasses is in accordance with the
requirements set out in Article 4 of RoHS2 Directive 2011/65/EU.
Keep these instructions for future reference.
Clean only with dry microber cloth, supplied.
Only use attachments/accessories specied by ODG.
Do not store glasses near any heat sources such as radiators,
registers, stoves, vehicle interiors, ampliers or other items that
produce heat.
Safety & Care

5
Welcome.............................................. 3
Safety & Care....................................... 4
Table of Contents ................................ 5
Included in the Kit................................ 6
Features Overview ............................... 7
Main Controls ...................................8-9
Track Pad........................................... 10
Input Modes....................................... 10
System Menu..................................... 11
Status Bar.......................................... 11
Launcher...................................... 12-13
Reticle Speed Mouse ................... 14-16
Earbuds.............................................. 17
Head Strap......................................... 17
Charging ............................................ 18
Cleaning............................................. 19
Corrective Lenses.............................. 19
Technical Specications.................... 20
Important Notices.............................. 21
Table of Contents

6
R-7 SMART GLASSES
RETICLE SPEED MOUSE
USB POWER
ADAPTER
USER GUIDE
HEAD STRAP
LENS CLEANING CLOTH
2 EAR BUDS
MAGNETIC USB
DATA & POWER CABLE
USB TO MICRO-USB
RETICLE SPEED MOUSE
CHARGING CABLE
STORAGE CASE
INCLUDED IN THE KIT

7
front view
top view
CONTROLS SHIELDS
VIBRATION
FEEDBACK
VIBRATION
FEEDBACK
CAMERA
TRACK PAD
TRACK PAD
TEMPLES
MAGNETIC USB DATA
& POWER PORT
FEATURES OVERVIEW

8
Decrease Volume
One Step
Continually
Decrease Volume
Hold
Increase Volume
One Step
Continually
Increase Volume
Hold
VOLUME DOWN
VOLUME UP
Power On
Displays On/Off
(When device is off)
(When device is on)
2 sec
Display
Shutdown
Menu
12 sec
Force
Shutdown
POWER
left temple
MAIN CONTROLS

9
Display
System Menu
Previous
Screen
Switch/Select
Open Apps
Go to
Launcher
3 sec
x 2
MENU
BACK
MULTI-FUNCTION
(Default Setting)
Toggle Input Mode:
Cursor/Selector
The multi-function button can be
set to perform various commands.
To customize this button, go to
Settings > Reticle > Temple Buttons
bottom view
right temple

10
TRACK PAD
The track pad is located on top of
the right temple of the glasses as
well as the Reticle Speed Mouse
are input devices that allow the
user to control the software
interface by swiping with a n-
gertip. It is an optical device that
functions equally with gloved or
gloveless ngers.
Pressing down on a track pad
represents a click or selects an
item.
There are two modes of Track Pad input to allow optimized control for each
application. To switch modes, either press the Multi-function button to
toggle modes (See Main Controls, Page 8-9). If the Multi-function button
has been re-assigned press Menu once to display the System Menu, then
select Input Mode.
Swiping the Track Pad allows free
movement of the cursor in any
direction in the same manner as a
computer mouse.
Swiping the Track Pad up, down,
left, or right selects the next button,
item, or element in the same man-
ner as 4-way arrow keys.
CURSOR MODE
SELECTOR MODE
TRACK PAD
INPUT MODES
right temple, top

11
SYSTEM MENU
Pressing the Menu button once
will display the System Menu,
providing access to frequently
used features and settings.
Icons at the top of the menu will
launch the Calculator, Flashlight,
Clock/Timer, or Camera apps.
Notications displays a list of
any current system Notications.
System Settings takes the user
to the full Android Settings.
Volume, Brightness, Display and
Input Mode will display quick
controls to adjust these settings.
Located at the top of the screen, the Status Bar indicates the status of a
variety of elements such as date & time, battery strength, connectivity, and
notications.
STATUS BAR

12
The Launcher is the home screen of ReticleOS and will appear when the
glasses power up. To return to the Launcher at any time either press the
Back button repeatedly or press and hold the Back button for 3 seconds
then release.
The Launcher contains a horizontal row of application icons that appear
mid-screen. Swiping left or right across the track pad, pressing a left or right
arrow key, or hovering using the 3D mouse will “slide” the row to the left
or right. The center icon represents the selected application. Pressing the
Track Pad or entering a click will launch the selection.
MANAGING ICONS
LAUNCHER
Clicking and holding the track pad while highlighting
an icon will display a menu for re-ordering an icon
within the row, removing an icon from the row (but not
the system itself), or quitting any active applications.
Selecting “Re-Order” allows the user to swipe left or
right to move the icon. Pressing the track pad sets the
order.
“Remove from Row” removes the icon from the row.
The application remains on the system and can be
re-added or launched via Search Apps.

13
LAUNCHER
Selecting “Edit Row” displays a list
of applications currently installed
on the system. Checkmarks indicate
which applications are included in
the Launcher. Swipe up or down to
highlight an app and press the track
pad to toggle the checkmark on or
off. Applications with checkmarks
will be included in the row when the
menu is closed.
Selecting the Menu icon, located near far-right in the
Launcher row, displays a menu of options. Edit Row
allows the user to add or remove icons (see below), and
Edit Speed Buttons or System Settings provide quick
access to these related settings.
ADDING & REMOVING ICONS
LAUNCHER MENU
APPLICATION SEARCH
Selecting the Search Apps icon, located at far-right
in the Launcher row, displays a search eld. Entering
search terms displays a list of applications that match
the terms. Swipiung up and down highlights the item
and pressing the track pad launches the app.
Camera Calculator

14
The Reticle Speed Mouse (RSM) is an 3D input device for the system that is
worn on the user’s index nger and controlled with their thumb. The Track
Pad, Menu, Back, and Volume buttons function in the same manner as the
buttons on the glasses. (See Main Controls, Pages 8-9).
To power up the RSM, press any of the buttons or simply put the device
around your nger. A contact pin on the underside of the device will allow
it to detect when you are holding it. Once the device powers on, the status
light will flash and begin glowing blue indicating it is ready to be paired. If
the status light does not illuminate then the battery needs to be charged
(see Charging). When the status light turns off the pairing is complete.
Bluetooth Pairing
The RSM is in pairing mode while the status light is glowing blue. On the
glasses, press the Menu button once to display the System Menu (see Page
11) then select Settings. Under the Bluetooth settings, select the RSM from
the list of available devices. (It will appear as “ODG Speed Mouse” in the list
of devices.) You can reset the RSM and make it forget any previous pairing
by pressing and holding the Back and Menu buttons simultaneously for
longer than 8 seconds.

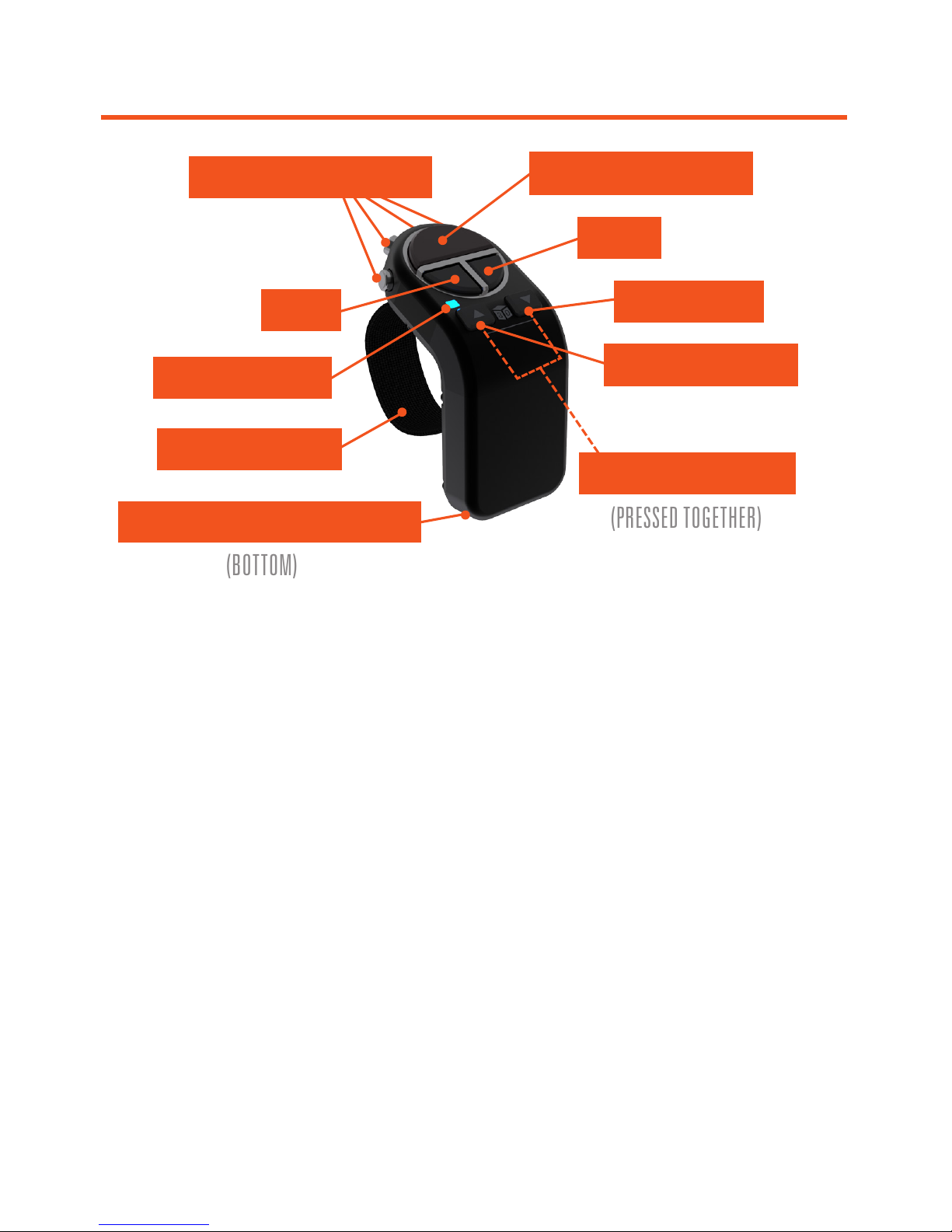

FINGER STRAP
CHARGING PORT & LIGHT
STATUS LIGHT
TRACK PAD/CLICK
BACK
SPEED BUTTONS x4
MENU
VOLUME DOWN
TOGGLE 3D MODE
VOLUME UP
RETICLE SPEED MOUSE
(PRESSED TOGETHER)
(BOTTOM)

15
RETICLE SPEED MOUSE
2D Mode
In 2D mode, you control the cursor by swiping your thumb on the trackpad.
2D mode is ideal for situations requiring ne-grained control of the cursor,
or in situations where you might be in motion, such as inside of a moving
vehicle.
3D Mode
In 3D mode, a sensors detect the position of the mouse and the cursor is
controlled using simple hand movements much like a laser pointer. In 3D
mode you also can scroll up and down through some content such as a web
page or PDF le by swiping your thumb on the trackpad much like a scroll
wheel on a desktop mouse.
Note: 3D mode requires more power to operate, and the battery life may be
reduced with heavy 3D use. To switch from 3D to 2D mode, press and hold
both the Volume Down and Volume Up buttons at the same time for longer
than 3 seconds.
Switching Modes
To toggle between 2D and 3D mode, press and hold both the Volume Down
and Volume Up buttons at the same time for 3 seconds. The status light will
illuminate green when 3D mode is active.
Standby/Hibernate Modes
When the RSM is not in contact with the user’s nger and no buttons are
pressed it will enter Standby mode, increasing battery life, after 5 minutes. If
no contact or button presses are detected after 15 minutes it will enter Hi-
bernate mode. Placing the RSM on the user’s nger or pressing any button
will wake the device and cause it to re-connect with the glasses. In Standby
mode this happens instantly, while in Hibernate mode there will be a slight
delay of 2-3 seconds while the device awakes and re-connects.
Note: While in 3D mode (when status light is green), the RSM will not enter
Standby or Hibernate while in motion. Press Volume Up and Down simul-
taneously to enter 2D mode (status light is off) before storing the device if
motion is expected.

16
RETICLE SPEED MOUSE
Speed Buttons
The four speed buttons at the top of the RSM provide one-button access to
applications. Pressing a button launches the appropriate application that
has been congured to that button.
To congure the speed buttons, go to System Settings via the icon in the
Launcher or by pressing and holding the Menu button. Set up the appli-
cations you wish to launch in System Settings > Reticle > Reticle Speed
Mouse.
Default: Camera
Default: Browser
Default: Email
Default: Gallery
SPEED BUTTON 3
SPEED BUTTON 2
SPEED BUTTON 4
SPEED BUTTON 1
Charging
To charge the RSM, plug the included micro-USB cable into the charging
port on the bottom of the unit. Plug the other end of the micro-USB cable
into any USB power source, such as a personal computer or the included
USB charger. The charging light on the bottom of the RSM will glow red to
indicate the battery is recharging. When charging is complete, the charging
light will glow green.

17
To listen to audio, attach each of the supplied earbuds to the magnetic
earbud ports located on the bottom of each temple.
To adjust the volume, press the Volume Up or Volume Down buttons on the
the Reticle Speed Mouse or the bottom of the left temple on the glasses.
The included Head Strap can be attached to secure the glasses to the
wearer’s head. To attach the strap, press the strap connectors into the
oval hole in the Ear Horns, then rotate them 90° to lock into place.
HEAD STRAP ATTACHMENT
1. Insert Connector
2. Rotate 90°
EARBUDS
HEAD STRAP
EAR BUD x2
side view
side view
MAGNETIC
EARBUD PORT

18
To charge the glasses, attach the Magnetic USB Data & Power Cable to the
charging port on top of the left temple and plug the cable into the supplied
power supply. A charging status light located on the inside front of the
glasses illuminates when the charging cable is plugged in.
SOLID WHITE SOLID GREEN BLINKING BLUE OR RED
CHARGING CHARGED BATTERY ERROR
MAGNETIC USB
DATA & POWER
CABLE
If an error is indicated, contact ODG immediately for servicing.
Do not attempt to access the batteries or disassemble the device.
!
CHARGING
left temple, top
CHARGING STATUS LIGHT
STATUS LIGHT COLORS

19
Use ONLY the supplied microber cloth to clean optical surfaces.
Other materials can scratch surfaces and degrade optical quality.
Over time and with normal use the Front Shields and lens may become
soiled with ngerprints, dirt, and dust. To clean these surfaces gently
wipe them with the supplied Microber Cleaning Cloth.
Corrective Lenses are available to correct vision of users who wear pre-
scription glasses or contact lenses. Visit shop.osterhoutgroup.com for
purchase options.
To install, remove the nose bridge from the glasses then slide the corrective
lenses over the nose bridge connector. Re-install the nose bridge in the
reverse manner to install.
!
CORRECTIVE LENSES
CLEANING
(OPTIONAL)

20
HARDWARE
Qualcomm®SnapdragonTM 805
2.7GHz quad-core Processor
3GB Pop LP-DDR3 RAM
64GB Storage
GPU Adreno420, 600 MHz turbo,
500 MHz nominal
GPU APIs: OpenGL ES 1.1/2.0/3.0, 3.0+,
OpenCL1.2 Full Prole, DX11.1
Dual 650mAh Lithium-Ion Batteries
(1300mAh total)
Replaceable Magnetic Nose Bridges
Removable ear horns
Dual Haptic Feedback in Temples
OPTICS
Dual 720p Stereoscopic See-thru dis-
plays at 80fps
80% See-thru Transmission
Magnetic Removable Photochromic
Lenses
COMMUNICATIONS
Bluetooth 4.0
802.11ac
GNSS (GPS/GLONASS)
SENSORS
Multiple Integrated Inertial Measuring
Units with 3-axis accelerometer, 3-axis
gyroscope, 3-axis magnetometer
Barometric Pressure Sensor
Humidity Sensor
Ambient Light Sensor
Autofocus Camera (1080p @ 60fps,
720p @ 120fps)
TECHNICAL SPECIFICATIONS
INPUT/OUTPUT
2 Digital Microphones
(User & Environment)
Magnetic charging port
with USB on-the-go
Magnetic stereo audio ports
with ear buds
SOFTWARE
ReticleOS, a see-thru optimized
Android framework for head-worn
computing atop Android 4.4.4 (Kit Kat)
Qualcomm®VuforiaTM SDK
for Digital Eyewear (VDE)
Developer Website
Developer Program
Reticle App Center
INCLUDED ACCESSORIES
Protective Case
Magnetic Ear Buds
BLE Reticle Speed Mouse
Swappable Photochromatic Lenses
Focus Shift Element
OPTIONAL ACCESSORIES
Wireless Keyboard
Portable Back-up Power Supply
Corrective Lenses
Nose Pads & Ear Horns
Clear & Timted Outer Lenses
Other manuals for R-7
1
Table of contents
