ODYN LeetDesk 1.0 Series Installation guide

LeetDesk
Electrically Height-adjustable Gaming Desk
Assembly & Instruction manual

1
Table of Contents
GENERAL NOTES AND LIABILITIES--------------------------------------- 2
ABOUT THIS MANUAL ------------------------------------------------- 2
PROPER USAGE OF THE DESK ------------------------------------------- 2
MANUFACTURER LIABILITY --------------------------------------------- 2
IMPORTANT SAFETY NOTES--------------------------------------------- 3
ELECTRICITY WARNING------------------------------------------------- 4
SAFETY PRECAUTIONS------------------------------------------------- 5
ASSEMBLY-------------------------------------------------------------- 6
PREPARATION-------------------------------------------------------- 6
REQUIRED TOOLS----------------------------------------------------- 7
DESK PARTS -------------------------------------------------------- 7
STEP-BY-STEP ASSEMBLY---------------------------------------------- 8
HOW TO USE YOUR LEETDESK ----------------------------------------- 16
FIRST USE ---------------------------------------------------------- 16
FACTORY RESET----------------------------------------------------- 16
GENERAL USAGE -----------------------------------------------------17
ANTI-COLLISION DETECTION --------------------------------------------17
TECHNICAL SPECIFICATIONS -------------------------------------------- 18
TROUBLESHOOTING -------------------------------------------------- 18

2
General notes and liabilities
About this manual
Please read this manual carefully and keep it for future
reference. This manual contains information for a safe and
proper usage of your LeetDesk. Should you have any questions,
please contact us at [e-mail].
Proper usage of the desk
LeetDesk is only meant to be used as an electrically height-
adjustable desk in closed rooms. Any other, non-appropriate
usage is done under the user’s own risk.
Do not let unsupervised children use the desk. Despite having
a built-in anti-collision system, there is still a risk of injuries.
The manufacturer shall not be liable for damages caused by
inappropriate usage of the desk.
Manufacturer liability
The manufacturer will not be made liable for any damages or
injuries to people, animals or property caused by improper
usage, neglecting this manual’s instructions, the user’s
negligence, inadequate maintenance, faulty assembly or if any
modifications to the desk are done by the user.

3
Important safety notes
Ensure at all times that the area surrounding the desk is clear
of persons, animals and objects in order to avoid any damage
to them or the desk.
Before using the desk, make sure there are no objects or
obstacles blocking your LeetDesk. Also make sure LeetDesk is
not touching any walls/objects and all cables from your PC and
your peripherals (e.g. mouse, keyboard) have the appropriate
length to accommodate the height-adjustability of the desk.
Do not stand, sit or lie on the desk! Do not crawl, sit or lie under
the desk when in use! Only place the desk on even grounds and
floors!
LeetDesk is able to hold up to 80kg. For your own safety, we
advise you to place no more than 80kg (weight of PC and PC
holder included) of weight on the desk. Also ensure to place
the weight as evenly as possible on the desk. LeetDesk is not
designed to lift people nor heavy weights.
Make sure to not get your hands stuck in the table legs of the
desk. Do not touch the table legs while the table is moving!
Make sure to clear the table legs of any objects during
operation in order to avoid damaging the objects.
Do not put objects higher than 50cm under the table. All objects
such as walls and furniture should be at least 3 cm away from
the desk.

4
Electricity warning
Any electrical components of the desk are not to be exposed
to water or any other liquids.
Do not twist, bend, squeeze or strain the cables of the desk as
this will lead to damaging your desk or to an electric shock.
Keep children away from the desk, especially the electrical
components such as power cable, control box and handset.
Only connect the desk to the power after it has been fully and
properly assembled. Make sure the power cable is inserted
correctly into the power outlet before usage.
Do not under any circumstances open any of the electrical
components (table legs, control box, handset, motors) as this
could lead to an electric shock which may result in serious
injuries or even death.
LeetDesk is made for a work cycle of 10% (2 minutes of
movement, 18 minutes stationary). Do not overwork the
electrically height- adjustable desk, it will only take exactly 20
seconds to move it from the lowest to the highest position.
If the handset displays “HOT”, stop the movement of the table
immediately for at least 18 minutes.
In case of a power outage, you will have to manually reset your
table. In this case, please refer to the section “Factory Reset”.

5
Safety Precautions
In case of unusual occurrences, such as smoke or loud noises,
immediately cease operation of the desk and unplug it from
the power outlet.
Should the desk move in an unusual, non-intended way, unplug
the desk from the power outlet and get it checked by a
professional.
Repairs are only to be made by professionals and with original
replacement parts.
We suggest cleaning the table with a slightly damp microfiber
cloth. Make sure that you do not expose any electrical
components to liquid.
LeetDesk has been tested by our high standards as well as
common safety regulations. However, there is always a slight
risk of damage to persons, animals and objects or to the desk.
Therefore there is always a risk of injury if used improperly.
Only use your LeetDesk when it is in a flawless condition so
that you are not exposed to any dangers.

6
Assembly
Before starting to assemble the desk, please make sure that all
your components in the box are present and undamaged. In the
unlikely event that a part is missing or even damaged, please
contact us at [email protected].
Preparation
Only attempt to assemble the desk with at least two persons.
All persons assembling the desk have to read this instruction
manual. Do not let children assemble the desk.
We advise you to place a protective mat or carpet under the
desk before assembly in order to avoid scratching and
damaging your floor or the desk.
Before first use of the desk, please make sure you have:
1. Properly assembled the desk.
2. Read and understood all warnings stated in this
manual.
3. Properly connected all the cables (power cable,
handset cable, table leg cables).
4. Done a factory reset of the desk.

7
Required Tools
Desk Parts
6mm Allen Wrench (included)
4mm Allen Wrench (included)
15
Head Screwdriver or Power Drill
Tape Measure
14
1
2
3
10
10
6
12
11
7
10
13
9
8
4
5
11

8
Step-by-step assembly
Before assembling your desk, make sure that all the previously
listed components are present.
Step 1
Align the holes of the side bracket (1), the frame (2) and the
table leg (4).
Then put the M6×35 machine screw with round head (marked
with the blue dot) (11) into the holes and tighten the screws
with a 4mm hexagon wrench. Repeat the process on the other
side of the desk.
2
4
4
11
1

9
Step 2
Insert the center rail (3) into the frame (2) on both sides, and
adjust the appropriate position (note: the word "MAX" on the
center rail must not be completely exposed).
Then put the M6x30 machine screw with the round head (13)
into the position as shown in the figure and tighten it with a
4mm hexagon wrench.
If the adjustment of the width is a bit difficult, move the
middle rail around several times to achieve a better
smoothness.
If you drop a screw inside the frame end, simply tilt it to
retrieve the screw.
2
2
13
3

10
Step 3
Align the holes on the foot (5) with the holes on the table leg
(4).
Put the M10×30 countersunk head machine screws (14) into the
foot, and tighten the screws with a 6mm hexagon wrench.
If one of the rubber rings falls out during this process, simply
put them back in.
14
5
4

11

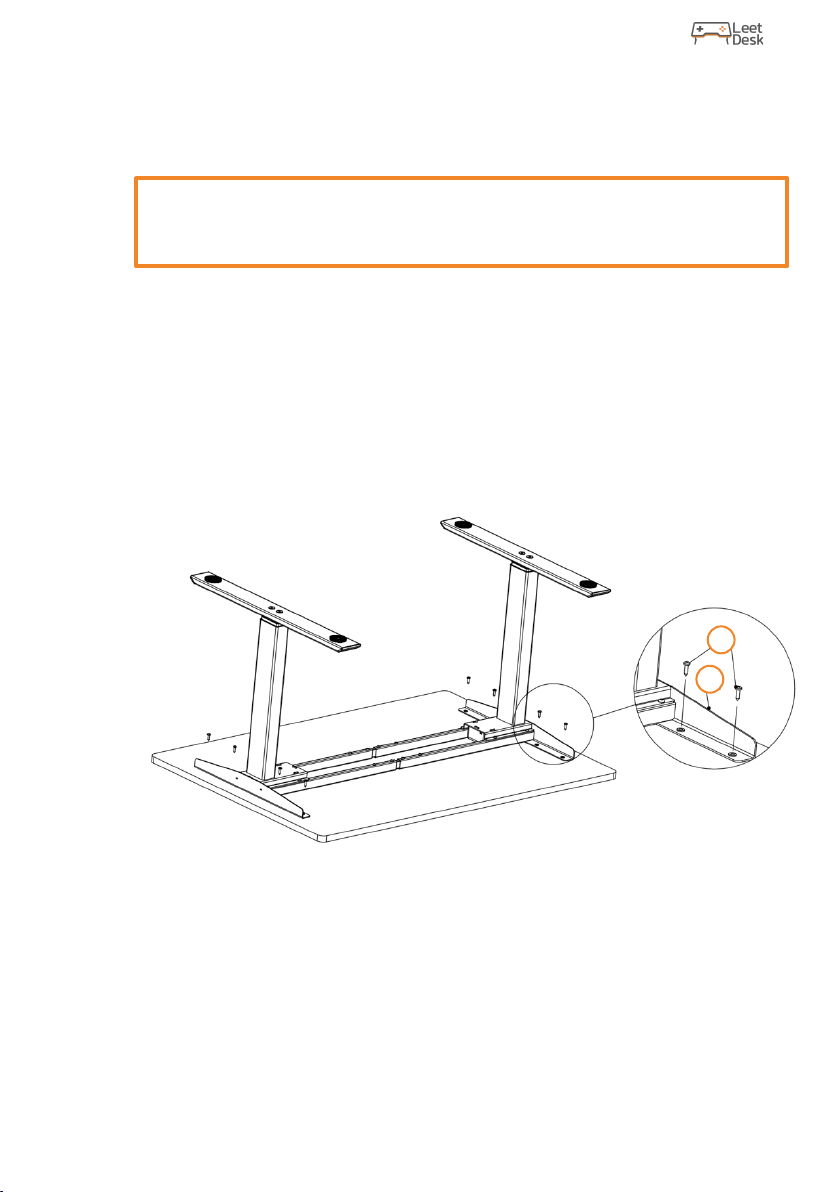

Step 4
Information: All our LeetDesk models will already have pre-
drilled holes in the tabletop for you to align your table frame
with.
Put the table frame on the tabletop and adjust the position of
the table frame to match the position of the pre-drilled holes.
Put the ST5×20 wood screws (10) into the corresponding holes
on the side bracket (1) and fix them with a screwdriver.
10
1

12
Step 5
Adjust the position of the control box (7) and the adapter (9)
with the pre-drilled holes in the tabletop.
Fix the ST5×20 wood screws (10) into the holes on both sides
of the control box (7).
Put the adapter buckle (8) on the adapter (9), and fix the ST5×20
wood screws (10) into the holes on both sides of the adapter
buckle (8). Plug the motor wire of the table leg into the control
box (7).
Plug the wire of the adapter into the control box.
10
7
9
8

13
Cable Management: If you have ordered our cable management
rail, align the holes of the rail with the 4 pre-drilled holes and
use the wood screws included in the package.
PC Holder: If you have ordered our PC Holder, please refer to
the separate PDF.
Information: Do not open the control box under any
circumstances!

14
Step 6
Put the handset (6) on the edge of the tabletop wherever you
like.
Fix the handset on the tabletop with the ST5×16 wood screws
(12).
Plug the wire of the handset into the control box (7).
6
12

15
Step 7
Turn the assembled desk right side up. With at least two
people, grab the foot of the desk (not the tabletop) and turn
the desk on the right side up.
Adjust the pre-installed glides on the feet (5) if needed.
Step 8
Plug the power cord (15) into a 230V outlet.
FINISH: After you have finished the assembly, flip the table to
the correct position with the help of another person. Do not
attempt to flip it by yourself as the LeetDesk is very heavy
(< 40 kg)!
Information: Most issues with your LeetDesk can be
solved by doing a factory reset (see page 16).

16
How to use your LeetDesk
First Use
Before first use, please make sure that there are no obstacles
in the way of the LeetDesk when moving it up or down. Make
sure, that your desk is not directly touching the wall, as it could
potentially damage your walls during movement.
Make sure all electronic devices that you plan to use at your
table have cables that are long enough, even when the table is
in the highest position.
Factory Reset
Do a factory reset before first using your LeetDesk:
1. Reset the control box by pressing and holding the
Down/- button until the table has reached its lowest
position.
2. Let go of the Down/- button and press and hold it
again until the handset will display "RST".
3. Let go of the Down/- button and press it again and
hold the button until the table moves down a little
lower, then rises a little bit and stops. Then let go of
the Down/- button.
4. Now your LeetDesk is ready for use!

17
General usage
Move your LeetDesk up and down with the Up/+ and Down/-
buttons respectively. Simply press and hold the corresponding
buttons until the desk has reached your preferred height. The
current height will be displayed on the handset.
You can save your preferred height settings with the memory
setting. In order to save your current desk height to one of the
three memory settings, simply press the M button and then one
of the numbered buttons.
Your LeetDesk will always move back to the position you saved
all by itself after pressing the numbered button.
Anti-collision detection
All LeetDesk models have an anti-collision system. If during
movement the LeetDesk is bumped or moved in any way, the
table will cease movement and move to the opposite direction
it was moving for about 1-2 cm.
This is to prevent accidentally damaging people or objects
through the movement of the desk.

18
Technical specifications
Maximum lifting capacity
80 kg
Maximum stroke
650 mm
Lowest position
63 cm
Highest position
128 cm
Voltage
220 V - 240 V, 50 Hz
Usage Cycle
10% (2 minutes constant
movement, 18 minutes off)
Movement speed (no load)
38 mm/s
Troubleshooting
Table is not working properly
Do a factory reset
Handset displays "RST"
Do a factory reset
Handset displays "E01" - "E13"
Check all cable connections and
do a factory reset. If the problem
persists, please contact us at
[e-mail].
Handset displays "HOT"
The table legs have overheated,
do not move the table for at
least 18 minutes in order for
them to cool down.
Should your problem not be listed here or persist after trying
these steps, please contact us at [email protected].

EU Conformity Declaration
ODYN GmbH
Oststraße 116
40210 Düsseldorf Germany
Product description:
Electrically height adjustable desk
Series:
LeetDesk 1.0
Product numbers:
1337-1, 1337-2, 1337-3
Plenipotentiary for the collection of technical documents:
ODYN GmbH, Oststraße 116, 40210 Düsseldorf
We hereby declare, that the products mentioned above meet
all the requirements of the " Maschinenrichtlinie 2006/42/EG " .
The above mentioned products also meet the requirements
for the following:
Guideline 2014/35/EU (Niederspannungsrichtlinie) Guideline
2014/30/EU (Elektromagnetische Verträglichkeit)
13.07.2018 Signature on Original
signed: Meiko Tse, CEO
