ODYN LeetDesk 1337-1 Installation guide

1
LeetDesk
Electrically Height-adjustable Gaming Desk
Assembly & Instruction manual

2
1. General notes and liabilities
1.1 About this manual
Please read this manual carefully and thoroughly and keep it for
future reference. This applies to all persons building, using,
maintaining or repairing this desk. This manual includes valuable
information for a safe and proper usage of the desk. Should you
have any questions please refer to this manual or contact us at
[email protected]. Should you choose to sell this desk, make sure
to provide the buyer with this manual as well.
1.2 Proper usage of the desk
LeetDesk is only meant to be used as a electrically height-adjustable
desk in closed rooms. This desk is not to be used for other uses.
Any other, non appropriate usage is done under the user’s own risk.
When using LeetDesk make sure to not let unsupervised children
use it. Despite having a built-in anti-collision system there will be
remaining risk for injuries. The manufacturer shall not be liable for
damages caused by inappropriate usage of the desk.
1.3 Manufacturer liability
The manufacturer will not be made liable for any damages or injuries
to people, animals or property caused by improper usage,
neglecting of this manual’s instructions, user’s own fault, inadequate
maintenance or faulty assembly.
The manufacturer will also not be made liable if any modifications to
the desk done by the user through use of improper spare parts or
modification of the desk itself.

3
1.4 Important safety notes
Before using the desk make sure there are no objects or obstacles
blocking your LeetDesk. Also make sure LeetDesk is not touching
any walls/objects and all cables from your PC and your peripherals
have the appropriate length to accommodate the height-adjustability
of the desk.
Do not stand, sit or lay on the desk! Do not crawl, sit or lie under the
desk when in use! Only place the desk on even grounds and floors!
LeetDesk is able to hold up to 100kg, for your own safety we advise
you to place no more than 80kg of weight on the desk. Also ensure
to place the weight as evenly as possible on the desk. The desk is
only to be used as a electrically height-adjustable desk. It is not
made to lift persons or heavy weights.
Please make sure to not get your hands stuck in the lifting
columns of the desk. Do not touch the columns while the table
is moving! Other objects can potentially be damaged as well,
make sure to clear the lifting columns of any and all objects
during operation.
Do not put objects higher than 50cm under the table. Any and all
objects such as walls and furniture should be at least 3 cm away
from the desk.
Ensure that the area of operation of the table is clear to avoid
damage to persons, animals and objects.

4
1.5 Electricity warnings
Any electrical components of the desk are not to be exposed to
water or any other liquids.
Do not twist, bend or strain the cables of the desk as this will lead to
damaging your desk as well as danger of electric shock.
Keep children away from the desk, especially the electrical
components such as power cable, control box and handset.
Only connect the desk to power after it has been fully and properly
assembled. Make sure the power cable is inserted correctly into the
power outlet before usage.
Do not under any circumstances open any of the electrical
components (lifting columns, control box, hand set, motors)as
this could lead to a electrical shock which in turn can lead to
serious injuries or death.
LeetDesk is made for a work cycle of 10% (2 minutes of movement,
18 minutes stationary). Do not overwork the electrically height-
adjustable desk, it will only take 20-30 seconds for it to move it from
the lowest to highest position.
If the hand set displays „HOT“, stop movement of the table
immediately for at least 18 minutes.
In case of a power outage you will have to manually reset your table.
Please refer to section 3.1.

5
1.6 Safety Precautions
In the case of unusual occurrences such as smoke or loud noises
immediately cease operation of the desk and unplug it from the
power outlet.
Should the desk move in an unusual, non-intended way unplug the
desk from the power outlet and get it checked by a professional.
Repairs are only to be made by professionals and with original
replacement parts.
We suggest cleaning the table with a slightly damp microfibre cloth.
Make sure that you do not expose any electrical components to
liquid.
LeetDesk has been tested by our high standards as well as common
safety regulations. However there will always be a risk of damage to
property or the desk and injuries if used improperly.
Please only use LeetDesk when it is in a flawless condition as to
not expose yourself to any dangers that might occur.

6
2. Assembly
2.1 Preparation
Before beginning assembly, please make sure that all your
components in the box are present and undamaged. In the
extremely rare event that a part is missing or even damaged, please
send us an email to [e-mail] and we will help you to
resolve this issue immediately.
Only attempt to assemble the desk with two persons. Please use
caution when assembling the desk. Do not let children assemble the
desk. All persons assembling the desk have to read this instruction
manual.
We advise you to place a protective mat or carpet under the desk
before assembly to avoid scratching and damaging your floor or the
desk.
Before first use of the desk, please make sure you have:
-Properly assembled the desk
-Read and understood the warnings mentioned in Section 1
-Properly connected all the cables (power cable, handset cable,
control box cable)
-Done a Reset of the table (See Section 3)

7
2.2 Parts List / Required Tools
9
1:
Table Leg
7:
Handset
2:
Table Foot
8:
Power Cable
3a:
Frame Piece A
9:
Connection Cable
3b:
Frame Piece B
10:
Frame Screws A (short)
4:
Central Rails
11:
Frame Screws B (long)
5:
Side Brackets
12:
Wood Screws
6:
Control Box
15a/b:
Cable management Rail
(optional)
7
8

8
2.3 Step-by-step assembly
Make sure that all the previously listed components are present.
Pull frame piece A and frame piece B (3a & 3b) outwards to reveal
the central rails (4). Remove the control box (6) and place it
somewhere else for the time being.

9

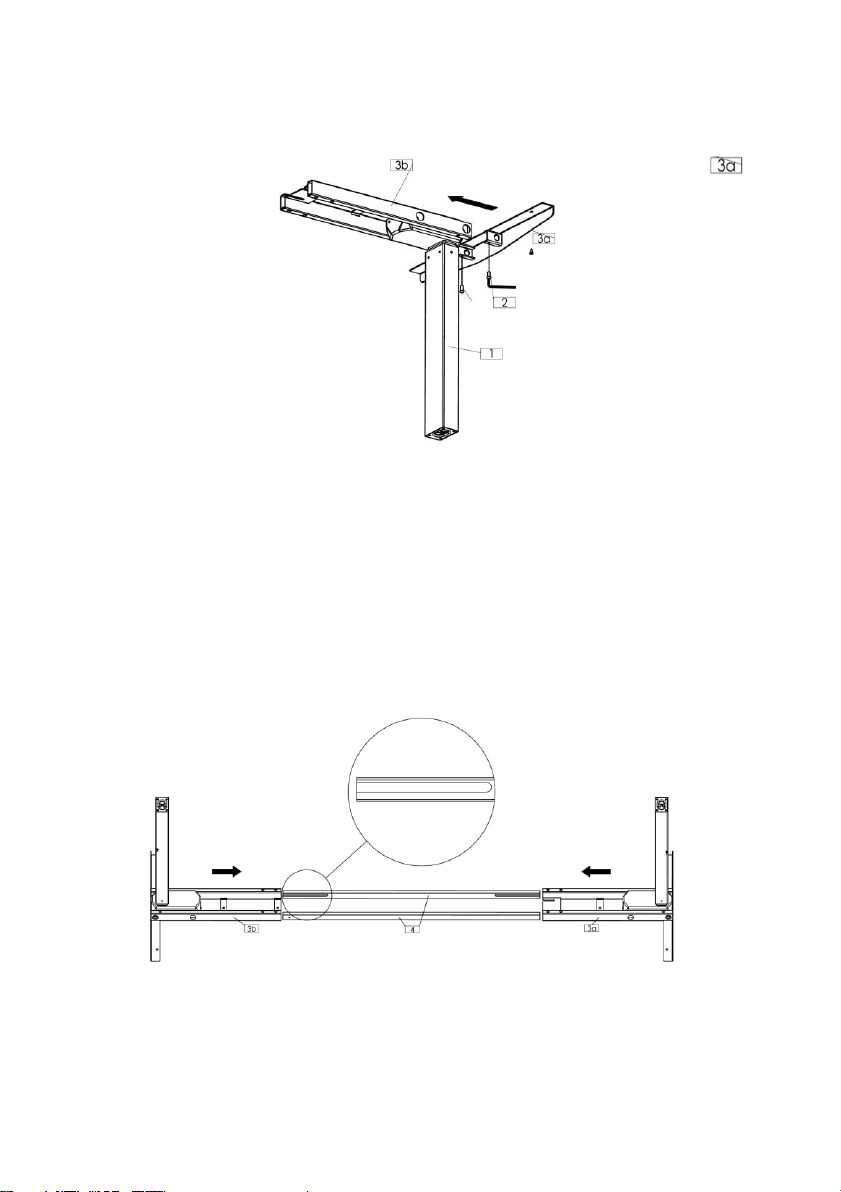

Place one table leg (1) into the frame piece A(3a).
Fix it to the frame pieces using the pre-drilled holes with the short
frame screws A (10)
11
Make sure the attachment rail for the control box (arrow) is facing
upwards.
Should one of the screws fall into the frame, simply tilt the frame
piece to get it back out.
10

10
5
Attach the side bracket (5) to the frame piece (3a) and fix it with the
long frame screws B (11).
Repeat this whole process with the other table leg.

11
Slide the two central rails (4) into the frame pieces (3a & 3b). Make
sure that the openings of the rails are aligned to the center of the
frame pieces. Also make sure that the thinner „lip“ of the central rails
are at the top of the frame pieces. (see picture for reference)
Attach the table feet (2) to the table legs using the long frame
screws (11).

12
Our LeetDesk Goliath and LeetDesk Core models will already have
pre-drilled holes in the tabletop for you to align your table frame
with. Please check both sides of your tabletop to find the side with
the pre-drilled holes. Adjust the size of the table frame like shown on
the picture above so the 7 holes of the table frame line up with the
holes in the tabletop

13

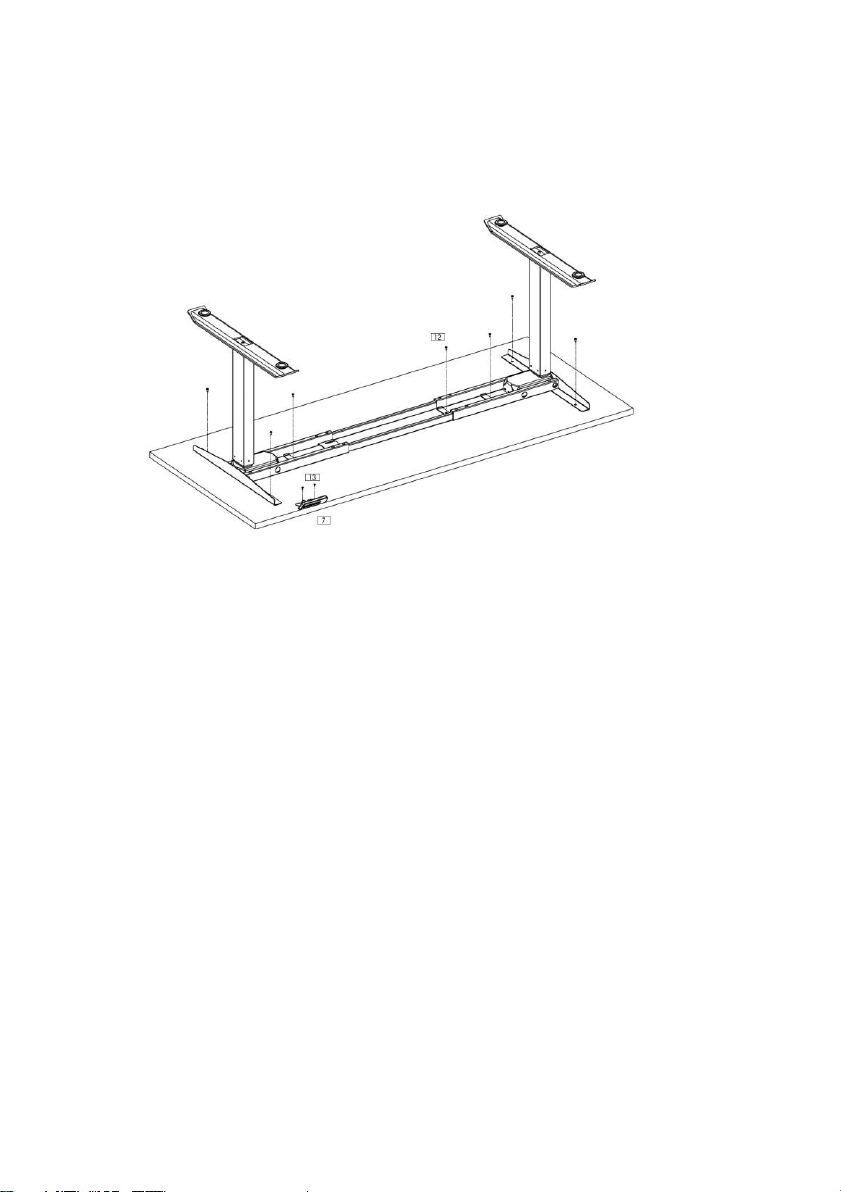

Use the wood screws (12) to fix the table frame to your tabletop.
Again, make sure the holes of the table frame are properly aligned
with the holes on the tabletop. Attach the handset (13) using the
shorter wooden screws included in your package. You can attach
the handset to either side of your LeetDesk, so you will find no pre-
drilled holes for the handset.

14

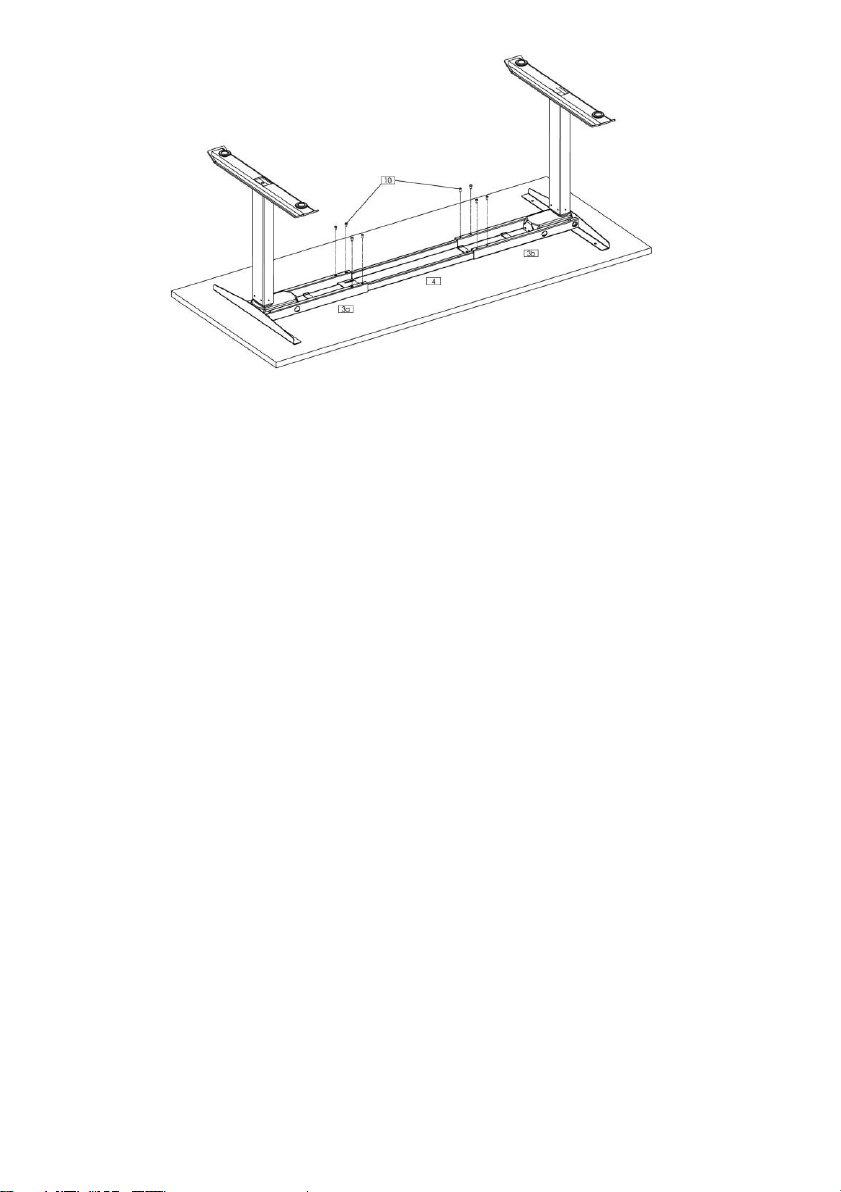

Use 8 of the long frame screws (11) to fix the central rails to the
frame pieces (3a & 3b). Make sure the screws are touching the
central rails! This is to keep them in place and increase the stability
of your LeetDesk.

15
Slide the control box (6) back into the table frame (3a).
Connect the cable of the handset (7) into the slot of the control box
(6) labelled „HS“. Connect both of the table legs (1) with the
corresponding 6-pin connectors of the control box, use the
extension cable included in the box if needed.
Connect the power cable (8) with the control box (6).

16
If you have ordered our cable management rail, align the holes of
the rail with the 4 pre-drilled holes and use the wooden screws
included in the package.
If you have ordered our PC Holder, please refer to the separate PDF.
After you have finished assembly, flip the table to the correct
position with the help of another person. Do not attempt to flip it by
yourself, as the LeetDesk is very heavy (upwards of 40 kg)!

17
3. How to use your LeetDesk
3.1 First Use
Before first use, please make sure once again, that there are no
obstacles in the way of the LeetDesk when moving it up or down.
Also make sure, that your desk is not directly touching the wall, as
otherwise it could potentially damage your walls during movement.
Make sure all your electronic devices that you plan to use at your
table have cables that are long enough even when the table is in a
high position.
You might have to do a Factory Reset before first using your
LeetDesk.
In order to do that, press and hold the - Button until the table has
reached it’s lowest position. Let go of the - Button and press and
hold it again until the handset will display „RST“. Let go of the -
Button. Once again press and hold the - Button until the table
moves down a little lower,rises a little bit and then stops. Let go of
the - Button. Now your LeetDesk is ready for use!
Most issues with your LeetDesk can be solved by doing this
factory reset.

18
3.2 General usage
Move your LeetDesk up and down with the + and - buttons
respectively. Simply press and hold the corresponding buttons until
the desk has reached your preferred height. The current height will
be displayed on the handset.
You can save your preferred height settings with the memory
setting. In order to save your current desk height to one of the three
memory settings, simply press the M button and then one of the 1, 2
or 3 buttons.
Your LeetDesk will always move back to the position you saved after
pressing the 1, 2 or 3 button all by itself.
3.3 Anti-collision detection
All LeetDesk models have a anti-collision system. If during
movement the LeetDesk is bumped or moved in any way, the
table will cease movement and move to the opposite direction
it was moving for about 1-2 cm.
This is to prevent inadvertently damaging people or objects
through movement of the desk.

19
4. Technical specifications
Maximum lifting capacity
100 kg
Maximum stroke
650 mm
Lowest position
60 cm
Highest position
125 cm
Voltage
220 V - 240 V, 50 Hz
Usage Cycle
10% (2 minutes constant
movement, 18 minutes off)
Movement speed (no load)
38 mm/s
5. Troubleshooting
Table is not working properly
Do a factory reset (3.1)
Handset displays „RST“
Do a factory reset (3.1)
Handset displays „E01“ - „E13“
Check all cable connections
and do a factory reset. If the
problem persists please contact
us at [email protected]om
Handset displays „HO1“
The table legs haveoverheated,
do not move the table for at
least 18 minutes in order for
them to cool down.
Should your problem not be listed here or persist after trying
these steps please contact us at [e-mail]

20
EU Conformity declaration
ODYN GmbH
Oststraße 116
40210 Düsseldorf
Germany
Product description:
Electrically height adjustable desk
Series:
LeetDesk 1.0
Product numbers:
1337-1, 1337-2, 1337-3
Plenipotentiary for the collection of technical documents:
ODYN GmbH, Oststraße 116, 40210 Düsseldorf
We hereby declare, that the products mentioned above meet
all the requirements of the „Maschinenrichtlinie 2006/42/EG“.
The above mentioned products also meet the requirements
for the following:
Guideline 2014/35/EU („Niederspannungsrichtlinie“)
Guideline 2014/30/EU („Elektromagnetische Verträglichkeit)
13.07.2018 Signature on Original
signed: Meiko Tse, CEO
