OEM Tools Tear Down Tray Service manual

UNPACKING
After unpacking the unit, inspect carefully for any damage
that may have occurred during transit. Check for loose,
missing, or damaged parts. If any damage is observed,
a shipping damage claim must be filed with the carrier.
DO NOT use the OEMTOOLS™Tear Down Tray if broken,
bent, cracked or damaged parts (including labels) are
noted. Any Tear Down Tray that appears damaged in any
way, operates abnormally or is missing parts should be
removed from service immediately. If you suspect that the
Tear Down Tray was subjected to shock load (a load that
was dropped suddenly, unexpectedly, etc.), immediately
discontinue use until it has been checked by a factory
authorized service center.
Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and
others by observing all safety information, warnings, and cautions. Failure to comply with instructions could result in personal
injury and/or damage to product or property. Please retain instructions for future reference.
The following safety information is provided as a guideline to help you operate your Tear Down Tray under the safest possible
conditions. Any tool or piece of equipment can be potentially dangerous to use when safety or safe handling instructions are
not known or not followed. The following safety instructions are to provide the user with the information necessary for safe use
and operation. Please read and retain these instructions for the continued safe use of your tool. Failure to follow instructions
listed below may result in serious injury. In addition, make certain that anyone who uses the equipment understands and follows
these safety instructions as well.
Operating Instructions and Parts Manual 24634
FOR CUSTOMER SERVICE
Technical Question?
CALL 1-866-458-2472
[email protected]
29"STAINLESS STEEL
TEAR DOWN TRAY
Thank you very much for choosing an OEMTOOLS™Product!
For future reference, please register your new tool at www.oem-tools.com and complete the owner’s record below:
Model: _______________ Purchase Date: ___________
Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product
before you begin using it. This product is designed for certain applications only. OEMTOOLS™cannot be responsible for issues
arising from modification. We strongly recommend that this product is not modified and/or used for any application other than that
for which it was designed. If you have any questions relative to a particular application, DO NOT use the product until you have first
contacted customer service to determine if it can or should be performed on the product.
Explanation of Safety Signal Words
WARNING:Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION:Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
CAUTION:Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result
in property damage.
NOTES:Provide clarity and helpful information.
WARNING
1
5/17
2017 OEMTOOLS™

2
Operating Instructions and Parts Manual 24634
29"STAINLESS STEEL
TEAR DOWN TRAY
5/17
2017 OEMTOOLS™
IMPORTANT INSTRUCTIONS
AND SAFETY RULES
1. Know your tool. Read this manual carefully. Learn the
tool’s applications and limitations, as well as potential
hazards specific to it.
2. Maintain a safe working environment. Keep the work
area well lit. Make sure there is adequate surrounding
workspace. Keep the work area free of obstructions,
grease, oil, trash, and other debris. DO NOT use this
product in a damp or wet location.
3. Keep children away. All children should be kept away
from the work area. Never let a child handle a tool
without strict adult supervision.
4. DO NOT operate this tool if under the influence of
alcohol or drugs. Read warning labels on prescriptions
to determine if your judgment or reflexes are impaired
while taking drugs. If there is any doubt, DO NOT
attempt to operate.
5. Use safety equipment. Eye protection should be
worn at all times when operating this tool. Use ANSI
approved safety glasses. Everyday eyeglasses are
NOT safety glasses. Dust mask, non-skid safety
shoes, hard hat or hearing protection should be used
in appropriate conditions.
6. Wear proper apparel. Loose clothing, gloves, neck-
ties, rings, bracelets or other jewelry may present a
potential hazard when operating this tool. Keep all
apparel clear of the tool.
7. DO NOT overreach. Keep proper footing and balance
at all times when operating this tool.
8. Check for damage. Check your tool regularly. If part of
the tool is damaged, it should be carefully inspected
to make sure that it can perform its intended function
correctly. If in doubt, the part should be repaired. Refer
all servicing to a qualified technician. Consult your
dealer for advice.
9. Keep away from flammables. DO NOT attempt
to operate this tool near flammable materials or
combustibles. Failure to comply may cause serious
injury or death.
10. Store idle tools out of the reach of children and
untrained persons. Tools may be dangerous in the
hands of untrained users.
11. Maintain tools with care.
12. Keep tools dry and clean.
13. Properly maintained tools are less likely to bind and
are easier to control. DO NOT use a damaged tool. Tag
damaged tools “DO NOT use” until repaired.
14. Check for misalignment or binding of moving parts,
breakage of parts, and any other condition that may
affect the tool’s operation.
15. If damaged, have the tool serviced before using. Many
accidents are caused by poorly maintained tools.
16. Use only accessories that are recommended by the
manufacturer for your model. Accessories that may
be suitable for one tool may become hazardous when
used on another tool.
17. Tool service must be performed only by qualified repair
personnel. Service or maintenance performed by
unqualified personnel could result in an injury.
18. When servicing a tool, use only identical replacement
parts. Use of unauthorized parts or failure to follow
maintenance instructions may create a risk of injury.
19. Maintain labels and nameplates on this product. These
carry important information. If unreadable or missing,
contact OEMTOOLS™for a replacement.
20. Keep this tray dry, clean, and free from brake fluid, oil,
and grease.
21. Before use, read and understand all warnings, safety
precautions, and instructions as outlined in the vehicle
manufacturer’s service manual. It is beyond the
scope of this manual to properly describe the correct
procedure and test data for each vehicle.
PRODUCT DESCRIPTION
The OEMTOOLS™29" Stainless Steel Tear Down Tray is
an adjustable-height tool tray for transporting tools and
small parts to your workspace.
PRODUCT SPECIFICATIONS
Tray Dimensions: 29" (L) x 20" (W) x 1.5" (D)
Product Weight: 33.29 Lbs.
Height Range: 34" to 47.6"
Max Capacity at Min Height: 165.35 Lbs. (75 kg)
Max Capacity at Max Height: 110.23 Lbs. (50 kg)
Tray Material: Stainless Steel
Tray Lining Insert Material: EVA Custom Fit Foam
SPECIFIC SAFETY INSTRUCTIONS
AND WARNINGS
1. Wear Safety Glasses and Gloves while assembling this
product.
2. DO NOT stand on this product. You may fall causing
bodily injury.
3. DO NOT alter this product.
4. Be careful of sharp edges.
5. Keep the product on a level surface. This product may
become unstable and tip if stored on an unstable surface.
6. DO NOT exceed rated weight capacity. Excessive
weight can cause tray failure and possible injury.
Reference product specs for weight capacity at min
and max height.
7. Keep clothing, jewelry, fingers and extremities away
from the pinch points while assembling or adjusting the
tray height.

3
Operating Instructions and Parts Manual 24634
29"STAINLESS STEEL
TEAR DOWN TRAY
5/17
2017 OEMTOOLS™

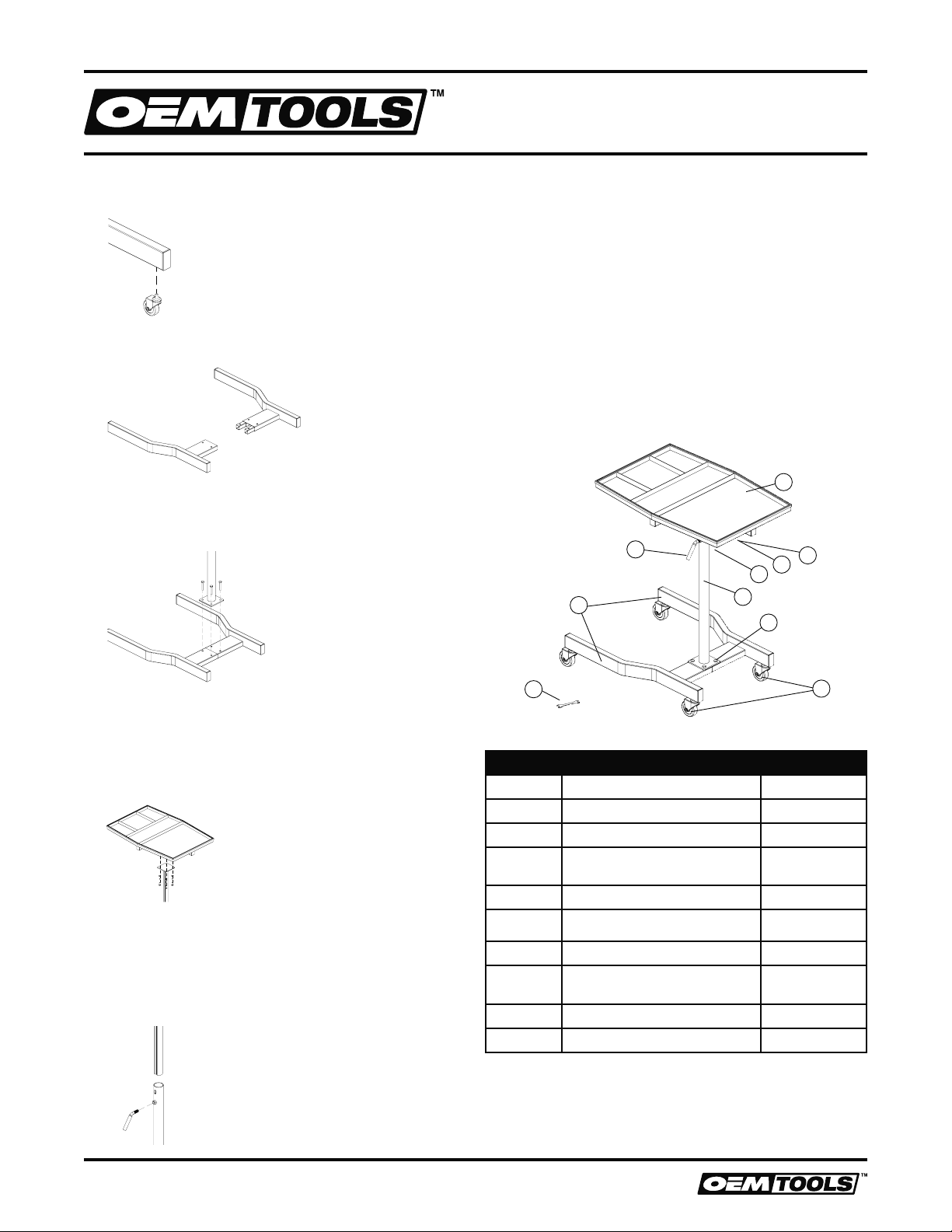

ASSEMBLY INSTRUCTIONS
1. Turn both Base Legs (A) upside down, and screw the
Casters (B) into the threaded hole at the ends of the legs.
Using the wrench to fix the four caster
2. Slide the perpendicular struts of the Base Legs (A)
together; 4 holes should align.
Insert the long leg into another leg
3. Place the base of the Lower Support Column (C) onto
the combined struts from Step # 2; align the holes on the
base plate with the holes on the struts from Step #2.
Using the wrench to fix the outer tube with the legs. Need 4pcs 8X50 bolt
4. Fasten Bolts (D) into each hole of the Lower Column
Base Plate, Step #3 assembly.
5. Take the Tray (E) and turn upside down on a flat
protected surface, place the Upper Support Column (F)
onto the bottom of the tray and align the holes, fasten
together with the Bolts (G), Washers and Lock Washers
Combination (H).
Using the wrench to fix the inner tube with the top tray.
Need 4 pcs 8X20 bolt and washer and spring washer
6. With the tray facing upward, insert the bottom of
the Upper Support Column from the Step #5
assembly into the top of the lower support column
from Step #4 assembly.
7. Screw the Height Adjustment Fastener (I) into the lower
support column until finger tight.
SUGGESTED TOOLS FOR ASSEMBLY
1. Metric Socket and Ratchet
2. Combination Wrench
3. Adjustable Wrench
HEIGHT ADJUSTMENT
1. Clear all contents from the tray.
2. Hold the Upper Assembly Steady (Assembly Step #5),
while loosening the Height Adjustment Fastener (I) by
turning counterclockwise.
3. Lower or raise the tray to the desired height.
4. While still supporting the weight of the tray, tighten the
Height Adjustment Fastener (I).
PRODUCT LAYOUT
PARTS LIST
D
C
I
G
F
B
A
J
E
Insert the inner tube into the outer tube and use the fixed handle to fasten the inner one
H
FIGURE PART QUANTITY
A Base Legs 2
B Casters 4
C Lower Support Column 1
D Bolts for Lower Column
Base Plate
4
E Tray 1
F Upper Support Column 1
G Bolts for Tray Attachment 4
H Washers and Lock Washers
for Upper Support Column
4 (Each)
I Height Adjustment Fastener 1
J Assembly Wrench 1

4
Operating Instructions and Parts Manual 24634
29"STAINLESS STEEL
TEAR DOWN TRAY
5/17
2017 OEMTOOLS™
OEMTOOLS™ONE YEAR WARRANTY
If for up to one year from the date of purchase of this OEMTOOLS™product, you find any defect in material or
workmanship, through normal usage, return it to the place of purchase, or to OEMTOOLS™for repair or replacement
at our discretion. In order to obtain this service, send your tool and proof of purchase, transportation pre-paid,
to OEMTOOLS™Q.A. Dept., 3580 E. Raines Road #3, Memphis, TN 38118. We will not be responsible for lost or
damaged goods during transportation; please insure your package. If our inspection verifies the defect, we will either
repair or replace the product at our election, or we may elect to refund the purchase price if we cannot readily and
quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is
no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of
returning the product.
OEMTOOLS™does not provide warranty for products labeled other than OEM®or OEMTOOLS™. OEMTOOLS™will
not provide any warranty for products subjected to abnormal use. Abnormal use includes, but is not limited to, abuse,
accident, alteration, neglect, and unauthorized or unreasonable use or repairs. This warranty does not cover bits,
blades, files, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace blades, bits,
files, and batteries as necessary. OEMTOOLS™reserves the right to make any changes in construction or design at
any time without any obligation in incorporating such changes to tools or equipment previously sold.
OEMTOOLS™makes every effort to ensure that its products meet high quality and durability standards, and warrants
to the original purchaser that this product is free from defects in materials and workmanship for the period of one
year from the date of purchase. This warranty does not apply to damage due directly or indirectly to misuse, abuse,
negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear
and tear or to lack of maintenance.
We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or
consequential damages arising from the use of our product. Some states do not allow the exclusion or limitation of
incidental or consequential damages, so the above limitation of exclusion may not apply to you. THIS WARRANTY
IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS. This warranty gives you specific legal rights, and you may also have other rights,
which vary from state to state.
Don’t forget to register your new OEMTOOLS™product at www.oem-tools.com.
CONTACT US
3580 E. Raines Road, Suite 3, Memphis, TN 38118
Tel: [phone]
www.oem-tools.com
