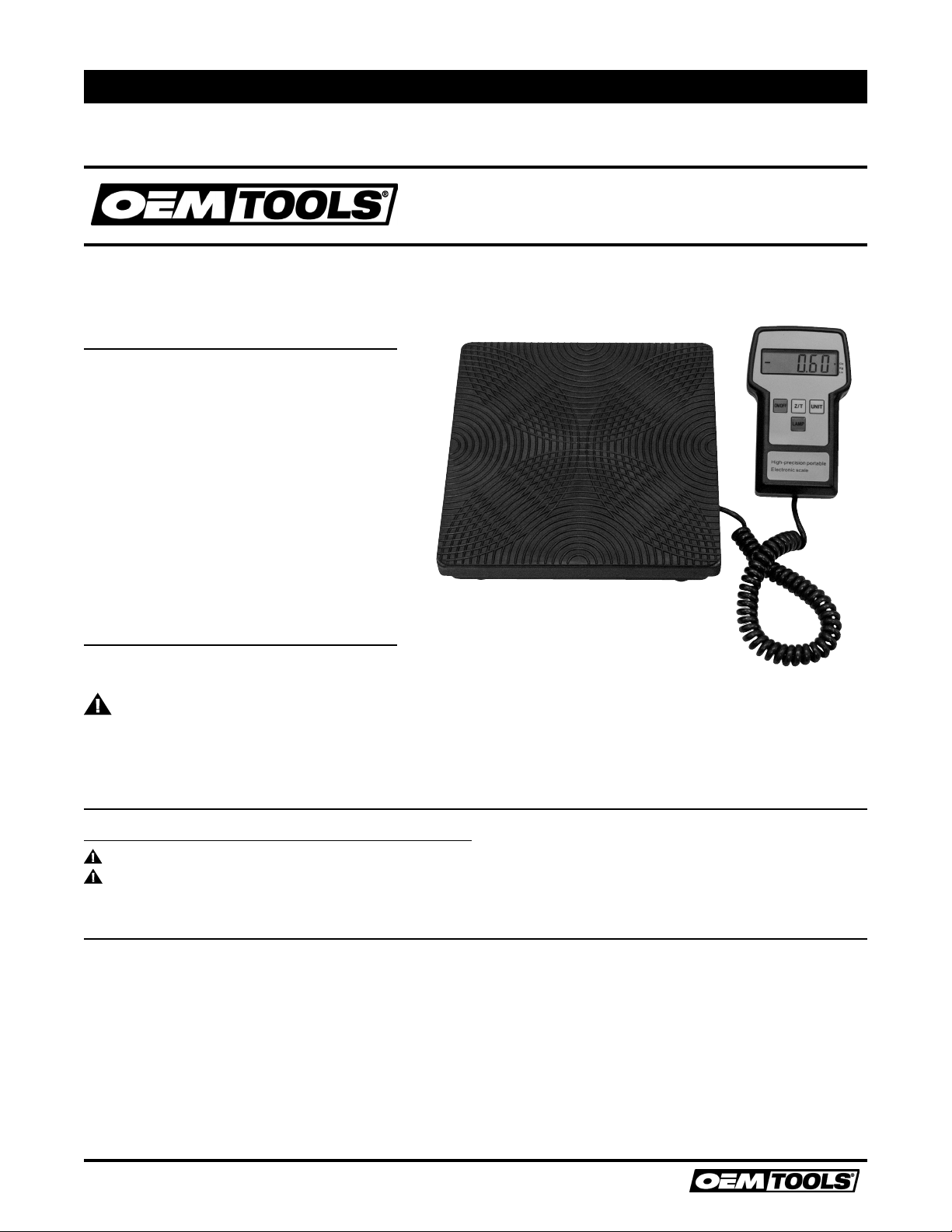

Oem tools 24560 Service manual

Thank you very much for choosing an OEMTOOLS Product!

For future reference, please complete the owner’s record below:

Model: _______________ Purchase Date: _______________

Save the receipt, warranty and these instructions. It is important that you read the entire manual to become familiar with this product before you begin

using it. This machine is designed for certain applications only. OEMTOOLS cannot be responsible for issues arising from modification. We strongly

recommend this machine is not modified and/or used for any application other than that for which it was designed. If you have any questions

relative to a particular application, DO NOT use the machine until you have first contacted OEMTOOLS to determine if it can or should be

performed on the product.

For technical questions please call 1-866-458-2472.

UNPACKING

After unpacking unit, inspect carefully for any damage that

may have occurred during transit. Check for loose, missing,

or damaged parts. If any damage is observed, a shipping

damage claim must be ﬁled with carrier. Do not use the

OEMTOOLS®Digital Refrigerant Scale if broken, bent,

cracked or damaged parts (including labels) are noted. Any

Digital Refrigerant Scale that appears damaged in any way,

operates abnormally or is missing parts should be removed

from service immediately. If you suspect that the Digital

Refrigerant Scale was subjected to shock load (a load that

was dropped suddenly, unexpectedly, etc.) immediately

discontinue use until it has been checked by a factory

authorized service center.

Please read and save these instructions. Read through this owner’s manual carefully before using product. Protect yourself and others by observing

all safety information, warnings, and cautions. Failure to comply with instructions could result in personal injury and/or damage to product or property.

Please retain instructions for future reference.

Operating Instructions and Parts Manual 24560

04/15

2015 ©OEMTOOLS

FOR CUSTOMER SERVICE

Technical Question?

CALL 1-866-458-2472

[email protected]

DIGITAL REFRIGERANT SCALE

The following safety information is provided as a guideline to help you operate your Digital Refrigerant Scale under the safest possible conditions. Any tool

or piece of equipment can be potentially dangerous to use when safety or safe handling instructions are not known or not followed. The following safety

instructions are to provide the user with the information necessary for safe use and operation. Please read and retain these instructions for the continued safe

use of your service system. Failure to follow instructions listed below may result in serious injury. In addition, make certain that anyone that uses the equipment

understands and follows these safety instructions as well.

Explanation of Safety Signal Words

CAUTION

WARNING

: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

: Used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

: Provide clarity and helpful information.

WARNING

CAUTION

NOTES

Operating Instructions and Parts Manual 24560

DIGITAL REFRIGERANT SCALE

04/15

2015 ©OEMTOOLS

IMPORTANT INSTRUCTIONS

AND SAFETY RULES

1. Know your tool. Read this manual carefully. Learn the tool’s

applications and limitations, as well as, potential hazards speciﬁc to

it.

2. Keep work area clean and well lit. Cluttered or dark work areas

invite accidents.

3. Keep children away. All children should be kept away from the work

area. Never let a child handle a tool without strict adult supervision.

4. Do not operate this tool if under the inﬂuence of alcohol or drugs.

Read warning labels on prescriptions to determine if your judgment

or reﬂexes are impaired while taking drugs. If there is any doubt, do

not attempt to operate.

5. Use safety equipment. Eye protection should be worn at all times

when operating this tool. Use ANSI approved safety glasses. Everyday

eyeglasses are NOT safety glasses. Dust mask, non-skid safety shoes,

hard hat or hearing protection should be used in appropriate conditions.

6. Wear proper apparel. Loose clothing, gloves, neck-ties, rings,

bracelets or other jewelry may present a potential hazard when

operating this tool. Keep all apparel clear of the tool.

7. Don’t overreach. Keep proper footing and balance at all times when

operating this tool.

8. Check for damage. Check your tool regularly. If part of the tool is

damaged it should be carefully inspected to make sure that it can

perform its intended function correctly. If in doubt, the part should

be repaired. Refer all servicing to a qualiﬁed technician. Consult

your dealer for advice.

9. Store idle tools out of the reach of children and untrained persons.

Tools may be dangerous in the hands of untrained users.

10. Maintain tools with care.

11. Keep tools dry and clean.

12. Do not use a damaged tool. Tag damaged tools “Do not use” until

repaired.

13. Use only accessories that are recommended by the manufacturer

for your model. Accessories that may be suitable for one tool may

become hazardous when used on another tool.

14. Tool service must be performed only by qualiﬁed repair personnel.

Service or maintenance performed by unqualiﬁed personnel could result

in a risk of injury.

14. When servicing a tool, use only identical replacement parts. Use of

unauthorized parts or failure to follow maintenance instructions may

create a risk of injury.

16. Maintain a safe working environment. Keep the work area well lit.

Make sure there is adequate surrounding workspace. Keep the

work area free of obstructions, grease, oil, trash, and other debris.

Do not use this product in a damp or wet location.

17. Maintain labels and nameplates on this product. These carry

important information. If unreadable or missing, contact OEMTOOLS

for a replacement.

18. Before use, read and understand all warnings, safety precautions,

and instructions as outlined in the vehicle manufacturer’s service

manual. It is beyond the scope of this manual to properly describe

the correct procedure and test data for each vehicle.

19. Always perform vehicle service in a properly ventilated area. Never

run an engine without proper ventilation for its exhaust. Stop work

and take necessary steps to improve ventilation in the work area

if you develop momentary eye, nose, or throat irritation as this

indicates inadequate ventilation.

20. Engine parts that are in motion and unexpected movement of

a vehicle can injure or kill. When working near moving engine

parts, wear snug ﬁt clothing and keep hands and ﬁngers away

from moving parts. Keep hoses and tools clear of moving parts.

Always stay clear of moving engine parts. Hoses and tools can be

thrown through the air if not kept clear of moving engine parts. The

unexpected movement of a vehicle can injure or kill. When working

on vehicles always set the parking brake or block the wheels.

21. Avoid accidental ﬁre and/or explosion. Do not smoke near engine

fuel and battery components.

22. For safety purposes and the prevention of damage to expensive

components it is advised that the user have an understanding of

basic automotive repair and a working knowledge of automotive

systems.

23. We believe the information contained herein to be reliable. However,

general technical information is given by us without charge and

the user shall employ such information at his own discretion and

risk. We assume no responsibility for results or damages incurred

from the use of such information in whole or in part. Always refer to

speciﬁc instructions and technical information supplied by vehicle

manufacturer.

NOTE: The manufacturer declines any and all responsibility for damage

to vehicles or components if said damage is the result of unskillful

handling by the operator or of failure to observe the basic safety rules set

forth in the instruction manual.

WARNING

Read Rules for Safe Operation and Instructions Carefully.

IMPORTANT SAFETY INSTRUCTIONS

The warnings, precautions, and instructions discussed in this manual

cannot cover all possible conditions and situations that may occur. The

operator must understand that common sense and caution are factors

which cannot be built into this product, but must be supplied by the

operator.

DISPOSAL

At the end of the useful life of the Digital Refrigerant Scale, dispose of the

components according to all state, federal, and local regulations

All technicians opening the refrigeration circuit in automotive air

conditioning systems must now be certiﬁed in refrigerant recovery

and recycling procedures to be in compliance with Section 609

of the Clean Air Act Amendments of 1990. For information on

certiﬁcation call MACS Worldwide at (215) 631-7020.

WARNING

Operating Instructions and Parts Manual 24560

DIGITAL REFRIGERANT SCALE

04/15

2015 ©OEMTOOLS

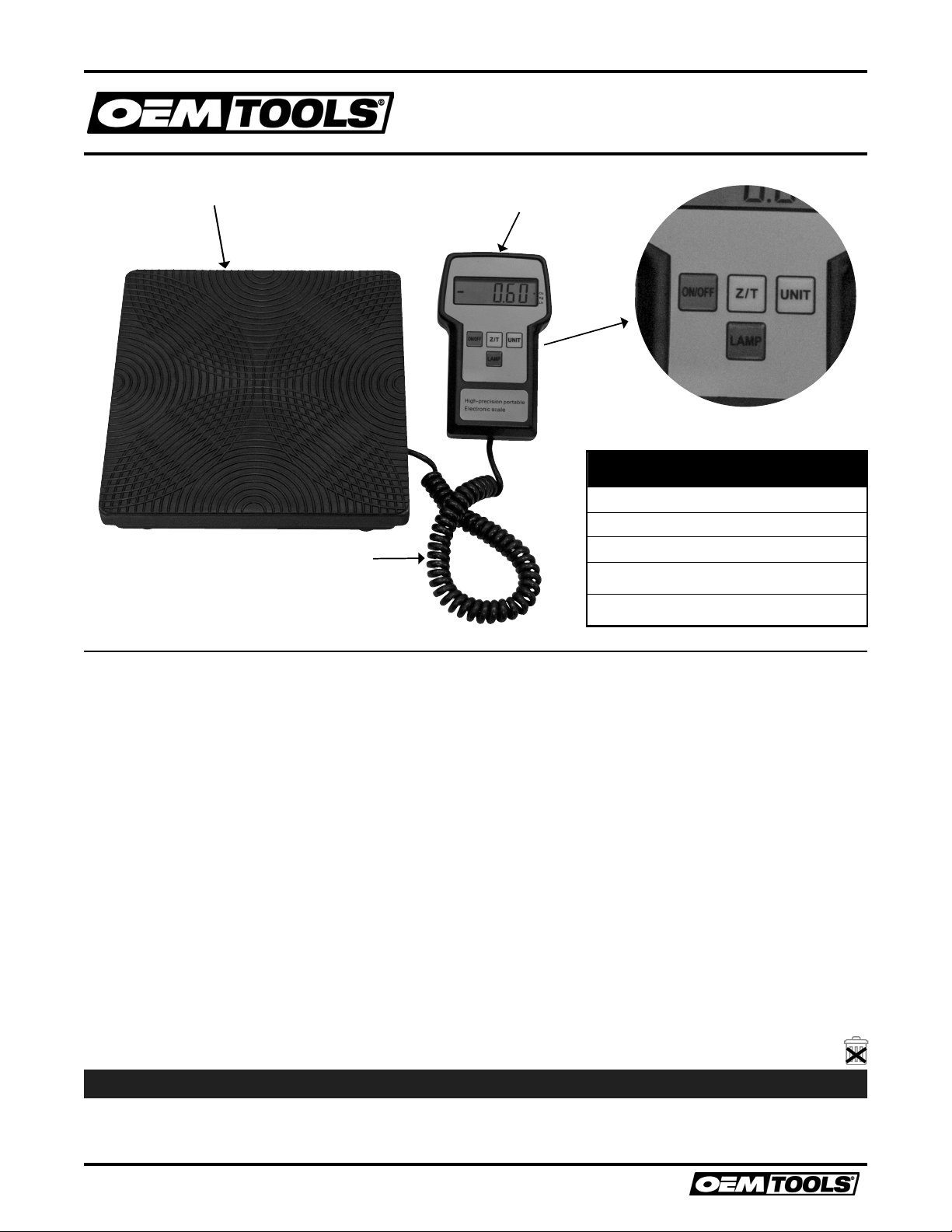

PURPOSE

The OEM Digital Weight Scale is ideal for servicing HVAC and Automotive A/C

systems. Refrigerant can be measured in standard and metric units and has a

built in alarm to indicate when the Scale Capacity has been exceeded.

The 1990 amendments to the United States Clean Air Act mandate that all

personnel who service refrigerant systems must be trained and certiﬁed.

Fines are in place for violations and compliance is now being monitored

by the U.S. EPA.

Do Not Vent Refrigerant to the Atmosphere. Use Appropriate Recovery

Equipment.

Conﬁrm system refrigerant type before servicing vehicle. Cross

contamination of refrigerants can cause damage to A/C system, service

tools and equipment. Do not blend refrigerants in a system or in the same

container.

FEATURES

1. High-visibility .75” x 2.5” LCD Backlit Display

2. Three units of measure. (kg/oz/Lbs.)

3. Automatic Shut-off after 10 minutes, backlight will shut off after

3 minutes.

4. Fully enclosed and removable metal scale platform enables use of

product in or out of the protective case.

5. The hand held remote Control Head incorporates a 6ft coil cord and a

fold out stand for easy viewing.

6. Compact, portable, battery operated.

7. “FULL” Display when weights exceeds the Scale capacity

SETUP

1. Place the unit on a ﬁrm and level service. The platform and Control

Head can be used the case or outside the case.

2. Remove the Battery Cover from the rear of the Contol Head by

compressing the tab at the base of the Battery Cover.

3. Insert 9V Battery. Replace the Battery Cover by aligning tabs and

snap into place.

4. Turn the unit on by pressing the ON/OFF Button.

5. Select the unit of measure by selecting the UNIT Button.

6. Press the LAMP Button to activate and deactivate the

backlight.

NOTE: To prevent damage, remove batteries from the Control Head if

unit is to be stored for an extended period of time. Do Not Leave Dead

Batteries in the Unit

Replace the battery if the battery indicator ﬂashes in the top right hand

corner of the dispay.

Never Exceed the rated capacity

If the display reads “FULL” immediately remove the object being weighed

from the Scale to prevent damage.

STATIC DISCHARGE: Climates in some parts of the world are conducive

to creating static electric build up (ESD). Your scale has been designed to

eliminate the damaging effects of ESD. In some extreme cases, ESD will

be apparent on your scale by a lack of response or an inability to turn off

the unit. In the rare case that this occurs, simply disconnect the battery,

wait 1 minute and reconnect the battery. The scale will “reboot” itself and

operate normally once the unit is turned on.

If the platform is used in the case, make certain nothing touches the case,

Control Box or platform as false readys can occur.

OPERATION

1. Press the Z/T Button to clear and zero the Scale.

2. Center the Cylinder on the Platform.

3. Start the charging process by opening the Cylinder and Manifold

Gauge Valves

4. When charging is complete, close the Cylinder and Manifold Gauge

Valves.

5. Remove the Cylinder from the Scale and press the ON/Off

Button.

MAINTENANCE

1. Always store the Digital Refrigerant Scale Set in a well-protected

area where it will not be exposed to inclement weather, corrosive

vapors, abrasive dust, or any other harmful elements.

2. Keep the Digital Refrigerant Scale clean for better and safer

performance.

3. Replace 9V Battery as necessary.

Capacity 240 Lbs./110 Kg

Resolution +/- 0.4Oz/0.02 Lbs./10g

Operating Temp 32° to 122° F

Accuracy +/-0.5% of Reading

Platform Size 23 cm x 23 cm

PRODUCT SPECIFICATIONS

CAUTIONS

ON/OFF

UNIT

LAMP

ON/OFF

Z/T

Operating Instructions and Parts Manual 24560

DIGITAL REFRIGERANT SCALE

04/15

2015 ©OEMTOOLS

OEMTOOLS®ONE YEAR WARRANTY

If for up to one year from the date of purchase of this OEMTOOLS product you ﬁnd any defect in material or workmanship, through normal usage,

return it to the place of purchase, or to OEMTOOLS for repair or replacement at our discretion. In order to obtain this service send your tool and proof

of purchase, transportation pre-paid, to OEMTOOLS Q.A. Dept, 3580 E. Raines Road #3, Memphis, TN 38118. We will not be responsible for lost or

damaged goods during transportation, please insure your package. If our inspection veriﬁes the defect, we will either repair or replace the product at

our election, or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired

products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you

must bear the cost of returning the product.

OEMTOOLS does not provide warranty for products labeled other than OEM or OEMTOOLS . OEMTOOLS will not provide any warranty for products

subjected to abnormal use. Abnormal use includes, but is not limited to, abuse, accident, alteration, neglect, and unauthorized or unreasonable use or

repairs. This warranty does not cover bits, blades, ﬁles, batteries, or calibration. We recommend that you maintain your tools and sharpen or replace

blades, bits, ﬁles, and batteries as necessary. OEMTOOLS reserves the right to makes any changes in construction or design at any time without any

obligation in incorporating such changes to tools or equipment previously sold.

OEMTOOLS makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that

this product is free from defects in materials and workmanship for the period of one year from the date of purchase. This warranty does not apply

to damage due directly or indirectly to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper

installation, normal wear and tear or to lack of maintenance.

We shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special or consequential damages arising from the
