OEM PPS100 User manual

1
Model
Portable energy storage power supply(PPS100)
Capacity
5000MAH * 3 series 2 parallel
Battery Cell
21700/4000mAh 0.5C
Battery Power
88WH
AC Power
Correction wave AC 220V/50Hz
AC Peak Value
200W peak duration < 50ms
Conversion Efficiency
More than 85%

2
Table of contents
1.Product description........................................................................................................................ 3
2.Technical parameter of product................................................................................................... 3
3. Product discharge time.................................................................................................................4
4.Electrical characteristics of product ternary lithium protective plate...................................... 4
5.Product reliability testing............................................................................................................... 5
6.Product panel description............................................................................................................. 5
7.Product Operation Instruction.......................................................................................................6
8.Product size.....................................................................................................................................7
9.Product packing list........................................................................................................................ 8
10.Product packing instructions...................................................................................................... 8
11.Points for attention in product operation...................................................................................9
12.Simple trouble shooting of product............................................................................................9
13.Warning for use of product......................................................................................................... 9

3
1.Product description
The design system is composed of ternary(three-element) lithium 3S2P Battery Protection Board, DC
charging circuit, MCU control circuit, inverter circuit and LCD screen. AC 220V/50Hz correction wave of
100W is based on pure resistance load and USB port 5V/2a (Total) . Applicable to camping, emergency
communications, medical rescue, fire rescue and other fields.
2.Technical parameter of product
Categories
Projects
Specification parameter
INTPUT
DC input
PD two-way 20V/3A 60W
AC OUT 220V
AC output voltage
1 AC socket AC220V ± 5%
AC output power
100W
AC output overpower
protection
Around 120W
AC output waveform
Correction wave
AC output peak
200W peak duration < 50ms
Frequency
50Hz
USB output
port
USB1 output
5V/2A（Total）
USB2 output
QC3.0 MAX 12V/1.5A
Electric Cells
Types
Ternary lithium cell 21700/4000mAh
Capacity
24000MAH (3S2P)
Power
88WH
Cycle life
Over 1000 times
Charging
parameter
PD 60W
Charging Time
2.5-3.5H
Charge from 0% to 100% (auto cut-off)
Full voltage
12.55V±0.1V
The voltage at which the battery is charged to an
automatic cut-off
LCD display
Display the charge,
charging and stop charging
status
Column Flash, PD + IN, column light
DC, AC, inverter status
Switch status of USB QC 3.0 and AC
Static self-
consumption
﹤700uA
No-load
dormancy
AC has no load
The AC output will be automatically shut down in
one minute
DC has no load
When AC is not turned on, one minute goes into
hibernation
Protective
function
Short circuit, overload, over temperature, over
voltage, over current, under voltage, etc.
The display AC flashes three times and turns off the
AC symbol
Over-
Over temperature
≥100℃

4
temperature
protection of
inverter
protection
Over temperature recovery
≤80℃
3.Product discharge time
Use of
equipment
Equipment Power
Discharge time
Cell phone
4000mAh
About 5 times
Tungsten bulb
40W
About two hours
Household fan
75W
About an hour
Laptop
35W
About 2.5 hours
Note: the test time of the above equipment is for reference only. It varies with different products.
4. Electrical characteristics of product ternary lithium protective plate
Projects
Parameter
symbol
Details
Standard value
Overcharge
protection
VCU
Overcharge detection voltage
4.25±0.025V
VCL
Overcharge release voltage
4.10±0.025V
Over-protection
VDL
Overdischarge detection voltage
2.70±0.08V
VDR
Overdischarge discharge
discharge voltage
3.0±0.08V
Overcurrent protection/overload
protection
40A Max
Protection release condition
Disconnect load
Over-temperature
protection
Over temperature protection
≥60℃
Over-temperature recovery
Charging and activation
after ≤50 °C
Short Circuit
protection
Short circuit protection condition
External short circuit
Short Circuit protection release
condition
Disconnect short-circuit load
or charge to activate
Internal resistance
RDS
On-state resistance of main circuit
RDS≤60mΩ
Consumptive
current
IDD
Internal circuit consumption at
work
10uA Type 30uA Type

5
5.Product reliability testing
Serial
number
Inspection item
Inspection Standard
Test
results
1
Constant
temperature and
humidity test
A fully charged power supply is placed in a temperature
control box at 40 °C ± 5 °C with a relative humidity of 90%-
95% for 12 hours. After being taken out and placed at 25 °C
± 5 °C for 2 hours, and then test the performance of the
product.
OK
2
High temperature
test (discharge)
The fully charged power supply was put into the high
temperature box with the experimental temperature of 55 °C
± 5 °C for 2 hours, then the product was tested after being
put out at the ambient temperature of 25 °C ± 5 °C for 2
hours.
OK
3
Cryogenic test
(discharge)
The fully charged power supply was put into the experimental
temperature-10 °C ± 5 °C low-temperature box, placed for 2
hours, then taken out under the environment temperature of
25 °C ± 5 °C for 2 hours, and then the performance of the
product was tested.
OK
4
High temperature
test (charging)
The discharge power was put into the high temperature box
with the experimental temperature of 40 °C ± 5 °C for 2
hours, then the product was tested after 2 hours at the
ambient temperature of 25 °C ± 5 °C.
OK
5
Low temperature
test (charging)
The discharge power was put into the experimental
temperature-10 °C ± 5 °C low-temperature box for 2 hours,
then it was taken out at the ambient temperature of 25 °C ±
5 °C for 2 hours, then the performance of the product was
tested.
OK
6
Vibration test
The frequency is 100Hz harmonic vibration, vibration is not
less than 10 minutes, time 10 minutes, after the experiment,
the product performance test
OK
7
Drop test
The product is dropped from 0.5 m height to 18 ~ 20mm
thickness of hardwood board, (x, Y, z fall in six directions
once respectively) , the shell does not crack, after the
experiment, the product performance is tested again.
OK
8
ESD test
Contact discharge: 3KV 10 seconds every 1 second 10
seconds per time, after the test on the product performance
test
OK

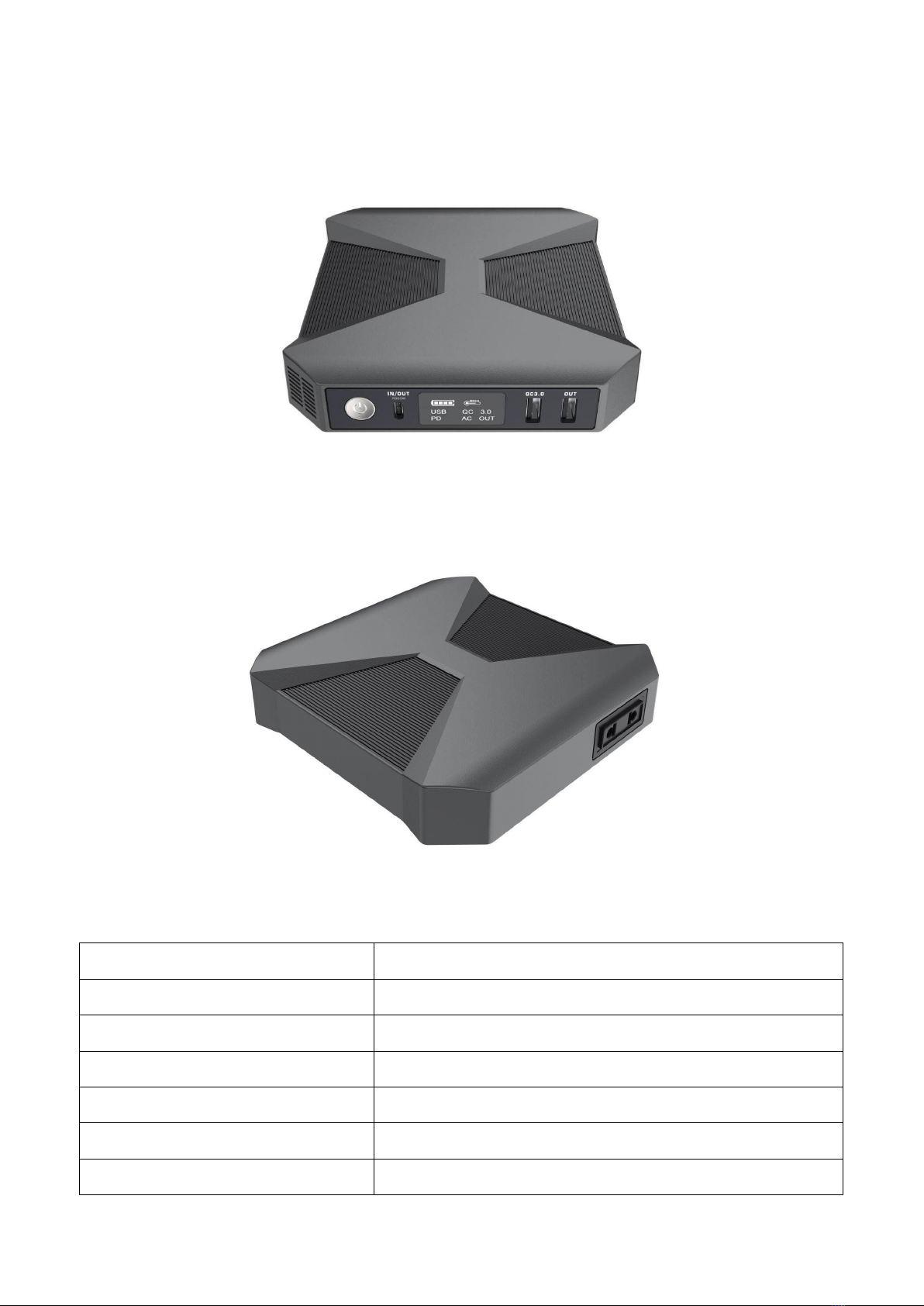

6.Product panel description
6.1 front panel

6
6.2 rear panel

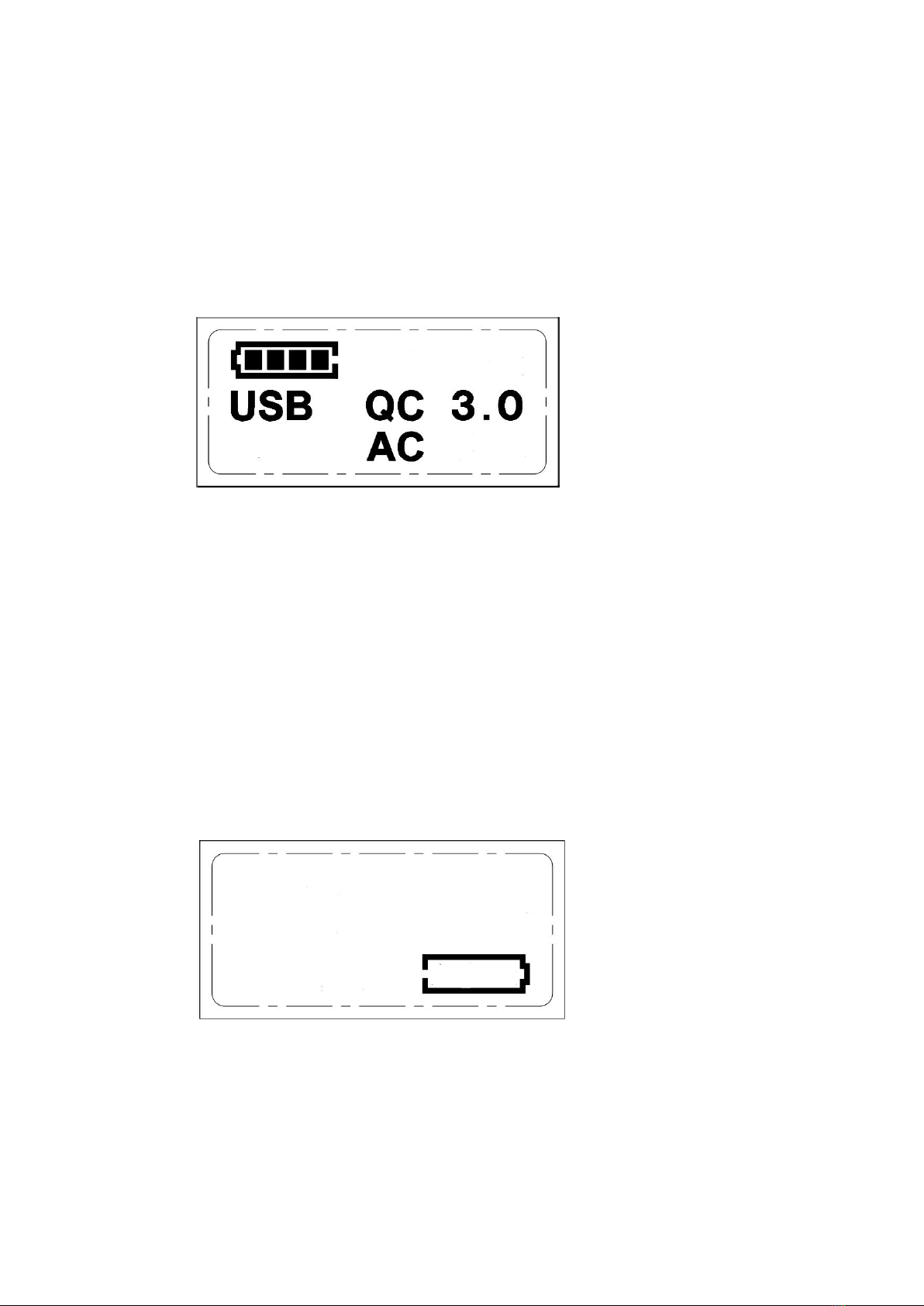

7.Product Operation Instruction
7.1 two USB sockets 5V/2.0A and QC3.0 outputs
7.1.1 long press to turn on the power switch and the LCD display shows the following figure.
7.1.2 USB1 and USB2 Open and display (USB QC 3.0) .
7.1.3 insert load and discharge automatically.
Port serial number
Port State
Quantity
①
Main power switch
1
②
TYPE-C(PD60W)
1
③
LCD display
1
④
USB 2.4A
1
⑤
USB QC 3.0
1
Port serial number
Port State
Quantity
⑥
AC 220V input interface
1
②
①
③
④
⑤
⑥

7
7.1.4 please turn off the power switch immediately when abnormal operation occurs and check
whether the equipment in use is abnormal.
7.1.5 after use, unplug the device and turn off the power switch.
7.1.6 turn off the unit output when the battery voltage is close to the protection voltage or when the
low voltage protection is reached.
7.2 an AC outlet 220V100W output
7.2.1 turn on the power switch, hit the switch again, and the LCD display looks like this.
7.2.2 an AC port outputs normally, and the LCD screen displays (AC) characters representing the
DC output.
7.2.3 an AC port output abnormal, the AC character will flash 3 times out AC.
7.2.4 check the rated power of the used products to ensure that they are not used beyond 100W of
this AC port.
7.2.5 connect the product and plug it into the AC port to recharge.
7.2.6 turn off the power switch immediately when abnormal operation occurs, and check whether
the use of digital products is abnormal.
7.2.7 after use, unplug the product and turn off the power switch.
7.3 battery low voltage protection
7.3.1 when the product voltage is insufficient, the LCD display battery symbol internal blank, and
turn off all output, please charge the product timely.
8.Product size
Main engine dimensions (Max)160 * 157 * 33, unit mm.

8
9.Product packing list
Material Code
Name of material
Specification type
Unit
Dosage
1
Mainframes
PPS100
PCS
1
2
Instruction manual
Instruction manual
PCS
1
3
Color Box
Hand-held
PCS
1
4
Power Cord
5A TYPE-C-TYPE-C line
PCS
1
10.Product packing instructions
10.1number of packages: 1PCS
10.2 box size: 22.9*18.8*4.7cm
10.3 packing case gross weight: 0.7 kg

9
11.Points for attention in product operation
11.1when using this product, follow the instructions exactly.
11.2 for the product heat dissipation space, a 5CM space is reserved around the product to allow heat
dissipation convection.
11.3 when the power supply of the product is insufficient, the load power exceeds the rated power or
the ambient temperature is too high, the product will automatically start the protection function and turn
off the output.
11.4 power charging, it is recommended to charge without load.
11.5 leaving the power off for a long period of time can cause the power supply itself to run out of power.
Ensure that it is recharged every 6 months.
11.6 with AC load, the power provided by this product is rated load power, generally less than this
power ac load can be normal use, but some power equipment startup power is often more than rated
power, such as motor equipment start-up instantaneous power is generally rated power several times.
Moreover like the energy-saving lamp starting power about its rated power dozens of times, if their
starting power is greater than the peak power of our products, will start our products over-protection
function, automatically turn off the output.
11.7 the use of this product in the environment of inflammable, explosive and corrosive gases such as
gasoline and gas is prohibited.
11.8 water or other foreign substances into the product, to ensure the safety of product use, please
send to the distribution department for testing and treatment, due to abnormal use, the company will be
based on the actual situation charges.
12.Simple trouble shooting of product
12.1 power on without AC output, check whether the power display screen is displayed, if not, try to
charge the product for 1-2 minutes, activate the product.
12.2 check if there is a problem with the use of digital products and connectors when the machine is
switched on without DC output.
13.Warning for use of product
13.1 do not put products in water!
13.2 do not heat the product or place it near a fire source!
13.3 please do not disassemble or transform the product without permission!
13.4 don’t slam the product!
