CENTER TWO
CENTER THREE
Multi-Channel Controller
Operating Manual GA 09.035/6.02
Cat. No.
230 003
230 004
235 003
235 004

2GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum
Contents
Contents
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Validity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.3 Product versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.4 Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 General data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 Mains connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3 Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.4 Switching functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.5 Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.6 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
2.7 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.1 Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.2 Mechanical installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.3 Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
4 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.1 Front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
4.2 Switching on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4.3 Operating modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.4 Measurement mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.5 Parameter mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
5 Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
5.1 Switching function parameters (PArA SP). . . . . . . . . . . . . . . . . . 36
5.2 Sensor parameters (PArA SEn) . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.3 General parameters (PArA GEn) . . . . . . . . . . . . . . . . . . . . . . . . . 47
5.4 Test parameters (PArA tESt). . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
6 Computer interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6.1 Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6.2 Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Contents
GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum 3
6.3 Mnemonics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7 Maintenance and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
7.1 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
7.2 Program transfer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
7.3 Calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
8.1 Fault indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
8.2 Error messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
8.3 Technical support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
9 Storage and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
9.1 Packaging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
9.2 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
9.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Default parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Literature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

4GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum
Introduction
1 Introduction
1.1 Validity
1.1.1 Catalog number
This document applies to the following products:
The catalog number can be found on the type label which is attached to one
side of the unit.
1.1.2 Firmware version
This Operating Manual is based on the firmware version 302-533-F.
If the unit does not work as described, please check if it is equipped with this
firmware version. See Chapter 5.4.2 Firmware version (Pnr), 52.
1.1.3 Type label
There is a type label attached to one side of the unit. In all communication with
Oerlikon Leybold Vacuum, please state the information on the type label. For
this purpose you may want to copy the information into the space provided
below:
Fig. 1-1 Type label (example)
Catalog number Product
230 003 CENTER THREE with mains cable,
EUR version
230 004 CENTER TWO with mains cable,
EUR version
235 003 CENTER THREE with mains cable,
US version
235 004 CENTER TWO with mains cable,
US version

Introduction
GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum 5
1.2 Intended use
The CENTER TWO and CENTER THREE Multi-Channel Controller is a dis-
play and control unit for transmitters made by Oerlikon Leybold Vacuum.
It is used together with transmitters of the THERMOVAC, PENNINGVAC,
CERAVAC and IONIVAC series and is used for total pressure measurements.
The transmitters must be operated in accordance with their respective operat-
ing manuals.
In the following, the CENTER TWO or CENTER THREE Multi-Channel Con-
troller will be referred to as «Multi-Channel Controller».
1.2.1 Liability and warranty
Oerlikon Leybold Vacuum assumes no liability and the warranty becomes null
and void if the end user or third parties
Disregard the information in this document
Use the product in a non-conforming manner
Make any kind of alterations (modifications, repair work, etc.) to the product
Use the product with accessories not listed in the corresponding product
documentation
We reserve the right to make technical changes without prior notice. The fig-
ures are non-committal.
1.3 Product versions
The Multi-Channel Controller is available in two different versions: CENTER
TWO and CENTER THREE. The two products differ from each other with
regard to:
Number of channels
Number of switching functions
Power consumption
Weight
See Chapter 2 Technical data, 9.
This Operating Manual describes both the CENTER TWO and the CENTER
THREE.

6GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum
Introduction
1.4 Safety
1.4.1 Personnel qualifications
All work described in this document may only be carried out by persons who
have suitable technical training and the necessary experience or who have
been instructed by the end user of the product.
1.4.2 Illustration of residual dangers
This Operating Manual illustrates safety notes concerning residual dangers as
follows:
«Danger» indicates an imminently hazardous situation which, if not avoid-
ed, will result in death or severe injury.
«Warning» indicates a potentially hazardous situation which, if not avoided,
could result in death or severe injury.
«Caution» indicates a potentially hazardous situation which, if not avoided,
may result in moderate or minor injury or in property damage.
Note:
A note such as this one indicates particularly important, but not safety-
relevant information.
Danger
Warning
Caution

Introduction
GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum 7
1.4.3 General safety instructions
For all work you are going to do, adhere to the applicable safety regulations.
Also observe all safety notes given in this document and forward the informa-
tion to all other users of the product.
In particular, pay attention to the following safety notes:
Mains power.
The Multi-Channel Controller contains parts which are connected to the
mains supply.
Make sure that no objects enter through the louvers of the unit. Keep the
unit dry. Do not open the unit.

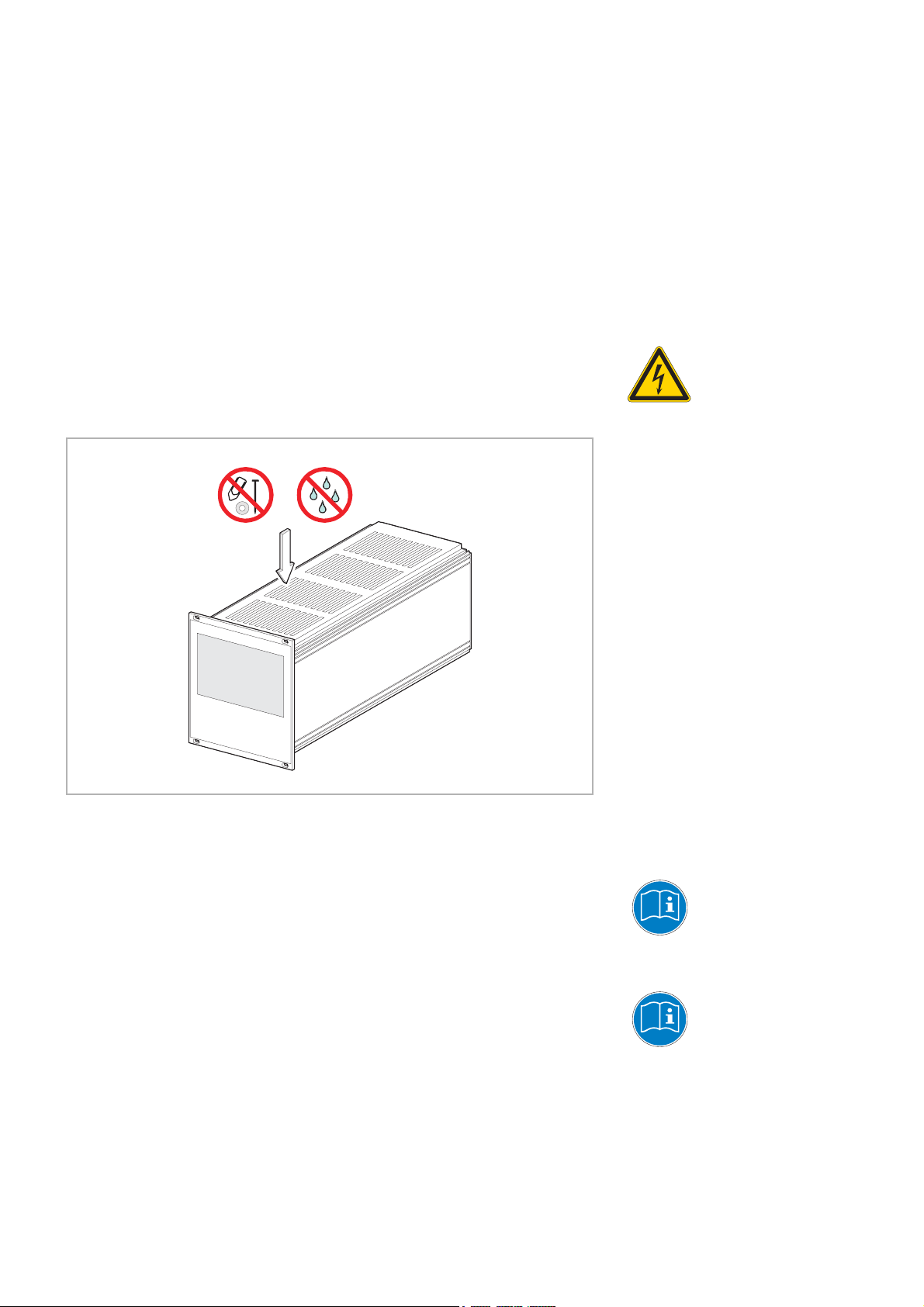

Fig. 1-2 Do not insert objects through louvers and keep unit dry
Improper use.
Improper use can damage the Multi-Channel Controller.
Use the Multi-Channel Controller only as intended by the manufacturer.
See Chapter 1.2 Intended use, 5.
Improper installation and operation data.
Improper installation and operation data may damage the Multi-Channel
Controller.
Strictly adhere to the stipulated installation and operation data.
Danger
Caution
Caution

8GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum
Introduction
1.4.4 Disconnecting device
The Multi-Channel Controller is equipped with a disconnecting device accord-
ing to EN 61010-1.
The disconnecting device is located at the back of the Multi-Channel Control-
ler. See Fig. 1-3, 8.
The disconnecting device must be readily identifiable and easily reached by
the user.
In order to disconnect the Multi-Channel Controller from mains, you must
unplug the mains cable.
Fig. 1-3 Back side of the CENTER THREE
A Disconnecting device
A

Technical data
GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum 9
2 Technical data
2.1 General data
2.1.1 Mechanical data

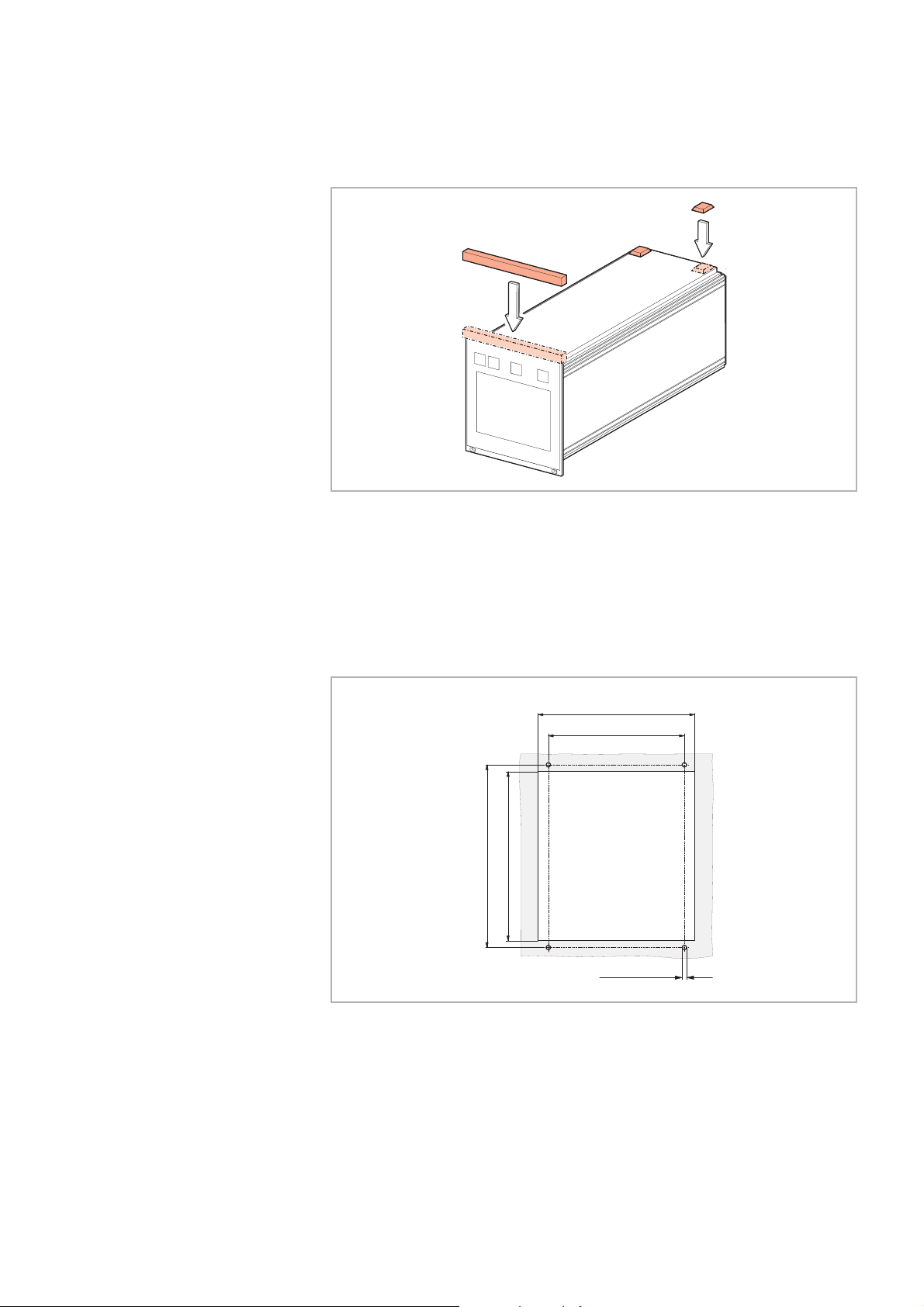

Fig. 2-1 Dimensions (in mm)
Dimensions Width: 106.3 mm
Height: 128.5 mm (3 HE)
Depth: 207 mm
See Fig. 2-1, 9
Weight CENTER TWO:
1.04 kg
CENTER THREE:
1.16 kg
Use Desktop unit
Control panel mounted
Mounting the unit in a rack
106.3
91.4 3.5
122.5
128.5
103
110
285
204.5 2.5

10 GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum
Technical data
2.1.2 Ambience
2.1.3 Operation
2.2 Mains connection
Temperature Storage: -20…+60 °C
Operation: +5…+50 °C
Relative humidity Max. 80 % (bis 31 °C),
decreasing to
max. 50 % (above 40 °C)
Use Indoors only
Altitude max. 2000 m NN
Pollution degree II
Protection type IP20
Manually Via 4 control buttons on the front panel
Remote control Via RS232C interface
Voltage 90…250 VAC
Frequency 50…60 Hz
Power consumption CENTER TWO:
Max. 45 W
CENTER THREE:
Max. 65 W
Overvoltage category II
Protection class 1
Connection European appliance connector IEC
320 C14

Technical data
GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum 11
2.3 Channels
2.3.1 Sensor connections
2.3.2 Transmitter supply
2.3.3 Measuring technique
Number of channels CENTER TWO: 2
CENTER THREE: 3
Sensor connections per
channel
RJ45 (FCC 68)
D-Sub, 15 pins, female
(connected in parallel)
Compatible transmitters THERMOVAC:
TTR 90, TTR 91, TTR 96, TTR 100, TTR 101,
TTR 211 S, TTR 216 S
PENNINGVAC:
PTR 225, PTR 90
CERAVAC:
CTR 90, CTR 91, CTR 100, CTR 101, DI 200,
DI 201, DI 2000, DI 2001, DI 2001 rel
IONIVAC:
ITR 90, ITR 200
Voltage +24 VDC ±5 %
Current 500 mA
(750 mA short-time)
Fuse 900 mA via PTC element
Self-resetting after switching the unit off or
unplugging the sensor.
The supply meets the requirements of a
ground protective extra low voltage (SELV).
Measuring ranges Transmitter dependent
Error of measurement Gain error: ≤0.005 % FS
Offset error: ≤0.01 % FS
Measuring rate 50 s-1
Display rate 10 s-1
Filter time constant Slow:
Approx. 1.0 s (fg= 0.16 Hz)
Normal (nor):
Approx. 0.3 s (fg= 0.53 Hz)
Fast:
Approx. 0.06 s (fg= 2.65 Hz)

12 GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum
Technical data
Note:
The measurements of the ITR/CTR 100/CTR 101 are transferred digitally.
2.4 Switching functions
2.4.1 Switching function relay
Unit of measurement mbar, Pa, Torr, Micron
Possible adjustments Linear transmitters (CTR):
Zero-adjust
Logarithmic transmitters (TTR, PTR, ITR):
Fixed correction factors for N2, Ar, H2, or a
variable correction factor in the range
0.10…9.99
A/D converter Resolution > 16 bit
Number of switching functions CENTER TWO: 4
CENTER THREE: 6
Assignment Can be configured any way
Delay time Filter time constant dependent
Adjustment range Transmitter dependent
Hysteresis Linear transmitters (CTR): ≥1 % FS
Logarithmic transmitters (TTR, PTR, ITR): ≥
10 % of measurement
Contact type Change-over contact, floating
Load (ohmic) Max. 60 VDC, 0.5 A
Max. 30 VAC, 1 A
Lifetime Mechanical:
107cycles
Electrical:
105cycles at maximum load
Connection D-Sub, 25 pins, female.
See Fig. 3-8, 21.

Technical data
GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum 13
2.4.2 Error signal relay
2.5 Outputs
2.5.1 Analog output
2.5.2 Recorder output
Number 1
Delay time ≤20 ms
Contact type Change-over contact, floating
Load (ohmic) Max. 60 VDC, 0.5 A
Max. 30 VAC, 1 A
Lifetime Mechanical:
107cycles
Electrical:
105cycles at maximum load
Connection D-Sub, 25 pins, female.
See Fig. 3-8, 21.
Number 1 per channel
Voltage range 0…10 VDC
Deviation from displayed value ± 50 mV
Internal resistance 47 Ω
Relation between voltage and pres-
sure
Transmitter dependent
Connection D-Sub, 9 pins, male.
See Fig. 3-9, 22.
Number 1
Voltage range 0…10 VDC
Resolution 1 mV
Accuracy ± 20 mV
Internal resistance 3300 Ω
Relation between voltage and pres-
sure
Programmable
Connection D-Sub, 9 pins, male.
See Fig. 3-9, 22.

14 GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum
Technical data
2.5.3 Computer interface
2.6 Scope of delivery
2.7 Accessories
Default RS232C
Protocol ACK/NAK
ASCII with 3-character mnemonics.
Bidirectional data flow.
Signals Only TXD and RXD used
Baud rate 9600, 19200, 38400
Connection D-Sub, 9 pins, female.
See Fig. 3-10, 23.
Designation Number
Multi-Channel Controller 1
Mains cable 1
Rubber strip
Rubber feet
1
2
Collar screws
Plastic sleeves
4
4
Designation Product number
D-Sub plug for the CONTROL con-
nection, screwon type
230 006

Installation
GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum 15
3Installation
3.1 Unpacking
1Visually inspect the transport packaging for signs of external damage
2Unpack the Multi-Channel Controller and put the packaging material
aside
Note:
Keep the packaging material for later use. The Multi-Channel Controller
must be stored and transported in the original packaging material only.
3Examine the Multi-Channel Controller for completeness
4Visually inspect the Multi-Channel Controller for signs of damage
Damaged product.
Putting a damaged product into operation can be extremely dangerous.
Never attempt to put a damaged product into operation. Secure the dam-
aged product from unintended operation. Send a damage report to the
haulage company or the insurer.
3.2 Mechanical installation
The Multi-Channel Controller can be used as follows: As a desk-top unit,
mounted in a control panel, or mounted in a 19" rack. In each of these cases
you must pay attention to the following safety note:
Too high ambient temperature.
Exceeding the maximum permitted ambient temperature may damage the
unit.
Make sure that the maximum permitted ambient temperature is not ex-
ceeded and that the air can flow freely through the louvers. Do not expose
the unit to direct sunlight.
3.2.1 Desktop unit
In order to use the Multi-Channel Controller as a desk-top unit, proceed as fol-
lows:
1Turn the Multi-Channel Controller upside down as shown in Fig. 3-1,
16
2Push the supplied rubber strip onto the lower edge of the front panel
3Stick the supplied rubber feet to the bottom of the casing
Warning
Caution

16 GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum
Installation
Fig. 3-1 Using the product as a desk-top unit
4Turn the Multi-Channel Controller back to normal orientation and place
it on the required location
3.2.2 Control panel mounted
In order to mount the unit in a control panel, the following cutout is required:
Fig. 3-2 Control panel cutout (in mm)
1Insert the Multi-Channel Controller into the cutout
2Fasten the unit with four M3 screws
Note:
In order to reduce the strain on the front panel it is recommended to sup-
port the bottom of the unit.
105
91.4
122.5
112
M3 (ø3.5)

Installation
GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum 17
3.2.3 Mounting the unit in a rack
The Multi-Channel Controller is designed for installation into a rack chassis
adapter according to DIN 41 494 (19", 3 HE). For this purpose, 4 collar screws
and 4 plastic sleeves are supplied with the unit.
Lower protection class of the rack.
If the product is installed in a rack, it is likely to lower the protection class
of the rack (protection from foreign bodies and water) e.g. according to the
EN 60204-1 regulations for switching cabinets.
Take appropriate measures to restore the required protection class of the
rack.
Fig. 3-3 Mounting the unit in a rack
Note:
In order to reduce the strain on the front panel it is recommended to
equip the rack chassis adapter with a guide rail.
Note:
For safe and easy installation of heavy rack chassis adapters, it is rec-
ommended to equip the rack frame with slide rails.
1Fasten the rack chassis adapter in the rack
2Insert the Multi-Channel Controller into the rack chassis adapter
3Fasten the Multi-Channel Controller with the supplied collar screws and
plastic sleeves to the rack chassis adapter
Warning

18 GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum
Installation
3.3 Connecting
3.3.1 Back side of the device
Fig. 3-4, 18 shows the back side of the CENTER THREE. The connection
for channel 3 (item C) is not available in the CENTER TWO.
Fig. 3-4 Back side of the CENTER THREE
A Transmitter connection, channel 1
B Transmitter connection, channel 2
C Transmitter connection, channel 3
D CONTROL connection
E Switch for program transfer mode
F RS232C connection
G Mains connection / disconnecting device
H Mains switch
I Ground screw
J RELAY connection
K Screw for internal protective conductor. Do not loosen this screw!
Internal protective conductor.
The internal protective conductor is connected to the casing with a screw
(item K). If the internal protective conductor is not fastened the unit can be
extremely dangerous in case of a failure.
Do not turn or loosen the screw that fastens the internal protective conduc-
tor.
The configuration of the available connections is described in the following
sections.
A
B
C
D
EFGH
I
J
K
Warning

Installation
GA 09.035/6.02 - 07/2011 - © Oerlikon Leybold Vacuum 19
3.3.2 Mains connection
The mains connection (Fig. 3-4, 18, item G) is designed for a mains cable
which contains a European appliance connector on the device side.
A mains cable is supplied with the unit. If the plug is not compatible with your
wall socket, you have to get a suitable mains cable:
Three-conductor cable with protective ground
Conductor cross-section 3 ×1.5 mm2or larger

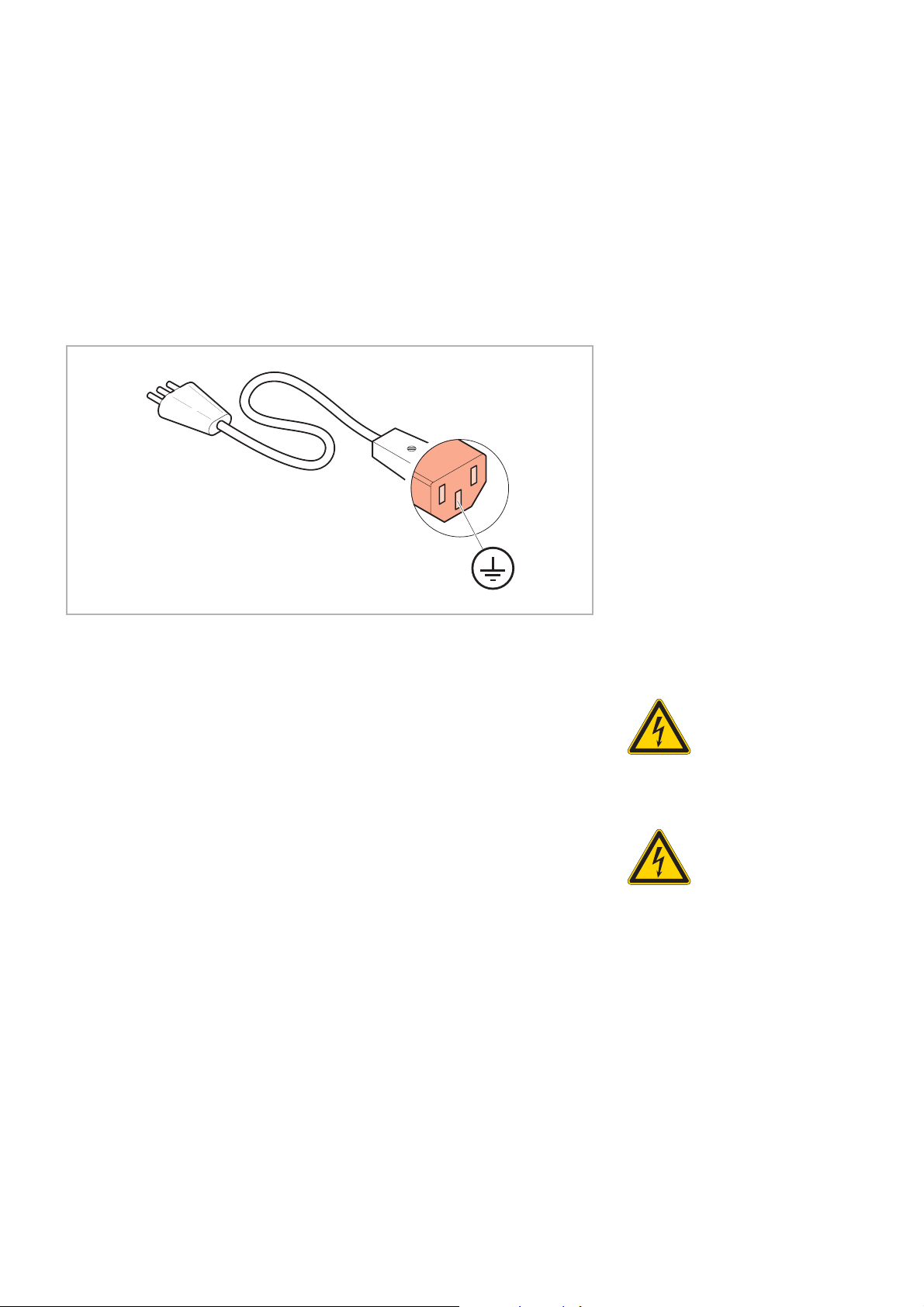

Fig. 3-5 Three-conductor cable with protective ground (example)
Mains power.
Improperly grounded devices can be extremely dangerous in the event of
a fault.
Use three-wire mains or extension cables with protective ground only. Plug
the mains cable into wall sockets with protective ground only.
No mains fuse.
The Multi-Channel Controller is not equipped with a mains fuse.
The wall socket must be protected with a fuse (max. 10 A).
1Connect the European appliance connector of the mains cord with the
mains connection of the unit
2Connect the plug of the mains cable with the wall socket
Note:
If the unit is installed in a switching cabinet, the mains power can be sup-
plied via a switchable central power distributor.
3.3.3 Ground
The ground screw (Fig. 3-4, 18, item I) can be used to connect the Multi-
Channel Controller with the protective ground of the pumping station.
1If required: Connect the protective ground of the pumping station with
the ground screw. Use a protective conductor.
Warning
Warning
