Offroad Animal PR-JGC-WK2-11-ASM0 Install guide

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 1of 24
IMPORTANT! –READ BEFORE INSTALLATION
•
When installed in accordance with these instructions, the front protection bar does
not affect the operation of the vehicles SRS airbags.
•
This product must be installed exactly as per these instructions using only
hardware supplied.
•
Take a few moments to read instructions thoroughly before beginning work.
•
In the event of damage to any component please contact OFFROAD ANIMAL to
arrange repair/replacement of components.
•
Do not use this product for any vehicle make or model other than that specified on
these instructions.
•
Do not remove labels from this product.
•
This product and its fixings must not be modified in any way unless stated in these
fitting instructions.
•
The installation of this product is recommended for trained personnel.
•
These instructions are correct at time of publication. OFFROAD ANIMAL cannot
be held responsible for the impact of any changes subsequently made by the
vehicle manufacturer. If you find something has changed please contact us to let
us know!
•
During installation it is the duty of the installer to check correct
operation/clearances of all components.
•
If Instructions are to be printed for reference in the workshop, it is recommended
that they are printed in colour, for best legibility.
•
Estimated install time: 2 hours

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 2of 24
IMPORTANT: Check all parts are present before beginning work! Contact OFFROAD ANIMAL
if something is missing.
Main Parts –In the Box
Qty
Part Number
Description
1
PR-JGC-
WK2-11-
ASM1
Main Plate Pre-runner
wk2
1
RP-JGC-
WK2-11-
ASM0
Recovery Points Wk2
(some customers may
already have these)
1
B-0323L
Pre-Runner Mount LH
1
B-0323R
Pre-Runner Mount RH
1
B-0319L
Wk2 Pre-Runner wing LH

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 3of 24
1
B-0319R
Wk2 Pre-Runner wing RH
1
P-0021
Acc Cover
1
B-0324L
Pre-Runner wing support
LH
1
B-0324R
Pre-Runner Wing support
RH
1
Optional
extra ACC
mount part
B-0062
Acc mount wk2
1
Optional
extra ACC
mount part
B-0063
Acc cover
Small Parts –Contained in Small Parts Kit Bag
Qty
Part Number
Description
10
M8 FW Black Zinc
M8 Flat washer black zinc plate
10
M8 x 20 BHCS BZ
M8 x 20 Button Head Cap Screw, Black Zinc
14
M8 FN
M8 Flange Nut
4
M6x16 BHCS BZ
M6 x 16 Button Head Cap Screw, Black Zinc
4
M6 FW BZ
M6 Flat washer, Black Zinc
4
M6 FN
M6 Flange Nut
8
M10 FN
M10 Flange Nut
8
M10 FW
M10 Flat Washer

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 4of 24
4
M10x30
M10 x 30 Hex Bolt ZP
4
M10 x 45
M10 x 45 Hex Bolt, Zinc Plate
1
OFA-LOGO
OFFROAD ANIMAL METAL LOGO
1
Pinch Weld 2M
Pinch Weld Black 14mm x 9mm x 2M
4
M5 x 30 pan
M5 x 30 Pan head screw zinc Optional extra
part
2
M8 x 30
M8 x 30 Hex zinc Optional extra part
2
M8 FW
M8 Flat washer Optional extra part
2
M8 FN
M8 Flange nut Optional extra part
The following tools will be required to install the product.
Hand Tools
Power Tools
Workshop
Equipment
10mm Spanner
13mm Spanner
16mm Spanner
4mm Allen Key
5mm Allen Key
10mm Socket
13mm Socket
16mm Socket
Ratcheting Socket Wrench
Flat head screw driver or Pry Tool
Side Cutters
Phillips head screw driver
None
None

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 5of 24
Take Care not to lose factory hardware, as some will be reused
Take care not to damage parking sensors, They may be disturbed by the new bumper. Sorry it’s
their position and this can’t be helped with this new bumper.
If ACC radar is not working as it should, stand side on the vehicle and see which way it’s pointing. If
pointing up or down adjust screws so it’s pointing straight ahead.

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 6of 24

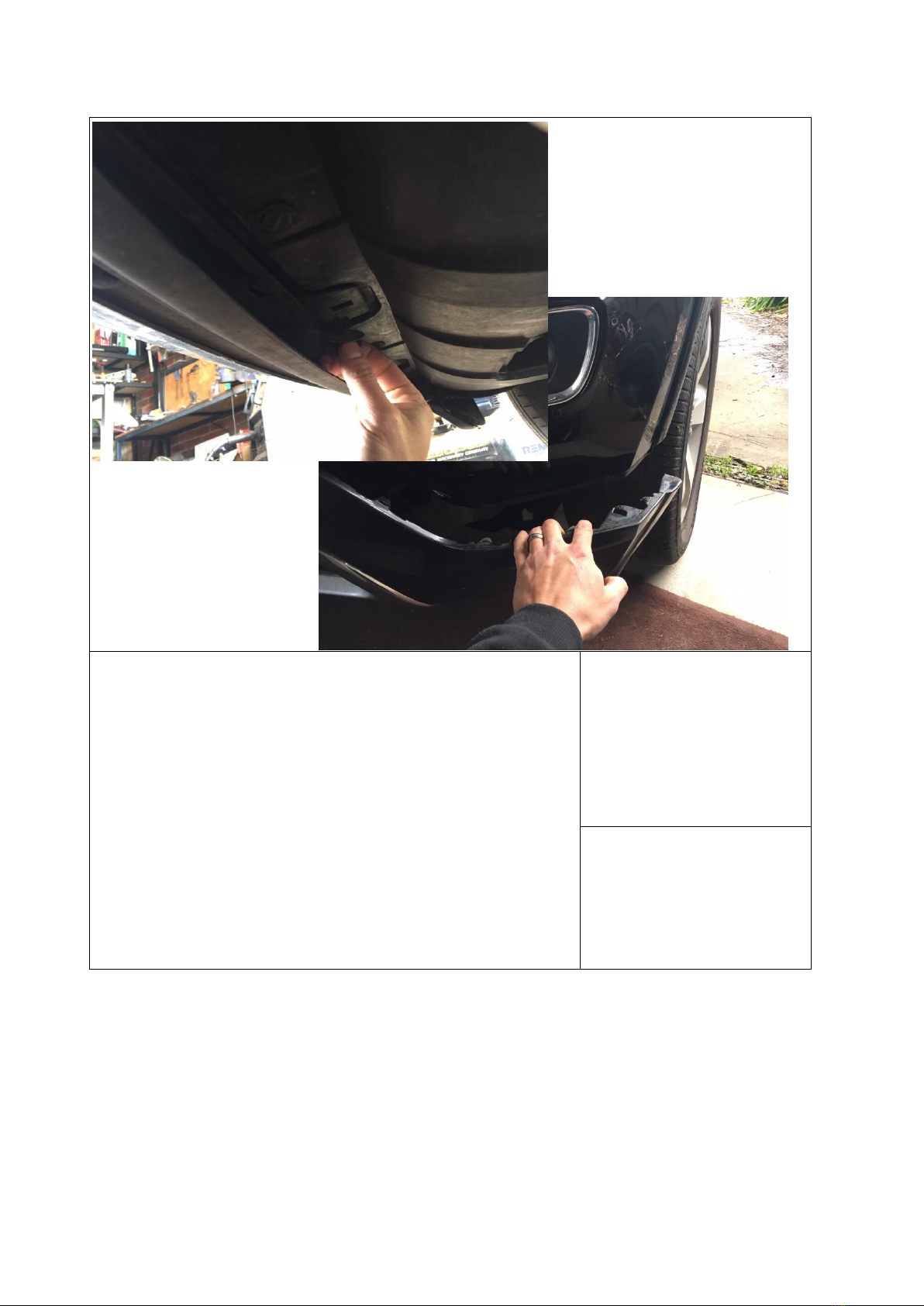

1. First step is to remove the lower air damn fascia. To do this
climb under your Jeep and remove all 5 quarter turn clips by
hand. Two are tucked up high in each corner and 3 in the
middle
2. Once they are removed pull the entire lower air damn away
from Jeep by hand. You will not be reusing this part
TOOLS REQUIRED
None
FASTENERS
Retain only if you wish to refit
later

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 7of 24

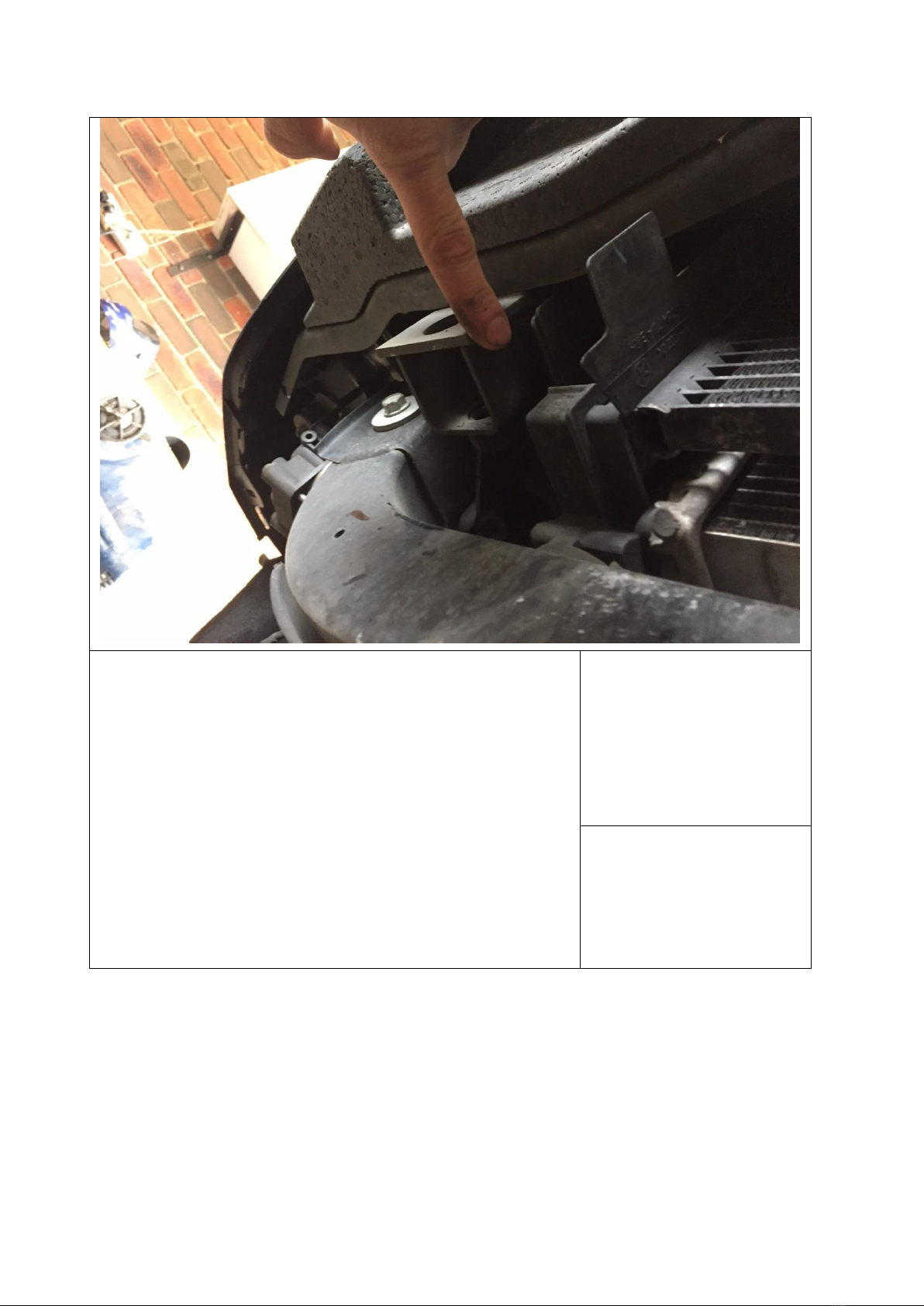

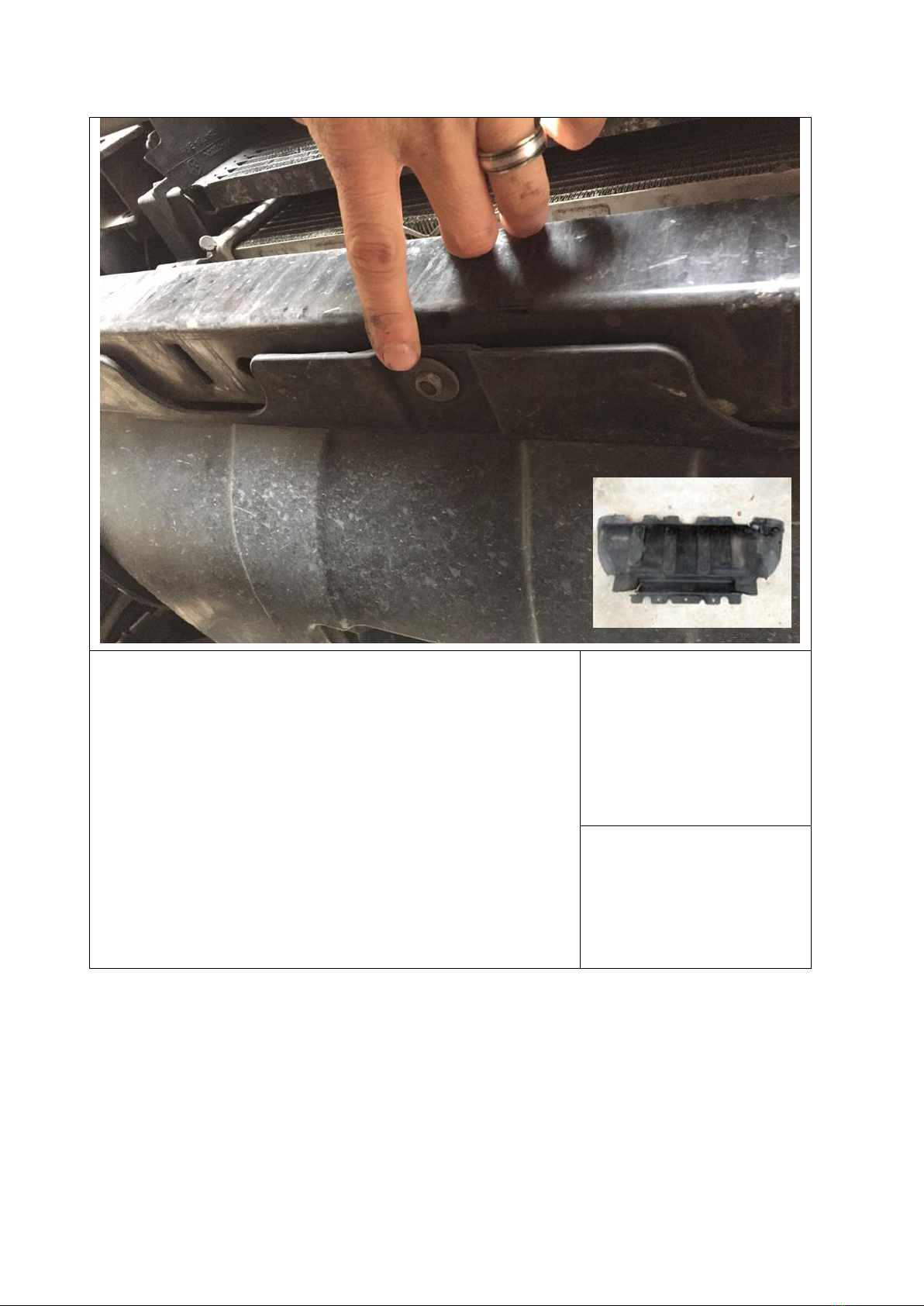

3. Remove factory Lower Radiator Cover. 3x M6 bolts on front
and 2x M8 bolts on back. Use 10mm socket or spanner for
front and 13mm for rear
TOOLS REQUIRED
10mm Socket or Spanner
13mm Socket or Spanner
FASTENERS
Retain for reuse

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 8of 24
4. Remove factory tie down and or tow points
TOOLS REQUIRED
Socket set
FASTENERS
Discard fasteners

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 9of 24

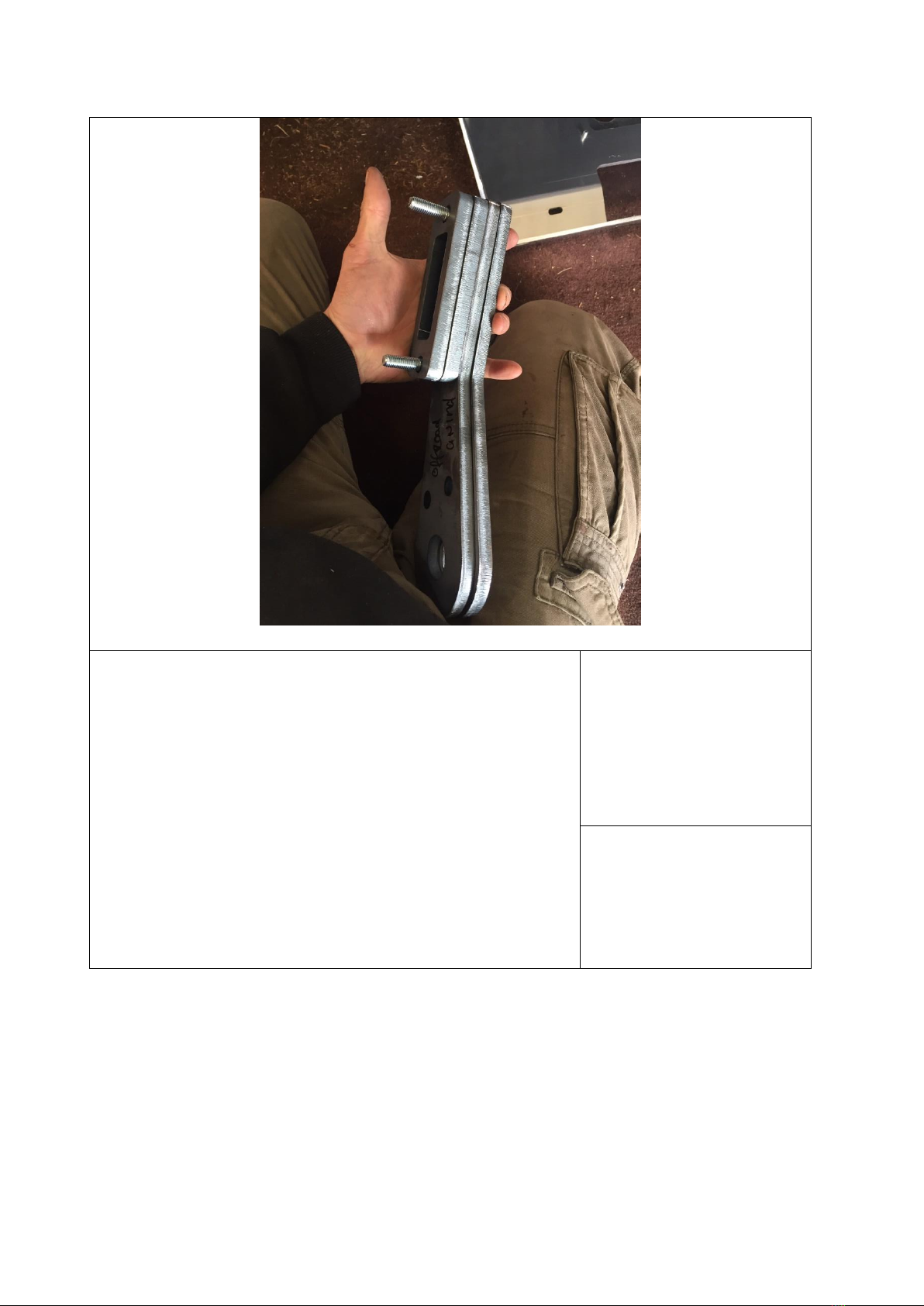

5. Stack Offroad Animal Tow points together as shown with
M10 bolts and M10 flat washers.
TOOLS REQUIRED
FASTENERS
M10x80 Hex bolts (4)
M10 Flat Washers (4)

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 10 of 24

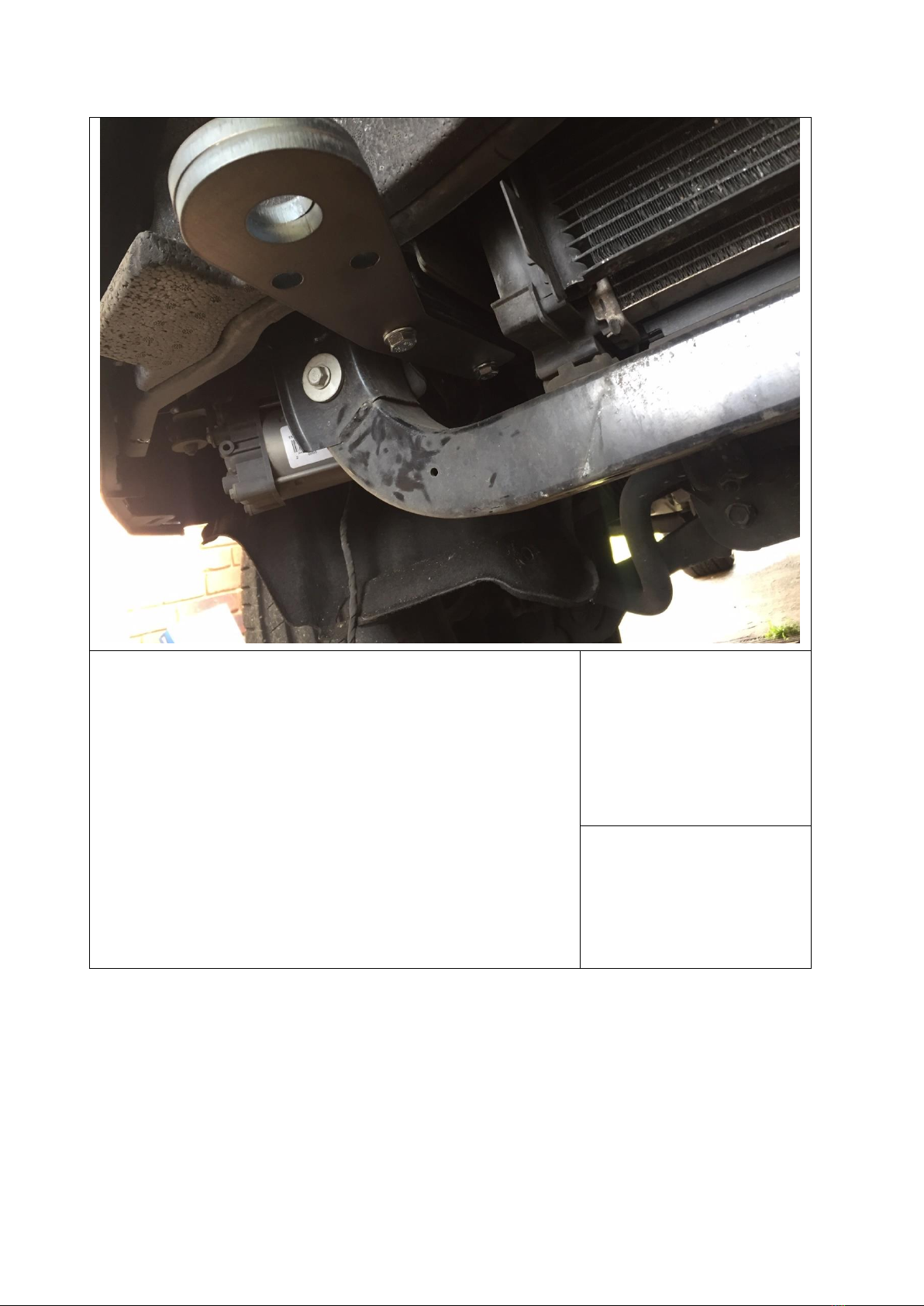

6. Fit Offroad Animal Tow points as shown on LH and RH side
with M10x80 bolts directly into frame of Jeep. Torque
down bolts. Be aware if fitting a nudge bar you may need to
later loosen these bolts to realign these tow points to suit
the nudge bar.
TOOLS REQUIRED
16mm or 17mm Socket or
Spanner
FASTENERS
M10 x 80 (4)
M10 Flat washers (4)

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 11 of 24

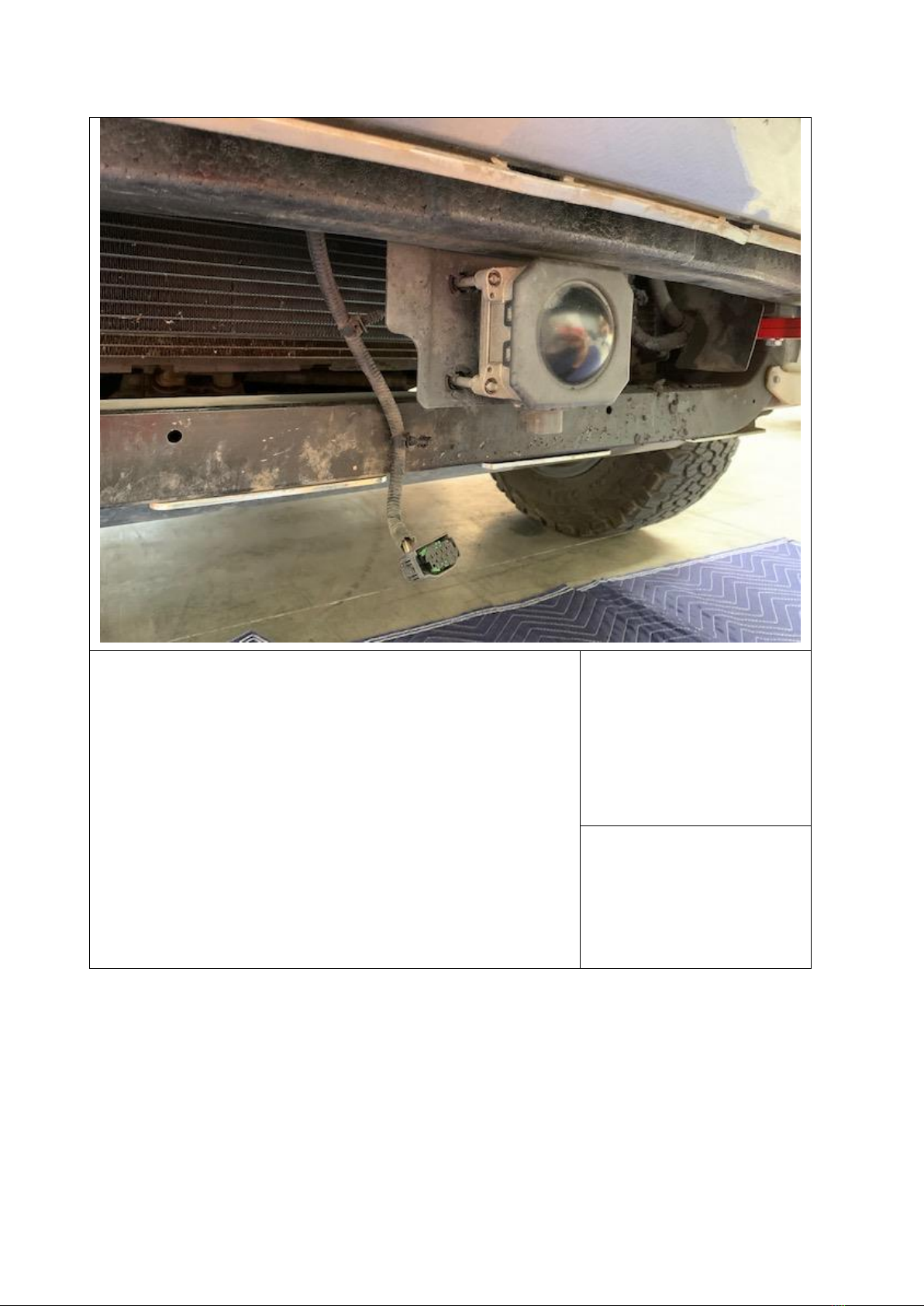

7. If Adaptive cruise control is fitted, unplug loom and pull
sensor off posts. If you do not have ACC, skip this step
8. Remove bracket
TOOLS REQUIRED
8mm socket
FASTENERS

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 12 of 24
9. Fit side support bars as shown on both sides.
10. Remove lower factory bolt, place bracket on and reuse
factory bolt
TOOLS REQUIRED
13mm spanner or socket
FASTENERS
Reuse Factory hardware

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 13 of 24

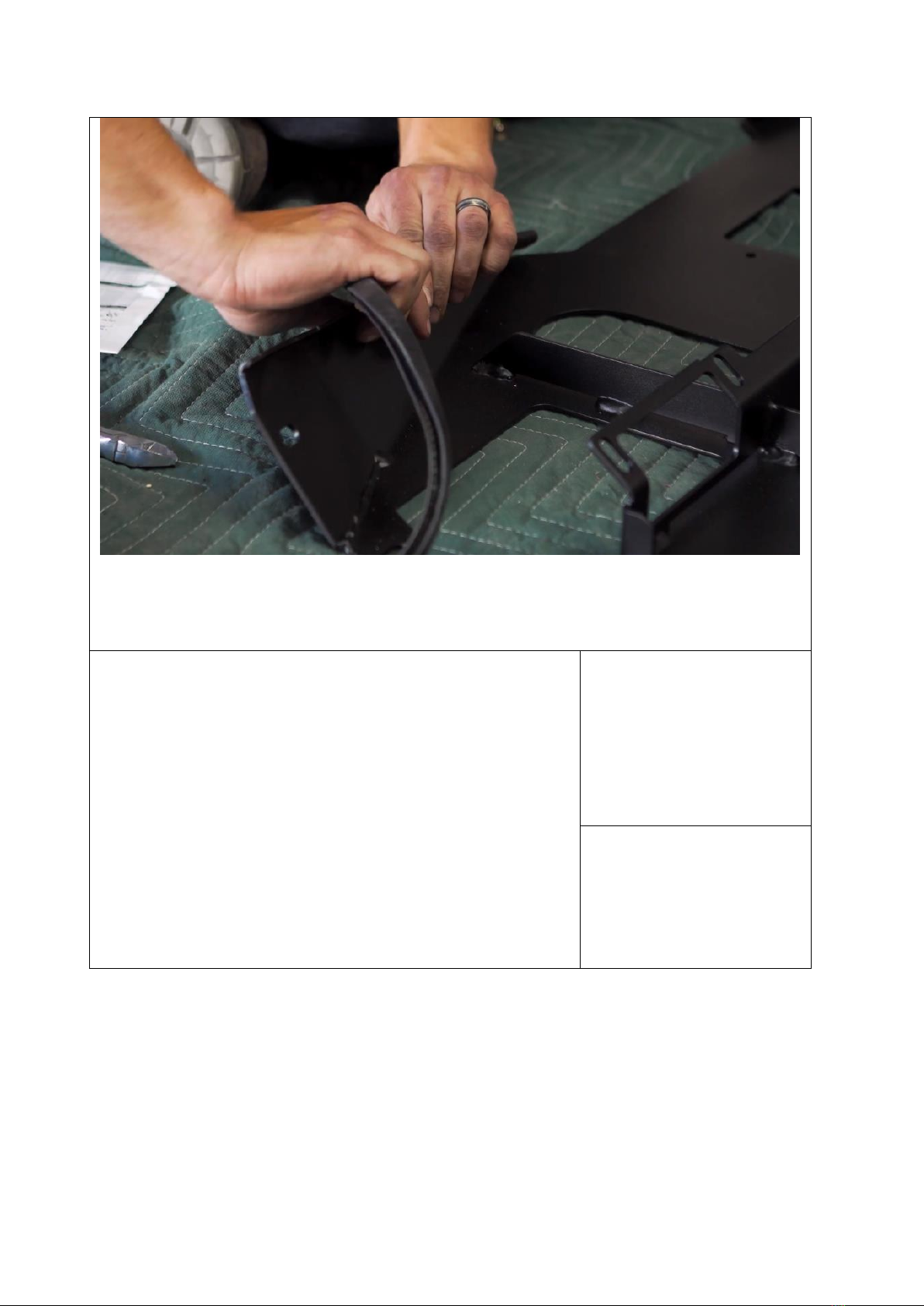

11. Fit pinch weld to top edge of main plate and wings
TOOLS REQUIRED
FASTENERS

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 14 of 24
12. Trim edges of pinch weld at edge of plate
TOOLS REQUIRED
Side cutters
FASTENERS

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 15 of 24
13. Fit Pre runner mounts as shown with M10 x 30 bolts,
washers and flange nuts
TOOLS REQUIRED
16 or 17mm Spanner and or
socket
FASTENERS
M10 x 30 (4)
M10 FW (4)
M10 FN (4)

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 16 of 24

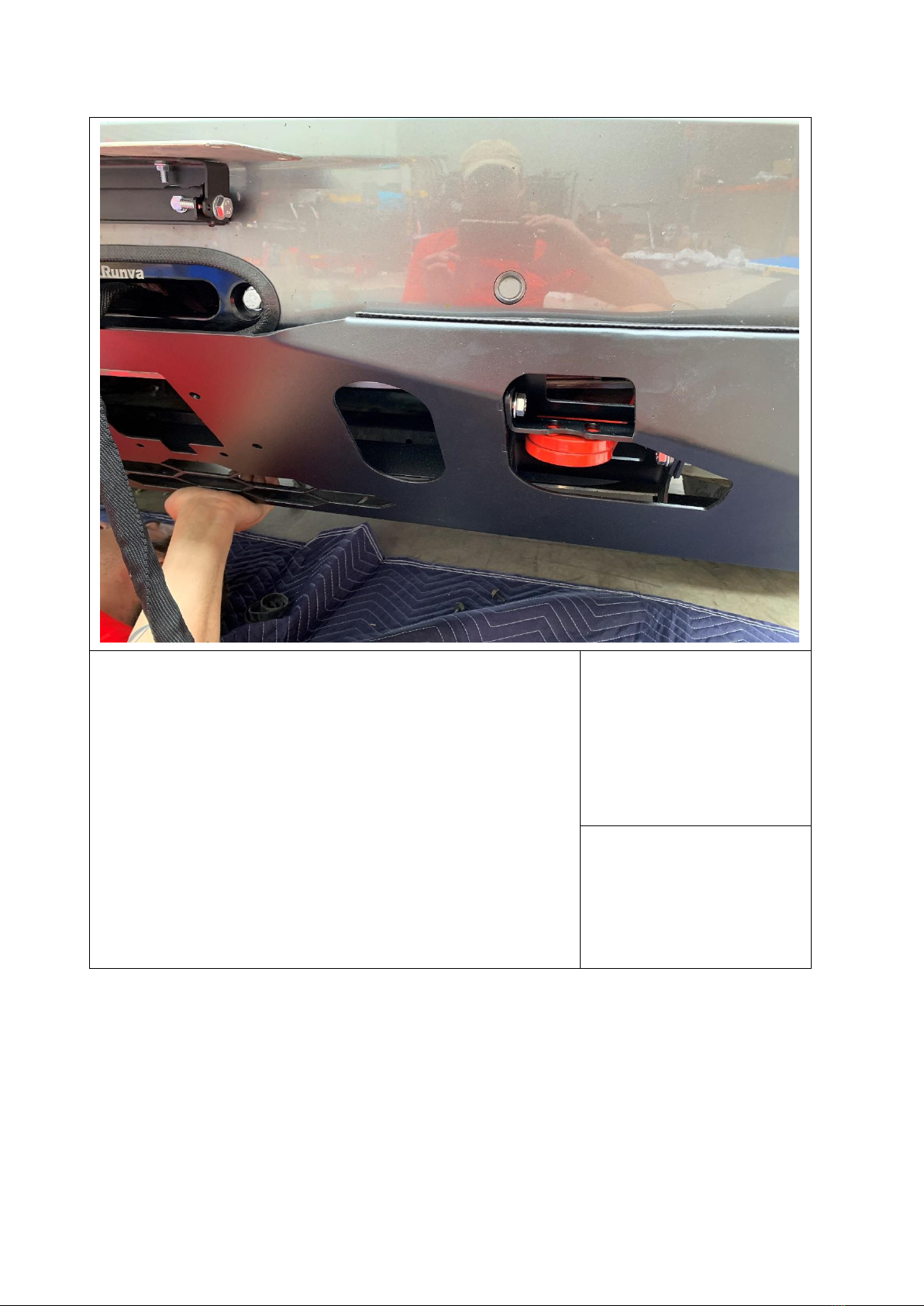

14. Fit Pre Runner Upper Mounts to top of Tow points. Secure
to Main plate M10 x 45 Bolts, flat washers and Flange nuts
as shown.
15. Repeat for other side
16. Position plate to sit just in front of factory bumper and
torque down bolts. It’s fine if it touches factory bumper
with pinch weld.
TOOLS REQUIRED
16mm or 17mm spanner and
socket
FASTENERS
M10 x 45 Hex Bolt (4)
M10 FW (4)
M10 FN (4)

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 17 of 24
17. Using the factory M6 bolts secure through the bottom of
the Pre runner centre plate
TOOLS REQUIRED
10mm socket or spanner
FASTENERS
Factory M6 screws

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 18 of 24
18. Fit wings as shown, using M8 hardware. Reach in from
behind bumper to fit nut on back
19. Repeat for other side
TOOLS REQUIRED
5mm allen key
FASTENERS
M8 x 20 BHCS BZ (4)
M8 FW BZ (4)
M8 flange nut (4)

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 19 of 24

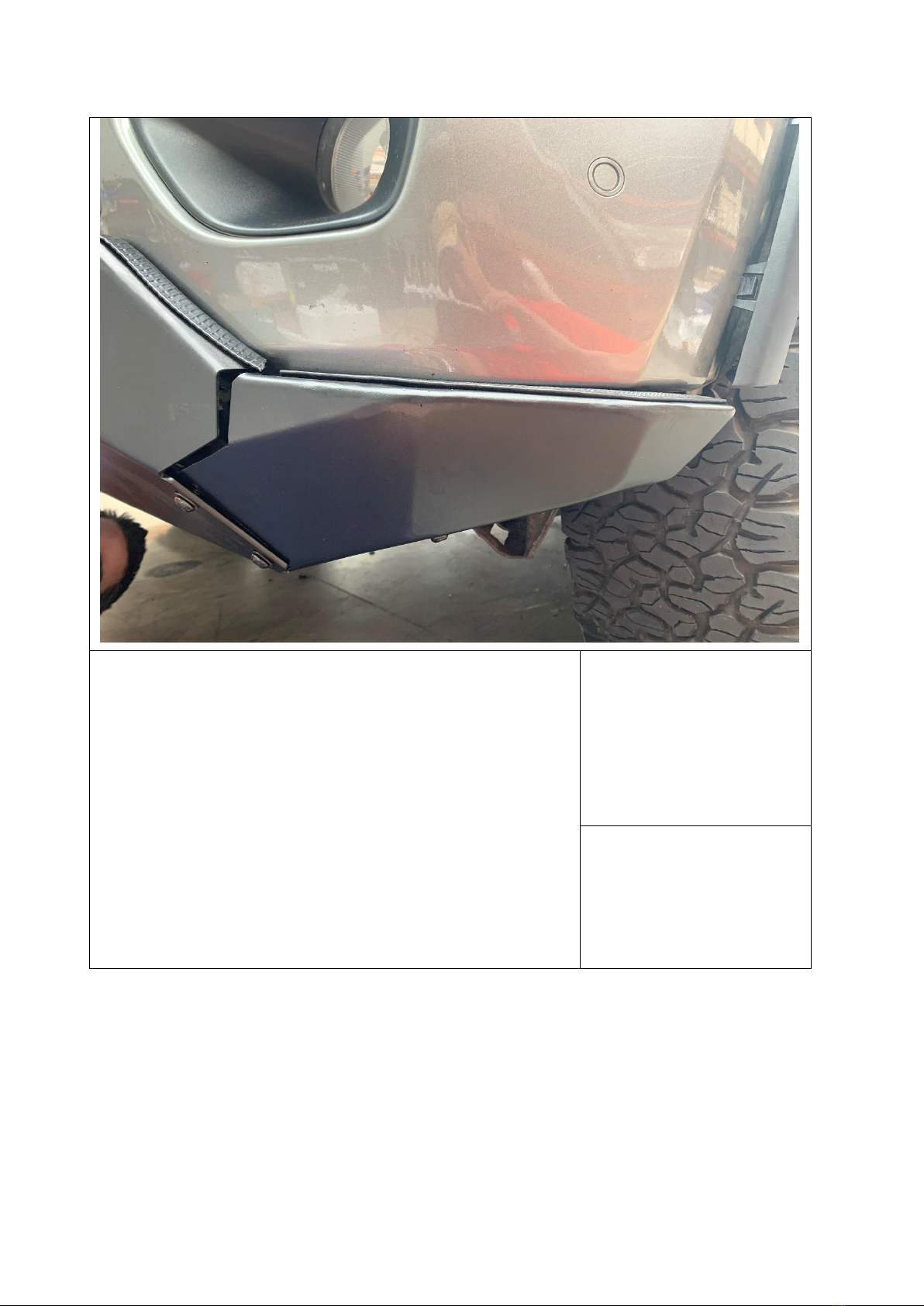

20. Position the wings to have the smallest gap possible
between wings and centre. Torque up bolts
TOOLS REQUIRED
5mm Allen key
FASTENERS

Offroad Animal PR-JGC-WK2-11-ASM0 2011-2013 Jeep Grand Cherokee
Fitting Instruction Pre-Runner/ Steel front bumper
REV NIL 28/1/20 Page 20 of 24

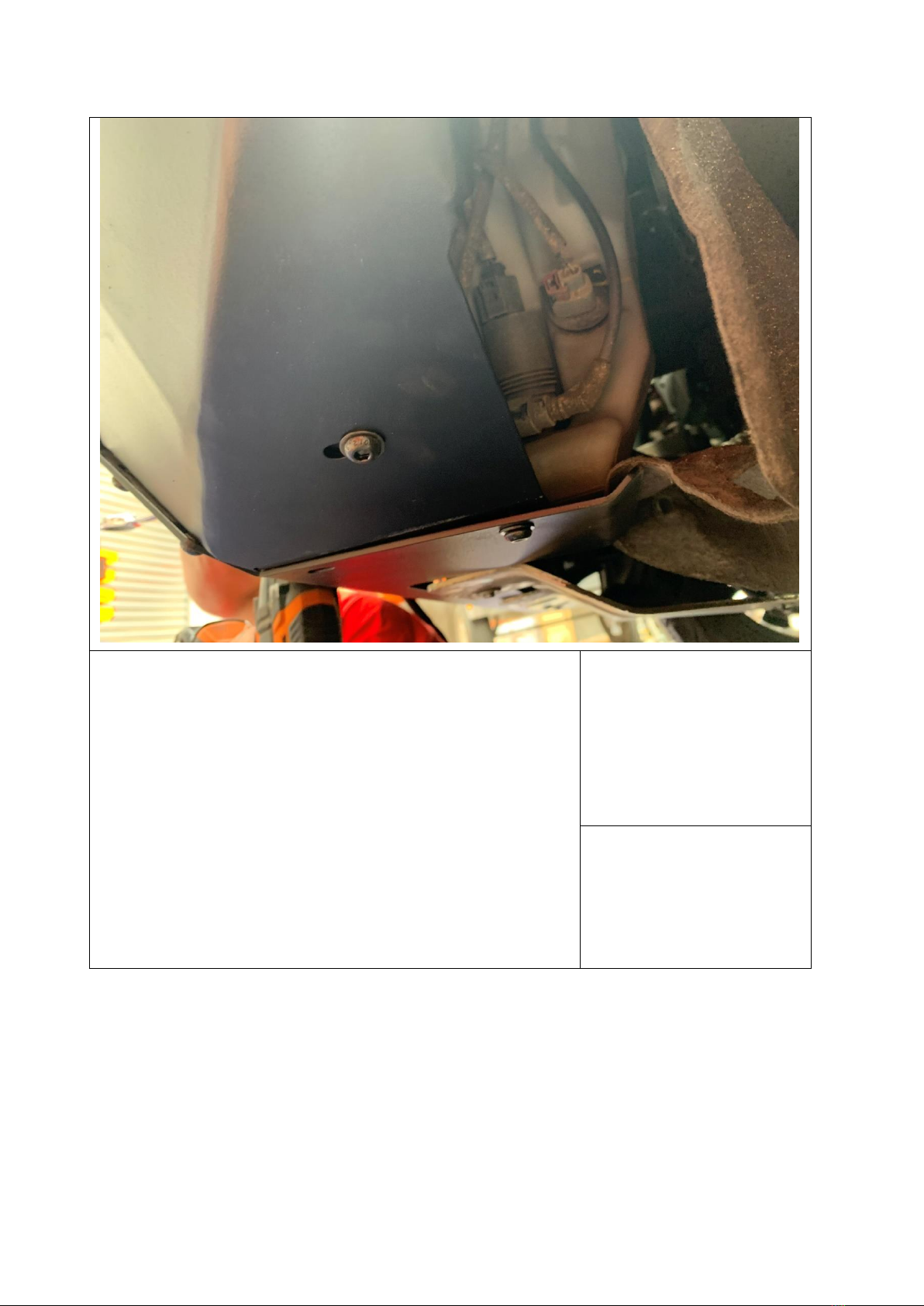

21. Fit Bolt through wing into support bracket
22. Repeat for other side
TOOLS REQUIRED
5mm Allen Key
FASTENERS
M8 x 20 BHCS black (2)
M8 flat washer (2)
M8 flange nut (2)
