Ogawa activo SPIN PRO B2.1 User manual

Cover & Inner.indd 3Cover & Inner.indd 3 8/5/2014 4:58:00 PM8/5/2014 4:58:00 PM

User Manual
All information is correct at the time of print
Cover & Inner.indd 4Cover & Inner.indd 4 8/5/2014 4:58:00 PM8/5/2014 4:58:00 PM

CONTENTS
Safety Instructions 1
Warranty Claims 2
Product Parts 3
Product Installation 7
Product Operation Guide 13
Troubleshooting 25
Product Maintenance 26
Product Specifications 26
Contact Us 27
Thank you for choosing Activo Spin Pro B2.1. Please read the user manual carefully before use,
especially the safety instructions. Keep the manual for further reference.
REMARKS:
Before installation, please unpack all related accessories and check if you have all of them.
Related installation diagrams are supplied with corresponding texts, descriptions and legend
reference.
Activo Spin Pro B2.1 EN.indd 1Activo Spin Pro B2.1 EN.indd 1 8/6/2014 8:47:23 AM8/6/2014 8:47:23 AM

User Manual 1
SPIN PRO B2.1
Safety Instructions
BE SURE TO READ THE ENTIRE MANUAL BEFORE YOU ASSEMBLE OR
OPERATE YOUR MACHINE. IN PARTICULAR, NOTE THE FOLLOWING SAFETY
PRECAUTIONS:
1. Assemble the machine exactly as the descriptions in the user manual.
2. Check all the screws, nuts and other connections before using the machine. Only do exercising
on the machine when it is in correct working way. Ensure that all users are adequately informed
of all precautions.
3. Assemble the machine in a dry level place and leave it away from moisture and water; before
beginning exercising, remove all objects within a radius of 2 meters from the machine.
4. Place a suitable base (e.g. rubber mat, blanket etc.) beneath the machine in the area of
assembly or exercise to avoid scratch, dirt and etc.
5. Do not use aggressive cleaning articles to clean the machine, and remove drops of sweat from
the machine immediately after finishing exercising.
6. Only use the supplied tools or suitable tools to assemble or repair the machine; use only
original spare parts for any necessary repairs.
7. Your health can be affected by incorrect or excessive exercising. Before exercise, consult your
doctor. This is especially important for people over the age of 35 or those with pre-existing
health problems.
8. This machine is intended for indoor, home and commercial use, not suitable for therapeutic
purpose.
9. Wear appropriate clothes and athletic shoes when exercising to avoid tripped or trapped by
loose clothes.
10. If you have a feeling of pain, chest congestion, tachycardic, tachypnea, light-headed, dizziness,
sickness or other abnormal symptoms, please stop immediately and consult your doctor before
continue.
11. The power of the machine increases with increasing the speed. The machine is equipped with
adjustable knob that can adjust the resistance.
12. The maximum user’s weight is 120KGS.
Activo Spin Pro B2.1 EN.indd 1Activo Spin Pro B2.1 EN.indd 1 8/6/2014 8:47:23 AM8/6/2014 8:47:23 AM

User Manual 2
SPIN PRO B2.1
Warranty Claims
User Manual 2
1. Warranty is not transferable.
2. This warranty is effective only if the product is purchased from ACTIVO or its authorised dealers.
3. Proof of purchase (original receipt) is required for all warranty repairs.
4. All implied warranties, including but not limited to these implied warranties of fitness and
merchantability, are limited to one (1) year from the date of purchase.
5. Damage due to misuse, improper treatment and unauthorised modification and repairs are not
covered by this warranty.
6. Warranty does not cover accessories and add-ons, which do not belong to this product.
7. Warranty is not effective to rental, business, commercial, institutional, or other nonresidential
users.
8. All services covered by this warranty must be approved by ACTIVO and repaired by authorised
technicians only.
9. If replacement parts for defective materials are not available, ACTIVO reserves the right to
make substitutions in lieu of repair or replacement.
Activo Spin Pro B2.1 EN.indd 2Activo Spin Pro B2.1 EN.indd 2 8/6/2014 8:47:23 AM8/6/2014 8:47:23 AM

User Manual 3
SPIN PRO B2.1
Product Parts
Main frame Front stabilizer Rear stabilizer
Console L/R protective guard Saddle slider
Handlebar Saddle post Front and rear console
cover
Pedals Handlebar post cover Saddle
Activo Spin Pro B2.1 EN.indd 3Activo Spin Pro B2.1 EN.indd 3 8/6/2014 8:47:23 AM8/6/2014 8:47:23 AM

User Manual 4
SPIN PRO B2.1
Product Parts

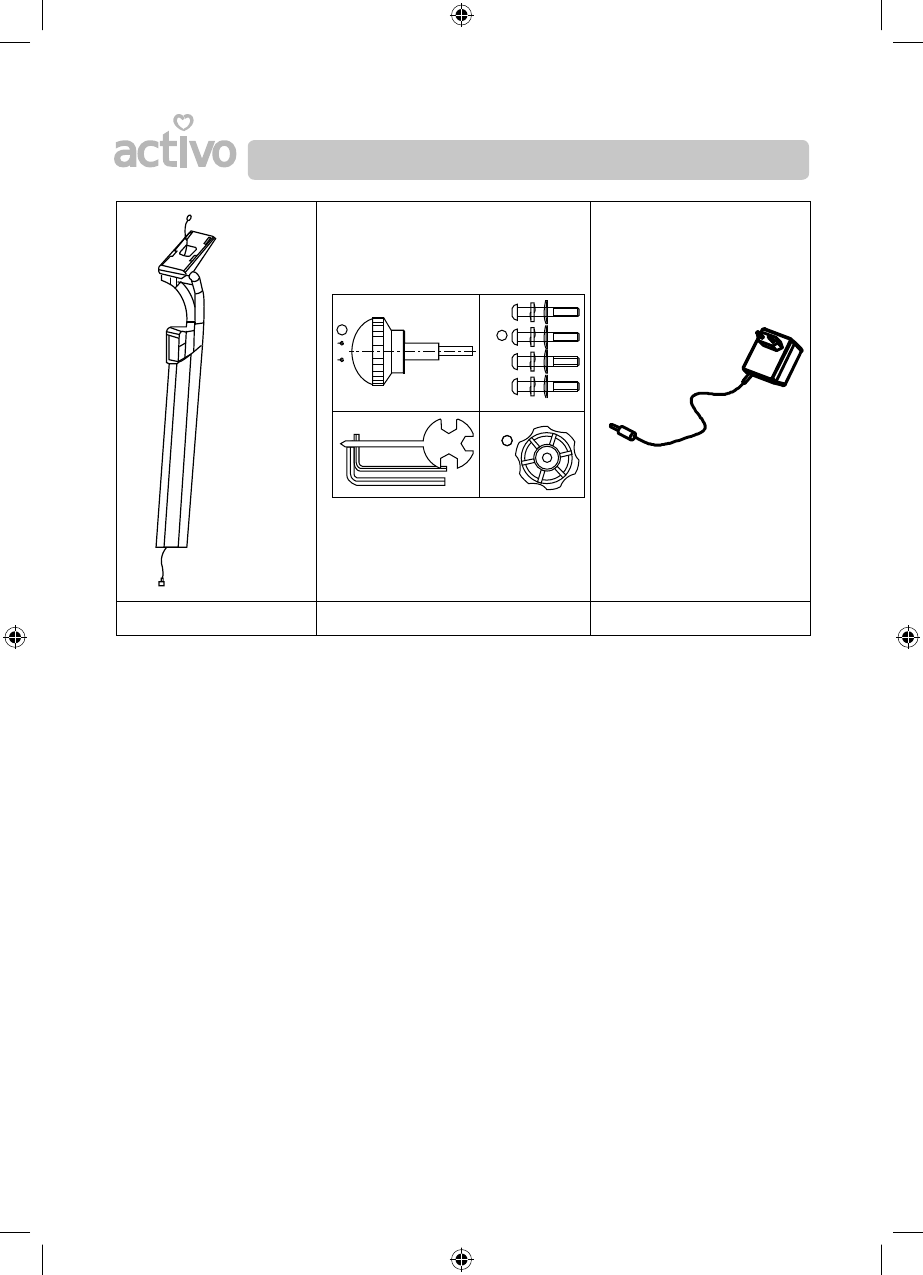

Handlebar post Tool set Adapter
S5
M10x32
S6
M8X55
714
29
14
8719
S14
S13
S15
60* 14*M8*30
Activo Spin Pro B2.1 EN.indd 4Activo Spin Pro B2.1 EN.indd 4 8/6/2014 8:47:23 AM8/6/2014 8:47:23 AM

User Manual 5
SPIN PRO B2.1
Product Parts
Exploded Diagram
Activo Spin Pro B2.1 EN.indd 5Activo Spin Pro B2.1 EN.indd 5 8/6/2014 8:47:23 AM8/6/2014 8:47:23 AM

User Manual 6
SPIN PRO B2.1
Product Parts
Part List
Part No. Description Qty Part No. Description Qty
1 Main frame assembly 1 21 Hex flush screw 2
2 Rear stabilizer assembly 1 22 Handlebar post cover 1
3 Front stabilizer assembly 1 23 Sensor wire 1
4 Oval end cap 4 24 Extension wire 1
5 Adjustable pad 4 25 Handlebar post assembly 1
6 Hex nut 4 26 Cross recess head screw 4
7 Hex socket head bolt 4 27 Flat washer 3
8 Spring washer 4 28 Nylon nut 3
9 Arc washer 4 29 Ball bolt 1
10 L/R Pedal L/R 1 pr 30 Console 1
11 L/R Crank L/R 1 pr 31 Flat washer 1
12 Pop-pin knob 1 32 L/R Front and rear console cover 1 pr
13 Saddle post assembly 1 33 Philips pan head bolt 11
14 Plum nut 1 34 Philips pan head bolt 4
15 Flat washer 1 35 Adjustable handlebar 1
16 U-shaped hinge assembly 1 36 Pulse wire 2
17 Square end cap 2 37 Foam grip 2
18 Saddle slider assembly 1 38 End cap 2
19 L/R L/R Protective guard 1 pr 39 Adapter 1
20 Saddle 1
Activo Spin Pro B2.1 EN.indd 6Activo Spin Pro B2.1 EN.indd 6 8/6/2014 8:47:23 AM8/6/2014 8:47:23 AM

User Manual 7
SPIN PRO B2.1
Product Installation
Step 1:
Lock the front stabilizer (3) and the rear stabilizer (2) to the main frame assembly (1) with the hex
socket head bolt (7), the flat washer (8) and the arc washer (9).
Activo Spin Pro B2.1 EN.indd 7Activo Spin Pro B2.1 EN.indd 7 8/6/2014 8:47:23 AM8/6/2014 8:47:23 AM

User Manual 8
SPIN PRO B2.1
Product Operation Guide

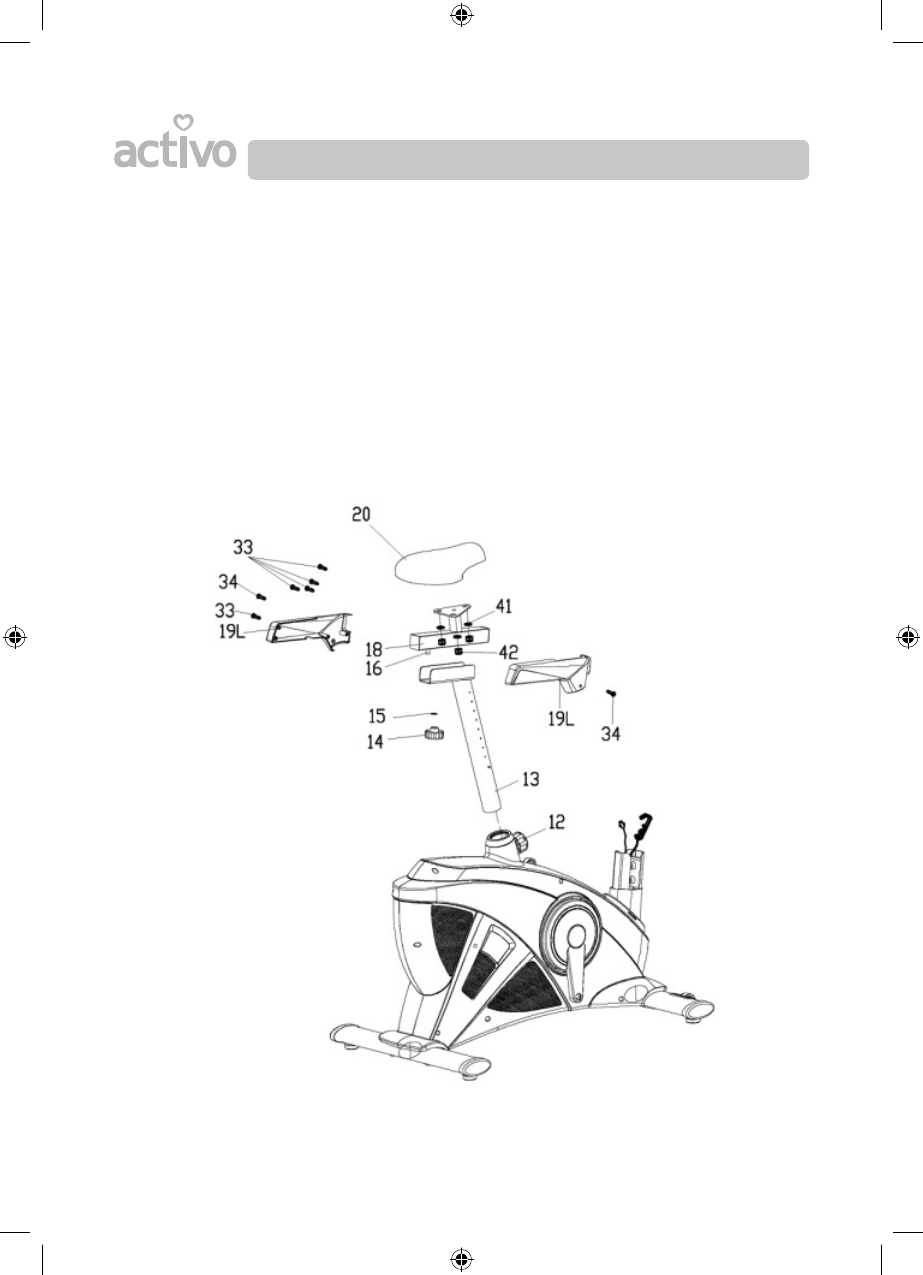

Step 2:
1. Lock the saddle (20) on the saddle slider assembly (18) with the nylon nut (28) and the flat
washer (27).
2. Lock the saddle slider (18) on the saddle post (13) with the plum knob (14) and the flat
washer (15) and the hinge assembly (16).
3. Insert the saddle post assembly (13) into the rear tube of the main frame (1), align the holes,
and then lock them with the pop-pin knob (12).
4. Lock the protective guard for saddle post L/R (19 L/R) to the saddle post assembly (13) with
the Philips pan head bolts (33) (34).
NOTE:
Make sure the saddle (20) is locked tightly on the saddle slider assembly (18) before your
exercise.
Activo Spin Pro B2.1 EN.indd 8Activo Spin Pro B2.1 EN.indd 8 8/6/2014 8:47:24 AM8/6/2014 8:47:24 AM

User Manual 9
SPIN PRO B2.1
Product Installation
Step 3:
Lock the pedals (10L/R) to the cranks (11L/R).
NOTE:
Lock the pedal (10L) in counter-clockwise direction and the pedal (10R) in clockwise direction as
shown below.
Always make sure the pedals (10L/R) are locked tightly during your exercise, otherwise the pedal
(10L/R) may be broken.
Activo Spin Pro B2.1 EN.indd 9Activo Spin Pro B2.1 EN.indd 9 8/6/2014 8:47:24 AM8/6/2014 8:47:24 AM

User Manual 10
SPIN PRO B2.1
Product Installation

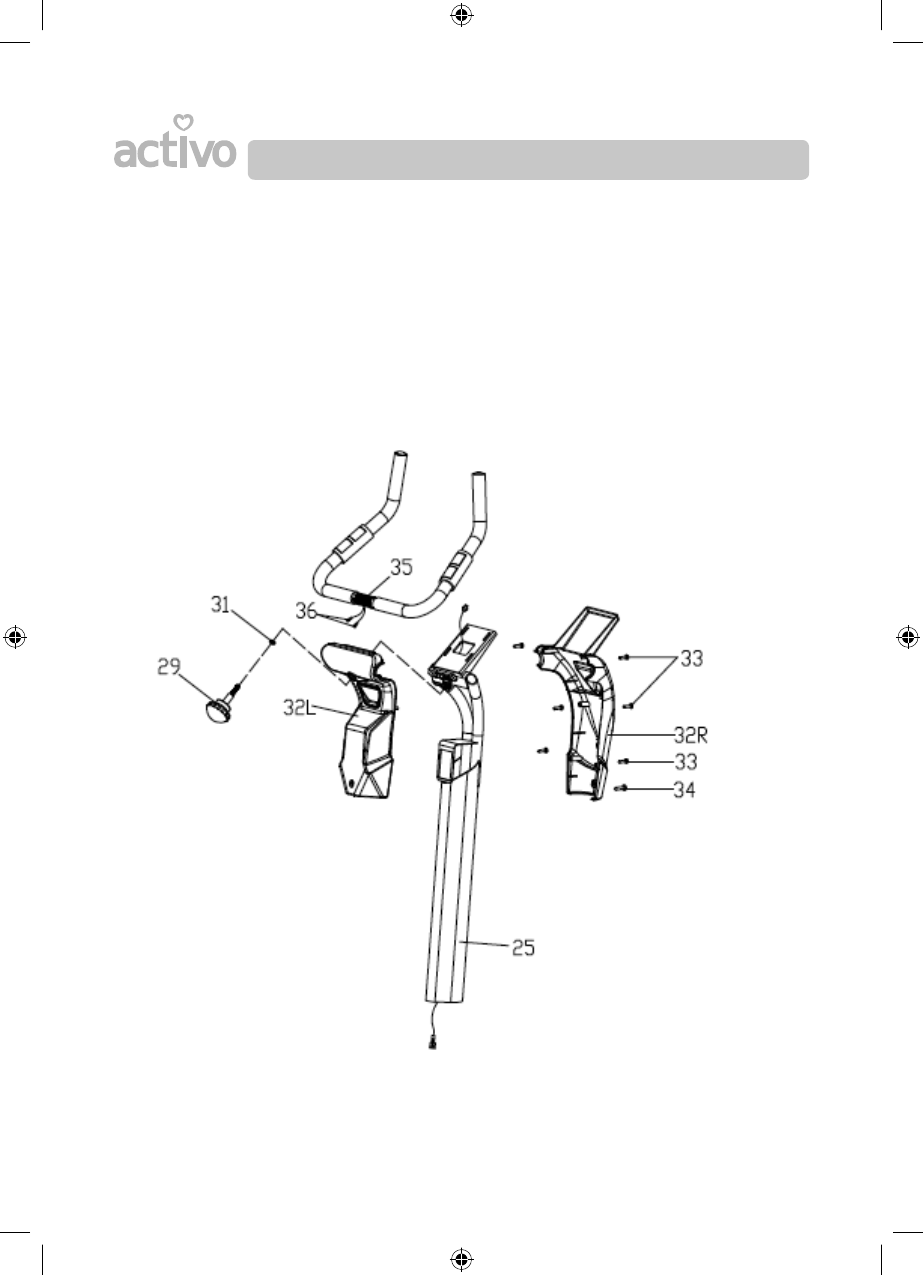

Step 4:
1. Firstly, remove the front and rear console cover (32L/R) and the Ball bolt (29) out of the
handlebar post (25) respectively.
Then, thread the pulse wire (36) through the hole of handlebar post (35) and pull it out from
the hole of the console bracket.
2. Pre-install the handlebar (35) on the handlebar post (25) chuck. Insert the Ball bolt (29) by
getting the ball bolt (29) through the front console cover (32L) and the flat washer (31) in
sequence.
Activo Spin Pro B2.1 EN.indd 10Activo Spin Pro B2.1 EN.indd 10 8/6/2014 8:47:24 AM8/6/2014 8:47:24 AM

User Manual 11
SPIN PRO B2.1
Product Installation
Step 5:
1. Connect the pulse wire (36) and the extension wire (24) with the relevant cables of the
console (30) respectively, and then lock the console (30) on the bracket of the handlebar post
(25) with the Philips pan head bolt (26). Make sure to tighten all the screws up now.
2. Lock the front and rear console covers (32L/R) to the handlebar post (25) with the Philips pan
head bolts (33) and (34).
Activo Spin Pro B2.1 EN.indd 11Activo Spin Pro B2.1 EN.indd 11 8/6/2014 8:47:24 AM8/6/2014 8:47:24 AM

User Manual 12
SPIN PRO B2.1
Product Installation
Step 6:
1. Firstly, put the handlebar post cover (22) on the handlebar post (25). Connect the extension
wire (24) with the sensor wire (23).
2. Insert the handlebar post (25) onto the front tube of the main frame (1). Then lock the
handlebar post (25) on the main frame (1) with the Hex flush screw (21). Finally, put on the
handlebar post cover (22).
Activo Spin Pro B2.1 EN.indd 12Activo Spin Pro B2.1 EN.indd 12 8/6/2014 8:47:24 AM8/6/2014 8:47:24 AM

User Manual 13
SPIN PRO B2.1
Product Operation Guide
Functions:

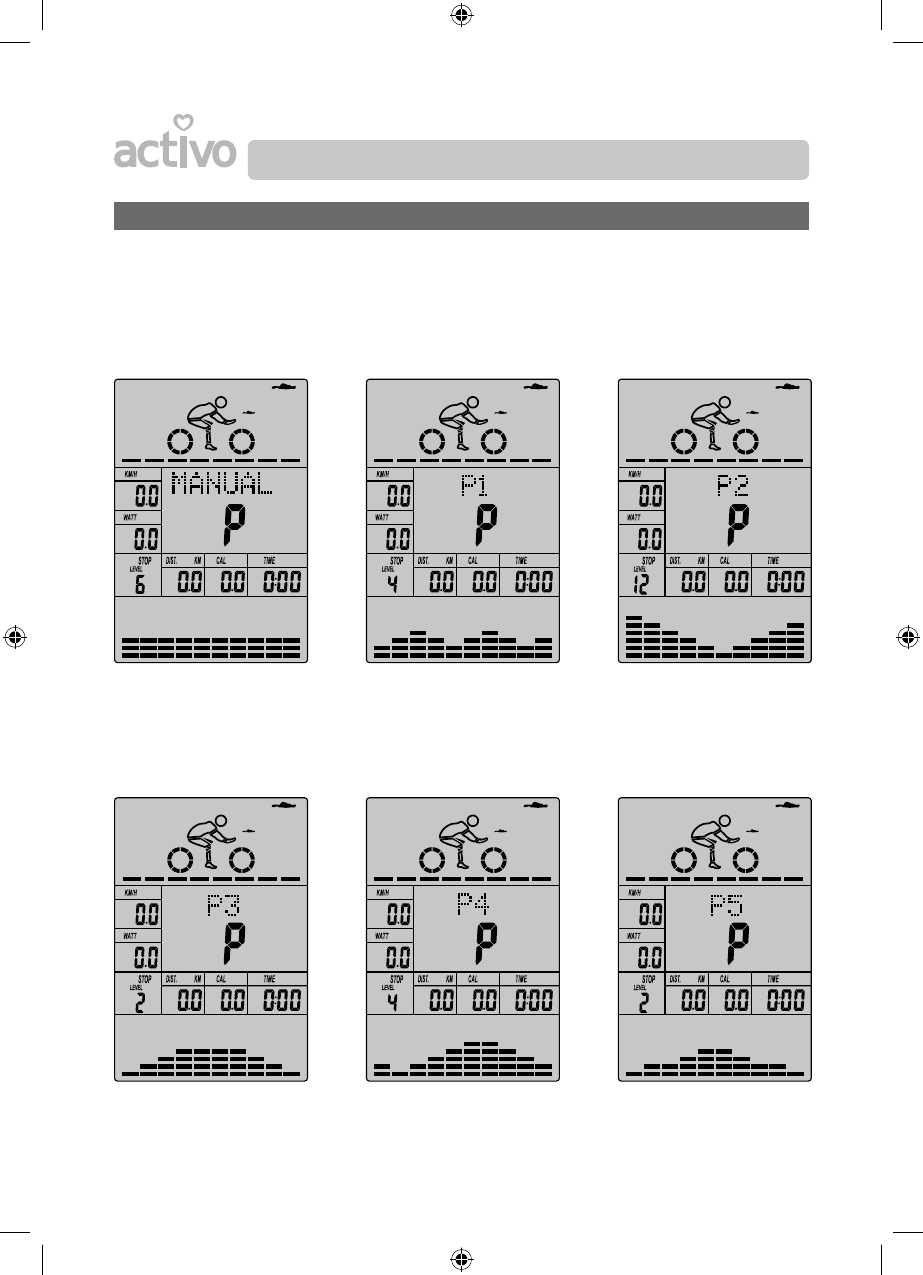

1. Programs: 21 programs as following:
A: 1 Manual Program (See Fig 1)
B: 10 Preset Programs P1~P10 (Fig 2~Fig 11):
P1: ROLLING P2: VALLEY P3: FATBURN P4: RAMP P5: MOUNTAIN
P6: INTERVAL P7: CARDIO P8: ENDURANCE P9: SLOPE P10: RALLY
Fig 1 Fig 2 Fig 3
C: 1 Watt Control Program (Fig 12)
D: 4 Heart Rate Control Program (Fig 13~Fig 16):
55% H.R, 75% H.R, 90% H.R and TARGET H.R
Fig 4 Fig 5 Fig 6
Activo Spin Pro B2.1 EN.indd 13Activo Spin Pro B2.1 EN.indd 13 8/6/2014 8:47:24 AM8/6/2014 8:47:24 AM

User Manual 14
SPIN PRO B2.1
Product Operation Guide
Fig 7 Fig 8 Fig 9
Fig 10 Fig 11 Fig 12
Fig 13 Fig 14 Fig 15
Activo Spin Pro B2.1 EN.indd 14Activo Spin Pro B2.1 EN.indd 14 8/6/2014 8:47:26 AM8/6/2014 8:47:26 AM

User Manual 15
SPIN PRO B2.1
Product Operation Guide

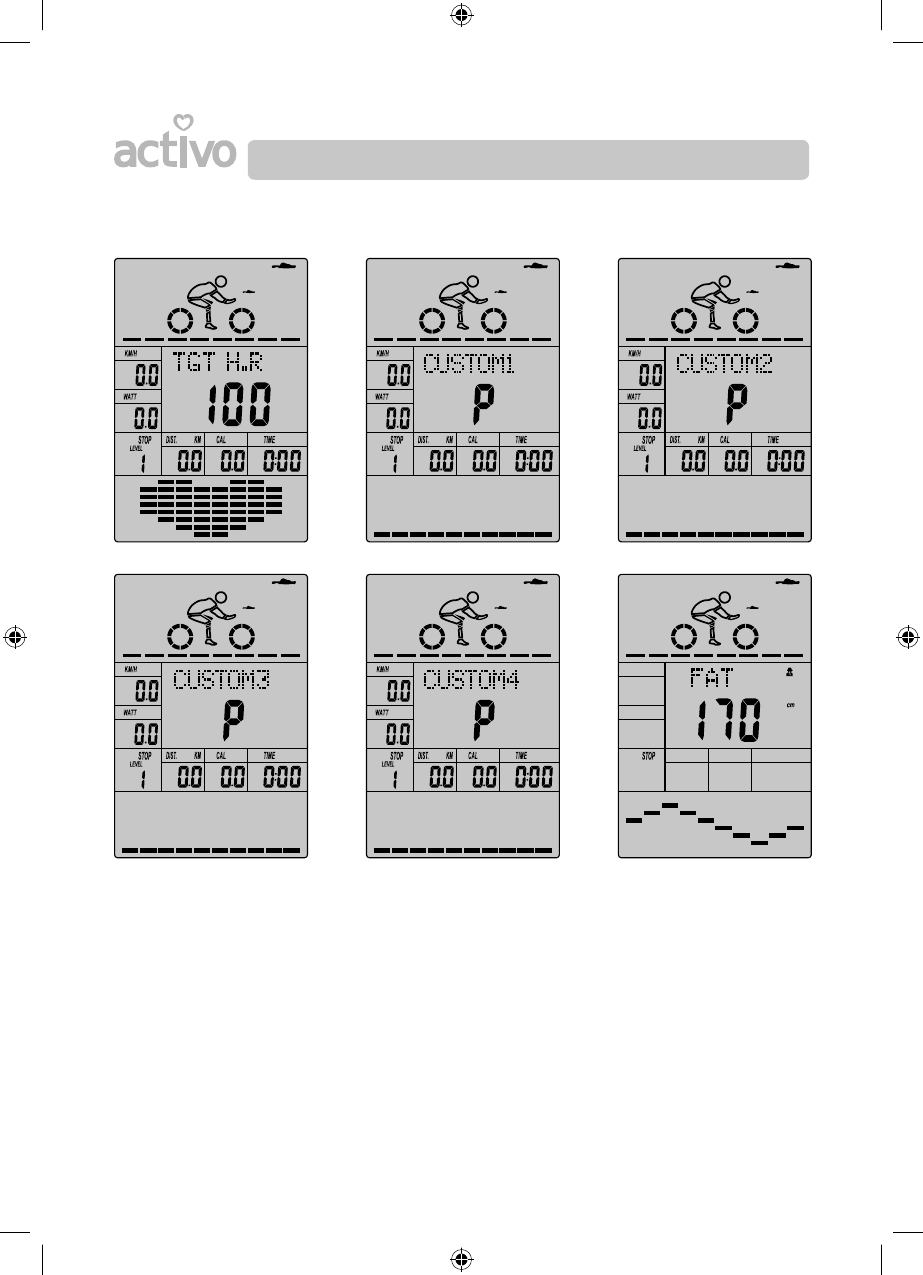

E: 4 Custom Programs: CUSTOM1~CUSTOM 4 (Fig 17~Fig 20)
F: 1 Fat Measurement Program (Fig 21)
Fig 16 Fig 17 Fig 18
Fig 19 Fig 20 Fig 21
Activo Spin Pro B2.1 EN.indd 15Activo Spin Pro B2.1 EN.indd 15 8/6/2014 8:47:30 AM8/6/2014 8:47:30 AM

User Manual 16
SPIN PRO B2.1
Product Operation Guide
2. Record the user’s data of GENDER, HEIGHT, WEIGHT and AGE even the power
is off.

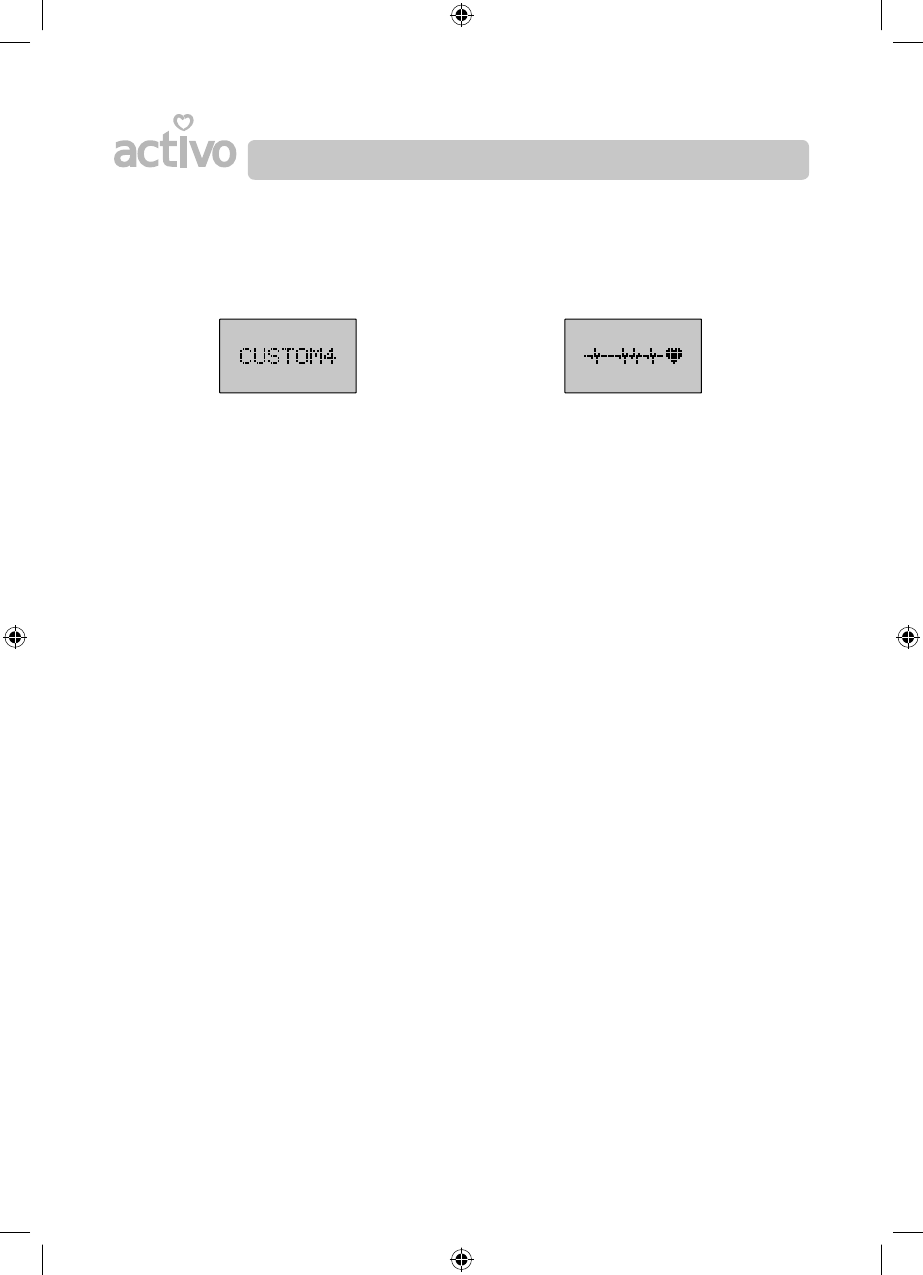

3. Dot matrix display showing your current status (Fig 22)
4. Simulative ECG with measured heart rate (Fig 23)
Fig 22 Fig 23
5. Display Speed (RPM), TIME, DIST., CAL., WATT, PULSE, LEVEL at the same time
in different areas.
6. The console will turn off automatically if there is no operation, speed signal and
pulse signal for 4 minutes. Meanwhile, your current status data will be saved
and the load will be reset to the minimum degree. Once you press any button or
enter a speed signal, the console will turn on automatically.
Activo Spin Pro B2.1 EN.indd 16Activo Spin Pro B2.1 EN.indd 16 8/6/2014 8:47:32 AM8/6/2014 8:47:32 AM

User Manual 17
SPIN PRO B2.1
Product Operation Guide
Buttons:
1. ENTER:
●In “stop” mode(display STOP), press ENTER button to enter into program selection and
setting value which flash in related window.
A: When you choose the program, press Enter to confirm the one you like.
B: When in setting, press ENTER to confirm the value that you would like to preset.
●During the start mode (display START), press ENTER to choose display the speed or
RPM, or switch automatically.
●During any mode, hold down this button for 2 seconds to totally reset the computer.
2. START/STOP:
●Press START/STOP button to start or stop the programs.
●During any mode, hold down this button for 2 seconds to totally reset the computer.
3. UP:
●In the stop mode and the dot matrix character flashes, press button UP (or rotate it
clockwise) to select a program upward. When the related window value flashes, press
button UP (or rotate it anti-clockwise) to increase the value.
●In the start mode (display START), press button up (or rotate it clockwise) to increase the
load so as to add training resistance.
4. DOWN:
●In the stop mode and the dot matrix character flashes, press button DOWN (or rotate it
anti-clockwise) to select a program downward. When the related window value flashes,
press button DOWN (rotate it clockwise) to decrease the value.
●In the start mode (display START), press button DOWN (or rotate it anti-clockwise) to
decrease the load so as to reduce training resistance.
5. PULSE RECOVERY:
●First test your current heart rate and show your heart rate value, press this button to enter
into pulse recovery testing.
●When you are in pulse recovery mode, press this button to exit.
Activo Spin Pro B2.1 EN.indd 17Activo Spin Pro B2.1 EN.indd 17 8/6/2014 8:47:32 AM8/6/2014 8:47:32 AM
