Okin Refined RF2517 User manual

Issue Department：RD Department Date：2019-7-22
Product Manual Author：Jarek
Product Manual of RF2517 Version： 1.0
Page 1 of 7
1/7
Product Manual of RF2517
Design & Change Record
Date Version Issue Description Author Approval
Sign Post
2018-7-22 V1.0 First draft Jarek

Issue Department：RD Department Date：2019-7-22
Product Manual Author：Jarek
Product Manual of RF2517 Version： 1.0
Page 2 of 7
2/7

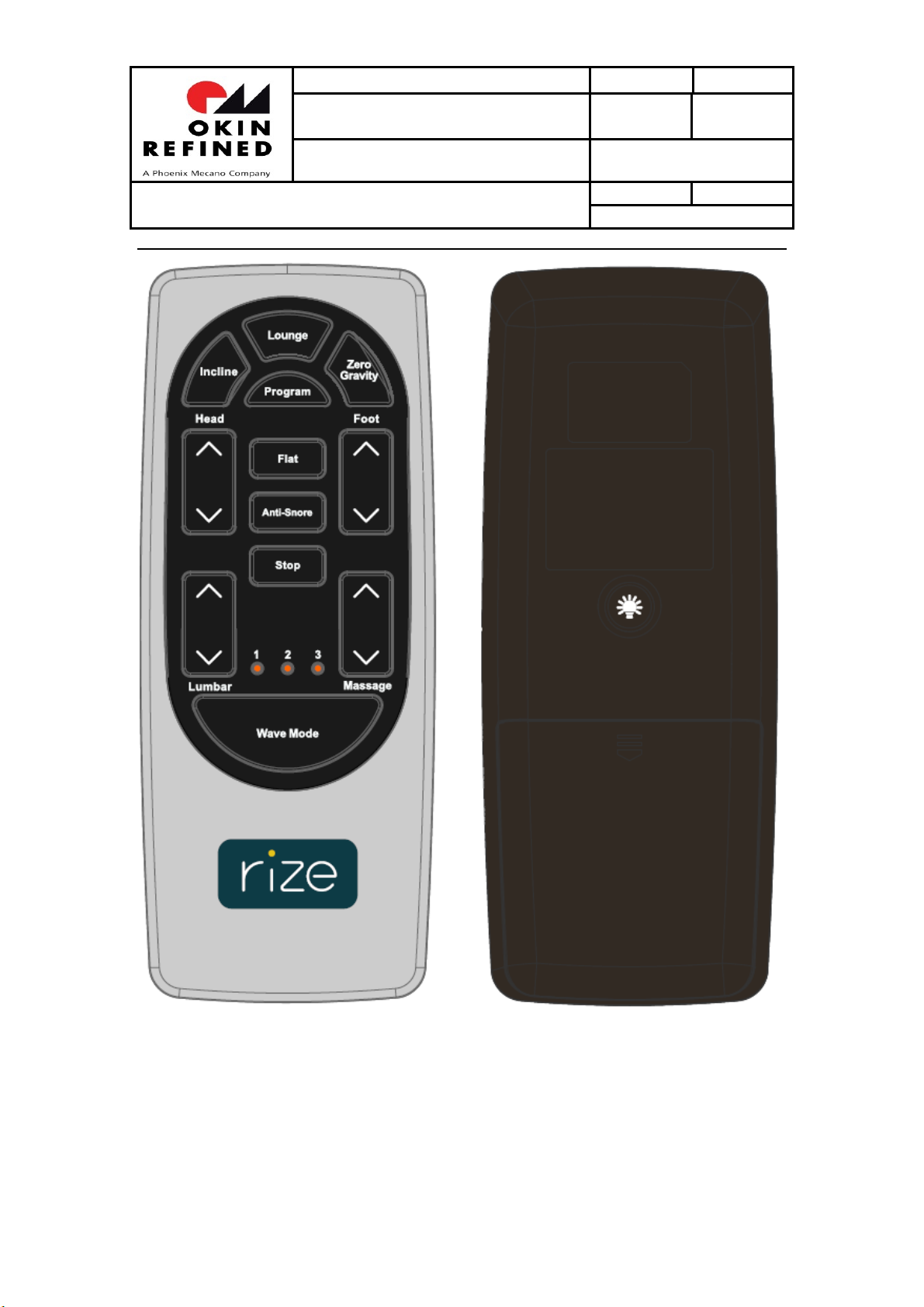

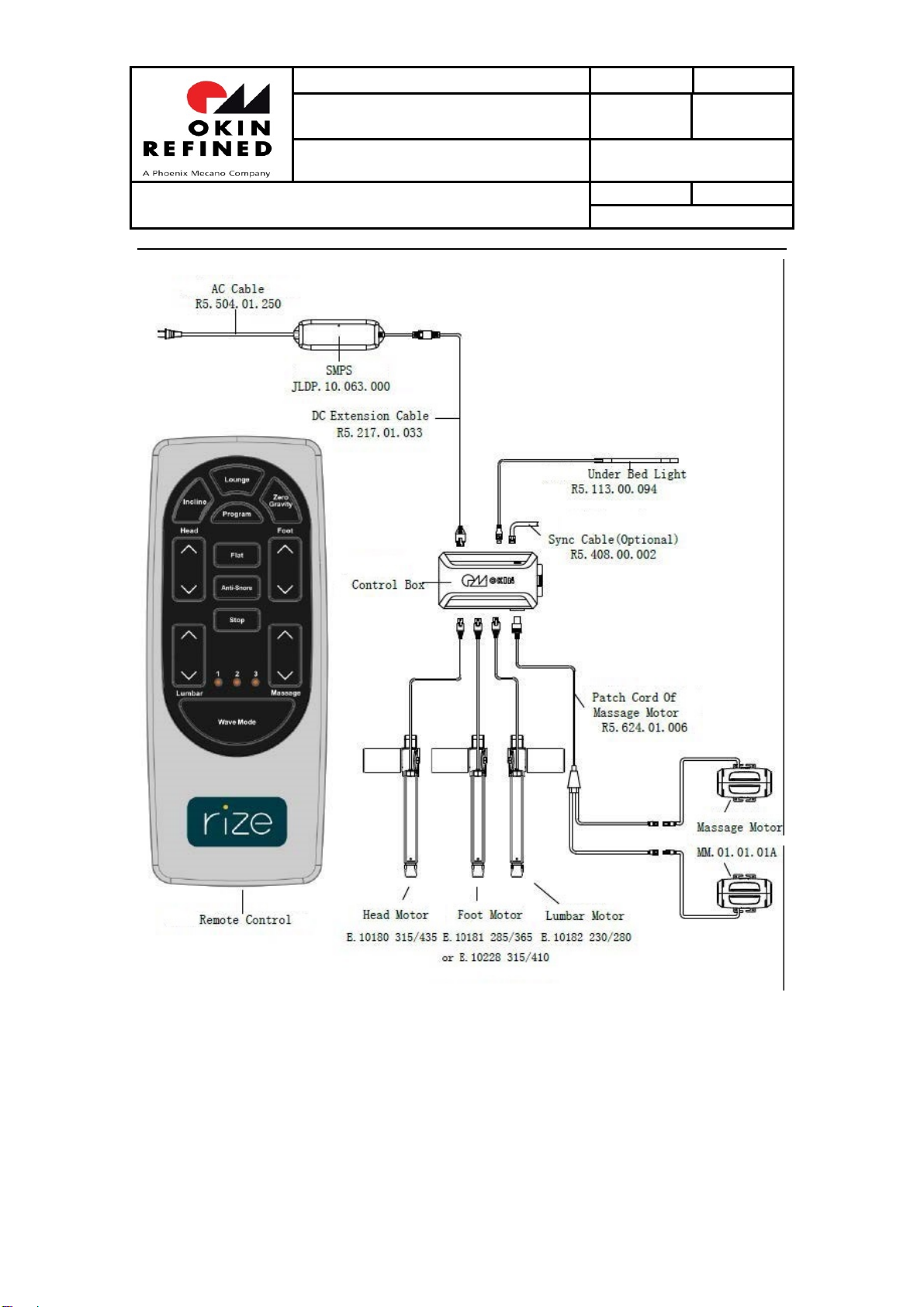

Figure 4 Remote RF2517

Issue Department：RD Department Date：2019-7-22
Product Manual Author：Jarek
Product Manual of RF2517 Version： 1.0
Page 3 of 7
3/7
1. Test Item
2.1Pairing function
1. Power on the control box or double-click the pairing button of control box, the blue light
FCC ID: PCU-RF2517
IC：21319-RF2517
FCC ID: PCU-CB3332
IC：21319-CB3332

Issue Department：RD Department Date：2019-7-22
Product Manual Author：Jarek
Product Manual of RF2517 Version： 1.0
Page 4 of 7
4/7
of the control box turns on, and the control box enters pairing mode;
2. Press and hold the pairing combination button of remote +
(For RF.25.15 series, press and hold flat + stop for 4s, the remote enters pairing status,
the backlight of the remote starts flashing)
Until the backlight of remote is off and the blue light of the control box is off, the pairing is
successful (if the pairing fails, repeat steps 1-2);
2.2Function of Head up& down buttons
Press and hold Head upbutton of remote, telecontrol the control box to execute head
actuator up, stop when released;
Press and hold Head downbutton of remote, telecontrol the control box to execute head
actuator down, stop when released;
2.4Function of foot up& down buttons
Press and hold Foot up button of remote, telecontrol the control box to execute foot
actuator up, stop when released;
Press and hold Footdownbutton of remote, telecontrol the control box to execute foot
actuator down, stop when released;
2.5Function of Lumbar up& down buttons
Press and hold Lumbar up button of remote, telecontrol the control box to execute
Lumbar actuator up, stop when released;
Press and hold Lumbardownbutton of remote, telecontrol the control box to execute
Lumbar actuator down, stop when released;
2.6Function of Flat button
RF2517series Click FLAT button, telecontrol the control box to execute actuators
togo flat, during the movement, stop when click any button;

Issue Department：RD Department Date：2019-7-22
Product Manual Author：Jarek
Product Manual of RF2517 Version： 1.0
Page 5 of 7
5/7
2.7Function of Incline button
Click Incline button, telecontrol the control box to executeactuators to
move to Incline position, during the movement, stop when click any button;
Press and hold Program + Inclinebutton for 2.5s, the backlight of remote flashes, the
control box recored the current position as Incline position;
2.8Function of Lounge button
Click Lounge button, telecontrol the control box to executeactuators to
move to Lounge position, during the movement, stop when click any button;
Press and hold Program + Loungebutton for 2.5s, the backlight of remote flashes, the
control box recored the current position as Lounge position;
2.9FunctionofAnti‐Snorebutton
Click Anti‐Snore button, telecontrol the control box to executeactuators
to move to Anti‐Snore position, during the movement, stop when click any button;
2.10 FunctionofZeroGravitybutton
Click ZeroGravity button, telecontrol the control box to executeactuators to
move to ZeroGravity position, during the movement, stop when click any button;
Press and hold Program + ZeroGravitybutton for 2.5s, the backlight of remote flashes,
the control box recored the current position as ZeroGravity position;
2.11 Test of restore memory position to factory settings
+

Issue Department：RD Department Date：2019-7-22
Product Manual Author：Jarek
Product Manual of RF2517 Version： 1.0
Page 6 of 7
6/7
RF2517series Press and hold Program + Flat for 2.5s, the backlight of remotel
flashes, and the control box restore the memory positions such as
Incline position and ZeroGravity position to the factory setting position;
2.12 Function of under bed light button(the back side)
Clickunderbedlighton/offbutton, telecontrol the control box to switchtheon/off
statusofunderbedlight;
2.13 Function of Program button
Program+memoryposition,pressandholdfor2.5s,setthecurrentpositionasmemory
position;
Program+flat,pressandholdfor2.5s,restorememorypositiontofactorysettings;
2.14 Massage intensity adjustment function
Click Massage Up button, telecontrol the control box to open the massage
intensity to level 3, and then click, it will increase step by step, the maximum is
level 3;
Click Massage down button, telecontrol the control box to open the massage
intensity to level 3, and then click, itwill decrease step by step, the miniimum is
level 2;
Massage
level
Level1Level2Level3Level4Level5Level6Level7Level8
duty
cycle
Nouse30%40%50%60%70%80%90%
2.15 Massage mode adjustment test
Click massage wave button, telecontrol the control box to open the massage to mode
1, the intensity has 4 levels;
then click,it cycles among mode 1-2-3-1; the corresponding indicator will light up;

Issue Department：RD Department Date：2019-7-22
Product Manual Author：Jarek
Product Manual of RF2517 Version： 1.0
Page 7 of 7
7/7
