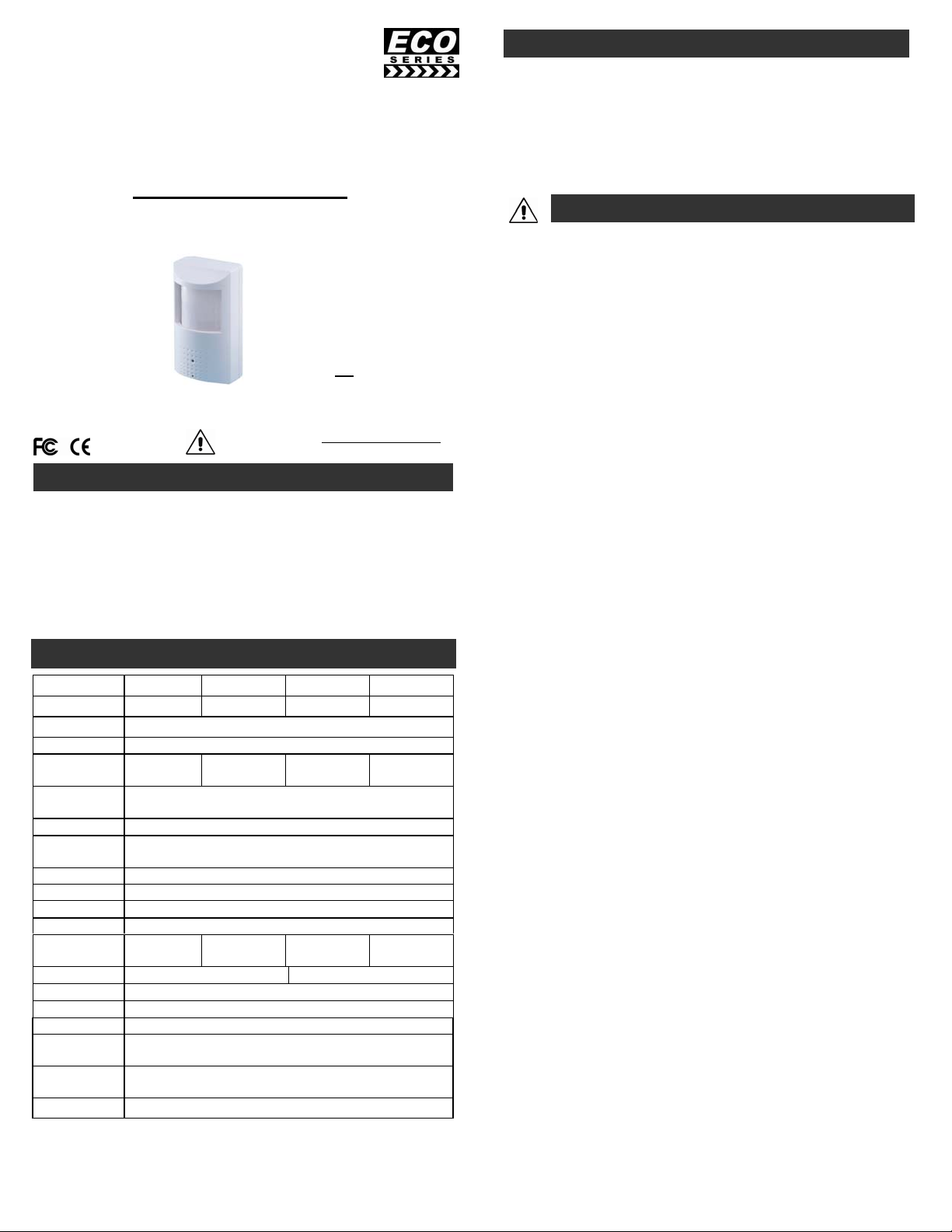

Okina USA ESP-3420 Quick start guide

P = PAL Version REV020110
ESP-3420
ESP-3420A With Audio
ESP-3420P
ESP-3420AP With Audio
Operational Manual
Covert PIR Color Camera
z1/3” Sony Super HAD CCD
z420 TV Lines
z3.7mm Lens
z0.1 Lux @ F1.2
zBuilt-in Microphone only for ESP-3420A
z12V DC
*Specifications are subject to change without notice
zOne (1) ESP-3420/ESP-3420P Camera with power/video
cables or ESP-3420A/ESP-3420AP Camera with
power/video/audio cables
zOne (1) Angle Adjust Wall Mounting Bracket
zOne (1) Operational Manual
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as
this may damage the pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling
could damage the camera.
3. Requires a proper operating environment
This camera is designed for indoor use. The allowable
temperature range for operation of this camera is between
-10°C ~ 50°C and the allowable humidity is 85%RH maximum.
4. Clean the front face to the pick-up device
It is recommended that the pick-up device surface be cleaned
before lens installation or whenever the lens is changed.
Cleaning should be done by using a chamois, a very fine soft
cloth, lens tissue, or cotton tipped applicator and ethanol to
carefully remove any fingerprint or dust.
5. Check the power source voltage
The power source voltage should be within the specified
range. (Camera must meet the specifications). Camera must
be connected to a surge protector at all times.
6. Objects and liquid entry
Never push objects of any kind into this camera as this may
touch dangerous voltage points of short out parts that could
result in a fire or electric shock. Never spill any kind of liquid
on the video product.
7. Servicing
Do not attempt to service this video product by yourself as
opening or removing covers may expose you to dangerous
voltage or other hazards. Refer all service to qualified
servicing personnel.
8. Damage requiring service
Unplug this video product from the wall outlet and refer
service to qualified servicing personnel under the following
conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the
video product.
c. If the video product has been exposed to rain or water.
d. If the video product has been dropped or the cabinet
has been damaged.
e. When the video product exhibits a distinct change in
performance.
9. Please follow your local privacy laws and regulations
when using covert cameras with or without audio
recording in a public setting. Manufacturer and/or
distributor are not responsible for any improper
usage of this camera.
Model ESP-3420 ESP-3420P ESP-3420A ESP-3420AP
TV System NTSC PAL NTSC PAL
Image Sensor 1/3” Sony Super HAD CCD
DSP Sony
Total Pixel
(H x V) 510 x 492 500 x 582 510 x 492 500 x 582
Synchronizin
g
System Internal
Resolution 420 TV Lines
Minimum
Illumination 0.1 Lux @ F1.2
S/N Ratio 50dB
Gain Control Auto
White Balance Auto
Gamma 0.45
Electronic
Shutter 1/60 ~ 1/100,000sec
1/50 ~
1/110,000sec
1/60 ~
1/100,000sec
1/50 ~
1/110,000sec
Audio No Yes
Video Output 1Vp-p composite / 75 Ω
Lens 3.7mm Lens / F2.0
Power Supply 12V DC
Power
Consumption 200mA
Operating
Temperature -10°C ~ +50°C
Dimension 70(W) x 120(H) x 48(D) mm
FEATURES
CAUTION
SPECIFIC
A
TIONS
Please read the Operational Manual
before attempting to use this product.
PACKAGE CON
T
ENTS
This is only a covert camera,
not an alarm device. This
camera has NO PIR function.

P = PAL Version REV020110
Products are covered under warranty for one year from the date of
purchase. The warranty will automatically be voided if any of the
following occurs:
1. Camera sticker is removed
If the camera sticker is removed, we will not be able to confirm
any information regarding when and where the product was
purchased. We have no other way to verify the purchase record
without the serial number on the camera sticker; therefore, it
should not be removed.
2.
Camera is modified in any way
If the camera is scratched, damaged, or modified in a manner
not described in this manual, the warranty will be voided
immediately. It is the customer’s responsibility to keep the
camera in good condition.
3. Video or power cable is cut
The video cable and the power cable should not be tampered
with. Cutting or modifying of the cables will result in termination
of the warranty.
ESP-3420
ESP-3420A
WARRANTY
DIMENSIONS
