Okina USA SIR42-365AIP Quick start guide

Copyright © 2011. All Rights Reserved. 1I-337
http://www.okinausa.com R201110-V07
SIR42-365AI
SIR42-365AIP Operational Manual
42 IR Day & Night Weatherproof Color Camera
with Mechanical IR Cut Filter
FEATURES
•1/3” Ex-View CCD
•650 TV Lines
•42 IR LED
•3.7mm~12.0mm Aspherical Auto Iris Vari-Focal Lens
•Mechanical IR Cut Filter – ICR
•IR Distance up to 120ft / 40m
Selectable IR projecting distance design (Hi/Mid/Low)
•0.3 Lux @ F1.6
•External Function Adjustors
•Cable Management Bracket; IP66 Rating
•IR “on”: 320mA (Low) / 420mA (Mid) / 750mA (High)
IR “off”: 130mA
•12V DC

Copyright © 2011. All Rights Reserved. 2I-337
http://www.okinausa.com R201110-V07
Disposal of Old Electrical & Electronic Equipment (Applicable in the
European Union and other European countries with separate collection
systems).
This symbol on the product or on its packaging indicates that this product shall not be
treated as household waste. Instead it shall be handed over to the applicable collection
point for the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequences for the
environment and human health, which could otherwise be caused by inappropriate waste
handling of this product. The recycling of materials will help to conserve natural resources.
For more detailed information about recycling of this product, please contact your local city
office, your household waste disposal service or the shop where you purchased the
product.
CAUTION
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as this may damage the
pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling could damage the
camera.
3. Requires a proper operating environment
This camera is designed for indoor use. The allowable temperature range for operation
of this camera is between -4°F ~ 122°F / -10°C ~ 50°C.
Please read the Manual before attempting to use this product.

Copyright © 2011. All Rights Reserved. 3I-337
http://www.okinausa.com R201110-V07
4. Clean the front face or lens
It is recommended that the surface be cleaned every 3~6 months. Cleaning should be
done by using a chamois, a very fine soft cloth, lens tissue, or cotton tipped applicator
and ethanol to carefully remove any fingerprint or dust.
5. Check the power source voltage
The power source voltage should be within the specified range. (Camera must meet
the specifications). Camera must be connected to a surge protector at all times.
6. Objects and liquid entry
Never push objects of any kind into this camera as this may touch dangerous voltage
points of short out parts that could result in a fire or electric shock. Never spill any kind
of liquid on the video product.
7. Servicing
Do not attempt to service this video product by yourself as opening or removing covers
may expose you to dangerous voltage or other hazards. Refer all service to qualified
servicing personnel.
8. Damage requiring service
Unplug this video product from the wall outlet and refer service to qualified servicing
personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been exposed to rain or water.
d. If the video product has been dropped or the cabinet has been damaged.
e. When the video product exhibits a distinct change in performance.
PACKAGE CONTENTS
zOne (1) SIR42-365AI/SIR42-365AIP Camera with power/video cable and sunshield
zOne (1) Allen Wrench
zFour (4) Screws
zFour (4) Wall Anchors
zOne (1) Operational Manual
* For any returns, please include all components listed above with original packaging in
Resalable Condition. Absolutely No Returns will be accepted if any component is
missing/damaged.

Copyright © 2011. All Rights Reserved. 4I-337
http://www.okinausa.com R201110-V07
DIMENSIONS & PARTS FUNCTIONS
OSD Button (Menu):
No. Name Function
1 LEFT LEFT
2 UP UP
3 ENTER Get in MENU and ENTER
4 RIGHT RIGHT
5 DOWN DOWN

Copyright © 2011. All Rights Reserved. 5I-337
http://www.okinausa.com R201110-V07
INSTALLATION
1. Install Camera
Use the supplied screws and secure the camera in position.
2. Adjust 2-Axis Bracket
Adjust the bracket while checking the view angle from the monitor. Loosen the
X-Y screws and then adjust the 2-Axis bracket (X-Y Axis) to get the desired
viewing angle.
NOTE: This product is not suitable for horizontal 360° continuous rotation.

Copyright © 2011. All Rights Reserved. 6I-337
http://www.okinausa.com R201110-V07

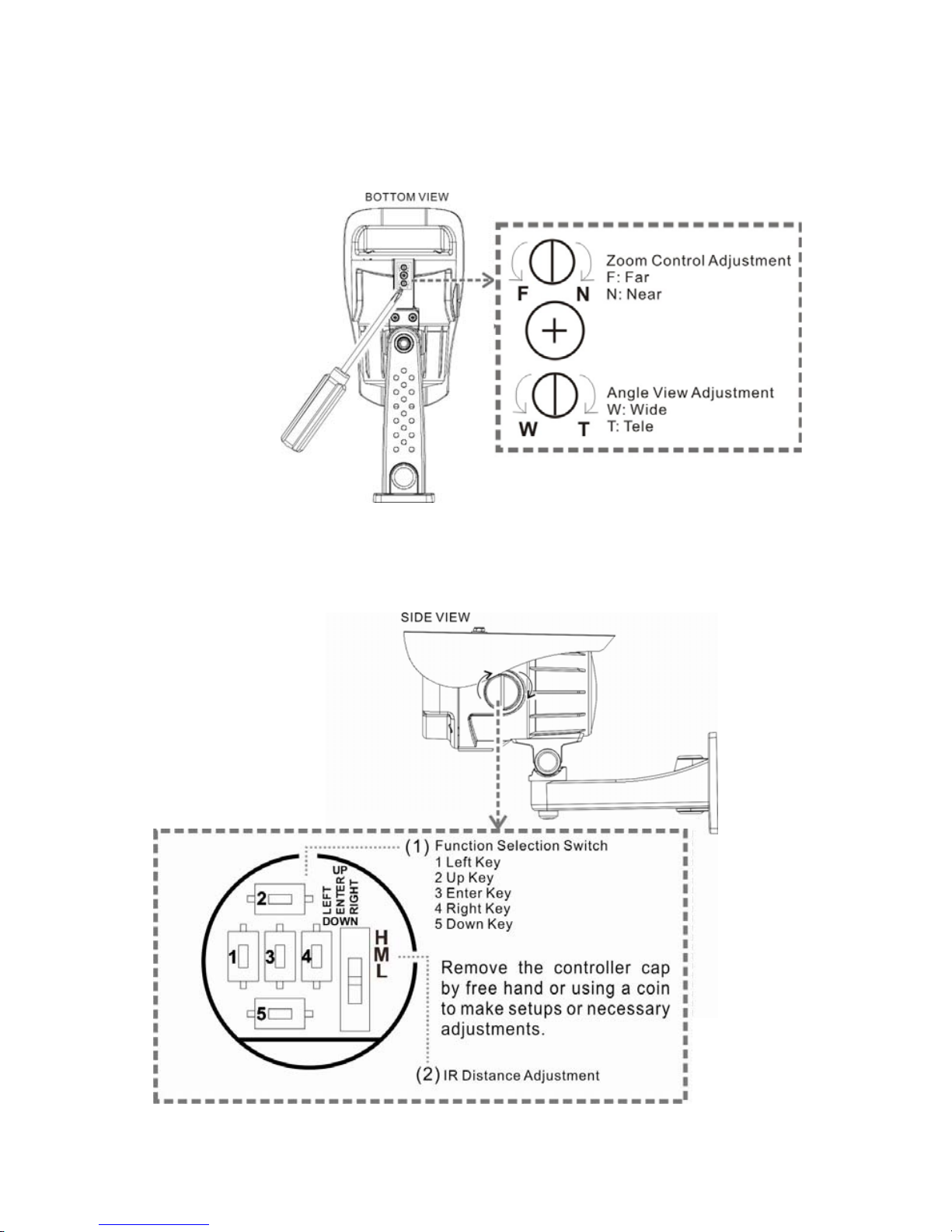

3. Focus Adjustment
Focus adjustment should be done with zoom focus at the same time. Use the
screwdriver to adjust the zoom/ focus ratio (from wide to tele or near to far).
NOTE: Focus adjustment position differs depending on model type.
4. Remove the Controller Cap
With your free hand or a coin remove the controller cap and make
adjustments.
.

Copyright © 2011. All Rights Reserved. 7I-337
http://www.okinausa.com R201110-V07
(1) Function Switch
1 Left Key
2 Up Key
3 Enter Key
4 Right Key
5 Down
(2) IR Distance/Power Consumption Adjustment
Installer may use IR adjustment function according to installation
conditions. It is suggested that the view angle should be checked
before setting up the IR distance. Below is the suggested LED
brightness and IR distance adjustment table:
LED
Brightness IR Distance Focal Length Power Consumption
H (High) 80ft~130ft /
25m~40m 9mm~22mm 750mA
M (Middle) 50ft~80ft /
15m~25m 6mm~12mm 420mA
L (Low) 30ft~50ft /
10m~15m 3.7mm~6mm 320mA
* The suggested LED brightness and IR distance adjustment is for
reference only. Please adjust accordingly in regards to the environment
the camera is mounted. Use less power if there are reflections.

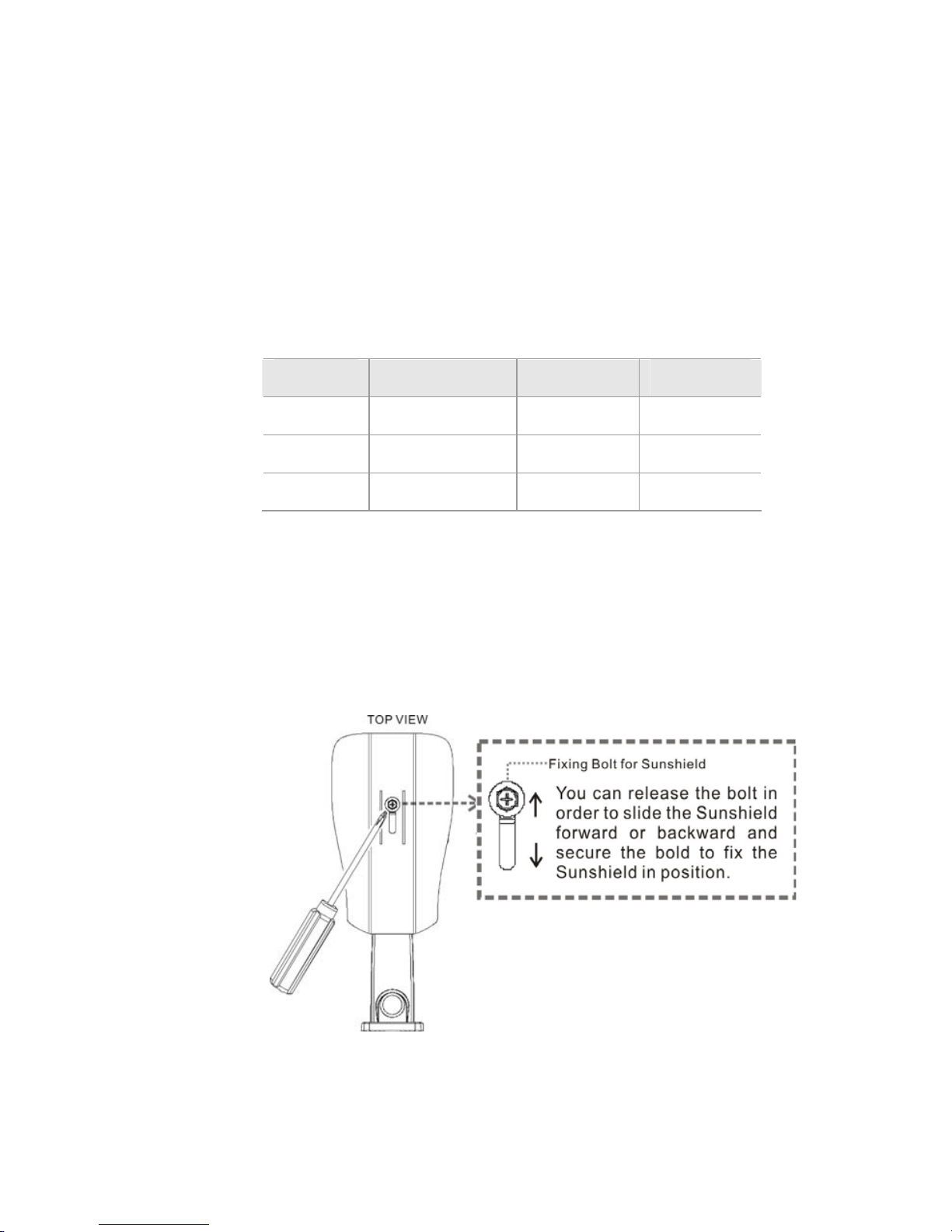

5. Install Sunshield
To install the sunshield, please follow the instruction shown below:

Copyright © 2011. All Rights Reserved. 8I-337
http://www.okinausa.com R201110-V07
6. Connect to Monitor
Connect the Video-out port of the camera to a monitor. As the connecting method
varies depending on the instrument, therefore refer to the manual supplied with the
instrument for more information.
7. Connect the Power
Connect to a 12V DC, 500mA adaptor.

Copyright © 2011. All Rights Reserved. 9I-337
http://www.okinausa.com R201110-V07
OPERATION
1. OSD Framework
(A) Main Menu Display
OSD Setup Menu page 1
LENS
SHUTTER /AGC
WHITE BAL
BACKLIGHT
ATR
NR
PICT ADJUST
NEXTռ
EXITռSAVE ALL
AUTOռ
AUTOռ
ATW
OFF
OFF
ռ
ռ
OSD Setup Menu page 2
PRIVACY
MOTION DET
CAMERA ID
LANGUAGE
CAMERA RESET
BACKռ
EXITռSAVE ALL
OFF
OFF
OFF
ENGLISH
(B) Main Menu Setup
•In order to display the setup menu on the screen, set the menu
command or press the button panel.
•Use UP/ DOWN control buttons to select each item.
•Use LEFT/ RIGHT control buttons to change the data.
•Use MENU control button to ENTER/ EXIT the menu display.

Copyright © 2011. All Rights Reserved. 10 I-337
http://www.okinausa.com R201110-V07
•ռ=ENTER
2. OSD Main Menu Description
LENS: Manual / Auto Selectable
•LENS: MANUAL
Not adjustable.
•LENS: AUTO
TYPE：DC
MODE：AUTO/ OPEN /CLOSE
AUTO
SPEED：000~255
AUTO Camera automatically controls the lens
OPEN Lens fully open
CLOSE Lens fully close
SPEED Lens speed
SHUTTER/AGC: Auto / Manual Selectable
•SHUTTER/AGC: AUTO
HIGH LUMINANCE
MODE：SHUT+AUTO IRIS / AUTO IRIS / SHUT
BRIGHTNESS：000~255
AUTO
LOW LUMINANCE
MODE：AGC / OFF
BRIGHTNESS：x0.25、x0.50、x0.75、x1.00
HIGH LUMINANCE
When LENS is setup to AUTO mode
SHUT+AUTO IRIS: Exposure is controlled by auto electronic shutter
combined with auto iris.

Copyright © 2011. All Rights Reserved. 11 I-337
http://www.okinausa.com R201110-V07
AUTO IRIS: Exposure controlled by auto iris.
When LENS is setup to Manual mode
SHUT: Exposure controlled by electronic shutter.
LOW LUMINANCE
Setup low lux environment, minimum AGC level.
•SHUTTER/AGC: MANUAL
MODE：SHUT+AGC
SHUTTER：1/60, 1/100, 1/250, 1/500, 1/1000,
1/2000, 1/4000, 1/10000
MANUAL
AGC：6.00、12.00、18.00、24.00、30.00、36.00、
42.00、44.80
SHUTTER: Fixed electronic shutter speed.
AGC: Fixed AGC gain control.
WHITE BALANCE:
ATW / PUSH / USER1 / USER2 / ANTI CR / MANUAL / PUSH LOCK
selectable.
•WHITE BAL: ATW
SPEED：000~255
DELAY CNT：000~255
ATW FRAME：x0.50、x1.00、x1.50、x2.00
ATW
ENVIRONMENT：INDOOR、OUTDOOR
SPEED：ATW Speed
DELAY CNT：ATW Delay Time
ATW FRAME：ATW Frame Range Setup
ENVIRONMENT：ATW Environment Range Setup
•WHITE BAL: PUSH
The function will keep detecting the Color Temperature, and then it will
keep saving the parameter to camera.

Copyright © 2011. All Rights Reserved. 12 I-337
http://www.okinausa.com R201110-V07
•WHITE BAL: USER1
B-GAIN：000~255
USER1
R-GAIN：000~255
•WHITE BAL: USER2
B-GAIN：000~255
USER2
R-GAIN：000~255
•WHITE BAL: MANUAL
MANUAL LEVEL：19~54
•WHITE BAL: ANTI CR
The function can reduce the color rolling issue, and it is the same with
CRS (Color Rolling Support) function.
•WHITE BAL: PUSH LOCK
The function will detect the Color Temperature to save into the
camera
BACKLIGHT: BLC / HLC / Off Selectable
•BACKLIGHT: BLC
Enable the function of Back Light Compensation, and the detection
method is the BLC Smart.
•BACKLIGHT: HLC
Enable the function of High Light Compensation.
ATR: On / Off Selectable
•ATR: ON
LUMINANCE LOW、MID、HIGH
CONTRAST LOW、MIDLOW、MID、MIDHIGH、HIGH

Copyright © 2011. All Rights Reserved. 13 I-337
http://www.okinausa.com R201110-V07
LUMINANCE：Set the extent of the luminance compression
CONTRAST：Set the extent of the contrast enhancement.
NOTE: If you enable the ATR funciton, please avoid to enable the
BACKLIGHT function in the same time.
NR: 
NR MODE Y/C、Y、C、OFF
Y LEVEL 000~015
C LEVEL 000~015
NR MODE: Set the DNR mode of Y/C, Y and C.
Y LEVEL: Set the Y filter strength.
C LEVEL: Set the “C” filter strength.
NOTE: The Y/C mode is the automanic DNR mode.
PICTURE ADJUST
MIRROR ON / OFF
BRIGHTNESS 000~255
CONTRAST 000~255
SHARPNESS 000~255
HUE 000~255
GAIN 000~255
Adjust all camera parameters here.
NEXT: 
Move to MAIN MENU, page 2
EXIT: 
Exit OSD to choose the list.

Copyright © 2011. All Rights Reserved. 14 I-337
http://www.okinausa.com R201110-V07
SAVE ALL
When you change the OSD menu settings, SAVE ALL before leaving the
OSD. Press ENTER key to change the memory settings for the OSD.
PRIVACY: On / Off Selectable
•PRIVACY: ON
AREA SEL Max. 8
TOP 000~244 (NTSC) / 000~288(PAL)
BOTTOM 000~244 (NTSC) / 000~288(PAL)
LEFT 560TVL：000~378 (NTSC)、000~370 (PAL)
650TVL：000~474 (NTSC)、000~468 (PAL)
RIGHT 560TVL：000~378 (NTSC)、000~370 (PAL)
650TVL：000~474 (NTSC)、000~468 (PAL)
COLOR 1~8
TRANSP 0.00 / 0.50 / 0.75 / 1.00
MOSAIC ON / OFF
AREA SEL: Select the mask frame to be adjusted.
NOTE: When the MONITOR AREA has been set to ON by the
MOTION DET setting, only 4 PRIVACY AREA SEL are selectable (1 / 4,
2 / 4, 3 / 4, 4 / 4).
TOP: Set the top side of the mask frame selected
BOTTOM: Set the bottom side of the mask frame selected
LEFT: Set the left side of the mask frame selected
RIGHT: Set the right side of the mask frame selected
COLOR: Set the colors of the mask frames.
TRANSP: Set the transparency ratio of the mask frames.
MOSAIC: Set the mask frame mosaic function to ON or OFF.

Copyright © 2011. All Rights Reserved. 15 I-337
http://www.okinausa.com R201110-V07
MOTION: On / Off Selectable
•MOTION DET: ON
DETECT SENSE 000~127
BLOCK DISP ON / OFF / ENABLE
MONITOR AREA ON / OFF
AREA SEL 1~4
TOP 000~244 (NTSC) / 000~288(PAL)
BOTTOM 000~244 (NTSC) / 000~288(PAL)
LEFT
540TVL：000~378 (NTSC)、000~370 (PAL)
650TVL：000~474 (NTSC)、000~468 (PAL)
RIGHT
540TVL：000~378 (NTSC)、000~370 (PAL)
650TVL：000~474 (NTSC)、000~468 (PAL)
DETECT SENSE: Set the motion detection sensitivity.
BLOCK DISP: Control the ON/ OFF status of the motion
detection block display.
MONITOR AREA: Set whether to use the monitoring frames.
AREA SEL: Select the monitoring frame to be set.
TOP: Set the top side of the monitoring frame selected
BOTTOM: Set the bottom side of the monitoring frame
selected
LEFT: Set the left side of the monitoring frame selected
RIGHT: Set the right side of the monitoring frame selected

Copyright © 2011. All Rights Reserved. 16 I-337
http://www.okinausa.com R201110-V07

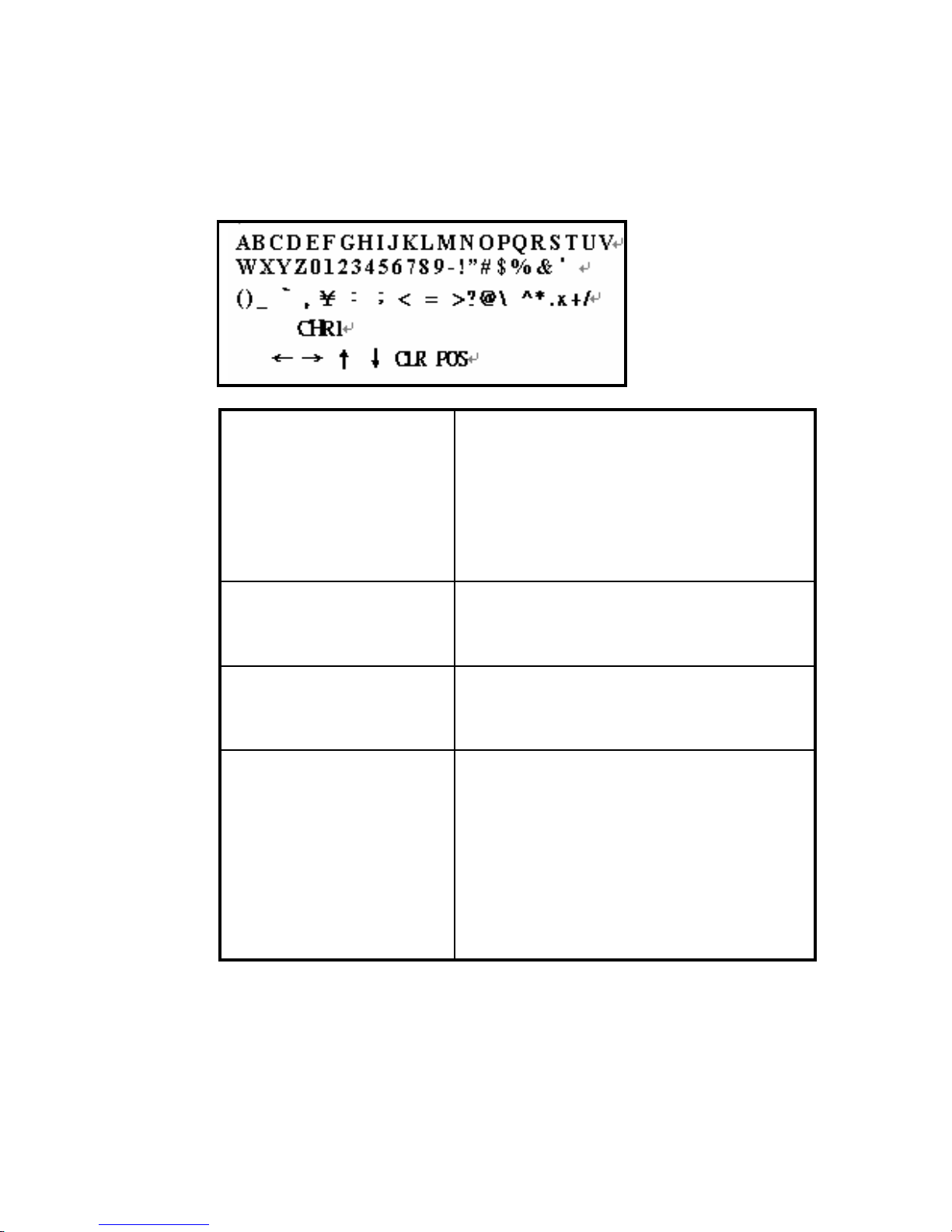

CAMERA ID: On / Off Selectable
AB C D E F G H I J K
LM N O P Q R S T UV
WX YZ 0 1 2 3 4 5 6 7
8 9 - ! ” # $ % & ’
( ) _  , ￥：；<
= > ? @ \ ^ * . x + /
Each User Font
←→↑↓
The camera ID cursor moves in the direction of the
arrow when the Enter operation input is performed
from the status in which ←, →, ↑or ↓has been
selected using the character selection cursor.
CLR
The character selected by the camera ID cursor is
cleared when the Enter operation input is
performed from the status in which CLR has been
selected using the character selection cursor.
POS
The display switches to the camera ID display
position setting screen when the Enter operation
input is performed from the status in which POS
has been selected using the character selection
cursor. On the camera ID display position setting
screen, the camera ID display position is changed
in real time in response to the left, right, up or down
operation input. When the Enter operation input is
performed, the display position is entered, and the
display returns to the camera ID setting screen.
LANGUAGE
There are 8 kind of language: English / Japanese / German / French /
Russian / Portuguese / Spanish / Simplified Chinese selectable.
CAMERA RESET

Copyright © 2011. All Rights Reserved. 17 I-337
http://www.okinausa.com R201110-V07
Reset Factory default setup.
BACK
Return to MAIN MENU, page1.
SPECIFICATIONS
Model SIR42-365AI SIR42-365AIP
System NTSC PAL
Image Sensor 1/3” Ex-View CCD
DSP Sony
Total Pixel 976(H) x 494(V) 976(H) x 582 (V)
Synchronizing
System Internal
Resolution 650 TV Lines
Minimum Illumination 0.3 Lux @ F2.0 / 0 Lux @ IR “on”
S/N Ratio More than 48dB (AGC Off)
Adaptive Tone
Reduction (ATR) On / Off
Digital Noise
Reduction (DNR) On / Off
Flickerless On / Off
Auto Gain Control Auto / Manual
White Balance ATW / PUSH / USER1 / USER 2 / ANTI CR / Manual / PUSH LOCK
Back Light
Compensation On / Off
High Light
Compensation On / Off
Gamma 0.45
Electronic Shutter
Auto: 1/60~1/100,000s
Manual: 1/60, 1/100, 1/250,
1/500, 1/1000, 1/2000,
1/4000, 1/10000
Auto: 1/50~1/110,000s
Manual: 1/60, 1/100, 1/250,
1/500, 1/1000, 1/2000, 1/4000,
1/10000
Video Output 1Vp-p composite / 75 Ω
Mechanical IR Cut
Filter - ICR Yes
Lens 3.7mm~12.0mm Aspherical Vari-Focal Lens
IR LED 42 IR LED
IR Wavelength 850 nm
IR Distance 120ft / 40m Low, Mid, High Selectable
Privacy Maximum 8 Areas
Motion Detect 4 Areas
Camera ID Up to 52 Characters
Mirror On / Off
Positive / Negative On / Off
IP Rating IP66
Power Supply 12V DC + 10%
IR
ON 320mA (Low) / 420mA (Mid) / 750mA (High)
Power
Consumption IR
Off 130mA

Copyright © 2011. All Rights Reserved. 18 I-337
http://www.okinausa.com R201110-V07
Operating
Temperature 14°F ~ 122°F / -10°C ~ +50°C
Dimension 10.51(L) x 4.29(W) x 6.77(H) inches / 267(L) x 109(W) x 172(H) mm
with sunshield
* Specifications are subject to change without notice.
LIMITED WARRANTY
OKINA USA products are covered under warranty for one (1) year from the date of
purchase. The warranty will automatically be voided if any of the following occurs:
1. Camera sticker is removed
If the camera sticker is removed, we will not be able to confirm any information
regarding when and where the product was purchased. We have no other way to verify
the purchase record without the serial number on the camera sticker; therefore, it
should not be removed.
2. Camera is modified in any way
If the camera is scratched, damaged, or modified in a manner not described in this
manual, the warranty will be voided immediately. It is the customer’s responsibility to
keep the camera in good condition.
3. Video or power cable is cut
The video cable and the power cable should not be tampered with. Cutting or
modifying of the cables will result in termination of the warranty.
