Okina EIR48X-42VF Quick start guide

Copyright © 2009. All Rights Reserved. 1 EIR48X-42VF_I-303
REV033010 EIR56x-42vf515_I-304
Operational Manual
IR Day & Night Weatherproof Color Camera
with 3-AXIS Cable Management Bracket
EIR48X-42VF / EIR48X-42VFP
z1/3” Sony CCD
z420 TV Lines
z48 IR LED
zAluminum Shell
z4.0mm~9.0mm Vari-Focal Lens
z0 Lux @ IR “on”
zIR Distance 30~130ft / 10~40m
zWeatherproof IP65 Rating
zPower Polarity Reverse Protection
z110mA @ IR LED “off” / 430mA @ IR LED “on”
z12V DC
EIR56X-42VF515 / EIR56X-42VF515P
z1/3” Sony CCD
z420 TV Lines
z56 IR LED
zAluminum Shell
z5.0mm~15.0mm Vari-Focal Lens
z0 Lux @ IR “on”
zIR Distance 130~160ft / 40~50m
zWeatherproof IP65 Rating
zPower Polarity Reverse Protection
z120mA @ IR LED “off” / 525mA @ IR LED “on”
z12V DC
(1) Sunshield Cover
(2) Vari-Focal Lens Zoom Adjustment
(3) Lens Focus Adjustment
(4) Power In -12V DC Only
(5) BNC Video Out
(6) 3-AXIS Cable Management Bracket
EIR48X EIR56X
FEATURES
Please read the Operational Manual
before attempting to use this product.
PARTS & FUNCIONS
EIR48X-42VF
EIR48X-42VFP
EIR56X-42VF515
EIR56X-42VF515P
DIMENSIONS
48 IR LED 56 IR LED

Copyright © 2009. All Rights Reserved. 2 EIR48X-42VF_I-303
REV033010 EIR56x-42vf515_I-304

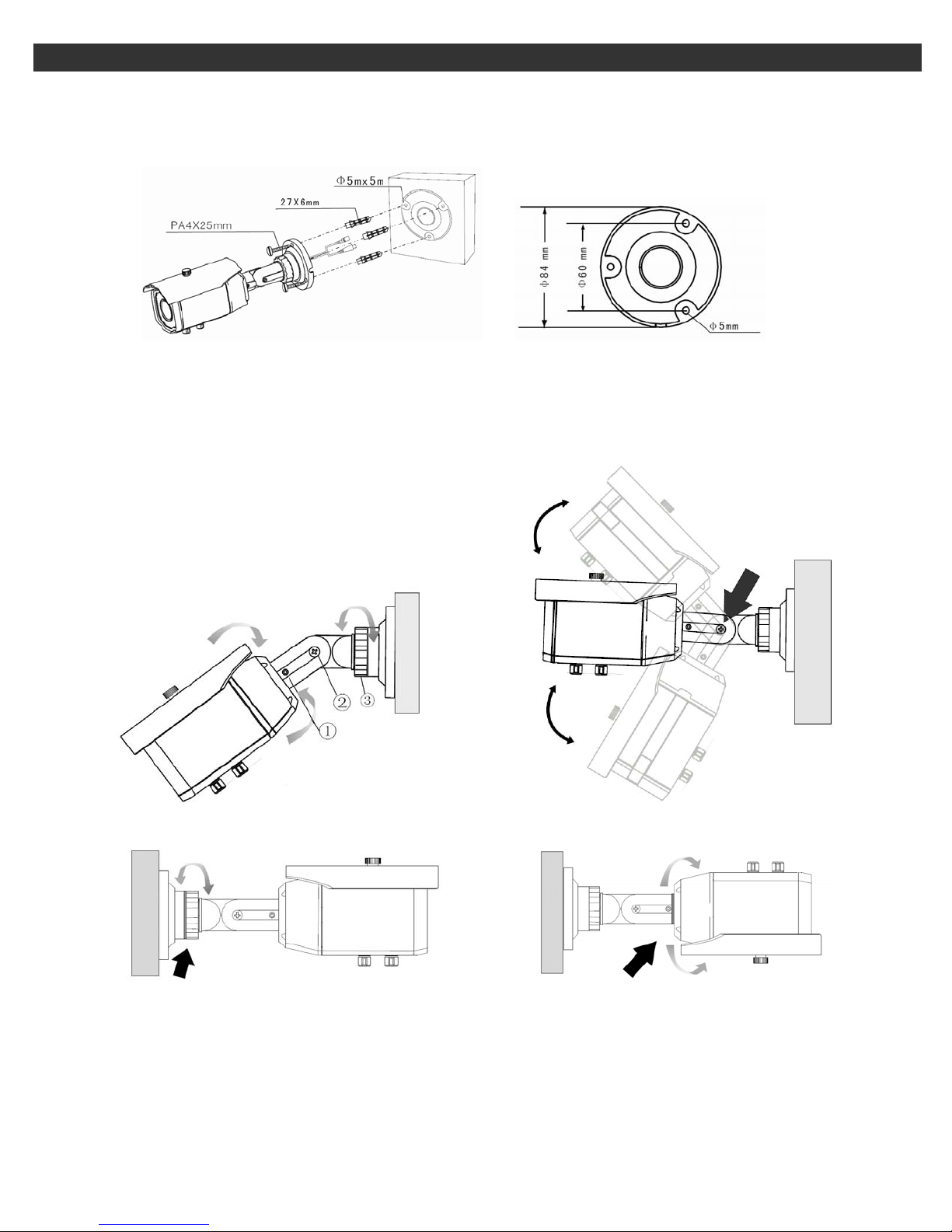

Base Mount Instructions
(1) Select and draw a reference position on the ceiling using the mounting sticker template.
(2) Drill one hole on the position selected, and insert the plastic anchor into the hole.
(3) Put cables through bracket hole and leave some line long enough to connect.
(4) Fix the bracket on the ceiling with 3pcs PA4x15 screws (EIR48X) / 4pcs PA6x15 screws (EIR56X).
Adjustments
To turn the camera 360° and adjust picture’s horizontal position, adjust screw (1). To turn bracket 360°, adjust screw (3). To move the camera 90° vertically, adjust
screw (2) and screw (3).
FCC NOTICE:
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates radio frequency,
and if not installed and used in accordance with the instruction manual, may cause harmful interference.
INSTALLATION INSTRUCTIONS

Copyright © 2009. All Rights Reserved. 3 EIR48X-42VF_I-303
REV033010 EIR56x-42vf515_I-304
Model EIR48X-42VF EIR48X-42VFP EIR56X-42VF515 EIR56X-42VF515P
TV System NTSC PAL NTSC PAL
Image Sensor 1/3” Sony CCD & DSP
Total Pixels 510(H) × 492(V) 500(H) × 582(V) 510(H) × 492(V) 500(H) × 582(V)
Video Output 1 Vp-p 75 Ω
Resolution 420 TV Lines
Minimum Illumination 0 Lux @ IR “on”
S/N Ratio More than 52dB
Electronic Shutter Automatic
Synchronization Internal
Gamma Control 0.45
Gain Control Automatic
White Balance Automatic
Back Light Compensation Automatic
IR LED 48 IR LED 56 IR LED
IR Wavelength 850nm
IR LED Life Average 20,000 hours
IR Working Distance 30~130ft / 10~40m 130~160ft / 40~50m
Lens 4.0mm~9.0mm Vari-Focal Lens 5.0mm~15.0mm Vari-Focal Lens
IP Rating Weatherproof IP65
Power Supply 12V DC
Power Consumption 110mA @ IR LED “off” / 430mA @ IR LED “on” 120mA @ IR “off” / 525mA @ IR “on”
Operation Temperature -4ºF ~ +122ºF / -20ºC ~ +50ºC
Dimension 9.25”(L) x 3.375”(W) x 3.75”(H)
234.9(L) x 85.7(W) x 95.2(H) mm
(with sunshield cover & bracket)
11.0”(L) x 3.5”(W) x 4.0”(H)
279.3(L) x 88.8(W) x 101.5(H) mm
(with sunshield cover & bracket)
Weight 1.2 lbs / 544g 1.6 lbs / 725g
* Specifications are subject to change without notice
zOne (1) EIR48X-42VF/EIR48X-42VFP Camera with
power/video cable
zFour (3) Mounting Screws
zFour (3) Wall Anchors
zOne (1) Allen Wrench
zOne (1) Mounting Sticker Template
zOne (1) Operational Manual
1. Never point the camera toward the sun
Do not expose the lens directly to the sun or to strong light as this may damage the pick-up device.
2. Handle this camera with care
Avoid any shock or bumping of the camera. Improper handling could damage the camera.
3. Requires a proper operating environment
This camera is designed for outdoor or indoor use. The allowable temperature range for operation of this camera is between
-4°F ~ +122°F / -20°C ~ +50°C and the allowable humidity is 85%RH maximum.
4. Clean the front glass every 3~6 months
It is recommended that the glass be cleaned every 3~6 months. Cleaning should be done by using a chamois, a very fine soft cloth, lens tissue, or cotton tipped
applicator and ethanol to carefully remove any fingerprint or dust.
5. Check the power source voltage
The power source voltage should be within the specified range. (Camera must meet the specifications). Camera must be connected to a surge protector at all
times.
6. Objects and liquid entry
Never push objects of any kind into this camera as this may touch dangerous voltage points of short out parts that could result in a fire or electric shock. Never
spill any kind of liquid on the video product.
7. Servicing
Do not attempt to service this video product by yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all service
to qualified servicing personnel.
SPECIFICATIONS
CAUTIONS
PACKAGE CONTENTS
zOne (1) EIR56X-42VF515/EIR56X-42VF515P Camera with
power/video cable
zFour (4) Mounting Screws
zFour (4) Wall Anchors
zOne (1) Allen Wrench
zOne (1) Mounting Sticker Template
zOne (1) Operational Manual

Copyright © 2009. All Rights Reserved. 4 EIR48X-42VF_I-303
REV033010 EIR56x-42vf515_I-304
8. Damage requiring service
Unplug this video product from the wall outlet and refer service to qualified servicing personnel under the following conditions:
a. When the power supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the video product.
c. If the video product has been dropped or the cabinet has been damaged.
d. When the video product exhibits a distinct change in performance.
ADDITIONAL CAUTIONS:
zBe careful not to shake the camera.
zPlease avoid places where direct sunlight may shine on the camera.
zPlease avoid places where there are frequent vibrations or shocks.
zPlease avoid places where the temperature exceeds 122°F / 50oC or temperatures lower than 104°F / -10oC.
zPlease avoid storing and operating the camera in water.
zPlease avoid water spills on the video connectors and the DC jack connectors.
zMake sure the power input is correct.
This product is covered under warranty for one year from the date of purchase. The warranty will automatically be voided if any of the following occurs:
1.
Camera sticker is removed
If the camera sticker is removed, we will not be able to confirm any information regarding when and where the product was purchased. We have no other way to
verify the purchase record without the serial number on the camera sticker; therefore, it should not be removed.
2.
Camera is modified in any way
If the camera is scratched, damaged, or modified in a manner not described in this manual, the warranty will be voided immediately. It is the customer’s
responsibility to keep the camera in good condition.
3.
Video or power cable is cut
The video cable and the power cable should not be tampered with. Cutting or modifying of the cables will result in termination of the warranty.
Other Considerations for Trouble Shooting Power:
1. Wire Quality: Copper or copper over steel
2. Wire Gauge: 18 AWG or smaller
3. Wire Type: Stranded or solid
4. Wire Length: 250ft or more
5. Power Consumption by the camera: In ampere (A) or milliampere (mA)
6. Wire Quality = Longer distance = Good voltage = Less current draw (ampere) from power supply.
7. Voltage and current are closely related to how the camera operates. The lower the voltage, the more current is needed. The higher the voltage, the lower the
current is needed.
VOLTAGE
*NOTE: The wire gauge is also an important factor in supplied voltage.
CURRENT
WARRANTY
TROUBLE SHOOTING: MEASURING SUPPLIED VOLTAGE WITH METER
TROUBLE SHOOTING: MEASURING SUPPLIED CURRENT WITH METER
To get the true current draw, you must measure from the camera power side after the
camera is connected to the camera power.
