Oliver 1308-N Operation instructions

1308S20000CV1
Walker, Michigan, U.S.A. 49534-7564
USER’S OPERATING AND INSTRUCTION MANUAL
MODEL 1308-N & 1308-C
HEAT SEALER

1308S20012 0-1
INDEX
Section Description Document No. Page No.
DESCRIPTION/SPECIFICATIONS----------------------------1308S20013 ------------------------- 1-1
Description------------------------------------------------------------------------------------------------------- 1-1
Specifications------------------------------------------------------------------------------------------------------ 1-1
GENERAL SAFETY INSTRUCTIONS-------------------------1308S20014-------------------------- 2-1
Lockout-Tag out-------------------------------------------------------------------------------------------- 2-1
SETUP AND OPERATION GUIDE-----------------------------1308S20036--------------- 4-1 TO 4-6
OPERATING PROCEDURES-----------------------------------1308S20017--------------------------- 5-1
Adjustment and Quality ---------------------------------------------------------------------------------- 5-2
CLEANING AND MAINTENANCE-------------------1308S20019------------------------- 7-1
Cleaning and Maintenance Continued ------------------------------------------------------ 7-2 to 7-3
TROUBLE SHOOTING---------------------------------------------1308S20020---------------------------8-1
WIRING DIAGRAM--------------------------------------------------1308S20021---------------------------9-1
1308 HEAT SEALER---------------------------------------------1308S20022--------------------------10-1
1308 Heat Sealer Parts Lists------------------------------------------------------------------- 10-2 TO 10-4
1308 Tray Carrier and Parts List--------------------------------------------------------------------------- 10-5
1308 Electrical Box Parts Lists----------------------------------------------------------------------------- 10-6
WARRANTY ------------------------------------------------------- GEN 050816
WARRANTY PROCEDURE------------------------------------ GEN 050817
RETURNED PARTS POLICY --------------------------------- GEN 050818
REV. 9/6/2022
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]

GEN020319
THIS PAGE WAS INTENTIONALLY
LEFT BLANK.

1308S20013 1-1
DESCRIPTION/SPECIFICATIONS
Description
The Oliver Model 1308 Heat Sealer is designed and manufactured to ensure a user
friendly operation of producing film lidded trays with a cost effective approach.
The manually operated machine operates with either a 120 or 230 V.A.C. outlet. The
machine was designed to be compact to limit the amount of table space needed to
operate.

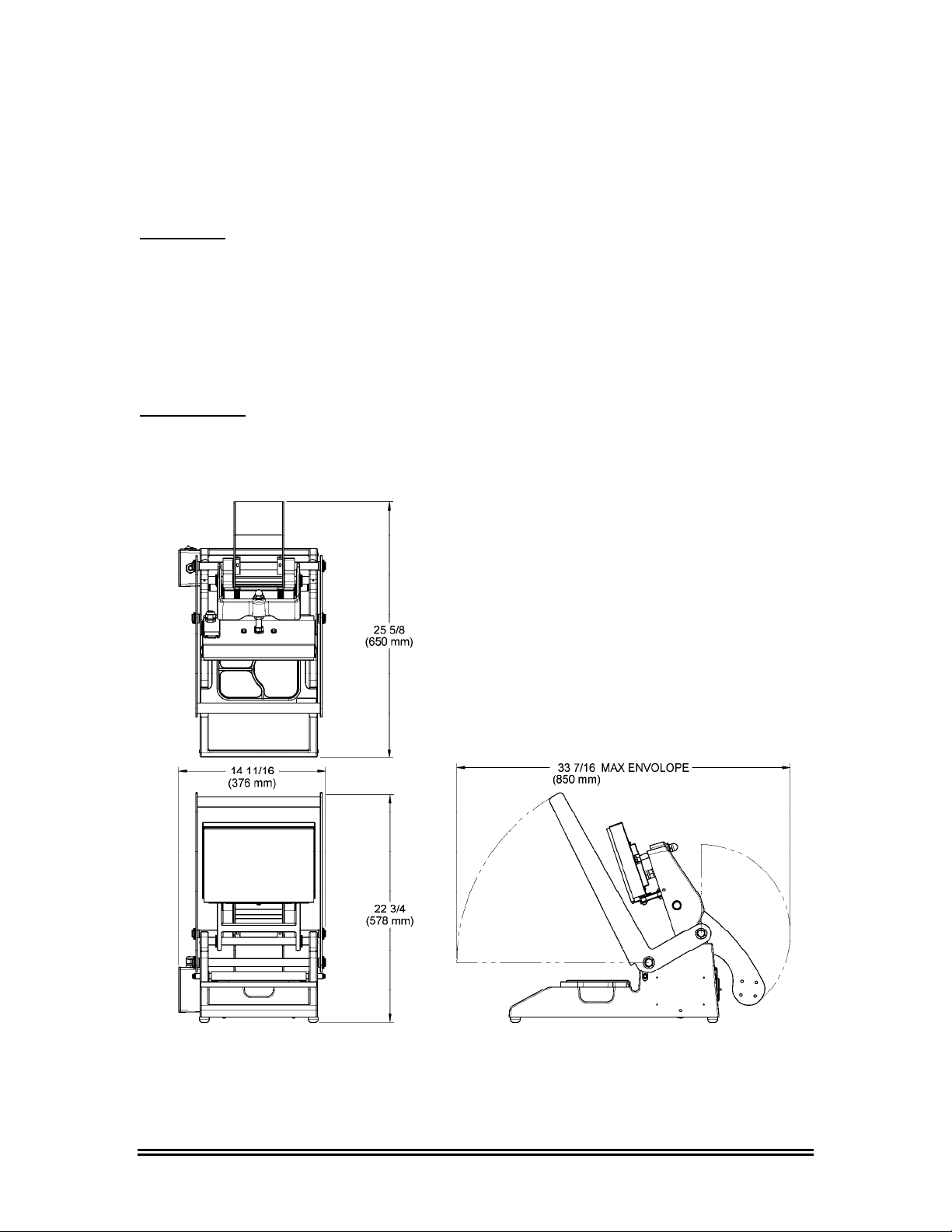

Specifications
Space Requirements, (Shown with standard options)
Model 1308-C & 1308-N (All dimensions are shown approximate)
Shipping Weight – 65 lbs (30 Kg) (approximate)
Net Weight – 60 lbs (27 Kg) (approximate)
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]

GEN020319
THIS PAGE WAS INTENTIONALLY
LEFT BLANK.

1308S20014 2-1
GENERAL SAFETY INSTRUCTIONS
WARNING
IT IS ESSENTIAL THAT ALL OPERATORS AND MAINTENANCE PERSONNEL
OBSERVE THE FOLLOWING SAFETY PRECAUTIONS. IMPROPER
INSTALLATION, MAINTENANCE, OR OPERATION OF THIS EQUIPMENT
MAY CAUSE SERIOUS INJURY.
1. Read this manual before attempting to operate your heat sealer. Never allow an
untrained person to operate or service this unit.
2. Observe all caution and warning labels affixed to the machine.
3. Always unplug the machine before cleaning or servicing.
4. Do not submerge in water. Do not hose down.
5. Use original replacement parts.
6. Wear proper, personal, protective, safety equipment if necessary.
7. Keep hands away from moving parts of the machine while it is operating.
8. In addition to these general safety instructions, please follow the more specific safety
instructions provided throughout the rest of this operating and instruction manual.
WARNING
TO PROVIDE CONTINUED PROTECTION FROM ELECTRICAL SHOCK, CONNECT
TO PROPERLY GROUNDED OUTLETS ONLY.
LOCKOUT-TAGOUT
It is very important that the unit should be free of any unexpected energization, or be
able to release hazardous energy during service or maintenance activities. Therefore,
for models sold in AU/UK, always switch the machine off before unplugging the power
cord from BOTH the unit and the wall. For models without a switch, be sure to unplug
power cord from wall outlet before servicing.
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]

Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]
4-1
1308 SETUP AND OPERATION GUIDE
Remove the 1308
Unit. TWO PERSON
LIFT REQUIRED.
Shipping carton 

Open carton as shown
Remove parts and packing
material
Place the 1308 Unit on a table
or cart. Snip the plastic ties on
the electrical cord.
Install counterweight *Step 1* Install counterweight *Step 2*
Install counterweight *Step 3* Install counterweight *Step 4*

Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]
4-2
Locate the two counterweight
holders and plastic knobs
Install holder Install plastic knob and tighten
Install holder and knob
on other side Install holder Install plastic knob and tighten
Installed counterweight shown

Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]
4-3
Remove zip-ties securing
handle to base and lift
handle
Handle shown in the
upright position
Plug power cord into
appropriate voltage wall
socket
At this time, models without
a switch have a red light on
the electrical box that will
illuminate, indicating the
machine is powered on
Install tray carrier using the
locating pins in the tray
carrier and holes in the frame
as shown
Install film roll in back of
unit
Pull the film from the top
of the roll towards the front
of the unit
Placing it between the two
white guide rollers
Pull the film fromthe top of
the roll
Lift upthe black film pinch
roller and slidethe film
under it as shown
Place a tray in the tray
carrier
Pull the film forward ¼”
beyond edge of tray
For models with a switch,
install power cord plug as
shown
For models with a switch, press
the red light on the switch to power
on the machine. The red light will
illuminate, indicating the machine
is powered on
Allow 15 minutes for the heater
platen to heat up to temperature

Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]
4-4
Lift handle t o the
upright position
Remove the sealed tray
1308 shown in the upright
position ready to seal another tray
Pull the handle down all the
way to this position and hold
down for 2 seconds
The film is cut at this time
Using both hands pull
the handle down

1308S20016 4-5
BASIC MACHINE COMPONENTS AND SET UP
Before proceeding further, take a moment to familiarize yourself with the identification of
the machine components as shown in the illustration below.
SET UP
1. Carefully remove the Model 1308 from the box. **TWO PERSON LIFT
REQUIRED**
2. Check to make sure the order is complete, and it has not been damaged during
shipment.
3. Place the unit in a suitable location which provides an adequate working space.
The location must be sturdy, level, and capable of holding 60lbs. per machine.
4. Remove all packaging materials and shipping restraints such as plastic ties and
tape.
5. Install counterweight per instructions on pages 4-1 and 4-2.
6. Raise the handle to full extension.
7. Place film roll in designated area towards the rear of the unit.
8. Thread film through the film pinch roller as shown below.
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]

1308S20016 4-6
SET UP CONTIUED
NOTE:
FILM SUPPLIED BY OLIVER PRODUCTS COMPANY IS WOUND WITH THE
ADHEASIVE SIDE IN. FEED FILM FROM THE TOP OF THE ROLL AS SHOWN.
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]

1308S20017 5-1
OPERATING PROCEDURES
1. CAUTION – To provide continued protection against risk of electric shock,
connect only to properly grounded outlets only. Avoid the use of extension
cords.
NOTE: It should take approximately 15 minutes for the machine to warm up to
operating temperature.
2. Place tray carrier in its designated area with the dowel pins facing down
3. Place filled tray in tray carrier. Make sure the food in the tray is not higher than
the flange of the tray
4. Grasp the corners of the film and pull it straight across the tray going a ¼ inch
past the flange of the tray
5. Pull handle down with both hands until it stops. Hold the handle down for
approximately 2 seconds.
6. Lift the handle to its upright position.
7. Remove tray from tray carrier.
8. Repeat steps 4 thru 8
CAUTION
IT IS NOT RECOMMENDED TO LEAVE THE MACHINE ON WHEN IT WILL BE OUT
OF OPERATION FOR AN EXTENDED PERIOD OF TIME.
Rev 7-28-2015
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]

1308S20017 5-2
ADJUSTMENT AND QUALITY
Your OLIVER Model 1308 was tested at the factory using Oliver trays and film.
NOTE
THE TEMPERATURE CANNOT BE ADJUSTED BY THE OPERATOR
The heater platen temperature is factory set at approximately 300°F (Approx. 150°C).
Contact the Oliver Service Department if you suspect the heated platen temperature is
not correct.
It is necessary to periodically check for a proper seal. This can be done by pull the film
over an empty tray carrier, sealing it like normal and peeling the film. If there is a proper
seal, the pattern on the film should be a complete outline of gasket material provided.
A poor seal will occur if the product in the tray contaminates the tray flange or the
pressure generated by the sealing mechanism is less than 15lbs. The pressure can be
adjusted by removing the acorn nut atop the center arm and giving a few turns to the nut
on the heater adjustment bolt. This will expose more threads between the casting and
the sealing mechanism, therefore, generating more pressure.
Under different operating conditions, it may be necessary to increase or decrease the
sealing time. This is done by varying the length of time the operating handle is in the
down position. Holding the handle down longer makes the seals stronger. Although a
stronger seal may cause shredding or tearing of the film when removing film from tray.
REV. 7-10-15
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]

GEN020319
THIS PAGE WAS INTENTIONALLY
LEFT BLANK.

1308S20019 7-1
CLEANING AND MAINTENANCE
NOTE
•These cleaning recommendations are not meant to replace plant standard
manufacturing procedures or regulatory requirements.
•Do not submerge unit in water. Do not wash down.
•Tray carrier is NOT recommended for automatic dishwashers.
CAUTION
•CAUTION HOT: The heated platen is HOT! Caution must be used to prevent
injury from heated platen.
•IF CLEANING THE HEATER PLATEN WHILE THE UNIT IS STILL ON, MAKE
SURE THAT HAND PROTECTION IS WORN AT ALL TIMES TO PREVENT
SKIN CONTACT.
WARNING
•Make sure the unit has been unplugged for a minimum one hour before cleaning
machine base, frame or cutter blade. USING CAUTION, the heater platen may be
cleaned when it is hot.
•It is important that the surface of the heater platen is kept clean and smooth.
Refer to page 7-2 for proper heater platen cleaning procedures.
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]

1308S20019 7-2
CLEANING AND MAINTENANCE CONTINUED
CLEANING PROCEDURE - MACHINE FRAME AND BASE
NOTE: SEE HEATER PLATEN AND FILM CUTTER CLEANING SECTIONS FOR SPECIFIC GUIDANCE
ON THEIR CLEANING PROCEDURES
1. Unplug the unit and allow one hour for cooling.
2. Remove tray carrier.
3. Wipe down tray carrier with a standard cleaning solution.
4. Use a sanitizing solution to spray and wipe down the rest of the unit.
5. Replace tray carrier.
CLEANING PROCEDURE - FILM CUTTER BLADE
1. Unplug the unit and allow one hour for cooling.
2. Lift handle up to its resting position.
3. Use a damp cloth with sanitizing solution to wipe off any access food particles
located on the back of the cutter blade.
CAUTION
THE CUTTER BLADE IS SHARP. USE A PROTECTIVE GLOVE TO DO THIS
CLEANING OPERATION. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY.
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]
CLEANING PROCEDURE - HEATER PLATEN
1. For ease of cleaning, machine may be left on when cleaning heater platen.
USE HAND PROTECTION AND CAUTION AS PLATEN WILL BE HOT.
2. With ONLY water, use a balled up damp cloth to wipe down the surface of
platen to remove any food residue or debris.
3. DO NOT SCRAPE THE SURFACE OF THE PLATEN WITH SHARP
OBJECTS AND AVOID THE USE OF METAL TOOLS.
4. The use of plastic or soft-metal scouring pads such as SCOTCH BRITE™ or
CHORE BOY® may be used as a safe and effective means of cleaning the
platen. Be sure to wipe all surfaces with a sanitizing agent after cleaning.

1308S20019 7-3
CLEANING AND MAINTENANCE CONTINUED
REPLACING AND CHECKING GASKETS
•If there are any gouges, cuts or gaps in the gasket, the gasket will have to be
replaced.
•Be sure to replace all the gaskets not just the piece that is damaged.
•When reinstalling gaskets, the gasket must be seated all the way down in the
groove.
•Do not stretch gasket when reinstalling.
•After the new gaskets are installed, place the tray carrier up side down on a flat
surface and check to see if the newly installed gasket is even.
•If not even, depress or lift gasket to provide an even heat sealing surface.
•It is necessary to periodically check for a proper seal. This can be done by pull
the film over the empty tray carrier, sealing it like normal and pulling the film. If
there is a proper seal, the pattern on the film should be a complete outline of the
edges of the tray.
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]
ADDITIONAL MAINTENANCE
• The Delrin links located atop the unit should be lubricated with a food grade
lubricant once a month to prevent wearing.

1308S20020 8-1
TROUBLE SHOOTING
SYMPTOM CORRECTIVE ACTION
Poor seal quality Verify that the platen is heated and is at the correct
temperature (approximately 300F/150°C)
Check to see if the platen is dirty
Check rubber gasket on tray holder for
damaged or missing pieces
______________________________________________________________________
Platen does not heat up Verify that the power cord is plugged into outlet
Verify that there is power at the outlet
For models with a switch, verify the switch is in
the "on" position with the red light on the switch
illuminated
_____________________________________________________________
Film sticking to heater Film is coming off the roll the wrong direction or
improper threading (feed from top).
______________________________________________________________________
Shredding film Seal time or pressure needs to be adjusted.
Oliver Packaging & Equipment Companyy
3236 Wilson Drive NW, Walker, MI 49534
[phone]

GEN020319
THIS PAGE WAS INTENTIONALLY
LEFT BLANK.
