Olktek NXF-705 User manual

100Base-TX to 100Base-FX Converter
100Base-TX
to
100Base-FX Converter
NXF-705
User’s Manual
- 1 -

100Base-TX to 100Base-FX Converter
COPYRIGHT
All rights reserved. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by any
means, whether electronic, mechanical, photo copying, recording or
otherwise, without the prior written permission of the publisher.
FCC WARNING
h the limitsThis equipment has been tested and found to comply wit
for class A device, pursuant to part 15 of FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a commercial installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful
interference to radio communication. Operation of this equipment in
a residential area is likely to cause harmful interference, in which
case, the user will be required to correct the interference at the
user’s own expense.
CE
This is a Class A product. In a domestic environment, this product
may cause radio interference in which case the user may be
required to take adequate measures.
Take special note to read and understand all content given in the
warning boxes Warning

100Base-TX to 100Base-FX Converter
- 3 -
Table of Contents
1 Introduction.............................................................1
About This Guide.....................................................1
Welcome..............................................................1
Purpose...............................................................1
Terms/Usage.......................................................1
Features...................................................................2
Specifications...........................................................3
Package Contents ...................................................5
2 Hardware Description.............................................6
Product Overview ....................................................6
3 Installation...............................................................9
Installing Your Converter.........................................9
Location.............................................................10
MDI/MDI-X Connection .....................................11
NWay Push Button Switch Setting....................12
Install the converter...........................................14
Desktop Installation...........................................15
Powering On Unit..............................................16
Connecting Fiber Cable.....................................17
Connecting Copper Cable.................................18
4 LED Indicators.......................................................19
Appendix A...............................................................20
Cables....................................................................20
Appendix B...............................................................21
About RJ-45 Cables...............................................21

100Base-TX to 100Base-FX Converter
Appendix C...............................................................22
Mini Converter Chassis..........................................22
Affixing Brackets................................................23
Installing the Converter .....................................24
Rear view of Chassis and specifications...........25
Appendix D...............................................................26
Application Diagram...............................................26
Application Diagram I........................................26
Application Diagram II.......................................27
Application Diagram III......................................27

100Base-TX to 100Base-FX Converter
- 1 -
1 Introduction
About This Guide
Welcome
Thank you for choosing the 100Base-TX to 100Base-
FX Media Converter. This device integrates Fast
Ethernet copper and fiber segments in a highly flexible
package.
Purpose
This guide discusses how to install and configure your
100Base-TX to 100Base-FX Media Converter.
Terms/Usage
In this guide, the term “Converter” (first letter upper
case) refers to your 100Base-TX to 100Base-FX
Media Converter, and “converter” (first letter lower
case) refers to other converters.

100Base-TX to 100Base-FX Converter
Features
•Complies with IEEE 802.3u 100Base-TX & FX
standards
•MDI/MDI-X push button selection for RJ-45 port
•Supports Half/Full Duplex Auto-Negotiation
•Slide switch to enable/disable auto-negotiation
operations
•Support ST, SC, and WDM fiber connectors
•Extends fiber distance of up to 2km (6600 feet) for
multi-mode and up to 60km (198000 feet) for long-
haul single mode
•Compatible with other 100Base-TX & FX devices
•Status LEDs
•External power supply options
•Used with the Mini Converter Chassis for internal
power supply
•FCC Class A & CE approved

100Base-TX to 100Base-FX Converter
- 3 -
Specifications
Standard: IEEE 802.3u
Connector: 1 x ST/SC, or WDM fiber optic
1 x RJ-45
Max. Distance: Twisted Pair: 100m (330ft)
Full Duplex- MM Fiber: 2000m (6600ft)
LH SM Fiber: 60000m (198000ft)
Half-duplex - MM Fiber: 412m (1360ft)
Unit LEDs: Power: Green- illuminated for normal
converter operation
Port LEDs: LNK: Green - illuminated when
connectors are attached
RCV: Amber - flashing or
Illuminated when receiving
packets.
FD: Green- illuminates when in
full duplex mode.
Power: External power supply, 12V
[email protected]

100Base-TX to 100Base-FX Converter
Temperature: Operating: 0 to 50 Degree Celsius
Storage: -20 to 70 Celsius
Humidity: Operating: 10% to 80%RH
Storage: 5% to 90%RH
Emissions: FCC Part 15 of Class A & CE
approved
Dimensions: 109.2 x 73.8 x 23.4 mm (L x W x H)
Switches: Push button switch: for MDI/MDI-X
connection
NWay slide switch:
NWay Auto-negotiation ON – OFF
function on RJ-45
Go to Location

100Base-TX to 100Base-FX Converter
- 5 -
Package Contents
The 100Base-TX to 100Base-FX Converter package
should include:
•One converter
•One AC adapter (for external power supply)
•Four pieces self-adhesive pads
•One user’s manual
Go to Installing Your Converter

100Base-TX to 100Base-FX Converter
2 Hardware Description
Product Overview
The Converter is primarily designed for larger
workgroups, demanding more speed and bandwidth,
and requiring expansion of the Fast Ethernet network.
It features a MDI/MDI-X crossover “push button”
switch for direct connection to the workstation, switch
or hub. Now the network manager does not need to
worry about the cable configuration (crossover or
straight through) when establishing a connection
between RJ-45 ports.
The Converter features both a RJ-45 jack, and a ST,
SC, or WDM fiber optic connector that allows it to
connect a 100Base-TX (copper) network to the
100Base-FX (fiber) network.
Its features Auto-Negotiation support which allows the
Converter to support connection with leading NWay

100Base-TX to 100Base-FX Converter
Switches. At full duplex, the Converter can create
potential distances of up to 2 kilometers for multi-
mode fiber and 60 kilometers for long haul single
mode fiber between a LAN switch, hub or a file server.
Note: It is not recommended to use the Converter in
half-duplex mode as back-to-back distance for
multi-mode fiber will only be 412m.
Front Panel View with SC and RJ-45 Connectors
- 7 -

100Base-TX to 100Base-FX Converter

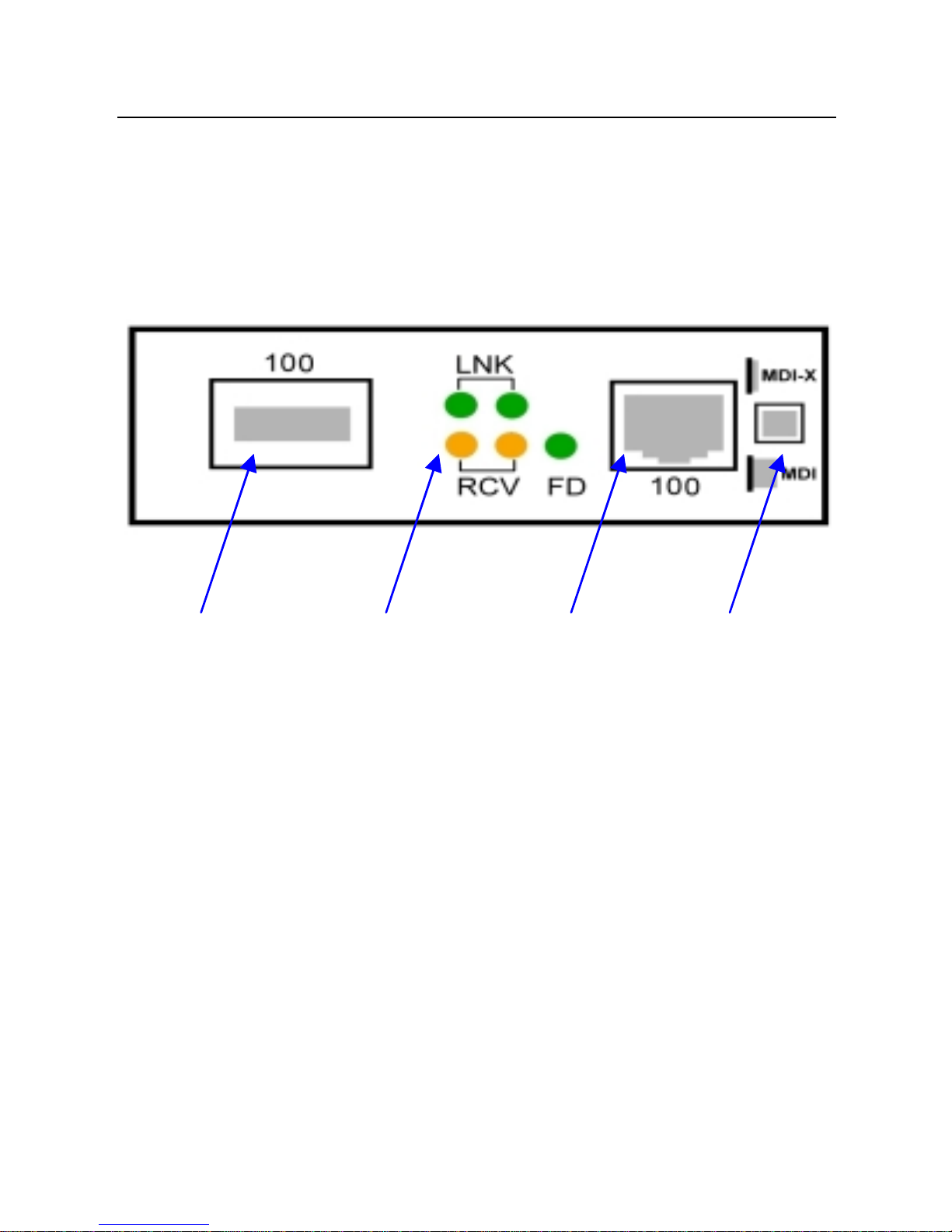

Front Panel View with ST and RJ-45 Connectors
Front View
Fiber
Port LED Indicators Copper Port Cross-over
Push Button

100Base-TX to 100Base-FX Converter
- 9 -
3 Installation
Installing Your Converter
In this chapter, we will take a look at how to install
converters within its operating environment. First, it is
important to unpack the Converter and ensure that all
the components listed in Package Contents are
present.
•Location
•MDI/MDI-X Connection
•NWay Push-Button Switch Setting
•Installing Converter
•Desktop Installation
•Powering On Unit
•Connecting Fiber Cable
•Connecting Copper Cable

100Base-TX to 100Base-FX Converter
Location
The location selected for installing the Converter may
greatly affect its performance. When selecting a site,
we recommend considering the following rules:
1. Install the Converter in a fairly cool and dry
place. See Technical Specifications for the
acceptable temperature and humidity
operating ranges.
2. Install the Converter in a location free from
strong electromagnetic field generators (such
as motors), vibration, dust, and direct
exposure to sunlight.
3. Leave at least 10cm of space at the front and
rear of the unit for ventilation.
4. Affix the provided rubber pads to the bottom
of the Converter for grip, and to protect the
case from scratching.

100Base-TX to 100Base-FX Converter
MDI/MDI-X Connection
The MDI / MDI-X function alleviates the worry of cable
type configuration used for connecting the converter
with a 100Base-TX device. Simply follow the chart
below when connecting the Converter, and use the
push button to select MDI or MDI-X accordingly.
- 11 -

100Base-TX to 100Base-FX Converter
NWay Push Button Switch Setting
Use the NWay push button switch to activate NWay
operations.
Note: Factory NWay switch default set to ON position.
ON: Activates NWay auto-negotiation operation
mode. Set NWay switch to ON when
connecting to an auto-negotiation device. The
function will determine the highest possible
speed and duplex mode in copper segment.
OFF: Deactivates NWay auto-negotiation operation
mode. Set NWay switch to OFF when
connecting to an auto-sensing device that
only supports 10/100 detection. Some early

100Base-TX to 100Base-FX Converter
- 13 -
switch models only support auto-sensing of
speed, and NOT auto detection of speed and
duplex mode (auto-negotiation).
Note:
Setting the duplex mode is feasible while the media
converter is “on-line”

100Base-TX to 100Base-FX Converter
Install the converter
This Converter utilizes ports with fiber and copper port
connectors functioning under the Fast Ethernet
protocol.
100BASE-TX Port
The 100BASE-TX port supports network speed of
100Mbps, and can operate in half and full duplex
transfer modes. This port also offers MDI/MDI-X
crossover detection that gives true "plug and play"
capability - just plug-in the network cable to the port
and adjusts the push-button according the chart above.
The RJ-45 connector is suitable for UTP cable
Category 3, 4, 5 or better.
100BASE-FX Port
The 100BASE-FX port adds a fiber Fast Ethernet link
to your network device. Compliant with IEEE 802.3u,
this port can transmit data at 100Mbps in full duplex
mode across distances of up to 2km through multi-
mode fiber-optic cable. The fiber port has a choice of
fiber connector types: ST, SC and WDM.

100Base-TX to 100Base-FX Converter
Desktop Installation
Follow the instructions listed below to install the
Converter onto a desktop location.
1. Locate the Converter in a clean, flat and safe
position that has easy access to AC power.
2. Affix the four (4) self-adhesive rubber pads to the
underside of the Converter.
3. Apply AC power to the Converter. (The green
PWR LED on the front panel should light).
4. Connect cables from the network partner devices
to the ports on the front panel. (The green LNK
LED on the front panel associated with the port
should light).
This Converter can also be mounted on a vertical
surface. Simply use the underside of the unit as a
template to measure and mark out the position of the
holes on to the surface where the unit is to be installed.
Then use the two screws provided to mount the
Converter firmly in place.
Warning Please exercise caution when using
power tools. Also, install this unit away from damp or
wet locations, or in close proximity to very hot
surfaces. These types of environments can have a
detrimental effect on the converter and cables. An ideal
location is a lightly cooled place such as a typical
equipment room.
- 15 -

100Base-TX to 100Base-FX Converter
Powering On Unit
The Converter uses external power supply 12V DC @
0.8A 50~60 Hz.
1. Insert the power cable plug directly into the
receptacle located at the back of the device.
2. Plug the power adapter into an available socket.
3. Check the front-panel LEDs as the device is
powered on to verify that the Power LED is lit. If
not, check that the power cable is correctly and
securely plugged in.
Note: For International use, you may need to change the AC
power adapter cord. You must use a power cord set that
has been approved for the receptacle type and electrical
current in your country.
