Olympus ESG-400 User manual

USA: CAUTION: Federal Law restricts this device to use by, or on the order of,
a physician.
INSTRUCTIONS
ELECTROSURGICAL GENERATOR
ESG-400

Contents i
W7.091.601 ELECTROSURGICAL GENERATOR ESG-400
Contents
Labels and Symbols.................................................................................................. 4
Important Information - Please Read Before Use ................................................... 5
Intended use .................................................................................................................................... 5
Application of high frequency treatment .......................................................................................... 5
Instruction manual ........................................................................................................................... 5
User qualifications ........................................................................................................................... 6
Electrosurgical generator compatibility............................................................................................ 6
Repair and modification ................................................................................................................... 6
Signal words .................................................................................................................................... 7
Dangers, warnings and cautions ..................................................................................................... 7
Legal information ............................................................................................................................ 16

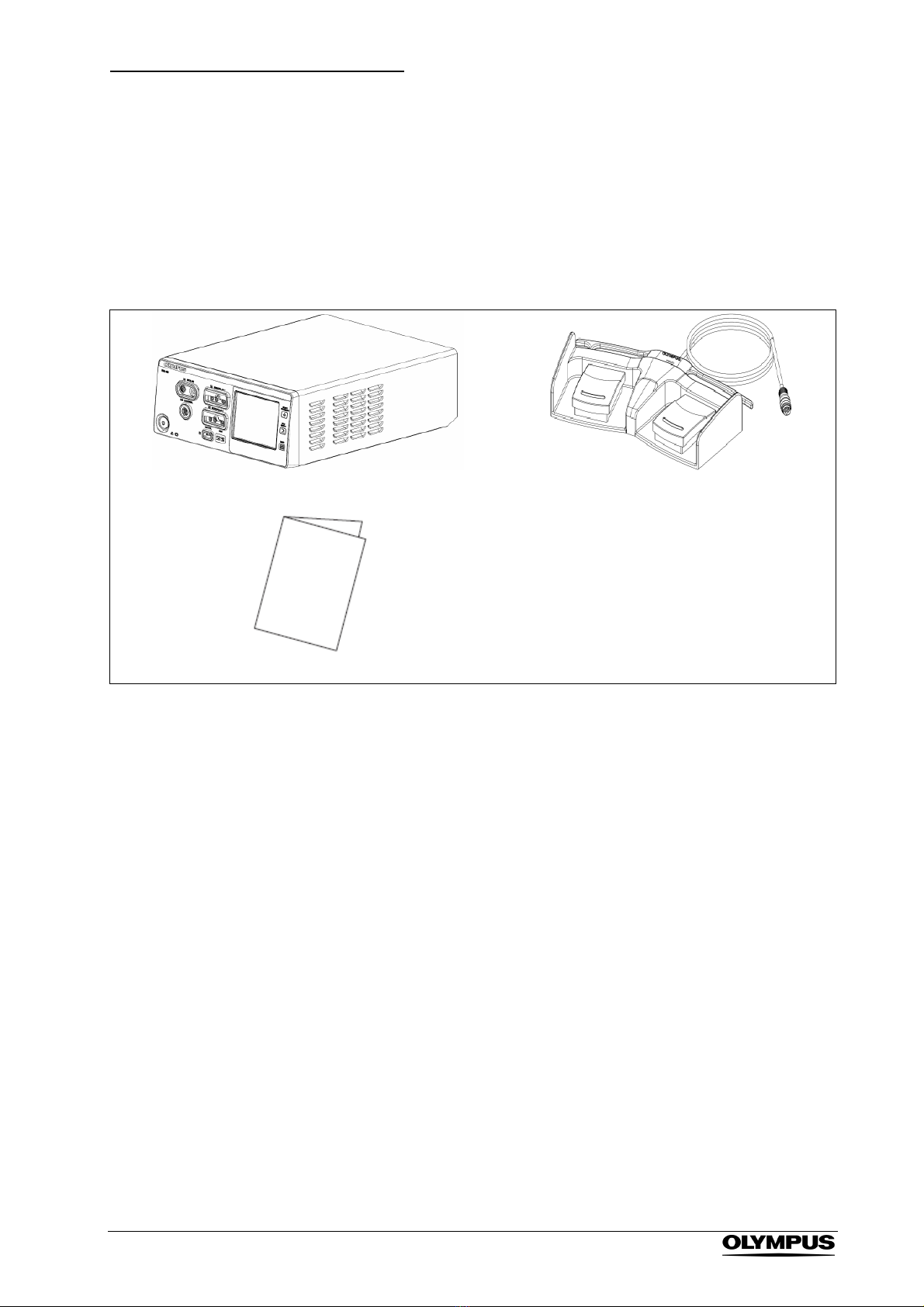

Chapter 1 Checking the Package Contents......................................................... 17
Chapter 2 Nomenclature and Functions .............................................................. 18
2.1 Symbols and descriptions...................................................................................................... 18
2.2 Front panel ............................................................................................................................ 21
2.3 Rear panel ............................................................................................................................. 23
2.4 Bottom panel ....................................................................................................................... 24
2.5 All screen ............................................................................................................................... 25
2.6 Set screen.............................................................................................................................. 26
2.7 Mode screen .......................................................................................................................... 27
2.8 Footswitch with two pedals.................................................................................................... 27
2.9 Footswitch with one pedal (optional) ..................................................................................... 28
2.10 Neutral electrode cable “P-cord” (optional) ........................................................................... 28
2.11 Communication cable 0.25 m (MAJ-1871, optional, this cable is required for the
connection with the compatible ultrasonic generator) ........................................................... 29
2.12 Communication cable 10 m (MAJ-1872, optional, this cable is required for the
connection with the compatible high flow insufflation unit (UHI-2/3)).................................... 30
2.13 Adapter for UHI-2/3 (MAJ-1873, optional, this adapter is required for the connection
with the compatible high flow insufflation unit (UHI-2/3)) ...................................................... 31
Chapter 3 Installation and Connections .............................................................. 32
3.1 Flow chart for installation work ............................................................................................. 33
3.2 Installation of electrosurgical generator................................................................................. 34
3.3 Connection of peripheral equipment ..................................................................................... 35
3.4 Connection to an AC mains power supply ............................................................................ 36
3.5 Automatic mist & smoke evacuation system/function (when using the compatible
high flow insufflation unit) ...................................................................................................... 37
3.6 Connection of footswitch ....................................................................................................... 42
3.7 Connection of neutral electrode (for monopolar treatment only)........................................... 43
3.8 Connection of HF instruments ............................................................................................... 49

ii Contents
ELECTROSURGICAL GENERATOR ESG-400 W7.091.601
Chapter 4 Inspection............................................................................................. 52
4.1 Flow chart for inspection work ............................................................................................... 53
4.2 Inspection of power................................................................................................................ 54
4.3 Inspection of connection between peripheral equipment and the electrosurgical generator 56
4.4 Inspection of touch-screen and push buttons........................................................................ 57
4.5 Inspection of footswitch connection....................................................................................... 60
4.6 Inspection of alarm system.................................................................................................... 61
4.7 Procedure after inspection..................................................................................................... 61
Chapter 5 Operation.............................................................................................. 62
5.1 Flow chart for operation work ............................................................................................... 63
5.2 Turn on the electrosurgical generator.................................................................................... 64
5.3 Automatic mist & smoke evacuation system/function (when using the compatible
high flow insufflation unit) ...................................................................................................... 65
5.4 Output setting ........................................................................................................................ 67
HF instrument recognition...................................................................................................... 69
Bipolar cut / coagulation mode – SalineCut / SalineCoag..................................................... 72
Bipolar coagulation mode – RFCoag..................................................................................... 72
Overview of all modes ........................................................................................................... 75
5.5 Output of energy .................................................................................................................... 79
5.6 Procedure after use ............................................................................................................... 84
Chapter 6 Push Button Functions ....................................................................... 85
6.1 Function list............................................................................................................................ 85
6.2 Push button hierarchy list ...................................................................................................... 86
6.3 Select procedure.................................................................................................................... 87
6.4 Assign footswitch and autostart function ............................................................................... 88
6.5 Menu ...................................................................................................................................... 90
Save procedure: saving / overwriting of output settings........................................................ 91
Delete procedure: Deleting a procedure................................................................................ 96
Languages ............................................................................................................................. 97
Touch tone ............................................................................................................................. 100
Autostart setup....................................................................................................................... 101
Software version .................................................................................................................... 102
Safety test .............................................................................................................................. 103
Service ................................................................................................................................... 105
Output volume control............................................................................................................ 105
Brightness control .................................................................................................................. 107
Chapter 7 Care, Storage and Disposal ................................................................ 108
7.1 Care ....................................................................................................................................... 108
7.2 Storage .................................................................................................................................. 109
7.3 Disposal ................................................................................................................................. 110

Contents iii
W7.091.601 ELECTROSURGICAL GENERATOR ESG-400
Chapter 8 Troubleshooting ................................................................................... 111
8.1 Neutral electrode operation ................................................................................................... 112
8.2 Error screen, codes and measures ....................................................................................... 113
8.3 Periodic safety check............................................................................................................. 125
8.4 Returning the electrosurgical generator for repair................................................................. 125
Appendix .................................................................................................................... 126
System chart.................................................................................................................................... 126
Mode characteristics........................................................................................................................ 127
Output characteristics ...................................................................................................................... 129
Transportation, storage and operating environment........................................................................ 146
Specifications................................................................................................................................... 147
Electromagnetic compatibility (EMC) information............................................................................ 152
Alarm information............................................................................................................................. 156
Tone information.............................................................................................................................. 157
List of abbreviations
AC Alternating Current
EMC Electromagnetic Compatibility
ESG Electrosurgical Generator
FSM Fast Spark Monitor
HF High Frequency
HPCS High Power Cut Support
ICD Implanted Cardioverter Defibrillator
IED Implanted Electronic Device
RCAP Resistance Controlled Automatic Power

4 Important Information – Please Read Before Use
ELECTROSURGICAL GENERATOR ESG-400 W7.091.601
Caution, read
instructions
Refer to
instructions

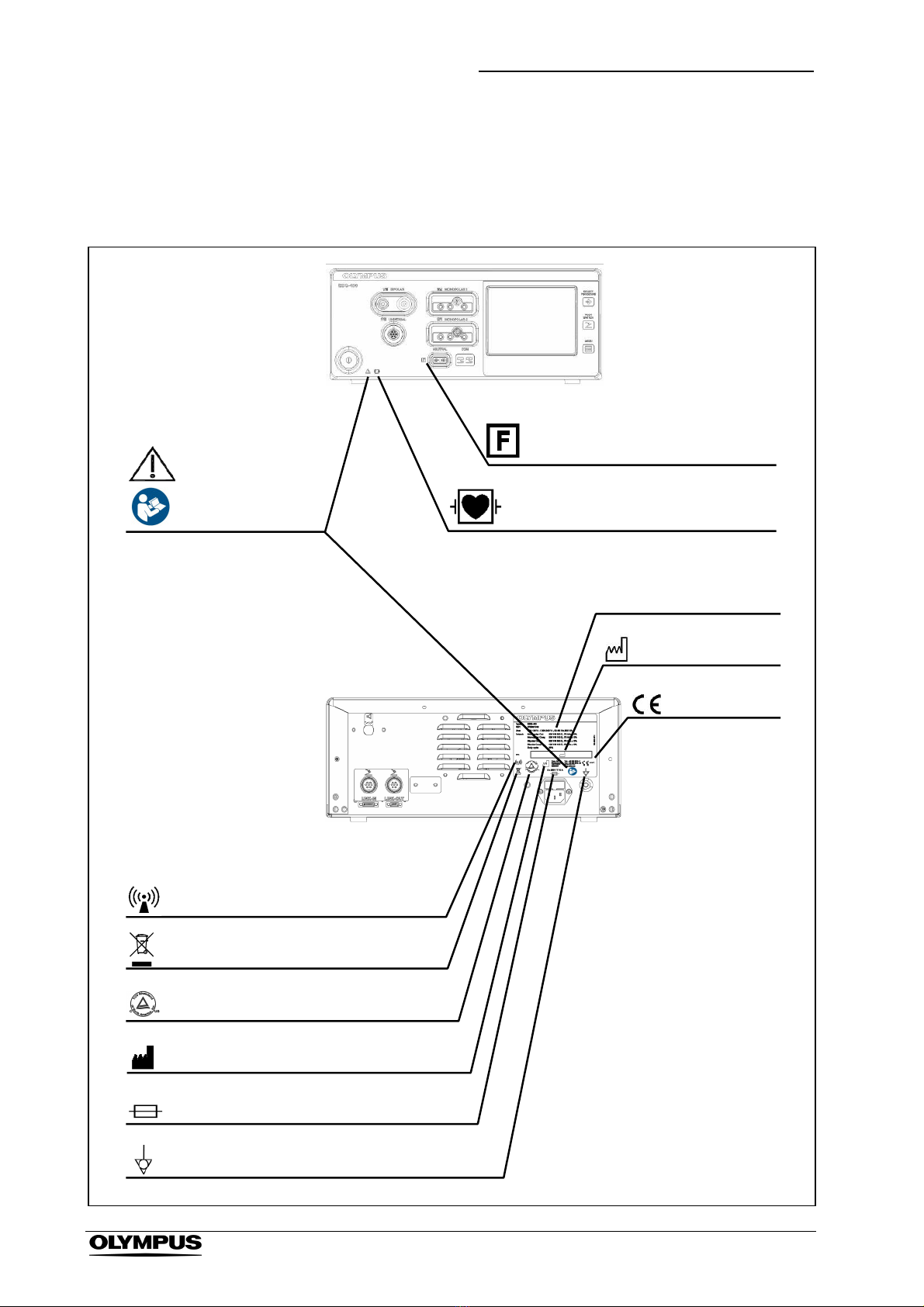

Labels and Symbols
Safety-related labels and symbols are attached on the locations shown below. If
labels or symbols are missing or illegible, contact Olympus. Function-related
symbols are described in chapter 2.1, “Symbols and Descriptions”.
Date of
manufacture
CE marking
Non
-
ionizing electromagnetic
radiation
Output insulated from earth
(connection for neutral electrode)
Defibrillation proof type CF
applied part (cardiac application)
Waste electrical and electronic
equipment
cTUVus marking
Manufacturer
Potential equalization terminal
Fuse rating
Type plate

Important Information – Please Read Before Use 5
W7.091.601 ELECTROSURGICAL GENERATOR ESG-400
Important Information – Please Read
Before Use
Intended use
The ESG-400 is an electrosurgical generator intended for tissue cutting and
coagulation in open, laparoscopic and endoscopic surgery in conjunction with
electrosurgical accessories and ancillary equipment.
Contraindications:
Electrosurgical interventions are contraindicated if, in the judgment of the
physician, tissue coagulation and cutting could have a negative effect on the
state of the patient. Electrosurgical tissue coagulation and cutting may be
contraindicated for patients with cardiac pacemakers, a weakened immune
system or blood coagulation disorders.
Application of high frequency treatment
If there is an official standard on the applicability of high frequency treatment as
defined by a national or local medical administration, or other institution, such
as an academic society, follow that standard when performing the procedure.
Before performing any high frequency treatment, study the properties, purposes,
effects and possible risks thoroughly (nature, extent, probability and imminence)
associated with the planned treatment and any alternative therapeutic method
that can be performed. Carry out high frequency treatment only when its
benefits outweigh its risks. Fully explain to the patient the possible benefits and
risks of high frequency treatment as well as those of any therapeutic method(s)
that can be performed instead of electrosurgery, and perform high frequency
treatment only after patient consent is granted. During high frequency treatment,
continue to evaluate the potential benefits and risks, and stop the treatment if
the risks become greater than the possible benefits to the patient.
Instruction manual
This instruction manual contains essential information on using this
electrosurgical generator safely and effectively. Before use, thoroughly review
this instruction manual and the instruction manual of all equipment which will be
used during the procedure. Use the equipment as instructed. Keep this and all
related instruction manuals in a safe, accessible location. If you have any
questions or comments about any information in this instruction manual, please
contact Olympus.

6 Important Information – Please Read Before Use
ELECTROSURGICAL GENERATOR ESG-400 W7.091.601
User qualifications
If there is an official standard that defines the qualifications required for medical
personnel using electrosurgical generators as defined by a national or local
medical administration or other institution, such as an academic society, follow
this standard. If there is no such standard, the user must be a physician or
medical personnel under supervision of a physician and must have received
appropriate training in using this electrosurgical generator. This instruction
manual, therefore, does not explain or discuss endoscopic or electrosurgical
procedures.
In addition, the user must undergo an instruction / training for the use of this
electrosurgical generator. The instruction / training will be provided by
authorized representatives of Olympus during installation and commissioning.
Federal Law of the USA restricts this device to use by, or on the order of,
a physician.
Electrosurgical generator compatibility
Refer to the “System chart” and “Specifications” in the Appendix to confirm that
this electrosurgical generator is compatible with the ancillary equipment being
used. Using incompatible equipment can result in patient injury and / or
equipment damage.
For the electromagnetic compatibility (EMC), this electrosurgical generator
complies with edition 3 of the EMC standard for medical electrical equipment
(IEC 60601-1-2: 2007).
Repair and modification
This electrosurgical generator does not contain any user-serviceable parts. Do
not disassemble, modify, or attempt to repair it; patient or user injury and / or
equipment damage may result. Repairs must only be carried out by Olympus or
a firm authorized by Olympus. Some problems that appear to be malfunctions
may be corrected by referring to chapter 8, “Troubleshooting”. If the problem
cannot be resolved using the information in chapter 8, contact Olympus.

Important Information – Please Read Before Use 7
W7.091.601 ELECTROSURGICAL GENERATOR ESG-400
Signal words
The following signal words are used throughout this instruction manual:
DANGER
Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
WARNING
Indicates a potentially hazardous situation which,
if not avoided, could result in death or serious
injury.
CAUTION
Indicates a potentially hazardous situation which,
if not avoided, may result in minor or moderate
injury. It may also be used to alert against unsafe
practices or potential equipment damage.
NOTE
Indicates additional helpful information.
Dangers, warnings and cautions
High frequency leakage current or spark discharge may cause user and / or
patient burns. Always prepare for an emergency operation in case of
unintentional patient burn, bleeding and perforation.
Follow the dangers, warnings and cautions given below when handling this
electrosurgical generator. This information is to be supplemented by the
dangers, warnings and cautions given in each chapter.

8 Important Information – Please Read Before Use
ELECTROSURGICAL GENERATOR ESG-400 W7.091.601
User-related error prevention
WARNING Improper use
The safety and effectiveness of electrosurgical
interventions depend not only on the design of
the equipment used, but also to a major extent
on factors which are under the control of the
user. It is therefore extremely important to read,
understand and follow the instructions supplied
with the electrosurgical generator and the
accessories in order to ensure safety and
effectiveness.
Always use the electrosurgical generator as
outlined in this instruction manual. Improper use
will not only impede functions and prevent
optimum performance, but may cause
equipment damage and / or complications.
Before each use, always inspect the equipment
as outlined in this instruction manual.
CAUTION Annual safety checks
The electrosurgical generator and the footswitch
must undergo a safety check in yearly intervals in
accordance with the national statutory regulations
(refer to chapter 8.3 “Periodic safety check”).
Environmental conditions
CAUTION Interference with other equipment
Be sure that this electrosurgical generator is not
used adjacent to or stacked with other
equipment (other than the components of this
electrosurgical generator or system) to avoid
electromagnetic interference.
Before use, thoroughly confirm the compatibility
of all equipment.
To ensure electrical safety, the electrosurgical
generator should not be used in conjunction
with:
−Electrical equipment whose safety against
leakage current is not guaranteed.
−Electrosurgical equipment whose safety in
combined use is not guaranteed.
The electrosurgical generator complies with the
electromagnetic compatibility (EMC) standard.
Nevertheless, when the electrosurgical
generator is active it may disturb neighboring

Important Information – Please Read Before Use 9
W7.091.601 ELECTROSURGICAL GENERATOR ESG-400
electronic equipment. If an auxiliary computer
system is in use together with the
electrosurgical generator and endoscopic
imaging techniques, the image on the monitor
might freeze or blackout. Follow the instructions
in “Electromagnetic Compatibility (EMC)
information” in the Appendix regarding
electromagnetic ambient conditions.
Never loop the cords (active cord, bipolar cord,
neutral electrode cord) or bundle cords together
with cords belonging to other medical
equipment. The high frequency signals or spark
discharge noise generated by the
electrosurgical generator may interfere with the
operation of other medical equipment.
Do not use the electrosurgical generator in a
location exposed to strong electromagnetic
radiation (microwave or short-wave medical
treatment equipment, magnetic resonance
imaging, radio or mobile phone equipment).
Electrosurgical generator malfunction can occur.
CAUTION Unsuitable temperature and humidity
The electrosurgical generator should only be used
under the conditions as described in “Transport,
storage and operating environment” in the
Appendix. Use under other conditions may impede
normal performance and / or result in equipment
damage.
Accessories
WARNING Mechanical stress
Do not apply excessive bending, straining, or
squeezing force to any cords. It may cause
malfunction.
CAUTION Damaged and non-compatible accessories
The electrosurgical generator shall only be
used with compatible accessories. When
connecting accessories (cords, electrodes, HF
instruments) avoid output settings where the
maximum output voltage of the electrosurgical
generator may exceed the rated accessory
voltage (refer to “Mode characteristics”, “Output
characteristics” in the Appendix, and the
instruction manual of the accessory). For a list
of compatible neutral electrodes, refer to
“Specifications” in the Appendix. For compatible

10 Important Information – Please Read Before Use
ELECTROSURGICAL GENERATOR ESG-400 W7.091.601
plugs and sockets, refer to chapter 3.8,
“Connection of HF instruments”.
Before use, the electrosurgical generator and
accessories must be examined for damage. All
cables and its plugs must be free of scratches
and cracks. Cables and accessories with
damaged insulation or connections must not be
used.
Electric shock
WARNING Grounding failure
To prevent the risk of electric shock, the housing of
the electrosurgical generator must be grounded.
Always connect the power cord plug to a properly
grounded wall outlet. Do not use a 3-pin / 2-pin
adapter, as it can impair safe operation of the
electrosurgical generator.
WARNING User shock
To prevent user shock, malfunction and damage of
the electrosurgical generator, keep liquids away
from all electrical equipment. If liquid gets on or
into the electrosurgical generator, terminate
operation immediately and contact Olympus.
CAUTION Injury during servicing
When the housing is opened, there is a danger of
electric shock. The electrosurgical generator must
only be serviced by authorized technicians.
Burns
WARNING Patient and / or user
The maximum output voltage characteristics of
the electrosurgical generator are shown in the
diagrams in “Output characteristics” in the
Appendix. When setting the power level, first
set it to a low level and increase it gradually. If
the output is initially set to a high level, the
electrode’s insulation may be damaged and
cause user and / or patient burns. However,
certain modes may present an unacceptable
risk at low output power settings. For example,
with the PulseCut fast mode or PulseCut slow
mode, the risk of an excessive thermal effect
rises if the output power setting is too low.
Therefore, it is recommended that you perform
basic testing before using the electrosurgical

Important Information – Please Read Before Use 11
W7.091.601 ELECTROSURGICAL GENERATOR ESG-400
generator. If the instruction manual of the HF
instrument to be used stipulate a rated voltage,
the output should be set so that it does not
exceed that voltage.
Contact with the tip of the electrodes may
cause burns when the electrosurgical generator
is active.
During operation, temporarily unused
electrodes should be stored in an electrically
insulated container. Unused electrodes or HF
instruments should never be placed on the
patient. Otherwise, it may cause patient and / or
user burns.
To prevent patient burns, the electrosurgical
generator and ancillary cords should not come
in contact with the patient or metal parts of the
operating table. Furthermore, the patient should
also be kept away from metallic parts of the
operating table or other devices. Remove any
metallic items from the patient (wristwatches,
jewelry, etc.) before starting the procedure.
If the electrosurgical generator is used in
conjunction with another electrosurgical
generator, never use both generators
simultaneously. Keep the HF instrument
connected to the not-used electrosurgical
generator away from the target area while the
other generator is in operation. Do not activate
output of both generators simultaneously.
Patient or user injury may occur due to the
concentration of electric current.
To prevent patient burns, the patient’s skin
surfaces should not touch each other (e.g. bare
arm and side of chest) or any metal items in the
procedure room.
To prevent patient burns during high frequency
treatment, the patient’s clothes must be dry.
During endoscopic treatment be sure that the
distal end of the endoscope and / or HF
instruments do / does not contact bridging fluids
surrounding the target tissue. Electric current
may flow to the surrounding tissue via the fluids
and cause burns. This does not apply to
instruments intended for use in conjunction with
conductive fluids.
The endoscopic treatment performed should
not include an operation in which part of the
treated tissue (polyp head, etc.) or part of the

12 Important Information – Please Read Before Use
ELECTROSURGICAL GENERATOR ESG-400 W7.091.601
endoscope distal end or endotherapy
instrument is in contact with or close to
surrounding tissue during high frequency
exposure. Otherwise, current flows to the tissue
through the part of the treated tissue, the
metallic parts at the endoscope’s distal end or
endotherapy instrument and may cause burns.
When using an electrocardiograph or other
physiological monitoring equipment
simultaneously with the electrosurgical
generator on a patient, any monitoring
electrodes should be placed as far away as
possible from the electrodes used with the
electrosurgical generator. If placed too close,
high frequency signals or spark discharge noise
from the electrosurgical generator may interfere
with the operation of an electrocardiograph or
other physiological monitoring equipment.
Needle monitoring electrodes should not be
used, as they may cause patient burns.
Physiological monitoring equipment
incorporating high frequency current limiting
measures is recommended.
To prevent burns, the user and assistant should
wear surgical gloves during the procedure.
CAUTION High frequency leakage current
Wherever possible, the patient should not be able
to come into contact with electrically conductive
components that are grounded. Route all
connecting cables so that they are not in direct
contact with the patient or other cables. Capacitive
coupling may occur.
Potential hazards for the heart
DANGER Shock hazards to the heart
To prevent shock hazards, never apply the
electrosurgical generator to the heart in
combination with type B or BF applied parts.
When using the electrosurgical generator on or
in the vicinity of the heart, be sure to use it with
the minimum necessary output. Spark
discharge during operation may affect the heart.

Important Information – Please Read Before Use 13
W7.091.601 ELECTROSURGICAL GENERATOR ESG-400
DANGER Pacemaker / Defibrillator malfunction
The high frequency equipment, when applied to a
patient with a cardiac pacemaker, an implanted
cardioverter defibrillator (ICD) or other implanted
electronic devices (IED), may cause
malfunctioning or failure of the implanted electronic
device and may seriously affect the patient. Always
confirm that it is safe to proceed with a cardiologist
or the manufacturer of the implanted electronic
device before proceeding. If monopolar modes of
the electrosurgical generator are used, position the
neutral electrode so that the current pathway does
not pass through or near the implanted electronic
device and its lead system. The risk of malfunction
or failure of an implanted electronic device is
reduced by the use of a bipolar mode. A risk does
exist, however, if the application is in close
proximity to the implanted electronic device.
WARNING Cardiac emergency
Always keep a defibrillator ready in case of a
cardiac emergency. During operation of the
defibrillator, remove the endoscope and / or
laparoscope and HF instruments from the patient.
Fire / Explosion
DANGER Ignitable anaesthetics and gases
The risk of flammable gases or other materials
being ignited exists with any surgical application of
electrical energy. Precautionary measures must be
taken to keep flammable materials and substances
away from the site of intervention (do not use
flammable anaesthetics, nitrous oxide or oxygen).
Otherwise, explosion or fire may result and cause
serious injuries. This electrosurgical generator is
not explosion-proof. Do not use the electrosurgical
generator within an explosion zone.
WARNING Ignitable gas in the gastro-intestinal tract
If the intestines contain a flammable gas, replace
this gas with air or a non-flammable gas before
performing the operation, to minimize the risk of
fire or explosion.

14 Important Information – Please Read Before Use
ELECTROSURGICAL GENERATOR ESG-400 W7.091.601
WARNING Ignitable cleaning- and disinfection agents
Flammable agents used for cleaning and
disinfection must be allowed to evaporate
before the electrosurgical generator is used.
Also ensure that flammable solutions are
neither on the patient’s skin (e.g. under neutral
electrode) nor in the patient’s body cavity when
the electrosurgical generator is used.
Non-flammable agents should be used for
cleaning and disinfection wherever possible.
WARNING Ignitable materials
If absorbent cotton or gauze is used during the
procedure, it can be ignited by a spark
generated in the normal operation of the
equipment.
When performing electrosurgery, sparks occur
which could lead to burning or deflagration of
combustible materials.
Body hair is flammable. Water soluble surgical
lubricating jelly may be used to cover hair close
to the surgical site to decrease flammability.
WARNING Risk of fire
Disconnect the power plug before changing the
fuses! Replace fuses as marked. The fuses must
only be replaced by authorized technicians!
Procedural hazards and complications
DANGER Procedural hazards and complications
The safety of electrosurgery will be greatly
enhanced by a thorough knowledge of the
medical literature on the subject. Study of
specific information on the hazards and
complications of the procedure in question is
especially recommended.
To respond to possible patient bleeding,
prepare at least one of the following three
haemostatic procedures: coagulation, clipping
or local injection.
To prepare for possible accidents, emergency
equipment for life-saving, intubation and
appropriate pharmaceuticals should be located
in or near the procedure room.
Always prepare a spare electrosurgical
generator or an alternative procedure to avoid

Important Information – Please Read Before Use 15
W7.091.601 ELECTROSURGICAL GENERATOR ESG-400
interruption of treatment due to an unexpected
electrosurgical generator failure during
treatment.
Should any abnormal output be suspected
during operation, immediately terminate the use
of the equipment by releasing the footswitch. If
the footswitch does not react, switch off the
electrosurgical generator. Otherwise,
malfunction of the equipment may cause an
unintended increase in output.
Use physiological monitoring equipment
throughout the entire procedure, for continuous
observation of the patient’s condition.
For procedures where the high frequency
electrical current could flow through parts of the
body with a relatively small cross sectional area,
the use of a bipolar mode may be desirable in
order to avoid unwanted tissue damage.
It is not recommended to use electrosurgery for
circumcisions because of the risk of thermal
injuries. The risk can be reduced if metal parts
of any kind (e.g. clamps) and / or monopolar HF
instruments are avoided.
WARNING Safety measures during the procedure
Wear personal protective equipment to guard
against dangerous chemicals and potentially
infectious material. During operation, wear
appropriate personal protective equipment,
such as eye wear, face mask, moisture-
resistant clothing and surgical gloves that fit
properly and are long enough so that your skin
is not exposed.
Studies have shown that smoke generated
during electrosurgical procedures can be
irritating and potentially harmful to surgical
personnel. These studies recommend the use
of surgical masks and adequate ventilation of
smoke by the use of surgical smoke evacuators
or other means.

16 Important Information – Please Read Before Use
ELECTROSURGICAL GENERATOR ESG-400 W7.091.601
WARNING Output performance
If the electrosurgical generator fails and the
output is stopped during treatment, it may be
impossible to continue treatment due to tissue
or coagulum build-up on the HF instrument or
other similar condition.
During endoscopic treatment never grasp the
target tissue with non-insulated grasping
forceps. Non-insulated grasping forceps will
disperse the electric current and normal
operation may be impeded.
WARNING Electrical stimulation of nerves and muscles
Nerves and muscles can be stimulated by low
frequency electrical currents or intense high
frequency electrical currents. Low frequency
electrical currents may be generated by a partial
rectification of intense high frequency electrical
current, in particular when there is a spark
discharge to the tissue or to another metallic object.
Intense high frequency electrical currents can
occur at the beginning of an electrosurgical cut or
when using high output power settings. This may
cause violent spasms or muscle contractions. Use
the lowest appropriate power level and effect (e.g.
effect 1 instead of effect 3). However, for certain
modes a low output power setting may present an
unacceptable risk for the patient. For example, with
the PulseCut fast mode or PulseCut slow mode,
the risk of an excessive thermal effect rises if the
output power setting is too low.
CAUTION Generator defect
To prevent electrosurgical generator damage,
never short-circuit electrodes (accessories,
neutral electrodes).
In the event of a defect or malfunction in the
electrosurgical generator, an undesirably high
output power may be emitted.
Legal information
In the US and other countries, Celon and RCAP are registered trademarks of
Celon AG medical instruments and Olympus, RFCoag, ESG and AFU are
trademarks or registered trademarks of Olympus Corporation, Olympus Medical
Systems Corporation and / or their affiliates.
Ricoh TrueType and Bitmap fonts designed by RICOH Company, Ltd. are used.

Chapter 1 Checking the Package Contents 17
W7.091.601 ELECTROSURGICAL GENERATOR ESG-400
Chapter 1 Checking the Package
Contents
Verify that all items shown below are contained in the package. Inspect each
item for damage. If the electrosurgical generator is damaged, a component is
missing or you have any questions, do not use the electrosurgical generator
and contact Olympus.
Electrosurgical generator (ESG-400)
Footswitch with cable (WB50402W)
Instruction manual

18 Chapter 2 Nomenclature and Functions
ELECTROSURGICAL GENERATOR ESG-400 W7.091.601
Chapter 2 Nomenclature and Functions
2.1 Symbols and descriptions
Front panel
Power on / off
Neutral electrode – non-split type
Neutral electrode – split type
Select procedure
Footswitch
Menu
BIPOLAR socket
MONOPOLAR 1 socket
UNIVERSAL socket
MONOPOLAR 2 socket
Touch-screen
Double footswitch
Single footswitch
Autostart
Plus
