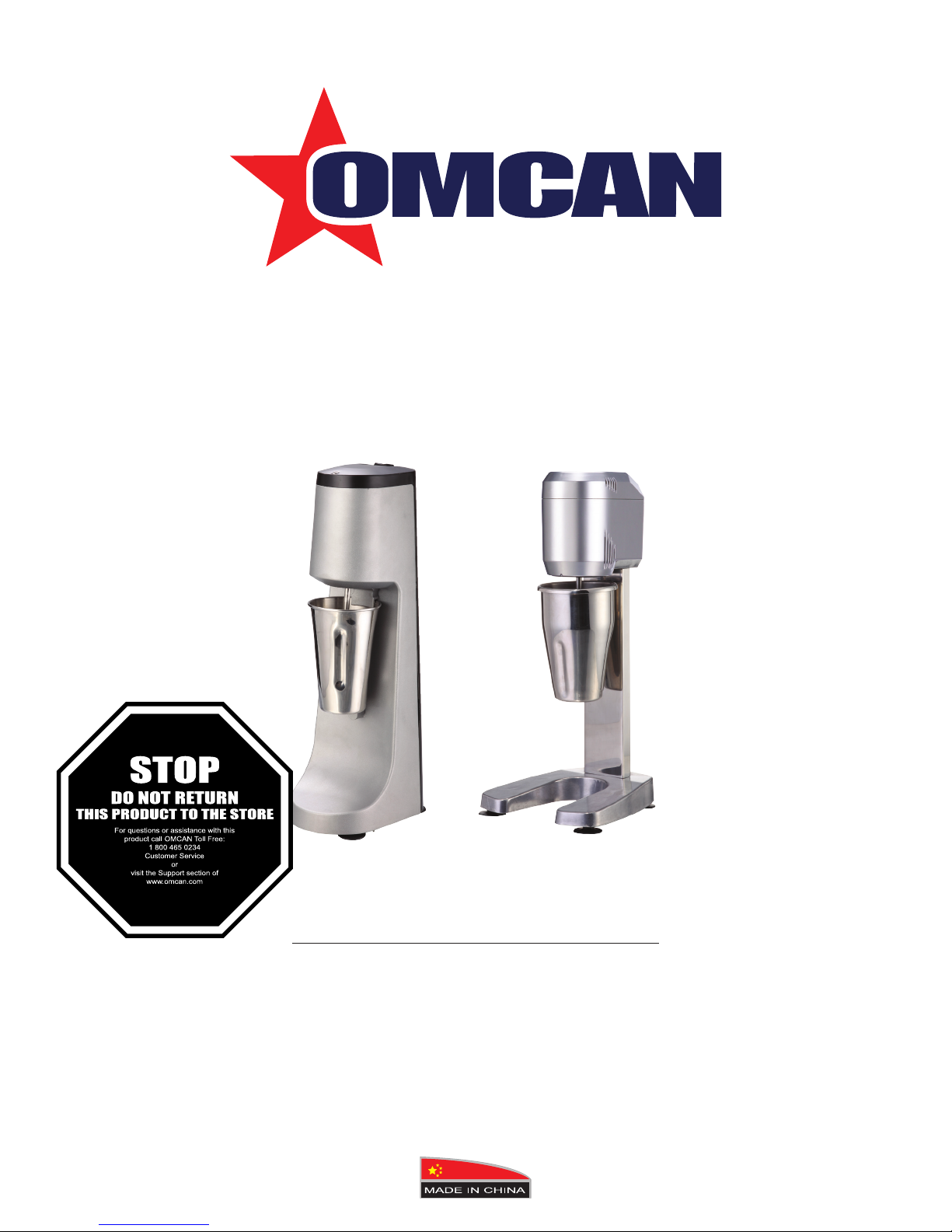

Omcan Bl-cn-0001 User manual

Milkshake Blenders

Models BL-CN-0001, BL-CN-0001-L

Instruction Manual

Revised - 9/24/2014

Toll Free: 1-800-465-0234

Fax: 905-607-0234

Email: [email protected]

www.omcan.com

2

Page

-------------------------------------------------------------------------------- 3

--------------------------------------------------------------------------- 3 - 4

-------------------------------------------------------------------------- 4

----------------------------------------------------------------------------------------- 4 - 5

------------------------------------------------------------------------------------ 5 - 6

---------------------------------------------------------------------------- 7 - 10

---------------------------------------------------------------------------- 11

------------------------------------------------------------------------------------------- 12 - 14

---------------------------------------------------------------------------- 15

Table of Contents

Section

General Information

Safety and Warranty

Technical Specications

Operation

Maintenance

Parts Breakdowns

Electrical Schematics

Notes

Warranty Registration

Model BL-CN-0001 / Model BL-CN-0001-L

3

General Information

Safety and Warranty

Omcan Manufacturing and Distributing Company Inc. and Food Machinery of America, Inc. dba Omcan

are not responsible for any harm or injury caused due to any person’s improper or negligent use of

this equipment. The product shall only be operated by someone over the age of 18, of sound mind, and

not under the inuence of any drugs or alcohol, who has been trained in the correct operation of this

machine, and is wearing authorized, proper safety clothing. Any modication to the machine voids any

warranty, and may cause harm to individuals using the machine or in the vicinity of the machine while

in operation.

CHECK PACKAGE UPON ARRIVAL

Upon receipt of an Omcan shipment please inspect for external damage. If no damage is evident on the

external packaging, open carton to ensure all ordered items are within the box, and there is no concealed

damage to the machine. If the package has suffered rough handling, bumps or damage (visible or concealed),

please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may

initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be

lled out within three days, from the delivery date shown in the shipping documents. Omcan has no recourse

for damaged products that were shipped collect or third party.

We have provided many important safety messages in this manual and on your appliance. Always read and

obey all safety messages.

WARNING: When using electrical appliances, basic safety precautions should be followed to reduce the risk of

personal injury, including the following:

• Read all instructions before using mixer.

• Plug into a grounded outlet.

• Do not use an extension cord.

• Disconnect power before cleaning or servicing, and before installing or removing agitator.

• Do not spray or submerge mixer.

• Always use metal container when mixing.

• Do not put spoon or other utensils in metal container when mixing.

• Do not allow agitator to hit container sides when mixing.

• Inspect mixer and agitator daily.

• Replace agitators every 90 days.

• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or is

damaged in any manner.

• If the supply cord of this appliance is damaged, it must be replaced by the manufacturer or its service agent

or a similar qualied person.

Electrical Shock Hazard: Disconnect power before cleaning mixer. Failure to follow these instructions can

result in death or electrical shock.

4

Safety and Warranty

Operation

Technical Specications

Electrical Shock Hazard: Plug into a grounded outlet. Do not use an adapter. Do not use an extension cord.

Failure to follow these instructions can result in death, re, or electrical shock.

Cut Hazard: Disconnect power before installing or removing agitator. Always use metal container when mixing.

Do not put hands, spoons, or other utensils in metal container when mixing. Failure to follow these instructions

can result in serious injuries.

1 YEAR WARRANTY

WARNING:

The packaging components are classied as normal solid urban waste and can therefore be disposed of

without difculty.

In any case, for suitable recycling, we suggest disposing of the products separately (differentiated

waste) according to the current norms.

DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT!

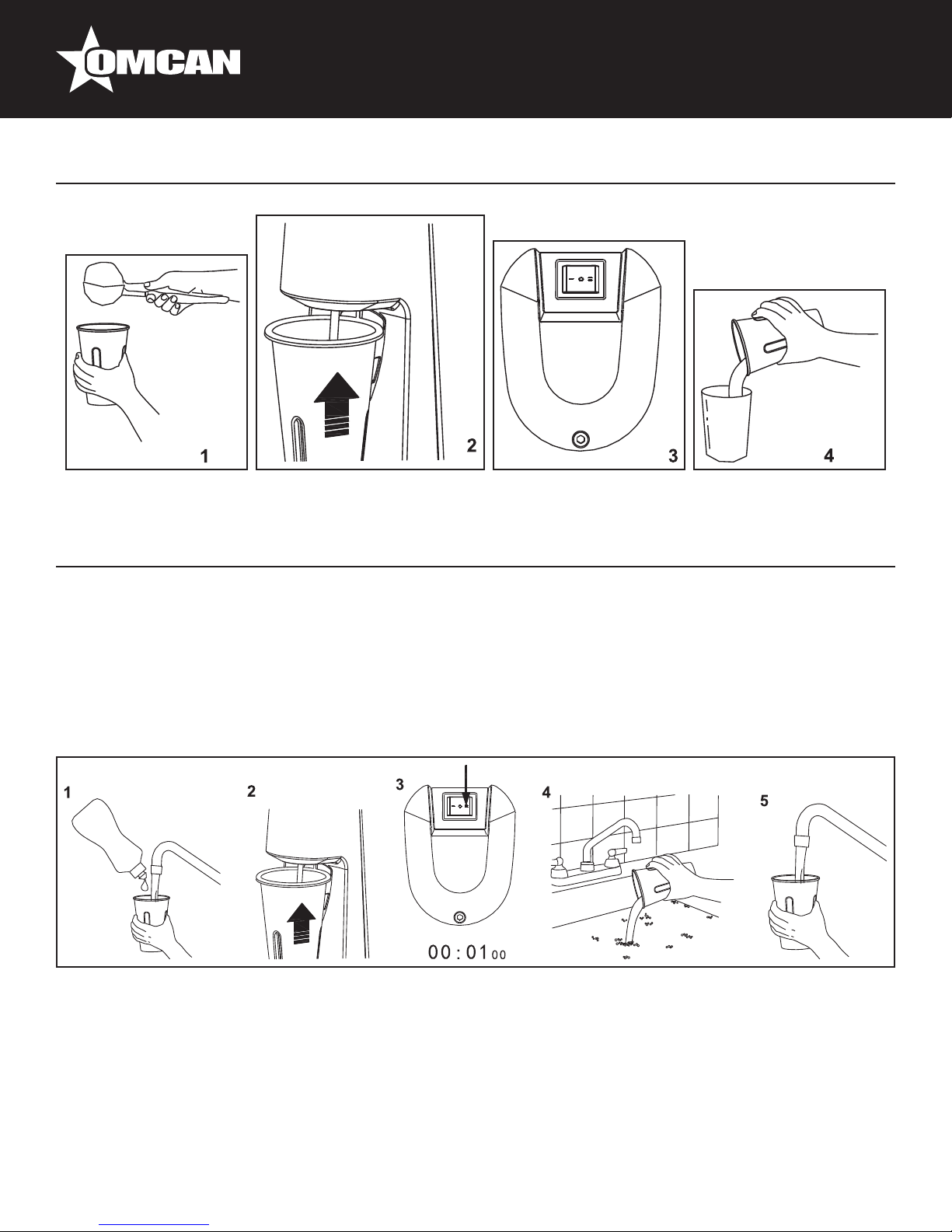

1. Add ingredients.

2. Put the blend cup on the bracket of the blender (milk-shake machine) after putting the ingredients inside

the cup.

3. Connect the electric power source, turn on the switch.

4. The mix is ne blended after about 5 seconds.

Attention: when adding ingredients, please ensure the proper capacity of liquid is used.

Model BL-CN-0001 BL-CN-0001-L

Cup Capacity 0.6 L / 0.63 QT 0.95 L / 1 QT

Electrical 110V / 60 / 1

Power 400 W

Weight 14.3 lbs. / 6.5 kg. 8 lbs. / 3.6 kg.

Dimensions 8.2” x 6.2” x 19.7” 9.1” x 7.9” x 19.6”

208.3mm x 157.5mm x 500.4mm 231.1mm x 200.7mm x 497.8mm

5

Maintenance

Operation

FOR CLEANING THE BLENDING CUP

1. Add a small amount of dish soap and water into the cup.

2. Reattach the cup to the blender.

3. Run for 1 second.

4. Empty the contents from the cup.

5. Rinse the cup.

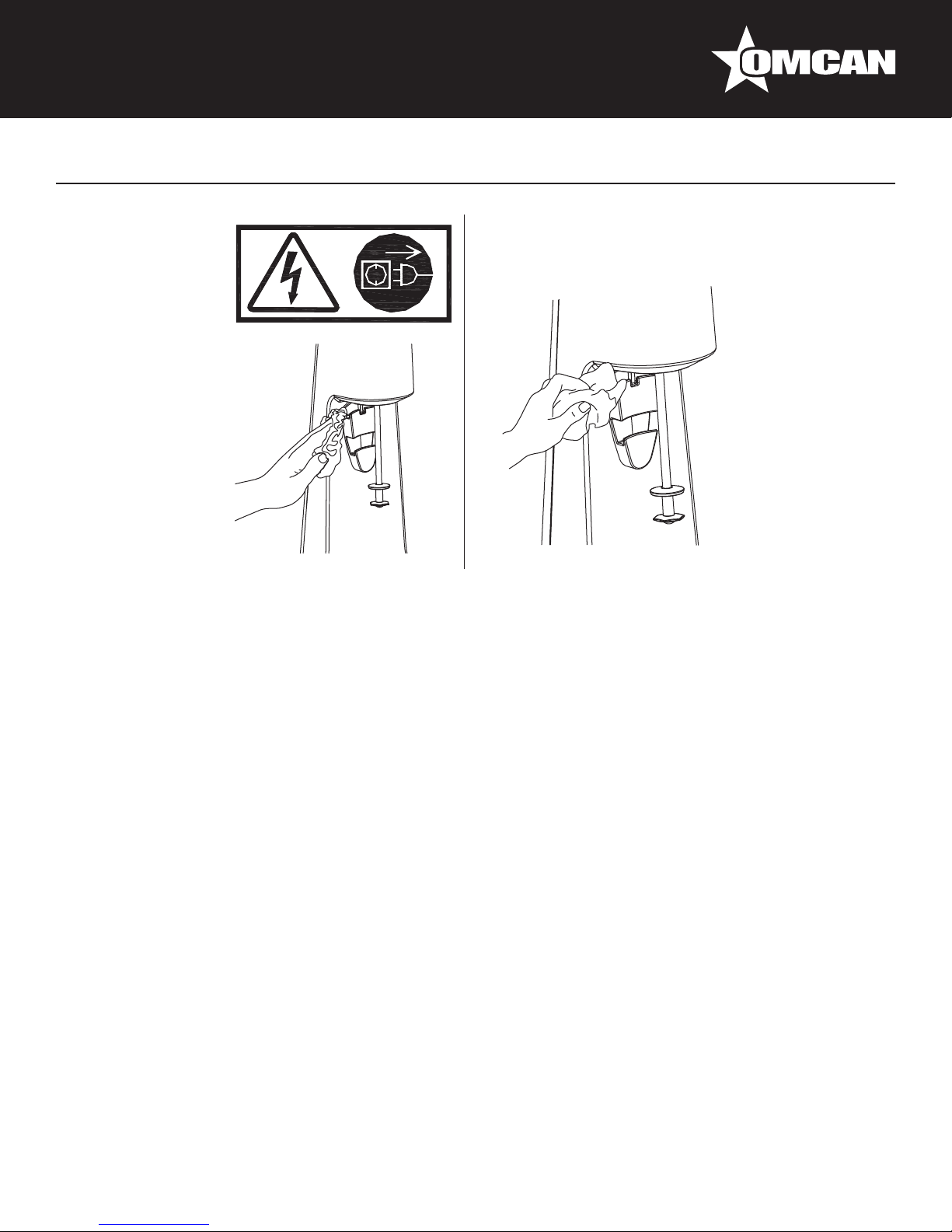

• When maintaining or cleaning, please make sure the outlet is unplugged, and that the switch is set to the

“off” position.

• Please clean the motor base and bearing by dry cloth (NEVER use water). In case you have to wipe please

do it after cleaning by using a neutral lotion.

6

Maintenance

7

Parts Breakdown

Model BL-CN-0001 39453

8

Parts Breakdown

Model BL-CN-0001 39453

Description Position Description Position Description Position

Base Seat 1-1 Resistance 1M 1-10 Motor 3-4

Cup 1-2 Terminal Block PA10 1-11 Rubber Cushion 3-5

Cup Bracket 1-3 Microswitch Holder 2-1 Upper Agitator 3-6

Self-Tapping Screw 4x14 1-4 Microswitch 2-2 Under Agitator 3-7

Underlay 1-5 Bolt M3x14 2-3 Bolt M5x10 3-8

Power Cord 1-6 Bolt M5x10 2-4 Aggravater 3-9

Bolt M5x10 1-7 Bolt M5x10 3-1 Switch 4-1

Power Cord Holder 1-8 Motor Holder 3-2 Back Cover 4-2

Capacitance 0.22uF 1-9 Rubber Cushion 3-3 Bolt M5x6 4-3

9

Parts Breakdown

Model BL-CN-0001-L 40279

10

Parts Breakdown

Model BL-CN-0001-L 40279

Description Position Description Position Description Position

Switch 1 Upper Agitator 8 Underlay 15

Cover 2 Under Agitator 9 Power Cord Holder 16

Rubber Cushion 3 Motor Housing 10 Power Cord 17

Motor 4 Support 11 Cup 18

Microswitch Holder 5 Nut M8 12 Cup Holder 19

Microswitch 6 Screw 13

Rubber Cushion 7 Seat 14

11

Electrical Schematics

Model BL-CN-0001 39453

Model BL-CN-0001-L 40279

12

Notes

________________________________________________________________________________________

13

Notes

________________________________________________________________________________________

14

Notes

________________________________________________________________________________________

15

Warranty Registration

Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at

the perforation and then send to the address specied below. You can also register online by visiting:

OMCAN INC.

PRODUCT WARRANTY REGISTRATION

3115 Pepper Mill Court,

Mississauga, Ontario

Canada, L5L 4X5

OMCAN

PRODUCT WARRANTY REGISTRATION

4450 Witmer Industrial Estates, Unit 4,

Niagara Falls, New York

USA, 14305

www.omcan.com/warrantyregistration.html

Thank you for choosing Omcan

Purchaser’s Information

Name: Company Name:

Address:

Telephone:

City: Province or State: Postal or Zip: Email Address:

Country: Type of Company:

Restaurant Bakery Deli

Dealer from which Purchased: Butcher Supermarket Caterer

Dealer City: Dealer Province or State: Institution (specify):

Invoice: Other (specify):

Model Name: Model Number: Serial Number:

Machine Description:

Date of Purchase (MM/DD/YYYY): Date of Installation (MM/DD/YYYY):



For mailing in Canada For mailing in the US

Over the last 65 years, Omcan has grown to become a leading supplier to the food

service industry in Canada and the USA. Our success over these many years is

directly attributed to our established relationships with all of our valued customers

and through providing them with Diverse, Dependable and Proven products.

Omcan continues to help our customers remain competitive.

With associates in North America, Europe, Asia, and South America, our global

footprint continues to expand as we hold to the principle that clients benet from

the accessibility and familiarity of our sales team. In 2013 as our geography and

brand recognition continued to grow, we changed to one name Omcan Food

Machinery.

In over 200,000 sq ft of warehouse space we stock over 2,500 quality food

equipment and supplies for the food preparation market.
