Omega BSID346X User manual

BSID346X
12 place settings
14 place settings

Witheachwashcycle.
For programmes with pre-wash only.
(Follow the )User Manual
Electric indicator on control panel (if provided).
Check the rinse aid level
Load the baskets
Select a programme
Turn on the water tap and press the . The machine will start working
after about 10 seconds.
Start/Pause Button
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, startingfrom the lower basket.
Changing theprogramme
Add forgottendishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loadinginstructions.
Close the door,press the Programme Button until the selected programme lights up.
( See the section entitled Operation instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the On/Off Button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoorisopened
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state.
Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.
For detailed operating method read the corresponding content onthe instruction manual.
1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press the Start/Pause button, press the program button for more than three seconds,the
machine will be in standby state, then you can change the program to the desired cycle setting
1.Press the Start/Pause Button to stop the washing.
2.Open the door a little .
3.After the spray arms stop working, you can open the door
completely.
4.Add forgotten dishes.
5.Close the door.
6.Press the Start/Pause Button, the dishwasher will run
after 10 seconds.

The section on troubleshooting Tips will help you to solve some common problems by yourself .
Dear Customer,
Please carefully read thismanual before using the dishwasher,it will help youto useand maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,Operating Instructions, Installation Instructions and
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant development and updating of the product, may make
modifications without giving prior notice.
Keepit as a referenceforlaterdays.
Ifyou cannot solvethe problems by yourself ,please ask for the helpof professional technicians.
This appliance isintended tobe used in household andsimilar applications such as:
-staff kitchen areas in shops, offices and otherworkingenvironments;
-farm houses;
-by clients inhotels, motels and otherresidential type environments;
-bedand breakfast type environments.

DishwasherFeatures.................................... ...............................................................2
AttentionbeforeorafterloadingtheDishwasher
Baskets.....................................................................................................................6
FilteringSystem........................................................................................................11
Caring for the Dishwasher..................... ....................................................................12.
A FilltheRinseAid Dispenser............. .. ..............................................................3、..... ...
B Function of Detergent .....................................................................................4、........
......................................................................7 The Method of Loading Normal Dishware
Wash CycleTable........................................................................................................9
Turning on theAppliance.............................................................................................9
Change the Programme.............. .............................................................................10....
At the End of the WashCycle........................................................................................10
Positioning theAppliance................... .....................................................................13..
Water Connection.................................. ..........................................................................19.
Start of dishwasher................................ ..................................................................19..
Before calling for service........................... .................................................................20.
Error codes.................................... ........................................................................21.
Technical information.............................. ................................................................22..
Control Panel...............................................................................................................2
CONTENTS

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Donotabuse,siton,orstandonthedoorordish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Use only detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the power supply must not
be excessively or dangerously bent or flattened.
Do not tamper with controls.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locate sharp items so that they are not likely
to damage the door seal;
2 Warning: Knives and other utensils with
sharp points must be loadedinthe basket
with their points down or placed in a
horizontalposition.
)
When using your dishwasher, youshould
prevent plastic items from coming into contact
with the heating element.(This instruction is only
applicable to machines with a visual heating
element.)
Ifthesupplycordis damaged, it must bereplaced
bythemanufactureroritsserviceagentora
similarly qualified person in order to avoid a
hazard.
Pleasedispose ofpackingmaterials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are strongly alkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyes and keep children away
from the dishwasher when the door is open.
Check that the detergent comparment is empty
after completion of the wash cycle.
Theappliance is to be connected to the water
mainsusingnewhose sets and thatold hose-sets
should not be reused.
The maximum number of place settings to be
washedis14.
The maximum permissible inlet water pressure is
1Mpa.
The minimum permissible inlet water pressure is
0.04Mpa.
Children should be supervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
The dishwasher must always be connected to
the water system using new hose sets.
If theappliance is installedon a carpetfloor,
takecare that the openings in its base are not obstructed.

beforeusing it for the first time.
To get the best performance from your dishwasher, read all operating instructions
11
12
Back View
1
2
3
4
5
7
89
10
Front view
Lower basket
Dispenser
Cup shelf
Spray arms
Filterassembly
Inlet pipe connector
Drain pipe
Upper basket
Cutlery rack
Top spray arm
1
Inner pipe
5
6
7
8
9
10
12
11
3
24
6

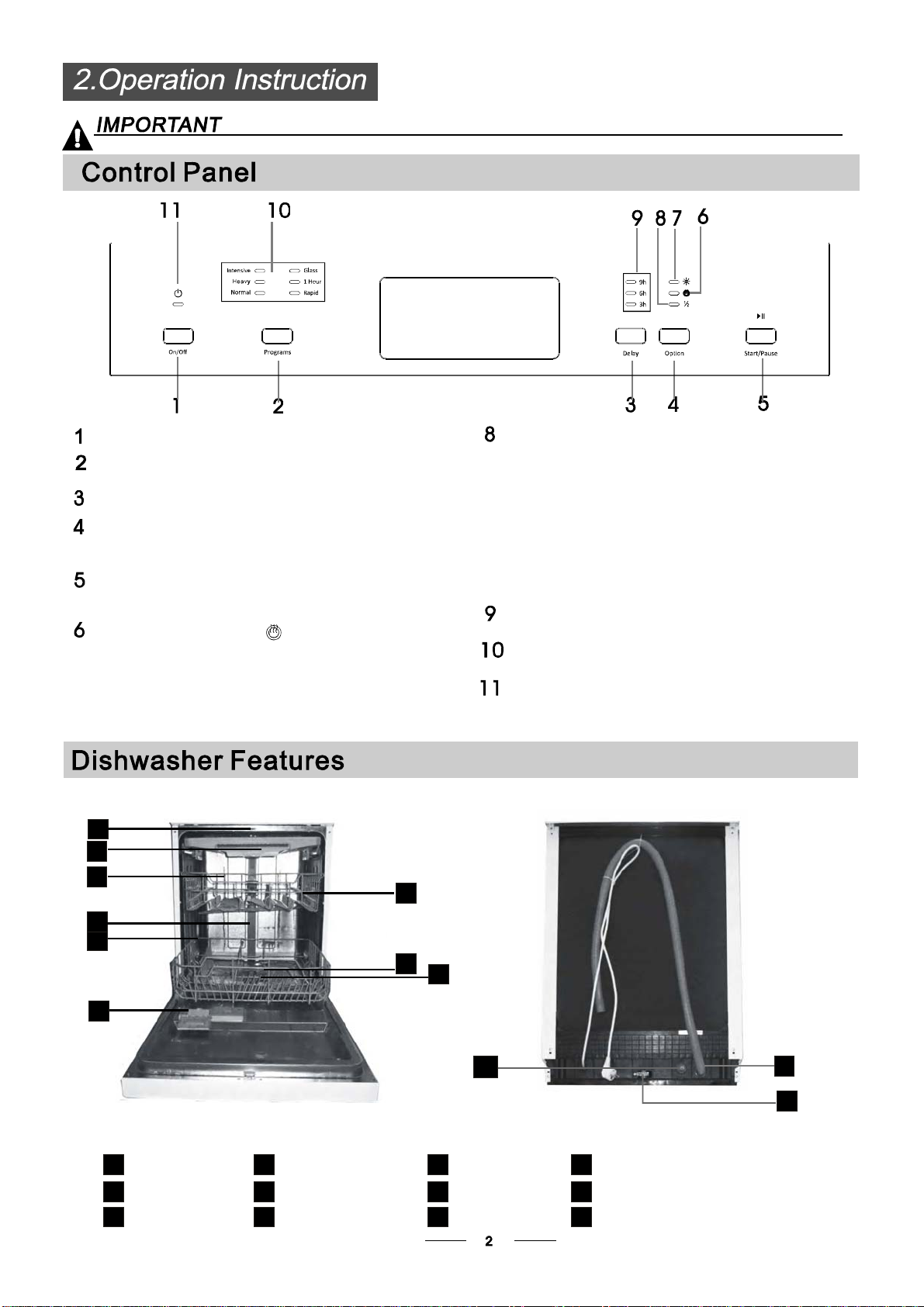

Adjuster
On/OffButton: To turn on/off the power supply.
Program indicators:Intensive, Heavy, Normal,
Glass and 1 Hour and Rapid.
Delay Button : Press the button to delay.
Program Button : Press the button to select appropriate
Program.
Start /Pause Button: To start the selected washing
programor pause thewashingprogram when the
machine is working.
OptionButton:To selectHalf loadand Extradry functions,
these functions can only be used withprogrammes
Intensive,Heavy, Normal, Glass and1 Hour.
Extra Drying indicator :
Extra drying:An increased temperatureduring the final
rinse toincrease dryingwell.There isa slightincrease
in the energy consumption.
Haft load indicator : To show when you select the
haft load function.If you have only about or less than
half of full load dishes of the dishwasher, you can
select the half load function andyour desired program
according to the dishes contaminated degree
(The quick and soak programs can’t select this
function).A program select the half load function,
it can save time, energy, and water compare to the
program hasn’t select the half load function.After
the half load function is selected, all the spray arms
are running, you can load all the baskets.
Delay indicators: toshow the delay time.
(3h/6h/9h)
Powerindicator: To show when the power on.
7 Rinse aid warning lights: Tobe of when dispenser need
toberefilled

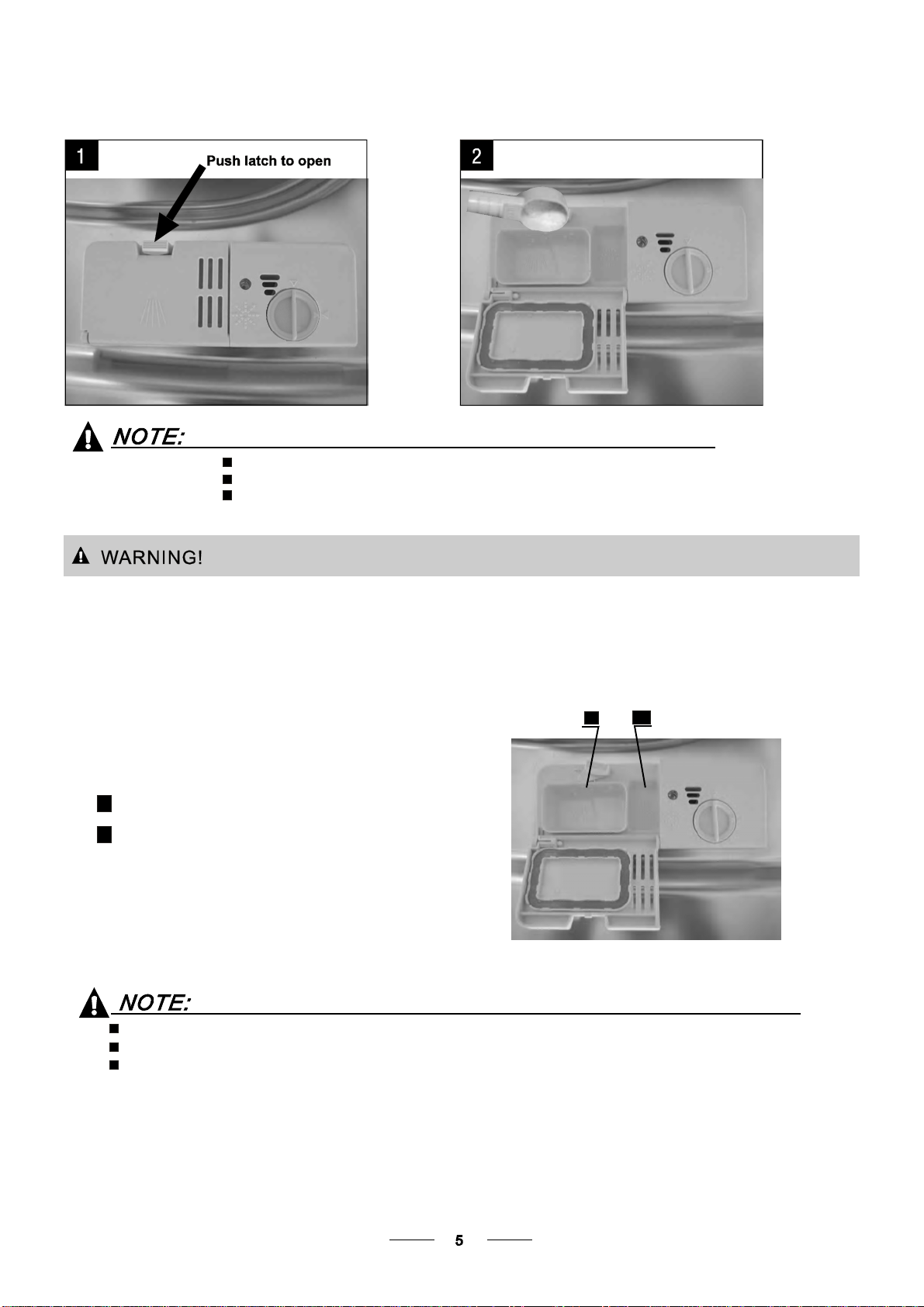

Before using your dishwasher for the first time:

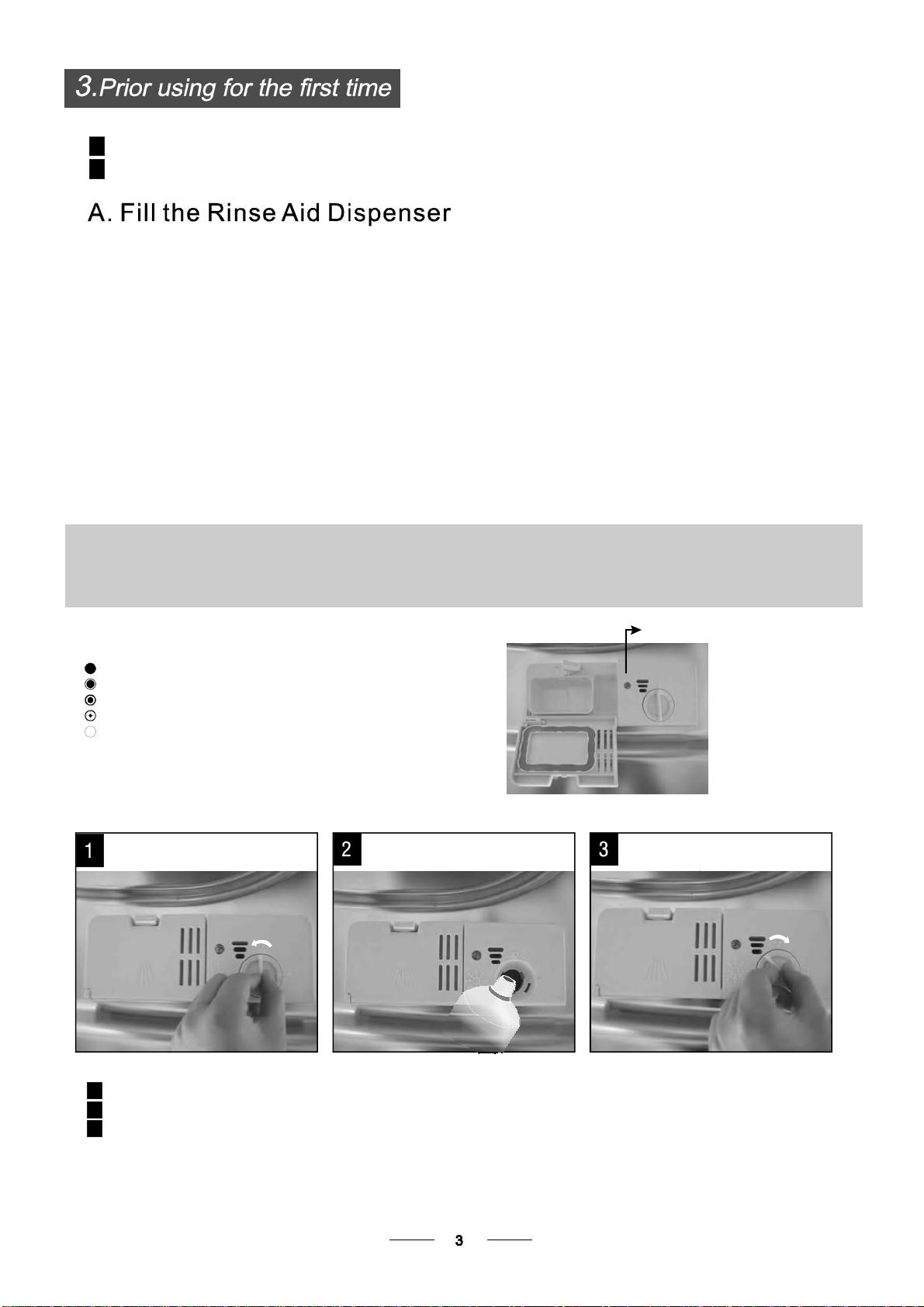

A. Fill therinseaiddispenser
B. Function Of Detergent
Therinse aid isreleased duringthe finalrinseto preventwater from forming dropletson your dishes, which can
leave spots andstreaks. It also improvesdryingby allowing water to rolloff thedishes. Yourdishwasher is
designedto useliquidrinseaids.The rinseaid dispenser islocatedinsidethe door next to thedetergent dispenser.
Tofillthe dispenser,open the capand pour the rinse aidinto the dispenser untilthe level indicatorturns completely
black.Thevolume ofthe rinseaidcontaineris about110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streakfree drying.
Attention
Only use brandedrinse aid for dishwasher.Never fill the rinseaiddispenserwith any other substances
(e.g. Dishwasher cleaning agent,liquid detergent). This would damage the appliance.
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1/4full-Shouldrefilltoeliminatespotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the
optical level indicator "C" located next to the cap. When the rinse-aid container is full, the whole indicator will be
dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid get below
1/4full.
When to Refill the RinseAid Dispenser
RINSEAID DISPENSER
To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful notto overfill.
Replace the capby inserting it aligned with "open" arrow and turning it tothe closed (right) arrow.
Be careful not to overfillthe dispenser, because this could cause over sudsing. Wipe away any spills
witha damp cloth. Don't forget toreplace thecap before you close the dishwasher door.
Attention!
Clean up any rinse aid spilt during filling with an absorbent cloth toavoid excess foaming
during the nextwash.
1
2
3
C(Rinse-Aidindicator)

Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor drying are a problem, increase the amount of rinse
aiddispensed byremoving thedispenserlidandrotatingthedialto"5".Ifthe
dishes are not drying properly or showing spots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
still
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish stains on your dishes or abluish film on glassware or
knifeblades.
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher.
Most of the commercial quality detergents are suitableforthis purpose.
Detergents
There are 3 sorts of detergents
1.With phosphate and withchlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine
Based on their chemicalcomposition,detergents can be split in two basic types:
Theuseof normal washing programs in combination with concentrated detergents
reducespollution and is goodforyour dishes;these washprograms arespecificallymatched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal washprograms inwhich concentrated detergents are used can achieve the same
results that can otherwise only be achieved using intensive programs.
“”
“”
“”
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve anddevelop their full cleaning power during short
programs. Therefore please use long programs when using detergent tablets, to
ensure the completeremoval of detergentresiduals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the wash cycle table . Your dishwasheruses less detergent and rinse aid than
Conventional dishwasher. Generally,only one tablespoon of detergent is needed for
a normalwash load. Moreheavilysoiled itemsneed more detergent.Always add the
detergent just before starting thedishwasher, otherwise it could get damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate. Thus the water softener function of
phosphate is not given. In this case we recommend tofill salt in the salt container even when
the hardness ofwater is only6 dH. Ifdetergents without phosphate are used inthecase ofhardwater
often white spots appearon dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine doonly bleacha little. Strong and coloured spots will not
be removedcompletely.Inthis caseplease choosea programwitha higher temperature.
°

AmountofDetergentto Use
ProperUseofDetergent
Use of detergent specifically made for use in dishwashers. Keep your detergent fresh and dry.
Don't put powdereddetergent into the dispenser until you're ready to wash dishes.
Dishwasher detergent is corrosive. Takecare to keepitoutof reach ofchildren.
Always add the detergent just before starting eachwash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid will spring open.
Fill the detergentdispenser with detergent.
Themarkingindicates the dosinglevels ,as
illustratedontheright:
The place for main wash cycle detergent.
The place for pre -wash cycle detergent.
Please observe the manufacturersdosing andstorage
Recommendations as stated on the detergent packaging.
Close the lid andpress until itlocks in place.
If thedishesare heavily soiled,placean additional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phase.
A
B
Fill in Detergent
Information about the amount of detergent for the single programme is located at the washing cycle table.
Please be aware,that according tothe level soiling and the specific hardnessof water differences are possible.
Pleaseobserve the manufacturer's recommendations on the detergent packaging.
AB

Cutlery withwooden,horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made fromsynthetic fibres
Some types of glasses can become
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduringwashing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsofcutlery mustnot lie insideoneanother, orcover each other.
To avoid damage to glasses, theymust not touch.
Load large items which are most difficult to clean into the lower basket.
The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright position are a potential hazard.
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload your dishwasher. This is important forgood results and for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwardsso that
water cannot collect in the container or a deepbase.
Consider buyingutensils which are identified asdishwasher-proof.
Usea mild detergentthatis described as'kind todishes'. Ifnecessary, seek further
information fromthedetergent manufacturers.
For particular items, select aprogramwithaslow a temperature aspossible.
Toprevent damage, do not take glass and cutlery out of the dishwasher immediately
after the programme has ended.
(For best performance of the dishwasher, follow theseloading guidelines.
Features and appearance of baskets and cutlery basketsmay vary from yourmodel.)
Scrape off any largeamounts ofleftover food. Soften remnants of burnt food in pans.
It is not necessary torinse thedishes under running water.
Place objects in the dishwasher in the following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way thatthe spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend that you
empty the lower basket first and thenthe upper basket.

The upper basket is designed to holdmore delicate
and lighter dishware such as glasses, coffee and
teacups andsaucers, as well asplates, smallbowls
andshallowpans (as long astheyarenot toodirty).
Position the dishes andcookware sothatthey will
notgetmovedbythespray ofwater.
We suggest that you place large items and the most difficult
to cleanitems into the lower basket: suchas pots, pans, lids,
serving dishes and bowls, asshown in the figure below.
It is preferable to place serving dishesandlidsonthe sideof
the racksin orderto avoid blocking the rotationof the top
spray arm.
Pots,servingbowls,etc,mustalwaysbeplacedtopdown.
Deep pots should be slanted to allow water to flow out.
Please be reminded that:
The Bottom Basket features folding spikes so that larger or more pots and pans can be loaded.
Folding Spikes of Lower Basket
For better stacking of pots and pans,
the spikes can be folded down as
shown in the picture right.
Folding back the cup shelves
For better stacking of pots and pans,
the spikes can be folded down as
showninthepictureright.
Cutleryshouldbe placed inthecutlery rackseparately
from each other in the appropriate positions, and do
make sure the utensils do not nest together, this may
causebadperformance.

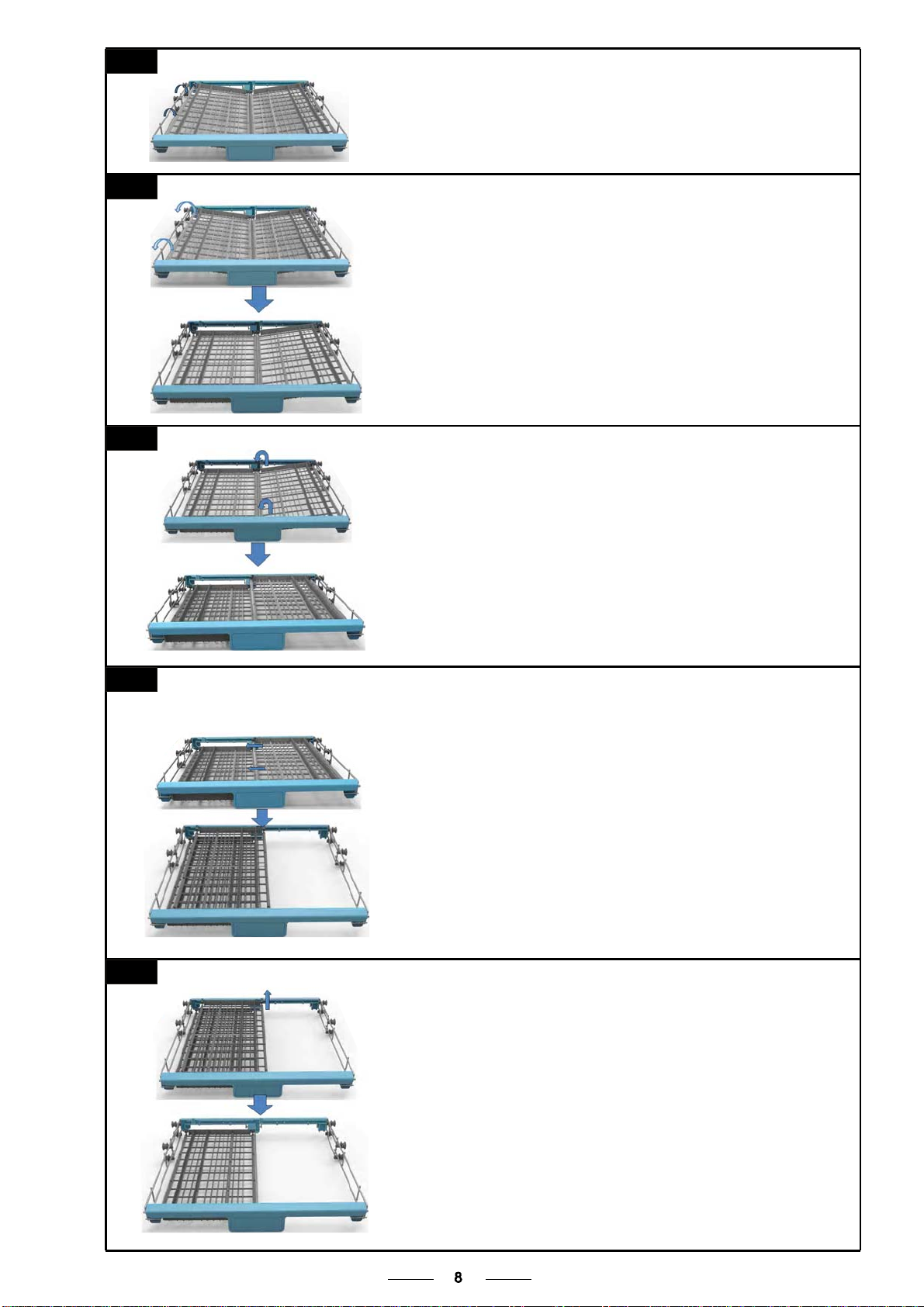

Adjustingthe UpperBasket
Theheight of the upper basket can be adjusted inorder to
create morespace for largeutensils bothfor the upper
/lower basket. The height of the upper basket can be
adjusted by lifting up the basket for the upper position, and up
pressthe handleto lower theupper basket, see the picture
below:

Position one: lift the left basket up, both left and right
baskets are slanting.
Position two: adjust the left basket to lower position, left
basket is flat and right basket is slanting.
Position three: lift the right basket up, both left and right
baskets are flat.
Position Four: Move the right basket from right to left, two
basket are overlapping.
Position Five: Remove the right basket from the tray,
only has the left basket.
Mode 1
Mode 2
Mode3
Mode 4
Mode 5
Cutlerytraycouldbehave5positions:

Startingacycle wash
Draw out the lower and upper basket, load the dishes and push them back.
It is commended to load the lower basket first, then the upper one (see the section entitled
Loading the Dishwasher ).
Pour in the detergent (see the section entitled Detergent and RinseAid ).
Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ, the specification
of the socket is 10A 250VAC. Make sure that the water supply is turned on to full pressure.
“”
“”
Open the door, press the ON/OFF Button, and the Power indicator light will turn on.
Press the program Button ,the wash program will be changed as follows direction:
If a program is selected, the response light will light. Then close the door, the dishwasher
beginsto start.
Intensive->Heavy->Normal->Glass->1Hour->Rapid;
1
2
3
4
5
* : This program is the test cycle. The information for comparability test
in accordance with , as follows:
AS/NZS 2007.1
AS/NZS 2007.1
Capacity: 14 setting
Position Upper basket:upperwheelsonrails
Rinse aid setting: 6
Open thedoor slightly 50mm to assist indrying of the dishes after every wash
Means: need to fill rinse into the Rinse-Aid Dispenser.
()
Glass
For lightlysoiledloads,
such as glasses,
crystal and fine china.
20g
Pre-wash
wash(40 )
Rinse
Rinse(60 )
Drying
℃
℃
115
0.8 14.5
Normal
Intensive
Heavy
(Or All )in1
5/27.5g
5
(Or All )
/27.5g
in1
(OrAll )in1
5/27.5g
For normally soiled loads,
such as ,plates,glasses
and lightly soiledpans.
standard dailycycle.
pots
For the heaviest soiled
loads, such as pots, pans,
casserole dishes and dishes
that have been sitting with
dried foodon them for a
while.
A shorter wash for lightly
soiled loads that do not
need drying.
Rapid
Pre-wash(50 )
Wash (65 )
Rinse
Rinse
Rinse(65 )
Drying
℃
℃
℃
Pre-wash(45 )
Wash (55 )
Rinse
Rinse(60 )
Drying
℃
℃
℃
Pre-wash
Wash (50 )
Rinse
Rinse(50 )
Drying
℃
℃
Wash (40 )
Rinse
Rinse (45 )
℃
℃
165
160
135
40
1.15
0.87
1.4
0.5
18
14.5
13.6
10.5
1Hour
Pre-wash(50 )
Wash(60 )
Rinse (55 )
Drying
℃
℃
℃
60 10
0.9
5/27.5g
20g
Daily wash in only 1 hour.
Forlightly and normally
soiled plates and pans
foreveryday.
(*AS/NZS 2007.1)
For heavily soiled loads,
such as pots, plates, glasses
and lightly soiled pans.

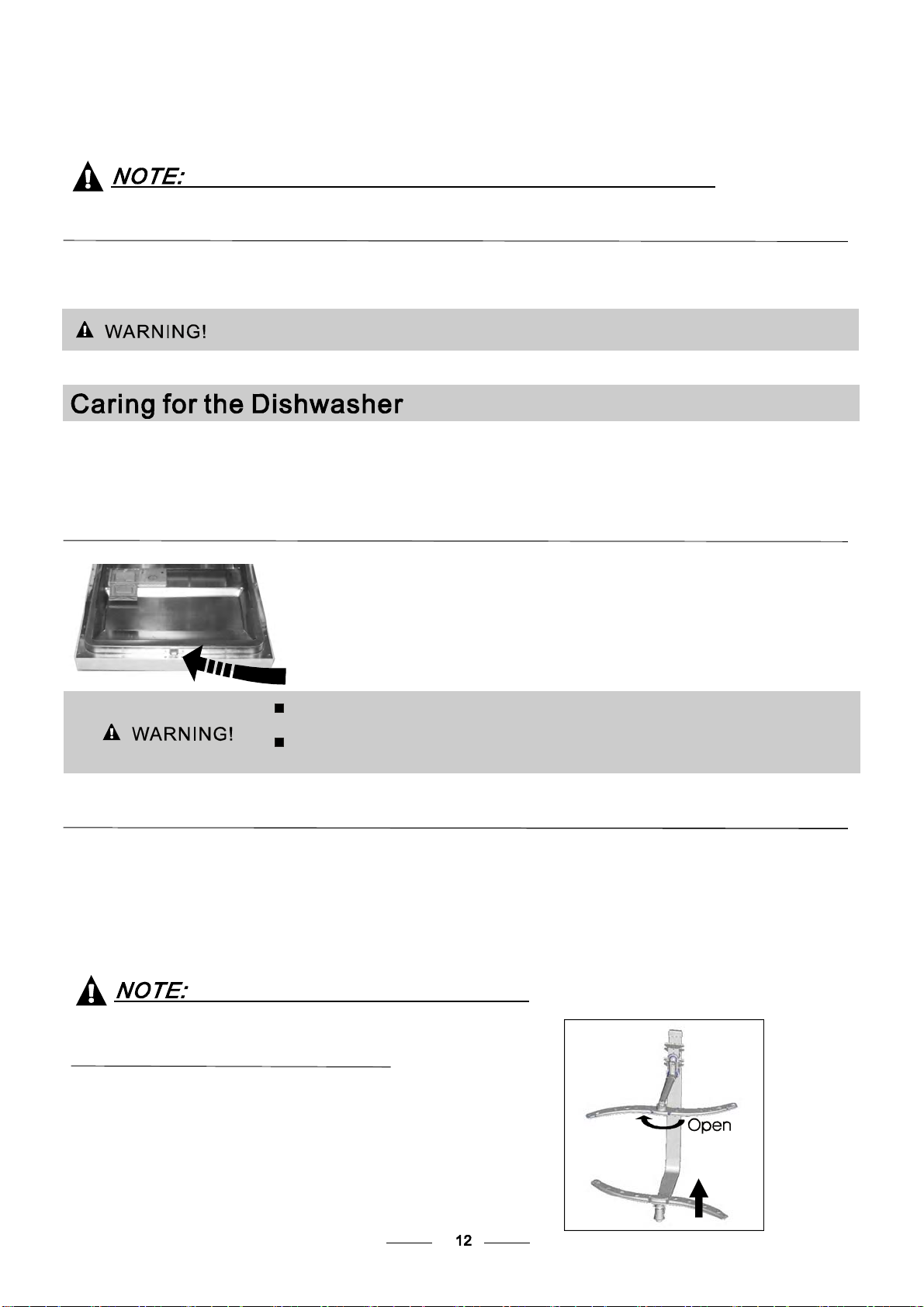

Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
It is dangerous to open the door when washing,because the hot water may scald you.
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using the Powerswitch button, shut off the water supply and open the door of the dishwasher.
Wait for a few minutes before unloading thedishwasher toavoidhandlingthe dishes and utensils while they
are still hot and more susceptible to breakage. Theywill also dry better.
Switch Off theDishwasher
The program light is on but is not blinking, only in this case the programme has ended.
Power1.Switch off the dishwasher by pressing the button.
2.Turnoff thewatertap.
Open thedoor carefully.
Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes
before removingfrom the appliance.
Open the dishwasher door, leave it ajar and wait a few minutes before removing the dishes. In this way they
will be cooler and the drying will be improved.
Unloadingthe dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upperone.This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
If you openthe door , the machine will pause. The program light will
stop blinking and the buzzer will be every minute unless you close the door . After
you close the door,the machinewillkeep onworking after 10seconds.
during awash cycle
beeping
Acycle that is underway can only be modified if it has only been running for a short time. Otherwise, the
detergent may have already been released,and the appliance may have already drained the wash water.
If this is the case, the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
Press the Start/Pause button, the machine will be in standby state, press the program button for more than
3 then you can change the program tothe desired cycle setting (see the section entitled "Starting a wash
cycle. . ." ).
1
2seconds
Aforgotten dish can be added any time before the detergent cup opens.
Add forgotten dishes.
Close the door
After the spray arms stop working,you can open the door
completely.
2
3
Open the door a little to stop the washing.
14
5
6
Press the Start/Pause button
Press the button, the dishwasher will run
after 10 seconds.
Start/Pause
When you presstheStart/Pausebutton to pauseduring washing,the running indicator will
stop blinking and the dishwasher will every minute unless you press the
button to start.Start/Pause be beeping

The filter preventslarger remnants of food orother objects from getting inside thepump.
Theresidues may block thefilter, inthiscasethey mustbe removed.
The filter systemconsists ofa coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Food and soil particles trapped inthisfilter arepulverizedby a
special jet onthe lower spray arm and washed down to drain.
Thisfilter holds soiland food residues in the sumpareaand
prevents itfrom being on the dishes during wash cycle.redeposited
Main filter
1
Fine filter
3
2
3
1
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it is a good idea to
remove thelarger food particlestrapped in the filter aftereach wash cycle by rinsing the semicircular filter and
cup under running water. To remove the filter device, pull the cup handle in the upward direction.
removes food particles from the wash water, allowing it to be recycled during the cycle.
For
The dishwasher must never beused without the filters.
Improper replacementof the filter may reduce the performance level ofthe appliance
and damage dishes and utensils.
Step 1 Turn the filter in anti-clockwise direction,：
Step 2 lift the filter up：
When following this procedure from step 1 to step 2, the filter system will be removed;
when following it from Step 2 to Step 1, the filter system will be installed.
1
2
Larger items, such as pieces of bones or glass, that couldblock
the drain To remove
the itemsandeasily becometrappedinthecoursefilter
caughtby the filter,gently squeeze thetap onthetopof this
filterandliftout.
Coarse filter
2

The control panel can be cleaned by using a lightly dampened cloth.
After cleaning, make sure to dry it thoroughly.
For the exterior, use agood appliance polish wax.
Neveruse sharp objects, scouring pads orharsh cleaners onany part of the dishwasher.
ProtectAgainst Freezing
1.Cut off the electrical power to thedishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.
please take frost protection measures onthe dishwasher in winter.Every fter washing cycles,
please operate as follows time a
：
Cleaning the Filter
CleaningThe Door
To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on the previous page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing downwards.
When cleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and theperformance ofthe dishwashercouldbedecreased.
To clean theedge around the door, you should use only a soft warm, damp cloth.
To avoid penetrationof water into the door lock and electrical components, do not
use a spray cleaner of any kind.
Never use a spray cleaner toclean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agents or some paper towels should not be used because of therisk of
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
If your dishwasher cannot work because of the ice,
please contact professional service persons.
It is necessary to clean the spray arms regularly forhard
water chemicalswillclogthesprayarmjetsandbearings.
- Inspect the filters for blockingafter every time the dishwasher has been used.
- By unscrewing the coarse filter, you can remove the filter system. Removeany foodremnants and
cleanthefilters underrunningwater.
Remarks:
The entirefilter assemblyshouldbe cleanedonce a week.
Toremovethelowerspray arm,pullout thespray arm upward.
To remove the upper spray arm, hold the nut, rotate the arm
clockwisetoremoveit.
Wash the arms in soapy and warm water and use a soft brush to
clean the jets. Replace them after rinsing them thoroughly.

Itisrecommendthat yourun awashcycle with the
dishwasher empty and then remove the plug from the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlongerandprevent odoursfromforming
withintheappliance.
If the appliance must be moved, tryto keep it in the
vertical position.If absolutelynecessary,itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remains trapped in the seals.
Periodic cleaning with adamp sponge will preventthis
from occurring.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberpartsofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use a cloth with warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened withwater and alittle
vinegar, or a cleaning product madespecifically for
dishwashers.
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
After every wash, turn off the water supply to the
appliance and leave the door slightlyopen sothat
moisture and odours are not trapped inside.
After EveryWash
When not in Use for aLongTime
The installation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electricalpower before
installingdishwasher.
Failure to do so can result in death or
electrical shock.
The installation position of dishwasher should be near the existing inlet and drain hoses and
powercord.
One side of thecabinet sinkshould be chosen tofacilitatethe connection of drain hoses of
thedishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)
●

Please carefully read the installation instruction.

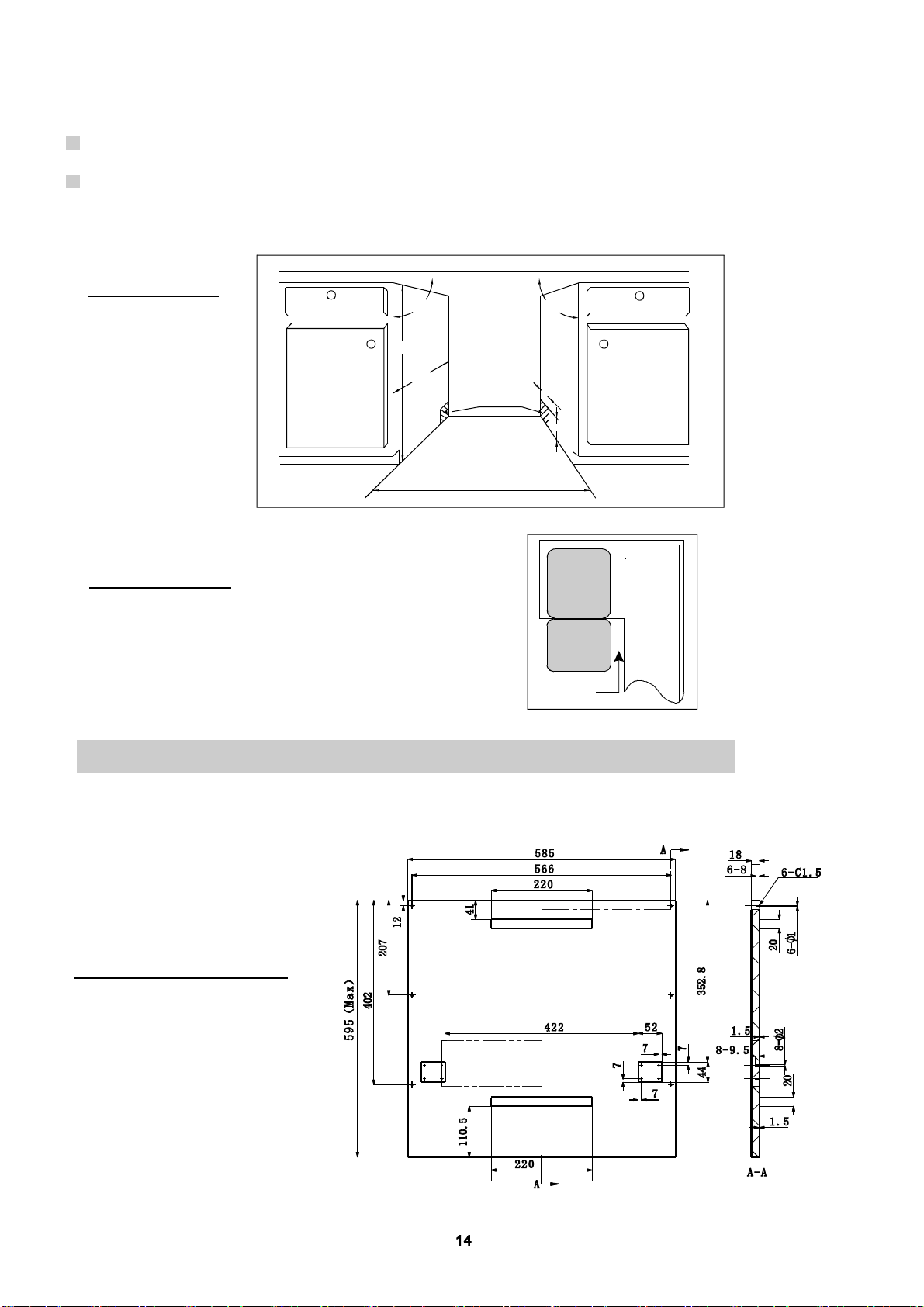

●Illustrations of cabinet dimensions and installation position of the dishwasher
Preparations should be made before moving the dishwasher to the installation place.
Choose a place near the sink to facilitate the installation of inlet and drain hoses
(see figure 1).
If dishwasher is installed at the corner of the cabinet, there should be somespace
(illustrated in figure 2) when the door is opened.
2
1
Minimum space when
the door is opened
【Figure2】
Cabinet dimensions
【Figure1】
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
1 The aesthetic wooden panel could be processed according to the Figure 3.
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
【Figure3】
●Aesthetic panel's dimensions and installation
Less than 5mm
between the top
of dishwasher and
cabinet and the
outer door aligned
to cabinet.
90 °
90 °
600 mm
820mm
100
580mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
(Unit: mm)

Installation of aesthetic panel
【】Figure4a
2magical paster Aand magical paster B be disjoinedon ,magical paster A on the aesthetic wooden paneland
felted magical paster B of theouter door of dishwasher(seefigure 4a).After positioning of the panel , fix the panel
ontothe outer door by screws and bolts(See figure 4b)
Installation of aesthetic
wooden panel
【】Figure4b
.take away the four
short screws
.pinupthefourlong
screws
1
2

Tension adjustment
ofthe door spring
【】Figure5
Tension adjustment of the door spring
●

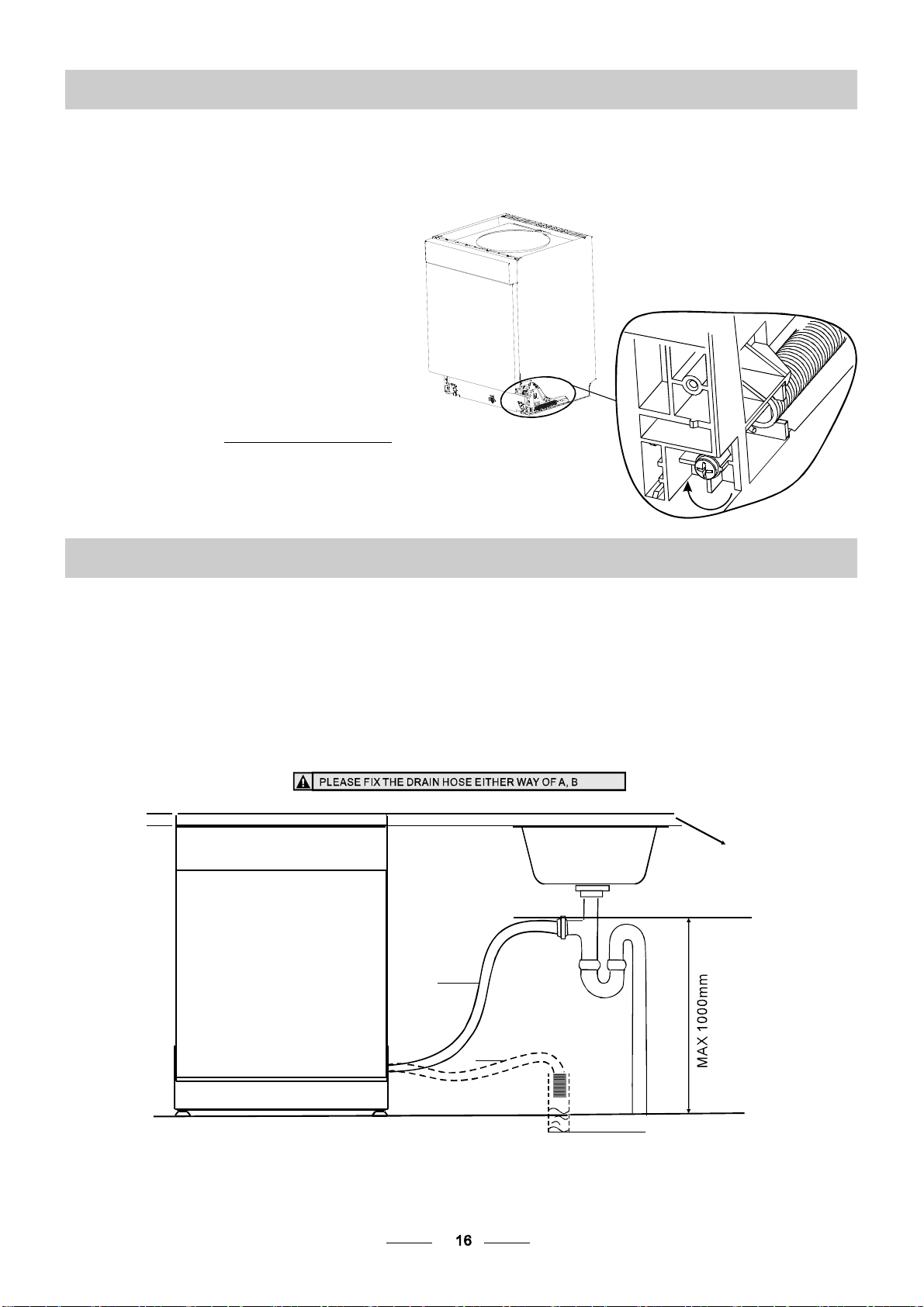

Connection of drain hoses
●
The door springs areset at the factory to the proper tension for the outer door.
If aesthetic wooden panel are installed, you will have to adjust the door spring tension.
Rotate the adjusting screw to drive the adjustor to strain orrelax the steel cable
(see figure 5).
Door spring tension is correct when
the door remains horizontal in the
fullyopenedposition yet rises
toaclosewiththeslightliftofa
finger.
，
Insert the drainhose into adrain pipe with a minimum diameter of40mm,or let it run into thesink, making sureto
avoid bendingor crimpingit.The topof the hosemust belessthan 1000mm.
A
Counter
Front
Drain pipe
NOTE
The top of the hose
must be less than
1000mm.
φ40mm
B
