Omega OSD607X User manual

Instruction Manual
SINGLE DRAW DISHWASHER
Model OSD607X

2
Thank you for purchasing an Omega appliance
Tailored for the modern aesthetic and lifestyle of busy people, your new Omega Appliance will make a
welcome addition to the family.
Omega caters to style-savvy customers who look for balance between stunning form and clever function.
This means a combination of sleek, chic, sophisticated design yet effortless functionality.
And we source from the best. The best craftsmanship. The best innovation. From the best international
design-houses.
All brought together under an appliance that stands for design-led balance.
Please take the time to read through the following instruction manual to familiarise yourself with the
installation, operation requirements and maintenance to ensure optimum performance.
Further Information
For important information about your Omega Appliance such as warranty registration, manuals, features,
and specifications please visit omegaappliances.com.au (if you are in Australia) and
omegaappliances.co.nz (if you are in New Zealand) or contact our Customer Care team on the below email
or phone numbers.
Registering Your Warranty
For peace of mind you can register your warranty at omegaappliances.com.au. Further information on the
Warranty can be found at the end of this manual.
Contact Us
Our customer service team is here to help you with any question or concern.
Both teams are on call Monday to Friday 8.30am to 5.00pm and of course you can always send an email at
your convenience.
Australia Contact Details
Monday to Friday 8.30am –5.00pm
Email: [e-mail]
Phone: [phone]
New Zealand Contact Details
Monday to Friday 8.30am –5.00pm
Email: [e-mail]
Phone: [phone]
To stay up to date and find simple and easy recipes, follow us on our socials:
facebook.com/omegaappliances
instagram.com/omegaappliances_aus

3
READ THE INSTRUCTION BOOKLET BEFORE INSTALLING AND USING THE AP P LIAN CE.
It is important that you retain these instructions, proof of purchase as well as other important documents about
this product for future reference.
The manufacturer will not be responsible for any damage to property or to persons caused by incorrect
installation or improper use of the appliance.
Due to continual product development, Omega reserves the right to alter specifications and appearances without
notice.
Contents
Important Safety Warnings ............................................................................................................................................... 4
Appliance Details............................................................................................................................................................... 5
Installation......................................................................................................................................................................... 6
Operating Instructions .................................................................................................................................................... 13
Cleaning and Maintenance ............................................................................................................................................. 29
Troubleshooting Tips....................................................................................................................................................... 33
Australian & New Zealand Product Warranty Statements of Standard Warranty Conditions ....................................... 36
Disposal Information
Most of the packaging materials are recyclable. Please dispose of these materials through your local recycling
depot or by placing them into appropriate collection containers.
If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.

4
Important Safety Warnings
When using electrical appliances, in order to reduce the risk of fire, electric shock, and/or injury to
persons, basic safety precautions should always be followed, including
1. This appliance is intended to be used in household and similar applications , such as:
a. staff kitchen areas in shops, offices and other working environments;
b. farm houses;
c. by clients in hotels, motels and other residentialtype environments;
d. bed and breakfast type environments.
2. The appliance is not to be used by persons (including children) with reduced Physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision or
instruction. Children being supervised not to play with the appliance.
3. The door is not left in the open position since this could present a tripping hazard.
4. When loading items to be washed:
a. Locate sharp items so that they are not likely to damage the door seal.
b. WARNING: Knives and other utensils with sharp points must be loaded in the basket with their points
facing down or placed in a horizontal position.
5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
6. After having installed the appliance, the switched outlet must always be in an accessible position.
7. WARNING: Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if
swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the
door is open. Check that the detergent receptacle is empty after completion on the wash cycle.
8. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip
forward.
9. Check that the detergent powder is empty after completion of the wash cycle.
10. Use only detergent and rinse additives designed for automatic dishwasher.
11. Do not operate your dishwasher unless all enclosure panels are properly in place.
12. Never use soap, laundry detergent, or hand washing detergent in your dishwasher.
13. The appliance is to be connected to the water mains using new hose sets and that old hose-sets
should not be reused.
14. During installation, the power supply cord must not be excessively or dangerously bent or flattened.
15. Maximum: 7 place settings.
16. Maximum: 1 MPa inlet water pressure.
17. Minimum: 0.04 MPa inlet water pressure.
This appliance is for indoor use only, for household use only. To protect against the risk of electrical shock,
do not immerse the unit, cord or plug in water or other liquid.
Please unplug before cleaning and maintenance the appliance .Use a soft cloth moisten with mild soap,
and then use a dry cloth to wipe it again.

5
Appliance Details
IMPORTANT:
To get the best performance from your dishwasher, read all operating instructions before using it for the first
time.
Product Overview

6
Installation

7
Installation
Before Installation
Parts supplied
Mounting brackets (4)
Ensure that the inner end of the tab
is protruding by one material thickness
Screws (4)
Moisture protection tape (1)
Prepare the cavity

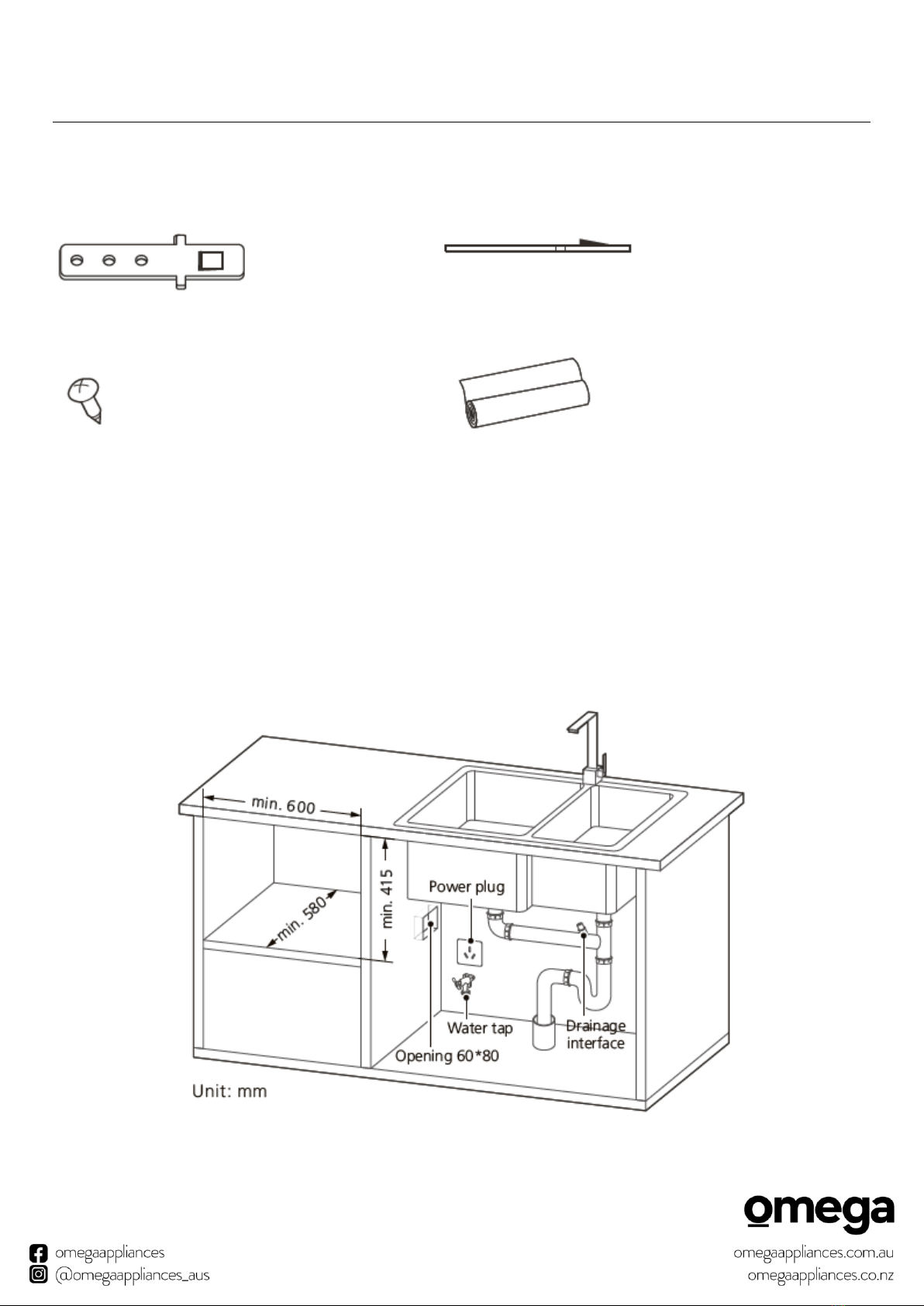

The cavity will need to conform to the dimensions in the diagram.
The water supply and power point for the appliance cannot be in the dishwasher cavity.
Ideally they should be in an adjacent cavity, easily accessed for isolating the product.
An opening to allow the hoses and power cord to exit is required on either side of the
cavity with the minimum dimensions shown.

8
Installation
Prepare the cavity
Installing Your dishwasher
Cold water connection
The Inlet Hose supplied requires a inch BSP Male fitting, suitable for a flat sealing washer.
A faucet is important for isolating the supply to the dishwasher.
Ensure that the sealing washer supplied inside the hose connection is firmly in place.
Check that the initial water is clean, particularly if the supply has not been used for
some time.

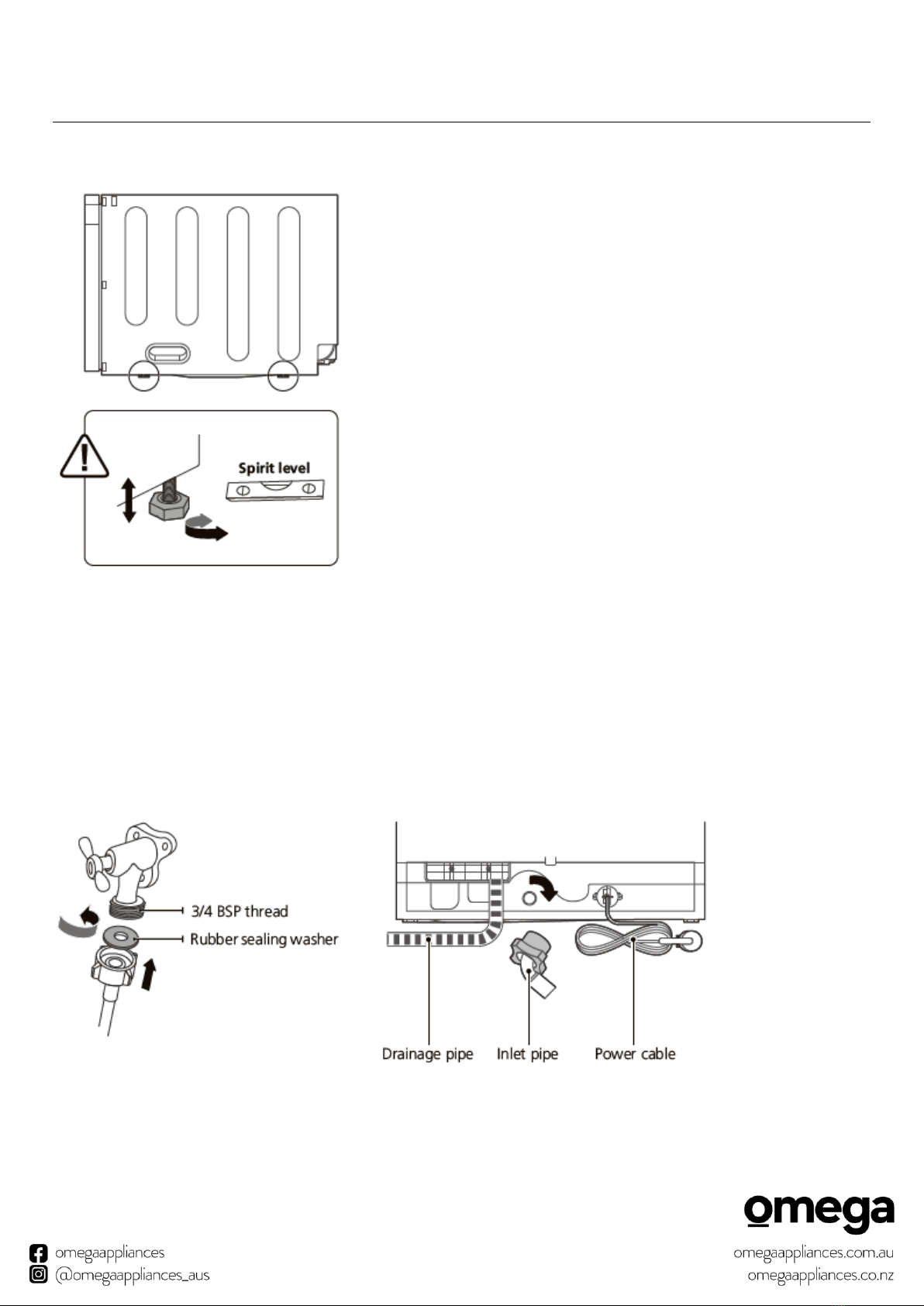

Dishwasher must be level for proper dish rack
operation and wash performance.
If need be, adjust the feet in each corner to
ensure the product sits evenly on the floor,
and is level both left to right and front to back.
This can be checked by using a spirit level on
an open drawer.

9
Installation
Fit the mounting bracket
Drawer dishwashers are unstable until they are secured to their surrounding cabinetry. Study the two
options for securing offered and choose one that suits your cabinetry. Fit the mounting brackets supplied to
the top or sides of the product, ensuring the locking tab effectively retains the bracket in place. Adjust the
tabs if needed.

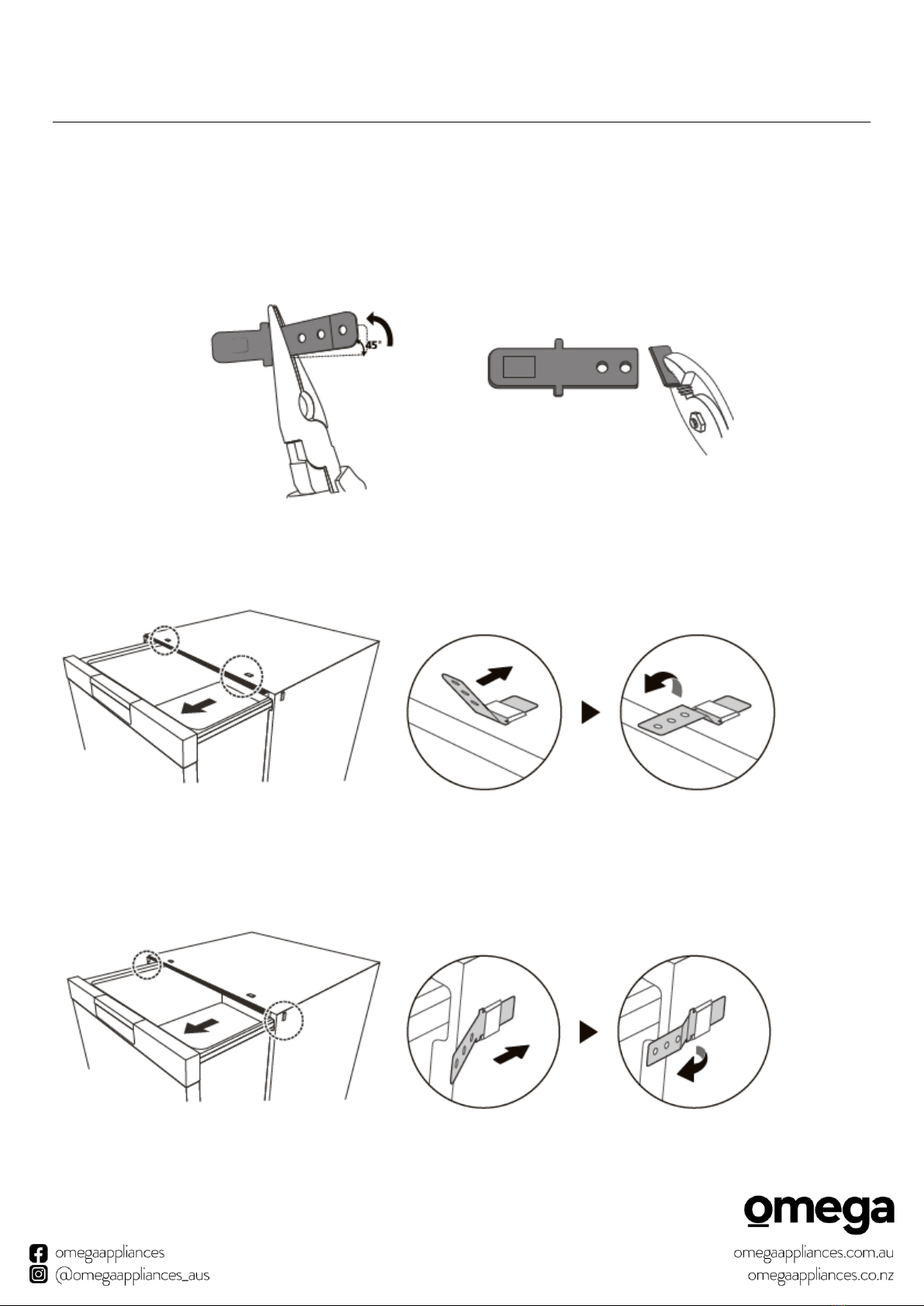

With the aid of pliers pre form the bracket to match the surface it will be fitted to. Shorten the tab if needed.

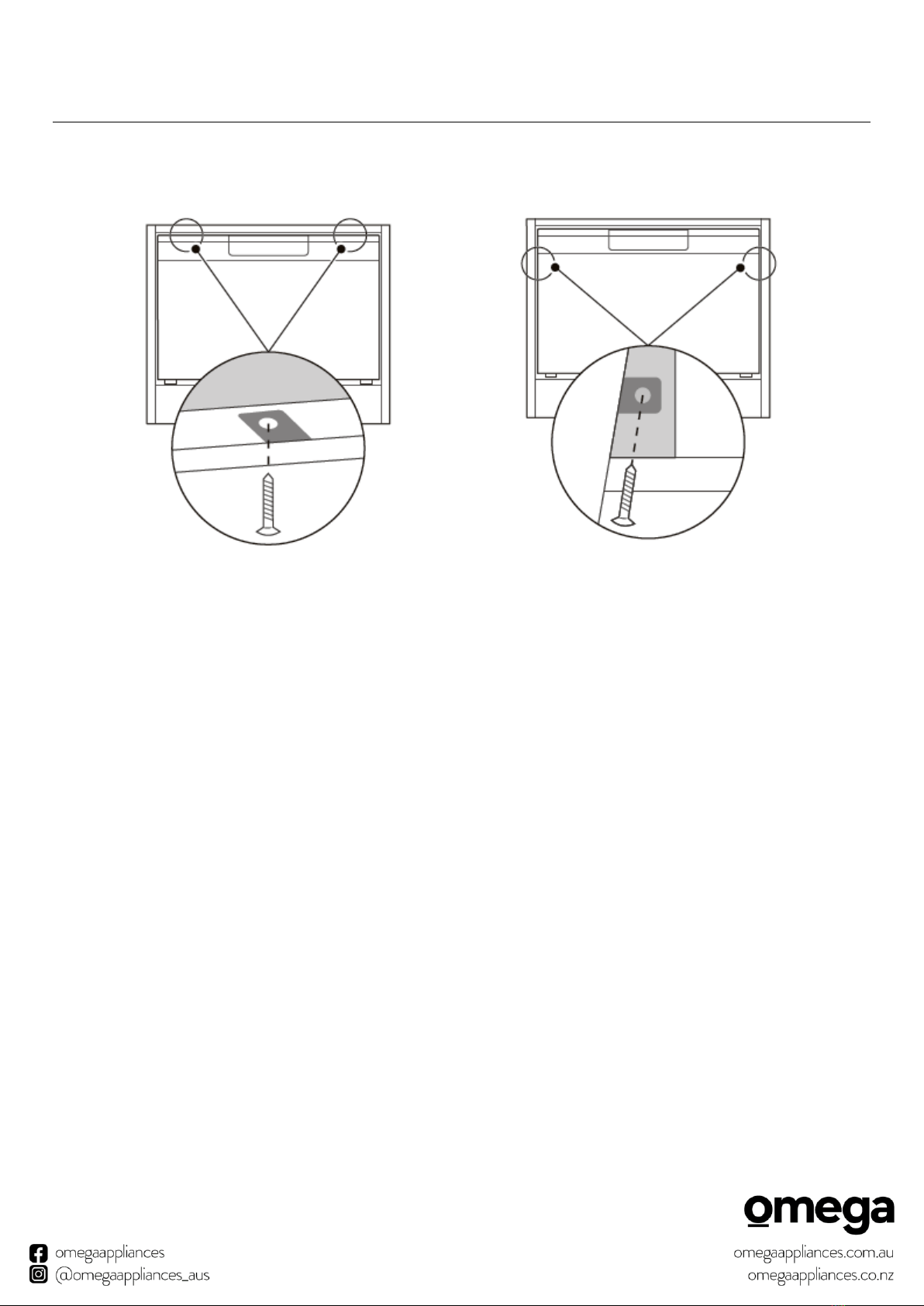

Installation method (A)
Attach top mounting brackets
Installation method (B)
Attach side mounting brackets

10
Installation
Fitting the dishwasher

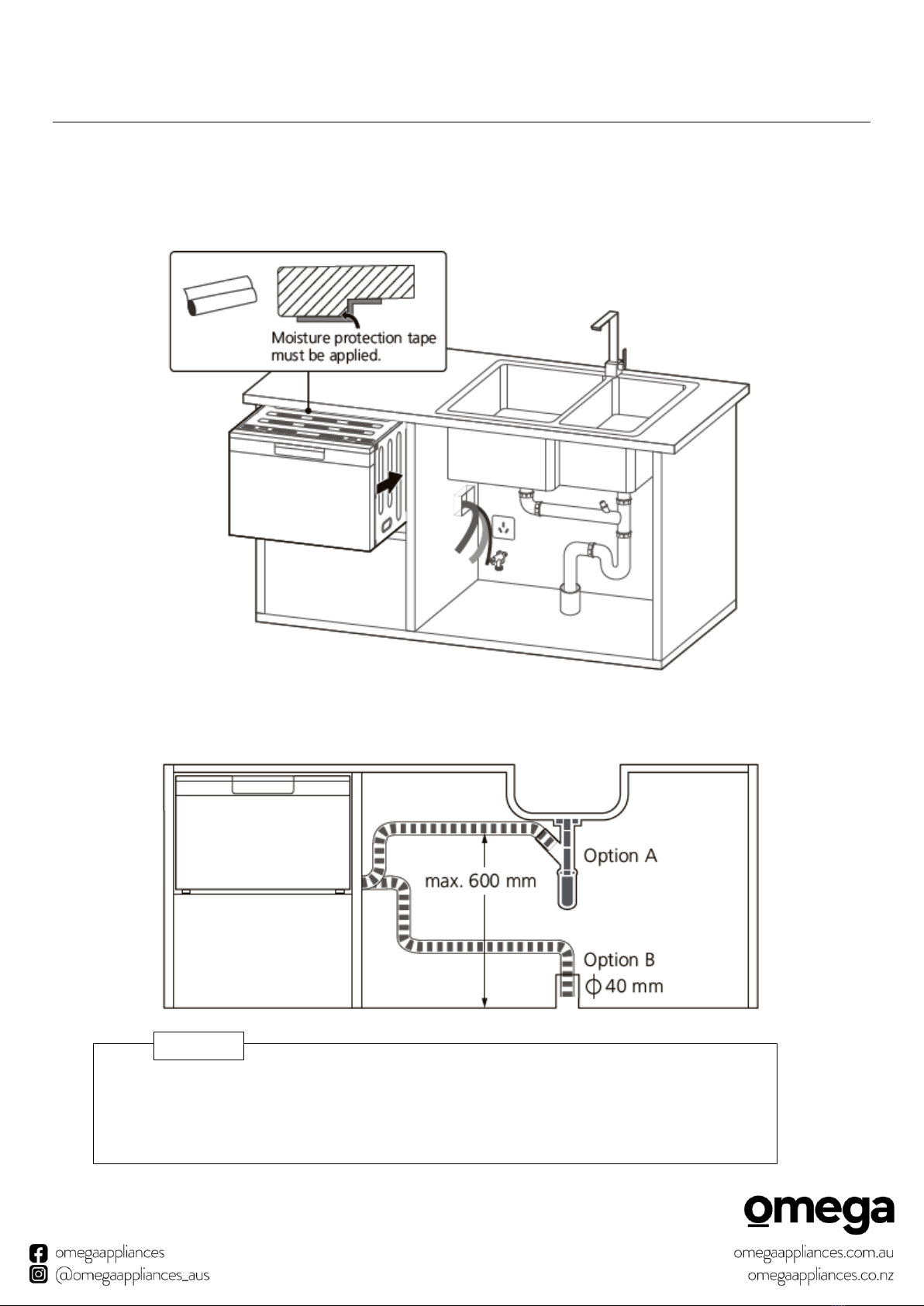

Position the dishwasher in the cavity so the drawer fronts are in line with the adjacent cabinetry.
Draw the hoses and power cord through the opening as you slide the product in.
Connection of the drain hose
There are two recommended options for connecting the drain hose.
Drainage pipe length should not exceed 5 meters.
Please try to run the dishwasher first, confirm that the machine can be used
properly before fixing, so as to avoid unnecessary repetition of disassembly
and assembly.
CAUTION

11
Installation
Secure the product in place
With suitable fasteners, fix the mounting brackets to the cabinetry.

12
Installation
Electrical Shock Hazard
Disconnect electrical power before installing dishwasher.
Failure to do so could result in death or electrical shock.
The installation of the pipes and electrical equipment should be done by professionals.
For personal safety:
Do not use an extension cord or an adapter plug with this appliance.
Do not, under any circumstances, cut or remove the earthing connection from the power cord.
Electrical requirements
Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate
power supply.
Electrical connection
Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert
the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance
must be connected is not appropriate for the plug, replace the socket, rather than using an adaptors or the
like as they could cause overheating and burns.
WARNING: Ensure that proper earthing exists before use.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
an electric shock by providing a path of least resistance of electric current. This appliance is equipped with
a cord having an equipment-earthing conductor and an earthing plug.
The plug must be plugged into an appropriate outlet that is installed and earthed in
accordance with all local codes and ordinances.
Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check
with a qualified electrician or service representative if you are in doubt whether the appliance is properly
earthed.
Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet
installed by a qualifiedelectrician.
WARNING: After having installed the appliance, the switched outlet must always be in an accessible
position.

13
Operating Instructions

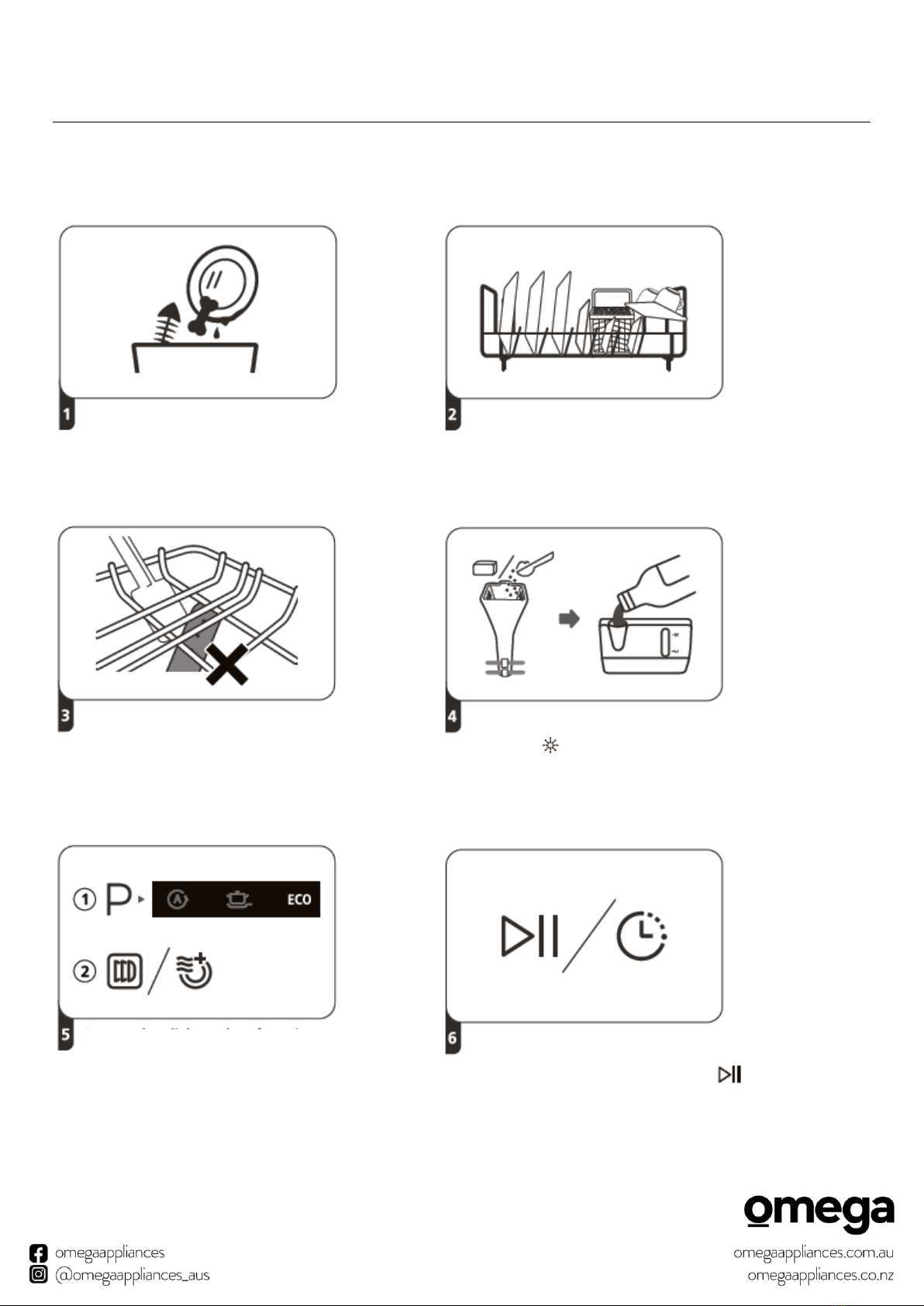

QUICK USER GUIDE
Starting A Wash
Discard scraps
Scrape large food particles off and
remove any foreign objects.
Load dishes carefully
For better washing result, place the
dishes properly avoiding any contact
or overlapping between them.
Check spray arm
Ensure there are no items blocking
the spray arm from rotating.
Add detergent and check rinse aid
If the “ ” indicator is lit, or the rinse
aid is below the minimum capacity line,
please refill.
Set up the dishwasher function
Power the dishwasher on, then
select drawer, wash program and
function.
Start wash or set Delay start
Close the drawer and press “ “.

14
Operating Instructions
After The Wash
The drying fan may continue to run for a set time after that the washing cycle is over or until the drawer is
open.
For best drying result, we recommend remove unloading the dishes when they have cooled down.
NOTE:
Reviewing the section on TROUBLESHOOTING TIPS will help you solve some common problems
by yourself.
If you cannot solve the problems by yourself, contact customer service or a professional technician.
The manufacturer, following a policy of constant development and updating of the product, may
make modifications without giving prior notice.
If lost or out-of-date, a replacement copy can be found at www.omegaappliances.com.au. or responsible vendor.
13

15
Operating Instructions
Control Panel
Operation (Button)
Power
Press this button to turn on your dishwasher, the screen will light up.
Dry & Fresh
For removing bad odor and moisture even when dishes are left longer time
in the baskets.
A) when selected this option will start to run at the end of the washing cycle,
its indicator will blink.
B) Press and hold the Option button for 3s, when dishwasher is on, for let
the option run immediately.
Program
selector
Press this button to select the appropriate washing program, the selected
program indicator will light up.
Option
selector
Press the button to select an option, corresponding indicator (Extra Dry) will
belit.
Delay start
Press the button to increase the delay start time. Delay a cycle for up to 24
hours in one-hour increments. After setting the delay time, press the
Start/Pause button to start.
Child lock
This option allows you to lock the buttons on the control panel, so children
cannot accidently start the dishwasher by pressing the buttons on the panel.
Only the Power button and Drawer selector button remain active.
To lock or unlock the buttons on the control panel, press and hold the
Option button+ Delay button for 3 seconds simultaneously.
Start/Pause
To start the selected washing program or pause it when the dishwasher is
operating.
When the dishwasher is running, if you need to open the drawer, please
press the “Start/Pause” button first and wait a few seconds, then open the
door slowly.

16
Operating Instructions
Display
Auto sensing wash, lightly, or heavily soiled crockery, with or without dried-on
food.
For the heaviest soiled crockery, such as pots, pans, casserole dishes and
dishes that have been sitting with dried food on them for some time.
For normally soiled loads, such as pots, plates, glasses and lightly soiled
pans, standard everyday cycle.
Washing
program
For heavily soiled loads, such as pots, plates, glasses and lightly soiled pans.
For lightly soiled plates and pans that need a quick wash.
A shorter wash for lightly soiled loads that do not need drying.
For fragile items such as fine china and glassware.
Screen
Displays the operating drawer, time reminding, delay time, error code and
child lock indication.

17
Operating Instructions
Display
Extra Dry
For better drying result. (It can only be used with Intensive, ECO, Heavy,
Wash&Dry, Delicate)
Warning
If the “ ” indicator is lit, it means that no water is reaching the dishwasher.
If the “ ” indicator is lit, it means the dishwasher is low on dishwasher
rinse aid and requires refilling.
Washing progress
Main-wash
Rinse
Drying
End

18
Operating Instructions

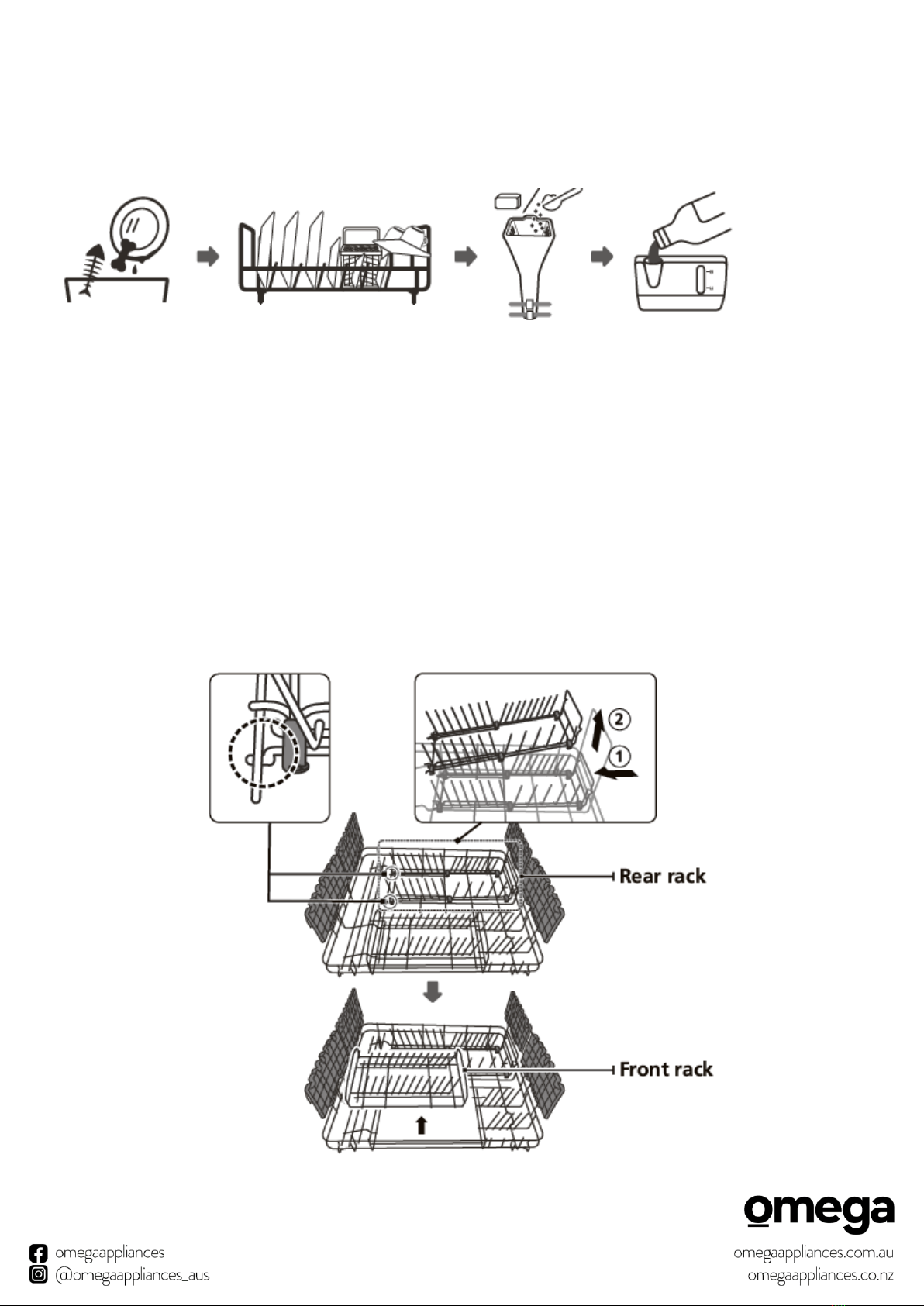

Before using your dishwasher:
1. Remove the larger residue from the wash items
2. Load the basket
3. Load the detergent
4. Fill the rinse aid dispenser
Basket Use Tips
There are many ways to adjust the loading pattern of the basket.
Removing the rear rack
The rear rack can be removed to create a flat surface for such things as pots and pans.

19
Operating Instructions
Folding down the tines

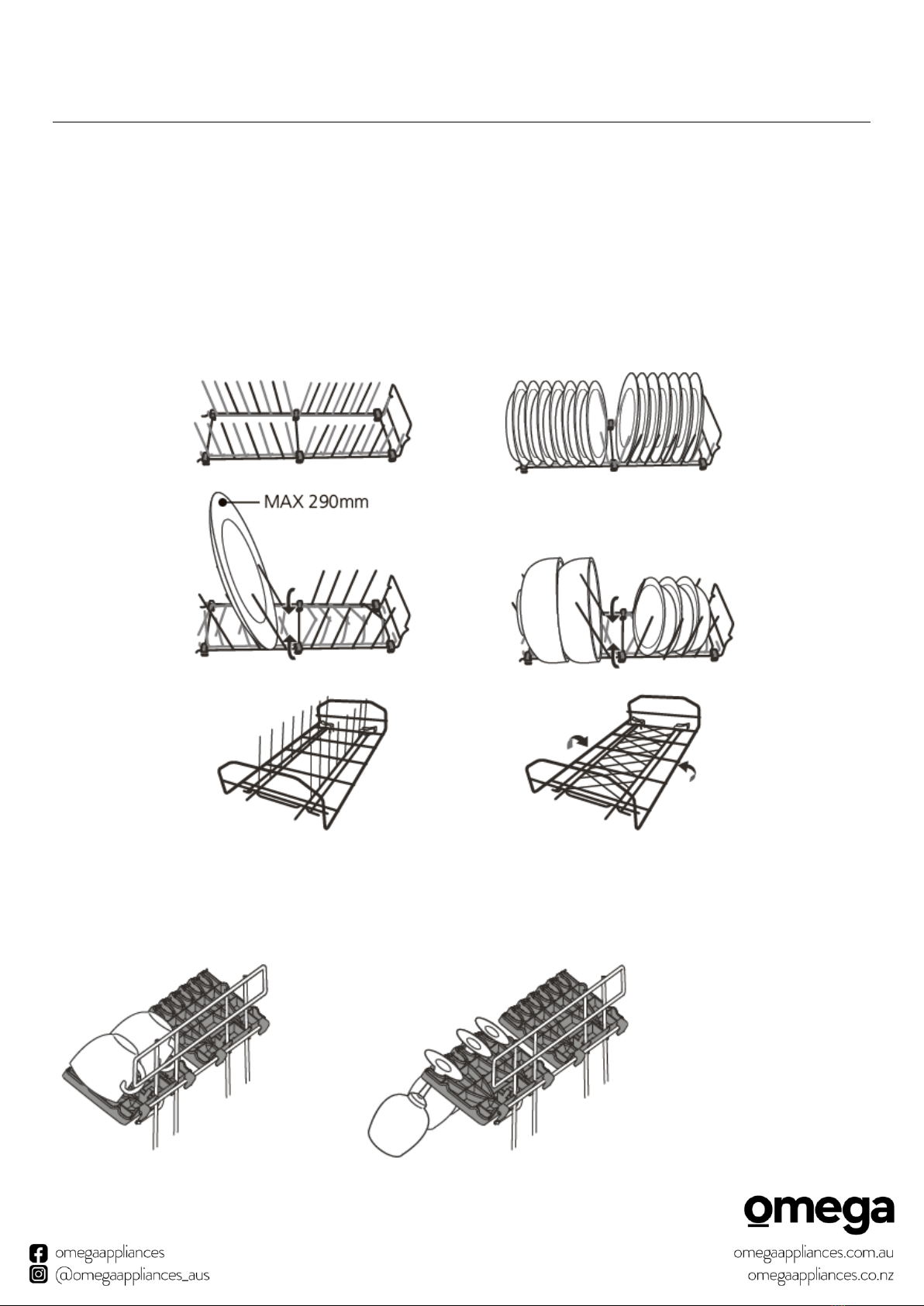

The spacing between the tines can be increased by folding them down. This will help the loading of
large bowls and deep pots and pans. Folding down the tines, the maximum size 290mm plates can
be loaded.
The tines on the front rack can also be folded down to create a flat space.
Do not load the basket with the front rack removed. It is removable only to allow access to the filters
for servicing. If removed, there is a high risk that items could fall in the open space and damage the
rotating spray arm.
If returning the rear rack, be sure to firmly set it into its correct place.
Using the cup racks
Cups, glasses and large utensils fit on the cup racks.
The fronts of the racks are designed to secure wine glasses.

20
Operating Instructions

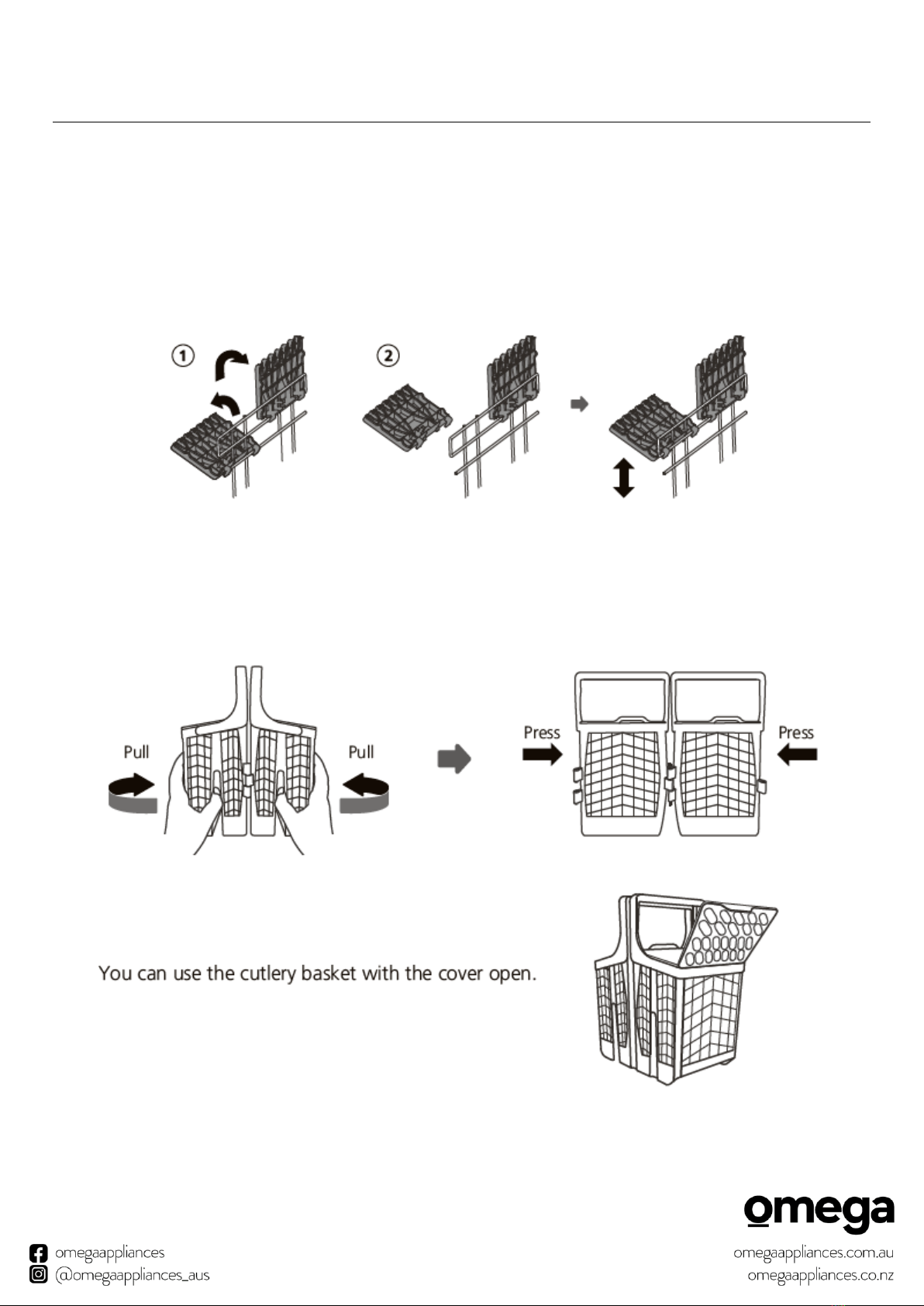

Adjustable the cup racks
You can adjust these cup racks to different heights independently:
1. Fold the cup racks if you need more space.
2. Remove the cup holder and installation an iron wire of different height to adjust the height of the cup
holder.
Two positions cutlery basket
The cutlery basket is made of two fold-able halves. The cutlery is composed by two foldable half.
It is possible to use either open or folded, as pictured below.
