Omega PL402XA User manual

Dishwasher
instruction manual
Model number：PL402XA

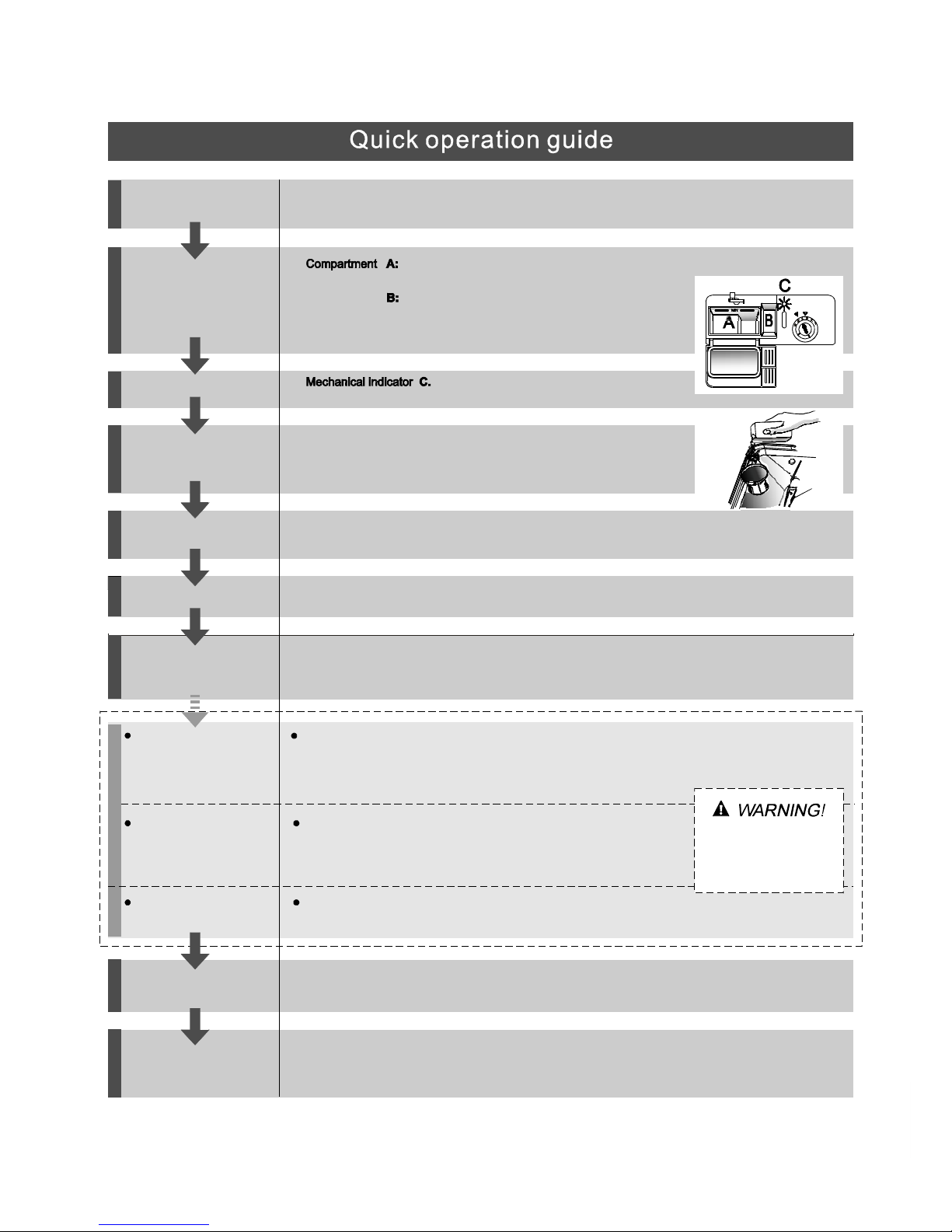

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by the number of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Close the door, turn on the water tap and press the Start/reset button. The machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, startingfrom the lower basket.
Changing the programme
Add forgottendishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt food in pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme button until the selected programme lights up.
( See the section entitled Operationg instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the ON/OFF button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoorisopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door and press the start button, the dishwasher will start running
again after 10 seconds.
For detailed operating method read the corresponding content on the instruction manual.
1. Arunning cycle can only be modified if it hasbeen running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press programme button for more than 3 seconds to cancel the running programme.
3. Select a new programme.

To review the section on troubleshooting Tips
will help youtosolve some common problems
by yourself .
Dear Customer,
Please carefully read thismanual beforeusing the
dishwasher,itwill help you to use and maintain the
dishwasher properly.
Pass it on to any subsequent owner of the appliance.
This manual contains sections on safety Instructions,
OperatingInstructions,InstallationInstructionsand
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
developmentandupdating of the product, may
make modificationswithout giving prior notice.
Dishwasher Features.................................... ...3
How to use the 3 in 1 function............................7
A Fill theRinseAid Dispenser.........................4、
B FunctionofDetergent .................................5、
ControlPanel...................................................2
Keep it to refer to it ata later date.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
Attention before or after loading the Dishwasher
Baskets..........................................................8
Filtering System.............................................13

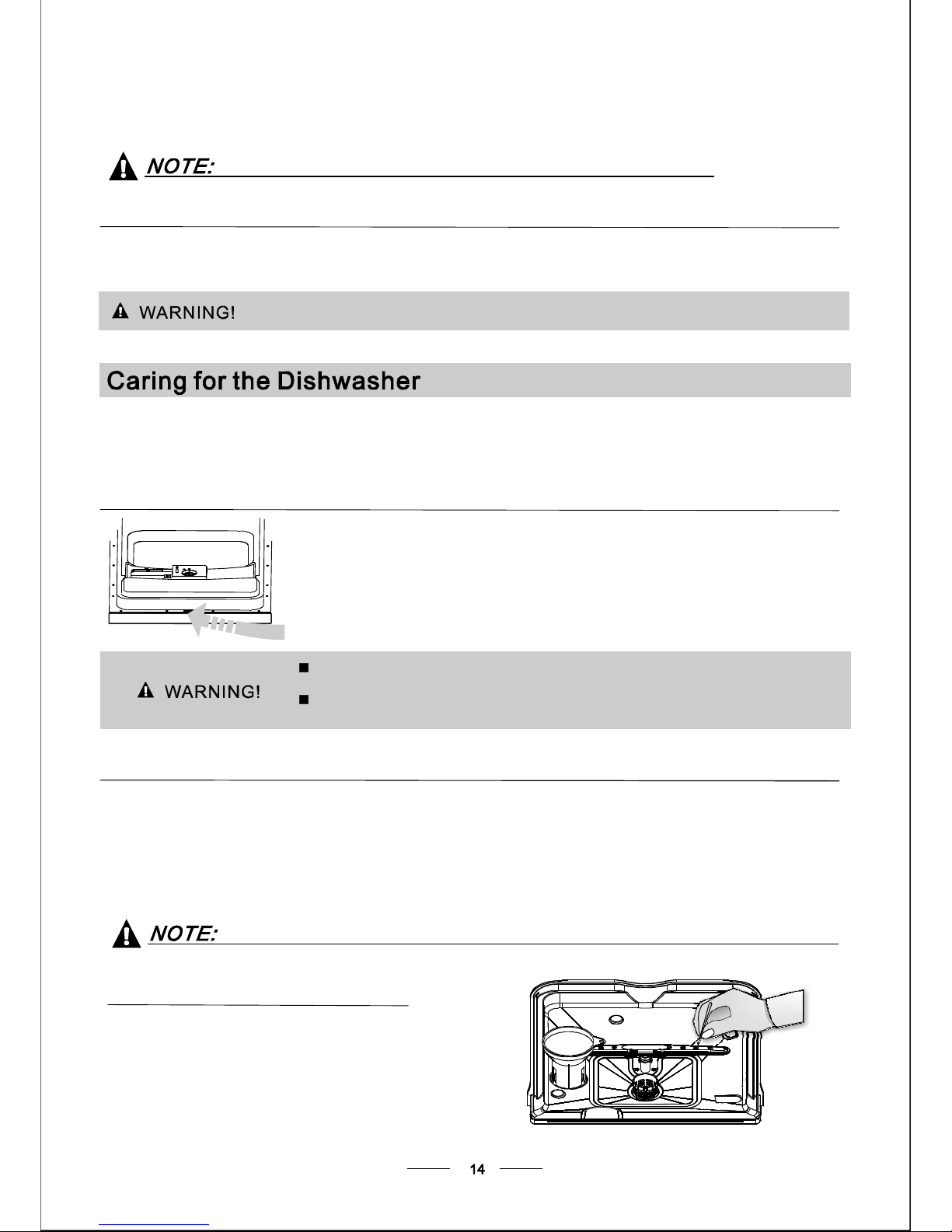

Caring for the Dishwasher..................... .........14.
Loadingthe upper .................. ..........9Basket .....
LoadingtheLower .................... ...........9Basket ..
Cutlery Basket........................................... ...10
WashCycleTable...........................................11
Turning on theAppliance................................12
Change the Programme.............. ................12....
At the End of the Wash Cycle...........................12
Before calling for service........................... .....22.
Errorcodes.................................... ..............23.
Technical information.............................. .....24..
.................................. 15Installation preparation ...16Aesthetic panel's dimensions and installation
..............18Tension adjustment ofthedoor spring
.............................. 18Connection of drain hoses ......................... 19Dishwasherinstallation steps
About Electricity Connecting...........................20
Cold Water Connection.................................. 21
Hot ............. 21Water Connection.....................

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providing a path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Useonly detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the powersupply mustnot
be excessively ordangerouslybent orflattened.
Do not tamper with controls.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locatesharp itemssothat theyarenot likely
todamagethedoor seal;
2 Warning: Knives and otherutensils with
sharp points must be loaded in the basket
with their pointsdown or placedin a
horizontalposition.
)
When using your dishwasher, youshould
preventplastic items fromcomingintocontact
withthe heating element.(This instruction is only
applicable to machines with a visual heating
element.)
Ifthesupply cord is damaged, it must be replaced
by themanufacturer or itsservice agent ora
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartmentwhen
removing an old dishwasher from service or discarding it.
Dishwasher detergentsare stronglyalkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyesand keep children away
from the dishwasher when the door is open.
Check that the detergent comparment isempty
after completionof the wash cycle.
The appliance is to be connected to the water
mainsusing new hose sets andthat oldhose-sets
should not be reused.
The maximum number of place settings tobe
washed is 14.
The maximum permissibleinlet water pressureis
1Mpa.
The minimumpermissibleinlet water pressureis
0.04Mpa.
Children should besupervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.

before usingit forthe first time.
To getthe best performance from yourdishwasher, read all operating instructions
2 Power Light : To come on when the ON/OFF Button is
Pressed down.
5 Door Handle: Pull it to open the door.
1 ON/OFF Button: To turn ON/OFF the power supply.
4 Salt WarningLight and Rinse Aid Warning Light :
To come on when the Salt aid dispenser or Rinse aid
dispenser needs to be refilled. 9 Start / Reset Button: Press this button to start or pause the
dishwasher, the one of four program lights will blink when
starting.
6
Tablet wash Tablet wash
Tablet wash
Tablet wash
Function Button :To select functions.
You can select functions after you have
selected the program (Only Intensive, Heavy,
Normal can select the function).
7 Tablet wash indicator light :To come on when select
the Tablet wash function.
8 Washing Program Selector: Turn the knob clockwise
To select wash cycles.
3 Program indicator light: when you select washing
program, the correspond light will display.
In tens iv e
Heavy
Rapid
ON
OFF
Tubsu
Sftfu
1
2
3
5
4
6
89
7
Normal
Rinse

1
2
3
4
5
6
7
8
9
Back View
10
11
Lower Basket
SprayArms
Upper Basket
1
3
2
Main Filter
Detergent Dispenser
4
5
Cup Shelf
Cutlery Basket
Coarse Filter
6
7
8
RinseAid Dispenser
Inletpipe connector
Drainpipe connector
9
11
10

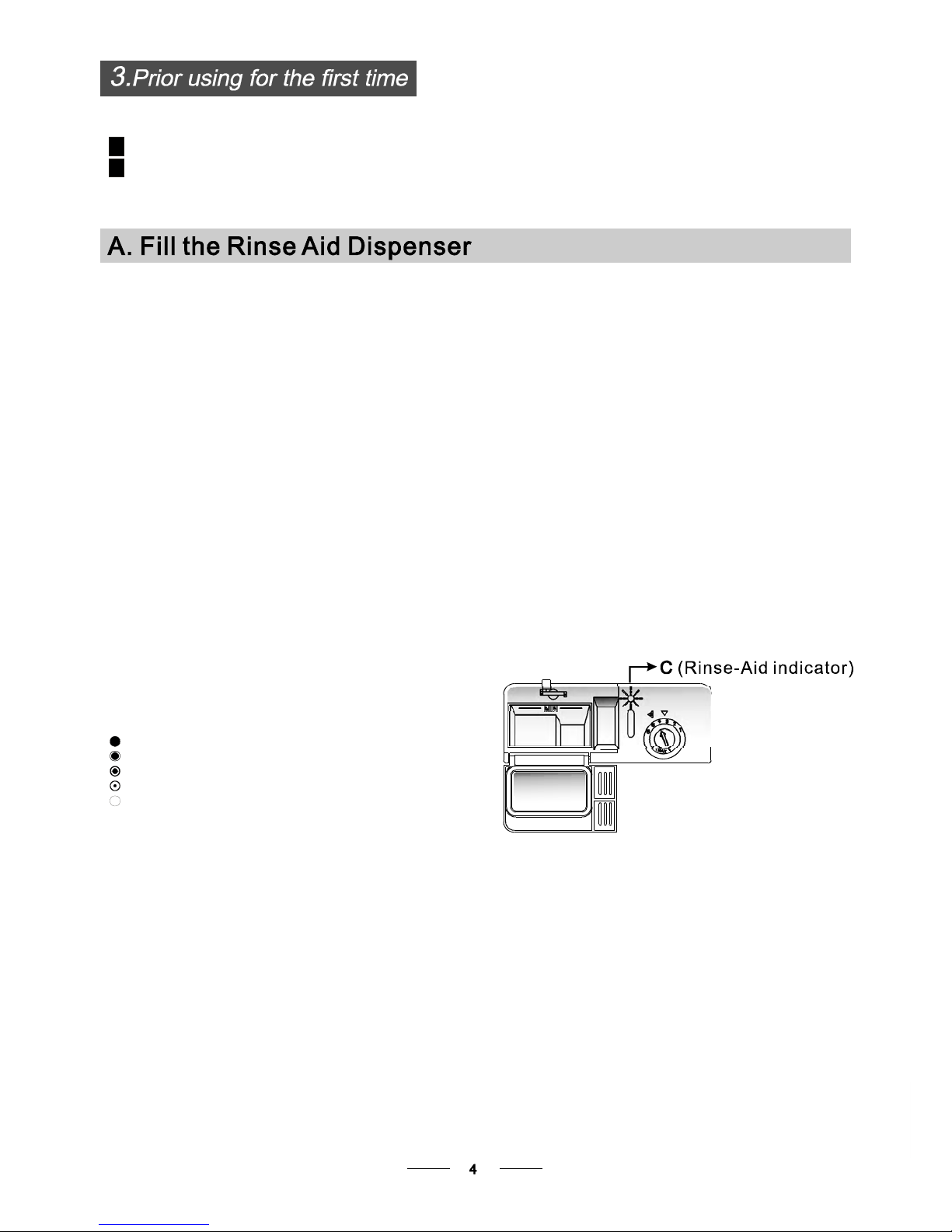

Before using your dishwasher for the first time:
A. Fill therinse aid dispenser
B. Fill indetergent
The rinse aid isreleasedduring the final rinseto prevent water from forming droplets onyourdishes, which can
leave spots andstreaks. Italso improvesdryingby allowing water toroll offthe dishes. Your dishwasheris
designed to use liquid rinseaids.The rinseaiddispenser islocated inside thedoornext to the detergent dispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume ofthe rinseaidcontainer is about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during thelast rinse, ensuring thorough rinsing, and spotand streak free drying.
Attention!
Only use branded rinse aid for dishwasher. Neverfill therinse aid dispenserwith anyothersubstances
(e.g. Dishwasher cleaning agent, liquid detergent). This would damagethe appliance.
Astherinseaiddiminishes,thesizeoftheblackdot
ontherinse aidlevel indicator changes,as illustratedbelow.
Full
3/4full
1/2full
1/ 4full -Should refillto eliminate spotting
Empty
When to Refill the RinseAid Dispenser
If thereis no rinse-aid warning light in thecontrolpanel, you can estimatethe amount from the colour
oftheoptical level indicator C located next to the cap. When therinse-aidcontainer is full, the whole
indicatorwillbe dark .As the rinse-aid diminishes, thesizeofthe dark dot decreases. You shouldnever let
the rinse aid level fall 1 / 4 full.
""

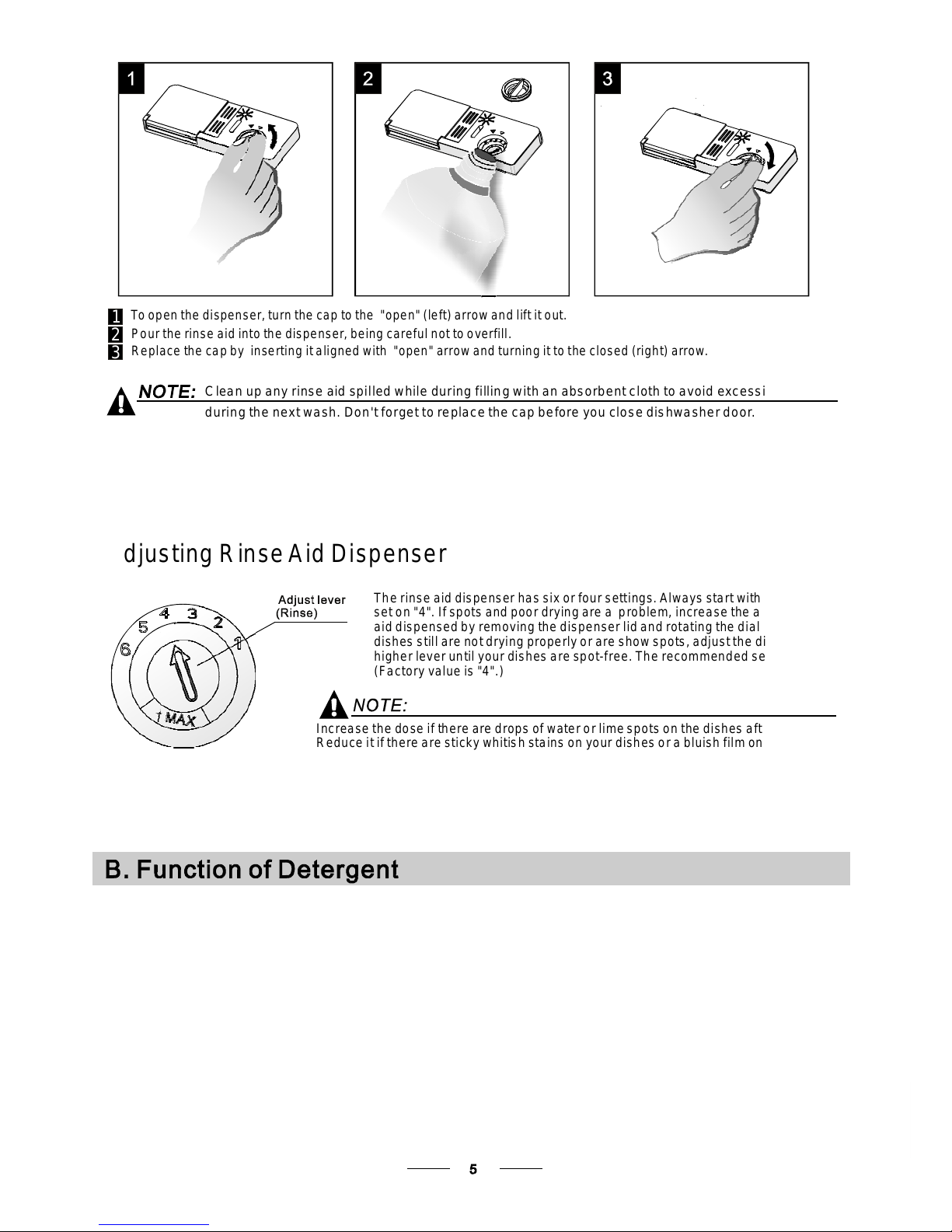

To open the dispenser,turn the cap to the "open" (left) arrow and lift it out.
Pourthe rinse aid intothe dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings.Always start with the dispenser
set on "4". If spots and poor dryingare a problem, increase the amount of rinse
aid dispensedby removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properly or are showspots, adjust the dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increasethe dose if there aredrops of wateror limespotsonthe dishes after washing.
Reduce it ifthere are sticky whitishstains on your dishes or abluish film on glassware or
knife blades.
1
2
3
during the nextwash. Don'tforget to replacethe cap before you closedishwasherdoor.
Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients arenecessary to remove dirt, crushdirtand transport it outof the dishwasher.
Mostof the commercialqualitydetergentsare suitable forthispurpose.
Detergents
There are 3 sorts of detergents
1.Withphosphate andwithchlorine
2.With phosphate and without chlorine
3.Without phosphate and without chlorine

Amount of Detergentto Use
Proper Use ofDetergent
Use only detergentspecificallymade for theusein dishwashers.Keep your detergent fresh and dry.
Don't putpowdereddetergent into the dispenseruntil you'reready towash dishes.
Dishwasher detergent is corrosive! Takecare to keepit out of reach of children.
Based on their chemical composition, detergentscan besplit in two basic types:
The use of normal washingprograms incombination with concentrated detergents
reduces pollution and is good for your dishes; these washprogramsare specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programs in whichconcentrated detergentsareused canachievethe same
results thatcan otherwise onlybe achieved using intensive programs.
“”
“”
“”
Detergent tablets of different brandsdissolve at differentspeeds. For this reasonsome
detergenttablets cannot dissolve and develop theirfull cleaning power during short
programs. Therefore please use long programs when usingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must berefilled before the start ofeach washcycle following the instructions
provided in the wash cycle table . Your dishwasher usesless detergent and rinseaid than
Conventional dishwasher.Generally, only one tablespoon of detergent is neededfor
anormal washload. Moreheavily soileditemsneed more detergent.Alwaysaddthe
detergentjust before starting the dishwasher, otherwiseit couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
Always add the detergent just before starting each wash cycle.
Only use branded detergentaidfor dishwasher.

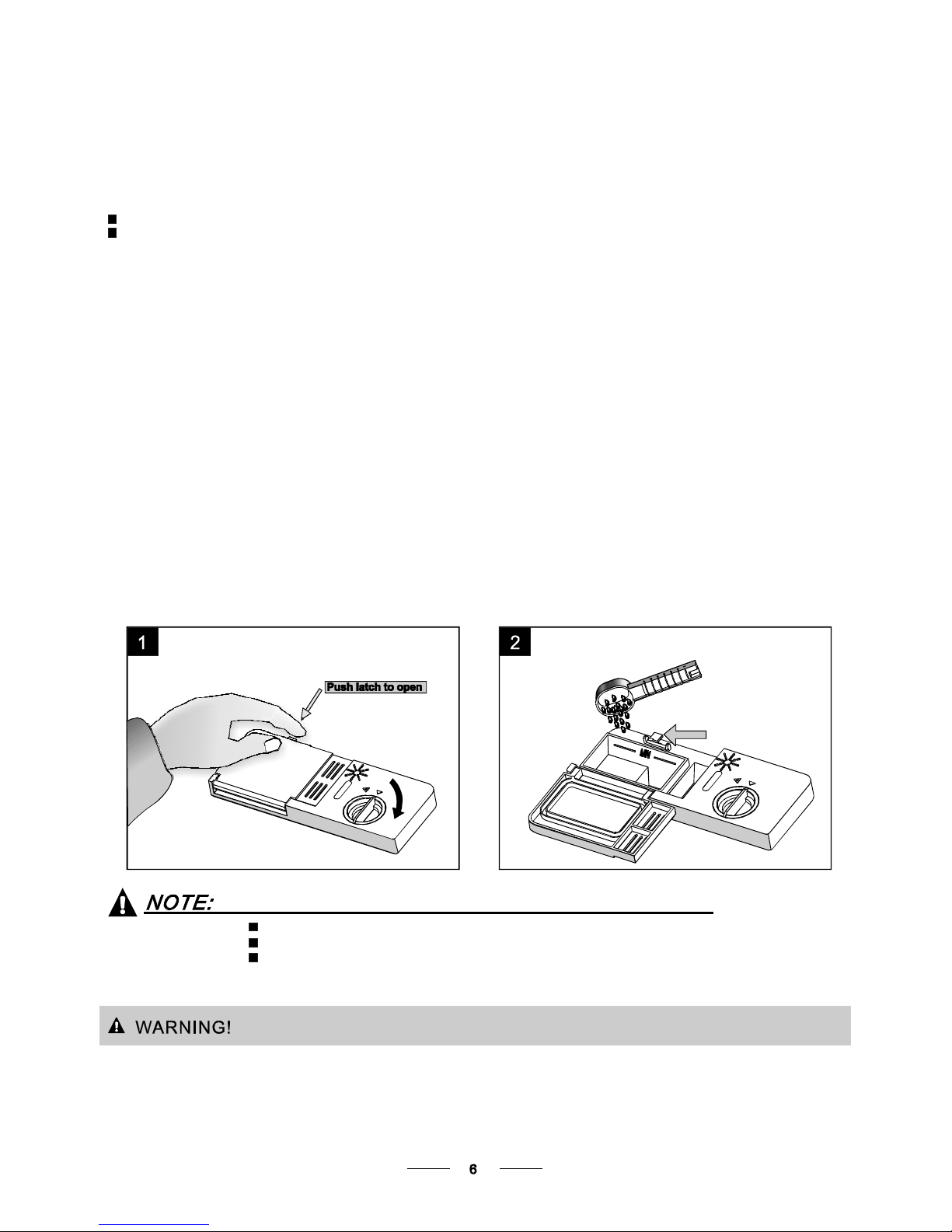

If the lid isclosed: press release button.The lid will spring open.
conventional, alkaline detergents with causticcomponents
low alkaline concentrated detergents with natural enzymes
Normally new pulverised detergent is without phosphate.Thus the water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergentswithout phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. Inthiscase pleasechoosea program with a higher temperature.
°

Ifyou use 3in1 tablets in other programs,the appliance will not achieve a good performance.
Only the 3in1 function(for the program: intensive/Normal/Eco.) Can be used with 3in1tablets.
Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Theplace of main wash cycle detergent placed,
MIN means approximately20gof detergent.
“”
Theplace of pre-wash cycle detergent placed,
approximately 5gof detergent
Please observethe manufacturers dosing and storage
Recommendationsas statedonthedetergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place anadditional
detergent dose in the pre-wash detergent chamber. This detergent will take effect during the pre-washphase.
A
B
Fill in Detergent
You find informationabout the amount ofdetergent for thesingle programme onthe last page.
Pleaseaware, that according tothe level soiling and the specific hardnessof water differencesarepossible.
Pleaseobservethemanufacturer's recommendationson the detergent packaging.
When using 3in1 combination / compact Detergents ,pleasepay attention to make sure that
the size of the combination detergents fits to the dispenser so that combination
detergentscan be easily put into the dispenser, and thedispenser would not be broken.
，
Your dishwasher has a 3in1 functionwhich needs no salt and rinse aid buta 3In1 tablet.
This dishwasher comes with a 3in1 tablet container as anaccessory.
1.The figure below shows howto hang the 3in1 tablet container on theupperbasket.
2. Rotate the upper sprayer andchange the location of the container to ensure the upper sprayer is not
obstructedby the 3in 1 tabletcontainer. Refertothe figurebelow for reference.
3. Put the 3in1 tabletinto the container ,then start the 3in1 program.

Cutlery with wooden,horn china or
mother-of-pearl handles
Plasticitems that arenotheat resistant
Older cutlerywith glued partsthat arenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items made fromsynthetic fibres
Some types of glassescanbecome
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduring washing
Glazed patterns may fade ifmachine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsof cutlery mustnot lie insideoneanother, orcover each other.
To avoiddamage to glasses, theymust not touch.
Load large items which are most difficultto cleanintothe lower basket.
The upper basket is designed to hold moredelicate and lighterdishware such as glasses, coffee
andtea cups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload your dishwasher. This is importantforgood resultsand for
reasonable consumption of energy.
Load hollow items such as cups, glasses, pans etc. With the opening facing downwardsso that
water cannot collect in the container or a deep base.
Usea mild detergentthat isdescribedas 'kind todishes'. If necessary, seek further
information from thedetergent manufacturers.
Forparticular items,select aprogramwithas low a temperature aspossible.
To prevent damage, takeglass and cutlery out of the dishwasher assoon aspossible
after the program has ended.
Consider buying utensilswhich are identified asdishwasher-proof.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybaskets may vary from your model.)
Scrape off any largeamountsofleftover food.Soften remnants ofburnt food in pans.
It is not necessary torinse the dishes under running water.
Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray armscan rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water drippingfrom the upperbasket into the lower basket, we recommend thatyou
empty the lower basket first and then the upper basket.

The upper basket is designedto hold more delicate and lighter dishwaresuch as glasses, coffee
and tea cupsandsaucers,as wellas plates, smallbowls andshallowpans (as long as they are
not too dirty).
Positionthe dishes andcookwareso that they willnot get movedbythe sprayofwater.
We suggest that you place large items and the most difficult to clean items are to be placedinto the lower basket:
such as pots, pans, lids, serving dishesand bowls, as shown in the figure below.
It is preferableto place servingdishesandlids ontheside of theracks in order to avoid blocking the rotation ofthe
top spray arm.
Pots, serving bowls, etc, must always be placed top down.
Deep potsshould beslanted to allow water toflow out.
Pleasebereminded that:
The BottomBasketfeatures folding spikes so that larger or more pots and pans can be loaded.
3
GlassesSaucers
2
1
Cups
1
1
1
1
1
3
3
3
3
2
6
6
Dinnerplates
5
5
5
Soup plates
Dessertdishes
4
Cutlery basket
7
4
4
4

Position the dishes andcookware so that they donot get
moved by the spray of water. Always place glasses, cups &
bowls upside down.
The upper rack is for more delicate andlighter dishware such as
glasses,coffee& teacups, saucers, plates, bowls, and shallow
pans (provided these arenot too dirty).
Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots, especially long utensils shouldbeplaced in the
horizontal position at the front of the upper basket as shown in the picture.
Do not let any items extend
through bottom.
Teaspoons
4
Soup spoons
2
Forks
1
Knives
5
3Dessert spoons
5
44
5
55 5
55
2
3
2
3
2
3
2
3
2
3
23
2
3
4
1
1
1
1
1
1
14
4
4
44
4
4
41
1
1
1
1
1
23
2
3
2
3
2
3
2
3
2
3
2
43
1
5
5
5
5
5
5
44
5
The height of the upper basketcan be adjusted in order to create more space for large utensils
both for theupper/lower basket.The height of the upperbasket can be adjusted by placing the
wheelson different height of therails. Long items, serving cutlery, salad serversand knives
should be placedon the shelf so that they do not obstruct therotation of thespray arms.
The shelf can befolded back orbe removed when not required foruse.

Means:need to fill rinse into the Rinse-Aid Dispenser.
()
* : This programme is the test cycle. The information for comparability test
in accordance with , as follows:
AS/NZS 2007. 1
AS/NZS 2007.1
Capacity: 14 setting
PositionUpper basket: upper wheels onrails
Rinse aid setting: 6
NOTE: When usingthe 3 in 1 detergent , please selectthe program as Intensive, Heavy, and
Normal,and select 3in1 function to get thebest washing purpose, the parameter ofthewashing
program will besmall different with the above shown.
Heavy
Intensive
Normal
*AS/NZS 2007. 1
Rapid
Rinse
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
standard daily cycle.
For theheaviest soiled loads,
such as pots,pans,casserole
dishes and dishesthat have
been sitting with dried food
on them for a while.
Ashorterwashforlightly
soiled loads that do not
needdrying.
For dishes that need to be
rinsed and driedonly.
Pre-wash(50 )
Pre-wash
Wash (65 )
Rinse
Rinse
Rinse(55 )
Drying
℃
℃
℃
Pre-wash(50 )
Wash (50 )
Rinse
Rinse (65 )
Drying
℃
℃
℃
Wash(55 )
Rinse
Rinse
Rinse(50 )
Drying
℃
℃
Pre-wash
Wash(40 )
Rinse(45 )
℃
℃
Rinse
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
5/27.5g.
5/27.5g.
5/27.5g.
20 g.
160
125
130
8
30
1.2
0.88
1.4
0.01
0.45
16
13.7
22
4
12

It is dangerousto open the door when washing, because the hot water may scald you.
When the working cycle has finished, the buzzer of the dishwasher will sound for8 seconds, then stop. Turn off
the appliance using the ON/OFF button,shut off the water supply and open the door of the dishwasher.
Wait for afew minutes before unloadingthedishwashertoavoidhandlingthe dishes and utensils while they
are still hot and more susceptible to breakage. Theywill alsodry better.
Switch Off the Dishwasher
After the program has ended:
1.Switch offthe dishwasher by pressing the ON/OFF button.
2.Turnoffthewater tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should thereforebeallowed to cool down around 15 minutes
before removingfromthe appliance.
Open thedishwasher's door, leave it ajar and wait afew minutes beforeremoving the dishes. In this way they
will be cooler andthe drying will be improved.
Unloadingthedishwasher
It is normal that the dishwasher is wet inside.
Empty thelower basket first and then the upperone. This will avoid water dripping from the upper Basketonto
the dishes in the lower one.
Aforgotten dish can be added at any time before the detergent cup opens.
Load the forgotten dishes.
Close the door, the dishwasher will start running again
after 10 seconds.
After the spray arms stop working,you can open the door
completely.
2
Open the door a little to stop thewashing.
13
4
the machine will working after 10 seconds.continue
Ifyou open the door , the machine will pause. When you close the door ,during a wash cycle
Draw out the lower and upper basket, load the dishes and push them back.
It iscommendedtoloadthelowerbasketfirst,thentheupperone(seethe sectionentitled
Loading the Dishwasher ).
Pour in the detergent (see the sectionentitled Salt, Detergent and RinseAid ).
Insert the plug intothe socket. The power supplyis240 VAC /50 HZ, the specification of the
socketis 10A 250VAC. Make sure that the water supply is turnedon to fullpressure.
Close the door, press the ON/OFF button, andthe display will light up.Turn the knob to select
a desired washcycle, and pressSTART/Resetbutton, the machine will work.
“”
“”
1
2
3
4
Premise:
Acycle that is underwaycan only be modified if ithasonly beenrunning for a short
time. Otherwise, thedetergent may have already been released, and theappliance may
have already drained the wash water. If this is the case, the detergentdispenser must
be refilled (seethe section entitled " Loading the Detergent " ).
Press START/RESET buttonmorethan3 seconds, you can cancel the running program
and select other programs (see the section entitled " Starting a wash cycle. . . " ).
When you select Intensive/Heavy/NormalPrograms, you can select the 3in1 function.
1
2
3

The filter prevents larger remnantsof food or other objects from getting inside thepum.
Theresidues may block thefilter, inthis casethey must be removed.
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Food and soil particles trapped inthisfilter arepulverizedby a
special jet on the lower spray arm andwasheddown todrain.
Larger items, such as pieces of bones or glass, that couldblock
the drainaretrappedin the coarse filter. To remove theitems
caught by the filter, gently squeeze the tap on thetop of this
filterandliftout.
Thisfilter holds soiland food residuesin the sumpareaand
prevents itfrom being redepositon the dishes during wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. this reason, it isa goodidea to
remove the larger food particlestrappedin the filter aftereach washcycleby rinsing the semicircular filterand
cup under runningwater. To remove thefilter device, pull the cup handle in the upwarddirection.
removes food particles from the wash water,allowing it to be recycledduring the cycle.
For
The dishwasher must never be used without the filters.
Improper replacement of the filter may reduce the performancelevel of the appliance
and damage dishesand utensils.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
2
3
1
1
step contrarotate the C ,
and then lift it up;
１： oarse filter
step lift the Main filter up２：
2
Do not disassemble the sump water flow guider(A),
and press the turbidimeter(B),otherwise you'll create
aleak!
A
B
WARING:

The control panel can be cleaned by using a lightly dampened cloth.
Aftercleaning, make sure to dry it thoroughly.
For the exterior, use agood appliance polish wax.
Never usesharp objects, scouring pads or harsh cleaners onany part of the dishwasher.
ProtectAgainst Freezing
1.Cut offthe electrical power to the dishwasher.
2.Turn off the water supply and disconnect the water inlet pipe from the water valve.
3.Drain the water from the inlet pipe and watervalve. (Use apan to catch thewater)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a spongeto soak up water in the sump.
please take frost protection measuresonthe dishwasher in winter.Every fter washingcycles,
please operate as follows time a
：
- Inspect the filters for blocking after everytime the dishwasher has been used.
- By unscrewing the coarsefilter, you can remove the filter system. Removeanyfoodremnants and
cleanthefilters underrunningwater.
Remarks:
Cleaning the Filter
CleaningThe Door
To clean the coarsefilter and the fine filter, use acleaning brush. Reassemble thefilter parts as shown in the figures
on thelast page and reinsert the entire assembly in the dishwasher, positioning itin itsseat and pressing downwards.
The entire filter assembly shouldbe cleanedonce a week.
Whencleaning the filters, don't knock on them. Otherwise, the filters could be
contorted andtheperformance ofthe dishwashercouldbe decreased.
To clean theedge around thedoor, you shoulduseonly a soft warm, dampcloth.
To avoid penetrationof water into the door lock and electrical components,do not
use a spray cleaner of any kind.
Never use a spray cleaner toclean the door panel as it may damage the door lock
and electricalcomponents.
Abrasive agents or somepaper towels should not be used because of the riskof
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
It is necessary to clean thesprayarms regularly in order to
remove the accumulation of scale from the hard water
and thus prevent blocking of spray arm jets and bearings.
We Suggest to poke the blocked spray arm jets witha needle
to ensure good washing effect.
If your dishwasher cannot work because of the ice, please contact professional service persons.

Itis recommend thatyourun a washcycle withthe
dishwasher empty andthen remove the plugfrom the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlongerandprevent odoursfromforming
withinthe appliance.
If the appliance must be moved, tryto keep it in the
verticalposition. Ifabsolutelynecessary, itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remainstrapped in the seals.
Periodic cleaning with adamp sponge will prevent this
from occurring.
After every wash, turn off the water supply to the
appliance and leave the doorslightlyopen sothat
moisture and odours arenot trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberparts ofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, usea clothdampened withwaterana little
vinegar, or a cleaning product madespecifically for
dishwashers.
After EveryWash
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
When not inUse for aLongTime
Theinstallation of the pipes
and electrical equipments
should be done by professionals.
Electrical Shock Hazard
Disconnect electrical power
before
installingdishwasher.
Failureto do so can result in
death or electrical shock.
The installation position of dishwasher should be near the existing inlet and drainhoses and
powercord.
One side of thecabinetsinkshouldbe chosen tofacilitate theconnectionof drainhoses of
the dishwasher.
Installation preparation
Note: please check the accompanying installation accessories(hook for aesthetic panel,screw)
●

Minimumspace when
the door is opened
【】Figure2
Cabinet dimensions
【】Figure1
Cabinet
Dishwasher
Door of
dishwasher
Minimum space of 50mm
Less than 5mm
between the top
ofdishwasher and
cabinet and the
outer dooraligned
tocabinet.
90 °
90 °
600 mm
820mm
100
600mm
80
Space between cabinet
bottom and floor
Electrical, drain and
water supply line
entrances
1 Theaestheticwooden panel couldbe processedaccording to the Figure 3.
The aesthetic panel should
be processed in accordance
with the illustrated dimensions
【】Figure3
(Unit: mm) 594
568
254
38
540 15
250

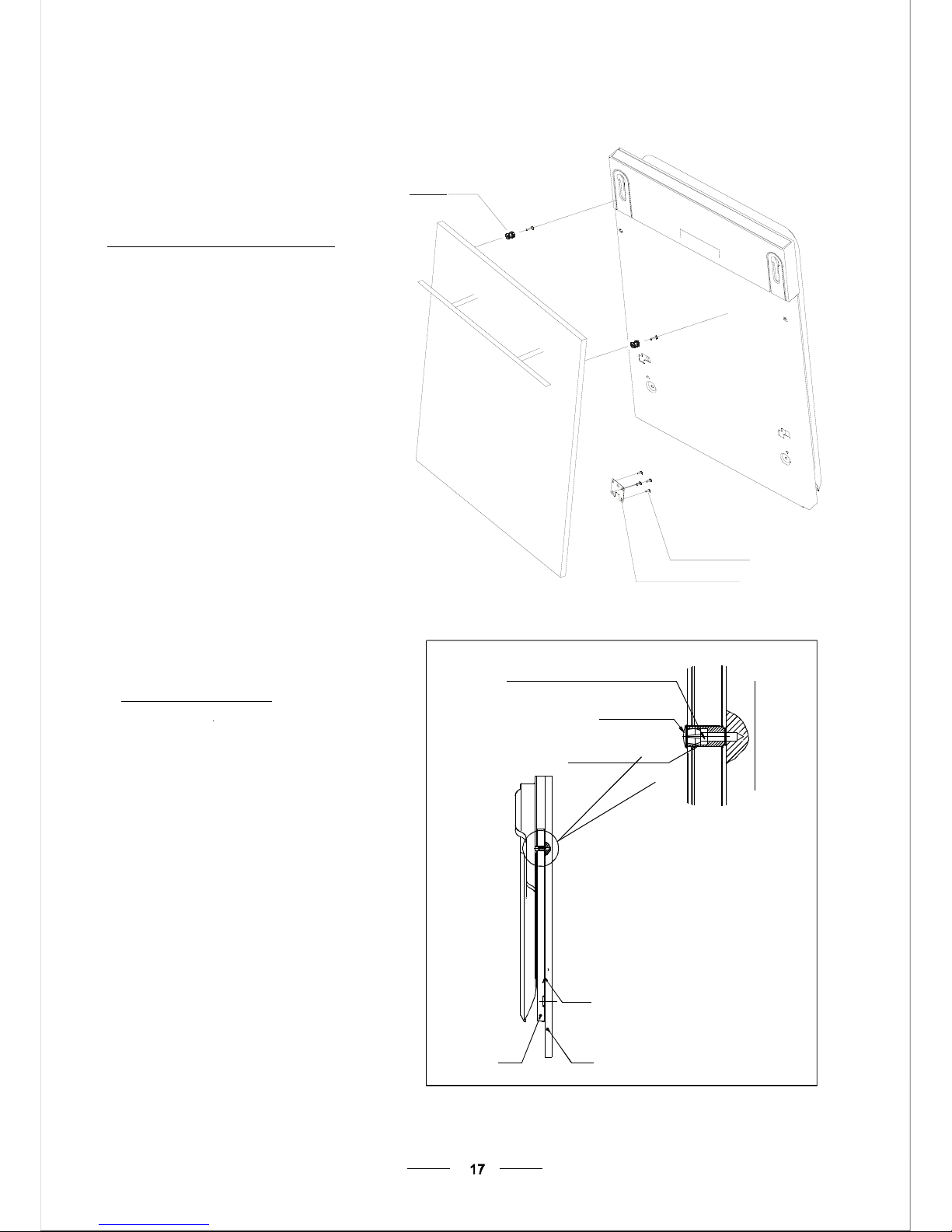

Installation of aesthetic panel
【】Figure4a
2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the
outer door of dishwasher(see figure 4a).After positioning ofthe panel , fixthe panel
onto the outer door by screws and bolts(See figure 4b) .
Installationof aesthetic
woodenpanel
【】Figure4b
1
2
3
.Takeawaythe cover
.Pinupthescrew
.Getback the cover
Hop hook
St4 countersunk
head screw
Lower hook
Furniture door
Hook for aesthetic door
Outerdoorof
dishwasher
Spacer for furniture door
Cover
4X18 screw
