Omega DW602XA User manual

Dishwasher
instruction manual
Model number：DW602XA
All manuals and user guides at all-guides.com
all-guides.com

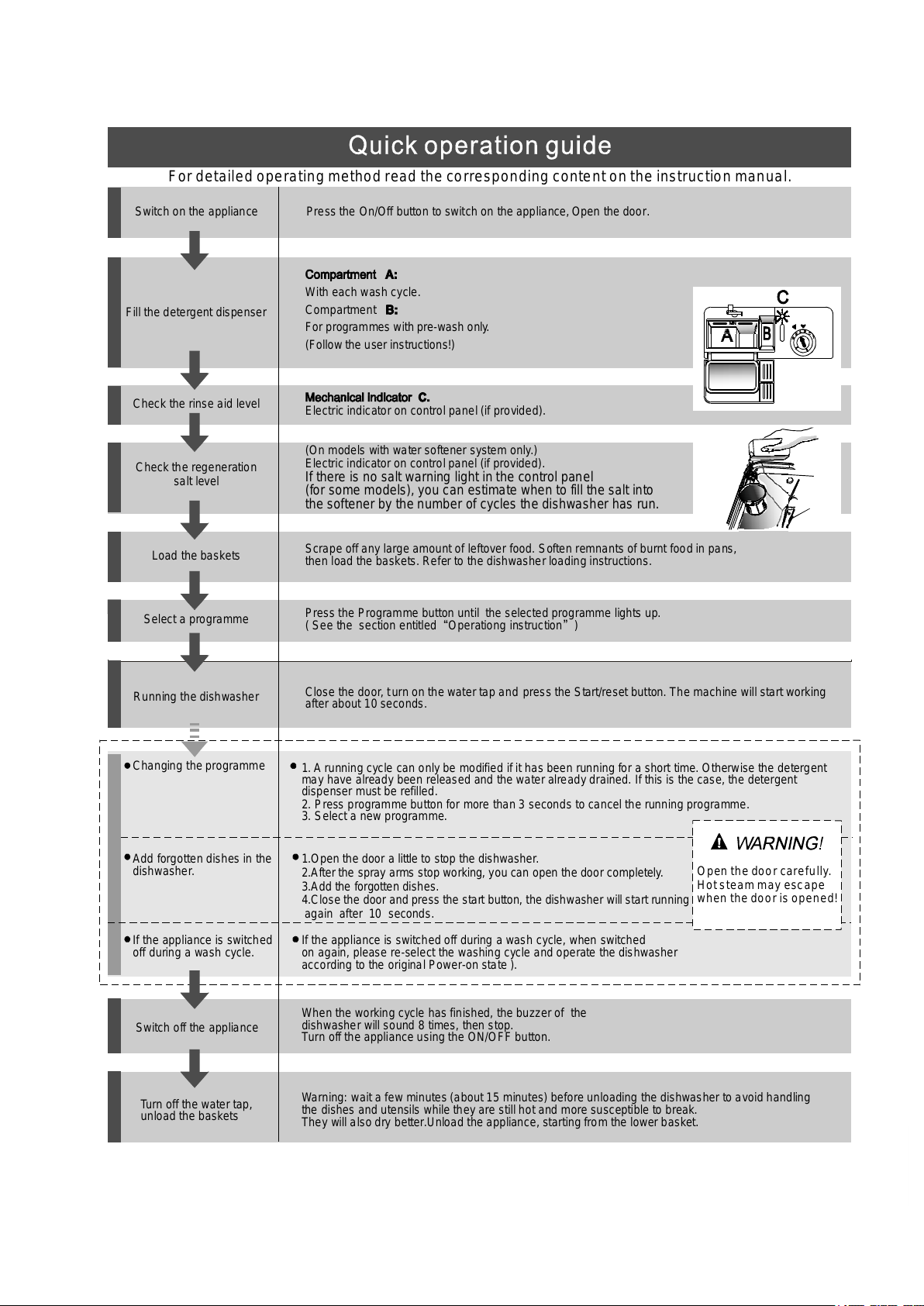

Witheachwashcycle.
Compartment
For programmes with pre-wash only.
(Follow the user instructions!)
Electric indicator on control panel (if provided).
Check the rinse aid level
(On models with water softener system only.)
Electric indicator on control panel (if provided).
If there is no salt warning light in the control panel
(for some models), you can estimate when to fill the salt into
the softener by thenumber of cycles the dishwasher has run.
Check the regeneration
salt level
Load the baskets
Select a programme
Close the door, turn on the water tap and press the Start/reset button. The machine will start working
after about 10 seconds.
Running the dishwasher
Switch off the appliance
Turn off the water tap,
unload the baskets
Fill the detergent dispenser
Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling
the dishes and utensils while they are still hot and more susceptible to break.
They will alsodry better.Unload the appliance, startingfrom the lower basket.
Changing theprogramme
Add forgottendishes in the
dishwasher.
Scrape off any large amount of leftover food. Soften remnants of burnt foodin pans,
then load the baskets. Refer to the dishwasher loading instructions.
Press the Programme button until the selected programme lights up.
( See the section entitled Operationg instruction )“”
When the working cycle has finished, the buzzer of the
dishwasher will sound 8 times, then stop.
Turn off the appliance using the ON/OFF button.
If the appliance is switched
off during a wash cycle.
Open the door carefully.
Hotsteam may escape
when thedoor isopened!
If the appliance is switched off during a wash cycle, when switched
on again, please re-select the washing cycle and operate the dishwasher
according to the original Power-on state ).
Switch on the appliance Press the On/Off button to switch on the appliance, Open the door.
1.Open the door a little to stop the dishwasher.
2.After the spray arms stop working, you can open the door completely.
3.Add the forgotten dishes.
4.Close the door and press the start button, the dishwasher will start running
again after 10 seconds.
For detailed operating method read the corresponding content onthe instruction manual.
1. Arunning cycle can onlybe modified if it hasbeen running for a short time. Otherwise the detergent
may have already been released and the water already drained. If this is the case, the detergent
dispenser must be refilled.
2. Press programme button for more than 3 seconds to cancel the running programme.
3. Select a new programme.
All manuals and user guides at all-guides.com

To review the section on troubleshootingTips
will help youtosolve some common problems
by yourself .
Dear Customer,
Please carefully read thismanual beforeusing the
dishwasher, it will help you to use and maintain the
dishwasher properly.
Pass it onto any subsequentowner of the appliance.
This manual contains sections on safety Instructions,
OperatingInstructions,InstallationInstructionsand
Troubleshooting Tips, etc.
The manufacturer, following a policy of constant
developmentandupdating of the product, may
make modificationswithout giving prior notice.
Dishwasher Features.................................... ...3
Attention before or after loading the Dishwasher
Baskets.........................................................8
FilteringSystem.............................................13
Caring for the Dishwasher..................... .........14.
How to use the 3 in 1 function............................7
A Fill the RinseAid Dispenser.........................4、
B FunctionofDetergent .................................5、
Loadingthe upper ............................. .9Basket ..
LoadingtheLower .............................. 9Basket ..
Cutlery Basket..............................................10
WashCycleTable...........................................11
Turning on theAppliance................................12
Change the Programme.............. ................12....
At the End of the Wash Cycle...........................12
Positioningthe Appliance................... ..........15..
Water Connection.................................. .......16.
About Power Connection........................ .......15.
Start of dishwasher................................ ......17..
Beforecallingfor service........................... .....18.
Errorcodes.................................... ..............19.
Technical information.............................. .....20..
ControlPanel...................................................2
Keep it to refer to it at a later date.
If you can not solvethe problems by yourself ,
please ask for the help of professional technicians.
All manuals and user guides at all-guides.com

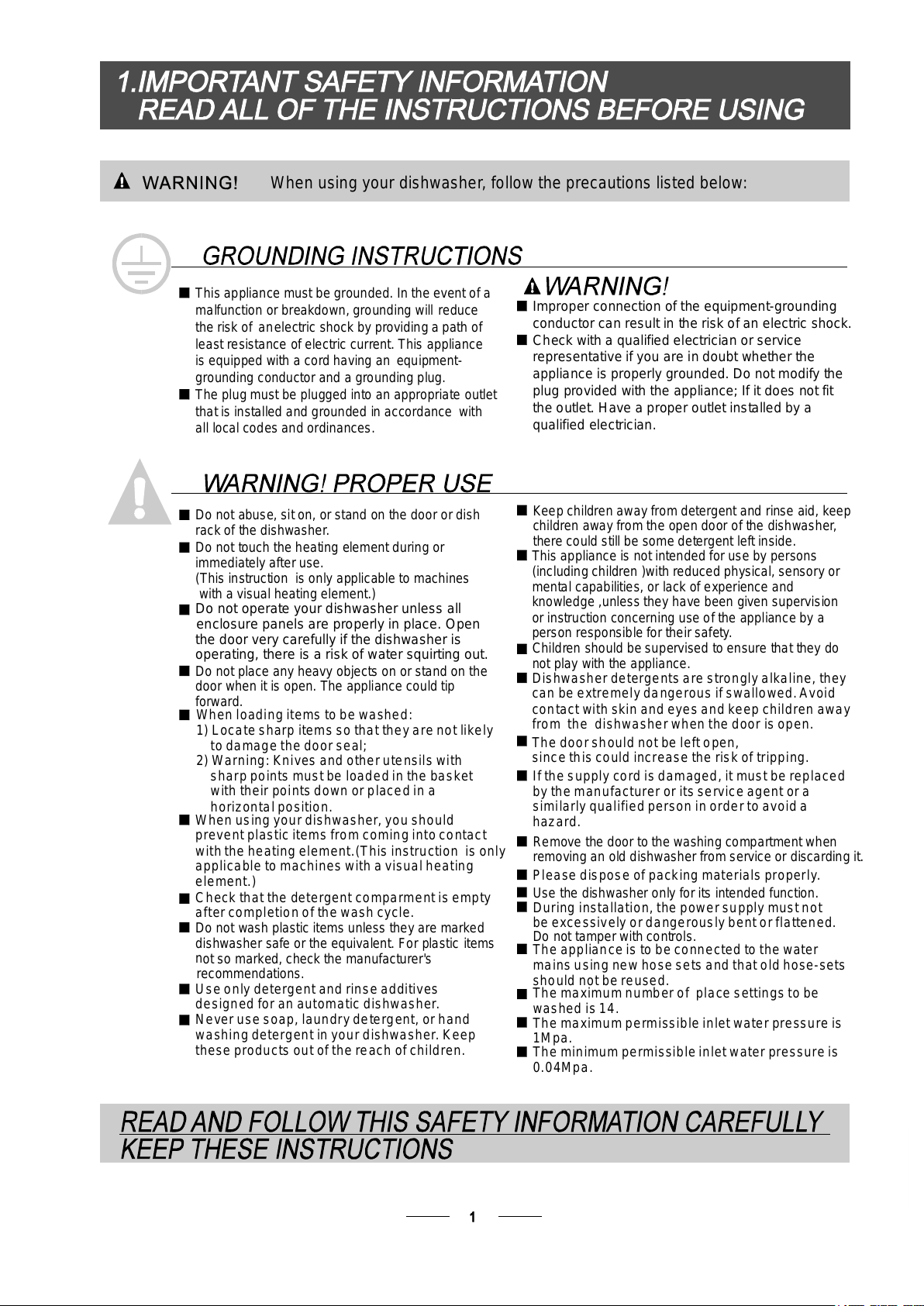

This appliance must be grounded. In the event of a
malfunction or breakdown, grounding will reduce
the risk of anelectric shock by providinga path of
least resistance of electric current. This appliance
is equipped with a cord having an equipment-
grounding conductor and a grounding plug.
The plug must be plugged into an appropriate outlet
that is installed and grounded in accordance with
all local codes and ordinances.
Improper connection of the equipment-grounding
conductor can result in the risk of an electric shock.
Check with a qualified electrician or service
representative if you are in doubt whether the
appliance is properly grounded. Do not modify the
plug provided with the appliance; If it does not fit
the outlet. Have a proper outlet installed by a
qualified electrician.
Keep children away from detergent and rinse aid, keep
child away from the open door of the dishwasher,
there could still be some detergent left inside.
ren
Do not abuse, sit on, or stand on the door or dish
rack of the dishwasher.
Do not touch the heating element during or
immediately after use.
(This instruction is only applicable to machines
with a visual heating element.)
Do not wash plastic items unless they are marked
dishwasher safe or the equivalent. For plastic items
not so marked, check the manufacturer's
recommendations.
Useonly detergent and rinse additives
designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand
washing detergent in your dishwasher. Keep
these products out of the reach of children.
During installation, the powersupply mustnot
be excessivelyordangerouslybent orflattened.
Do not tamper with controls.
Do not operate your dishwasher unless all
enclosure panels are properly in place. Open
the door very carefully if the dishwasher is
operating, there is a risk of water squirting out.
Do not place any heavy objects the
door when it is open. The appliance could tip
forward.
on or stand on
When loading items to be washed:
1) Locatesharp itemssothat theyarenot likely
todamagethedoorseal;
2 Warning: Knives and other utensils with
sharp points must be loaded in the basket
with their pointsdown or placedin a
horizontalposition.
)
When using yourdishwasher, you should
preventplastic items fromcomingintocontact
withthe heating element.(This instruction is only
applicable to machines with a visual heating
element.)
Ifthesupply cord is damaged, it must be replaced
by themanufacturer or itsserviceagent or a
similarly qualified person in order to avoid a
hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
Remove the door to the washing compartment when
removing an old dishwasher from service or discarding it.
Dishwasher detergents are stronglyalkaline, they
can be extremely dangerous if swallowed.Avoid
contact with skin and eyesand keep children away
from the dishwasher when the door is open.
Check that the detergent comparment isempty
after completionof the wash cycle.
The appliance is to be connected to the water
mainsusing new hosesets and that oldhose-sets
should not be reused.
The maximumnumber of place settings tobe
washed is 14.
The maximumpermissibleinlet water pressureis
1Mpa.
The minimumpermissibleinlet water pressureis
0.04Mpa.
Children should besupervised to ensure that they do
not play with the appliance.
This appliance is not intended for use by persons
(including children with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge ,unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety.
)
When using your dishwasher, follow the precautions listed below:
The door should not be left open,
since this could increase the risk of tripping.
All manuals and user guides at all-guides.com

beforeusingit for the first time.
To getthe best performance from yourdishwasher,read all operating instructions
10 Start / Pause Button: Press this button to start or pause the
dishwasher, the program light will come on when starting.
2 Power Light : To come on when the ON/OFF Button is
Pressed down.
3 Rinse Aid Warning Light : To come on when the
rinse aid dispenser needs to be refilled.
1 ON/OFF Button: To turn on/off the power supply.
1 2 58 9 10
11
7
6
3
8
Program button: Press the button to choose the desired
program.
9
Program indicator light.
11
Display Window: Display program remaining time, delay time,
faultcodes,etc.
7
Delayed Start Button: Press this button to set the delayed
hours for washing. You can delay the start of washing up
to 24 hours. One press on this button delays the start of
washing by one hour.
4
4 Door Lock: Pull it to open the door.
5 Function Button :To select
functions. You can select
functions after you have selected the program
(Only Intensive, Heavy, Normal can select the
function).
Tablet wash Tablet
wash Tablet wash
Tablet wash
6
indicator light :To come on when
select the function.
Tablet wash
Tablet wash
All manuals and user guides at all-guides.com

1
2
3
4
5
6
7
8
9
Back View
10
11
LowerBasket
SprayArms
UpperBasket
1
3
2
Main Filter
Detergent Dispenser
4
5
Cup Shelf
Cutlery Basket
Coarse Filter
6
7
8
RinseAid Dispenser
Inlet pipe connector
Drain pipe connector
9
11
10
All manuals and user guides at all-guides.com
all-guides.com

Before using your dishwasher for the first time:

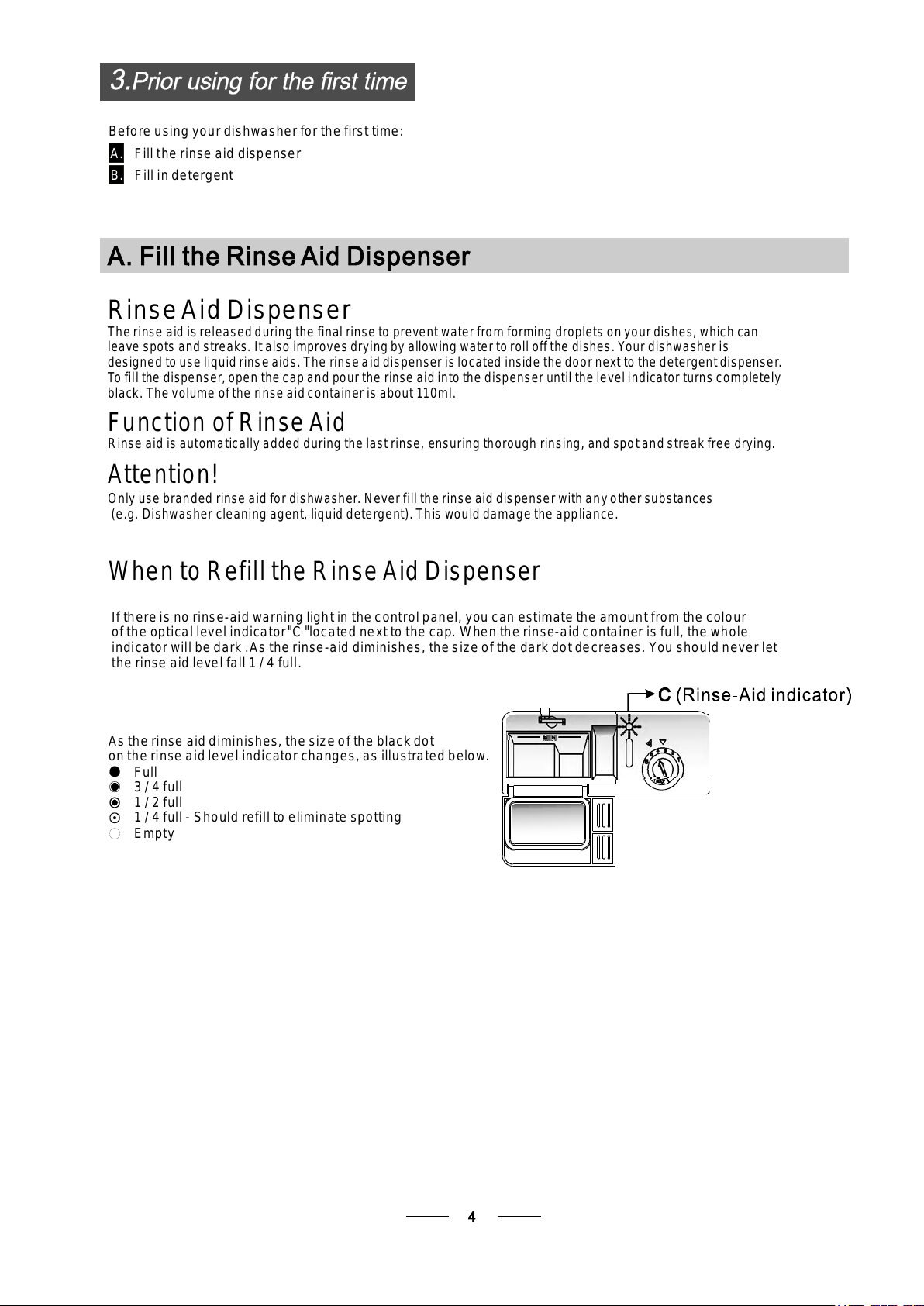

A. Fill therinse aid dispenser
B. Fill indetergent
Therinse aid isreleasedduringthe final rinseto prevent waterfrom forming droplets onyour dishes, which can
leave spots andstreaks. Italso improvesdryingby allowing water toroll offthe dishes. Your dishwasher is
designed to use liquid rinseaids.The rinseaiddispenser islocated inside thedoor next to the detergentdispenser.
To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely
black. The volume ofthe rinseaidcontainer is about 110ml.
RinseAid Dispenser
Function of RinseAid
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spotandstreakfree drying.
Attention!
Only use branded rinse aid for dishwasher. Neverfill therinse aid dispenser withanyothersubstances
(e.g. Dishwasher cleaning agent, liquid detergent).This would damage the appliance.
Astherinseaiddiminishes,thesizeoftheblackdot
ontherinse aidlevel indicator changes,as illustratedbelow.
Full
3/4full
1/2full
1/ 4full -Should refilltoeliminate spotting
Empty
When to Refill the RinseAid Dispenser
If thereis no rinse-aid warning light in thecontrolpanel, you can estimate the amount from the colour
oftheoptical levelindicator C located nexttothe cap. When therinse-aidcontainer isfull, the whole
indicatorwill bedark .As therinse-aid diminishes, thesizeof the dark dot decreases. You shouldnever let
the rinse aid level fall 1 / 4 full.
""
All manuals and user guides at all-guides.com

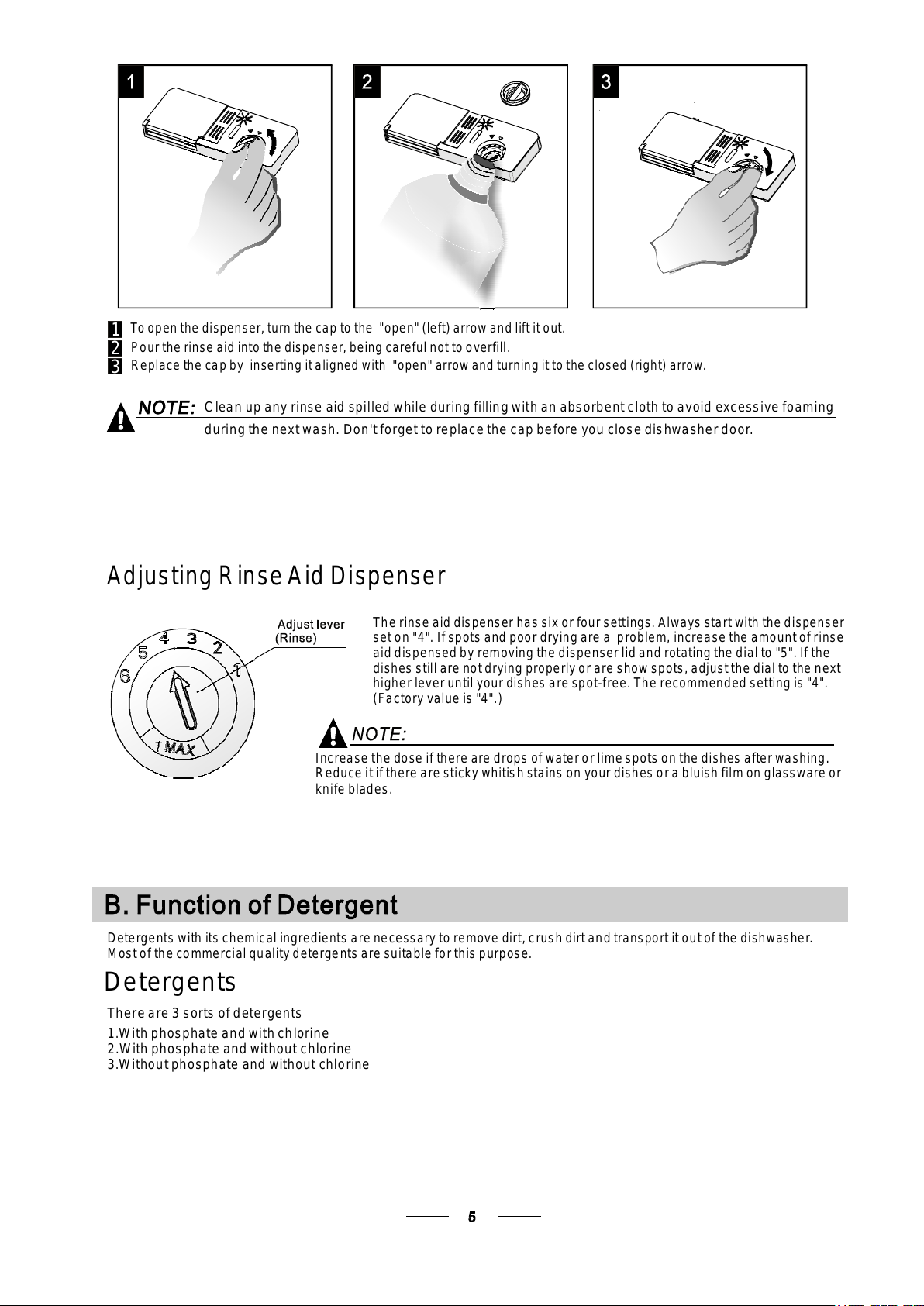

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pourthe rinse aid intothe dispenser, being careful not to overfill.
Replace the cap by inserting italigned with "open" arrow and turning it tothe closed (right) arrow.
Adjusting RinseAid Dispenser
The rinse aid dispenser has six or four settings. Always start with the dispenser
set on"4". If spots and poor dryingare a problem, increase the amount of rinse
aid dispensedby removing the dispenser lid and rotating the dial to "5". If the
dishes still are not drying properlyor are show spots,adjustthe dial to the next
higher lever until your dishes are spot-free. The recommended setting is "4".
(Factory value is "4".)
Increase thedose if there are drops of waterorlimespotson the dishes after washing.
Reduce it ifthere are sticky whitish stains on your dishes or abluish film on glasswareor
knife blades.
1
2
3
duringthe nextwash. Don'tforget to replacethe cap before you closedishwasher door.
Clean up any rinse aid spilled while during fillingwith an absorbent cloth to avoid excessive foaming
Detergents with its chemical ingredients arenecessary to remove dirt,crush dirt andtransport it outof the dishwasher.
Mostofthecommercial qualitydetergents are suitableforthispurpose.
Detergents
There are 3 sorts of detergents
1.Withphosphate andwithchlorine
2.With phosphate andwithout chlorine
3.Withoutphosphate and without chlorine
All manuals and user guides at all-guides.com

Amount ofDetergentto Use
Proper Use ofDetergent
Use only detergentspecificallymade for the usein dishwashers.Keep your detergent fresh and dry.
Don't put powdereddetergent into the dispenseruntilyou'reready towash dishes.
Dishwasher detergent iscorrosive! Take care to keepit out of reach of children.
Based on their chemical composition, detergentscan besplit in two basic types:
The use of normal washingprograms in combination with concentrated detergents
reduces pollution and is good for your dishes; these wash programsare specifically matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
normal wash programsin whichconcentrated detergentsareused canachievethe same
resultsthat can otherwise onlybe achievedusing intensive programs.
“”
“”
“”
Detergent tablets of different brandsdissolve at different speeds. For thisreasonsome
detergenttablets cannot dissolve and develop theirfull cleaning power during short
programs. Therefore please use long programs whenusingdetergent tablets, to
ensure the complete removal of detergent residuals.
The dispenser must berefilledbefore the start of each washcycle following the instructions
provided in the wash cycle table . Your dishwasher usesless detergent and rinseaid than
Conventional dishwasher.Generally, only one tablespoon of detergent is neededfor
anormal washload. Moreheavily soiled itemsneed more detergent.Alwaysaddthe
detergentjust before starting the dishwasher, otherwise it couldget damp and will not
dissolve properly.
Concentrated Detergent
DetergentTablets
DetergentDispenser
Always add the detergent just before starting eachwash cycle.
Only use branded detergentaidfor dishwasher.
If the lid isclosed: press release button.The lid will spring open.
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes

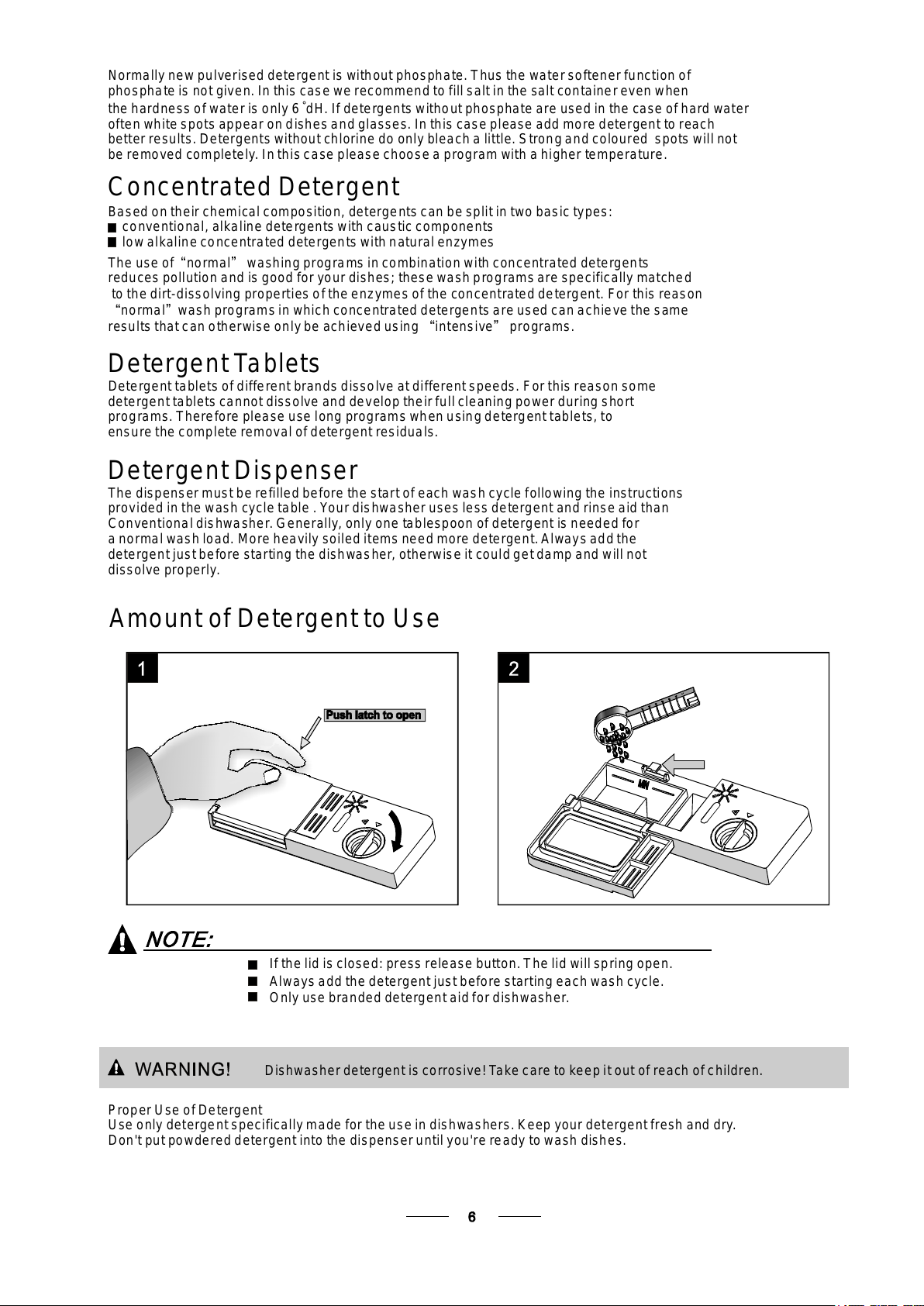

Normally new pulverised detergent is without phosphate.Thus the water softenerfunction of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water
often white spots appear on dishes and glasses. In this case please add more detergent to reach
better results. Detergents without chlorine do only bleach a little. Strong and coloured spots will not
be removed completely. Inthiscase pleasechoosea program with a higher temperature.
°
All manuals and user guides at all-guides.com

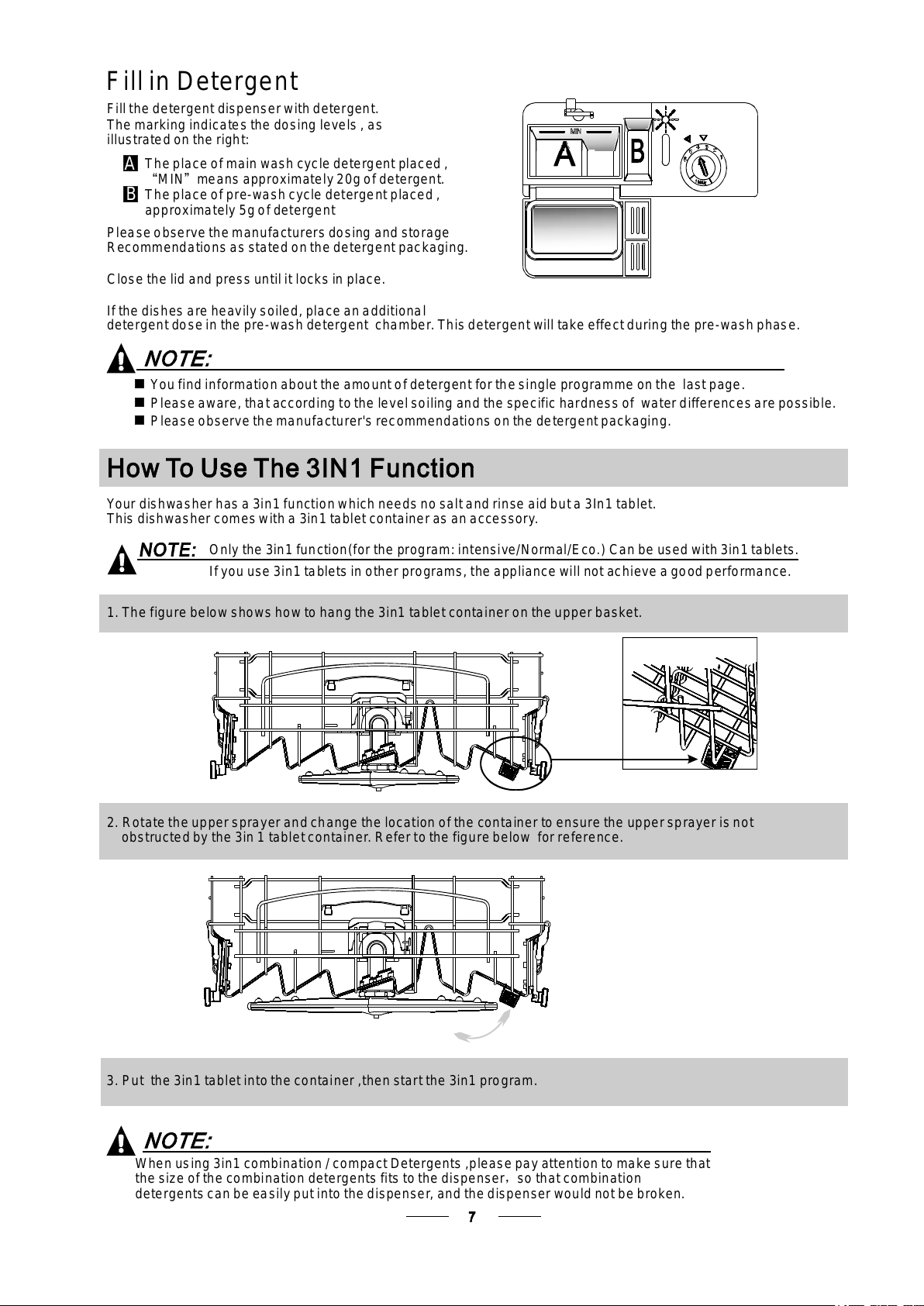

Ifyou use 3in1 tablets in other programs, the appliance will not achieve agood performance.
Only the 3in1 function(for the program:intensive/Normal/Eco.) Can be used with3in1tablets.
Fill the detergent dispenserwith detergent.
The marking indicates the dosing levels , as
illustrated on the right:
Theplaceof main wash cycledetergent placed ,
MIN means approximately20gof detergent.
“”
Theplace of pre-wash cycle detergent placed ,
approximately 5gof detergent
Please observethe manufacturers dosing and storage
Recommendationsas stated onthedetergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional
detergent dose in the pre-wash detergent chamber.Thisdetergent will take effectduring the pre-washphase.
A
B
Fill in Detergent
You find information about the amount ofdetergent for thesingle programme onthe last page.
Pleaseaware, that according tothe levelsoiling andthe specific hardnessof water differencesarepossible.
Pleaseobservethemanufacturer's recommendations onthe detergent packaging.
When using 3in1 combination / compact Detergents ,pleasepay attentionto make sure that
the size of the combination detergents fits to the dispenser so that combination
detergentscan be easily put into the dispenser, and the dispenser would not be broken.
，
Your dishwasher has a 3in1 functionwhich needs no saltand rinse aid but a 3In1 tablet.
This dishwasher comes with a 3in1 tablet container as an accessory.
1.The figure below showshow to hangthe 3in1 tablet container on the upper basket.
2. Rotate the upper sprayer andchange the location of the container to ensure the upper sprayer is not
obstructedby the 3in 1 tabletcontainer.Refertothe figurebelow for reference.
3. Put the 3in1 tablet intothe container ,then start the 3in1 program.
All manuals and user guides at all-guides.com

Cutlery withwooden, horn china or
mother-of-pearl handles
Plasticitems that arenot heat resistant
Older cutlerywith glued parts thatarenot
temperatureresistant
Bonded cutlery items or dishes
Pewter or cooper items
Crystal glass
Steel items subject to rusting
Wooden platters
Items madefromsynthetic fibres
Some types of glassescanbecome
dull aftera large number of washes
Silver and aluminum parts have a
tendencyto discolourduring washing
Glazed patterns may fade if machine
washed frequently
Are not suitable Are oflimited suitability
Dishesand itemsofcutlery mustnot lie insideoneanother, orcover each other.
To avoiddamage to glasses, theymust not touch.
Load large items which are most difficult to cleaninto the lower basket.
The upper basket is designed to hold moredelicate and lighter dishware such as glasses, coffee
andteacups
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontallyin the upperbasket.
Please do not overload your dishwasher. This is importantfor goodresultsandfor
reasonable consumptionof energy.
Load hollow items such as cups,glasses, pans etc. With the opening facing downwards so that
water cannot collect in the container or a deepbase.
Usea mild detergent thatisdescribedas 'kind todishes'. If necessary, seek further
information fromthe detergent manufacturers.
For particular items,select aprogramwithaslowa temperature aspossible.
To prevent damage, takeglass and cutlery out of the dishwasher assoon as possible
after the program has ended.
Consider buyingutensilswhich are identifiedas dishwasher-proof.
(For best performance of the dishwasher, follow these loading guidelines.
Features and appearance of baskets and cutlerybaskets may vary from your model.)
Scrape off any largeamountsofleftover food. Soften remnants of burnt food inpans.
It is not necessary to rinse thedishes under running water.
Place objects in the dishwasherin following way:
1.Items such ascups, glasses, pots/pans, etc. are faced downwards.
2.Curved items, or ones with recesses, should be loaded aslant so that water can run off.
3.All utensils are stacked securely and can not tipover.
4.All utensils are placed in the way that the spray armscan rotatefreely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.
To prevent water dripping from the upper basket into the lower basket, we recommend thatyou
empty the lower basket first and then the upper basket.
All manuals and user guides at all-guides.com
all-guides.com

The upper basket is designed to hold moredelicate andlighter dishwaresuch as glasses, coffee
and tea cupsandsaucers,as wellas plates, small bowls andshallowpans (as long as they are
not too dirty).
Positionthe dishes andcookwareso that they will not get movedby thesprayofwater.
We suggest that you placelargeitems and the most difficult to clean items are to be placedinto thelower basket:
such as pots, pans, lids, serving dishesand bowls, as shown in the figure below.
It is preferableto place servingdishesand lids on the side of theracks in order to avoid blocking the rotation ofthe
top spray arm.
Pots, serving bowls, etc, must always be placed topdown.
Deep potsshould beslantedto allow water to flow out.
Pleasebereminded that:
The BottomBasket features folding spikes so that larger or more pots and pans can be loaded.
3
GlassesSaucers
2
1
Cups
1
1
1
1
1
3
3
3
3
2
6
6
Dinnerplates
5
5
5
Soup plates
Dessertdishes
4
Cutlery basket
7
4
4
4
All manuals and user guides at all-guides.com

Position the dishes andcookwareso that they donot get
moved by the spray of water. Always place glasses, cups &
bowls upside down.
The upper rack is for more delicate andlighter dishware such as
glasses,coffee& teacups, saucers, plates, bowls, and shallow
pans (provided these arenot too dirty).
Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the
spoons should be loaded separately into the appropriate slots,especially long utensils shouldbe placed in the
horizontal position at the front of the upper basket as shown in the picture.
Forpersonal safetyand a top qualitycleaning,place thesilverware inthe basket making sure that:
Theydonotnest together.
Silverware is placed with the handles-down.
But place knives and other potentially dangerous utensils are placed handles-up.
Do not let any items extend
through bottom.
Teaspoons
4
Soup spoons
2
Forks
1
Knives
5
3Dessert spoons
5
44
5
55 5
55
2
3
2
3
2
3
2
3
2
3
23
2
3
4
1
1
1
1
1
1
14
4
4
44
4
4
41
1
1
1
1
1
23
2
3
2
3
2
3
2
3
2
3
2
43
1
5
5
5
5
5
5
44
5
The height of the upper basket can be adjusted in order to create more space for large utensils
both for theupper/lower basket.The height of theupperbasket can beadjusted by placing the
wheelson different height of therails. Long items, serving cutlery, salad servers andknives
should be placedon the shelf so that theydo not obstruct therotation of thespray arms.
The shelf can befoldedback orbe removed when not required for use.
All manuals and user guides at all-guides.com

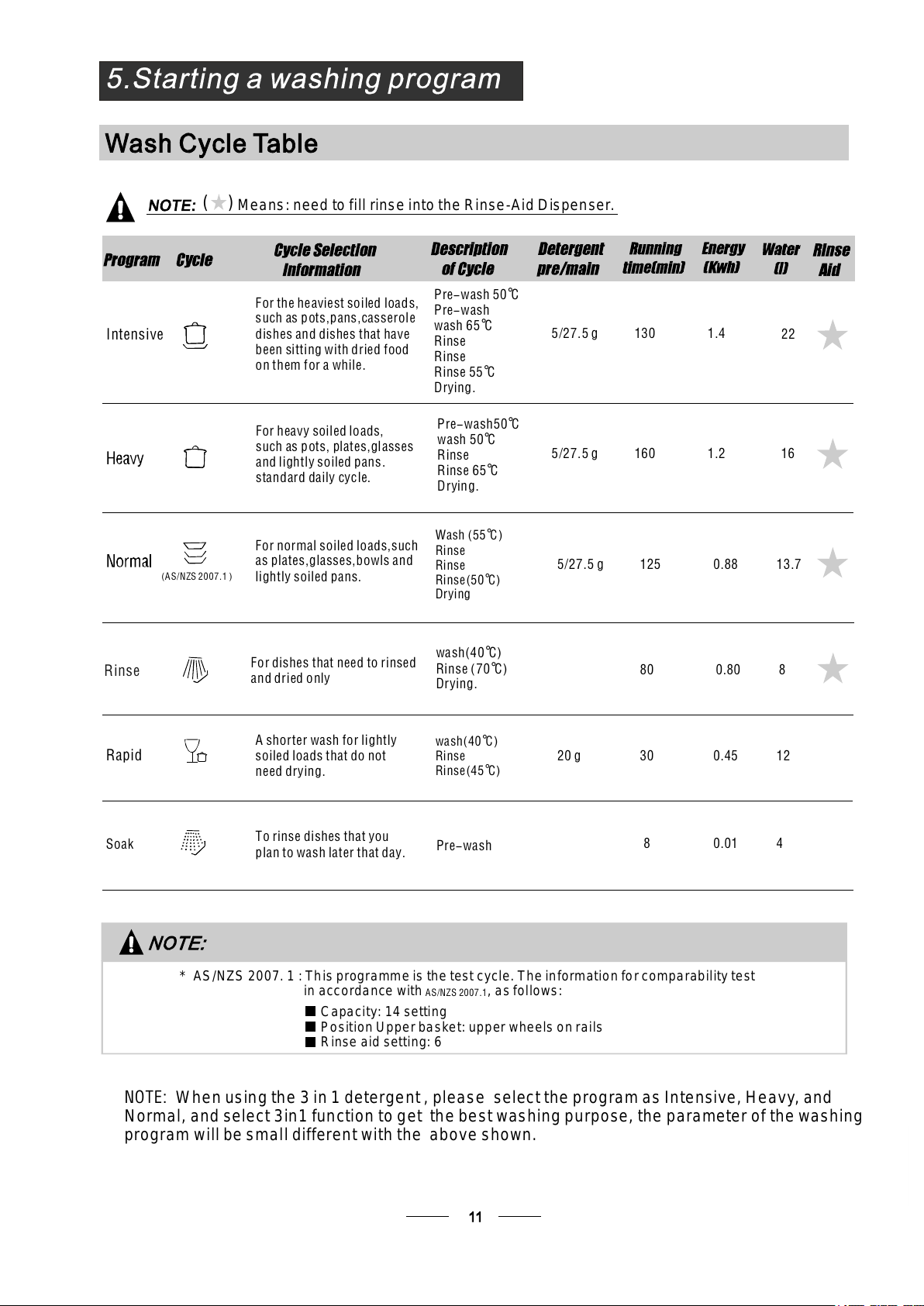

Means:need to fill rinse into the Rinse-Aid Dispenser.
()
* : This programme is the test cycle. The information for comparability test
in accordance with , as follows:
AS/NZS 2007. 1
AS/NZS 2007.1
Capacity: 14 setting
PositionUpper basket: upper wheels onrails
Rinse aid setting: 6
NOTE: When using the 3 in 1 detergent, please select the program as Intensive, Heavy, and
Normal, and select 3in1 function toget thebest washingpurpose, the parameter of the washing
program will be small different with the above shown.
Pre-wash50℃
wash 50℃
Rinse
Rinse 65℃
Drying.
To rinse dishes that you
plan to wash later that day.
20 g
Ashorterwashforlightly
soiled loads that do not
need drying.
Soak
5/27.5 g
5/27.5 g
5/27.5 g
Pre-wash 50℃
Pre-wash
wash 65℃
Rinse
Rinse
Rinse 55℃
Drying.
Pre-wash
Rapid
Intensive
For heavy soiled loads,
such as , plates,glasses
and lightly soiled pans.
standard daily cycle.
pots
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
beensittingwithdriedfood
on them for a while.
For normal soiled loads,such
as plates,glasses,bowls and
lightly soiled pans.
Wash (55℃)
Rinse
Rinse
Rinse(50℃)
Drying
30
130
160
125
8
wash(40℃)
Rinse
Rinse(45℃)
0.45
1.4
1.2
0.88
0.01
12
22
16
13.7
4
For dishes that need to rinsed
and dried only
Rinse
wash(40℃)
Rinse (70℃)
Drying.
(AS/NZS 2007.1 )
80 0.80 8
All manuals and user guides at all-guides.com

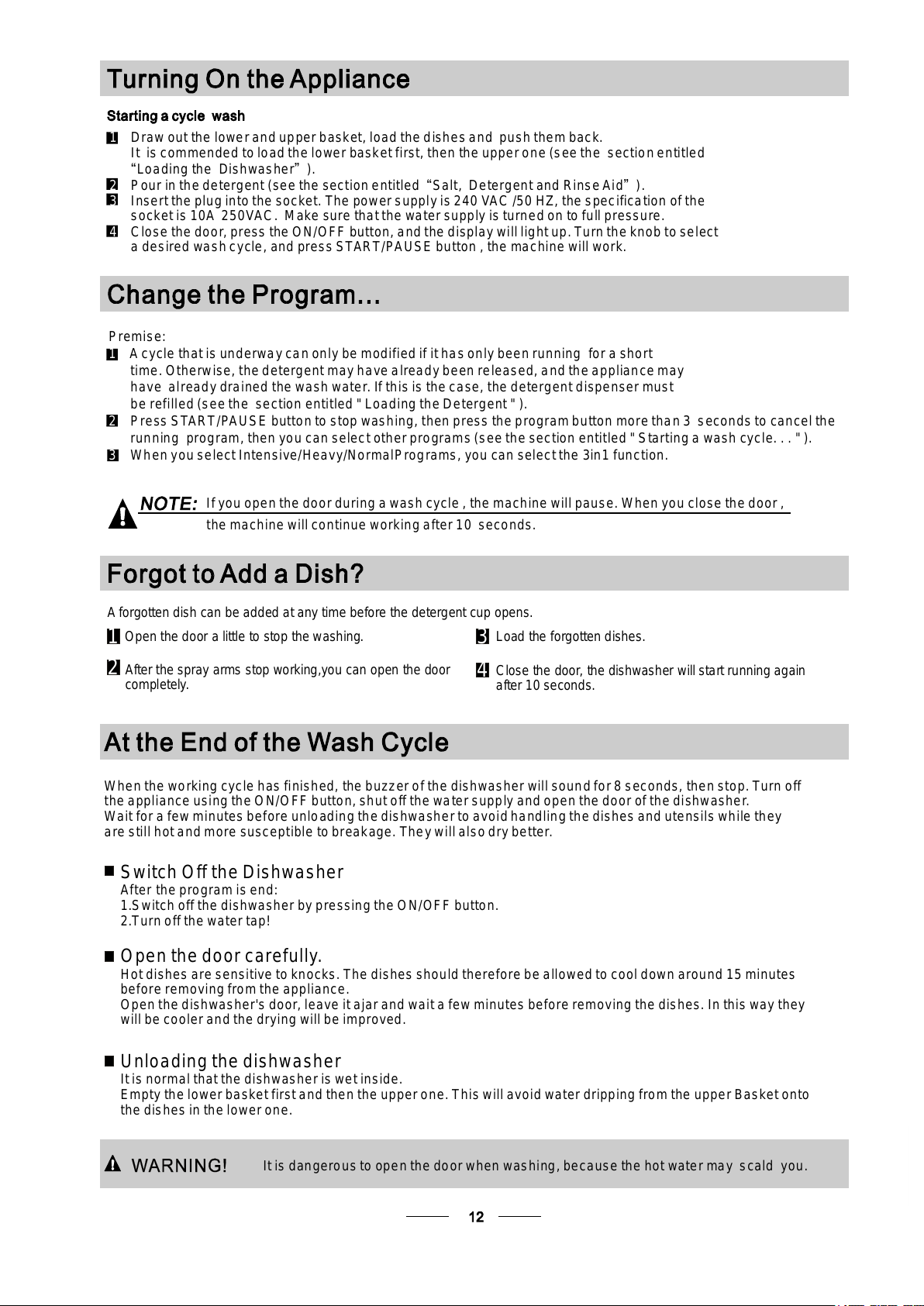

It is dangerousto open the door when washing, because the hot water may scald you.
When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off
the appliance using theON/OFF button, shut off thewater supply and open the door of the dishwasher.
Wait for afew minutes before unloadingthedishwasherto avoidhandlingthedishes and utensils while they
are still hot andmore susceptible to breakage. Theywill alsodry better.
Switch Off the Dishwasher
After theprogramisend:
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turnoffthewater tap!
Open the door carefully.
Hot dishes are sensitive to knocks. The dishes should thereforebeallowed to cool down around 15 minutes
before removingfromthe appliance.
Open thedishwasher's door, leave it ajar and wait afew minutes before removing the dishes. In this way they
will be cooler andthe drying will be improved.
Unloadingthedishwasher
It is normal that the dishwasher is wet inside.
Empty thelower basketfirst and then the upperone. This will avoid water dripping from the upper Basket onto
the dishes in the lower one.
the machine will working after 10 seconds.continue
Ifyou open the door , the machine will pause. When you close the door ,during a wash cycle
Draw out the lower and upper basket, load the dishes and push them back.
It iscommendedtoloadthelowerbasketfirst,thentheupperone(seethe sectionentitled
Loading the Dishwasher ).
Pour in the detergent (see the section entitled Salt, Detergent and RinseAid ).
Insert the plug intothe socket. The power supplyis 240 VAC /50 HZ, the specification of the
socketis 10A 250VAC. Make sure that the water supply is turnedon to fullpressure.
Close the door, press the ON/OFF button, andthe displaywilllight up.Turntheknob toselect
a desired washcycle, and pressSTART/PAUSE button , the machinewill work.
“”
“”
1
2
3
4
Aforgotten dish can be added at any time before the detergent cup opens.
Load the forgotten dishes.
Close the door, the dishwasher will start running again
after 10 seconds.
After the spray arms stop working,you can open the door
completely.
2
Open the door a little to stop the washing.
13
4
Premise:
Acycle that is underwaycanonlybe modified if it has only been running for a short
time. Otherwise, thedetergent may have alreadybeen released, and theappliance may
have already drained the wash water. If this is the case, the detergentdispenser must
be refilled (seethe section entitled " Loading theDetergent " ).
Press START/PAUSE button to stop washing,then press the programbutton morethan3 seconds to cancelthe
running program, then you can select other programs(seethe section entitled " Starting a wash cycle. . . " ).
When you select Intensive/Heavy/NormalPrograms, you can selectthe 3in1 function.
1
2
3
All manuals and user guides at all-guides.com

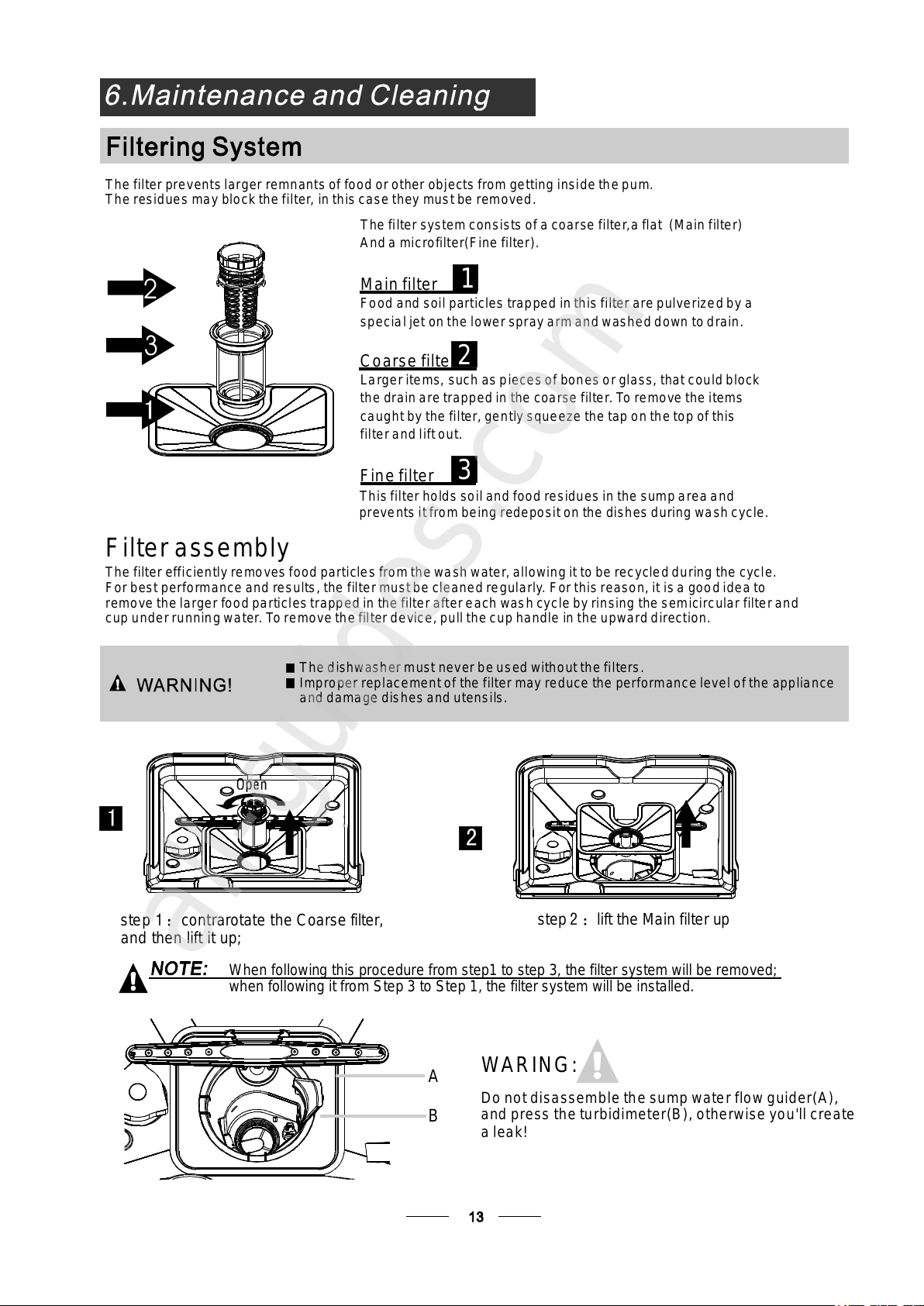

The filter prevents larger remnantsof food or other objects from getting insidethepum.
Theresidues may block the filter, inthiscasethey must be removed.
The filter system consists of a coarse filter,a flat (Mainfilter)
And a microfilter(Fine filter).
Food and soil particles trapped inthisfilterarepulverizedby a
special jet on the lower spray arm andwasheddown todrain.
Larger items, such as pieces of bones or glass, that couldblock
the drainaretrappedin the coarse filter. To remove the items
caught by the filter, gently squeeze the tap on thetop of this
filterandliftout.
Thisfilter holds soil and food residuesin the sumpareaand
preventsitfrom being redeposit on the dishesduring wash cycle.
Main filter
1
Coarse filter
2
Fine filter
3
Filterassembly
Thefilter efficiently
For best performance and results, the filter must be cleaned regularly. thisreason, it isa good ideato
remove thelarger food particles trapped in the filter aftereach wash cyclebyrinsing the semicircular filterand
cup under runningwater. To remove thefilter device, pull thecup handle in the upwarddirection.
removes food particles fromthe wash water, allowing it to be recycled during the cycle.
For
The dishwasher must never be used without the filters.
Improper replacementof the filter may reduce the performance level of the appliance
and damage dishesandutensils.
When following this procedure from step1 to step 3, the filter system will be removed;
when following it from Step 3 to Step 1, the filter system will be installed.
2
3
1
1
step contrarotate the C ,
and then lift it up;
１： oarse filter
step lift the Main filter up２：
2
Do notdisassemble the sump water flow guider(A),
and press the turbidimeter(B), otherwise you'll create
aleak!
A
B
WARING:
All manuals and user guides at all-guides.com
all-guides.com

The control panel can be cleaned by using a lightly dampenedcloth.
Aftercleaning, make sure to dry it thoroughly.
For the exterior, use agood appliance polish wax.
Neverusesharp objects, scouring pads or harsh cleaners onany part ofthe dishwasher.
ProtectAgainst Freezing
1.Cut off the electrical power to the dishwasher.
2.Turn off the water supply and disconnect thewater inlet pipe from the water valve.
3.Drain the water from the inlet pipe andwater valve. (Use apan to catch thewater)
4.Reconnect the water inlet pipe to the water valve.
5.Remove the filter at the bottomof the tub and use a spongeto soak up water in the sump.
please take frost protection measuresonthe dishwasher in winter.Every fter washingcycles,
please operate as follows time a
：
- Inspect the filtersfor blockingafter every time the dishwasher has been used.
- By unscrewing the coarsefilter, you can remove the filter system. Removeanyfoodremnants and
cleanthefilters underrunningwater.
Remarks:
Cleaning the Filter
CleaningThe Door
To clean the coarsefilter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures
on thelast page and reinsert the entire assembly in the dishwasher, positioning itin itsseat and pressing downwards.
The entirefilter assembly shouldbe cleaned once a week.
Whencleaning the filters, don't knock on them. Otherwise, the filters could be
contorted and theperformance ofthe dishwashercouldbe decreased.
To clean theedge around the door, you shoulduse only a soft warm, dampcloth.
To avoid penetrationof waterinto the door lock and electrical components,do not
use a spray cleaner of any kind.
Never use a spray cleaner toclean the door panel as it may damage the door lock
and electrical components.
Abrasive agents or somepaper towels should not be used because of theriskof
scratching or leaving spots on the stainless steel surface.
Cleaning the SprayArms
It is necessary to clean the spray arms regularly in order to
remove the accumulation of scale from the hard water
and thus prevent blocking of spray arm jets and bearings.
We Suggest to poke the blocked spray arm jets with a needle
to ensure good washing effect.
If your dishwasher cannot work because of the ice, please contact professional service persons.
All manuals and user guides at all-guides.com

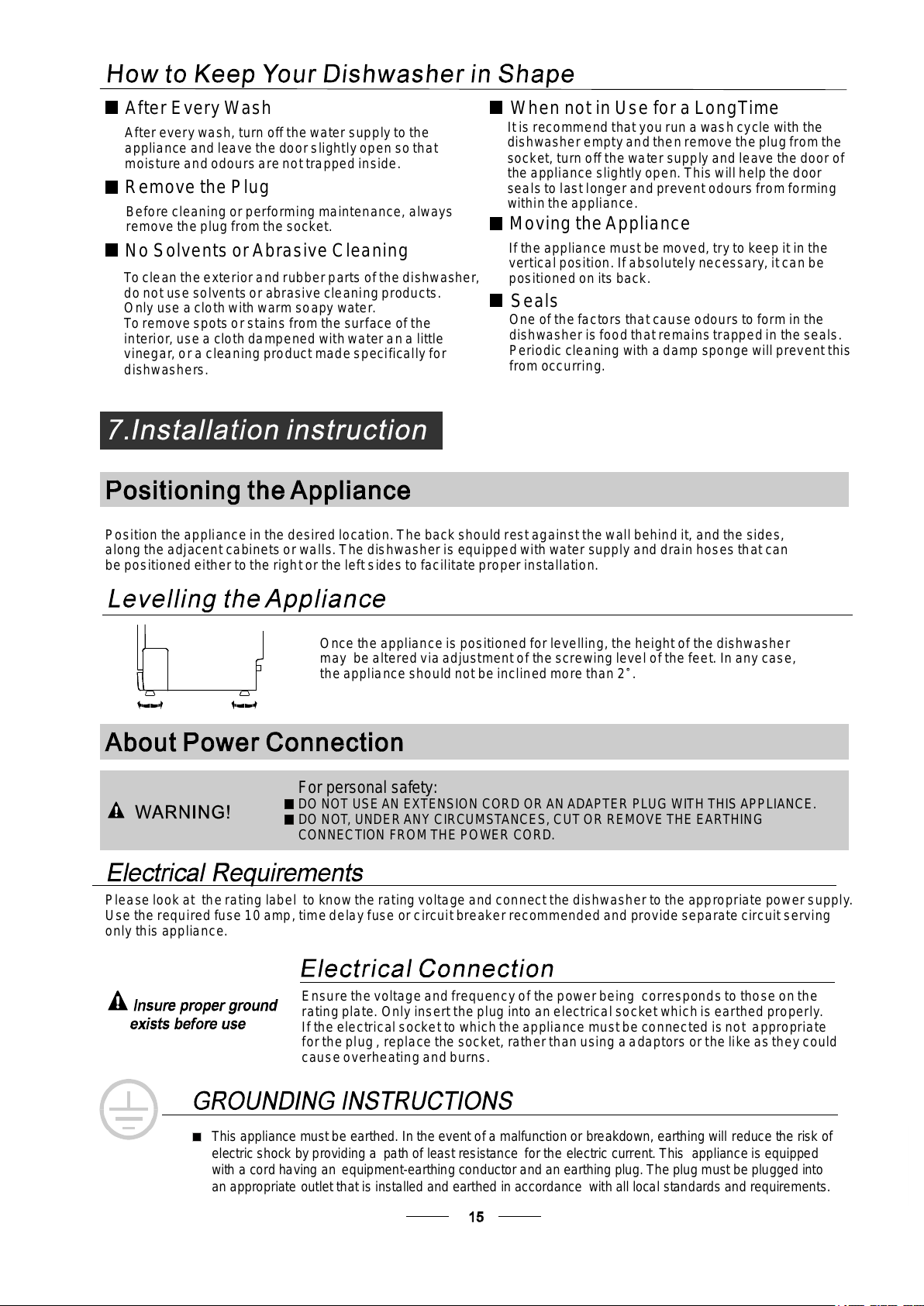

Itisrecommend thatyourun awashcycle with the
dishwasher empty andthen remove the plugfrom the
socket, turn off the water supply and leave the door of
the appliance slightly open. This will help the door
sealstolastlongerandpreventodoursfromforming
withintheappliance.
If the appliance must be moved, tryto keep it in the
verticalposition. Ifabsolutelynecessary, itcanbe
positioned on its back.
Oneofthefactorsthatcauseodourstoforminthe
dishwasher is food that remainstrapped in the seals.
Periodic cleaning with adamp sponge will prevent this
from occurring.
Ensurethevoltageandfrequencyof thepowerbeing correspondsto thoseonthe
ratingplate. Onlyinsertthe plug into anelectricalsocket whichis earthed properly.
If the electrical socketto whichtheappliance mustbe connected isnot appropriate
forthe plug, replace the socket, ratherthan using a adaptors or the like as theycould
causeoverheatingandburns.
Pleaselook at therating label to knowthe rating voltage and connect the dishwasher to the appropriate power supply.
Use the required fuse 10 amp,timedelay fuse or circuitbreakerrecommended and provide separate circuit serving
only this appliance.
This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of
electric shock by providing a path of least resistance for the electric current. This appliance is equipped
with a cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into
an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.
Position the appliance in the desired location. The back should rest against thewall behindit, and the sides,
along the adjacent cabinetsor walls.The dishwasheris equippedwith water supply and drain hoses that can
be positioned either tothe right or the leftsidesto facilitate proper installation.
Once the applianceis positionedfor levelling, the height of the dishwasher
may be alteredviaadjustment of the screwing level ofthe feet. In any case,
theappliance should notbeinclined more than 2 .
For personal safety:
DO NOT USEAN EXTENSION CORD ORAN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDERANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING
CONNECTION FROM THE POWER CORD.
After every wash, turn off the water supply to the
appliance and leave the doorslightly open so that
moisture and odours arenot trapped inside.
Before cleaning orperforming maintenance, always
remove the plug from the socket.
Tocleantheexteriorandrubberpartsofthedishwasher,
donot use solventsor abrasivecleaningproducts.
Only use acloth with warm soapy water.
To remove spots or stains from the surface of the
interior, usea clothdampened withwater ana little
vinegar, or a cleaning product madespecifically for
dishwashers.
After EveryWash
Remove the Plug
No Solvents orAbrasive Cleaning Moving theAppliance
Seals
When not inUse for aLongTime
All manuals and user guides at all-guides.com

for personal safety:
DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE
FROM THE POWER CORD. EARTHING CONNECTION
Connect the cold watersupply hose to a threaded 3/4(inch) connector and make sure
that it is fastened tightly in place.
If the water pipes are new or have not been used for an extended period of time, let the
waterrun to make sure that thewater is clear. Thisprecaution is needed to avoid the
risk of the water inlet to be blocked anddamage theappliance.
Thewater supplyto the appliancecan also be connected to the household hot water
line (such as, central system, heating system),as longas it does not exceeda
temperature of 60 C. In this case,the wash cycle time will be shortenedby about 15
minutesandthe wash efficiency slightly reduced.
Theconnection must be made to the hot waterline following the same procedures as
described inthe section for theconnection to the coldwater line.
Improper connection of the equipment earthing conductor can result in the risk of an
electric shock.
Check with a qualified electrician or service representative if you are in doubt whether the
appliance is properly earthed.
Do not modify the plug provided with the appliance. If the plug does not fit properly to the
outlet, please have a qualified electrician to install a proper outlet.
In order to avoidthat there ismore waterstaying in the inlet hose, please close
the hydrantafter using.(Not applicable to appliances without aqua-stop.)
Insert the drainhose into a drain pipe with a minimumdiameter of 4cm, or let it run into the sink, making sure to
avoid bending or crimping. Use thespecial plasticsupportthat comes withthe appliance. The top ofthehose
must be at aheightbetween40 and 100cm.The free end ofthehosemust not beimmersed inwater.
FRONT VIEW
Inlet pipe connector Drain pipe connector
POWER OUTLET
SINK
DISHWASHER
Min 100mm
All manuals and user guides at all-guides.com

The following things should be checked beforestarting the dishwasher.
Syphon Connection
The content of this manual is very helpful to the users.
Afterinstallation, please make sure tokeep this manual.
ExtensionHose
If you need a drain hose extension, make sure to use a similar drain hose.
It must be no longer than 4metres; otherwise the cleaning effect of the dishwasher could be reduced.
1 The dishwasher is level and fixed properly
2
The inlet valve is open
3 There is aleakage at the connections ofthe conducts
4
The wires are tightly connected
5 The power isswitched on
6 The inlet and drain hoses are knotted
7
Allpackingmaterials andprintings should be taken out fromthe dishwasher
Water Outlet
Connect the waterdrain hose.The drain hose mustbe correctlyfittedto avoidwater leaks.
Ensure that the waterdrain hose isnot kinked or squashed.
If the sink is 1000 higher from the floor, the excess water in hoses cannotbe drained directly
into the sink.Itwillbe necessary todrain excesswater from hoses into a bowlorsuitable
container that is held outside and lower thanthe sink.
How to Drain Excess Water From Hoses
The waste connection mustbe at a height ofbetween40 cm (minimum) and 100 cm (maximum)
from the bottom of the dish.The water drain hoseshouldbe fixed by a hose clip. The free end of
the hose mustnot be immersed in water.
All manuals and user guides at all-guides.com
