B-WIC & B-SMC
Impedance Test Fixtures
User Manual

2 OMICRON Lab
B-WIC & B-SMC User Manual
Version: ENU 1248 05 01—Year: 2020
© OMICRON Lab, OMICRON electronics. All rights reserved.
This manual is a publication of OMICRON electronics.
All rights including translation reserved. Reproduction of any kind, e.g., photocopying, microfilming,
optical character recognition and/or storage in electronic data processing systems, requires the explicit
consent of OMICRON electronics. Reprinting, wholly or in part, is not permitted.
The product information, specifications, and technical data embodied in this manual represent the
technical status at the time of writing and are subject to change without prior notice.
Windows is a registered trademark of Microsoft Corporation. OMICRON Lab and Smart Measurement
Solutions are registered trademarks of OMICRON electronics.

OMICRON Lab 3
Safety Instructions
Safety Instructions
Safety instructions, designated use and operator qualifications ................................................................ 14
Sicherheitshinweise, bestimmungsgemäße Verwendung und Qualifikation des Bedienpersonals........... 14
Указания за безопасност, предназначение иквалификации на оператора........................................ 14
Bezpečnostní pokyny, určené použití a kvalifikace operátora ................................................................... 14
Sikkerhedsanvisninger, tilsigtet brug og operatørkvalifikationer ................................................................ 15
Οδηγίες ασφαλείας, προβλεπόμενη χρήση και προσόντα χειριστών ........................................................ 15
Instrucciones de seguridad, aplicación prevista y cualificaciones de los operadores ............................... 15
Ohutusjuhised, kasutusotstarve ja kasutaja kvalifikatsioon ....................................................................... 15
Turvallisuusohjeet, käyttötarkoitus ja käyttäjän pätevyys........................................................................... 16
Consignes de sécurité, utilisation prévue et qualifications des opérateurs............................................... 16
Sigurnosne upute, predviđena namjena i kvalifikacije rukovatelja ............................................................ 16
Biztonsági utasítások, rendeltetésszerű használat és kezelői szakképesítési követelmények ................. 16
Istruzioni di sicurezza, utilizzo previsto e qualifiche degli operatori ........................................................... 17
Saugos nurodymai, numatytasis naudojimas ir operatoriaus kvalifikacijos................................................ 17
Drošības instrukcijas, paredzētā izmantošana un operatora kvalifikācija .................................................. 17
Veiligheidsinstructies, beoogd gebruik en kwalificaties van de bediener................................................... 17
Instrukcje bezpieczeństwa, przeznaczenie i kwalifikacje operatora........................................................... 18
Instruções de segurança, uso designado e qualificações do operador ..................................................... 18
Instrucțiuni de siguranță, destinația de utilizare și calificările operatorului................................................. 18
Bezpečnostné pokyny, určené použitie a kvalifikácia obsluhy................................................................... 18
Varnostna navodila, predvidena uporaba in kvalifikacije upravljavca ........................................................ 19
Säkerhetsinstruktioner, avsedd användning och användarkvalifikationer.................................................. 19

4 OMICRON Lab
B-WIC & B-SMC User Manual
1 Compliance Statements and Recycling
1.1 Declaration of Conformity (EU)
The B ‑ WIC and B ‑ SMC adhere to the guidelines of the council of the European Community for meeting
the requirements of the member states regarding the RoHS directive.
1.2 Information for Disposal and Recycling
This test set (including all accessories) is not intended for household use. After use the
test set cannot be disposed of as household waste!
For customers in EU countries (incl. European Economic Area):
OMICRON test sets are subject to the EU Waste Electrical and Electronic Equipment
Directive (WEEE directive). As part of our legal obligations under this legislation,
OMICRON offers to take back the OMICRON test set and ensure that it is disposed of by
an authorized recycling facility.
For customers outside the European Economic Area:
Please contact the competent authorities for the relevant environmental regulations in your
country and dispose the OMICRON test set only in accordance with your local legal
requirements.

OMICRON Lab 5
Safety
2 Safety
2.1 Disclaimer
If the equipment is used in a manner not specified by the manufacturer, the protection provided by the
equipment may be impaired. Opening the device invalidates all warranty claims. Before operating the
B ‑ WIC and B ‑ SMC, read the safety instructions in this document carefully. If you do not understand
some safety rules, contact OMICRON Lab before proceeding.
2.2 Safety Instructions
►The B ‑ WIC and B ‑ SMC are SELV (Safety Extra Low Voltage according to IEC 60950) devices, also
known as protection class III equipment.
►Only use the B ‑ WIC and B ‑ SMC in conjunction with the Bode 100. Do not apply any external
voltages or currents.
2.3 Designated Use
B ‑ WIC and B ‑ SMC have been especially designed to measure the impedance of passive components in
conjunction with the Bode 100 in laboratory or manufacturing environments.
2.4 Operator Qualification
Testing with B ‑ WIC and B ‑ SMC must only be carried out by qualified, skilled and authorized personnel.
Personnel receiving training, instructions, directions, or education on B ‑ WIC and B ‑ SMC must be under
constant supervision of an experienced operator while working with the equipment. Testing with B ‑ WIC
and B ‑ SMC must comply with the internal safety instructions as well as additional relevant documents.
2.5 Cleaning
To clean the B ‑ WIC and B ‑ SMC, use a cloth dampened with isopropanol alcohol. Prior to cleaning, always
ensure that all connections to the B ‑ WIC and B ‑ SMCand DUT
1
are disconnected.
1
Device Under Test

6 OMICRON Lab
B-WIC & B-SMC User Manual
3 Device Overview
Delivery of B-WIC or B-SMC includes:
B-WIC –Impedance Test Fixture for
Thru-hole type components:
B-SMC –Impedance Test Fixture for Surface
Mount components:
•B-WIC Fixture
•B-CAL Calibration Board
•B-SMC Fixture
•6 pcs. 100 Ω ±0.1%
Load Calibration Resistors (Size: 0603)

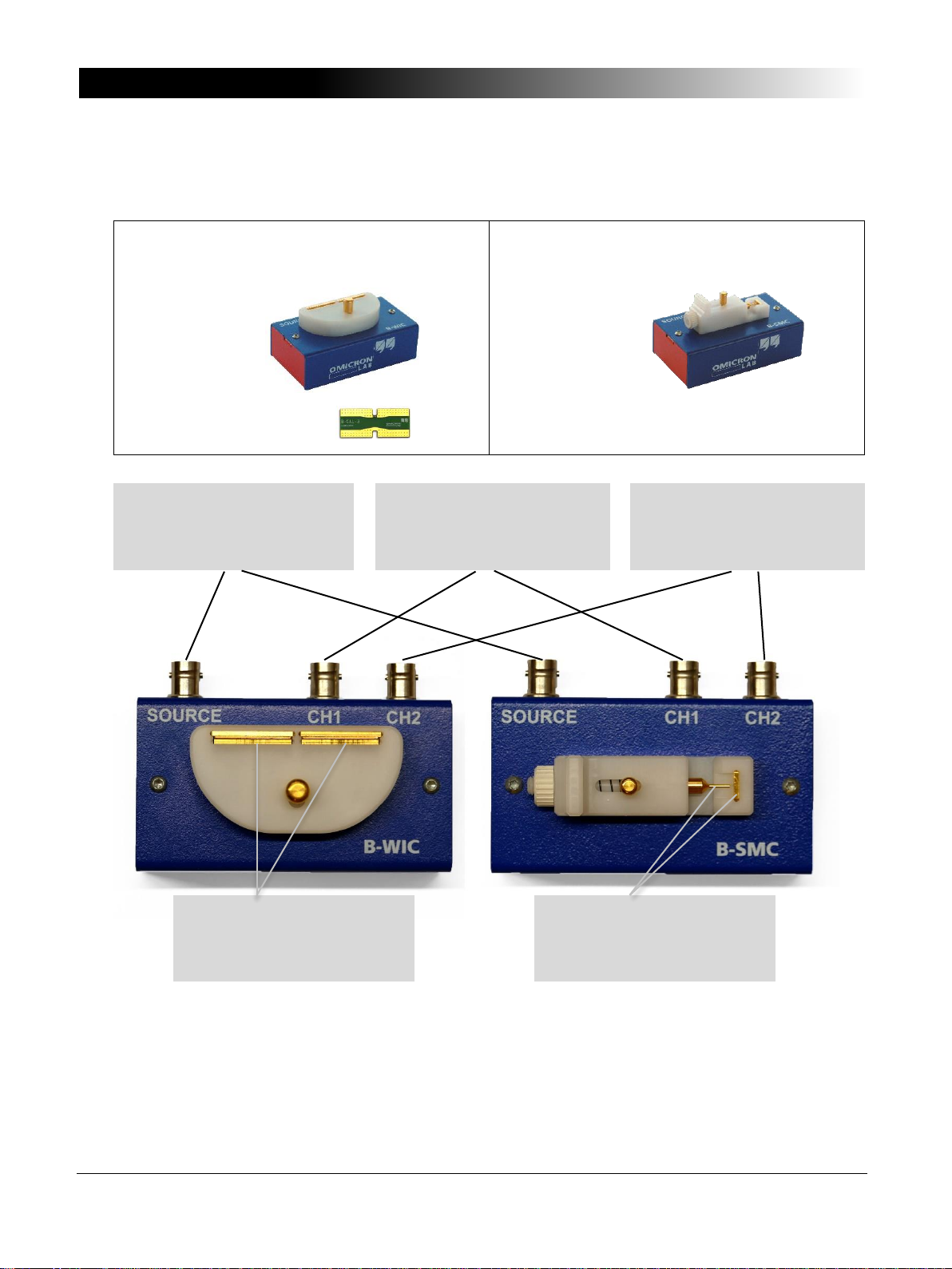

Figure 3-1: B ‑ WIC and B ‑ SMC connector description
SOURCE connector
BNC input plug (connect to
the output of Bode 100)
CH1 connector
BNC output plug (connect to
CH1 input of Bode 100)
CH2 connector
BNC output plug (connect to
CH2 input of Bode 100)
DUT electrodes
Measurement electrodes to
connect the device under test
DUT electrodes
Measurement electrodes to
connect the device under test

OMICRON Lab 7
Application Information
4 Application Information

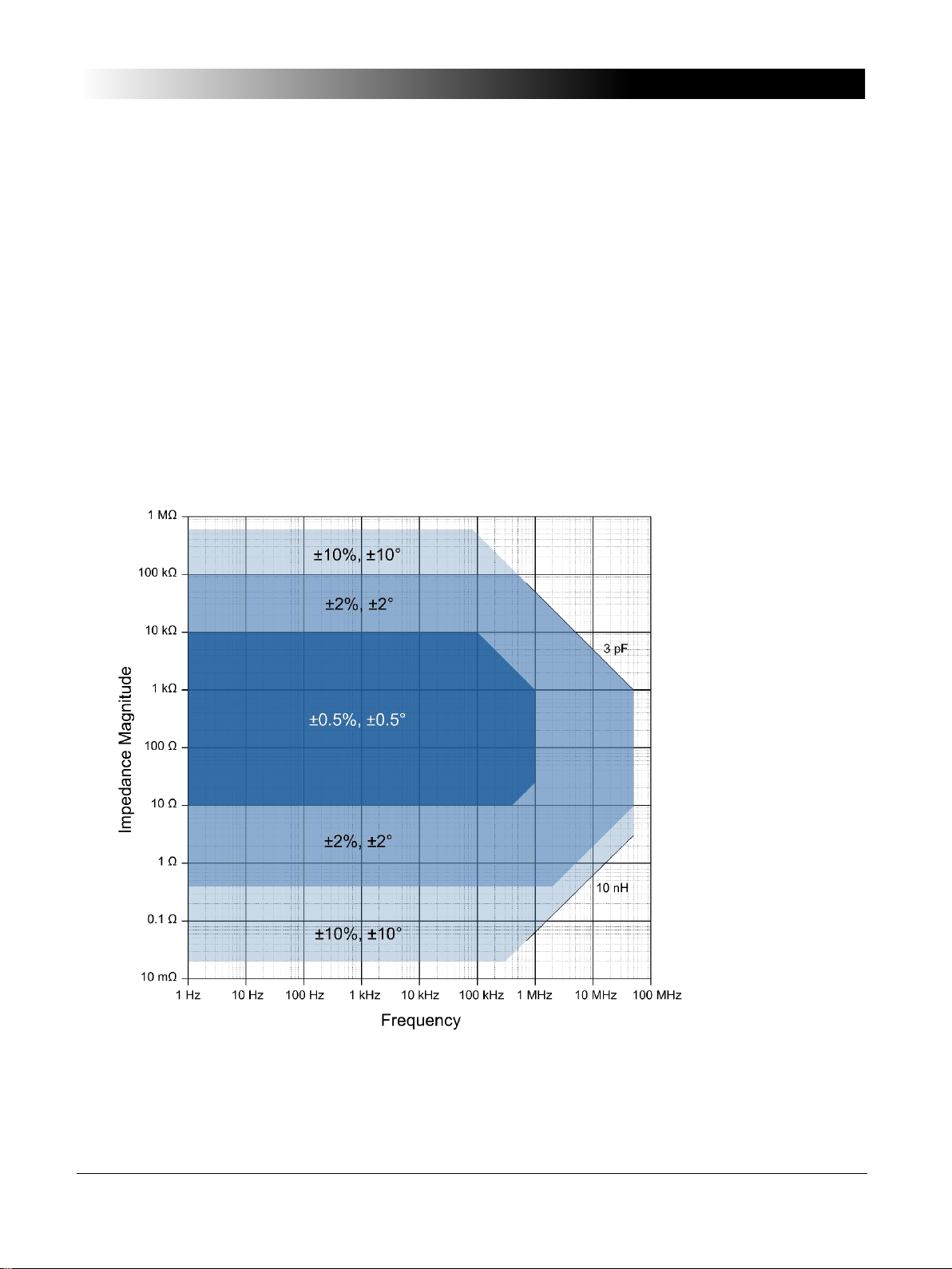

The B ‑ WIC and B ‑ SMC test fixtures are designed to measure the impedance of passive components in
the frequency range from 1 Hz to 50 MHz in conjunction with the Bode 100 vector network analyzer.
4.1 Measurement Principle
B ‑ WIC and B ‑ SMC contain a resistive measurement bridge with a voltage divider and a current shunt.
The measurement principle is a relative voltage / current method where CH1 receives a voltage signal
proportional to the voltage at the DUT and CH2 receives a voltage signal proportional to the current
flowing thru the DUT.

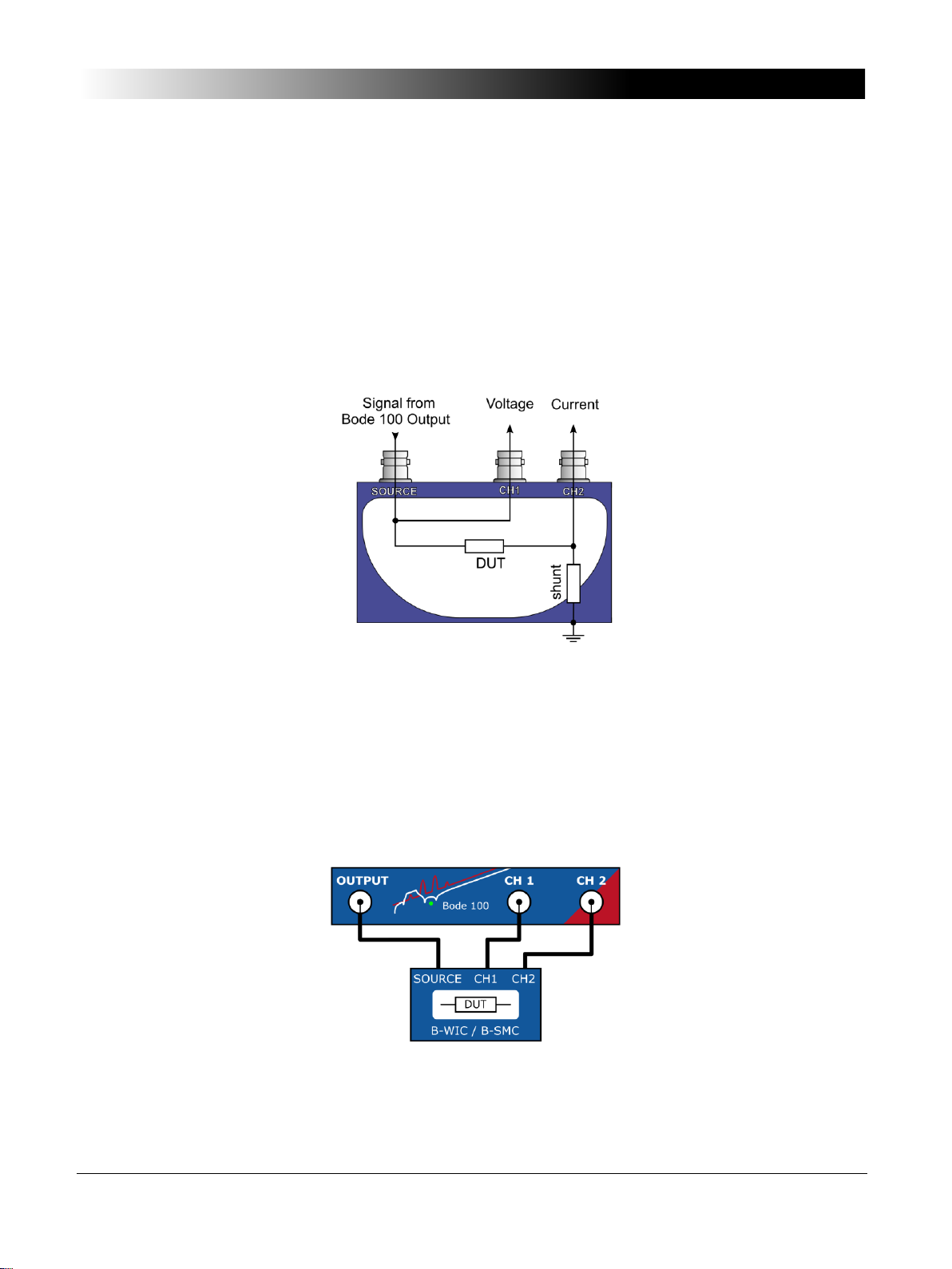

Figure 4-1: Measurement principle of B ‑ WIC and B ‑ SMC
Open / Short / Load calibration must be carried out to compensate for parasitic effects and non-ideal
behavior occurring at higher frequencies. To learn how to calibrate the B ‑ WIC and B ‑ SMC, please refer
to 4.4 Calibration / Correction on page 8.
4.2 Device Connection
The figure below shows the connection from Bode 100 to B ‑ WIC and B ‑ SMC. It is recommended to use
the 0.5 m long BNC cables delivered with the Bode 100 for the connection.
Figure 4-2: Connecting B ‑ WIC and B ‑ SMC to the Bode 100 VNA

8 OMICRON Lab
B-WIC & B-SMC User Manual
4.3 Software Settings & Configuration

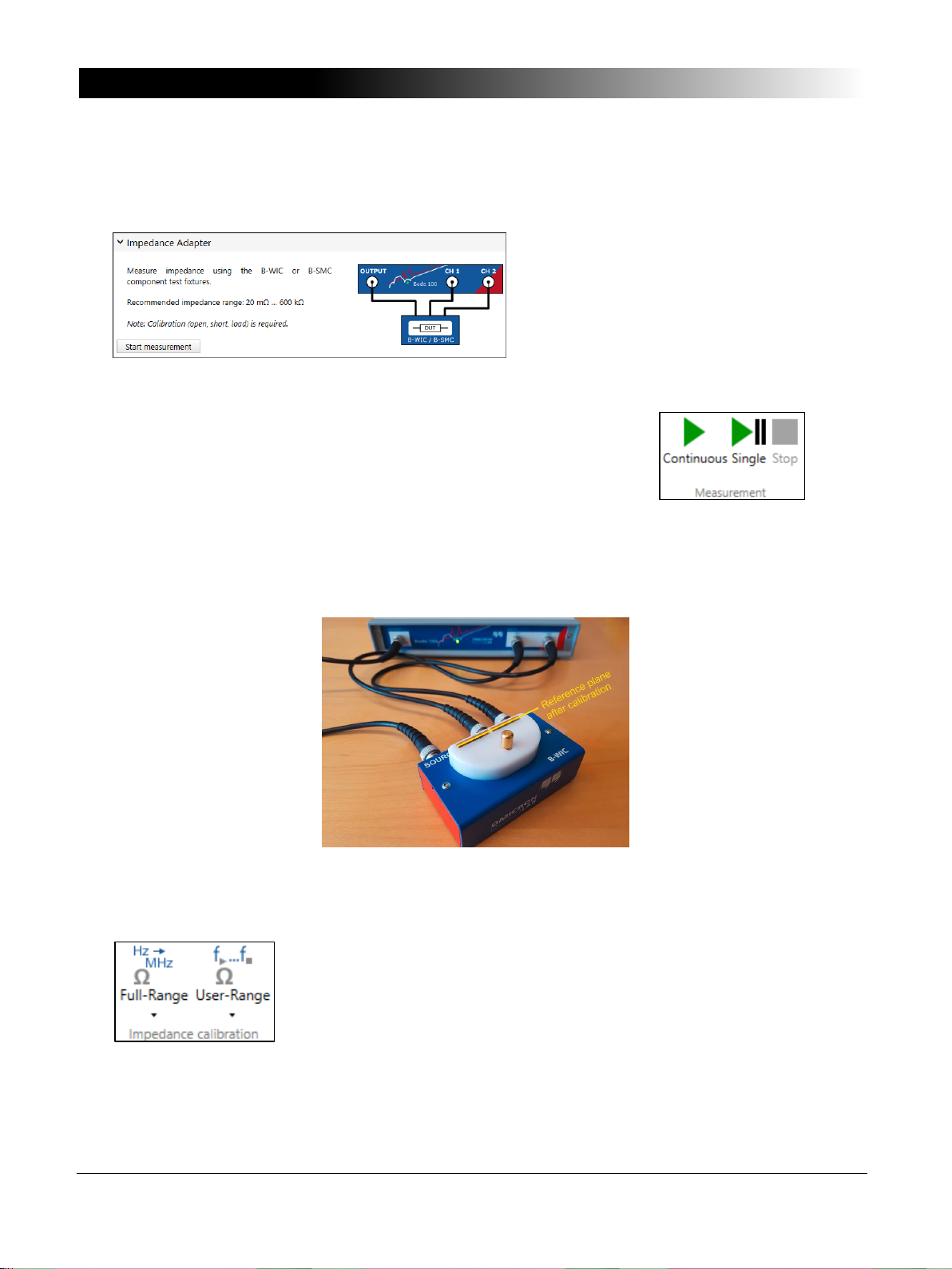

When measuring with B ‑ WIC and B ‑ SMC make sure to use the Impedance Adapter measurement
mode in the Bode Analyzer Suite as shown below:
Note, that you must perform an impedance calibration / correction before you can start measuring.
Check out the next chapter to learn how to perform the Open / Short / Load calibration.
After the calibration has been performed, you can start either a single
sweep or a continuous sweep by clicking on the corresponding icons.
4.4 Calibration / Correction
Before you can start a measurement, Open / Short / Load calibration / correction must be performed.
This moves the reference plane from the Bode 100 front panel to the DUT connection points of the
B ‑ WIC and B ‑ SMC as shown below:
Figure 4-3: Reference plane after Open / Short / Load calibration
To start a calibration, select either the User-Range Impedance Calibration or the Full-Range Impedance
calibration by clicking on the corresponding icon.
To learn about the difference between Full-Range and User-Range calibration, please refer to the
Bode 100 User Manual.

OMICRON Lab 9
Application Information
4.4.1 Calibrating B-WIC using B-CAL board
Open
Short
Load
Place no DUT to the
electrodes and start the
Open calibration.
Place the B-CAL board
with the Short-side into
the B-WIC electrodes and
start the Short calibration.
Place the B-CAL board
with the Load-side into
the B-WIC electrodes and
start the Load calibration.
4.4.2 Calibrating B-SMC with a 100 Ω resistor
Open
Short
Load
Use the knurled nut to
adjust the distance of the
electrode needle to the
plate to match the DUT
size to compensate for
stray-capacitance and
start the Open calibration.
Loosen the knurled nut
until the needle touches
the electrode and start
the Short calibration.
Place a 100 Ω resistor
between needle and
electrode and start the
Load calibration. For best
accuracy, use a precision
thin-film 100 Ω resistor
with low temperature
coefficient as included in
the delivery of B-SMC.

10 OMICRON Lab
B-WIC & B-SMC User Manual
4.5 Connecting the DUT
Please follow the rules outlined in this section to ensure best measurement accuracy using B ‑ WIC and
B ‑ SMC
4.5.1 Avoid Leads and Large DUTs
Do not use extra leads to connect the DUT to the B ‑ WIC and B ‑ SMC test fixtures. Extra leads will
introduce stray capacitance to ground / housing. This can cause currents to bypass the internal
measurement bridge, causing errors in the measurement. The same is true for physically large DUTs.
Figure 4-4: Stray capacitance of leads and physically large DUTs
4.5.2 Electrode Dimensions
The following pictures show the geometry of the B ‑ WIC and B ‑ SMC electrodes.
Maximum DUT wire diameter is 1.8 mm.
Minimum spacing of DUT wires (clearance) is
3 mm. The electrode length is 24 mm.
Maximum DUT size that can be placed in the
B-SMC is of 9.5 mm length and 7.5 mm width.
Note that the needle electrode is in the center.
Figure 4-5: Electrode geometry of B ‑ WIC and B ‑ SMC
