Omicron SAA1 User manual

Supplementary Sheet
Functions and Handling of Safety Accessories
Document ID
ENU 1191 14 04
Abstract
This document describes the functions and handling of the following accessories:
- SAA1 Beeper Dongle
- SAA2 Warning Lamp
- SAA3 3-Position Remote Safety Switch
- CP Strobe Warning Lamp
It includes the designated use, information about the compatibility with different main devices as well as
operation, connection, disconnection and cleaning instructions. Furthermore, the technical data for each
accessory can be found in the corresponding chapter.

Safety Accessories Supplementary Sheet
2 OMICRON
OMICRON electronics GmbH including all international branch offices is henceforth referred to as
OMICRON.
The product information, specifications, and technical data embodied in this Supplementary Sheet represent
the technical status at the time of writing and are subject to change without prior notice.
We have done our best to ensure that the information given in this Supplementary Sheet is useful, accurate
and entirely reliable. However, OMICRON does not assume responsibility for any inaccuracies which may be
present.
OMICRON translates this Supplementary Sheet from the source language English into several other
languages. Any translation of this document is done for local requirements, and in the event of a dispute
between the English and a non-English version, the English version of this Supplementary Sheet shall
govern.
All rights including translation reserved. Reproduction of any kind, for example, photocopying, microfilming,
optical character recognition and/or storage in electronic data processing systems, requires the explicit
consent of OMICRON. Reprinting, wholly or partly, is not permitted.
© OMICRON 2020. All rights reserved. This Supplementary Sheet is a publication of OMICRON.

Safety instructions
3 OMICRON
Contents
Using this Supplementary Sheet............................................................................................................... 7
Safety symbols used .............................................................................................................................. 7
1Safety instructions ............................................................................................................................... 6
1.1 Operator qualifications................................................................................................................... 6
1.2 Safety standards and rules............................................................................................................ 6
1.2.1 Safety standards ............................................................................................................................... 6
1.2.2 Five safety rules................................................................................................................................ 6
1.3 Operating the measurement setup ................................................................................................ 7
1.4 Orderly measures .......................................................................................................................... 7
1.5 Disclaimer ...................................................................................................................................... 8
1.6 Related documents........................................................................................................................ 8
1.7 Compliance statement................................................................................................................... 9
1.8 Recycling ....................................................................................................................................... 9
2Compatibility with OMICRON test systems ..................................................................................... 10
3Connecting with main devices.......................................................................................................... 14
3.1 Cascadability ............................................................................................................................... 14
3.2 Use of the main device Safety Connector Dongle(s) .................................................................. 15
4SAA1 Beeper Dongle.......................................................................................................................... 16
4.1 Designated use............................................................................................................................ 16
4.2 Operation ..................................................................................................................................... 17
4.3 Connection................................................................................................................................... 18
4.4 Testing ......................................................................................................................................... 19
4.5 Disconnection .............................................................................................................................. 20
4.6 Cleaning....................................................................................................................................... 20
4.7 Technical data ............................................................................................................................. 21
5SAA2 Warning Lamp .......................................................................................................................... 22
5.1 Designated use............................................................................................................................ 22
5.2 Operation ..................................................................................................................................... 23
5.3 Connection................................................................................................................................... 27
5.4 Testing ......................................................................................................................................... 29
5.5 Disconnection .............................................................................................................................. 30
5.6 Cleaning....................................................................................................................................... 30
5.7 Technical data ............................................................................................................................. 31
5.7.1 Control unit ..................................................................................................................................... 31
Contents

Safety Accessories Supplementary Sheet
4 OMICRON
5.7.2 Signal lamps ................................................................................................................................... 33
6SAA3 3-Position Remote Safety Switch........................................................................................... 35
6.1 Designated use............................................................................................................................ 35
6.2 Operation ..................................................................................................................................... 36
6.3 Connection................................................................................................................................... 36
6.4 Testing ......................................................................................................................................... 37
6.5 Disconnection .............................................................................................................................. 38
6.6 Cleaning....................................................................................................................................... 39
6.7 Technical data ............................................................................................................................. 40
7CP Strobe Warning Lamp .................................................................................................................. 42
7.1 Designated use............................................................................................................................ 42
7.2 Operation ..................................................................................................................................... 43
7.3 Connection................................................................................................................................... 44
7.4 Testing ......................................................................................................................................... 45
7.5 Disconnection .............................................................................................................................. 46
7.6 Cleaning....................................................................................................................................... 46
7.7 Technical data ............................................................................................................................. 47
Support ....................................................................................................................................... 48
24/7 Technical support - get support ........................................................................................... 48
Customer area - stay informed .................................................................................................... 48
OMICRON Academy - learn more............................................................................................... 48

Safety instructions
5 OMICRON
Using this Supplementary Sheet
This Supplementary Sheet provides information on how to use the Safety Accessories safely, properly and
efficiently. It contains important safety instructions and familiarizes you with operating the Safety
Accessories. Following the instructions in this Supplementary Sheet will help you to prevent danger, repair
costs and avoid possible downtime due to incorrect operation.
The Safety Accessories Supplementary Sheet must always be available on site where the Safety
Accessories are used. The users of the Safety Accessories must read this Supplementary Sheet before
operating the Safety Accessories and observe the safety, installation, and operation instructions therein.
Reading the Safety Accessories Supplementary Sheet alone does not release you from the duty to comply
with all national and international safety regulations relevant to working on high-voltage equipment.
Safety symbols used
In this Supplementary Sheet, the following symbols indicate safety instructions for avoiding hazards.
DANGER
Death or severe injury will occur if the appropriate safety instructions are not observed.
WARNING
Death or severe injury can occur if the appropriate safety instructions are not observed.
CAUTION
Minor or moderate injury may occur if the appropriate safety instructions are not observed.
NOTICE
Equipment damage or loss of data possible.

Safety Accessories Supplementary Sheet
6 OMICRON
1 Safety instructions
1.1 Operator qualifications
Working on high-voltage assets can be extremely dangerous. Only authorized personnel who are qualified,
skilled and regularly trained in electrical engineering are allowed to operate OMICRON test systems and
their accessories. Before starting to work, clearly establish the responsibilities.
Personnel receiving training, instructions, directions, or education on OMICRON test systems and their
accessories must be under constant supervision of an experienced operator while working with the
equipment. The supervising operator must be familiar with the equipment and the regulations on site. The
operator is responsible for the safety requirements during the whole test.
1.2 Safety standards and rules
1.2.1 Safety standards
Testing with a test system including a Safety Accessory must comply with the internal safety instructions and
additional safety-relevant documents.
In addition, observe the following safety standards, if applicable:
•EN 50191 (VDE 0104) "Erection and Operation of Electrical Test Equipment"
•EN 50110-1 (VDE 0105 Part 100) "Operation of Electrical Installations"
•IEEE 510 "IEEE Recommended Practices for Safety in High-Voltage and High-Power Testing"
Moreover, observe all applicable regulations for accident prevention in the country and at the site of
operation.
Before operating a Safety Accessory, read the safety instructions in this Supplementary Sheet carefully.
Do not connect a Safety Accessory and do not operate a Safety Accessory without understanding the safety
information in this Supplementary Sheet. If you do not understand some safety instructions, contact
OMICRON before proceeding.
Maintenance and repair of Safety Accessories and their parts is only permitted by qualified experts at
OMICRON service centers (see Support on page 48).
1.2.2 Five safety rules
Always observe the five safety rules:
Disconnect completely.
Secure against re-connection.
Verify that the installation is dead.
Carry out grounding and short-circuiting.
Provide protection against adjacent live parts.

Safety instructions
7 OMICRON
1.3 Operating the measurement setup
Before operating a Safety Accessory, read the safety instructions in this Supplementary Sheet carefully.
Do not turn on a Safety Accessory and do not operate a Safety Accessory without understanding the safety
information in this Supplementary Sheet. If you do not understand some safety instructions, contact
OMICRON before proceeding.
Maintenance and repair of the Safety Accessories is only permitted by qualified experts at OMICRON
Service Centers (see "Support" on page 48).
When handling and operating any Safety Accessory, observe the safety instructions in the User Manual of
the main device(s) with which you use the Safety Accessory with and the following additional safety
instructions:
Do not drop the Safety Accessory. Dropping the Safety Accessory may impair its operation.
Do not use the Safety Accessory submerged in oil or water or in locations continuously subject to
splashes of oil or water.
Use the Safety Accessory only in a dry environment.
Always lock connectors properly.
Do not operate the Safety Accessories under ambient conditions that exceed the temperature and
humidity limits listed in sections 4.7, 5.7, 6.7 and 7.7.
Do not operate the Safety Accessories in the presence of explosives, gas or vapors.
Always test the Safety Accessory under actual conditions before using it, as described in the
corresponding chapter of this Supplementary Sheet.
Do not insert objects (for example screwdrivers, etc.) into any input/output connector.
Immediately place damaged or malfunctioning devices out of service.
If in doubt, contact OMICRON technical support (see "Support" on page 48).
The Safety Accessories are only compatible with the specified OMICRON main devices (see
chapter 2 Compatibility with OMICRON test ).
If a Safety Accessory does not seem to function properly for any reason, stop using it and contact
OMICRON support (see Support on page 48).
1.4 Orderly measures
The Safety Accessories Supplementary Sheet or alternatively the e-book must always be available on site in
which the Safety Accessories are operated.
The users of the Safety Accessories must read this Supplementary Sheet before operating the Safety
Accessories and observe the safety, installation, and operation instructions therein.
The Safety Accessories described in this Supplementary Sheet are accessories designed to increase the
safety awareness and/or safety during operation of OMICRON test systems.
The Safety Accessories may only be used in accordance with this Supplementary Sheet and in accordance
with the user documentation of the connected OMICRON test system main device(s) (including but not
limited to User Manuals, Reference Manuals, Getting Started manuals and manufacturer manuals). The
manufacturer and the distributor are not liable for damage resulting from improper usage.
Opening the Safety Accessories or their accessories without authorization invalidates all warranty claims.
Any kind of maintenance or repair on the Safety Accessories or their accessories may only be carried out by
persons authorized by OMICRON.

Safety Accessories Supplementary Sheet
8 OMICRON
1.5 Disclaimer
If the equipment is used in a manner not described in the user documentation, the protection provided by the
equipment may be impaired.
1.6 Related documents
Refer to the manuals of the main devices listed in the table below for more detailed information
about the use of Safety Accessories as part of the related test systems.
Table 1: Related documents
Title Description
SAA1 User Manual Contains safety information and use case examples for the
SAA1 Beeper Dongle.
CIBANO 500 Getting Started Contains safety information and use case examples for the
CIBANO 500 test system.
CIBANO 500 User Manual Contains safety and operation instructions for the
CIBANO 500 test system.
COMPANO 100 Getting Started Contains safety information and use case examples for the
COMPANO 100 test system.
COMPANO 100 User Manual Contains safety and operation instructions for the
COMPANO 100 test system.
CPC Getting Started Contains general safety instruction and information for the
CPC 100 and CPC 80 test systems.
CPC 80 User Manual Contains safety and operation instructions for the
CPC 80 test system.
CPC 100 User Manual Contains safety and operation instructions for the
CPC 100 test system.
CPC 100 Reference Manual Contains detailed hardware and software information for the
CPC 100 test system including relevant safety instructions.
CPC 100 PTM User Manual Contains information on how to use Primary Test Manager (PTM)
with CPC 100 test system.
TESTRANO 600 Getting Started Contains safety information and use case examples for the
TESTRANO 600 test system.
TESTRANO 600 User Manual Contains safety and operation instructions for the
TESTRANO 600 test system.
VOTANO 100 Getting Started Contains safety information and use case examples for the
VOTANO 100 test system.
VOTANO 100 User Manual Contains safety and operation instructions for the
VOTANO 100 test system.

Safety instructions
9 OMICRON
1.7 Compliance statement
Declaration of conformity (EU)
The equipment adheres to the guidelines of the council of the European Community for meeting the
requirements of the member states regarding the electromagnetic compatibility directive (EMC) and the
RoHS directive. For more information see sections 4.7, 5.7, 6.7 and 7.7.
1.8 Recycling
This test set (including all accessories) is not intended for household
use. At the end of its service life, do not dispose of the test set with
household waste!
For customers in EU countries (incl. European Economic Area)
OMICRON test sets are subject to the EU Waste Electrical and Electronic
Equipment Directive 2012/19/EU (WEEE directive). As part of our legal
obligations under this legislation, OMICRON offers to take back the test set
and ensure that it is disposed of by authorized recycling agents.
For customers outside the European Economic Area
Please contact the authorities in charge for the relevant environmental
regulations in your country and dispose the OMICRON test set only in
accordance with your local legal requirements.

Safety Accessories Supplementary Sheet
10 OMICRON
2 Compatibility with OMICRON test systems
The aim of the Safety Accessories described in this document is to increase the safety during operation of
OMICRON test systems. Use the Safety Accessories ONLY with compatible main devices of test systems
and their accessories. Using other main devices of other test systems may impair the protection and
functionalities provided by the Safety Accessory. Table 2 gives an overview about the compatibility of the
Safety Accessories with OMICRON main devices/test systems.
Table 2: Compatibility with OMICRON main devices (marked with a “+”)
SAA1 SAA2 SAA3 SAB11CP Strobe2
CIBANO 500



—

COMPANO 100 —


— —
CPC 80/100



—

TESTRANO 600



—

VOTANO 100


—

—
Some of the main devices listed above in Table 2 have only one SAFETY output, while some have two
SAFETY outputs:
Main devices with one (1) SAFETY output connector
•COMPANO 100
•CPC 80 / CPC 100
•VOTANO 100 with VBO2
Main devices with two (2) SAFETY output connectors
•CIBANO 500
•TESTRANO 600
The SAFETY output connector locations for each main device are shown in Table 3 on the following page.
NOTE! We recommend cascading only a maximum of two Safety Accessories per SAFETY output for
CIBANO 500 and TESTRANO 600.
NOTE! If cascading SAA2 with any other Safety Accessory using the SAFETY output connectors of
CIBANO 500 or TESTRANO 600, cascade the SAA2 only with a Safety Accessory connected to
SAFETY 1 connector of the CIBANO 500 or TESTRANO 600.
1SAB1 is only to be used with and compatible with VOTANO 100. For more information and documentation on SAB1 please see
VOTANO 100 Getting Started and VOTANO 100 User Manual.
2CP Strobe is discontinued and replaced by the SAA2.

Compatibility with OMICRON test systems
11 OMICRON

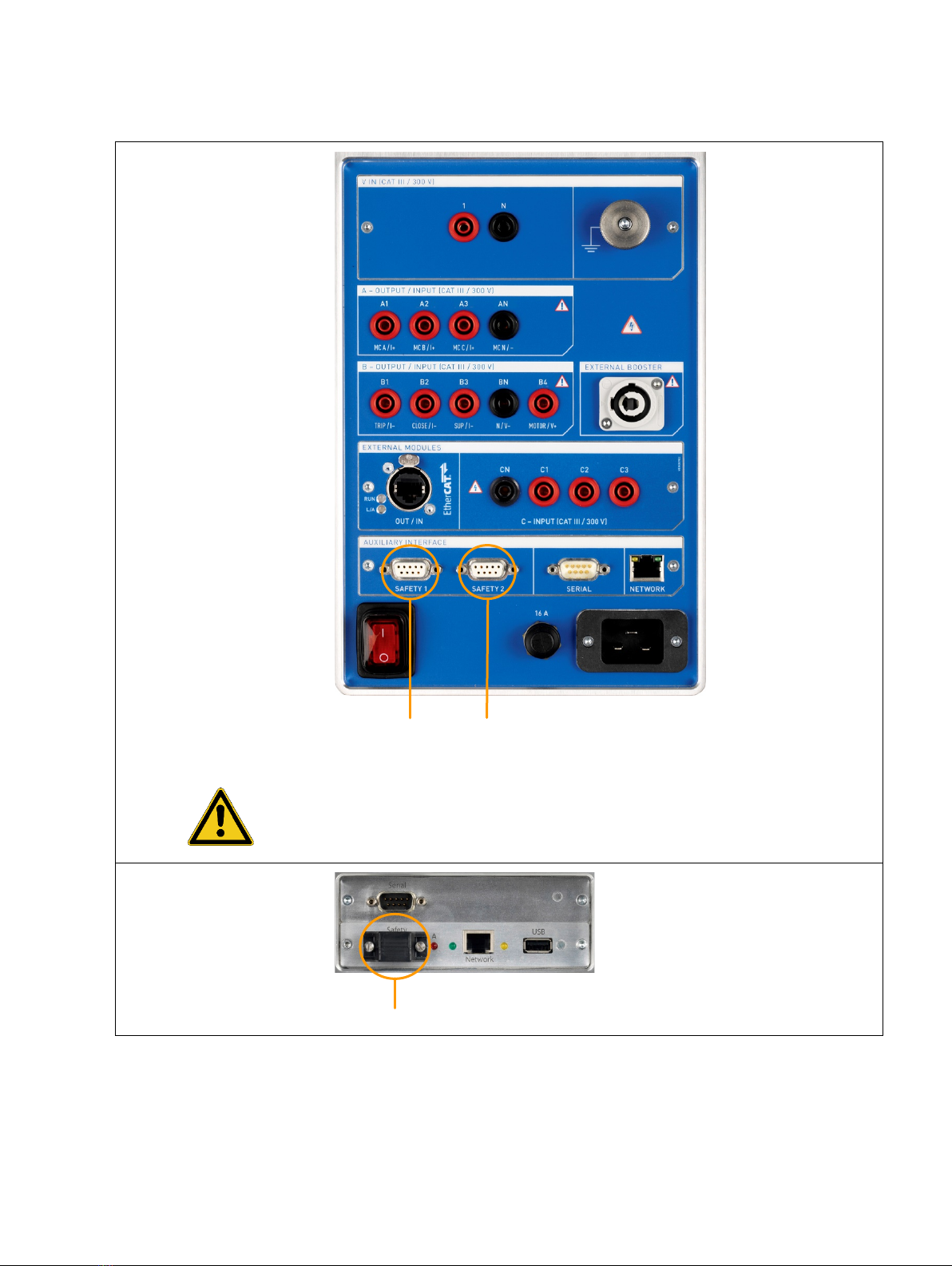

Table 3: SAFETY output connector(s) on the main devices
CIBANO 500
1 2
SAFETY OUTPUT
NOTE! When connecting the Safety Accessory SAA2 Warning Lamp to the
CIBANO 500 use ONLY SAFETY 1 connector for the connection.
CPC 80/100
SAFETY OUTPUT

Safety Accessories Supplementary Sheet
12 OMICRON

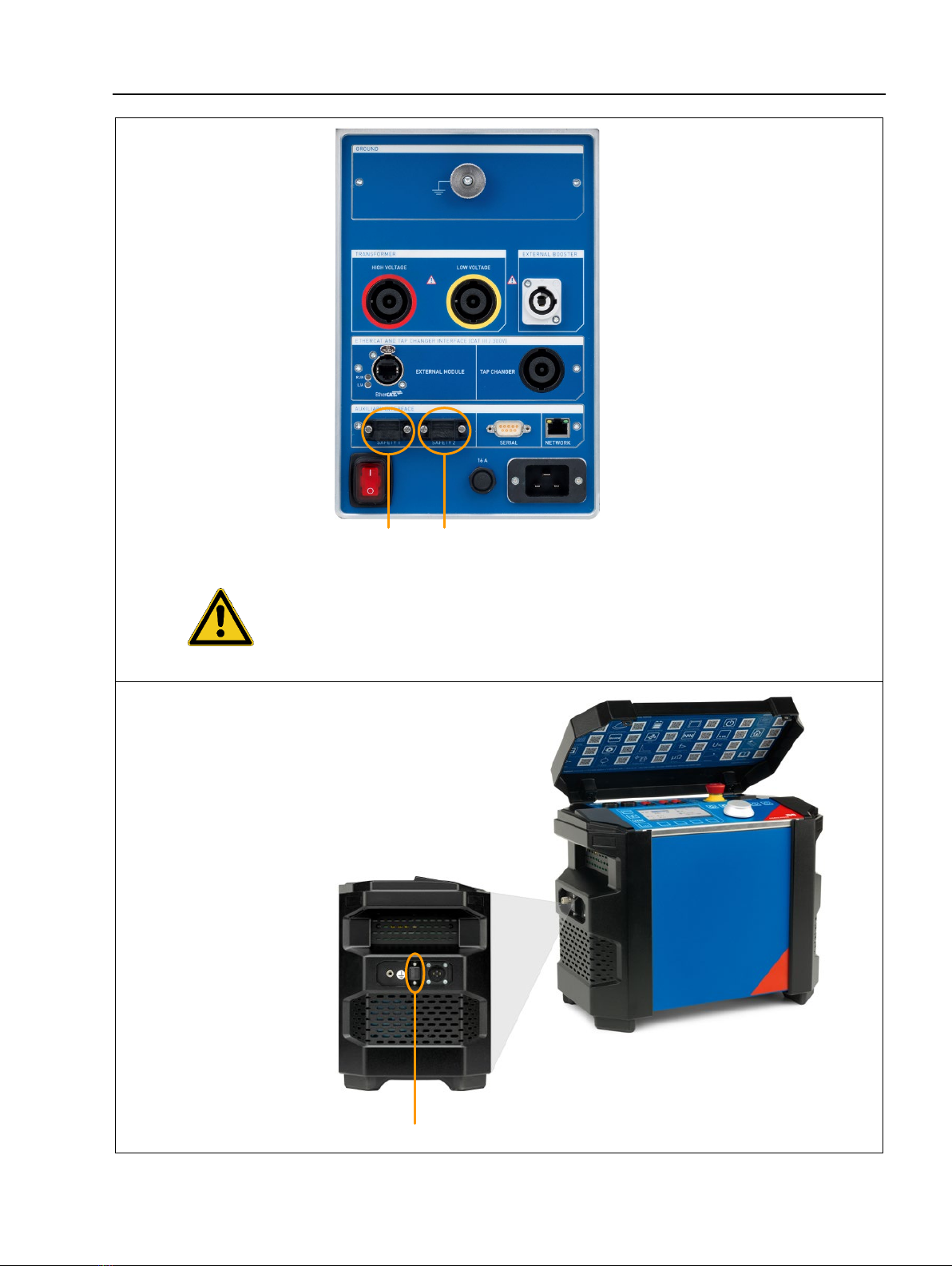

TESTRANO 600
1 2
SAFETY OUTPUT
NOTE! When connecting the Safety Accessory SAA2 Warning lamp to the
TESTRANO 600 use ONLY SAFETY 1 connector for the
connection.
COMPANO 100
SAFETY OUTPUT

Compatibility with OMICRON test systems
13 OMICRON
VOTANO 100 AND VBO2
SAFETY OUTPUT
NOTE! Safety Accessories (SAA1 or SAA2) can be used with VOTANO 100
only by first connecting the VBO2 to the VOTANO 100 and by
connecting the Safety Accessory to the SAFETY connector on the
VBO2 and connecting the SAB1 as the last Safety Accessory.

Safety Accessories Supplementary Sheet
14 OMICRON
3 Connecting with main devices
Any Safety Accessoryis connected to the test system´s main device (except for VOTANO 100, which is first
connected to VBO2, to which the Safety Accessory and the SAB1 are then connected to). The connection is
made to the main device´s SAFETY output connector (or in the case of VOTANO 100, to the SAFETY
output connector on VBO2) by using a 9-pin D-SUB connector, which is either integrated into the Safety
Accessory (SAA1) itself or by using a safety connector cable, which has 9-pin D-SUB connectors either at
both ends of the cable (SAA2) or at only the other end of the cable (SAA3).
NOTE! Before connecting a Safety Accessory to a SAFETY output connector remove the factory installed
Safety Connector Dongle from the SAFETY output connector (this does not apply to VOTANO 100).
See also 3.2 Use of the main device Safety Connector Dongle(s).
The connection must be mechanically secured by tightening either the locking wheels (SAA1 Beeper Dongle)
or by tightening the locking thumb screws on the D-SUB connectors (SAA2 and SAA3).
It is also possible to cascade (daisy chain) Safety Accessories but there are certain limitations and
recommendations regarding cascading and the selection of the used SAFETY output connector. These
limitations and recommendations are defined in section 3.1 Cascadability.
3.1 Cascadability
Table 4 below lists the allowed cascading (daisy chaining) combinations for the Safety Accessories per one
SAFETY output. When cascading Safety Accessories, the order in which the Safety Accessories are
connected to the main device unit can be freely chosen apart from the requirement that the first Safety
Accessory connected to the main device SAFETY connector must itself have a SAFETY output connector to
enable cascading.
NOTE! Cascading more than two Safety Accessories is only possible with CPC 80/100 as the main device.
Table 4: Cascadability of the Safety Accessories for one SAFETY output:
Number of
Safety Accessories
Possible cascading combinations per one SAFETY output
One Safety Accessory SAA1
SAA2 *
SAA3
CP Strobe
Two Safety Accessories SAA1 (cascadable) + SAA3
SAA1 (cascadable) + CP Strobe1(cascadable) or SAA2 *
CP Strobe1,2 (cascadable) + SAA3
SAA2 * + SAA3
Three Safety Accessories
(only for CPC 80/100)
SAA1 (cascadable) + CP Strobe1,2 (cascadable) + SAA3
SAA1 (cascadable) + SAA2 * (cascadable) + SAA3
* When connecting SAA2 to CIBANO 500 or TESTRANO 600 connection must be made ONLY to connector SAFETY 1.
1CP Strobe is discontinued and replaced by SAA2.
2CP Strobe brightness might be reduced when used with CPC 80/100.

Connecting with main devices
15 OMICRON
3.2 Use of the main device Safety Connector Dongle(s)
OMICRON main devices (excluding VOTANO 100) are delivered with pre-installed Safety Connector
Dongles. Some main devices are delivered with one Safety Connector Dongle (CPC 80/100, COMPANO
100) while others are delivered with two Safety Connector Dongles(CIBANO 500, TESTRANO 600). A
Safety Connector Dongle is shown in Figure 1 further below.
NOTE! VOTANO 100 delivery does NOT include a Safety Connector Dongle. VOTANO 100 is connected to
VBO2 and SAB1 safety box is connected to the SAFETY output connector on VBO2 or to the last
daisy chained Safety Accessory. SAB1 includes a similar safety termination as a Safety Connector
Dongle.
The Safety Connector Dongle(s) must always be installed on the SAFETY output connector(s) of the main
device (see Exceptions below). If a Safety Accessoryis to be attached to a main device SAFETY output, the
original factory installed Safety Connector Dongle must first be removed after which the Safety Accessory is
connected. The original Safety Connector Dongle must be then attached to the Safety Accessory´s own
SAFETY output connector, unless another Safety Accessory is cascaded to the first Safety Accessory, in
which case the Safety Connector Dongle is attached to the outermost Safety Accessory´s SAFETY output
connector.
NOTE! The CIBANO 500 and TESTRANO 600 both have two SAFETY OUTPUT connectors (SAFETY 1
and SAFETY 2). Both must have the Safety Connector Dongle installed either directly to the
SAFETY output connector of the main device or to the SAFETY output connector of the outermost
cascaded Safety Accessory.
NOTE! In the case of CIBANO 500 and TESTRANO 600 and when connecting the SAA2 to the main device,
either as the only Safety Accessory or by cascading with other Safety Accessories, the SAA2 can be
connected ONLY to SAFETY 1 connector of the main device.
Exceptions
SAA3 - An exception to the above is the SAA3, which does not have its own SAFETY output connector. In
this case the original Safety Connector Dongle is not connected but should be stored in a secure place for
later use. In case of cascading, the SAA3 must be the outermost connected Safety Accessory.
VOTANO 100 - SAB1 must always be connected to the SAFETY output connector of VBO2 or as the last
daisy chained accessory connected to the SAFETY output connector of VBO2.
Figure 1: Main device Safety Connector Dongle (not included with VOTANO 100)

Safety Accessories Supplementary Sheet
16 OMICRON
4 SAA1 Beeper Dongle
4.1 Designated use
The SAA1 Beeper Dongle generates an acoustic signal when the test system's outputs are activated. Since
CIBANO 500*, VOTANO 100, and TESTRANO 600 have an internal beeper, the SAA1 Beeper Dongle is
optimized for use with the CPC 80 and the CPC 100.
* NOTE! Some CIBANO 500 software versions do not support an internal beeper function.
Compatibility with main devices
SAA1 Beeper Dongle is intended to be used together with the following main devices:
•CIBANO 500
•CPC 80 / CPC 100
•TESTRANO 600
•VOTANO 100
See also the documents listed in the following table:
Table 5: Related documents to SAA1 Beeper Dongle
Title Description
SAA1 User Manual Contains safety information and use case examples for the
SAA1 Beeper Dongle.
CIBANO 500 Getting Started Contains safety information and use case examples for the
CIBANO 500 test system.
CIBANO 500 User Manual Contains safety and operation instructions for the
CIBANO 500 test system.
CPC Getting Started Contains safety information and use case examples for the
CPC 80 and CPC 100 test systems.
CPC 80 User Manual Contains safety and operation instructions for the
CPC 80 test system.
CPC 100 User Manual Contains safety and operation instructions for the
CPC 100 test system.
CPC 100 Reference Manual Contains detailed hardware and software information for the
CPC 100 test system including relevant safety instructions.
CPC 100 PTM User Manual Contains information on how to use Primary Test Manager (PTM)
with CPC 100 test system.
TESTRANO 600 Getting Started Contains safety information and use case examples for the
TESTRANO 600 test system.
TESTRANO 600 User Manual Contains safety and operation instructions for the
TESTRANO 600 test system.
VOTANO 100 Getting Started Contains safety information and use case examples for the
VOTANO 100 test system.
VOTANO 100 User Manual Contains safety and operation instructions for the
VOTANO 100 test system.

SAA1 Beeper Dongle
17 OMICRON
SAFETY INPUT CONNECTOR
Connect the SAA1 to the main device´s SAFETY output using this
connector.
LOCKING WHEEL
After connecting the SAA1 to the SAFETY output connector of the
main device, secure the mechanical connection by turning the
locking wheel until the connector sits tightly in place.
TEST BUTTON
An acoustic signal is generated while pressing the test
button if the test system's outputs are disabled.
If the test system's outputs are enabled the dongle will not
produce an acoustic signal.
SAFETY OUTPUT CONNECTOR
All signals from the SAFETY output of the main device are
connected through the dongle from the SAFETY input
connector of the dongle to the SAFETY output connector of
the dongle. This allows the cascading (daisy chaining) of
additional Safety Accessories.
Note: If Safety Accessories are not used, the SAFETY
connector(s) of the main device must be terminated
using the Safety Connector Dongle(s) delivered with
the main device.
For casdading different combinations of Safety
Accessories, see Table 4.
With CIBANO 500 and TESTRANO 600, and when
cascading the SAA1 with the SAA2, connect SAA1
and SAA2 in either order but ONLY to
SAFETY 1 connector.
Figure 2: SAA1 Beeper Dongle with its main components
4.2 Operation
The SAA1 Beeper Dongle is active when plugged in the SAFETY output of the main device and terminated
with the test system’s Safety Connector Dongle (see 4.3 Connection later in this chapter). If an output of the
test system is active, the SAA1 generates an acoustic signal. The functionality of the SAA1 shall be tested
after each start of the main device, before performing measurements.
NOTE! If you remove the SAA1 from the main device, the test system will only work if you plug in the Safety
Connector Dongle into the SAFETY connector(s) of the main device.

Safety Accessories Supplementary Sheet
18 OMICRON
4.3 Connection
1. Make sure that the main device intended to be used with the SAA1 is switched off.
2. Press the Emergency Stop button on the main device or the test system (on VOTANO 100 the
Emergency Stop button on the SAB1 safety box) and lock the main device with a physical key
(CPC 80 and CPC 100)or by pressing the software lock button (TESTRANO 600 and
VOTANO 100).
NOTE! CIBANO 500 and COMPANO 100 do not have a separate physical key nor a software lock
function.
3. Remove the Safety Connector Dongle from the SAFETY output on the main device’s side panel
(does not apply to VOTANO 100 which does not have this dongle).
4. Plug the SAA1 in the SAFETY output and connect the Safety Connector Dongle to the SAFETY
output of the SAA1 or connect any other compatible OMICRON Safety Accessory to the SAA1
SAFETY output connector. In case of VOTANO 100 connect the SAB1 to SAA1 SAFETY output
connector.
Figure 3: Fixing the SAA1 Beeper Dongle and the Safety Connector Dongle (example main device: CPC 80/100)
5. Fix the SAA1 Beeper Dongle and the Safety Connector Dongle by turning the locking wheel on both
sides of the SAA1 Beeper Dongle and fastening the locking screws on the Safety Connector Dongle.
WARNING
Death or severe injury caused by high voltage or current possible.
Do not remove the SAA1 while the test system's outputs are activated.
Removal of the SAA1 will cause the outputs to be disabled immediately,
which can lead to dangerous voltage spikes.
Locking wheels
MAIN DEVICE
SAFETY OUTPUT
Locking screws
SAA1
SAFETY OUTPUT
MAIN DEVICE
SAFETY CONNECTOR DONGLE
SAA1
TEST BUTTON

SAA1 Beeper Dongle
19 OMICRON
6. Switch on the test system, release the Emergency Stop button and unlock the device.
WARNING
Death or severe injury caused by high voltage or current possible.
Always obey the five safety rules. In case of malfunction of the SAA1
Beeper Dongle, it might not generate an acoustic signal while the test
system's outputs are active.
Make sure to always ground and short circuit the test objects before
entering the test area and before touching potentially live elements.
4.4 Testing
WARNING
Death or severe injury caused by high voltage or current possible.
Do not connect the main device to the asset under test.
Set a low test current, for example 10 mA.
1. Connect the SAA1 Beeper Dongle to the main device as described in 4.3 Connection.
2. Switch the main device on but do not activate the outputs.
3. Press the test button SAA1 and verify that the beeper inside the SAA1 emits an audio signal while
the test button is being pressed.
Figure 4: Testing the SAA1 beeper functionality by pressing the test button on the SAA1 (example main device: CPC 80/100)
4. Activate the outputs of the main device.
5. Press the test button SAA1 and verify that the beeper inside the SAA1 does not emit an audio signal
while the test button is being pressed.
6. If the SAA1 beeper emitted an audio signal in step 3 and did not emit an audio signal in step 5 it is
working normally.
Press the test button on SAA1

Safety Accessories Supplementary Sheet
20 OMICRON
4.5 Disconnection
To disconnect the SAA1 from the main device:
1. Make sure that the main device to which the SAA1 is connected to is switched off.
WARNING
Death or severe injury caused by high voltage or current possible.
Observe the five safety rules (see 1.2.2 Five safety rules).
2. Press the Emergency Stop button on the main device or test system (in case of VOTANO 100 the
Emergency button on SAB1 safety box) and lock the main device with a physical key (CPC 80 and
CPC 100)or by pressing the software lock button (TESTRANO 600).
NOTE! CIBANO 500 and COMPANO 100 do not have a separate physical key nor a software lock
function.
3. Disconnect the test system from the asset under test as described in the User Manual of the main
device.
4. Loosen the locking screws on the Safety Connector Dongle attached to the SAA1 Beeper Dongle
and disconnect the Safety Connector Dongle from SAA1. In case of VOTANO 100 disconnect the
SAB1 safety box connector from SAA1.
5. Loosen the locking wheels on the SAA1 and disconnect the SAA1 Beeper Dongle from the main
device SAFETY output connector.
6. Insert the Safety Connector Dongle into the main device SAFETY output connector and tighten the
locking screws. In case of VOTANO 100 insert the SAB1 connector into the SAFETY output
connector of VBO2.
7. The SAA1 has now been removed and the main device has the required Safety Accessory Dongle
installed on the SAFETY output connector.
4.6 Cleaning
To clean the SAA1, use a cloth dampened with isopropanol alcohol.
WARNING
Death or severe injury caused by high voltage or current possible.
Before cleaning the SAA1, always disconnect it from the test system.
