Innotech AIO-GLEIT-20-A4 User manual

AIO-GLEIT-20-A4
Instruction Manual
© INNOTECH Arbeitsschutz GmbH. Irrtümer, Druckfehler, technische Änderungen vorbehalten! © INNOTECH Arbeitsschutz GmbH. Errors and misprints accepted. We reserve the right to make technical changes.
DE – ACHTUNG: Die Verwendung des INNOTECH-Produkts ist erst zulässig, nachdem die
Gebrauchsanleitung in der jeweiligen Landessprache vollständig gelesen und verstanden wurde.
DE
EN – ATTENTION: Use of the INNOTECH product is only permitted after the instruction
manual has been read and fully understood in the respective language.
EN
IT – ATTENZIONE: L'utilizzo del prodotto INNOTECH è permesso solo previa lettura e
comprensione dell'intero manuale di istruzioni nella lingua del relativo paese di utilizzo.
IT
FR – ATTENTION : L'utilisation du produit INNOTECH n'est autorisée qu'après avoir
entièrement lu et compris la notice d'utilisation dans la langue du pays concerné.
FR
NL – ATTENTIE: Dit INNOTECH-product mag pas gebruikt worden nadat u de gebrui-
kershandleiding in de taal van het betreffende land gelezen en begrepen hebt.
NL
ES – ATENCIÓN: Se autorizará el uso de los productos INNOTECH una vez que se hayan
leído y entendido las instrucciones de uso en el idioma del país.
ES
PT – ATENÇÃO: O uso do produto INNOTECH apenas é permitido depois de ter lido e
compreendido na totalidade as instruções de uso na respetiva língua nacional.
PT
DK – GIV AGT: Du må først bruge et produkt fra Innotech, efter du har læst og forstået
brugsvejledningen i fuldt omfang i dit lands sprog.
DK
SV – O B S : Denna INNOTECH-produkt får inte användas förrän bruksanvisningen på
respektive lands språk har lästs igenom och förståtts.
SV
CZ – POZOR: Práce s výrobkem INNOTECH je povolena teprve po kompletním přečtení a
porozumění návodu k použití v jazyku daného státu.
CZ
PL – UWAGA: Produkty firmy INNOTECH mogą być używane dopiero po dokładnym
zapoznaniu się z całą instrukcją obsługi w ojczystym języku.
PL
SL – POZOR: Uporaba izdelka INNOTECH je dovoljena šele po tem, ko ste navodila pre-
brali v celoti v ustreznem jeziku svoje dežele in jih tudi razumeli.
SL
SK – POZOR: Produkt INNOTECH môžete používať až po prečítaní a porozumení celého
návodu na použitie pre príslušnú krajinu.
SK
HU – FIGYELEM: Az INNOTECH termékek használata csak azt követően engedélyezett,
hogy saját nyelvén elolvasta és megértette a teljes használati utasítást.
HU
TR – DİKKAT: INNOTECH ürününün kullanımına ancak ilgili ülkenin dilinde sunulmuş
olan kullanım kılavuzunun tamamen okunmasından ve anlaşılmasından sonra izin verilir.
TR
ZH – 注意：只有在仔细阅读并完全理解了当地语言的使用说明后，才能使用 INNOTECH 公司的产品。
ZH

2AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
DE
1TABLE OF CONTENTS
[2] DESCRIPTION OF SYMBOLS 3
[3] SAFETY INSTRUCTIONS 4
[4] COMPONENTS/MATERIAL 6
[5] PRODUCT APPLICATION/APPROVAL 6
[6] INSPECTION 7
[7] WARRANTY 8
[8] SIGNS & MARKINGS 9
[9] DIMENSIONS 9
[10] INSTALLATION 10
[11] STORAGE/DISPOSAL 12
[12] DEVELOPMENT & SALES 12

3
DE
AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
2DESCRIPTION OF SYMBOLS
Additional information / notice
Warnings / danger notices
For an IMMEDIATE danger, which could
lead to severe injury or death.
ücorrect incorrect
For a POTENTIALLY dangerous situation, which
could lead to severe injury or death.
For a POTENTIALLY dangerou situation, which could lead
to injuries and property damage.
DANGER
WARNING
CAUTION
Follow the manufacturer's instructions / the respective user manuals.
Wear protective gloves!
Wear protective glasses!

4AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
DE
3SAFETY INSTRUCTIONS
3.1 GENERAL
- The system may only be installed or used by people who:
-• are trained in the use of PPE (Personal Protective Equipment).
• are physically and psychologically t (health restrictions such as heart and
circulatory problems, medication, alcohol consumption, etc. reduce user
safety.
• are familiar with the locally applicable safety regulations.
- All applicable accident prevention regulations (e.g. for working on roofs) must be
observed during installation / use of the fall prevention system.
- A plan must be available which includes rescue measures for all possible emergen-
cies.
- Before works begin, measures must be taken to ensure that no objects can fall down
from the workspace. The area under the workspace (pavement, etc.) is to be kept
clear.
- The fall prevention system should be planned, installed and used in such a way that
proper use of the personal protective equipment makes falling over the edge impo-
ssible. (See planning documents at www.innotech.at)
- The fall prevention system is subject to maximum load limits. These are found on
the type plate of the fall prevention system and must not be exceeded.
- The positions of the anchor points are to be visibly documented (e.g. witha a sketch
of the rooftop) at the access point to the roof safety system.
- After being subjected to the stress of a fall, the entire safety system is to be taken
out of operation and inspected by a qualied professional (component parts, faste-
nings to the substructure, etc.).
- The safety system must not be altered in any way.
- If access to the safety system is granted to external contractors, their familiarity
with this user manual is to be conrmed in writing.
- Should the equipment be sold to a customer abroad, the user manual is to be provi-
ded in the appropriate local language.
- Local lightning protection regulations are to be observed.
The following safety instructions and the latest technological standards must be
taken into account.

5
DE
AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
3SAFETY INSTRUCTIONS
3.2 FOR FITTERS: FOR SAFE INSTALLATION
3.3 FOR USERS: FOR SAFE USE
- Stainless steel may not come into contact with sanding dust or steel tools, as this
can lead to corrosion.
- All stainless steel screws are to be treated with an appropriate lubricant before
installation.
-The tter must ensure that the substructure is appropriate for the fastening of the
fall prevention system. In case of doubt, consult a structural engineer.
- The roof covering must be sealed according to the appropriate regulations.
- Proper fastening of the safety system must be documented with fastening reports
and photos of the respective circumstances of installation.
- Attachment to the fall protection system is completed INNOTECH cable sliders (e.g.
AIO-GLEIT-10, -11, -12, -13 or -20). The INNOTECH cable slider may only be used
together with original carabiners, the INNOTECH "ALLinONE" horizontal lifeline sys-
tem and personal protective equipment in accordance with EN 361 (safety harness)
and EN 363(fall arrest system).
- The minimum free space necessary under the edge is calculated as follows: Defor-
mation of the anchor device in case of stress + manufacturer's specication of the
personal protective equipment used, including deection of the cable + body height
+ 1 m safety margin.
- For horizontal use, only such connecting elements can be used which are designed
for this purpose and tested for the respective edge type (sharp edges, trapezoidal
sheet, steel girders, concrete, etc.).
- Proper use of the individual components, including the "Personal Protective Equi-
pment" must be ensured, since the eectiveness of the fall prevention system is
otherwise NOT guaranteed.
-Do NOT use fall arrest systems if wind speeds exceed normal parameters.
- On slanted roofs, the proper snow-catching features must be added to prevent ice or
snow from sliding from the roof surface.
Should any confusion arise during installation, the manufacturer
must be contacted.

6AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
DE
4COMPONENTS/MATERIAL
5PRODUCT APPLICATION/APPROVAL
DANGER OF DEATH if used incorrectly.
- Use INNOTECH "AIO-GLEIT-20-A4" ONLY for personal safety.
- Use INNOTECH "AIO-GLEIT-20-A4" ONLY in combination with
• INNOTECH "ALLinONE" horizontal lifeline system and
• original INNOTECH carabiners and
• personal protective equipment in accordance with
EN 361 (safety harness) and EN 363 (fall arrest system).
-NEVER hang loads from INNOTECH "AIO-GLEIT-20-A4"which are
NOT approved of in this instruction manual-

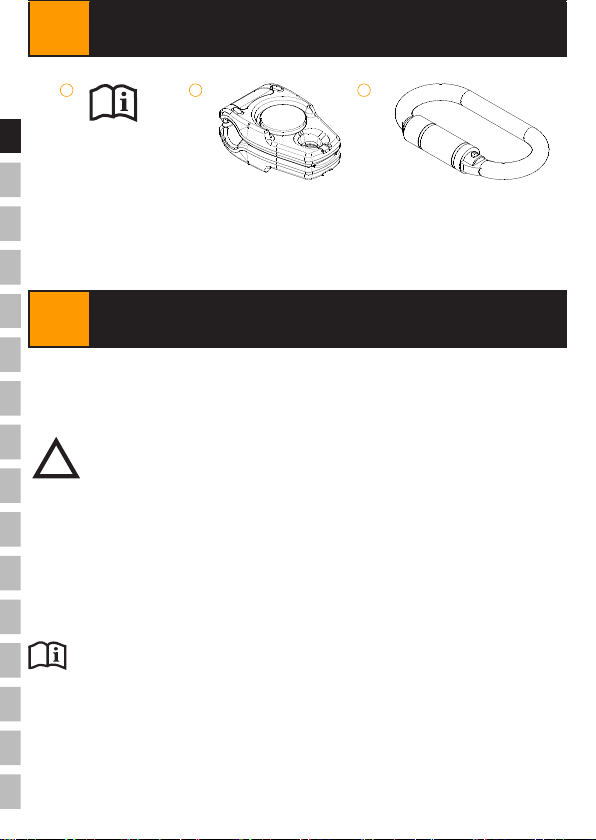

A) Instruction manual
B) INNOTECH "AIO-GLEIT-20-A4": Stainless steel AISI 316
C) INNOTECH "TRIPLE-LOCK-CARABINER":Stainless steel AISI 304
B C
!
DANGER
Follow the manufacturer specications of the personal protective
equipment used.
A
INNOTECH "AIO-GLEIT-20-A4" is part of the INNOTECH "ALLinONE" horizontal lifeline
systen and allows resistance-free travel along the entire stainless steel cable, serving as
a moveable anchor point for 1 person.
Safety harness and fastening element lengths must correspond to the respective object
and full the applicable norms.
Every person who works in areas where the danger of a fall exists must take note of the
height.
The connection to the anchor point must be kept short in order to limit the distance of
a free fall.

7
DE
AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
5PRODUCT APPLICATION/APPROVAL
6.1 INSPECT BEFORE EACH USE
6INSPECTION
If there are any doubts concerning the reliable operation of the
fall protection system, it must NOT be used until being checked
by a qualied professional(with written documentation).
If necessary, replace the product.
DANGER OF DEATH if the INNOTECH "AIO-GLEIT-20-A4" is damaged.
- The INNOTECH "AIO-GLEIT-20-A4" must be in faultless condition.
- Do NOT use the INNOTECH "AIO-GLEIT-20-A4" if:
• damage or wear on the components is visible.
• any other defects have been observed (loose screw connections, defor-
mations, corrosion, wear, defective roof seals).
• strain has occurred due to a fall
• the product designation is illegible.
!
DANGER
INNOTECH "AIO-GLEIT-20-A4" must be checked visually before each use for any obvious
defects.
Check the entire fall protection system's suitability for use with the help of the
acceptance and inspection reports.
INNOTECH "AIO-GLEIT-20-A4" has been tested and certied in accordance with
EN 795:2012 TYP C.
The authority notified for type testing:
DEKRA EXAM GmbH, Dinnendahlstraße 9, D-44809 Bochum
The authority responsible for building control certification, as per state regulations:
Deutsches Institut für Bautechnik (DIBt), Kolonnenstraße 30 B, D-10829 Berlin,
Z-14.9-792

8AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
DE
7WARRANTY
The warranty period for manufacturing defects on all components (under normal
conditions of use) is 2 years from the date of purchase. The term is shortened if they
are used in corrosive atmospheres.
If subjected to a strain (fall, weight of snow, etc.) the warranty claim is void for those
components that have been designed to absorb energy or that may have been
deformed.
For system installation and for components planned and installed
under the responsibility of specialised professional installation
companies, INNOTECH neither assumes responsibility nor is it bound
by warranty in the case of improper installation.
Inspection intervals are found in the inspection report.
6.2 ANNUAL INSPECTIONS
INNOTECH "AIO-GLEIT-20-A4" must be inspected at least once annually by a
qualied professional who is familiar with the system. The safety of the user depends
on the eectiveness and durability of the equipment.
Shorter inspection intervals may be necessary, depending on the intensity and
environment of use (e.g. in a corrosive atmosphere, etc.).
Document the inspection by the qualied professional in the inspection report
included in the INNOTECH "ALLinONE" instruction manual and keep it on record with the
manual.
6INSPECTION

9
DE
AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
www.innotech.at
AIO-GLEIT-20-A4
02-01-20-AUFKLEBER-A-A4
EN 795:2012 TYP C
JJJJ-..-...
max.

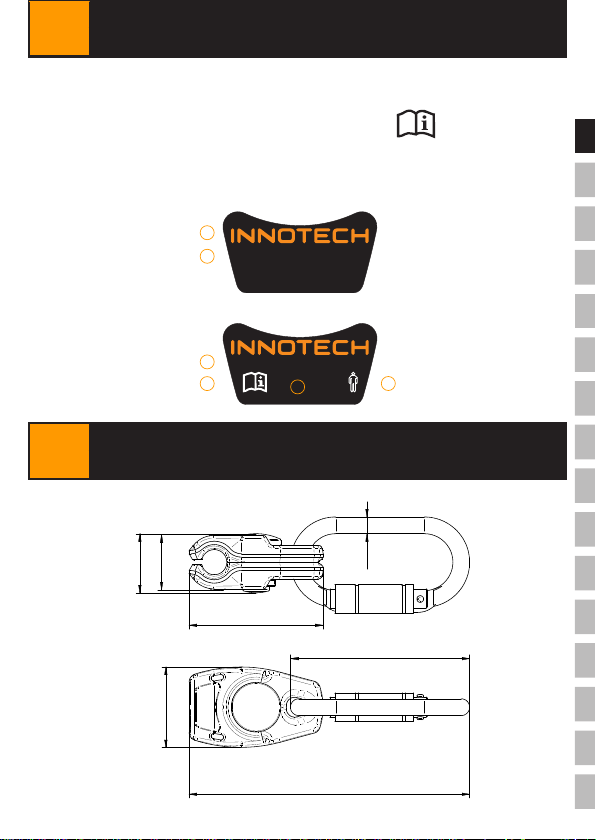

8SIGNS & MARKINGS
A) Name or logo of the manufacturer/seller: INNOTECH
B) Type designation: AIO-GLEIT-20-A4
C) Sign that the instruction manual must be
followed:
D)Year of manufacture and serial number: YYYY-..-...
E) Number of the applicable norm: EN 795:2012 TYP C
F) Maximum number of people who can be secured: 1
A
B
CD
E
9DIMENSIONS
[mm]
10O
80
33
35
168~
48
107
F

10 AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
DE
10 INSTALLATION

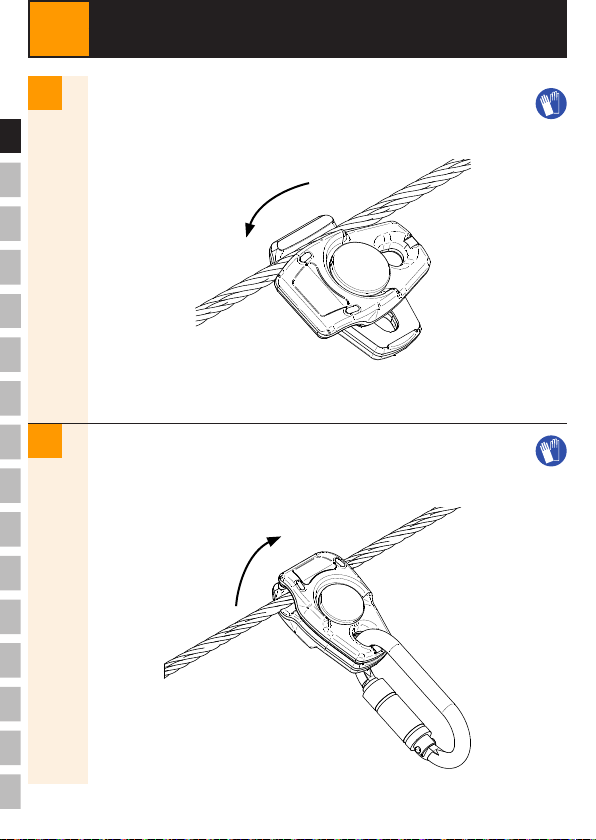

By turning one half of the slider, set the "AIO-GLEIT-20-A4" on the
"AIO-SEIL-30".
1.
Close the "AIO-GLEIT-20-A4" and lock it with the
"TRIPLE-LOCK-KARABINER".
2.
FINISHED

11
DE
AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
10 INSTALLATION

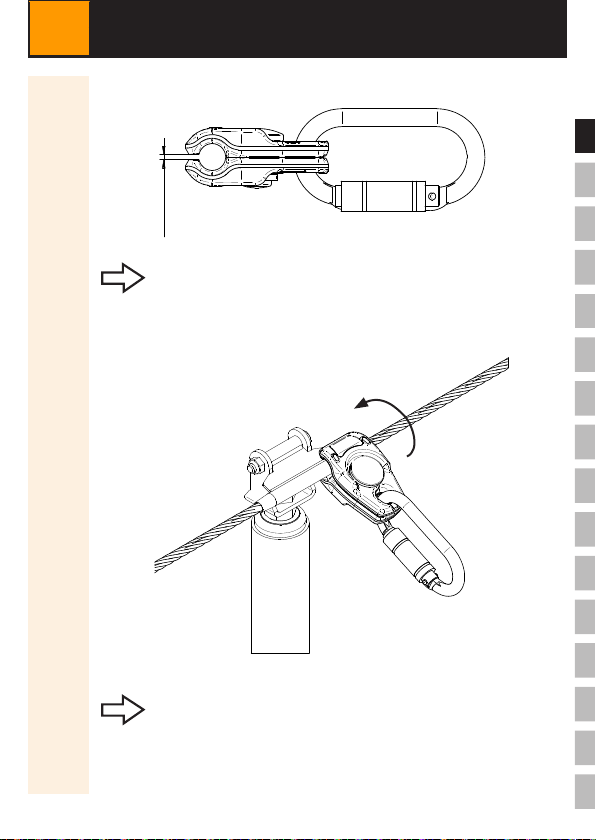

In the closed position, the gap breadth
may NOT exceed 4,5 mm.
The angle for passing over the moveable INNOTECH
intermediate brackets is approx. 220°.
≤
4,5 mm
220°

12 AIO-GLEIT-20-A4 / Version 180111 / www.innotech.at
DE
11 STORAGE/DISPOSAL
Do NOT dispose of the fall protection system in the house waste.
Following national requirements, gather the used parts and dispose of them
in an environmentally responsible fashion.
Keep INNOTECH "AIO-GLEIT-20-A4" free of grease, ice and snow!
Store INNOTECH "AIO-GLEIT-20-A4" tegether with the personal protective
equipment.
11.1 STORAGE
11.2 DISPOSAL
12 DEVELOPMENT & SALES
INNOTECH Arbeitsschutz GmbH, Laizing 10, 4656 Kirchham/Austria
www.innotech.at
