Omnia Volt Instruction Manual
©2017 TLS Corp., All Rights Reserved. 1490-00186-001 —QUICK START GUIDE: OMNIA VOLT (SG VERSION) C17/15060
Quick-Start inStallation Guide
We have made this Omnia processor easy to set up and configure. This quick-start guide will take you through the
basic steps needed to configure your new Omnia VOLT. You’re just a few steps away from being able to deliver cleaner,
clearer, louder, and more consistent FM sound. Before we get started, let’s make sure you have what you need.
tHank You For purcHaSinG tHe oMnia Volt.
audio conFiGuration (cont.) audio conFiGuration (cont.)
Items you need to supply:
• RackwithanEIArackspaceformounting
• Philipsscrewdriverorscrewgun
• StandardXLRconnectorsifsettingupaline-level
analog audio source
• EthernetcableifsettingupaRemoteand/orLivewire
connection
REQUIRED EQUIPMENT, CABLES, AND ACCESSORIES:
There are a few additional items required for a successful installation. Check the list below and make sure
you have what you need.
Included items:
• OmniaVOLTAudioProcessor
• ACPowerCable
• RJ45StudioHubstandardpinoutAESAdaptors
• 4rackscrews
J K
1. The VOLT SG is designed to accept pre-processed audio from an external FM audio processor. Ideally,
this audio should be pre-emphasized and sourced only through a lossless link using Livewire or AES/EBU.
AnalogL/RXLRinputcanalsobeaccepted.SincetheVOLTSGincludesacompositeclipperforremovalof
overshoots, it is very important to calibrate the input level properly so that when the Composite Clip Drive
control is set to 0.0, no composite clipping is taking place. The input level for 100% modulation (composite
clip threshold) is -12dBFS. On the analog input, this corresponds to 10dBu.
Using typical program material, temporarily turn up the main clipper drive on your external FM processor
to provide a more steady “worst-case” level at the input of the VOLT SG. If using a digital output on the
external FM processor, set its peak output level to -12.0dBFS if possible. If so, set the Omnia’s input Level
control in the Discrete I/O / Input menu to 0.0dB to start.
Note: The VOLT SG’s input meters are specially calibrated with higher resolution above -12dBFS for
easy and precise input level calibration. Above -12dBFS, the input meter on the front panel has a "zoom"
function.Itzoomsby10X,soeachsegmentis0.4dBinsteadof4dB.Thatis,theactualvalues,going
up from -12dB are: -12.0dBFS, -11.6dBFS, -11.2dBFS and -10.8dBFS. Any value higher than that just
saturates the meter. The composite clip point (with 0.0dB drive setting) is -12.0dBFS. Note that on the
web GUI, there is a separate "Input Zoom" meter with more range.
2. Adjust VOLT’s appropriate input Level control until the peak-reading input bargraph meters are just
lighting only the -12 LED. If there is some overshoot in the output of your external FM processor or
the link between it and the VOLT SG, more than just the -12 LED may light. This should be OK as long
as there is not more than a dB or so of overshoot. (remember, the meter scale above -12 is 0.4dB instead
of 4dB so the red 0dB LED indicates +1.2dB) If there is more overshoot than that and the red 0 LED is
flashing frequently or is on steadily, you may need to lower the input level a bit. Press the jog wheel to
accept the setting.
3. Rotate the jog wheel until Exit is highlighted. Press to return to the Discrete I/O menu screen.
Highlight Exit again and Press to return to the main menu.
4. Ideally, the de-emphasis in the output of your external FM processor should be defeated so that the VOLT
SGisreceivingapre-emphasized,16kHzband-limitedsignal.Ifnot,youcanturnpre-emphasisandlow-
pass filtering on. Highlight Stereo Generator, press to select and then highlight Adjust SG and press to
select.EnsurethattheEmphStd(50usor75us),Pre-Emph(OfforOn)andInputLPF(OfforOn)settings
arecorrectforyoursystemandyourlocation.Forbestperformance,Pre-EmphandInputLPFshould
normallybothbeoffwhentheVOLTSGisreceivingapre-emphasized,16kHzband-limitedsignalfroman
external FM processor. If there is something in-between that can't handle pre-emphasis and may not be
fully band-limited, you can turn these options on.
5. Exit twice back to the main menu.
input caliBration
inStallation Help
For more details about the Omnia VOLT, or to download the full manual
please visit http://www.TelosAlliance.com/Volt.
If you have more questions, call the Telos Alliance 24/7 Support Team
at +1 (216) 622-0247, or email us at support@telosalliance.com.
We’re always happy to hear from you and offer help if you need it.
Your Setup iS coMplete!
That’s it! You are now ready to experience Omnia VOLT,
for sound like never before.
oMnia VolttM (Stereo Generator / SG VerSion)

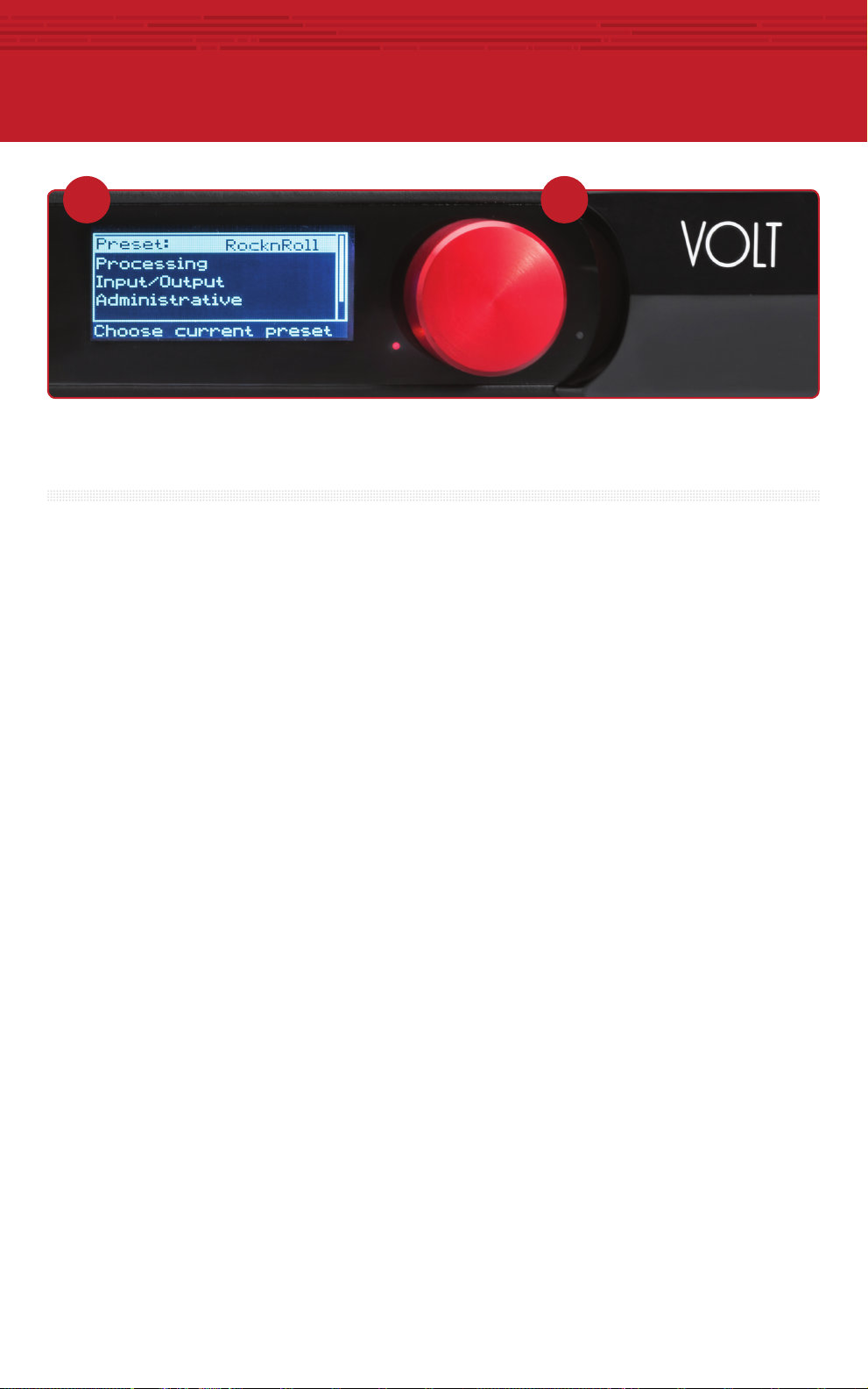

1. Navigating output configuration on the front panel is simple and intuitive. Rotate the red jog wheel (K)
toscrollthroughoptionsdisplayedontheLCDscreen(J),increase/decreasenumericoptionsandmore.
Press the jog wheel (K) to make a navigation selection or to enter settings.
2. If you’re using L/R audio to feed a monitor or other stereo generator, once you are on the Discrete I/O
menu screen, rotate the jog wheel until Output is highlighted. Press to select.
3. Rotate the jog wheel to highlight the appropriate Level control for the output being used. Press to select.
4. Rotate the jog wheel to adjust the output level as appropriate for the next device. Press to accept the
setting. De-emphasis for each output can also be turned on here if needed.
5. Exit and return all the way to the main menu screen.
6. Rotate the jog wheel to highlight Stereo Generator. Press to select.
7. Rotate the jog wheel to highlight Adjust SG. Press to select.
8. Navigate down to the Comp #1 or Comp #2 controls and adjust the appropriate control for 100%
modulation on your station’s modulation monitor. Similarly, adjustthePilotLvlcontrolsothatthe
19kHzstereopilotinjectionlevelindicatesbetween8and10percentasshownonyourstation’sstereo
modulation monitor. If your modulation monitor does not show pilot injection but you are certain that
thetotalmodulationiscorrectat100%,simplysetthePilotLvlcontrolto9.0%.
9. To save your settings as an SG Config preset, navigate to the Save SG Config setting in the Stereo
Generator menu, click on “Name”, enter a preset name using the jog wheel, turn the jog wheel one
more click clockwise and click on “Save”. Similarly, I/O configuration presets can also be saved from
the Discrete I/O menu.
10. Remember to return your external FM processor’s main clipper drive control to its previous level.
Note: To engage the special single-sideband mode available in the VOLT SG, navigate to the Stereo
Generator / Adjust SG submenu and set the SB Mode control to “SSB”. No other adjustments should
be needed.
11. Notethatthe“OneLouder”EmbeddedPilotisalwaysonintheOmniaVOLTSG,sotherearenouser
controls for this feature.
12. Read the complete user manual! There are many layers to Omnia VOLT, and our easy to read manual will
help teach you how to shape your sound with the best in Omnia processing for your station and market.
Take the time to experiment, learn, and enjoy the results!
output conFiGuration
AA
audio conFiGurationinitial Set up & audio connectionS audio connectionS (cont.)
rack MountinG
1. Install the VOLT in your equipment rack using the 4 supplied screws. If only two screws are used
for installation, they MUST be installed in the bottom holes (A) of the rack ears. As a best practice,
leave a blank space above and below the unit for proper ventilation and cooling.
a. For balanced line-level analog audio, connectXLRaudiocablestotheANALOGLEFTINandRIGHTIN
jacks (B).
b. For AES digital audio, connectthedualfemaleXLR“StudioHub”adaptorcableprovidedtothe
RJ-45AESIN/SYNCjack(C).
c. For an existing Axia or Livewire system, connect an Ethernet cable from the Livewire network to the
Livewire jack (D).
audio connectionS
1. Determine the inputs and outputs that are appropriate for your installation.
AUDIO INPUT - Both analog and digital input sources may be connected simultaneously, however, only the
input source that has been selected in the Input menu will be active. For the SG, these should originate from
an external FM audio processor and ideally should be pre-emphasized and fully band limited to 16kHz.
B C D
a. For balanced line-level analog, connectXLRaudiocablestotheANALOGLEFTOUTandRIGHTOUT
jacks (E).
b. For Digital audio, connectthemaleXLR“StudioHub”adaptorcableprovidedtotheRJ-45AESOUTjack(F).
c. For an existing Axia or Livewire system, the single Livewire Ethernet connection made in the input setup
is all that is needed for audio I/O (D).
E
F
DG
continue to audio conFiGuration
The initial set-up of your Omnia VOLT is complete and ready to be configured.
Continue to the "Audio Configuration" instructions.
J
I
input conFiGuration
The Omnia VOLT can be set up directly from the front panel. Note that all of front panel functions, and more,
can also be accessed via password protected login from networked computers, tablets or smartphones.
For instructions on how to configure via networked devices, please refer to the Remote Control chapter in
the Omnia VOLT manual.
J K
1. Navigating input configuration on the front panel is simple and intuitive. Rotate the red jog wheel (K) to scroll
throughoptionsdisplayedontheLCDscreen(J),increase/decreasenumericoptionsandmore.Press the jog
wheel (K) to make a navigation selection or to enter settings.
2. From the front LCD screen, rotatetheredJogwheeluntilDiscreteI/Oishighlighted.Press the jog wheel
in to select.
3. Rotate the jog wheel until Input is highlighted. Press to select.
4. Rotate the jog wheel until Input Src is highlighted. Press to select.
5. Rotate the jog wheel to select the appropriate input source. Press to select.
6. Feed regular program material at your station’s normal level. Tones are not needed for calibration.
Note: On the front panel, only the input and output meters function. There is no multiband processing
on the SG version.
2. Connect the Omnia VOLT to AC Mains (H) using
the AC power cable supplied. Make sure the power
source is properly grounded. There is no power
switch.
3. Once power is supplied, a red power indicator (I)
nexttotheLCD(J)willlightup.TheLCDwillremain
dark for about 25 seconds, then will display “Omnia
VOLT” as the startup sequence progresses. A few
seconds later, the main menu will be displayed.
a. ConnectoneofthecompositeMPXBNCoutputs(G)toyourFMexciterorcompositeSTLtransmitter.
The 2 outputs are separately adjustable so if needed, you can connect the other output to your backup
transmitter as well.
COMPOSTE MPX OUTPUT – Two separately adjustable BNC outputs are available.
AUDIO OUTPUT - All outputs are active simultaneously. The analog XLR, AES/EBU and Livewire outputs
are discrete outputs that can be used for monitoring or relaying to another stereo generator. The outputs
are just monitors of the input. They are not decoded from the composite signal, so they do not reflect
composite clipping, etc. They do have level adjustments and the option to apply de-emphasis.
AA
audio conFiGurationinitial Set up & audio connectionS audio connectionS (cont.)
rack MountinG
1. Install the VOLT in your equipment rack using the 4 supplied screws. If only two screws are used
for installation, they MUST be installed in the bottom holes (A) of the rack ears. As a best practice,
leave a blank space above and below the unit for proper ventilation and cooling.
a. For balanced line-level analog audio, connectXLRaudiocablestotheANALOGLEFTINandRIGHTIN
jacks (B).
b. For AES digital audio, connectthedualfemaleXLR“StudioHub”adaptorcableprovidedtothe
RJ-45AESIN/SYNCjack(C).
c. For an existing Axia or Livewire system, connect an Ethernet cable from the Livewire network to the
Livewire jack (D).
audio connectionS
1. Determine the inputs and outputs that are appropriate for your installation.
AUDIO INPUT - Both analog and digital input sources may be connected simultaneously, however, only the
input source that has been selected in the Input menu will be active. For the SG, these should originate from
an external FM audio processor and ideally should be pre-emphasized and fully band limited to 16kHz.
B C D
a. For balanced line-level analog, connectXLRaudiocablestotheANALOGLEFTOUTandRIGHTOUT
jacks (E).
b. For Digital audio, connectthemaleXLR“StudioHub”adaptorcableprovidedtotheRJ-45AESOUTjack(F).
c. For an existing Axia or Livewire system, the single Livewire Ethernet connection made in the input setup
is all that is needed for audio I/O (D).
E
F
DG
continue to audio conFiGuration
The initial set-up of your Omnia VOLT is complete and ready to be configured.
Continue to the "Audio Configuration" instructions.
J
I
input conFiGuration
The Omnia VOLT can be set up directly from the front panel. Note that all of front panel functions, and more,
can also be accessed via password protected login from networked computers, tablets or smartphones.
For instructions on how to configure via networked devices, please refer to the Remote Control chapter in
the Omnia VOLT manual.
J K
1. Navigating input configuration on the front panel is simple and intuitive. Rotate the red jog wheel (K) to scroll
throughoptionsdisplayedontheLCDscreen(J),increase/decreasenumericoptionsandmore.Press the jog
wheel (K) to make a navigation selection or to enter settings.
2. From the front LCD screen, rotatetheredJogwheeluntilDiscreteI/Oishighlighted.Press the jog wheel
in to select.
3. Rotate the jog wheel until Input is highlighted. Press to select.
4. Rotate the jog wheel until Input Src is highlighted. Press to select.
5. Rotate the jog wheel to select the appropriate input source. Press to select.
6. Feed regular program material at your station’s normal level. Tones are not needed for calibration.
Note: On the front panel, only the input and output meters function. There is no multiband processing
on the SG version.
2. Connect the Omnia VOLT to AC Mains (H) using
the AC power cable supplied. Make sure the power
source is properly grounded. There is no power
switch.
3. Once power is supplied, a red power indicator (I)
nexttotheLCD(J)willlightup.TheLCDwillremain
dark for about 25 seconds, then will display “Omnia
VOLT” as the startup sequence progresses. A few
seconds later, the main menu will be displayed.
a. ConnectoneofthecompositeMPXBNCoutputs(G)toyourFMexciterorcompositeSTLtransmitter.
The 2 outputs are separately adjustable so if needed, you can connect the other output to your backup
transmitter as well.
COMPOSTE MPX OUTPUT – Two separately adjustable BNC outputs are available.
AUDIO OUTPUT - All outputs are active simultaneously. The analog XLR, AES/EBU and Livewire outputs
are discrete outputs that can be used for monitoring or relaying to another stereo generator. The outputs
are just monitors of the input. They are not decoded from the composite signal, so they do not reflect
composite clipping, etc. They do have level adjustments and the option to apply de-emphasis.
AA
audio conFiGurationinitial Set up & audio connectionS audio connectionS (cont.)
rack MountinG
1. Install the VOLT in your equipment rack using the 4 supplied screws. If only two screws are used
for installation, they MUST be installed in the bottom holes (A) of the rack ears. As a best practice,
leave a blank space above and below the unit for proper ventilation and cooling.
a. For balanced line-level analog audio, connectXLRaudiocablestotheANALOGLEFTINandRIGHTIN
jacks (B).
b. For AES digital audio, connectthedualfemaleXLR“StudioHub”adaptorcableprovidedtothe
RJ-45AESIN/SYNCjack(C).
c. For an existing Axia or Livewire system, connect an Ethernet cable from the Livewire network to the
Livewire jack (D).
audio connectionS
1. Determine the inputs and outputs that are appropriate for your installation.
AUDIO INPUT - Both analog and digital input sources may be connected simultaneously, however, only the
input source that has been selected in the Input menu will be active. For the SG, these should originate from
an external FM audio processor and ideally should be pre-emphasized and fully band limited to 16kHz.
B C D
a. For balanced line-level analog, connectXLRaudiocablestotheANALOGLEFTOUTandRIGHTOUT
jacks (E).
b. For Digital audio, connectthemaleXLR“StudioHub”adaptorcableprovidedtotheRJ-45AESOUTjack(F).
c. For an existing Axia or Livewire system, the single Livewire Ethernet connection made in the input setup
is all that is needed for audio I/O (D).
E
F
DG
continue to audio conFiGuration
The initial set-up of your Omnia VOLT is complete and ready to be configured.
Continue to the "Audio Configuration" instructions.
J
I
input conFiGuration
The Omnia VOLT can be set up directly from the front panel. Note that all of front panel functions, and more,
can also be accessed via password protected login from networked computers, tablets or smartphones.
For instructions on how to configure via networked devices, please refer to the Remote Control chapter in
the Omnia VOLT manual.
J K
1. Navigating input configuration on the front panel is simple and intuitive. Rotate the red jog wheel (K) to scroll
throughoptionsdisplayedontheLCDscreen(J),increase/decreasenumericoptionsandmore.Press the jog
wheel (K) to make a navigation selection or to enter settings.
2. From the front LCD screen, rotatetheredJogwheeluntilDiscreteI/Oishighlighted.Press the jog wheel
in to select.
3. Rotate the jog wheel until Input is highlighted. Press to select.
4. Rotate the jog wheel until Input Src is highlighted. Press to select.
5. Rotate the jog wheel to select the appropriate input source. Press to select.
6. Feed regular program material at your station’s normal level. Tones are not needed for calibration.
Note: On the front panel, only the input and output meters function. There is no multiband processing
on the SG version.
2. Connect the Omnia VOLT to AC Mains (H) using
the AC power cable supplied. Make sure the power
source is properly grounded. There is no power
switch.
3. Once power is supplied, a red power indicator (I)
nexttotheLCD(J)willlightup.TheLCDwillremain
dark for about 25 seconds, then will display “Omnia
VOLT” as the startup sequence progresses. A few
seconds later, the main menu will be displayed.
a. ConnectoneofthecompositeMPXBNCoutputs(G)toyourFMexciterorcompositeSTLtransmitter.
The 2 outputs are separately adjustable so if needed, you can connect the other output to your backup
transmitter as well.
COMPOSTE MPX OUTPUT – Two separately adjustable BNC outputs are available.
AUDIO OUTPUT - All outputs are active simultaneously. The analog XLR, AES/EBU and Livewire outputs
are discrete outputs that can be used for monitoring or relaying to another stereo generator. The outputs
are just monitors of the input. They are not decoded from the composite signal, so they do not reflect
composite clipping, etc. They do have level adjustments and the option to apply de-emphasis.
©2017 TLS Corp., All Rights Reserved. 1490-00186-001 —QUICK START GUIDE: OMNIA VOLT (SG VERSION) C17/15060
Quick-Start inStallation Guide
We have made this Omnia processor easy to set up and configure. This quick-start guide will take you through the
basic steps needed to configure your new Omnia VOLT. You’re just a few steps away from being able to deliver cleaner,
clearer, louder, and more consistent FM sound. Before we get started, let’s make sure you have what you need.
tHank You For purcHaSinG tHe oMnia Volt.
audio conFiGuration (cont.) audio conFiGuration (cont.)
Items you need to supply:
• RackwithanEIArackspaceformounting
• Philipsscrewdriverorscrewgun
• StandardXLRconnectorsifsettingupaline-level
analog audio source
• EthernetcableifsettingupaRemoteand/orLivewire
connection
REQUIRED EQUIPMENT, CABLES, AND ACCESSORIES:
There are a few additional items required for a successful installation. Check the list below and make sure
you have what you need.
Included items:
• OmniaVOLTAudioProcessor
• ACPowerCable
• RJ45StudioHubstandardpinoutAESAdaptors
• 4rackscrews
J K
1. The VOLT SG is designed to accept pre-processed audio from an external FM audio processor. Ideally,
this audio should be pre-emphasized and sourced only through a lossless link using Livewire or AES/EBU.
AnalogL/RXLRinputcanalsobeaccepted.SincetheVOLTSGincludesacompositeclipperforremovalof
overshoots, it is very important to calibrate the input level properly so that when the Composite Clip Drive
control is set to 0.0, no composite clipping is taking place. The input level for 100% modulation (composite
clip threshold) is -12dBFS. On the analog input, this corresponds to 10dBu.
Using typical program material, temporarily turn up the main clipper drive on your external FM processor
to provide a more steady “worst-case” level at the input of the VOLT SG. If using a digital output on the
external FM processor, set its peak output level to -12.0dBFS if possible. If so, set the Omnia’s input Level
control in the Discrete I/O / Input menu to 0.0dB to start.
Note: The VOLT SG’s input meters are specially calibrated with higher resolution above -12dBFS for
easy and precise input level calibration. Above -12dBFS, the input meter on the front panel has a "zoom"
function.Itzoomsby10X,soeachsegmentis0.4dBinsteadof4dB.Thatis,theactualvalues,going
up from -12dB are: -12.0dBFS, -11.6dBFS, -11.2dBFS and -10.8dBFS. Any value higher than that just
saturates the meter. The composite clip point (with 0.0dB drive setting) is -12.0dBFS. Note that on the
web GUI, there is a separate "Input Zoom" meter with more range.
2. Adjust VOLT’s appropriate input Level control until the peak-reading input bargraph meters are just
lighting only the -12 LED. If there is some overshoot in the output of your external FM processor or
the link between it and the VOLT SG, more than just the -12 LED may light. This should be OK as long
as there is not more than a dB or so of overshoot. (remember, the meter scale above -12 is 0.4dB instead
of 4dB so the red 0dB LED indicates +1.2dB) If there is more overshoot than that and the red 0 LED is
flashing frequently or is on steadily, you may need to lower the input level a bit. Press the jog wheel to
accept the setting.
3. Rotate the jog wheel until Exit is highlighted. Press to return to the Discrete I/O menu screen.
Highlight Exit again and Press to return to the main menu.
4. Ideally, the de-emphasis in the output of your external FM processor should be defeated so that the VOLT
SGisreceivingapre-emphasized,16kHzband-limitedsignal.Ifnot,youcanturnpre-emphasisandlow-
pass filtering on. Highlight Stereo Generator, press to select and then highlight Adjust SG and press to
select.EnsurethattheEmphStd(50usor75us),Pre-Emph(OfforOn)andInputLPF(OfforOn)settings
arecorrectforyoursystemandyourlocation.Forbestperformance,Pre-EmphandInputLPFshould
normallybothbeoffwhentheVOLTSGisreceivingapre-emphasized,16kHzband-limitedsignalfroman
external FM processor. If there is something in-between that can't handle pre-emphasis and may not be
fully band-limited, you can turn these options on.
5. Exit twice back to the main menu.
input caliBration
inStallation Help
For more details about the Omnia VOLT, or to download the full manual
please visit http://www.TelosAlliance.com/Volt.
If you have more questions, call the Telos Alliance 24/7 Support Team
at +1 (216) 622-0247, or email us at support@telosalliance.com.
We’re always happy to hear from you and offer help if you need it.
Your Setup iS coMplete!
That’s it! You are now ready to experience Omnia VOLT,
for sound like never before.
oMnia VolttM (Stereo Generator / SG VerSion)
1. Navigating output configuration on the front panel is simple and intuitive. Rotate the red jog wheel (K)
toscrollthroughoptionsdisplayedontheLCDscreen(J),increase/decreasenumericoptionsandmore.
Press the jog wheel (K) to make a navigation selection or to enter settings.
2. If you’re using L/R audio to feed a monitor or other stereo generator, once you are on the Discrete I/O
menu screen, rotate the jog wheel until Output is highlighted. Press to select.
3. Rotate the jog wheel to highlight the appropriate Level control for the output being used. Press to select.
4. Rotate the jog wheel to adjust the output level as appropriate for the next device. Press to accept the
setting. De-emphasis for each output can also be turned on here if needed.
5. Exit and return all the way to the main menu screen.
6. Rotate the jog wheel to highlight Stereo Generator. Press to select.
7. Rotate the jog wheel to highlight Adjust SG. Press to select.
8. Navigate down to the Comp #1 or Comp #2 controls and adjust the appropriate control for 100%
modulation on your station’s modulation monitor. Similarly, adjustthePilotLvlcontrolsothatthe
19kHzstereopilotinjectionlevelindicatesbetween8and10percentasshownonyourstation’sstereo
modulation monitor. If your modulation monitor does not show pilot injection but you are certain that
thetotalmodulationiscorrectat100%,simplysetthePilotLvlcontrolto9.0%.
9. To save your settings as an SG Config preset, navigate to the Save SG Config setting in the Stereo
Generator menu, click on “Name”, enter a preset name using the jog wheel, turn the jog wheel one
more click clockwise and click on “Save”. Similarly, I/O configuration presets can also be saved from
the Discrete I/O menu.
10. Remember to return your external FM processor’s main clipper drive control to its previous level.
Note: To engage the special single-sideband mode available in the VOLT SG, navigate to the Stereo
Generator / Adjust SG submenu and set the SB Mode control to “SSB”. No other adjustments should
be needed.
11. Notethatthe“OneLouder”EmbeddedPilotisalwaysonintheOmniaVOLTSG,sotherearenouser
controls for this feature.
12. Read the complete user manual! There are many layers to Omnia VOLT, and our easy to read manual will
help teach you how to shape your sound with the best in Omnia processing for your station and market.
Take the time to experiment, learn, and enjoy the results!
output conFiGuration
©2017 TLS Corp., All Rights Reserved. 1490-00186-001 —QUICK START GUIDE: OMNIA VOLT (SG VERSION) C17/15060
Quick-Start inStallation Guide
We have made this Omnia processor easy to set up and configure. This quick-start guide will take you through the
basic steps needed to configure your new Omnia VOLT. You’re just a few steps away from being able to deliver cleaner,
clearer, louder, and more consistent FM sound. Before we get started, let’s make sure you have what you need.
tHank You For purcHaSinG tHe oMnia Volt.
audio conFiGuration (cont.) audio conFiGuration (cont.)
Items you need to supply:
• RackwithanEIArackspaceformounting
• Philipsscrewdriverorscrewgun
• StandardXLRconnectorsifsettingupaline-level
analog audio source
• EthernetcableifsettingupaRemoteand/orLivewire
connection
REQUIRED EQUIPMENT, CABLES, AND ACCESSORIES:
There are a few additional items required for a successful installation. Check the list below and make sure
you have what you need.
Included items:
• OmniaVOLTAudioProcessor
• ACPowerCable
• RJ45StudioHubstandardpinoutAESAdaptors
• 4rackscrews
J K
1. The VOLT SG is designed to accept pre-processed audio from an external FM audio processor. Ideally,
this audio should be pre-emphasized and sourced only through a lossless link using Livewire or AES/EBU.
AnalogL/RXLRinputcanalsobeaccepted.SincetheVOLTSGincludesacompositeclipperforremovalof
overshoots, it is very important to calibrate the input level properly so that when the Composite Clip Drive
control is set to 0.0, no composite clipping is taking place. The input level for 100% modulation (composite
clip threshold) is -12dBFS. On the analog input, this corresponds to 10dBu.
Using typical program material, temporarily turn up the main clipper drive on your external FM processor
to provide a more steady “worst-case” level at the input of the VOLT SG. If using a digital output on the
external FM processor, set its peak output level to -12.0dBFS if possible. If so, set the Omnia’s input Level
control in the Discrete I/O / Input menu to 0.0dB to start.
Note: The VOLT SG’s input meters are specially calibrated with higher resolution above -12dBFS for
easy and precise input level calibration. Above -12dBFS, the input meter on the front panel has a "zoom"
function.Itzoomsby10X,soeachsegmentis0.4dBinsteadof4dB.Thatis,theactualvalues,going
up from -12dB are: -12.0dBFS, -11.6dBFS, -11.2dBFS and -10.8dBFS. Any value higher than that just
saturates the meter. The composite clip point (with 0.0dB drive setting) is -12.0dBFS. Note that on the
web GUI, there is a separate "Input Zoom" meter with more range.
2. Adjust VOLT’s appropriate input Level control until the peak-reading input bargraph meters are just
lighting only the -12 LED. If there is some overshoot in the output of your external FM processor or
the link between it and the VOLT SG, more than just the -12 LED may light. This should be OK as long
as there is not more than a dB or so of overshoot. (remember, the meter scale above -12 is 0.4dB instead
of 4dB so the red 0dB LED indicates +1.2dB) If there is more overshoot than that and the red 0 LED is
flashing frequently or is on steadily, you may need to lower the input level a bit. Press the jog wheel to
accept the setting.
3. Rotate the jog wheel until Exit is highlighted. Press to return to the Discrete I/O menu screen.
Highlight Exit again and Press to return to the main menu.
4. Ideally, the de-emphasis in the output of your external FM processor should be defeated so that the VOLT
SGisreceivingapre-emphasized,16kHzband-limitedsignal.Ifnot,youcanturnpre-emphasisandlow-
pass filtering on. Highlight Stereo Generator, press to select and then highlight Adjust SG and press to
select.EnsurethattheEmphStd(50usor75us),Pre-Emph(OfforOn)andInputLPF(OfforOn)settings
arecorrectforyoursystemandyourlocation.Forbestperformance,Pre-EmphandInputLPFshould
normallybothbeoffwhentheVOLTSGisreceivingapre-emphasized,16kHzband-limitedsignalfroman
external FM processor. If there is something in-between that can't handle pre-emphasis and may not be
fully band-limited, you can turn these options on.
5. Exit twice back to the main menu.
input caliBration
inStallation Help
For more details about the Omnia VOLT, or to download the full manual
please visit http://www.TelosAlliance.com/Volt.
If you have more questions, call the Telos Alliance 24/7 Support Team
We’re always happy to hear from you and offer help if you need it.
Your Setup iS coMplete!
That’s it! You are now ready to experience Omnia VOLT,
for sound like never before.
oMnia VolttM (Stereo Generator / SG VerSion)
1. Navigating output configuration on the front panel is simple and intuitive. Rotate the red jog wheel (K)
toscrollthroughoptionsdisplayedontheLCDscreen(J),increase/decreasenumericoptionsandmore.
Press the jog wheel (K) to make a navigation selection or to enter settings.
2. If you’re using L/R audio to feed a monitor or other stereo generator, once you are on the Discrete I/O
menu screen, rotate the jog wheel until Output is highlighted. Press to select.
3. Rotate the jog wheel to highlight the appropriate Level control for the output being used. Press to select.
4. Rotate the jog wheel to adjust the output level as appropriate for the next device. Press to accept the
setting. De-emphasis for each output can also be turned on here if needed.
5. Exit and return all the way to the main menu screen.
6. Rotate the jog wheel to highlight Stereo Generator. Press to select.
7. Rotate the jog wheel to highlight Adjust SG. Press to select.
8. Navigate down to the Comp #1 or Comp #2 controls and adjust the appropriate control for 100%
modulation on your station’s modulation monitor. Similarly, adjustthePilotLvlcontrolsothatthe
19kHzstereopilotinjectionlevelindicatesbetween8and10percentasshownonyourstation’sstereo
modulation monitor. If your modulation monitor does not show pilot injection but you are certain that
thetotalmodulationiscorrectat100%,simplysetthePilotLvlcontrolto9.0%.
9. To save your settings as an SG Config preset, navigate to the Save SG Config setting in the Stereo
Generator menu, click on “Name”, enter a preset name using the jog wheel, turn the jog wheel one
more click clockwise and click on “Save”. Similarly, I/O configuration presets can also be saved from
the Discrete I/O menu.
10. Remember to return your external FM processor’s main clipper drive control to its previous level.
Note: To engage the special single-sideband mode available in the VOLT SG, navigate to the Stereo
Generator / Adjust SG submenu and set the SB Mode control to “SSB”. No other adjustments should
be needed.
11. Notethatthe“OneLouder”EmbeddedPilotisalwaysonintheOmniaVOLTSG,sotherearenouser
controls for this feature.
12. Read the complete user manual! There are many layers to Omnia VOLT, and our easy to read manual will
help teach you how to shape your sound with the best in Omnia processing for your station and market.
Take the time to experiment, learn, and enjoy the results!
output conFiGuration
Other manuals for Volt
3
Table of contents
Other Omnia Inverter manuals
Popular Inverter manuals by other brands
Westerbeke
Westerbeke 3.8 BCDT-612 Specifications
Omega
Omega OTEC IEWQ-R Series Service manual
Helios
Helios RM-PSW2KVA Series user manual
Infinite
Infinite Transtector ACINV Series installation manual
Bosch
Bosch mm-Si plus EU1510 Series Planning and installation instructions
Kaco
Kaco blueplanet 87.0 TL3 Operating instruction
Bergey
Bergey POWERSYNC II Series Operator's manual & installation instructions
meibes
meibes Solar Station XL Technical information for installation and operation
Perel
Perel EPI600B instruction manual
Zamp Solar
Zamp Solar ZS-30AD user manual
Eaton
Eaton PowerXL DG1 Series VFD quick start guide
Hoymiles
Hoymiles MI-600 user manual
