3. Loosely assemble two M8 x 16mm Button Head
Socket Screws and T-Nuts in the Camera
Bracket as shown in Step 2.
4. Attach the MAX 300 illuminator to the Light
Bracket with the hardware shown below.
Note: The MAX 300 can be mounted with the
connectors oriented opposite of what is shown
below (up vs. down) if required by the application.
5. Loosely assemble four M8 x 16 mm Button Head
Socket Screws, Flat Washers, and T-Nuts in the
Light Bracket as shown in Step 4.
6. Loosely assemble four M8 x 16 mm Button Head
Socket Screws and T-Nuts in the two Mounting
Brackets as shown below.
Kit Contents
1. Attach the Short Rail to the Long Rail using the
two Gussets and the hardware shown below.
Note: T-Nuts must be inserted into the slots in the
rails from the rail ends.
2. Attach the HAWK MV-4000 camera to the
Camera Bracket with the hardware shown below.
Note: The mounting hole pattern in the Camera
Bracket is not symmetrical. The Camera Bracket
must be positioned as shown relative to the camera.
MAX 300 Bracket Kit (98-9000120-01)
Qty. Description
1Long Rail
1Short Rail
1Camera Bracket
1Light Bracket
2Mounting Bracket
2Gusset
14 T-Nut
3End Cap
10 Button Head Socket Screw M8 x 16 mm
4Button Head Socket Screw M8 x 25 mm
4Socket Head Cap Screw M6 x 10 mm
4Socket Head Cap Screw M4 x 6 mm
8Flat Washer

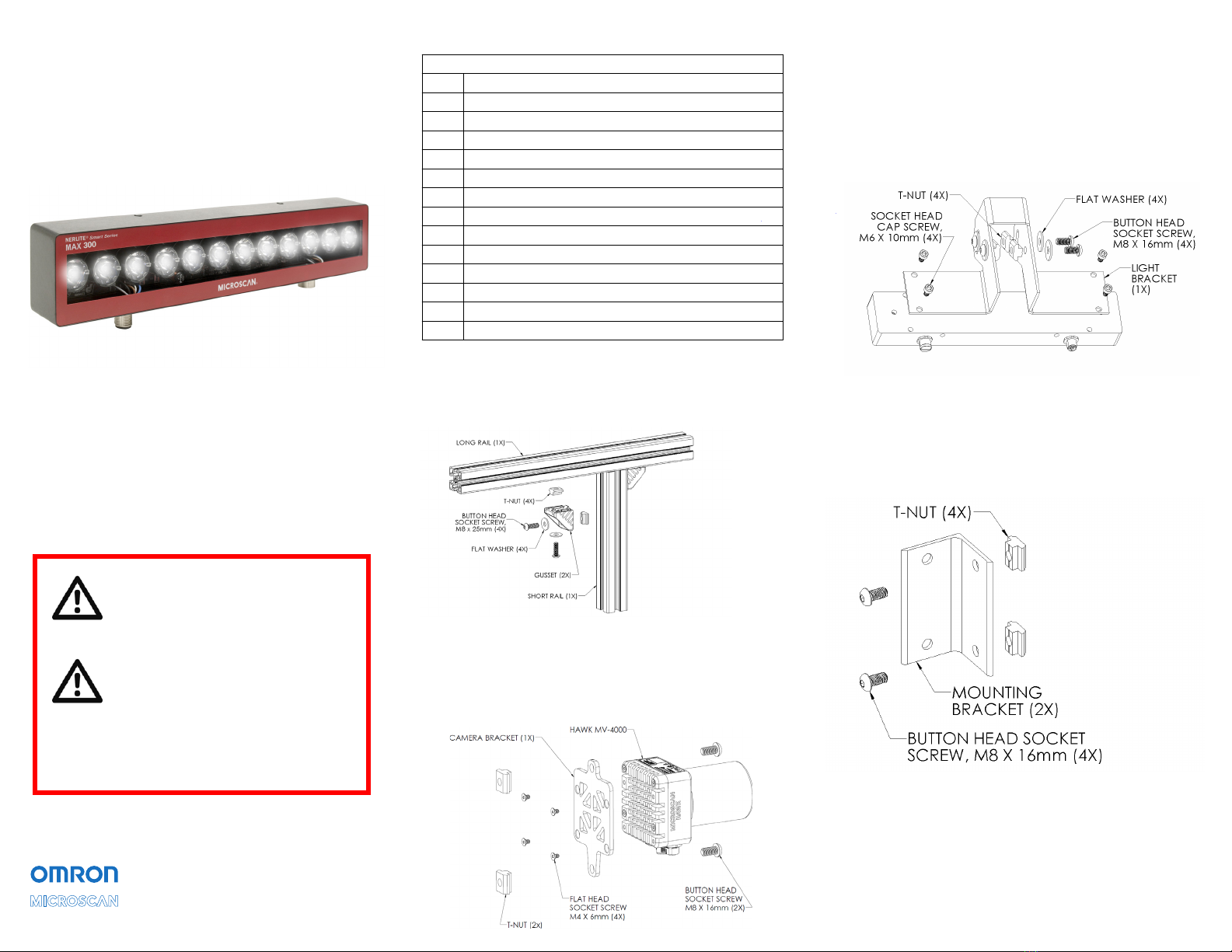

Quick Start Guide
NERLITE Smart Series
MAX 300 Bracket Kit
(HAWK MV-4000)
P/N 83-9200059-02 Rev A
Caution: Be sure that all
connections are secure BEFORE
applying power. Power down
BEFORE disconnecting cables.
Important: All specified wire
colors apply to Omron Microscan
cables. If non-Omron Microscan
cables are used, it is the customer’s
responsibility to make sure the
illuminator is connected per the
specified connector pin numbers.

Copyright ©2018 Omron Microscan Systems, Inc.
8. Install the three End Caps as shown in
either of the drawings in Step 7, as required
by the application.
9. Position the components as required by
the application and tighten the hardware.
Note: The Light Bracket is designed for
a 45 degree angle. However, it has +/– 15
degrees of adjustability for fine-tuning. The
two edges of the bracket adjacent to the
adjustment slot are at 0 degrees and 90
degrees when the light is at 45 degrees to
simplify positioning of the MAX 300.
10. For dimensional drawings, See the two
drawings below for Configuration 1 and the
two drawings to the right for Configuration 2.
Configuration 1
The Bracket Kit can be assembled in two
ways. See the first drawing below for
Configuration 1 and the second drawing
for Configuration 2.
7. Align the T-Nuts with the slots in the rails
and slide the Camera Bracket, Light
Bracket, and Mounting Brackets into
place, as shown in either of the drawings
below, as required by the application.
Note: The locations of the Mounting
Brackets on the rails are suggested locations.
The flexibility of the rail system allows these
brackets to be mounted anywhere they do
not interfere with the other components.
Note: T-Nuts must be inserted into the slots
in the rails from the rail ends.
Configuration 1
Configuration 2
Configuration 2
