Omron R88L-EA-AF User manual

Servo Systems
Accurax Linear Axis
Installation Manual
I162E-EN-01
R88L-EA-AF
ENGLISH / DEUTSCH

 OMRON, 2015
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any
form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written
permission of OMRON.
No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON
is constantly striving to improve its high-quality products, the information contained in this manual is subject to change
without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no
responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the
information contained in this publication.
Trademarks
• Sysmac and SYSMAC are trademarks or registered trademarks of OMRON Corporation in Japan and other countries
for OMRON factory automation products.
• Windows, Windows XP, Windows Vista, Windows 7, Windows 8, and Excel are registered trademarks of Microsoft
Corporation in the USA and other countries.
• EtherCAT®is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
• ODVA, CIP, CompoNet, DeviceNet, and EtherNet/IP are trademarks of ODVA.
Other company names and products names in this document are the trademarks or registered trademarks of their
respective companies.

1
Accurax Linear Axis Installation Manual
CONTENTS
CONTENTS
Section 1 ENGLISH
1-1 Introduction ........................................................................................................................... 1-2
1-2 Transportation / Handling / Storage .................................................................................... 1-4
1-3 Design and Customer Drawings ......................................................................................... 1-8
1-4 Electrical Setup ................................................................................................................... 1-18
1-5 System Configuration ........................................................................................................1-22
1-6 System Integration ............................................................................................................. 1-23
1-7 Maintenance ........................................................................................................................ 1-32
1-8 Repair and Modifications ................................................................................................... 1-37
Section 2 DEUTSCH
2-1 Einleitung .............................................................................................................................. 2-2
2-2 Transport / Umschlag / Lagerung ....................................................................................... 2-4
2-3 Design und Kundenzeichnungen ........................................................................................ 2-8
2-4 Elektrischer Anschluss ......................................................................................................2-18
2-5 Systemkonfiguration .......................................................................................................... 2-22
2-6 Systemintegration .............................................................................................................. 2-23
2-7 Wartung ............................................................................................................................... 2-33
2-8 Reparatur und Modifikationen ........................................................................................... 2-38

2Accurax Linear Axis Installation Manual
CONTENTS

1 - 1
1
Accurax Linear Axis Installation Manual
1-1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1-1-1 Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1-1-2 Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1-1-3 General Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2
1-2 Transportation / Handling / Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-2-1 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-2-2 After Receiving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
1-2-3 Handling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5
1-2-4 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
1-3 Design and Customer Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1-3-1 General Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1-3-2 Product Tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-8
1-3-3 Acceleration / Payload Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9
1-3-4 Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-10
1-3-5 Design Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11
1-4 Electrical Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
1-4-1 Encoder Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-18
1-4-2 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-19
1-5 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-22
1-6 System Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
1-6-1 Mechanical Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-23
1-6-2 Alignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
1-6-3 Electrical Integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
1-6-4 Ambient Working Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-24
1-6-5 Installing the Linear Axis in the System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-25
1-7 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-32
1-7-1 Linear Guides and Recirculating Ball Bearings . . . . . . . . . . . . . . . . . . . . . . . . 1-32
1-7-2 Measurement Scale . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-34
1-7-3 Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-35
1-8 Repair and Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
1-8-1 Failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
1-8-2 Spare Part Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-37
ENGLISH

1 ENGLISH
1 - 2 Accurax Linear Axis Installation Manual
1-1 Introduction
This manual is part of the scope of delivery of your R88L-EA-AF linear axis.
OMRON EUROPE B.V. products are manufactured for use according to proper procedures by a qualified operator
and only for the purposes described in this manual.
The following conventions are used to indicate and classify precautions in this manual. Always heed the informa-
tion provided with them. Failure to heed precautions can result in injury or damage to property.
All technical information written or described within this manual is believed to be accurate as of the date of the pub-
lication. OMRON EUROPE B.V. gives no warranty for the product specifications stated in this manual.
Please read each section in its entirety and make sure you understand the information provided in the section and
related sections before attempting any of the procedures or operations described.
Furthermore the R88L-EA-AF linear axis series must comply with the local rules, regulations, preventive accident
and environmental protection measures, in force in the country of installation.
Please contact OMRON EUROPE B.V. or authorized distributors in case of missing information or any unclear
installation procedures, safety or other issues.
This manual is intended for personnel with knowledge of electrical and mechanical systems who are responsible
for the design, installation and management of factory automation systems and facilities.
The user must operate the product according to the performance specifications described in this manual. Before
using the product under conditions which are not described in the manual or applying the product to nuclear control
systems, railroad systems, aviation systems, vehicles, safety equipment, petrochemical plants, or other systems,
machines and equipment that can cause serious injury or damage to life, limb and property if used improperly, con-
sult your OMRON representative.
1-1-1 Notice
1-1-2 Safety Information
Intended audience
1-1-3 General Precautions
Safety precautions
Powerful magnetic induction may cause irreversible heart damage to persons using
pacemakers.
Make sure to keep any kind of magnetically sensitive devices away from the linear system
or its individual components.
Do not approach the system with ferromagnetic tools.
Moving parts of the system can crush hands, fingers and other extremities.
Magnetic components must be handled carefully and kept far away from any kind of metal
parts and other magnet tracks.
Do not attempt to dismantle the unit do not touch any of the internal parts while power is
being supplied or the system is in motion.
Failsafe measures must be taken by the customer to ensure safety in the event of incorrect,
missing, or abnormal signals caused by broken signal lines, momentary power interruptions
or other causes. Failure to do so may result in serious accidents.

1 - 3
1 ENGLISH
Accurax Linear Axis Installation Manual
1-1 Introduction
1
Emergency stop circuits or devices, interlock circuits or devices and similar safety
measures must be provided by the customer as external circuits or devices. Failure to do so
may result in serious accidents.
Do not attempt to disassemble, repair, or modify any linear systems. Any attempt to do so
may result in malfunction, electrical shock, fire or reduced product lifetime.
Pay careful attention to polarity (+/-) when wiring the power supply. An incorrect connection
may cause malfunctioning of the system.
Application precautions
Take appropriate measures to ensure that the specified power with the rated voltage and
frequency is supplied. Be particularly careful in places where the power supply is unstable.
An incorrect power supply may result in malfunction.
Do not apply voltage to the input units in excess of the rated input voltage. Excess voltage
may result in burning.
Be sure that all mounting screws, cover screws, mounting plate screws are tightened to the
torque specified in this users manual. Incorrect tightening torque may result in malfunction.
Do not pull on or bend the cables beyond their natural limit. Doing so may break the cables.

1 ENGLISH
1 - 4 Accurax Linear Axis Installation Manual
1-2 Transportation / Handling / Storage
The following instructions must be followed during transportation and handling:
• OMRON EUROPE B.V. linear axes must be transported and stored always in its original shipping box
• Make sure to read and understand all stickers been attached outside of the wooden shipping box or been placed
inside
• If for any reason, the linear system needs to be shipped back to OMRON EUROPE B.V. or being shipped to
some other place, make sure to always and exclusively use original shipping box provided by OMRON EUROPE
B.V.
Pay attention to the stickers applied outside and inside the wooden shipping box.
If a customs inspection is required, please try to have this inspection carried out within your company. It is very
probable that the protective foil wrapping of the linear system inside the wooden box can become damaged during
the customs inspection. Thereafter, the system could be exposed to adverse weather conditions that may cause
malfunctioning or reduced lifetime of the system.
The whole shipment must be stored in a dry and (if available and necessary) heated environment. It is forbidden to
store the shipment outdoors.
Additionally make sure to keep rain and direct sunlight and/or heat radiation away from shipment or the linear sys-
tem itself.
Please make sure to check the shipment thoroughly in presence of the carrier during receipt.
Compare your order form with the supplied goods, if a difference is noticed please contact your local OMRON
EUROPE B.V. representative.
1-2-1 Transport
1-2-2 After Receiving
Check all shock indicators for their status. If one of these indicates poor treatment of the
transported item, please proceed as follows:
• Do not refuse shipment
• State and confirm that the shock indicators have been triggered on the delivery slip
• Inspect the whole shipment on every side for possible damage to the wooden box
• Immediately contact your local OMRON EUROPE B.V. representative

1 - 5
1 ENGLISH
Accurax Linear Axis Installation Manual
1-2 Transportation / Handling /
Storage
1
Remove the system from its shipping box carefully. If you use cutting tools, you could scratch the outer surface of
the linear slider or even damage cables.

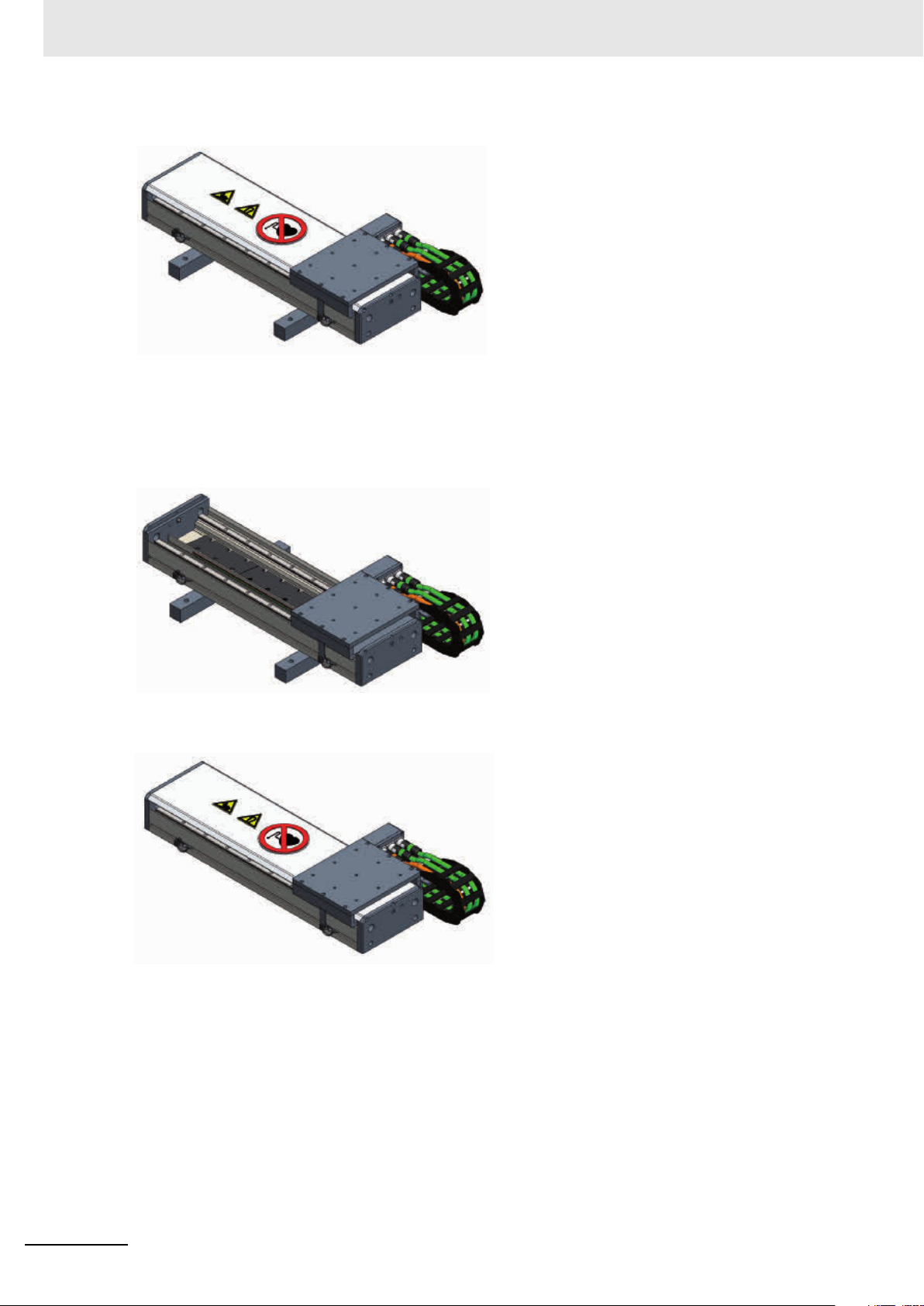

The cover of the wooden transportation box is fastened to the box itself using wood screws. All screws are indi-
cated by black arrow labels as shown below.
Inside the transportation box, the linear axis is mounted onto at least two blank aluminum bars. The standard slider
mounting drill pattern is used to attach the slider to these bars. Each aluminum bar is firmly attached to the bottom
of the box to securely fasten the slider during transportation.
Detach all the aluminum bars together with the slider from the transportation box by removing the nuts underneath
the wooden box.
Now you can place the linear slider on a solid surface outside the box. The next steps will show you how to remove
all the aluminum bars.
1-2-3 Handling
Please handle the linear axis carefully and safely. Treat the wrapping foil with care while
opening it. Do not cause scratches or cut cables by using cutting tools to open the foil.
It is forbidden to use the connector box as lifting handle. Lifting the slider by the cable chain
or even by the cables can cause malfunctioning.
A
luminum bars

1 ENGLISH
1 - 6 Accurax Linear Axis Installation Manual
Please, follow the next steps:
• Remove the cover of the slider. Remove the three M3 screws on each side from each front plate on the left and
right hand side of the slider.
• Sliders with a very short stroke, it may be necessary to also disassemble the mounting plate before you are able
to remove the cover.
• You can use the same pattern inside the slider to attach/detach all the aluminum bars as you use to install the
slider in your machine frame.
• Now assemble the slider with the cover and if possible wrap it in the transportation foil again in order to store for
a lengthy period before installation in the machine.

1 - 7
1 ENGLISH
Accurax Linear Axis Installation Manual
1-2 Transportation / Handling /
Storage
1
1-2-4 Storage
Make sure to prevent accidents and injuries using the following preventive measures before
storing the linear system:
• Mark the specific storage area as magnetically dangerous environment
• Keep the storage area clean from any ferromagnetic objects, especially tools or screws
• Inform all persons and workers with pacemakers or other sensitive body issues to keep
out of the storage area
• Only store the linear system on fully supported bases. To avoid any malfunction, keep
the system in storage until it is installed
Storage conditions (ambient conditions)
Item Value
Ambient storage temperature 10ºC to 40ºC
Ambient storage humidity 20% to 80%

1 ENGLISH
1 - 8 Accurax Linear Axis Installation Manual
1-3 Design and Customer Drawings
OMRON EUROPE B.V.’s R88L-EA-AF linear axis series consists of three sizes of base profile sections with alto-
gether seven different linear motor types. All of them can be ordered with strokes from 110 mm to 2126 mm.
Please see the following table for a comparison:
*1. 22 variants, stroke from 110 to 2126 mm, every 96 mm.
*2. 21 variants, stroke from 158 to 2078 mm, every 96 mm.
In case of repair or any other issues or problems with the linear axis it is important to contact your local OMRON
representative with the parameters of the product on hand.
For this purpose you will find a product identification label on the far left hand end of the base profile as seen from
in front of the linear axis with the cable chain between you and the axis.
Please, see the below picture to easily identify the tag:
Please have the following information on hand when you contact your OMRON representative:
Type, serial number and stroke
Please see the following example of information on the linear axis plate:
1-3-1 General Overview
Model Force
(Fc)
Peak force
(Fp)
Moving mass
(Mmov)
Table length
(TL)
Table width
(TW)
Width
(W)
Height
(H) Payload
R88L-EA-AF-0303*1 48 N 120 N 3.1 kg 160 mm 191 mm 168 mm 95 mm 5 kg
R88L-EA-AF-0306*2 96 N 240 N 3.9 kg 208 mm
R88L-EA-AF-0606*1 160 N 450 N 5.4 kg 208 mm
219 mm 194 mm 99 mm 15 kg
R88L-EA-AF-0609*2 240 N 675 N 6.7 kg 256 mm
R88L-EA-AF-0612*2 320 N 900 N 7.9 kg 304 mm
R88L-EA-AF-1112*1 608 N 1800 N 13.7 kg 304 mm 310 mm 280 mm 118 mm 35 kg
R88L-EA-AF-1115*1 760 N 2250 N 15.9 kg 352 mm
1-3-2 Product Tag

1 - 9
1 ENGLISH
Accurax Linear Axis Installation Manual
1-3 Design and Customer Draw-
ings
1
All acceleration/payload diagrams represent theoretical performance values and are evaluated based on peak and
constant forces combined with a specific payload reasonable for each particular slider size.

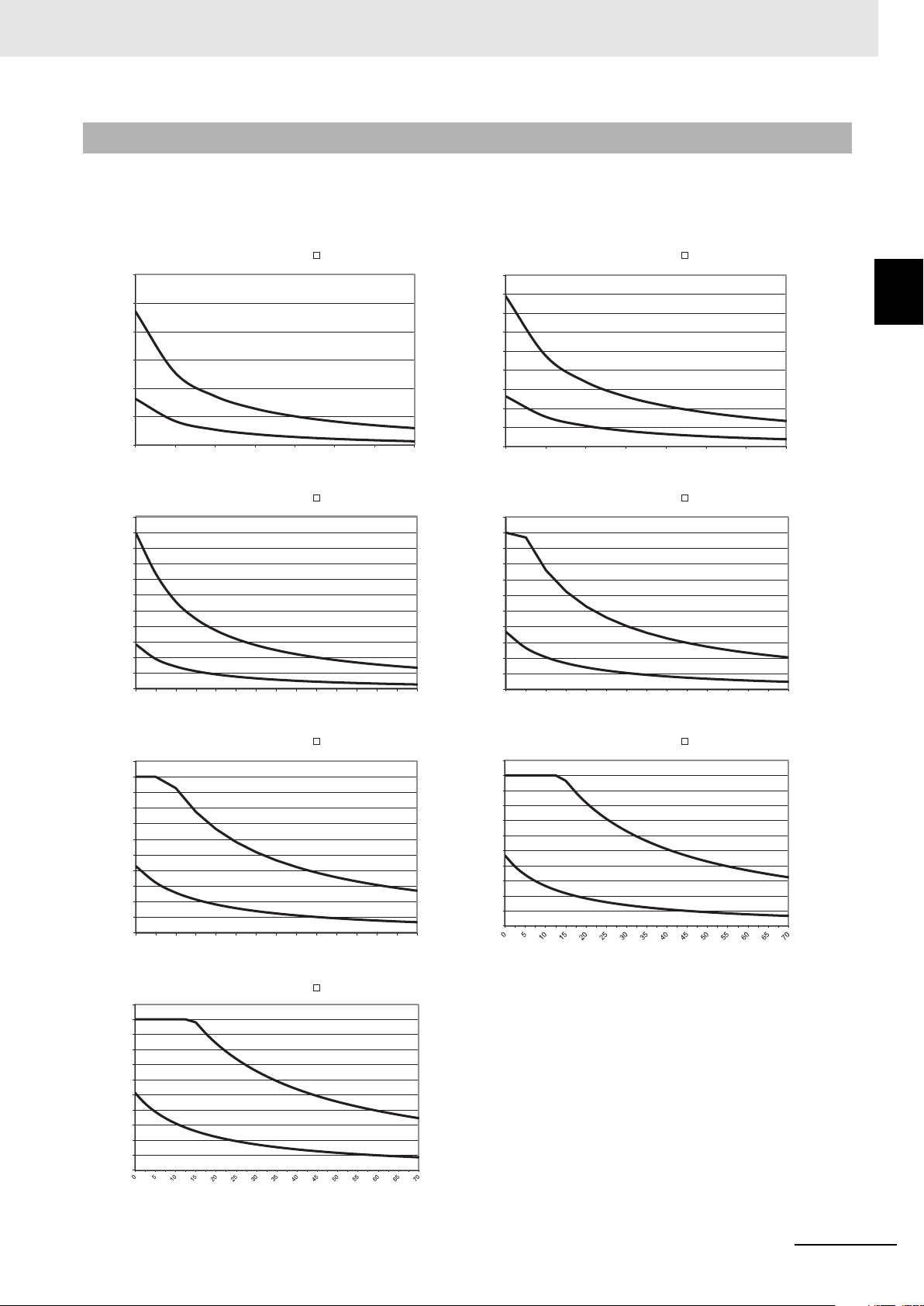

1-3-3 Acceleration / Payload Diagrams
0.0
5.0
10.0
15.0
20.0
25.0
30.0
0 2,5 5 7,5 10 12,5 15 17,5
Continuous operation
Peak operation
(Kg)
(m/s²)
R88L-EA-AF-0303-
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
0 2,5 5 7,5 10 12,5 15 17,5
R88L-EA-AF-0306-
(Kg)
(m/s²)
Peak operation
Continuous operation
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
0 2,5 5 7,5 10 12,5 15 17,5 20 22,5 25 27,5 30 32,5 35
R88L-EA-AF-0606-
(Kg)
(m/s²)
Peak operation
Continuous operation
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
0 2,5 5 7,5 10 12,5 15 17,5 20 22,5 25 27,5 30 32,5 35
R88L-EA-AF-0609-
(Kg)
Peak operation
Continuous operation
(m/s²)
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
0 2,5 5 7,5 10 12,5 15 17,5 20 22,5 25 27,5 30 32,5 35
Peak operation
Continuous operation
(Kg)
(m/s²)
R88L-EA-AF-0612-
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
R88L-EA-AF-1112-
Continuous operation
Peak operation
(m/s²)
(Kg)
0.0
5.0
10.0
15.0
20.0
25.0
30.0
35.0
40.0
45.0
50.0
55.0
(Kg)
(m/s²)
R88L-EA-AF-1115-
Peak operation
Continuous operation

1 ENGLISH
1 - 10 Accurax Linear Axis Installation Manual

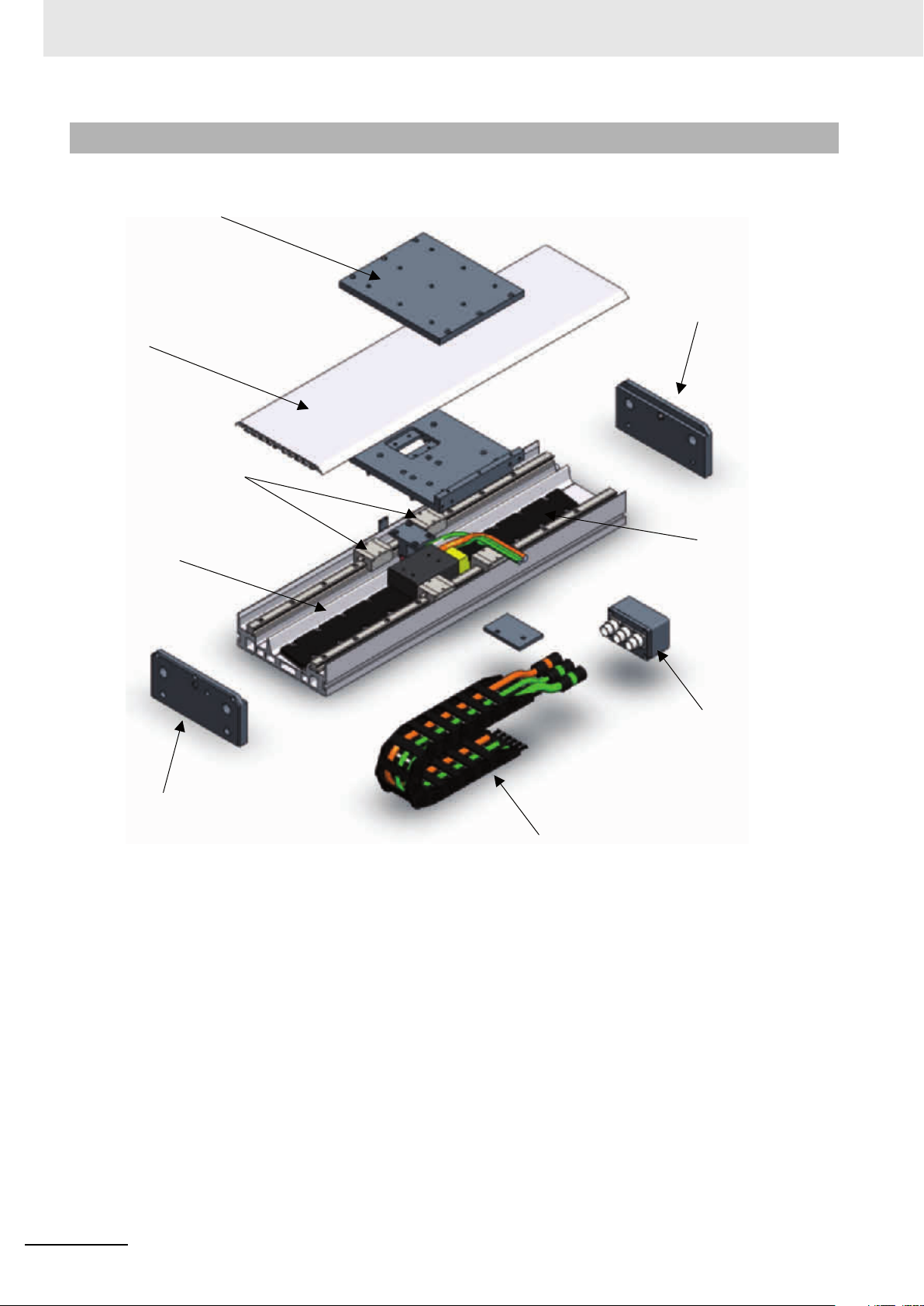

1-3-4 Part Names
Mounting plate
Cover
End plate
End plate
Connector box
Cable chain with cables
Magnet track
Measurement
tape
Recirculating
ball bearings

1 - 11
1 ENGLISH
Accurax Linear Axis Installation Manual
1-3 Design and Customer Draw-
ings
1

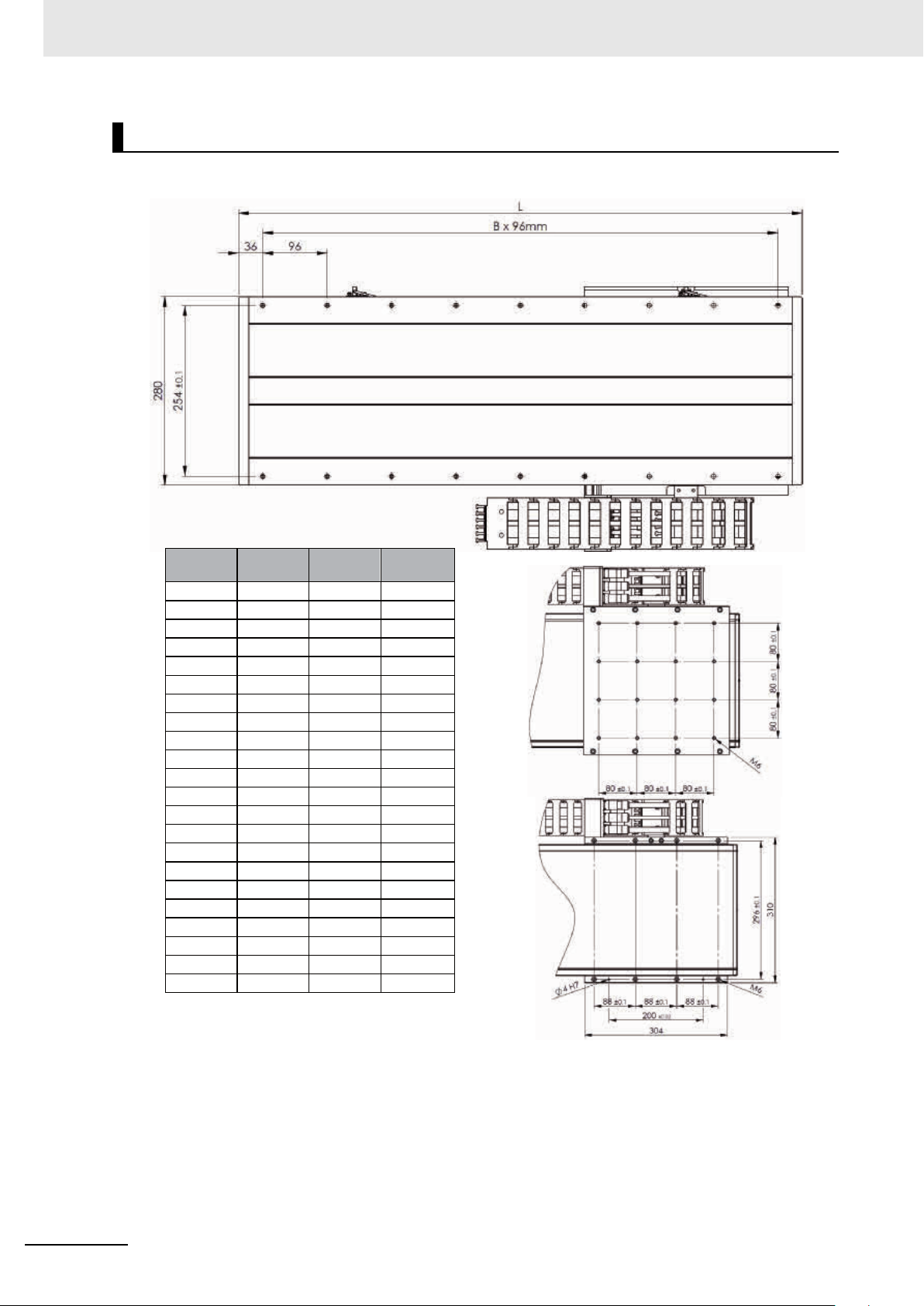

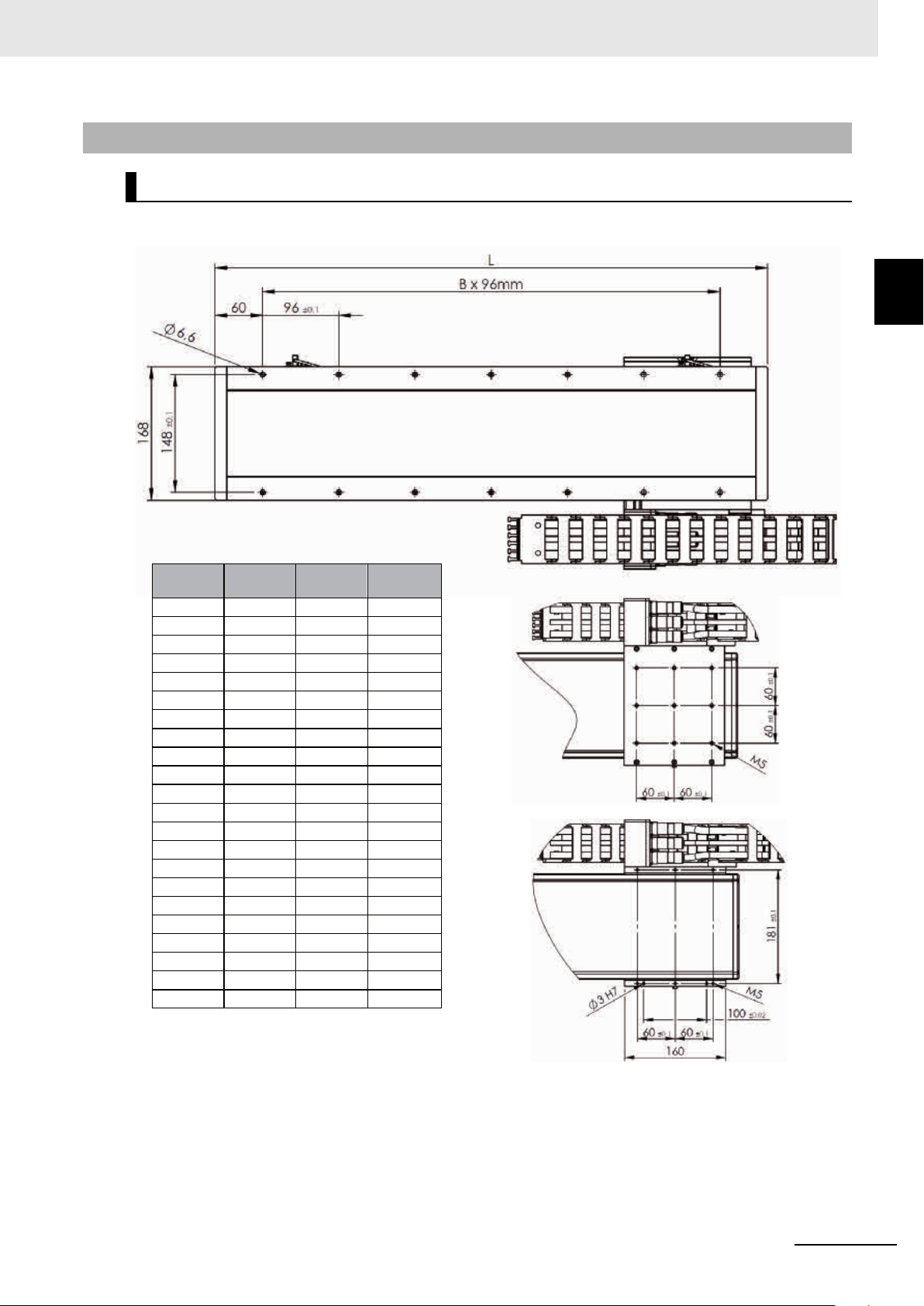

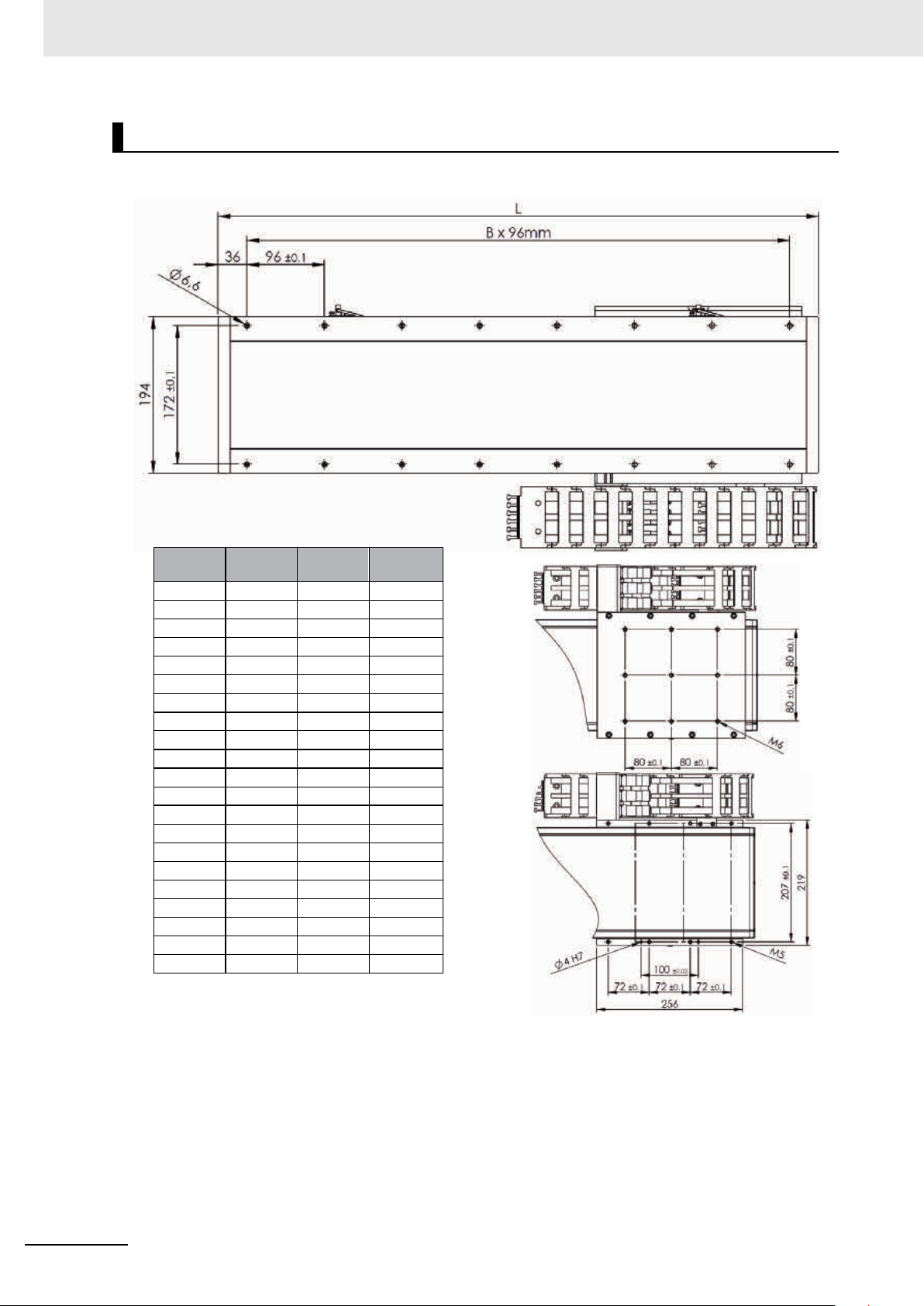

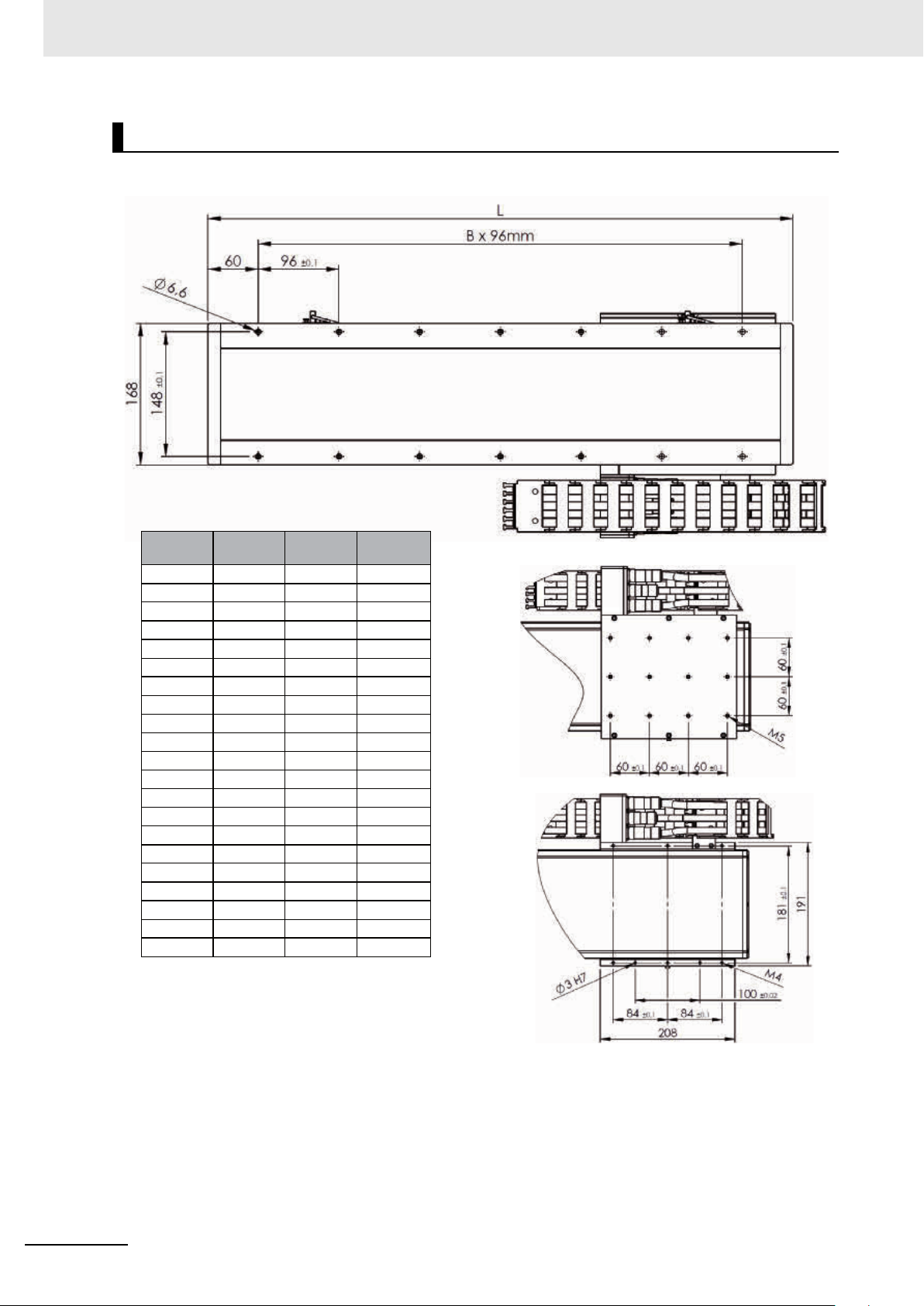

1-3-5 Design Overview
R88L-EC-AF-0303
Stroke L B Number
of screws
110 312 3 8
206 408 4 10
302 504 5 12
398 600 6 14
494
696
7
16
590 792 8 18
686 888 9 20
782 984 10 22
878 1080 11 24
974 1176 12 26
1070 1272 13 28
1166 1368 14 30
1262 1464 15 32
1358 1560 16 34
1454 1656 17 36
1550 1752 18 38
1646 1848 19 40
1742 1944 20 42
1838 2040 21 44
1934 2136 22 46
2030 2232 23 48
2126 2328 24 50

1 ENGLISH
1 - 12 Accurax Linear Axis Installation Manual
R88L-EC-AF-0306
Stroke L B Number
of screws
158 408 4 10
254 504 5 12
350 600 6 14
446 696 7 16
542 792 8 18
638 888 9 20
734 984 10 22
830 1080 11 24
926 1176 12 26
1022 1272 13 28
1118 1368 14 30
1214 1464 15 32
1310 1560 16 34
1406 1656 17 36
1502 1752 18 38
1598 1848 19 40
1694 1944 20 42
1790 2040 21 44
1886 2136 22 46
1982 2232 23 48
2078 2328 24 50

1 - 13
1 ENGLISH
Accurax Linear Axis Installation Manual
1-3 Design and Customer Draw-
ings
1
R88L-EC-AF-0606
Stroke L B Number
of screws
110 360 4 10
206 456 5 12
302 552 6 14
398 648 7 16
494 744 8 18
590 840 9 20
686 936 10 22
782 1032 11 24
878 1128 12 26
974 1224 13 28
1070 1320 14 30
1166 1416 15 32
1262 1512 16 34
1358 1608 17 36
1454 1704 18 38
1550 1800 19 40
1646 1896 20 42
1742 1992 21 44
1838 2088 22 46
1934 2184 23 48
2030 2280 24 50
2126 2376 25 52

1 ENGLISH
1 - 14 Accurax Linear Axis Installation Manual
R88L-EC-AF-0609
Stroke L B Number
of screws
158 456 4 10
254 552 5 12
350 648 6 14
446 744 7 16
542 840 8 18
638 936 9 20
734 1032 10 22
830 1128 11 24
926 1224 12 26
1022 1320 13 28
1118 1416 14 30
1214 1512 15 32
1310 1608 16 34
1406 1704 17 36
1502 1800 18 38
1598 1896 19 40
1694 1992 20 42
1790 2088 21 44
1886 2184 22 46
1982 2280 23 48
2078 2376 24 50

1 - 15
1 ENGLISH
Accurax Linear Axis Installation Manual
1-3 Design and Customer Draw-
ings
1
R88L-EC-AF-0612
Stroke
L
B
Number
of screws
110 456 4 10
206 552 5 12
302 648 6 14
398 744 7 16
494 840 8 18
590 936 9 20
686 1032 10 22
782 1128 11 24
878 1224 12 26
974 1320 13 28
1070 1416 14 30
1166 1512 15 32
1262 1608 16 34
1358 1704 17 36
1454 1800 18 38
1550 1896 19 40
1646 1992 20 42
1742 2088 21 44
1838 2184 22 46
1934 2280 23 48
2030 2376 24 50

1 ENGLISH
1 - 16 Accurax Linear Axis Installation Manual
R88L-EC-AF-1112
Stroke L B Number
of screws
110 456 4 10
206 552 5 12
302 648 6 14
398 744 7 16
494 840 8 18
590 936 9 20
686 1032 10 22
782 1128 11 24
878 1224 12 26
974 1320 13 28
1070 1416 14 30
1166 1512 15 32
1262 1608 16 34
1358 1704 17 36
1454 1800 18 38
1550 1896 19 40
1646 1992 20 42
1742 2088 21 44
1838 2184 22 46
1934 2280 23 48
2030 2376 24 50
2126 2442 25 52
