One Remote RMB4 User manual

35104403
u
1
uk
OneRemote RMB4
Converter for Beo4
Type 35104403
Operates
Panasonic TV
All models
2012 models and earlier
UserManual

www.oneremote.dk
Page 1
List of Contents
Getting Started………. ............................................................................................ page 2
The OneRemote Converter for Beo4 ..................................................................... page 3
Controlling with OneRemote. ............................................................................... page 4
Coloured Function Keys. ....................................................................................... page 4
Go, Joystick or Stop Shifted Operation. ................................................................. page 4
Control Table for Beo4 with a O Key or Beo4 Navi in mode 2. ........................... page 5
Control Table for Beo4 without a O Key. Beo4 Navi in mode 1 or 3. ................... page 6
Programme Stepping, Up/ Down Manoeuvring in menus. ...................................... page 7
Setting the Zap Mode Option ............................................................................... page 7
Setting the OneRemote Volume Option. ............................................................... page 8

www.oneremote.dk
Page 2
Getting Started
With the OneRemote converter installed in your Bang & Olufsen Beo4 remote control terminal you may
control your Panasonic TV with this terminal. This guide explains how.

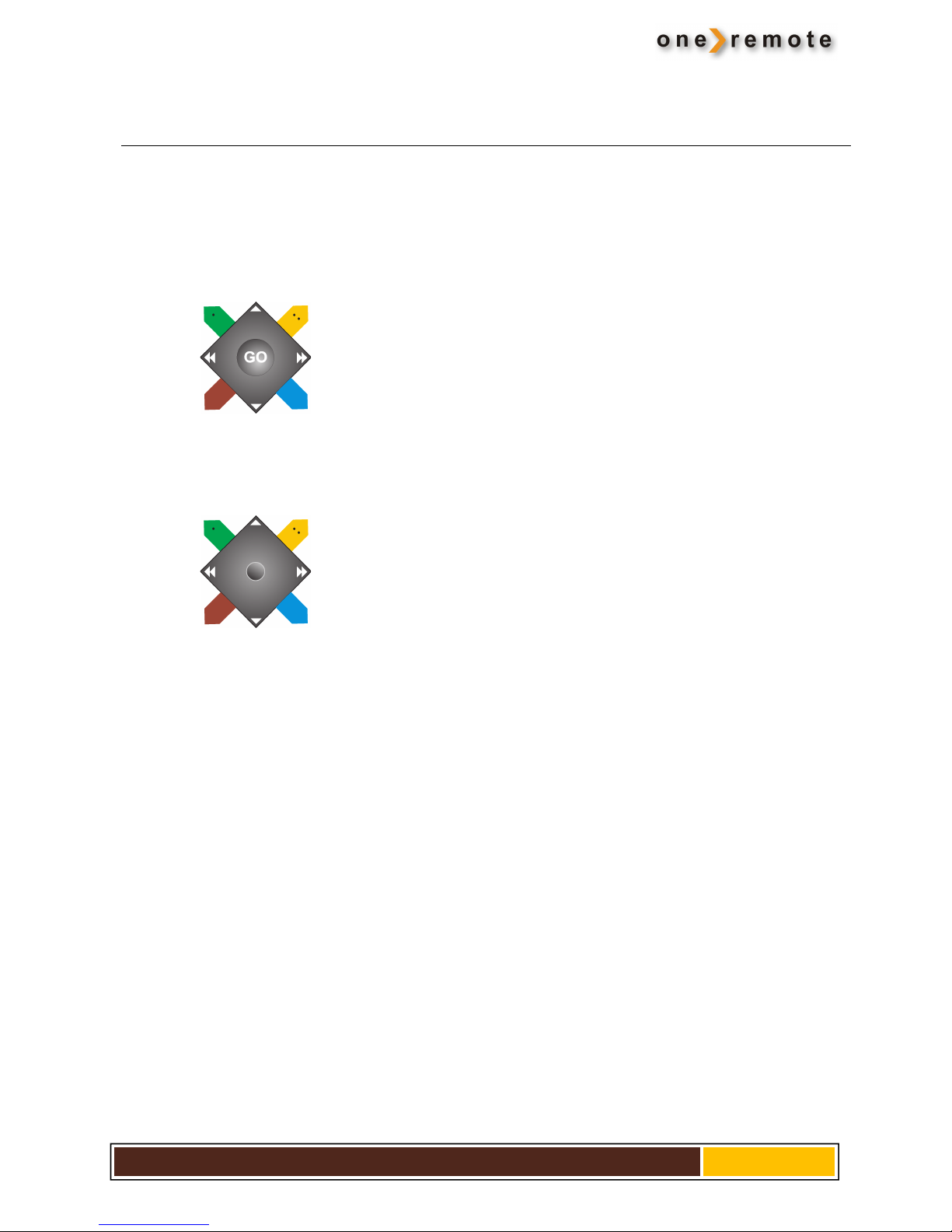

Basically there are two types of Beo4. OneRemote operation of your TV depends on the Beo4 model and
mode it has been set to.
Previous Beo4
model
.
Sold
until
2010
.
The center button is O that simply sends the p
command used previously.
If your OneRemote modified Beo4 is of this type.
Refer to the translation table on page 5
how to operate your Panasonic TV with this Beo4.
Beo4 Navi model
.
Sold from 2010.
The center button is changed to a joystick type button that can
be pushed forward, backwards and to the sides. This adds new
operation possibilities.
Mode 1 &3
To make use of these new buttons, the Beo4 must be set in
mode 1 or 3. Refer to the Beo4 user manual of how to.
Refer to the translation table on page 6
how to operate your Panasonic TV with this Beo4 in
mode 1 or 3.
Mode 2
If the Beo4 Navi is in its default mode 2, it will operate as
previous models.
Refer to the translation table on page 5
how to operate your Panasonic TV with this Beo4 in mode 2.
If the OneRemote converter has not yet been optimized for your setup, you might want to refer to the
installation section below about the initial setup and option programming. No programming is needed during
everyday use.
The OneRemote converter installed in your Beo4 remote control may be used in any Beo4 generation, in the
Beo4 Navi with extra functionality.
To get the most of your modified Beo4 the OneRemote converter must be programmed according to the Beo4
model and the equipment setup that your TV is a part of. Refer to page 5 and onwards for the initial
programming.

www.oneremote.dk
Page 3
The OneRemote Converter for the Beo4 Remote Control
The OneRemote converter is a small microcomputer module specifically designed to be installed in a Bang & Olufsen
Beo4 remote control terminal.
The microcomputer is converting commands meant for Bang & Olufsen equipment to commands for third party
equipment of various types.
Each OneRemote converter type is programmed to control a specific product like an Apple iPod docking station, a flat
panel TV, a curtain controller etc.

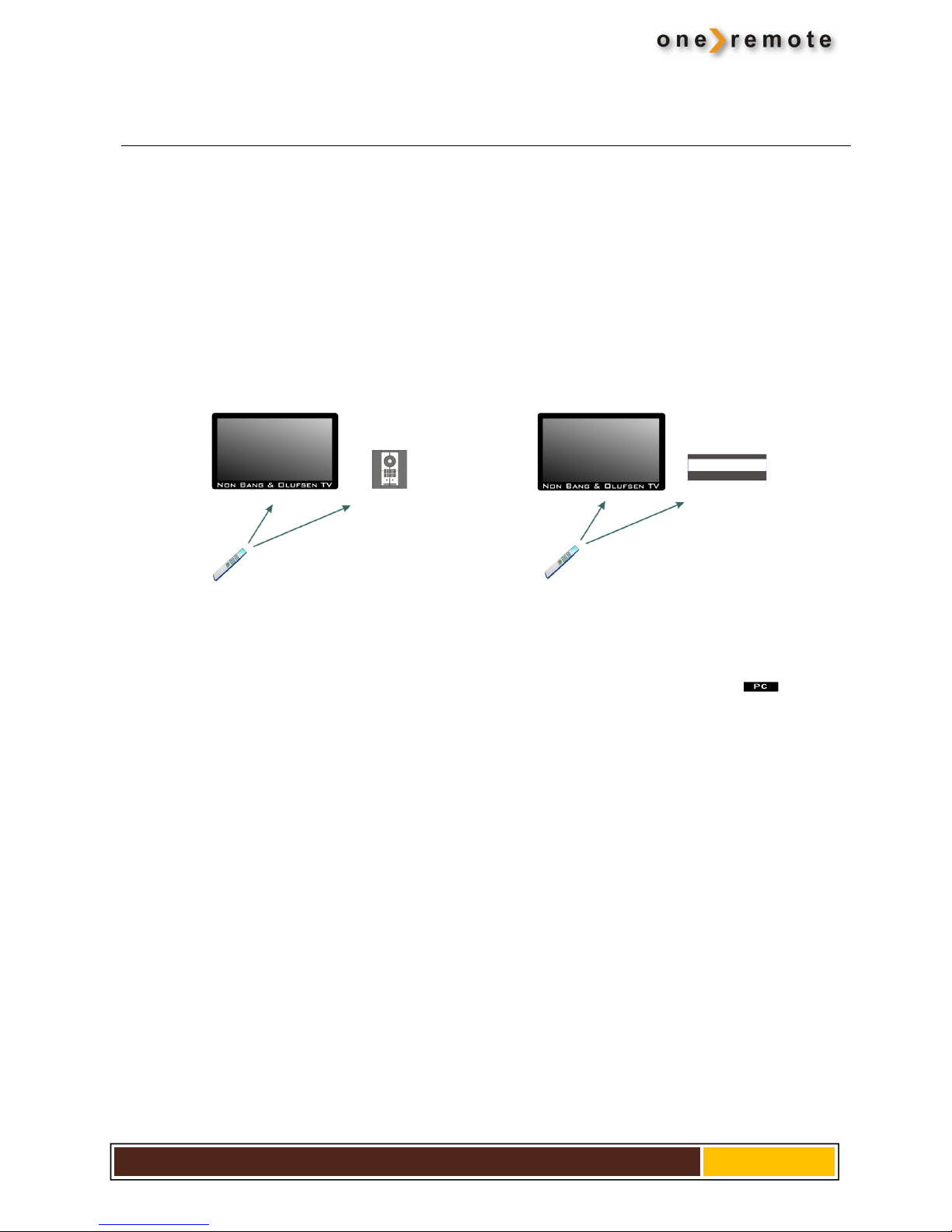

The converter enables the Beo4 to control a third party device, while still being able to control any other Bang & Olufsen
product.
With a Bang & Olufsen audio master in the room it may be used for handling the TV sound. Speakers connected to an audio master are usually of a
much better quality than the speakers in a flat panel TV. In a B&O link room setup with BeoLink Active you may also use the active speakers to improve
sound from most TVs.
Only a simple audio cable is needed between the TV and the audio master. See the option programming section about B and modes on
page 9.

www.oneremote.dk
Page 4
Controlling with OneRemote
Controlling a nonB&O TV using the OneRemote RMB4 modified Beo4 requires the user to be familiar with the original
remote control as described in the TV’s user manual.
A Beo4 remote control is not equipped with as many keys as found in most other remotes. But by combining specific key
entries on the OneRemote RMB4 a suitable control layout has been developed.
The Beo4 Navi model introduces new keys, making it easier to create a control layout closer to the TV’s original one. Thus
there are two different control layouts for the OneRemote modified Beo4. The OneRemote converter will automatically
detect when it is operating in a Beo4 Navi in mode 1 or 3, and switch operating table.
Coloured Function Keys
 when Beo4 is NOT in mode 1 or 3 (Navi)
If the Beo4 is not a Navi in mode 1 or 3, there is less buttons to operate with.
To ease the access to more important control functions the control priority for the coloured function keys has been
changed to a lower level, i.e. a level where one command requires dual successive key entries. Thus an original “colour”
command requires the key to be pressed prior to the coloured key itself. The key has been “shifted” with a
This change of priority is used in all modified Beo4 except for the Beo4 Navi, where it is not necessary.
New functions have been assigned to the coloured keys in the direct mode. Most often as follows:
Q
Guide, EPG or similar.
E
Back, Backup, Return or similar.
WR
Programme zapping. P+/ P ,
Channel up/ down or CH+/ CH.
When in Beo4 Navi mode, the coloured keys are not shifted.
Refer to the conversion tables on page 5 and 6.
GO, Joystick or STOP Shifted Controls
Some of the OneRemote RMB4 keys are found in two or three control sequences and shifted by pressing a , or
qkey prior to the key itself.
Keys that have been assigned secondary functions are listed in the control tables on page 7 and 8.

www.oneremote.dk
Page 5

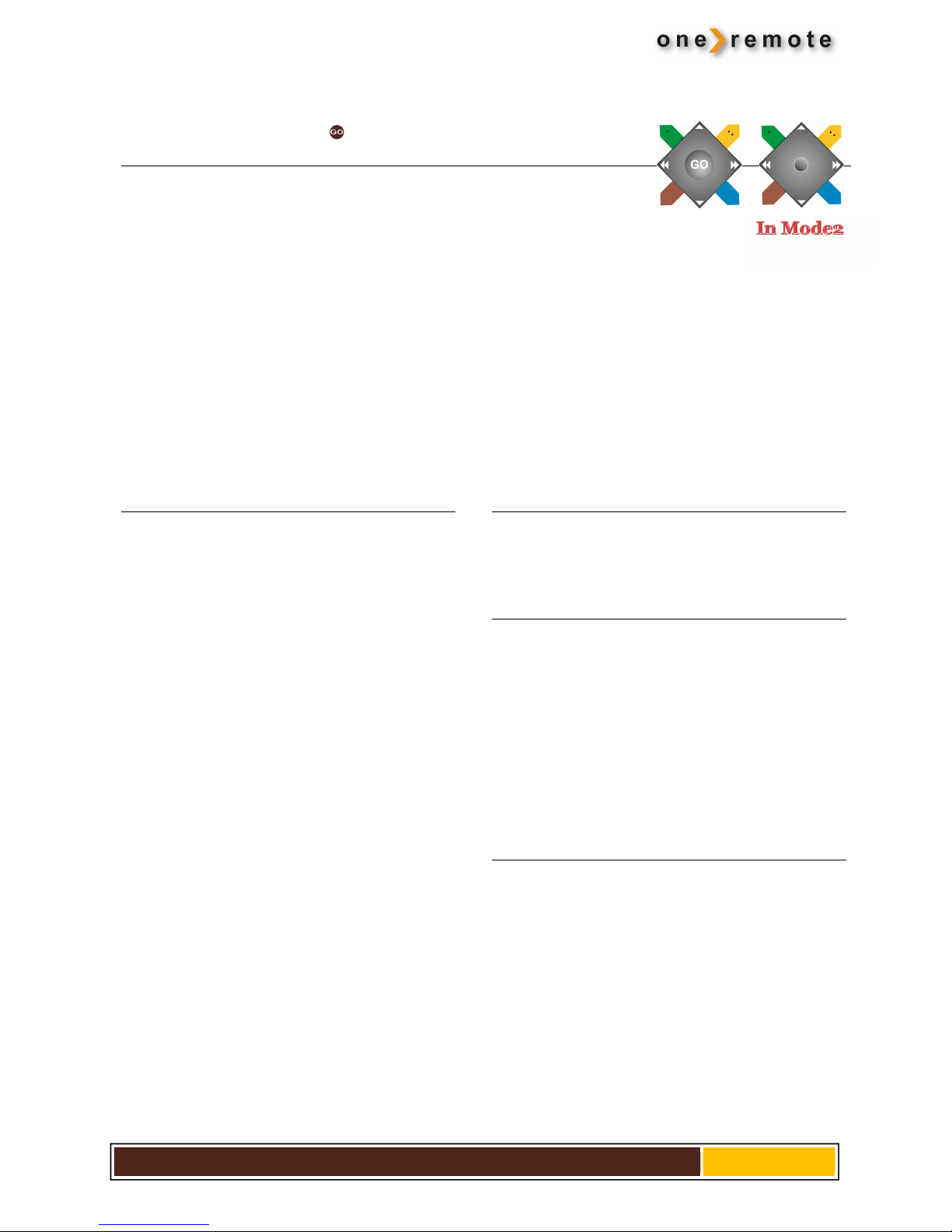

Control Table for Beo4 with a Key
or Beo4 Navi in mode 2.
Everyday Control
Text TV Control
t Turns on the TV
w Turns off the TV
T/ v AV – sources
f/ s TV - sources
OO OK
W*1*2 Prog +
R*1*2 Prog -
Q*1*2 Guide
E*1*2 Back/ return
m Menu
om Mediaplayer
O1 Last view
O2 Viera Tools
O3 Option
*1 The up/ down arrow controls may be exchanged with the blue and
yellow keys. See page 6.
*2 As the direct function of the coloured function keys has been
assigned to other functions, these have to be preceded with a oto
retrieve the actual coloured function.
oQ Green function
oW Yellow function
oE Red function
oRBlue function
n
Text TV On/ Mix
t Text TV Off
Playback Controls
o Play press 1 sec.
o 0 Play
qq Stop
oq Pause
oA/S Rew/ FF
oD/F Previous / next
o8 Record
Special Controls
O4 Info
O5 STTL
O6 Viera Link
O7 Viera Cast/ Internet
O9 3D
qe Aspect
e Exit
oe Surround

www.oneremote.dk
Page 6
Control Table for Beo4 with a Joystick type without a Key and in mode 1 or 3
This table shows the converted keys for a OneRemote RMB4 converter installed in a
Beo4 Navi type remote control. Beo4 Navi has a joystick (=) instead of the O key.
This joystik adds 8 extra control possibilities, as it can be moved forward, backwards and
to the sides.
In the table these functions are shown like this:)
Joystick operations:
= Pressing the Joystick down once.
== Pressing the Joystick down twice.
/ Pushing the Joystick upwards.
If your Beo4 has aOkey, refer to the table on page 5.
If your Beo4 is a Navi type that has not been enabled (mode2), refer to the table on page 5.
Everyday Control
Text TV Control
t Turns on the TV
w Turns off the TV
T/ v AV – sources
f/ s TV - sources
== OK
DF Program + / -
AGuide
SOption
=1 Last view
=2 Viera Tool
=3 Option
Return - short press.
Exit - long press
=Exit
m Menu
=m Mediaplayer
W Yellow key
R Blue key
Q Green key
ERed key
&/ Navi keys are used for manoeuvring in
() on-screen menus.
n
Text TV On/Mix
t Text TV Off
Playback Controls
p Play
qq Stop
=q Pause
=A/S Rew/ FF
=D/F Previous / next
=8 Record
Special Controls
=4 Info
=5 STTL
=6 Viera Link
=7 Viera Cast/ Internet
=9 3D
qe Aspect
e Exit
=e Surround

www.oneremote.dk
Page 7
Programme Stepping, Up/ Down Manoeuvring in Menus.
 when Beo4 is NOT in mode 1 or 3 (Navi)
Most set top boxes and TVs have 4 arrow keys for manoeuvring in onscreen menus, up, down, left and right. In addition
to these keys they are also equipped with separate programme stepping keys for zapping through the programmes.
Often these keys are named P+, P, CH+ or CH. This is also the case for a Panasonic TV.
OneRemote convertes often use the Rand the W keys for programme zapping. This way the four up, down,
left and right keys are free for manoeuvring in onscreen menus.
Setting the Zap Mode Option
 when Beo4 is NOT in mode 1 or 3 (Navi)
If the OneRemote converter is installed in a Beo4 with aOkey, the keysWand Rare used for programme
stepping. The Dand Fkeys are used to manoeuvre up and down in on-screen menus.
This is the default factory setting, as described above.
If you prefer this control layout changed enter the options listed below.
Selecting the Zap Mode Keys:
Enter one of these 2 option sequences within 10 seconds to set the preferred Programme Zap mode keys.
mq90wThe
D and F keys are used for
programme zapping.
mq91wThe W & R keys are used for
programme zapping.

www.oneremote.dk
Page 8
Setting the OneRemote Volume Option
When the t key is pressed, the Panasonic TV is powered up automatically
and turned on in the TV mode.
If a Bang & Olufsen audio master is in the room, it is possible to use it for
handling the sound. Below options determine how the One Remote RMB4
handles volume in the TV mode.
This option also allows for the power up other B&O devices than the TV, when
t is selected. The audio signal from the TV is wired to the audio master
using a Line to Datalink cable. Moving the TV sound to the speakers of the
audio master improves the sound quality significantly.
Volume O
ptions
Enter one of these option sequences
within 10 seconds:
Sound D
estination
Alternative speakers.
Volume C
ontrol
Volume data format emitted
from Beo4.
mq00w
Volume disabled
No volume control
mq01w
The
Panasonic
TV
Panasonic
format
mq02w
B
*1
B
in B&O format
mq03w
*2
c
in
B&O format
*1 When tis pressed the Beo4 it sends a Power On command to the TV. At the same time the Beo4 sends a B command to a Bang & Olufsen
audio master. Until another source is selected, volume commands will be directed to the B&O audio master.
*2 When tis pressed the Beo4 sends a Power On command to the TV. At the same the Beo4 sends a command to a Bang & Olufsen
system. Until another source is selected, volume commands will be directed to the B&O system. Via a BeoLink Active sound may be moved from the TV
to PowerLink speakers.
