100BASE-TX to 100BASE-FX
Media Converters Plus
CUSTOMER SUPPORT INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax [phone]
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: [email protected]
LH1703A-SC-US LH1703A-ST-UK LH1704A-SC-JP
LH1703A-SC-EU LH1703A-ST-AU LH1705A-SC-US
LH1703A-SC-UK LH1703A-ST-JP LH1705A-SC-EU
LH1703A-SC-AU LH1704A-SC-US LH1705A-SC-UK
LH1703A-SC-JP LH1704A-SC-EU LH1705A-SC-AU
LH1703A-ST-US LH1704A-SC-UK LH1705A-SC-JP
LH1703A-ST-EU LH1704A-SC-AU

1
FCC AND IC RFI STATEMENTS
FEDERAL COMMUNICATIONS COMMISSION
AND
INDUSTRY CANADA
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio-frequency energy,
and if not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication.
It has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC rules,
which are designed to provide reasonable protection against such interference
when the equipment is operated in a commercial environment. Operation of
this equipment in a residential area is likely to cause interference, in which case
the user at his own expense will be required to take whatever measures may be
necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
This digital apparatus does not exceed the Class A limits for radio noise emission from
digital apparatus set out in the Radio Interference Regulation of Industry Canada.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de classe A prescrites dans le Règlement sur le
brouillage radioélectrique publié par Industrie Canada.

2
100BASE-TX TO 100BASE-FX MEDIA CONVERTERS PLUS
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes
de que el aparato eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberán ser guardadas para
referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de
operación deben ser respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo,
cerca de la tina de baño, lavabo, sótano mojado o cerca de una alberca,
etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales
que sean recomendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea
recomendado por el fabricante.
8. Servicio—El usuario no debe intentar dar servicio al equipo eléctrico más
allá a lo descrito en las instrucciones de operación. Todo otro servicio
deberá ser referido a personal de servicio calificado.
9. El aparato eléctrico debe ser situado de tal manera que su posición no
interfiera su uso. La colocación del aparato eléctrico sobre una cama,
sofá, alfombra o superficie similar puede bloquea la ventilación, no se
debe colocar en libreros o gabinetes que impidan el flujo de aire por los
orificios de ventilación.

3
NOM STATEMENT
10. El equipo eléctrico deber ser situado fuera del alcance de fuentes de calor
como radiadores, registros de calor, estufas u otros aparatos (incluyendo
amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado a una fuente de poder sólo del
tipo descrito en el instructivo de operación, o como se indique en el
aparato.
12. Precaución debe ser tomada de tal manera que la tierra fisica y la
polarización del equipo no sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no
sean pisados ni pellizcados por objetos colocados sobre o contra ellos,
poniendo particular atención a los contactos y receptáculos donde salen
del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las
recomendaciones del fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las
lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no
sea usado por un largo periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean
derramados sobre la cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del
aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en
su desempeño; o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

4
100BASE-TX TO 100BASE-FX MEDIA CONVERTERS PLUS
TRADEMARKS USED IN THIS MANUAL
ST is a registered trademark of AT&T.
Any other trademarks mentioned in this manual are
acknowledged to be the property of the trademark owners.

5
CONTENTS
Contents
Chapter Page
1. Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2. Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.1 Description . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.2 What the Package Includes . . . . . . . . . . . . 11
3. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.1 MDI/MDI-X Connection . . . . . . . . . . . . . 12
3.2 DIP-Switch Setting . . . . . . . . . . . . . . . . . . . 13

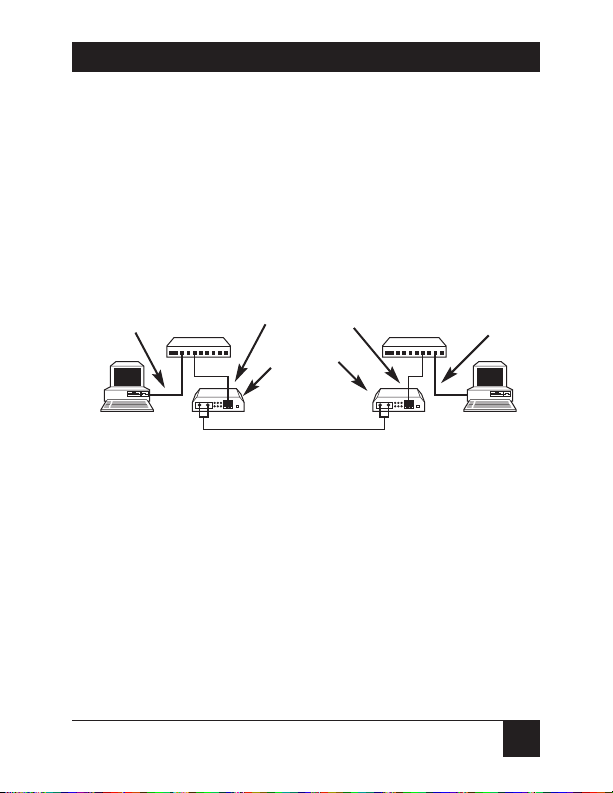

3.3 Typical Applications . . . . . . . . . . . . . . . . . 15
3.4 Installing the Converter. . . . . . . . . . . . . . . 17
4. LED Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . 19
5. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . 21
5.1 Calling Black Box. . . . . . . . . . . . . . . . . . . . 21
5.2 Shipping and Packaging . . . . . . . . . . . . . . 22

6
100BASE-TX TO 100BASE-FX MEDIA CONVERTERS PLUS
1. Specifications
NOTE
In this manual (except where noted otherwise):
• LH1703A-ST represents models LH1703A-ST-US,
LH1703A-ST-EU, LH1703A-ST-UK, LH1703A-ST-AU, and
LH1703A-ST-JP.
• LH1703A-SC represents models LH1703A-SC-US,
LH1703A-SC-EU, LH1703A-SC-UK, LH1703A-SC-AU,
and LH1703A-SC-JP.
• LH1704A-SC represents models LH1704A-SC-US,
LH1704A-SC-EU, LH1704A-SC-UK, LH1704A-SC-AU,
and LH1704A-SC-JP.
• LH1705A-SC represents models LH1705A-SC-US,
LH1705A-SC-EU, LH1705A-SC-UK, LH1705A-SC-AU,
and LH1705A-SC-JP.
Operation: Half or full duplex
Standards: IEEE 802.3u 100BASE-TX/100BASE-FX
Maximum Distance: Twisted pair: 328 ft. (100 m);
Fiber: LH1703A-ST, LH1703A-SC: 1.2 mi. (2 km)
over multimode fiberoptic cable;
LH1704A-SC: 9.3 mi. (15 km) over single-mode
fiberoptic cable;
LH1705A-SC: 18.6 mi. (30 km) over single-mode
fiberoptic cable

7
CHAPTER 1: Specifications
User Controls: (1) Button for MDI/MDI-X connection;
(1) DIP switch for Link Fault Signaling (LFS) and
Loopback Test (LBK)
Connectors: LH1703A-ST: (1) RJ-45, (2) ST®,
(1) barrel connector for Power;
LH1703A-SC, LH1704A-SC, LH1705A-SC:
(1) RJ-45, (2) SC, (1) barrel connector for Power
Indicators: (7) LEDs: (2) Link, (2) Receive, (1) Full
Duplex, (1) Link Fault Signaling, (1) Power
Temperature Tolerance:
Operating: 32 to 158°F (0 to 70°C);
Storage: -4 to +158°F (-20 to +70°C)
Relative Humidity:
Operating: Up to 80%, noncondensing;
Storage: Up to 90%, noncondensing

8
100BASE-TX TO 100BASE-FX MEDIA CONVERTERS PLUS
Power: All models: External power supply:
Output: 12 VDC @ 0.8 A;
LH1703A-ST-US, LH1703A-SC-US, LH1704A-SC-US,
LH1705A-SC-US: Input: 120 VAC, 60 Hz (2-prong);
LH1703A-ST-EU, LH1703A-SC-EU, LH1704A-SC-EU,
LH1705A-SC--EU: Input: 230 VAC, 50 Hz (2-prong);
LH1703A-ST-UK, LH1703A-SC-UK, LH1704A-SC-UK,
LH1705A-SC--UK: Input: 230 VAC, 50 Hz (3-prong);
LH1703A-ST-AU, LH1703A-SC-AU, LH1704A-SC-AU,
LH1705A-SC-AU: Input: 240 VAC, 50 Hz, (3-prong);
LH1703A-ST-JP, LH1703A-SC-JP, LH1704A-SC-JP,
LH1705A-SC--JP: Input: 100 VAC, 50/60 Hz (2-prong)
Size: LH1703A-ST: 0.9"H x 2.9"W x 4.9"D
(2.3 x 7.4 x 12.4 cm);
LH1703A-SC, LH1704A-SC, LH1705A-SC:
0.9"H x 2.9"W x 4.8"D (2.3 x 7.4 x 12.2 cm)
Weight: 0.3 lb. (0.1 kg)

9
CHAPTER 2: Introduction
2. Introduction
2.1 Description
The 100BASE-TX to 100BASE-FX Media Converter Plus
connects your twisted-pair Fast Ethernet to multimode
or single-mode fiber without adding to your repeater
count.
These converters are unique because they support Link
Fault Signaling (LFS) and Loopback (LBK). Link Fault
Signaling allows constant connectivity to the network by
diverting data transmission to a redundant link when a
breakdown or error exists anywhere along the fiberoptic
link. Loopback gives a network administrator instant
connectivity information from either the local or remote
side.
Available models include:
• LH1703A-ST: This model extends your Fast
Ethernet network up to 1.2 mi. (2 km) over
820-nm multimode fiberoptic cable via ST
connectors.

10
100BASE-TX TO 100BASE-FX MEDIA CONVERTERS PLUS
• LH1703A-SC: Choose this model to extend your
Fast Ethernet network up to 1.2 mi. (2 km) over
820-nm multimode fiberoptic cable using SC
connectors.
• LH1704A-SC: Use this converter to extend your
100-Mbps Ethernet network up to 9.3 mi. (15 km)
over 1310-nm single-mode fiberoptic cable via SC
connectors.
• LH1705A-SC: This converter is the same as the
LH1704A-SC, but it extends your network up to
twice the distance (18.6 mi. [30 km]).
Figure 2-1. 100BASE-TX to 100BASE-FX Media Converter Plus
with ST connectors.

11
CHAPTER 2: Introduction
Figure 2-2. 100BASE-TX to 100BASE-FX Media Converter Plus
with SC connectors.
2.2 What the Package Includes
• (1) 100BASE-TX to 100BASE-FX Media Converter
Plus
• (1) AC adapter
• (4) Non-skid rubber feet
• (2) Mounting screws
• This users’ manual
If anything is missing or damaged, please contact Black
Box at 724-746-5500.

12
100BASE-TX TO 100BASE-FX MEDIA CONVERTERS PLUS
3. Installation
3.1 MDI/MDI-X Connection
Before plugging in and installing your media converter,
you’ll need to set the MDI/MDI-X button. This button
selects whether you need to use crossover or straight-
through twisted-pair cabling to connect the RJ-45 ports
on the 100BASE-TX portion of your network. (See
Figure 3-1.) Simply set the button as described in
Table 3-1.
Figure 3-1. MDI/MDI-X button.
NOTE
When the button is pressed in, MDI-X is selected. When the
button is out, MDI is selected.
MDI/MDI-X button

13
Table 3-1. Crossover selection.
Connected Device Cable Configuration Setting
Hub or switch Straight-through MDI-X
Hub or switch Crossover MDI
DTE (NIC) Straight-through MDI
DTE (NIC) Crossover MDI-X
3.2 DIP-Switch Setting
Once you’ve set the MDI/MDI-X button, you’ll need to
set the LFS/LBK switch. Use this ON/OFF DIP switch to
enable or disable Link Fault Signaling or Loopback Test.
See Figure 3-2 and Table 3-2.
Figure 3-2. Location of LFS/LBK switch on the side panel.
CHAPTER 3: Installation
LFS/LBK switch

Table 3-2. LFS/LBK DIP-switch setting.
Switch Setting Description
Link Fault Signaling (LFS) ON Enables Link Fault Signaling mode. Set
the LFS switch ON when a redundant link
configuration exists.
OFF Disables Link Fault Signaling mode. Set
the LFS switch OFF when a redundant
link configuration does not exist.
Loopback (LBK) ON Enables Loopback Test mode. Set the
LFS switch ON to determine if there are
any connectivity problems in the cable.
OFF Disables Loopback Test mode. Set the
LFS switch OFF when connectivity
problems do not exist.
14
100BASE-TX TO 100BASE-FX MEDIA CONVERTERS PLUS

15
3.3 Typical Applications
Once you’ve set the MDI/MDI-X button and the
LFS/LBK DIP switch, you’ll need to determine which
application you’ll use. See Figures 3-3 through 3-5.
E XAMPLE 1: T WO LAN S WITCH W ORKGROUPS
Figure 3-3. Converters connecting two LAN switch workgroups.
CHAPTER 3: Installation
Fast Ethernet
switch Fast Ethernet
switch
100BASE-TX to
100BASE-FX
Media
Converters
Plus
328 ft.
(100 m)
328 ft.
(100 m)
328 ft.
(100 m)
328 ft.
(100 m)
UTP
UTP
Multimode fiber cable, half duplex
(LH1704A-SC-US: 9.3 mi. [15 km];
LH1705A-SC-US: 18.6 mi. [30 km])

16
100BASE-TX TO 100BASE-FX MEDIA CONVERTERS PLUS
E XAMPLE
2: A LAN S WITCH AND A N ETWORK S ERVER
Figure 3-4. Converters connecting a LAN switch
and a network server.
E XAMPLE 3: A LAN S
WITCH AND A W ORKSTATION
Figure 3-5. Converters connecting a LAN switch
and a workstation.
Server
Fast Ethernet switch
100BASE-TX to
100BASE-FX
Media
Converters
Plus
328 ft.
(100 m)
328 ft.
(100 m)
328 ft.
(100 m)
328 ft.
(100 m)
UTP
UTP
Multimode fiber cable, half duplex
(LH1704A-SC-US: 9.3 mi. [15 km];
LH1705A-SC-US: 18.6 mi. [30 km])
Workstation
Fast Ethernet switch
100BASE-TX to
100BASE-FX
Media
Converters
Plus
UTP
328 ft.
(100 m) 328 ft.
(100 m)
328 ft.
(100 m)
Multimode fiber cable, half duplex
(LH1704A-SC-US: 9.3 mi. [15 km];
LH1705A-SC-US: 18.6 mi. [30 km])

17
CHAPTER 3: Installation
3.4 Installing the Converter
After you set the MDI/MDI-X button as described in
Section 3.1, set the LFS/LBK DIP switch as explained in
Section 3.2, and determine how you will use your
converter as shown in Section 3.3, you’ll need to place
the converter on a desktop or mount it on a wall. Next,
power on the converter. Connect the converter to a
100BASE-TX device or network segment. Finally,
connect the converter to a 100BASE-FX device or to
another media converter via fiberoptic cable. Follow the
steps listed below:
1. For desktop installation, affix the four non-skid
rubber feet to the bottom of the converter.
For wallmount installation, use the underside of
the converter as a template to measure and mark
out the position of the holes onto the surface
where you will install the converter. Then use the
two mounting screws provided to mount the
converter firmly in place.
2. Connect the appropriate power supply for your
country to the power connector on the side of the
converter. Plug the power supply into a suitable
power outlet.
