One Remote RMB4 User manual

35104401u4uk
OneRemote RMB4
Converter for Beo4
Type 35104401
controls
Samsung TV
2013 models and earlier
+ AppleTV
User Manual

www.oneremote.dk
Page 1
List of Contents
Getting Started………. ................................................................................................ page 2
The OneRemote Converter for Beo4 ........................................................................ page 3
Controlling with OneRemote ................................................................................... page 4
Coloured Function Keys ........................................................................................... page 4
Go, Joystick or Stop Shifted Operation .................................................................... page 4
Control Table for Beo4 with a OKey or Beo4 Navi in mode 2. ............................ page 5
Control Table for Beo4 without a OKey. Beo4 Navi in mode 1 or 3. ................... page 6
Program Stepping Up/ Down Manoeuvring in menus. ............................................. page 7
Setting the Zap Mode Option .................................................................................. page 7
Setting the OneRemote Volume Option ................................................................... page 8
Operation of Apple Products ................................................................................... page 9

www.oneremote.dk
Page 2
Getting Started
With the OneRemote converter installed in your Bang & Olufsen Beo4 remote control terminal you may
control your Samsung TV with that terminal. This guide explains how.
Basically there are two models of the Beo4. The OneRemote control of your TV depends on which Beo4 model
is used and in which mode it is operated.
Previous Beo4 model 16xx. Sold until 2010.
The center key Oequals pin earlier B&O remotes.
If your OneRemote modified Beo4 is of this type:
Refer to the control table on page 5 for
how to control your Samsung TV with this Beo4.
Beo4 Navi model 17xx. Sold from 2010.
The center key is changed to a joystick that can be pushed
forward, backwards and to the sides. This adds new control
possibilities.
Mode 1 &3
To utilize these possibilities the Beo4 must be set in mode 1 or
3. Refer to the original Beo4 user manual for mode setting.
Refer to the control table on page 6 for how to control your
Samsung TV with this Beo4 in mode 1 or 3.
Mode 2
When the Beo4 Navi is in its default mode 2, it operates as
previous models 16xx.
Refer to the control table on page 5 for
how to control your Samsung TV with this Beo4 in mode 2.
If the OneRemote converter has not yet been optimized for your setup, you might want to refer to the
installation section below for the initial setup and option programming. No programming is needed during
everyday use.
The OneRemote converter installed in your Beo4 remote control may be used in any Beo4 generation, in the
Beo4 Navi with extra functionality.
To get the most of your modified Beo4 the OneRemote converter must be programmed according to the Beo4
model and the equipment setup that your TV is a part of. Refer to page 5 and onwards for the initial
programming.

www.oneremote.dk
Page 3
The OneRemote Converter for the Beo4 Remote Control
The OneRemote converter is a small microcomputer module specifically designed to be installed in a Bang & Olufsen
Beo4 remote control terminal.
The microcomputer is converting commands meant for Bang & Olufsen equipment to commands for third party
equipment of various types.
Each OneRemote converter type is programmed to control a specific product like an Apple iPod docking station, a flat
panel TV, a curtain controller etc.
The converter enables the Beo4 to control a third party device, while still being able to control any other Bang & Olufsen
product.

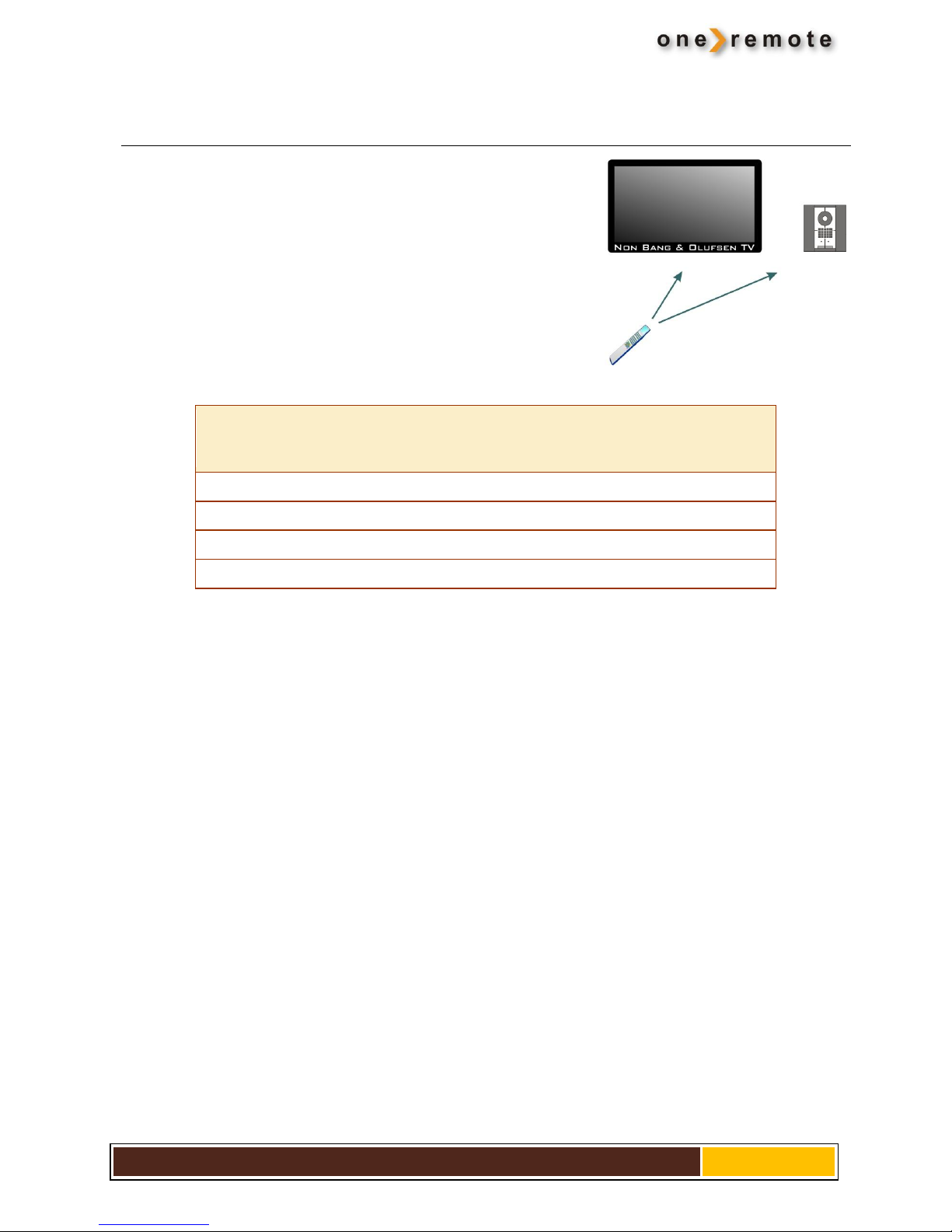

With a Bang & Olufsen audio master in the room it may be used for handling the TV sound. Speakers connected to an audio master are usually of a
much better quality than the speakers in a flat panel TV. In a B&O link room setup with BeoLink Active you may also use the active speakers to improve
sound from most TVs.
Only a simple audio cable is needed between the TV and the audio master. See the option programming section about Band cmodes on
page 9.

www.oneremote.dk
Page 4
Controlling with OneRemote
Controlling a non-B&O TV using the OneRemote RMB4 modified Beo4 requires the user to be familiar with the original
remote control as described in the TV’s user manual.
A Beo4 remote control is not equipped with as many keys as found in most other remotes. But by combining specific key
entries on the OneRemote RMB4 a suitable control layout has been developed.
The Beo4 Navi model introduces new keys, making it easier to create a control layout closer to the TV’s original one. Thus
there are two different control layouts for the OneRemote modified Beo4. The OneRemote converter will automatically
detect when it is operating in a Beo4 Navi in mode 1 or 3, and switch operating table.
Coloured Function Keys
- when Beo4 is NOT in mode 1 or 3 (Navi)
If the Beo4 is not a Navi in mode 1 or 3, there are fewer keys for control.
To ease the access to more important control functions the control priority for the coloured function keys has been
changed to a lower level, i.e. a level where one command requires dual successive key entries. Thus an original “colour”
command requires the Okey to be pressed prior to the coloured key itself. The key has been “shifted”with a O
This change of priority is used in all modified Beo4 except for the Beo4 Navi, where it is not necessary.
New functions have been assigned to the coloured keys in the direct mode. Most often as follows:
Q
Guide, EPG or similar.
E
Back, Backup, Return or similar.
WR
Program zapping. P+/ P- ,
Channel up/ down or CH+/ CH-.
When in Beo4 Navi mode, the coloured keys are not shifted.
Refer to the control tables on page 5 and 6.
GO, Joystick or STOP Shifted Controls
Some of the OneRemote RMB4 keys are found in two or three control sequences and shifted by pressing a O,= or
qkey prior to the key itself.
Keys that have been assigned secondary functions are listed in the control tables on page 7 and 8.

www.oneremote.dk
Page 5
Control Table for Beo4 with aOKey
or Beo4 Navi in Mode 2
Everyday Control
Text TV Control
t Turns on the TV
w Turns off the TV
OO Enter
T/ v Source
d HDMI1 *3
f/ s HDMI2 + Apple control *4
W*1*2 Prog +
R*1*2 Prog -
Q*1*2 Guide
E*1*2 Return
mMenu
om Source
qm HDMI
*1 The up/ down arrow controls may be exchanged with the blue and
yellow keys. See page 6.
*2 As the direct function of the coloured function keys has been
assigned to other functions, these have to be preceded with a oto
retrieve the actual coloured function.
oQ Green function
oW Yellow function
oE Red function
oRBlue function
*3 Switch to HDMI1 source.
*4 Switch to HDMI2 source for control of Apple devices. See page 9
for operation of an Apple product.
nText TV On/ Mix
t Text TV Off
Playback Controls
o Play press 1 sec.
o0 Play
qq Stop
oq Pause
oA/SRew/ FF
r Record
o8 Record
Special Controls
O4 Info
O5 Content
O6 Subtitle
O7 AD
O9 3D
qe Internet
e Exit
O1 Previous channel
O2 Channel list
O3 Media player
In Mode 2
+

www.oneremote.dk
Page 6
Control Table for Beo4 with a Joystick without a OKey and in mode 1 or 3
This table shows the converted keys for a OneRemote RMB4 converter installed in a
Beo4 Navi type remote control. Beo4 Navi has a joystick (=) instead of the Okey.
This joystick adds 8 extra control possibilities, as it can be moved forward, backwards and
to the sides.
In the table these functions are shown like this:)
Joystick operations:
=Pressing the Joystick down once.
== Pressing the Joystick down twice.
/ Pushing the Joystick upwards.
If your Beo4 has aOkey, refer to the table on page 5.
If your Beo4 is a Navi type that has not been enabled (mode2), refer to the table on page 5.
Everyday Control
Text TV Control
t Turns on the TV
w Turns off the TV
T/ v Source
== OK
DF Program + / -
AGuide
SOption
=1 Previous channel
=2 Channel list
=3 Media player
!Return - short press.
!Exit - long press
=!Exit
mMenu
=m Source
qm HDMI
WYellow key
R Blue key
QGreen key
ERed key
&/ Navi keys are used for manoeuvring in
() on-screen menus.
nText TV On/Mix
t Text TV Off
Playback Controls
p Play
qq Stop
=q Pause
=A/SRew/ FF
r Record
=8 Record
Special Controls
=4 Info
=5 Content
=6 Subtitle
=7 AD
=9 3D
qe Internet
e Exit
f/ s HDMI
d HDMI2
In mode 1 or 3

www.oneremote.dk
Page 7
Program Stepping, Up/ Down Manoeuvring in Menus.
- when Beo4 is NOT in mode 1 or 3 (Navi)
Most set top boxes and TVs have 4 arrow keys for manoeuvring in on-screen menus, up, down, left and right. In addition
to these keys they are also equipped with separate program stepping keys for zapping through the programs. Often
these keys are named P+, P-, CH+ or CH-. This is also the case for a Samsung TV.
OneRemote converters often use the Rand the Wkeys for program zapping. This way the four up, down, left
and right keys are free for manoeuvring in on-screen menus.
Setting the Zap Mode Option
- when Beo4 is NOT in mode 1 or 3 (Navi)
If the OneRemote converter is installed in a Beo4 with aOkey, the keysWand Rare used for program
stepping. The Dand Fkeys are used to manoeuvre up and down in on-screen menus.
This is the default factory setting, as described above.
If you prefer this control layout changed enter the options listed below.
Selecting the Zap Mode Keys:
Enter one of these 2 option sequences within 10 seconds to set the preferred Program Zap mode keys.
Lmq90w
The D and F keys are used for
program zapping.
Lmq91w
The W& Rkeys are used for
program zapping.

www.oneremote.dk
Page 8
Setting the OneRemote Volume Option
When the tkey is pressed, the Samsung TV is powered up automatically
and turned on in the TV mode.
If a Bang & Olufsen audio master is in the room, it is possible to use it for
handling the sound. Below options determine how the One Remote RMB4
handles volume in the TV mode.
This option also allows for the powering up of other B&O devices than the TV,
when tis selected. The audio signal from the TV is wired to the audio
master using a Line to DataLink cable. Moving the TV sound to the speakers of
the audio master improves the sound quality significantly.
Volume Options
Enter one of these option sequences
within 10 seconds:
Sound Destination
Alternative speakers.
Volume Control
Volume data format emitted
from Beo4.
Lmq00w
Volume disabled
No volume control
Lmq01w
The Samsung TV
Samsung format
Lmq02w
B*1
Bin B&O format
Lmq03w
c*2
cin B&O format
*1 When tis pressed the Beo4 sends a Power On command to the TV. At the same time the Beo4 sends a Bcommand to a Bang & Olufsen
audio master. Until another source is selected, volume commands will be directed to the B&O audio master.
*2 When tis pressed the Beo4 sends a Power On command to the TV. At the same the Beo4 sends a ccommand to a Bang & Olufsen
system. Until another source is selected, volume commands will be directed to the B&O system. Via a BeoLink Active sound may be moved from the TV
to PowerLink speakers.

www.oneremote.dk
Page 9
Operation of Apple Products

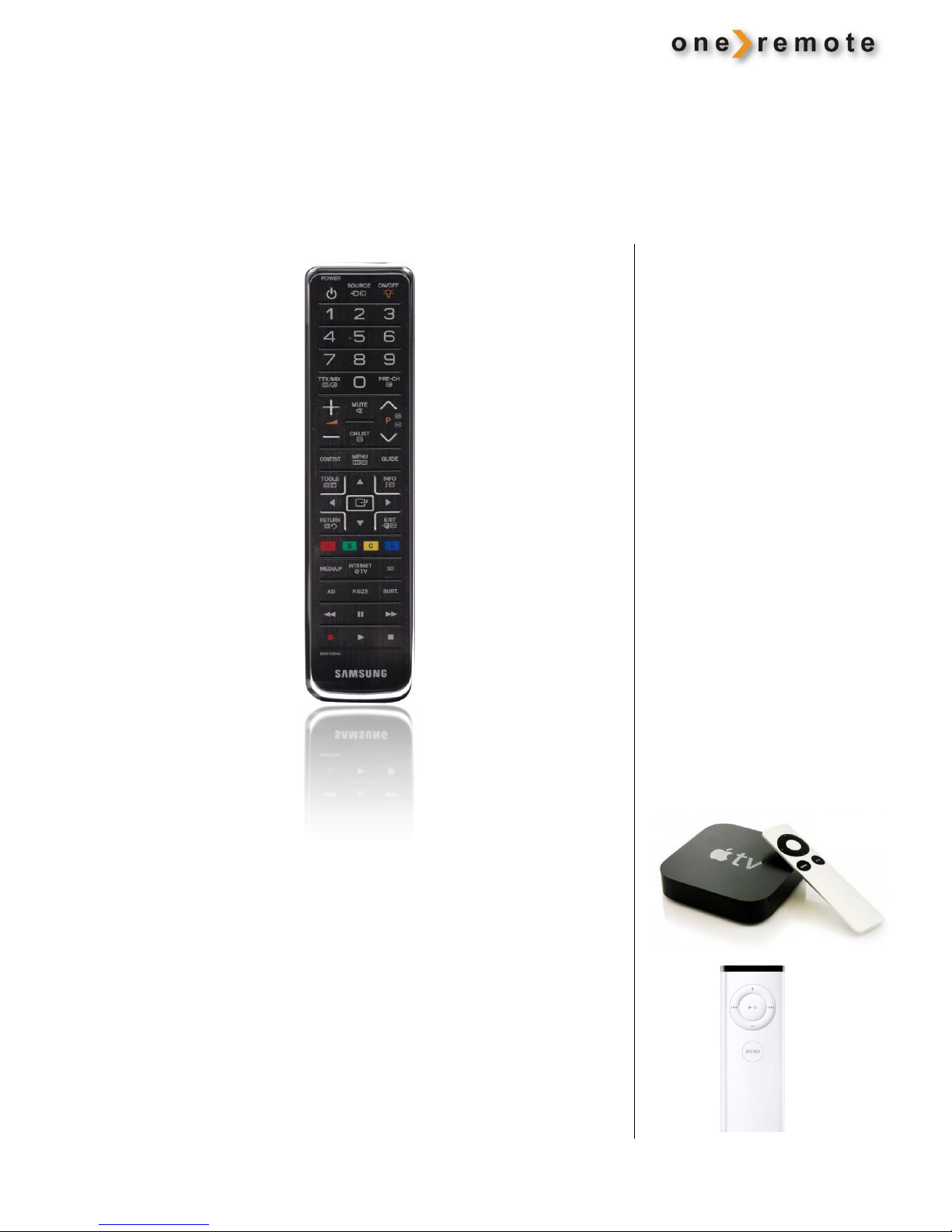

The OneRemote modified Beo4 remote control may control any Samsung TV. Pressing the TV key powers up the TV, and
hereafter the TV is fully controlled with the Beo4 as described on previous pages. Pressing the stand by key powers
down the TV.
When f/ sis pressed, the TV switches to display its HDMI2 source, in this case the Apple device, which is
connected to the HDMI2 input.
When the HDMI2 source is selected this way, the OneRemote RMB4 converter redirects control data to the Apple device,
which is now controlled with the modified Beo4.
If for example an Apple TV is connected to HDMI2, it can now be controlled with the OneRemote RMB4 modified Beo4
according to this table:
Apple control:
for s
TV switches to HDMI2 and control is shifted to
Apple.
t
TV switches to TV mode.
O
Enter
R
Play/ pause
E
Menu
Use the arrows for positioning on the screen.
Apple and Pairing.
A remote control must be paired to control an Apple device.
This is also the case with this OneRemote RMB4 modified Beo4.
Use these keys to pair and unpair. Refer to the original Apple documentation for pairing of your device.
Pairing:
sq9Ww
Unpairing:
sq9Qw
