BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
i
BLACK BOX
Economy “Crossover” 10 Mbps Media Converters
Installation and User Guide
Trademarks
UL is a registered trademark of Underwriters Laboratories
Ethernet is a trademark of Xerox Corporation
Velcro is a trademark of Velcro U.S.A.
Important: BLACK BOX

10 Mbps Economy or Hardened Media Converters contain
no user serviceable parts. Attempted service by unauthorized personnel shall render any
and all warranties null and void. If problems are experienced with a 10 Mbps Economy
or Hardened Media Converter, consult Section 5, Troubleshooting, of this User Guide.
2005 BLACK BOXCorporation
Printed in the United States of America. 84-00135 Rev B March ‘03

BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
ii
Contacting Black Box Corporation
Please use these mailing address and phone and fax numbers:
Black Box Corporation
1000 Park Drive
Pittsburgh, PA 15055
Phone: [phone]
Fax: [phone]
E-mail: [email protected]
__________________________________________________________

BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
iii
FEDERAL COMMUNICATIONS COMMISSION
AND
CANADIAN DEPARTMENT OF COMMUNICATIONS
RADIO FREQUENCY INTERFERENCE STATEMENTS
This equipment generates, uses, and can radiate radio frequency energy and if
not installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, may cause interference to radio communication. It
has been tested and found to comply with the limits for a Class A computing
device in accordance with the specifications in Subpart B of Part 15 of FCC
rules, which are designed to provide reasonable protection against such
interference when the equipment is operated in a commercial environment.
Operation of this equipment in a residential area is likely to cause interference,
in which case the user at his own expense will be required to take whatever
measures may be necessary to correct the interference.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.

BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
iv
This digital apparatus does not exceed the Class A limits for radio noise
emission from digital apparatus set out in the Radio Interference Regulation of
the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant
les limites applicables aux appareils numériques de la classe A prescrites dans le
Règlement sur le brouillage radioélectrique publié par le ministère des
Communications du Canada.
NORMAS OFICIALES MEXICANAS (NOM)
ELECTRICAL SAFETY STATEMENT
INSTRUCCIONES DE SEGURIDAD
1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato
eléctrico sea operado.
2. Las instrucciones de seguridad y operación deberan ser guardadas para referencia futura.
3. Todas las advertencias en el aparato eléctrico y en sus instrucciones de operación deben ser
respetadas.
4. Todas las instrucciones de operación y uso deben ser seguidas.

BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
v
5. El aparato eléctrico no deberá ser usado cerca del agua—por ejemplo, cerca de la tina de baño,
lavabo, sótano mojado o cerca de una alberca, etc..
6. El aparato eléctrico debe ser usado únicamente con carritos o pedestales que sean
reconnendados por el fabricante.
7. El aparato eléctrico debe ser montado a la pared o al techo sólo como sea recommendado por el
fabricante.
8. Servicio—El usuario no debe intentar dar sercicio al equipo eléctrico más allá a lo descrito en
las instrucciones de operatión. Todo otro servicio deberá ser referido a personal de servicio
calificado.
9. El aparato eléctrico debe ser situado de tal mannera que su posición no interfiera su uso. La
colocación del aparato eléctrico sobre una cama, sofá, alfombra o superficie similar puede
bloquea la ventilación, no se debe colocar en libreros o gabinetes que impidan el flujo de aire
por los orificios de ventilación.
10. El equipo eléctrico deber ser situado fuera del alcance du fuentes de calor como radiadores,
registros de calor, estufas u otros aparatos (incluyendo amplificadores) que producen calor.
11. El aparato eléctrico deberá ser connectado una fuente de poder sólo del tipo descrito en el
instrucivo de operación, o como se indique en el aparato.

BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
vi
12. Precaución debe ser tomada de mal manera que la tierra fisica y la polarización del equipo no
sea eliminada.
13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni
pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los
contactos y receptáculos donde salen del aparato.
14. El equipo eléctrico debe ser limpiado únicamente de acuerdo a las recommendaciones del
fabricante.
15. En caso de existir, una antena externa deberá ser localizada lejos de las lineas de energia.
16. El cable de corriente deberá ser desconectado del cuando el equipo no sea usado por un largo
periodo de tiempo.
17. Cuidado debe ser tomado de tal manera que objectos liquidos no sean derramados sobre la
cubierta u orificios de ventilación.
18. Servicio por personal calificado deberá ser provisto cuando:
A: El cable de poder o el contacto ha sido dañado; u
B: Objectos han caído o líquido ha sido derramado dentro del aparato; o
C: El aparato ha sido expuesto a la lluvia; o
D: El aparato parece no operar normalmente o muestra un cambio en su desempeño;;o
E: El aparato ha sido tirado o su cubierta ha sido dañada.

BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
vii
Certification Notice for
Equipment Used in Canada
The Canadian Department of Communications label identifies certified equipment. This
certification means that the equipment meets certain telecommunications-network
protective, operation, and safety requirements. The Department does not guarantee the
equipment will operate to the user’s satisfaction.
Before installing this equipment, users should ensure that it is permissible to be
connected to the facilities of the local telecommunications company. The equipment
must also be installed using an acceptable method of connection. In some cases, the
company’s inside wiring associated with a single-line individual service may be extended
by means of a certified connector assembly (extension cord). The customer should be
aware that compliance with the above conditions may not prevent degradation of service
in some situations.
Repairs to certified equipment should be made by an authorized Canadian maintenance
facility—in this case, your supplier. Any repairs or alterations made by the user to this
equipment, or equipment malfunctions, may give the telecommunications company cause
to request the user to disconnect the equipment.

BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
viii
Users should ensure for their own protection that the electrical ground connections of the
power utility, telephone lines, and internal metallic water pipe system, if present, are
connected together. This precaution may be particularly important in rural areas.
CAUTION:
Users should not attempt to make such connections themselves, but
should contact the appropriate electric inspection authority, or
electrician, as appropriate.
The LOAD NUMBER (LN) assigned to each terminal device denotes the percentage of
the total load to be connected to a telephone loop which is used by the device, to prevent
overloading. The termination on a loop may consist of any combination of devices,
subject only to the requirement that the total of the load numbers of all the devices does
not exceed 100.

BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
ix
TABLE OF CONTENTS Page
1.1 TECHNICAL SPECIFICATIONS ...................................................... 1
1.2 Summary of models and descriptions:.................................................... 8
2. INTRODUCTION ..................................................................................... 9
2.1 Inspecting the Package and the Product............................................... 9
2.2 Product Description ........................................................................... 10
2.3 Features and Benefits......................................................................... 16
2.4 Applications....................................................................................... 18
3.0 INSTALLATION................................................................................. 20
3.1 Locating the Media Conv. Unit ......................................................... 20
3.2 Rack Mount of LE1502A-R3 and LE1508 hardened M.C’s............ 21
3.3 Rack Mount Tray, Model with Power Supply included ................... 23
3.4 Calculating Overall Cable Segment Distance.................................... 25
3.5 Connecting Ethernet Media ............................................................... 28
3.5.1 Connecting Twisted Pair (RJ-45 ports)...................................... 28
3.5.2 Connecting ThinNet (10BASE2)............................................... 30

BLACK BOX10Mbps Economy BNC Media Converters Installation & User Guide
x
4.0 OPERATION....................................................................................... 31
4.1 Power Supply Types for LE1502A-R3 and LE1508 models............. 31
4.2 Powering the LE1508Dxx (DC internal) with 12V, 24V or –48V DC35
4.3 LE1508Dxx, DC-powered, -48VDC, 24VDC and 12VDC Instal.... 37
4.4 LEDs, dual for front-panel and side-panel (regular and hardened) .. 39
4.5 BNC port, Internal Termination Switch (for regular and hardened). 40
4.6 Up-Link (Cross-over) Switch ............................................................ 41
5.0 TROUBLESHOOTING...................................................................... 42
5.1 Before Calling for Assistance............................................................ 42
5.2 When Calling for Assistance ............................................................. 44
5.3 Shipping and Packaging Information................................................. 45
09/05- Changed the universal 100-240V AC power supply option model no from R3 to R4.
Black Box reserves the right to change specifications, performance and models without notice.

BLACK BOX10Mb Economy BNC Media Converters Installation & User Guide
1
1.1 TECHNICAL SPECIFICATIONS
Models LE1502A-R3 and hardened LE1508A, standard TP and BNC media
Performance:
Data Rate: 10 Mbps (IEEE 802.3), half duplex mode
Network Standards:
Ethernet: IEEE 802.3, 10BASE2, 10BASE-T
(Black Box Media Converters are physical layer standard Ethernet products,
and operate independently of all software.)
Number of Media Converters in series:
Experience shows that up to two BNC units can be used in series between
repeaters. For 3 or more in series, noise build-up will typically preclude
proper operation. See also Section 3.4, Calculating Segment Distances.

BLACK BOX10Mb Economy BNC Media Converters Installation & User Guide
2
Maximum Standard Ethernet Segment Lengths:
10BASE-T (twisted pair): 100 m (328 ft)
10BASE2 ThinNet (BNC): 185 m (607 ft)
Note: Black Box Media Converters DO NOT support full length Ethernet segments. See
Section 3.2 of this manual for media lengths and segment distance calculations.
Operating Environment:
Ambient Temperature:
(0ºC to 40ºC) LE1502A-R3, LE1502AE-R4
(0ºC to 50ºC) LE1502A, LE1502AE with “H” power supply
(-40ºC to 55ºC) LE1508A, LE1508AE(incl “H” pwr supl.)
(-40ºC to 75ºC) LE1508D12 (12VDC),
LE1508D24 (24VDC), LE1508D48 (-48VDC)
Note: 0 º C=32 º F, 40 º C=104 º F, 50 º C=122 º F, 55 º C=131 º F, 75 º C=167 º F, -40 º C=-40 º F.
Storage Temperature: -40ºC to 85ºC
Ambient Relative Humidity: 5% to 95% (non-condensing)

BLACK BOX10Mb Economy BNC Media Converters Installation & User Guide
3

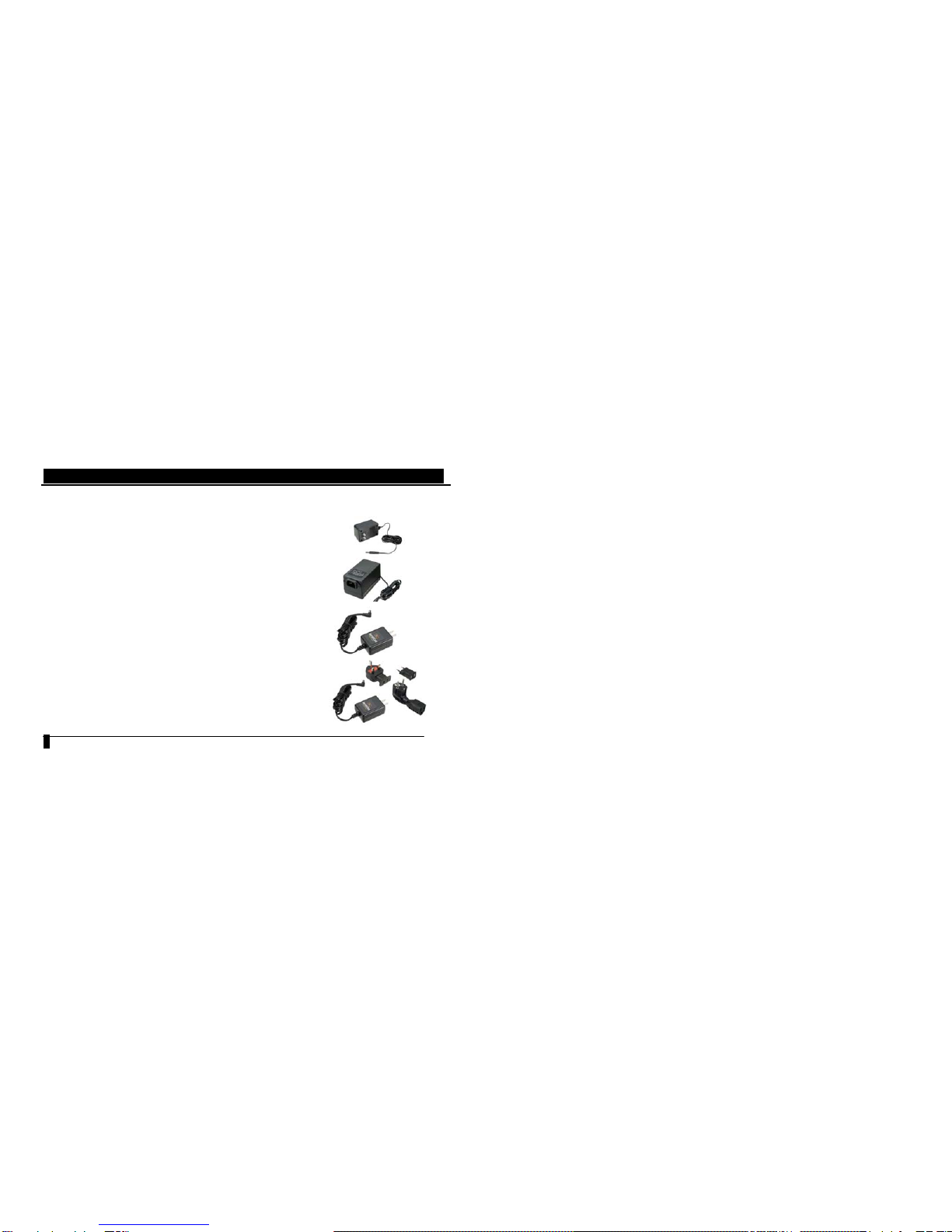

Power Supply ( AC External):
Power input 12V DC jack is 2.5mm center +ve jack, with 6ft. cord
120V AC at 60 Hz, for “A” North American models
230V AC at 50 Hz, IEC built-in, for “AE” int’l
100-240V AC at 50-60Hz, for “H” high temp.
100-240V AC at 50-60Hz, for “-Hi” w/ adapter kit
DC to unit: 12V DC, 2.5mm jack, center +ve, 6ft.
cord

BLACK BOX10Mb Economy BNC Media Converters Installation & User Guide
4
Power Supply ( DC Internal):
Model LE1508D12
12V DC internal (range of 8 to 15V DC), built-in terminal
block for +, -, ground. The 12V DC jack is also present.
Model LE1508D24
24V DC internal (range of 18 to 36V DC), built-in terminal
block for +, -, ground. The 12V DC jack is also present
Model LE1508D48
-48V DC internal (range of 36 to 70V DC), built-in terminal
block for +, -, ground. The 12V DC jack is also present.
Power Consumption: 3 watts typical and 5 watts max. for all models

BLACK BOX10Mb Economy BNC Media Converters Installation & User Guide
5
Connectors, for Media:
RJ-45 Port: Modular 8-Pin female, with “cross-over” up-link switch
BNC Port: Standard BNC connector, RG-58 ThinNet with internal term sw.
Packaging:
Enclosure: Rugged sheet metal (Steel).
Dimensions, Media Converter unit: Height x Width x Depth
LE1502-all and hardened LE1508-all: 3.5 in H x 3.0 in W x 1.0 in D (8.9
cm x 7.6 cm x 2.5 cm)
Weight: LE1502-all and hardened LE1508-all: 7.9 oz. (225g);
power supply, regular office temp : 5.8 oz (165g)
power supply, hardened AC models: 3.8 oz 110g)
Cooling Method: Convection, plus case is used as a heat sink on hardened models

BLACK BOX10Mb Economy BNC Media Converters Installation & User Guide
6
Media Converter LED Indicators:
LED LE1502A-R3 LE1508 Description
PWR unit unit Steady ON when power is applied
Link TP TP Steady ON when proper link is
established at both ends of the segment.*
RX/A TP, BNC TP, BNC Blinking indicates activity, port is receiving
packets. (Steady ON or OFF=no RX activity)
POL TP TP. Indicates the unit has detected a TP receive
wire-pair signal inversion (polarity).
COL* . TP, BNC. TP, BNC Indicates unit is simultaneously transmitting
and receiving data from the cables.
JAB* unit unit Indicates jabber (illegal packet length fault)
condition. when lit, Segment is partitioned.
.
NOTE:*COL and JAB LEDs are indicators applicable to standard Ethernet collision
domains with half-duplex operation.

BLACK BOX10Mb Economy BNC Media Converters Installation & User Guide
7
Metal Mounting clips : included
Agency Approvals:
UL Listed (UL 1950 and cUL) and CE Certified.
Emissions: Meets FCC Part 15 Class A, CE
Warranty: Three years, return to factory Made in USA

BLACK BOX10Mb Economy BNC Media Converters Installation & User Guide
8

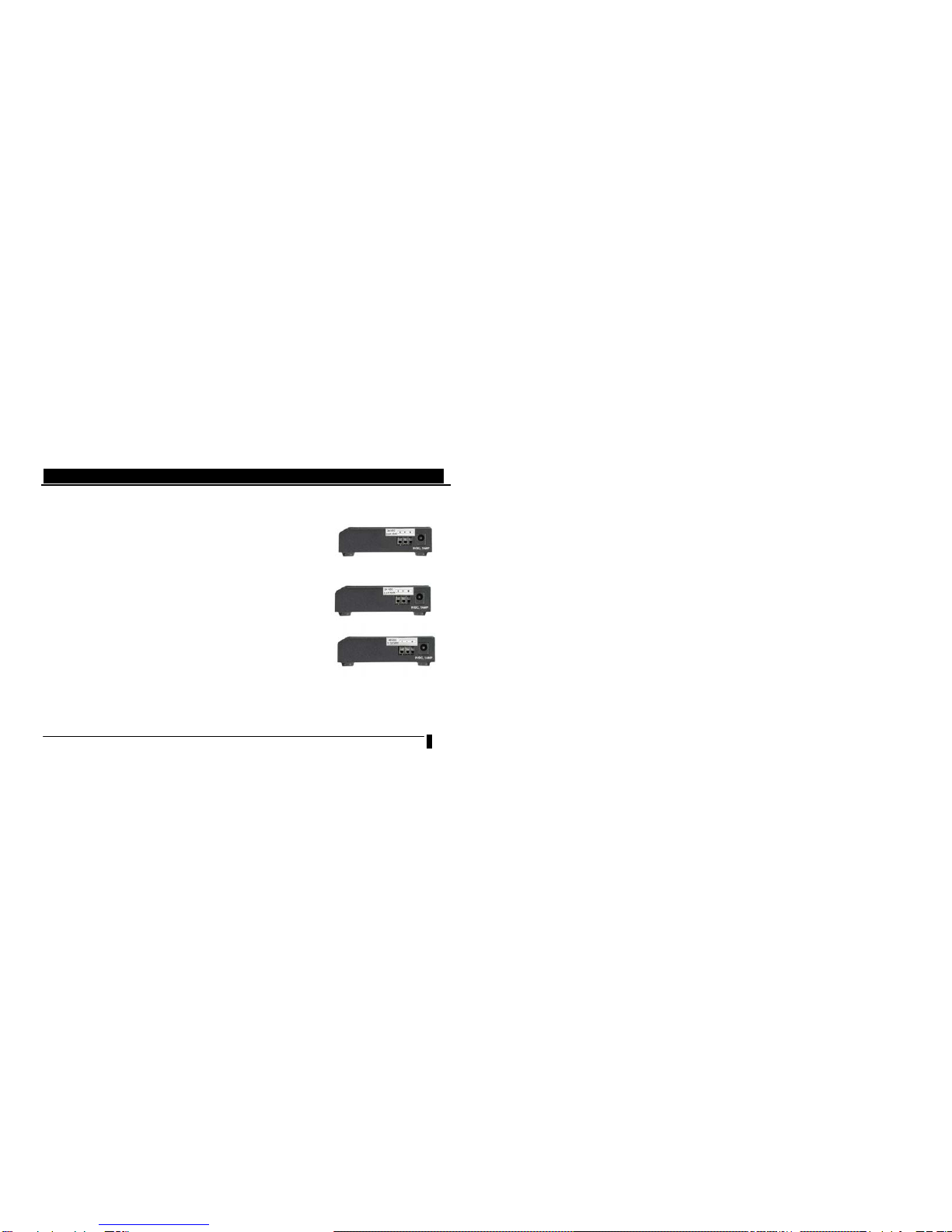

1.2 Summary of models and descriptions:
LE1502A-R3 = TP to BNC, half-duplex, 115V 60Hz AC power supply
LE1502AE-R3 = TP to BNC, half-duplex, 230V 50Hz AC power supply
LE1508A = Hardened unit, TP to BNC, half-duplex, hardened (to 55`C) ext’l AC power supply
LE1508AE = Hardened unit, TP to BNC, half-duplex, hardened (to 55`C) ext’l AC power supply
with adapter kit for international AC 230V50Hz power outlets.
LE1508D12 = Hardened unit (-40 to 75`C), TP to BNC, half-duplex, built-in 12VDC power supply
LE1508D24 = Hardened unit (-40 to 75`C), TP to BNC, half-duplex, built-in 24VDC power supply
LE1508D48 = Hardened unit (-40 to 75`C), TP to BNC, half-duplex, built-in -48VDC power supply
LE1505-RACK = 19” Rack-mount tray for Economy Media Converters, up to 16 units
See Section 3.2
LE1505P-RACK = 19” Rack-mount tray for Economy Media Converters, with power supply
See Section 3.3

BLACK BOX10Mb Economy BNC Media Converters Installation & User Guide
9
2.0 INTRODUCTION
This section describes the, LE1502A-R3 regular and LE1508A hardened
media converter models, including appearance, features and typical applications.
2.1 Inspecting the Package and the Product
Examine the shipping container for obvious damage prior to installing this
product; notify the carrier of any damage which you believe occurred during shipment or
delivery. Inspect the contents of this package for any signs of damage and ensure that the
items listed below are included.
This package should contain:
1 10 Mbps BNC Media Converter Unit
1 External Power Supply (except for internal DC power supply
models) 1 set Metal mounting clips and screws, 2 each unit
1 VelcroTape section, approximately 3 inches in length
1 User Guide, i.e., this manual
(continued next page)
