Oneida Air Systems 10 Gallon User manual

Rev: 12/09/2021 Doc. # ZBM000036DEL10A
Appearance may vary slightly
Dust Deputy Deluxe
10 Gallon
10 Gallon SD
# AXD000010
# AXD000010SD
U.S. Pat.
6833016
RE40048
7282074
10 Gallon SD

Oneida Air Systems2
System Start-Up Information
1. Do not vacuum anything that is burning or smoking, such as cigarettes,
matches, hot ashes, or any hot substance!
2. Do not vacuum (or use this cyclone near) ammable or combustible
liquids, gases, or explosive dusts, such as gasoline or other fuels,
lighter uid, cleaners, oil-based paints, natural gas, hydrogen, coal dust,
magnesium dust, grain dust, aluminum dust, sugar dust, our dust or
gun powder.
3. To reduce the risk of health hazards from vapors or dusts, do not
vacuum toxic materials unless a HEPA lter is used. Do not use or store
near hazardous materials.
4. Dust can be ammable and explosive. Some dust can be toxic or cause
allergic reactions.
5. Wood dust mixtures are highly ammable and can be explosive.
NEVER introduce sparks or sources of ignition into collector.
a. Empty drum after each use.
b. Ground system.
6. NEVER leave wood dust in a building or vehicle.
7. Keep re extinguishers handy at all times.
8. Can be used for collecting non-ammable liquids.
9. Dispose of waste in a FIRE SAFE AREA.
READ THE SAFETY PRACTICES INSTALLATION
AND MAINTENANCE INSTRUCTIONS AND YOUR
WET/ DRY VACUUM’S OWNER’S MANUAL BEFORE
ASSEMBLING AND USING THE DUST DEPUTY
SOME DUSTS ARE HIGHLY FLAMMABLE OR
EXPLOSIVE. LEARN/ KNOW WHAT YOU ARE
DEALING WITH. FOLLOW ALL LOCAL, STATE,
FEDERAL & NFPA CODES AND GUIDELINES.

3oneida-air.com
Tapered Inlet
and Outlet
2" O.D.
1-7/8" I.D.
51 mm O.D.
48 mm I.D.
System Dimensions
Nominal dimensions shown. Dimensions subject to slight
variations in manufacturing.
8"
203 mm
6-3/4"
171 mm
19"
483 mm
2-1/2"
64 mm
13-1/4"
337 mm
9-5/8"
244 mm
32-1/8"
815 mm
28 -7/16"
721 mm
19 -7/16"
493 mm

Oneida Air Systems4
System Contents
ID Part number Part description Qty
A VXC110002 Anti- Static Cyclone 1
B AXG000004A Cyclone Gasket 1
C AHX000016 Cyclone Hardware Pack 1
C1 AFS015920 1/4" - 20 x 3/4" Hex Head Bolt 6
C2 AFW025000 1/4" Flat Washer 6
C3 AFT000005 1/4" Whiz-Lock Nut 6
D SEX100000 Steel Lid for 10 Gallon Drum 1
E SES100000 10 Gallon Steel Drum with Clamp 1
F SDD000004 Dolly Legs 3
G AFS015800 1/4"-20 x 1/2" Hex Head Bolt 3
H AFT000005 1/4" Whiz-Lock Nut 3
I RBB000010 Retainer Clips Pack of 6 1
J AHK000012 Caster Hardware Pack 2
J1 ———— Nylock Nuts 3
J2 ———— Washers 6
J3 ———— 38mm Polypropylene Casters 3
K VFA050015 Metal Grounding Tape 24"
INCLUDED ONLY WITH AXD000010
L AXD250066 2.5" x 5.5' Wire-Reinforced Vacuum Hose 1
INCLUDED ONLY WITH AXD000010SD
A VXC110009 Static Dissipative Cyclone 1
M AXD200055 2.5" x 55" Static Conductive Raw Hose 1
N AXD600103 2" Elbow 2
O AHA000004 2.5"Vacuum Hose Elbow 1
P AHA990250 2" to 1-1/2" Reducer, 2" to 1-1/4" Reducer, and Coupler 1

5oneida-air.com
Please unpack the parts carefully and conrm you have received
each item listed here.
System Contents (Cont.)
B
A
E
D
J1
J2
J3
J
CC1 C2
C3
K
L M N
O
P
F
I
G
H
×2

Oneida Air Systems6
You will need the following:
• 7/16" Open End Wrench
• Wet/Dry Vacuum
• Vacuum Hose
• Vacuum hose adapters
• 1/2" Nut Driver
Assembly Instructions
FIG. 1a
FIG. 1b
Arrange the Dolly Legs (F) in a descending stack as shown
in [FIG. 1a] and [FIG. 1b].
1

7oneida-air.com
G
H
Assembly Instructions (Cont.)
FIG. 2a
FIG. 2b

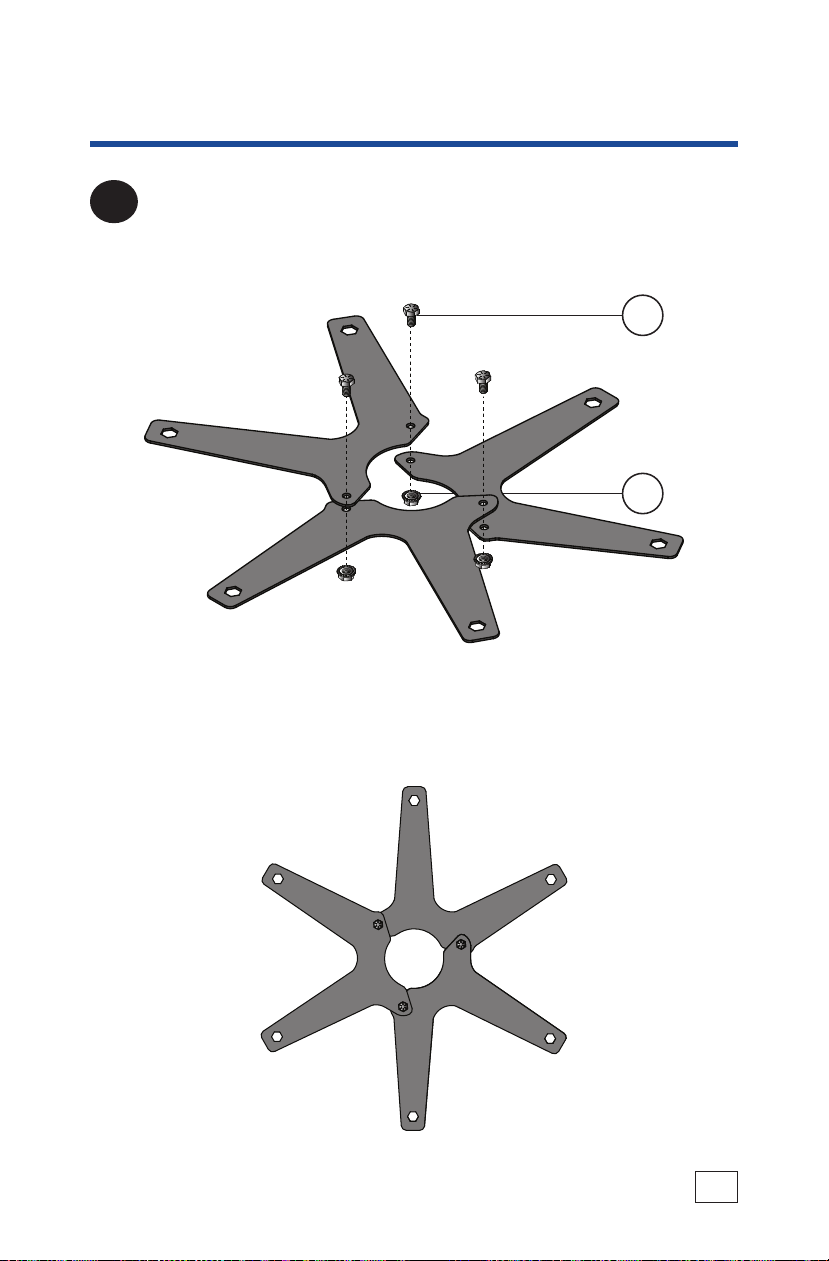

Secure Dolly Legs (F) together using three Bolts (G) and
three Whiz-Lock Nuts (H) as shown in [FIG. 2a] and [FIG.
2b].
2

Oneida Air Systems8
Assembly Instructions (Cont.)
Thread each of the six Casters (J3) through the Dolly Leg
Assembly (F) and a Retainer Clip (I). Secure together
using six Nylock Nuts (J1) [FIG. 3a] [FIG. 3b].
Note: For ease of assembly, hardware should be nger
tightened. when connecting the Drum (D).
3
FIG. 1a
FIG. 1b
F
J1
I
J3

9oneida-air.com
Assembly Instructions (Cont.)

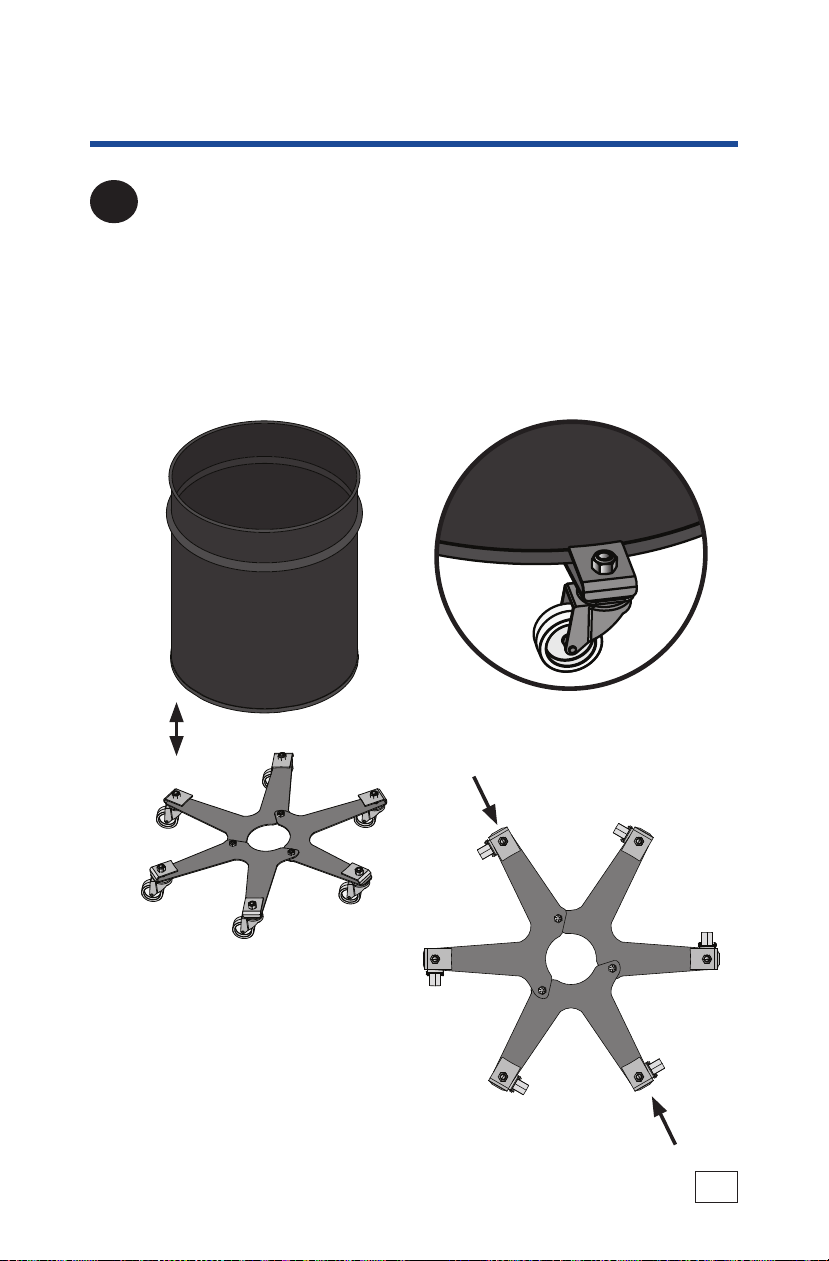

Place the Drum (E) onto the Assembled Dolly [FIG. 4a],
then slide the Retainer Clips (I) into position over the
bottom lip of the drum to securely hold the container in
place. [FIG. 4b] Start by tightening two opposing Nylock
Nuts (J1) until the lip of the drum is fully secured. [FIG.
4c] Then repeat the process for the next two opposing pairs,
making sure that the drum is centered as you go.
4
FIG. 4a
FIG. 4b
FIG. 4c

Oneida Air Systems10

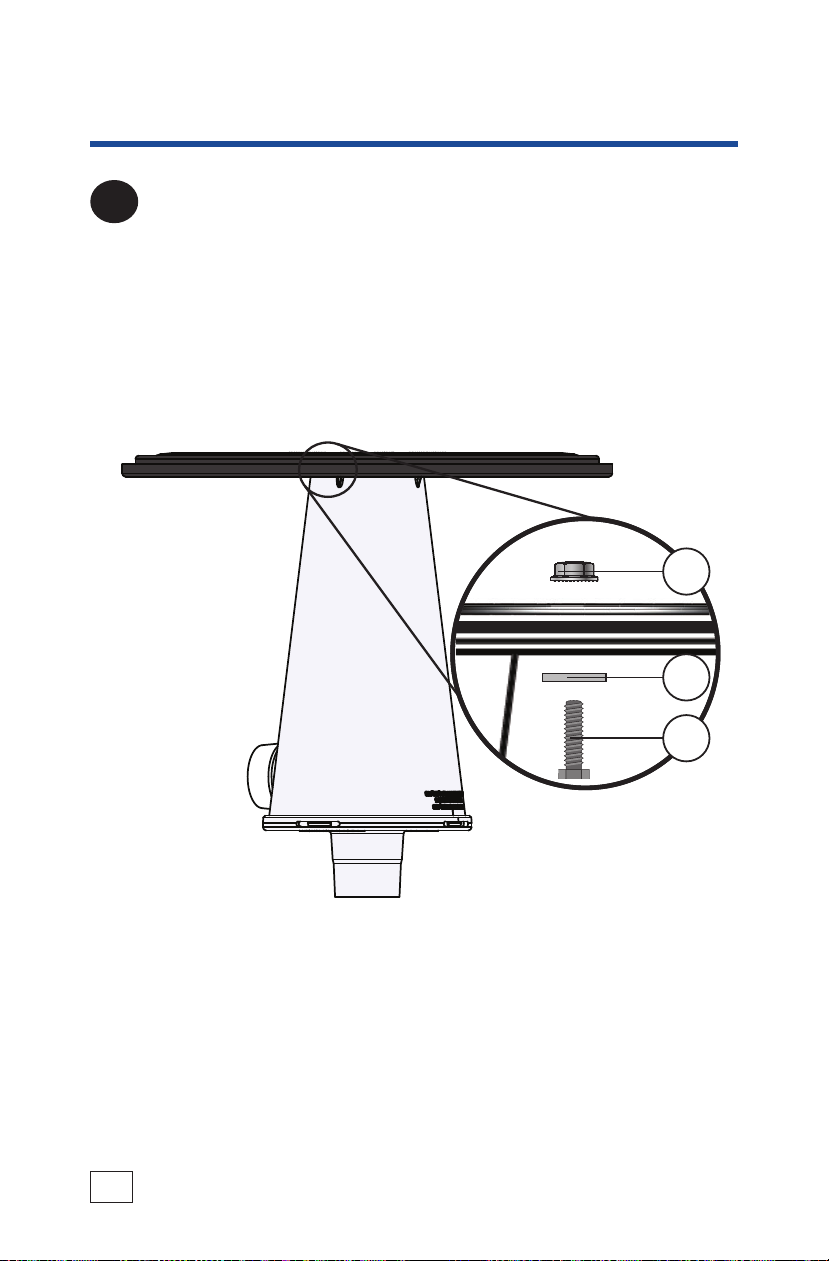

Turn Cyclone (A) upside-down. Place Gasket (B) on the
base of Cyclone and the topside of the Lid (D) against
Gasket (B) and align all the holes. Secure Cyclone, Gasket,
and Lid together using six Bolts (C1), six Washers (C2), and
six Whiz-Lock Nuts (C3) as shown in [FIG. 5].
Note: oroughly tighten hardware to eliminate air leaks.
5
C1
C2
C3
FIG. 5
Assembly Instructions (Cont.)

11oneida-air.com

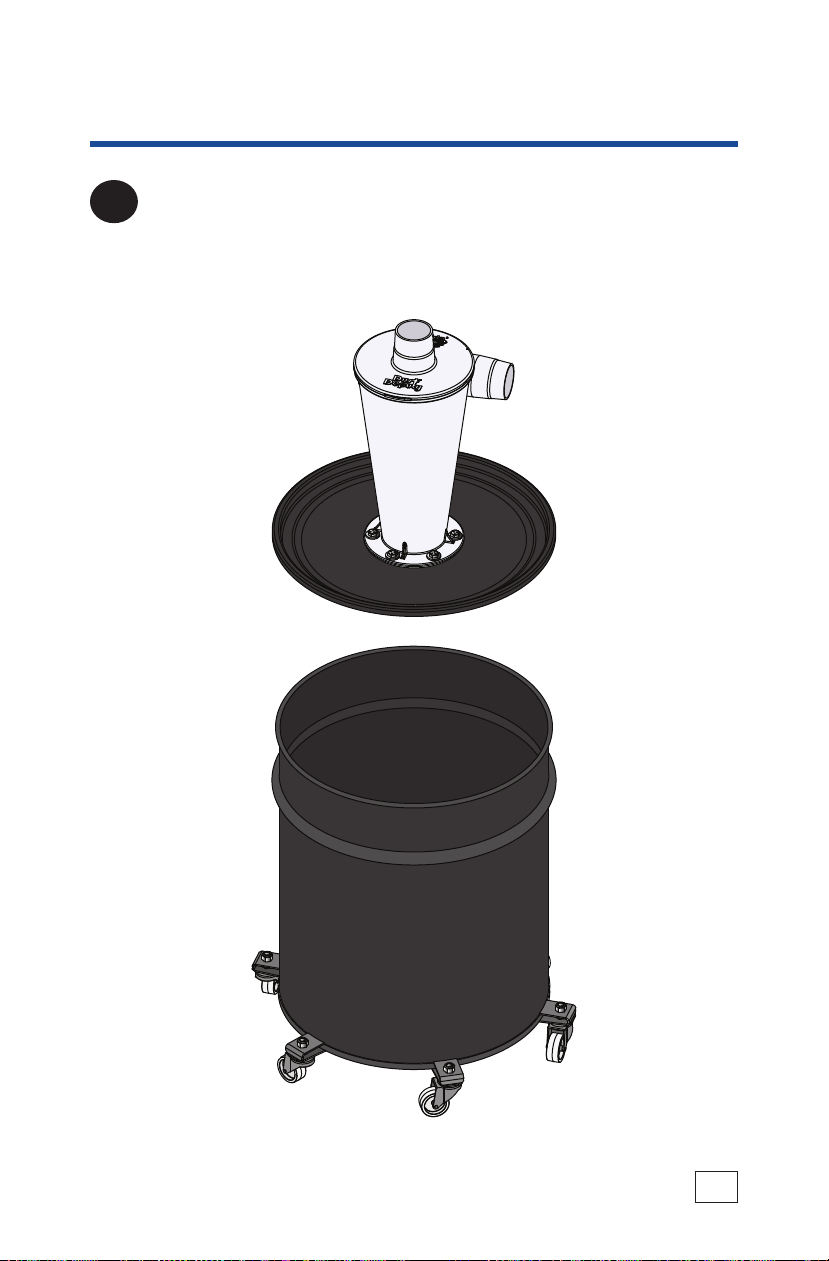

Put Cyclone and Lid (A, D) assembly top of your Drum
(E). Seal the Drum closed using the provided clamp and
seal it airtight.[FIG. 6].
6
FIG. 6
Assembly Instructions (Cont.)

Oneida Air Systems12
If you purchased the 10 Gallon SD (#AXD000010SD),
continue to step 8.

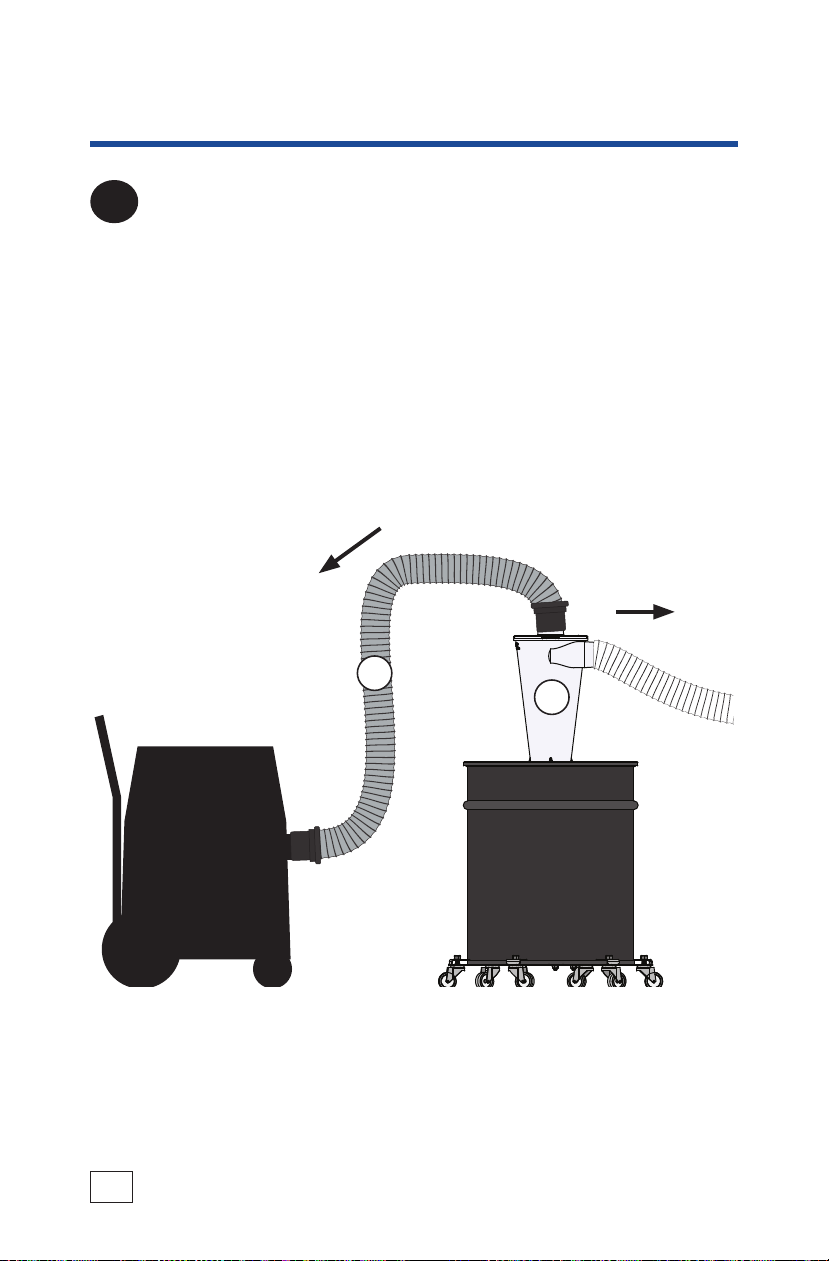

Connect the Cyclone's (A) inlet (sideways facing port)
to your dust producing tool with your vacuum's hose or
ductwork. Connect Cyclone's outlet (upwards facing port)
to your vacuum with Hose (L) [FIG. 7]. Continue to Step 9.
7
A
L
FIG. 7
To wet/dry vacuum
To Tool
Assembly Instructions (Cont.)

13oneida-air.com
A
M
N
FIG. 8
To wet/dry vacuum
To Tool
Assembly Instructions (Cont.)
Attach one Elbow (N) to the top outlet of the Cyclone (A)
and ax Hose (M) to the tapered end of the Elbow. Attach
the other open end of Hose to the second Elbow (N) and
attach to the inlet of your wet dry vacuum.
Connect the Cyclone's inlet (sideways facing port) to your
dust producing tool with your vacuum's hose or ductwork
[FIG. 8].
Note: Additional Elbow (O) and Hose Adapters (P) included
to aid in your install.
8

Oneida Air Systems14
Assembly Instructions (Cont.)
FIG. 9
Leak Point
Leak Point
Leak Point
Leak Point

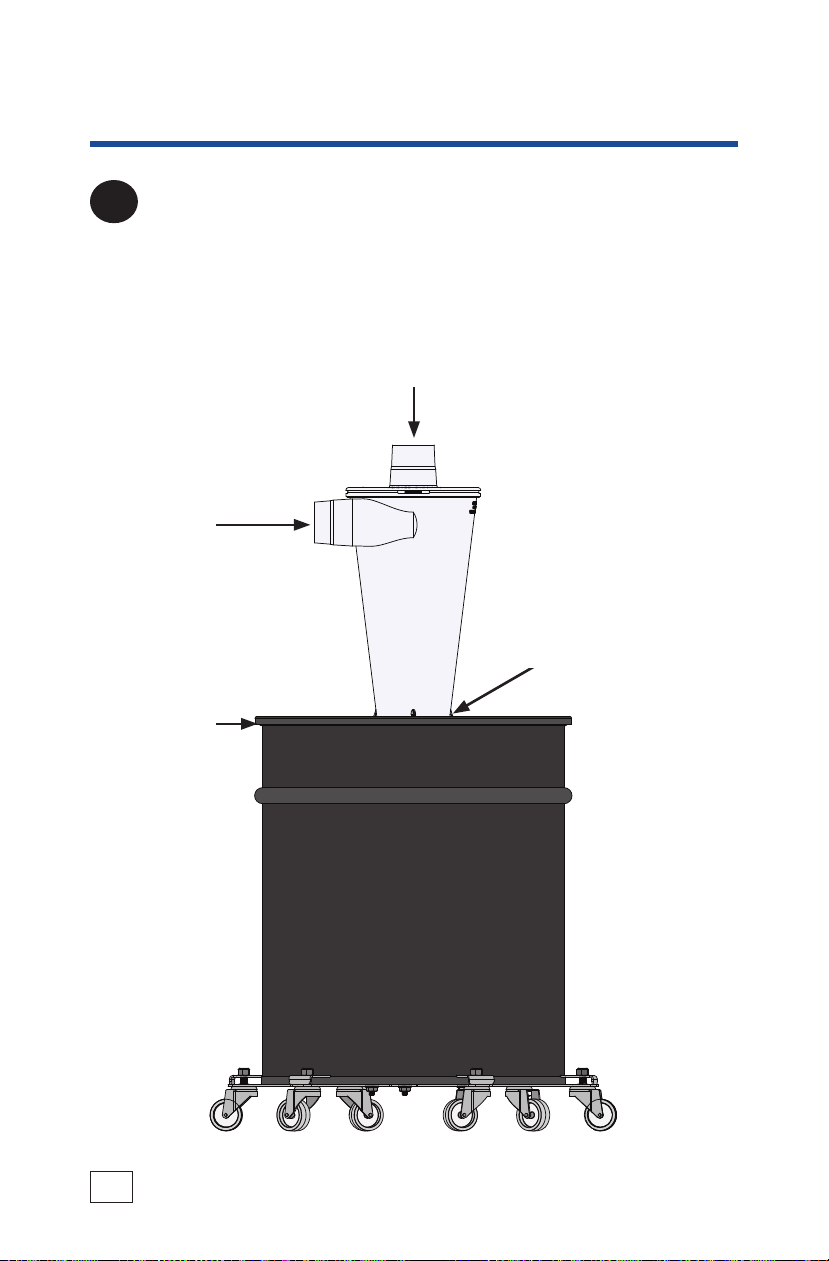

Make sure there are no air leaks at the connections. Review
[FIG. 9] for common leak points.
Note: Any air leak in the Lid (D) or Drum (E) will aect
separation performance. Make sure to check your dust drum
frequently so you do not overll it.
9

15oneida-air.com
Optional Grounding Instructions
Recommended for fine dust situations or electronically
sensitive applications.
If you purchased the 10 Gallon SD (#AXD000010SD),
continue to step 11.

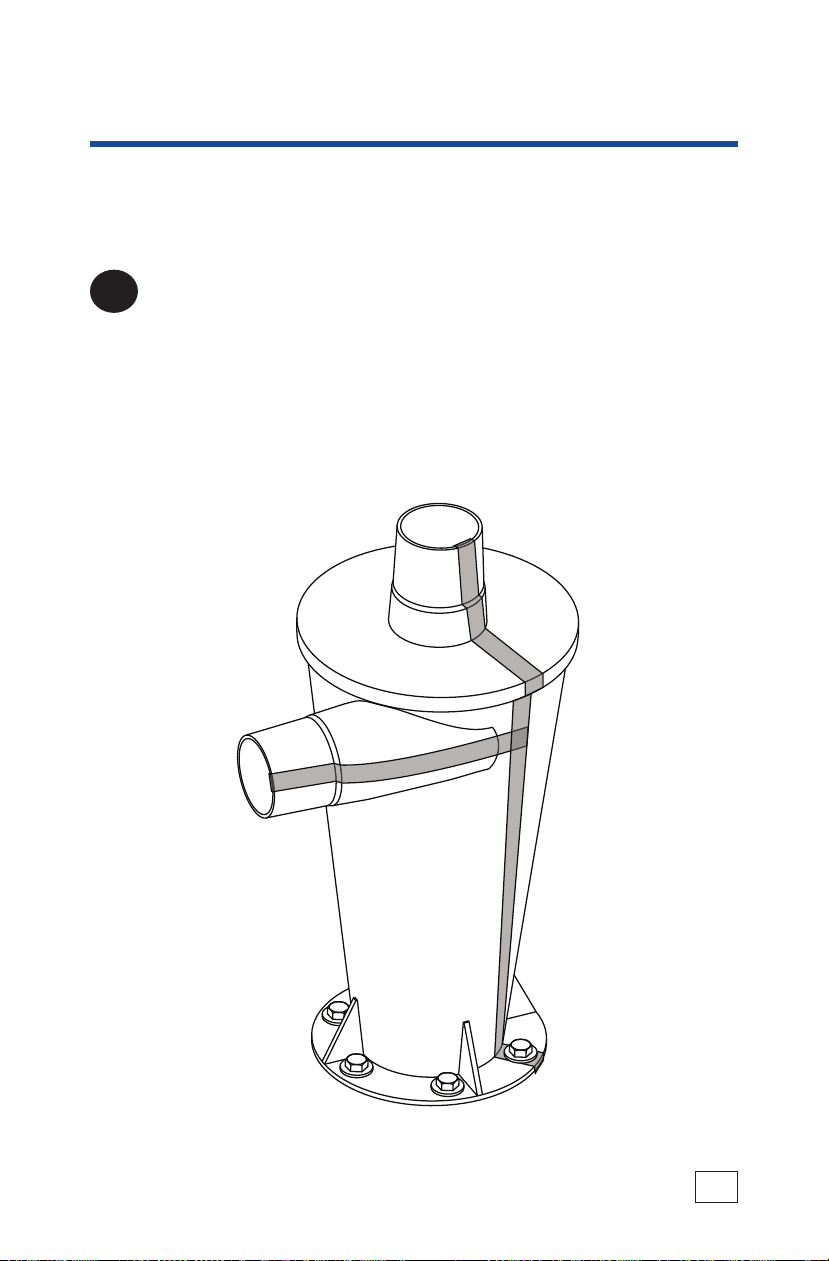

Install the Metal Tape (K) to the Cyclone (A) so that the
inlet, outlet, and ange are attached by a continuous,
conductive path. e tape should wrap 1/4" around the edge
of each opening [FIG 10]. Continue to Step 12.
10
FIG. 10

Oneida Air Systems16
FIG. 11b
FIG. 11a
Optional Grounding Instructions
e Static Dissipative Cyclone (A) and the Elbows (N) are
molded from an industrial static conductive resin, which
preserves the grounding pathway for electronically sensitive
applications and does not require the Metal Tape (K).

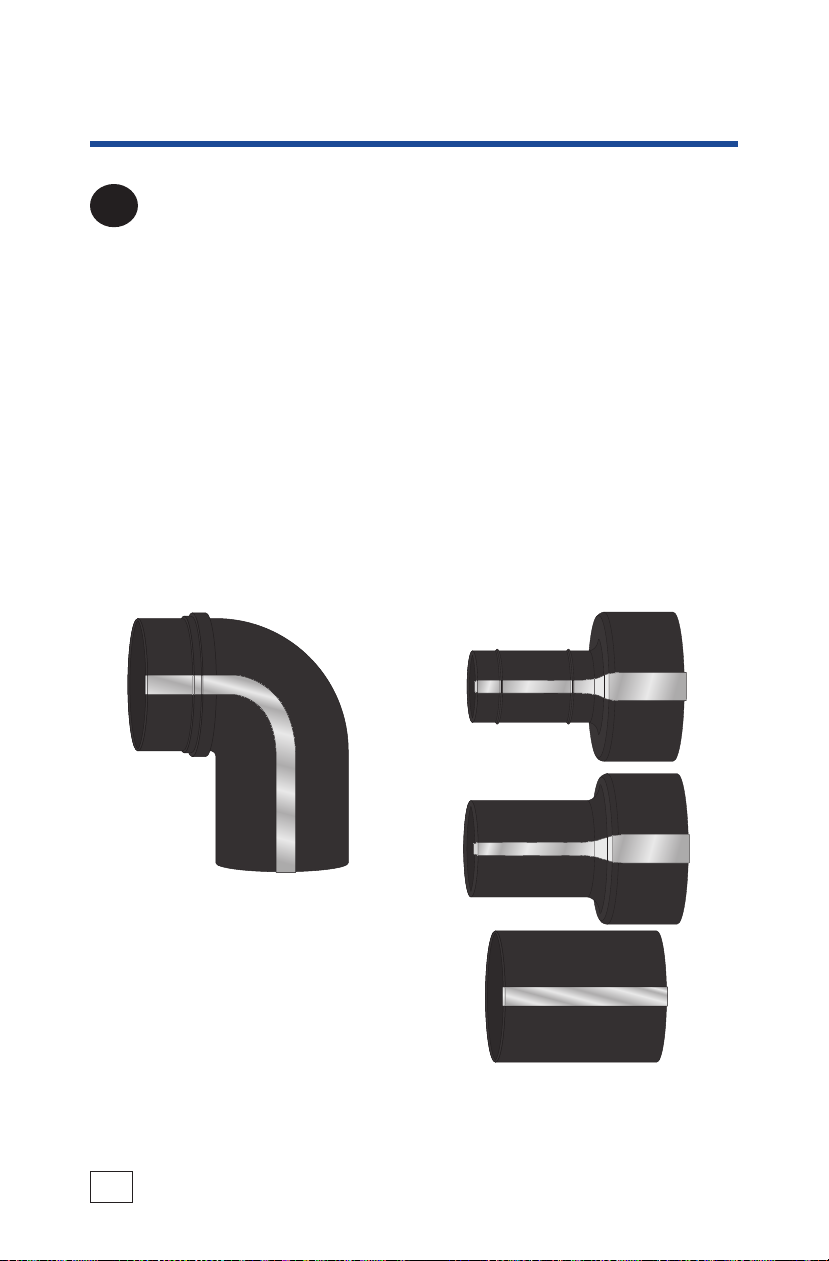

Install the Metal Tape to the Elbow (O) [FIG 11a] and the
Hose Adapters (P) [FIG 11b] so that all connections are
attached by a continuous, conductive path. e tape should
wrap 1/4" around the edge of each opening.
11

17oneida-air.com
FIG. 12
Optional Grounding Instructions

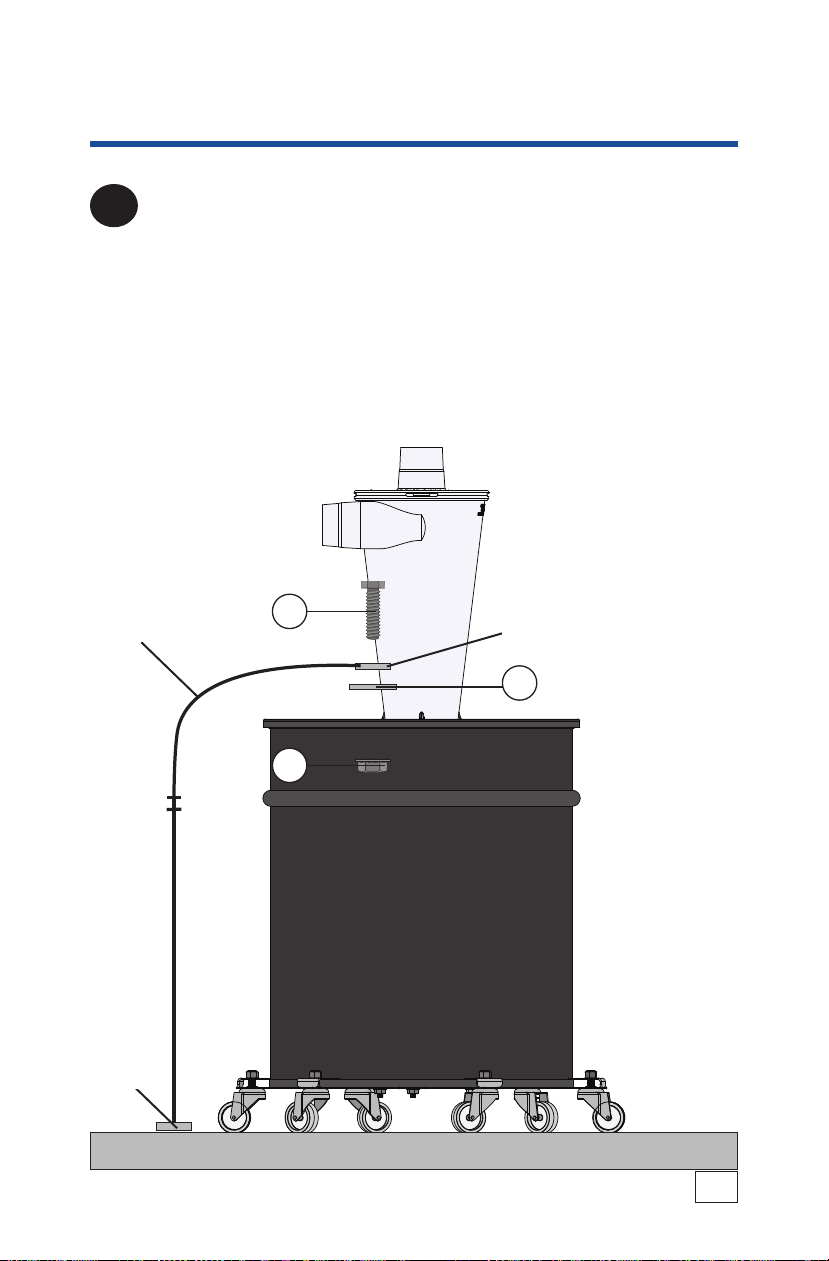

For added grounding, attach a self-supplied wire with a
ring terminal on one end and a washer tied to the other end
when installing one of the bolts in Step 5 on Page 10. e
wire must be long enough for the washer to lie on the oor
[FIG 12].
12
C1
C2
C3
Washer
Wire
Washer

Oneida Air Systems18
2 or More
Attach in Series
Attach in Parallel
Multiple Vacuums
Increases particle eciency
and helps in very ne dust
situations.
Same particle eciency but
increases the CFM.
More CFM/airow to larger
tools such as Table Saw,
Jointer, and Planer.
200 CFM 100 CFM 100 CFM
Top View
To Tools
Adding Cyclones to Improve Performance
Top View
Top View
To Tools
To Tools

19oneida-air.com
Troubleshooting
PROBLEM CAUSE SOLUTION
Not separating well.
(Only a tiny amount of
dust should reach the
vacuum)
Air leaks in the drum 1. Check for leaks between the lid and the dust drum.
2. Check for holes or leaks in the dust drum.
3. Check for leaks along the ange of the cyclone.
Material swirls in
cyclone and won't drop
into the dust container.
Material swirls in
cyclone and won't drop
into the dust container.
Collecting large bulky
material
1. Large, bulkier material might swirl. Restart or temporarily cut
o air ow to drop material down.
Low Air Volume System clogged 1. Clean vacuum and the vacuum lter per the manufacturer's
specs.
2. Check all hose connections for a blockage in the hose.
Drum Collapsing Blocked airow 1. Ensure at least one gate is open during operation of your dust
collector.
Hose Pulling o Hose connections not
tight
1. Due to the varied hose diameters, exible couplers can
be used.They are available at local hardware stores in the
plumbing section.
2. Use a hose clamp.
3. Wrap the inlet and outlet of the Dust Deputy with a layer of
electrical tape to increase the friction t.
4. Secure hose with a sheet metal screw.

Oneida Air Systems20
FAQ
What do I need to hook up my Dust Deputy to my vacuum?
Our Dust Deputy Deluxe Kit is ready to go right out of the box
for most wet-dry vacuums. However, not all wet-dry vacuums are
identical and may need an adapter to attach. Please visit our site for
adapters at oneida-air.com/ex-hose/adapters.
You can also nd adapters at your local hardware store. Look in the
plumbing section for a sleeve or adapter. ere are many dierent
sizes and congurations.
Can I use this cyclone with smoldering or abrasive debris?
No. is cyclone is designed for use with light debris such as wood
dust. For applications with highly abrasive or smoldering materials,
we recommend our steel, Heavy-Duty Dust Deputy kits instead.
Does the Dust Deputy work with water?
e Dust Deputy can be used with nearly any wet or dry material to
cyclonically separate waste from the air stream.
What is an anti-static material?
is term refers to the range of conductivity that a material has.
Anti-static materials range from 1010-1012 Ohms.
Is it possible to buy just the waste bin?
e waste bin is not available as a standalone item, but if you are
an existing owner of the Dust Deputy then we can readily oer you
a replacement for any damaged components. Please contact our
service department to order.
