Onkyo DAC-HA300 User manual

D/A Converter/Headphones Amplifier/SD Audio Player
DAC-HA300
INSTRUCTION MANUAL
MODE D’EMPLOI
MANUAL DE INSTRUCCIONES
MANUALE DI ISTRUZIONI
BEDIENUNGSANLEITUNG
GEBRUIKSAANWIJZING
BRUKSANVISNING
取扱説明書
ENGLISH
FRANÇAIS
ESPAÑOL
ITALIANO
DEUTSCH
NEDERLANDS
SVENSKA
日本語
DAC-HA300_OM_vA_CS6.indb 1 2015/01/29 18:01:58

2
“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic
accessory has been designed to connect specifically to iPod, iPhone, or iPad,
respectively, and has been certified by the developer to meet Apple performance
standards.
Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards.
Please note that the use of this accessory with iPod, iPhone, or iPad may affect
wireless performance.
Apple, iPad, iPhone, iPod, iPod touch, Macintosh and Mac OS are trademarks of
Apple Inc., registered in the U.S. and other countries.
Microsoft and Windows are either registered trademarks or trademarks of
Microsoft Corporation in the United States and/or other countries.
micro SDXC Logo is a trademark of SD-3C, LLC.
MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and
Thomson Licensing.
This product is protected by certain intellectual property rights of Microsoft. Use
or distribution of such technology outside of this product is prohibited without a
license from Microsoft.
DSD and the Direct Stream Digital logo are trademarks of Sony Corporation.
Android™ is a trademark of Google Inc.
Other company names and product names in this document are the trademarks
or registered trademarks of their respective owners.
Information about copyrights and licensing related to open-source software
is provided in the “Important Notice Regarding Software” at the end of this
document.
IMPORTANT SAFETY INSTRUCTIONS
BThe exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
CAUTION
oDO NOT REMOVE THE EXTERNAL CASES OR CABINETS TO EXPOSE THE
ELECTRONICS. NO USER SERVICEABLE PARTS ARE INSIDE.
oIF YOU ARE EXPERIENCING PROBLEMS WITH THIS PRODUCT, CONTACT
THE STORE WHERE YOU PURCHASED THE UNIT FOR A SERVICE
REFERRAL. DO NOT USE THE PRODUCT UNTIL IT HAS BEEN REPAIRED.
oUSE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
Model for USA
This device complies with part 15 of the FCC Rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interfer-
ence to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the equipment and/or the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
DAC-HA300_OM_vA_CS6.indb 2 2015/01/29 18:01:58

3
EN
Model for Canada
Industry Canada’s Compliance Statement:
This Class B digital apparatus complies with Canadian ICES-003.
CAUTION
Changes or modifications to this equipment not expressly approved by
Onkyo Corporation for compliance will void the user’s warranty.
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
8) Only use attachments/accessories specified by the manufacturer.
9) Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as pow-
er-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
oCaution should be taken when using earphones or headphones with
the product because excessive sound pressure (volume) from ear-
phones or headphones can cause hearing loss.
WARNING
To prevent possible hearing damage, do not listen at high vol-
ume levels for long periods.
CAUTION
oDo not expose this apparatus to drips or splashes.
oIf the product uses batteries (including a battery pack or installed
batteries), they should not be exposed to sunshine, fire or excessive
heat.
Model for Europe
Declaration of Conformity
We declare, under our sole responsibility, that this
product complies with the standards:
- Safety
- Limits and methods of measurement of radio
disturbance characteristics
- Limits for harmonic current emissions
- Limitation of voltage changes, voltage fluctuations and flicker
- RoHS Directive, 2011/65/EU
WEEE
http://www.onkyo.com/manual/weee/weee.pdf
DAC-HA300_OM_vA_CS6.indb 3 2015/01/29 18:01:59

4
Included accessories
Check to be sure the box includes all the supplied accessories shown
below. Please contact the store where you purchased this unit if
any of these accessories are missing or have been damaged during
transportation.
DC power supply cable (DC plug to USB A connector) × 1
USB cable for computer connection
(USB micro-B connector to USB A connector) × 1
RCA conversion (RCA to mini plug) cable × 1
Rubber bands for attachment* × 2
Instruction manual (this document) × 1
*Use to attach a music player or other device to this unit.
Features
This D/A converter/Headphones amplifier/SD audio player supports
Apple iOS products. Using asynchronous mode that supports USB audio
(192kHz/24-bit and 5.6MHz DSD/DSD128), this unit can convert signals
from digital to analog accurately with its built-in high-precision clock to
enable playback of high-resolution audio contents.
Introduction
Thank you for choosing Onkyo.
Read this manual carefully to get the best performance from this unit.
After reading this manual, keep it in a safe place for future reference.
IMPORTANT SAFETY INSTRUCTIONS ......................................2
Introduction ..............................................................4
Included accessories......................................................4
Features ..................................................................4
Placement precautions ...................................................5
Recycling rechargeable batteries. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Apple products that can be used with this unit ...........................5
Playback application software ............................................5
Supported operating systems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Names and functions of parts.............................................6
Recharging .............................................................10
Automatic power saving function.......................................11
Basic operation .........................................................11

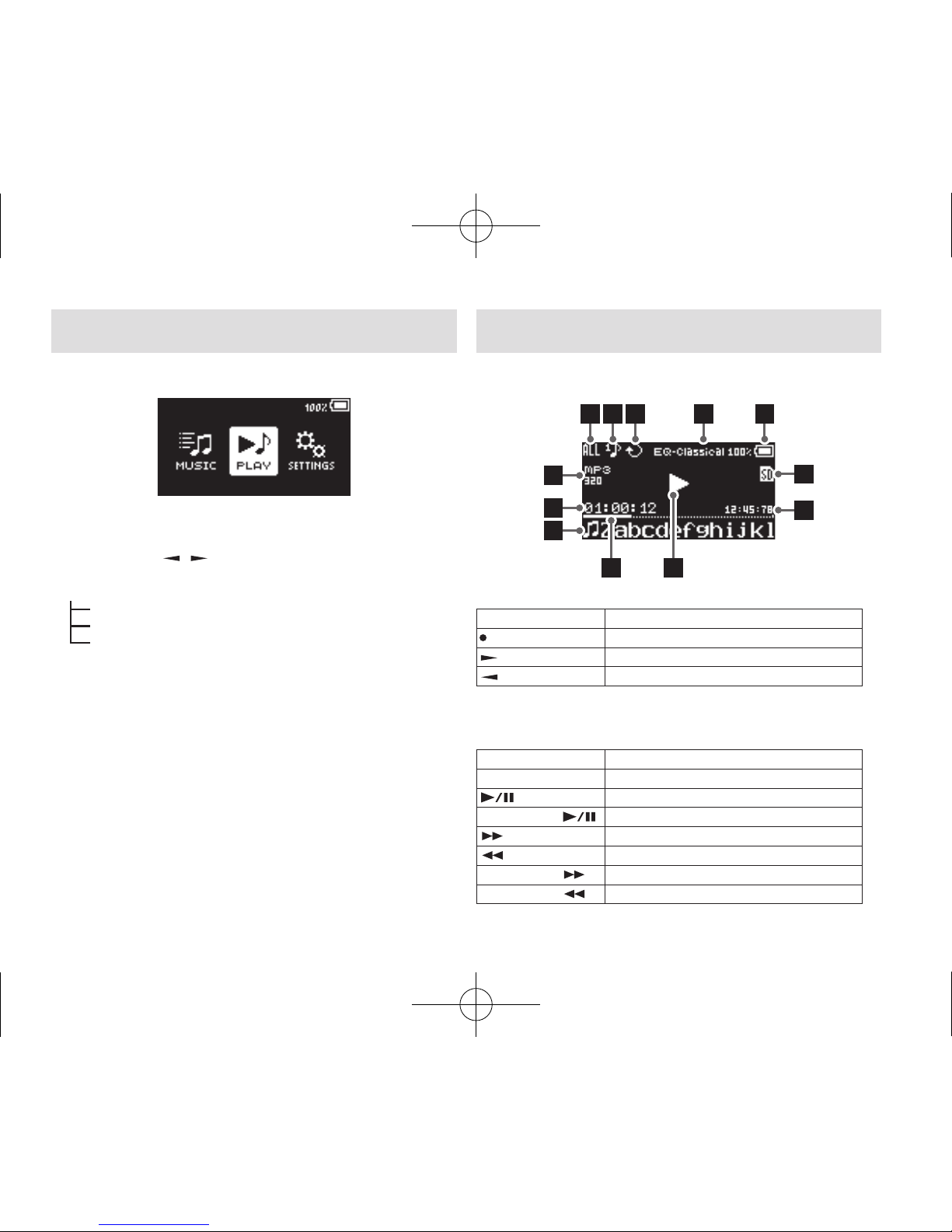

Home screen ...........................................................12
PLAY screen ............................................................12

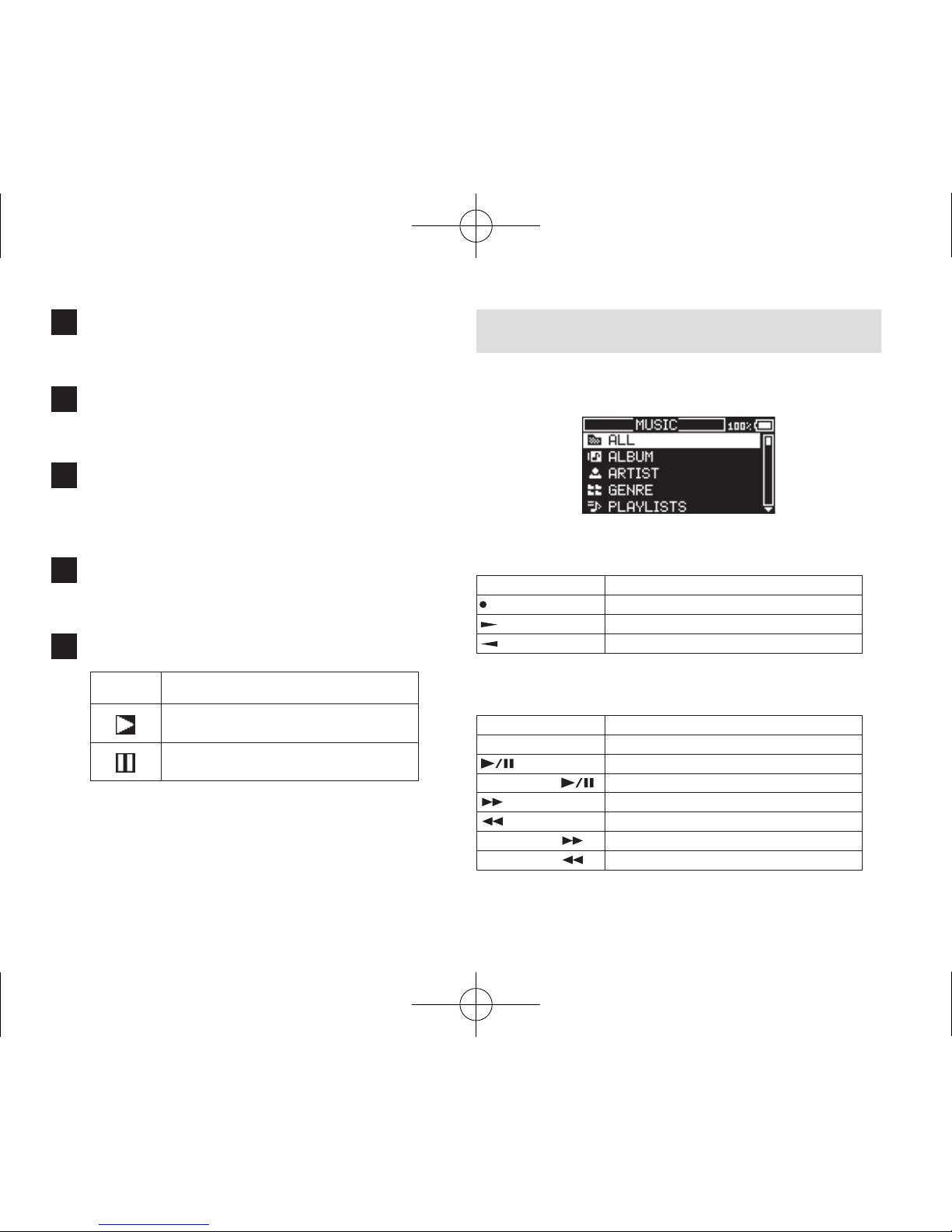

MUSIC screen...........................................................14
Audio files playable by this unit .........................................15
Settings ................................................................16
Download the latest firmware ..........................................17
Troubleshooting........................................................17
Specifications...........................................................18
DAC-HA300_OM_vA_CS6.indb 4 2015/01/29 18:01:59

5
EN
Apple products that can be used with
this unit
This unit can be connected to and used with the following Apple products.
iPhone 5s, iPhone 5c, iPhone 5, iPad Retina (4th generation),
iPad Air, iPad mini, iPad mini Retina, iPod touch (5th generation)
oAlways use the USB cable that was included with the iPod, iPhone or
iPad to connect it to this unit's standard USB port. Operation cannot be
guaranteed when using a non-genuine cable.
Playback application software
Our Onkyo HF Player application (Windows and Mac versions and iOS and
Android apps available) supports playback of high-resolution audio files.
You can download it from the Onkyo website.
Placement precautions
oDo not put anything on top of the unit.
oAvoid placing the unit in direct sunlight or close to any source of heat,
such as a radiator, heater, open fireplace or amplifier. Also avoid loca-
tions that are subject to vibrations or exposed to excessive dust, cold
or moisture.
oPlace the unit in a stable location near the audio system that you will
use with it.
oThe voltage supplied to the unit should match the voltage printed on
the rear panel. If you are in any doubt regarding this matter, consult an
electrician.
oDo not open the body of the unit as this might result in damage to the
circuitry or cause electric shock. If a foreign object should get into the
unit, contact your dealer.
oWhen removing the power plug from the wall outlet, always pull
directly on the plug; never yank on the cord.
Recycling rechargeable batteries
This unit uses a lithium-ion battery. Lithium-ion batteries
are valuable resources that can be recycled. Please coop-
erate in recycling them.
Li-ion
VImportant notice
oNever disassemble this unit at any time other than before disposal.
DAC-HA300_OM_vA_CS6.indb 5 2015/01/29 18:01:59

6
Supported operating systems
Computers running the following operating systems can be connected by
USB to this unit.
Microsoft Windows
Windows 7, Windows 8, Windows 8.1
oTo use a Windows computer for playback, you must install the dedicated
driver on the computer beforehand.
Download the dedicated driver from the Onkyo website.
Important notice
Always install the dedicated driver software on the Windows computer
before connecting the unit to it using a USB cable. If you connect this unit
to a Windows computer that does not already have the driver installed
on it, proper operation will not be possible. Furthermore, be aware that
it might also become impossible to install the driver normally if they are
connected before installation.
Mac OS X
OS X Lion 10.7
OS X Mountain Lion 10.8
OS X Mavericks 10.9
oThis unit can be operated with the standard OS driver, so there is no
need to install a driver.
Use with operating systems other than the above is not guaranteed.

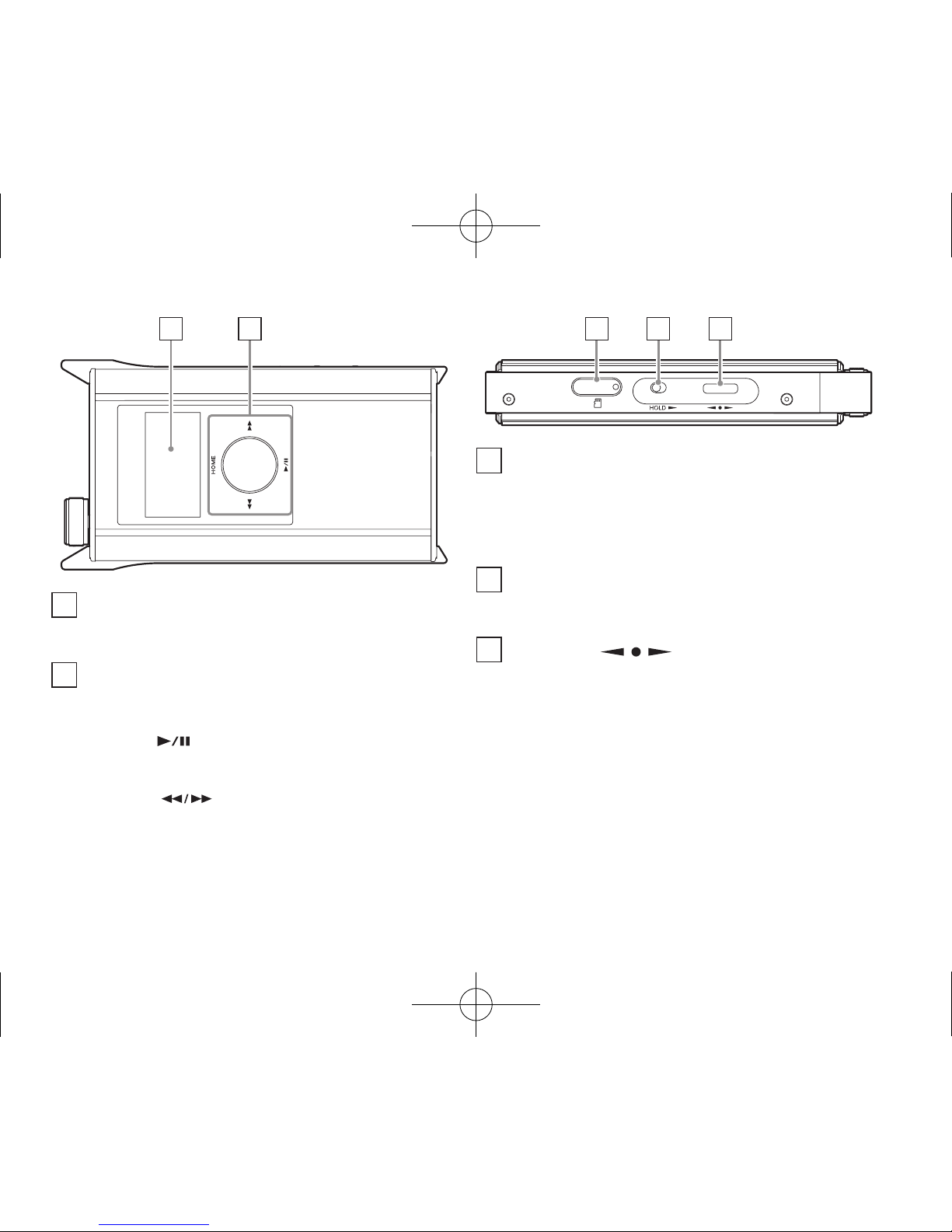

Names and functions of parts
B C D E
A
F
A Indicators
POWER: This lights blue when the unit is on.
CHARGE: This lights red when the unit is charging. When charging
completes, it will become unlit.
DAC-HA300_OM_vA_CS6.indb 6 2015/01/29 18:01:59

7
EN
B Digital audio input/output and
analog audio input jack
Use this for digital audio input/output or analog audio input.
oThe unit will automatically switch between optical and coaxial
connections.
For digital input:
Optical connection: Use an optical cable with a mini plug.
Coaxial connection: Use the included RCA conversion cable.
For analog input:
Use a cable with a 3.5mm stereo mini plug.
For digital output:
Coaxial connection: Use the included RCA conversion cable.
C Digital/analog switch
Use this to switch between digital input/output and analog input.
If the switch and the cable connected to the connection jack do
not match, audio input and output will not be possible.
oUse the SETTINGS screen to switch digital input and output.
D PHONES jack
Connect a headphones plug (3.5mm stereo mini) to this jack.
CAUTION
oAlways minimize the volume before plugging headphones in and
putting them on. While wearing headphones, do not connect or
disconnect them or turn the unit on or off. Doing so could result
in a sudden loud noise that could harm your hearing.
oBe careful not to mistake the headphones jack for the digital out-
put jack and vice versa. Doing so could result in odd noises and
even damage to connected equipment.
E GAIN switch
Use this to change the output level to suit the headphones that
you are using.
H: high output level
L: low output level
Lower the volume before setting this switch to H.
CAUTION
Particularly when using headphones for the first time with this unit,
set the GAIN switch to L and be sure to raise the volume gradually
during playback to check the sound pressure sensitivity.
F Power/volume knob
Turn this counterclockwise until it stops to turn the unit off.
Use this to adjust the volume. Turn this clockwise to turn the unit
on. Keep turning it clockwise to increase the volume. Turn it coun-
terclockwise to decrease the volume.
Continued on the next page e
DAC-HA300_OM_vA_CS6.indb 7 2015/01/29 18:01:59

8
G H
G Display
This shows song information during playback and songs on the
MUSIC screen, as well as the unit's settings screens.
H Operation buttons
HOME button
Press to open the Home Screen.
Play/pause ( ) button
When stopped or paused, press to start playback.
During playback, press to pause.
Skip/search ( ) buttons
Use to skip to the previous or next track.
Press and hold to search backward/forward.
I J K
I microSD card slot
Insert an SD card with music files here.
oDue to FAT32 maximum file size limitations, SDHC cards cannot
have files that are 4GB or larger.
oUse SDXC cards if you want to use files that are 4GB or larger.
J HOLD switch
Slide this right to activate the hold function, which disables the use
of other buttons.
K Multiway ( ) button
On the MUSIC screen, use this for various functions including track
selection and track skipping.
Turn the dial to make a selection and press the dial to confirm it.
DAC-HA300_OM_vA_CS6.indb 8 2015/01/29 18:01:59

9
EN
NL M
USB cable for computer
connection
(USB micro-B connector to
USB A connector)
USB cable included with
iPod/iPhone/iPad device
L Computer connection port
Use the included USB cable for computer connection (USB micro-B
connector to USB A connector) to connect this unit to a computer.
oTo use a Windows computer for playback, you must install the
dedicated driver on the computer beforehand.
M Force shutdown switch
Turn the power/volume knob to the OFF position, and then insert a
fine pin such as the end of a paper clip into this hole.
The unit turns off.
N iPod/iPhone/iPad device connection port
Use the USB cable included with the iPod/iPhone/iPad device to
connect it to this unit.
oConnecting anything other than an iPod/iPhone/iPad to this port
could cause the operation time of the battery to be significantly
reduced.
Precaution during operation
While a pop-up message such as “Processing...” “Loading...” or “Removing...”
appears on the display, do not connect anything to or disconnect anything from
the computer connection port or iPod/iPhone/iPad device connection port.
Note about input sources
This unit does not have an input selection switch. When this unit is turned
on, the first device connected to it becomes the input source.
If multiple devices are already connected to this unit when it is turned on,
the input source will be selected with the following priority: computer con-
nection port, iPod/iPhone/iPad device connection port, digital audio input/
output and analog audio input jack, microSD card slot.
To change the input source, turn the unit off once and connect the
desired device.
DAC-HA300_OM_vA_CS6.indb 9 2015/01/29 18:01:59

10
Recharging
This unit has a built-in rechargeable lithium-ion battery.
oCharge it before using the unit the first time after purchase and after it
has not been used for a long time.
oMake sure the temperature of the surrounding environment is between
5−35°C when charging.
Charging might not occur properly outside this temperature range.
oA computer connected using the included USB cable can also charge
the unit.
oAlways connect this unit and the computer directly. If connected
through a USB hub or other device, charging might not occur properly.
oWhen connected to a computer using the included USB cable, charging
might not start if the computer does not recognize this unit as a valid
USB device.
oThis unit must be off when connected to a computer to be recharged.
If the unit is connected to a computer when on, it will not start
recharging.
oEven when using the included DC power supply cable and recharging
has started, the battery power might still consumed if you listen at high
volume.
oAn AC adapter (TASCAM/PS-P515U) that works with this unit is avail-
able for purchase. Connect the included DC power supply cable to
it to charge the unit. The maximum current when charging is 1.5 A.
Compared to charging from a computer, the unit can be charged more
rapidly by using a DC power supply.
oWhen the included DC power supply cable and the USB cable for
computer connection are both connected, the unit will charge from the
DC power supply cable. Power will not be supplied from the computer
in this case.
USB cable for computer
connection
(USB micro-B connector to
USB A connector)
DC power supply cable
USB AC adapter
(TASCAM/PS-P515U
recommended)
sold separately
DAC-HA300_OM_vA_CS6.indb 10 2015/01/29 18:01:59

11
EN
Automatic power saving function
This unit will enter sleep mode automatically under the following
circumstances.
When used as a headphone amp
oWhen 30 minutes pass without digital or analog audio input.
NOTE
Automatic power saving will not function when an iPod/iPhone/iPad (pow-
ered on) is connected to the iPod/iPhone/iPad device connection port or
a computer (powered on) is connected to the computer connection port.
During SD card playback
oWhen the player’s auto power saving function is on and the player has
not operated for the set amount of time.
NOTE
To end sleep mode, turn the volume knob counterclockwise until the unit
is turned off.
Basic operation
VComplete all other connections before turning the unit on.
oRead the owner’s manuals of all devices that will be connected, and
follow their instructions.
oDo not bundle connection cables with the power cord. Doing so
could cause noise.
oConnect all plugs securely.
Playback on an external input device
1 Connect the input source.
2 Turn this unit on.
Set the volume at a low level.
3 Wait until the input source has been selected.
4 Start playback on the input source device.
5 Turn this unit's power/volume knob to adjust
the volume.
Playback of audio files on an SD card
1 Insert the SD card.
2 Turn this unit on.
Set the volume at a low level.
3 Use the multiway ( /) button to select a
file for playback on the MUSIC screen.
4 Press the multiway button to start playback.
5 Turn this unit's power/volume knob to adjust
the volume.
DAC-HA300_OM_vA_CS6.indb 11 2015/01/29 18:01:59

12
Home screen
This is the basic screen that appears when the unit is turned on.
The currently selected mode appears highlighted.
Press the multiway button to open the selected mode screen.
Use the multiway ( /) button to select from the following three
mode screens.
Home
MUSIC Select audio files
PLAY Use for playback
SETTINGS Use to make settings
PLAY screen
This screen appears when files are being played from the SD card.
Select PLAY on the HOME screen to open this screen.
abc d e
f
g
h
i
j
kl
Use the multiway button to control playback.
Button operation Function
(push) Start/pause song playback
Skip to the next track
Skip to the previous track
You can use the operation buttons to control song playback, add songs to
favorites and change screens.
Button operation Function
HOME Open Home screen
Start/pause song playback
Press and hold Add the playing song to favorites
Play the next song
Play the previous song
Press and hold Search forward
Press and hold Search backward
DAC-HA300_OM_vA_CS6.indb 12 2015/01/29 18:01:59

13
EN
a Playback area indicator
Icon Playback area
All files on SD card
All files by selected artist
All files in selected album
Files added to the playlist
Files added to favorites
Files in selected genre
b Playback mode indicator
Icon Function
Play all songs
Play one song
Random playback
c Repeat mode indicator
Icon Function
Off No repeat playback
Repeat all songs
Repeat one song
d Equalizer setting
This shows the selected sound quality.
e Remaining battery indicator
The current remaining battery power is shown as a percentage.
f File information
This shows the file type and the bit rate or sampling frequency of
the playing file.
gElapsed time
This shows the elapsed time (hours: minutes: seconds) of the
playing file.
Continued on the next page e
DAC-HA300_OM_vA_CS6.indb 13 2015/01/29 18:01:59

14
h Song name
This shows the name of the song according to the tag information
of the playing file.
i SD card indicator
This shows whether or not an SD card is loaded.
jRemaining time
This shows the remaining time (hours: minutes: seconds) of the
playing file.
k Playback position indicator
This bar shows the current playback position.
l Player status indicator
Icon Function
Playing or searching forward/backward
Paused
MUSIC screen
This is the screen for selecting files from the SD card.
Select MUSIC on the Home screen to open this screen.
Use it to select and manage songs saved on the SD card.
Use the multiway button to search for songs and select them.
Button operation Function
(push) Select and play songs
Skip to the next song
Skip to the previous song
You can use the operation buttons to control song playback, add songs to
favorites and change screens.
Button operation Function
HOME Return to the previous screen
Select, play and pause songs
Press and hold Add the selected song to favorites
Play the next song
Play the previous song
Press and hold Search forward
Press and hold Search backward
DAC-HA300_OM_vA_CS6.indb 14 2015/01/29 18:01:59

15
EN
MUSIC
ALL Show all songs on the SD card
ALBUM Show song data by album tag
ARTIST Show song data by artist tag
GENRE Show song data by genre tag
PLAYLISTS Show song data for songs added to the playlist*
FAVORITES Show song data for songs added to favorites
Press and hold the play/pause ( ) button allows
you to remove the selected song from favorites.
*Onkyo HF Player playlists can be used.
Creating playlists with Onkyo HF Player
1 Turn the computer on.
2 Insert an SD card into the unit and connect it
to the computer using a USB cable.
The unit will operate as an SD card reader/writer.
oYou can also use an ordinary SD card reader/writer connected to
the computer.
3 Launch Onkyo HF Player and add the desired
tracks on the SD card to the playlist.
oThis unit cannot play tracks added to the playlist from the com-
puter hard disk.
4 Save the playlist in the “PLAYLISTS” folder on
the SD card.
Audio files playable by this unit
MP3
File extension .mp3, .MP3
Sampling frequency 44.1kHz, 48kHz
Bit rate 32kbps, 64kbps, 96kbps, 128kbps, 192kbps,
256kbps, 320kbps, VBR
WMA
File extension .wma, .WMA
Sampling frequency 44.1 kHz, 48 kHz
Bit rate 48–384 kbps, VBR
WAV
File extension .wav, .WAV
Sampling frequency
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Quantization bit depth 16-bit, 24-bit
AAC
File extension .aac, .m4a, .mp4, .AAC, .M4A, .MP4
Sampling frequency 44.1kHz, 48kHz
Bit rate 64–320 kbps, VBR
FLAC
File extension .flac, .FLAC
Sampling frequency 44.1kHz, 48kHz, 88.2kHz, 96kHz
Quantization bit depth 16-bit, 24-bit
DSD (DSF, DSDIFF)
File extension .dsf, .DSF, .dff, .DFF
Sampling frequency 5.6MHz (DSD128), 2.8MHz (DSD64)
Quantization bit depth 1-bit
DAC-HA300_OM_vA_CS6.indb 15 2015/01/29 18:01:59

16
Settings
This is the settings screen for the player.
Select SETTINGS on the Home screen to open this screen.
Use the multiway button to make settings.
Button operation Function
(push) Select
Move cursor up
Move cursor down
You can use the operation buttons to control song playback and change
screens.
Button operation Function
HOME Return to the previous screen
Select, play and pause songs
Play the next song
Play the previous song
Press and hold Search forward
Press and hold Search backward
SETTINGS
PLAY Playback settings
AREA Playback area
REPEAT Repeat mode
RANDOM Random playback ON/OFF
EQ Equalizer settings
PRESETS Equalizer (for SD playback only)
DISPLAY Display settings
BRIGHT Display brightness
DIM TIME Time until screen dims
DISP OFF Time until screen turns off
RESCAN SD card file scanning settings
AUTO Rescan automatically
oFile data is automatically prepared
when an SD card is inserted.
MANUAL Rescan manually
oSelect this to prepare file data when
AUTO is off.
OTHERS Other settings
RESET Setting reset
oRestores settings to their factory
defaults
MAX VOL Maximum volume
(output attenuation setting)
PWR SAVE Time until power turns off automatically
DGTL IO Digital input/output setting
PWR MODE Power mode HIGH/LOW setting*
USB CHRG USB recharging function ON/OFF
ABOUT Shows unit information
*The continuous operation time using batteries increases, but the nominal
output level is reduced.
DAC-HA300_OM_vA_CS6.indb 16 2015/01/29 18:01:59

17
EN
Download the latest firmware
The latest firmware is disclosed on the Onkyo website.
Troubleshooting
If you experience a problem with this unit, please check the following
items before requesting service. If it still does not operate correctly, con-
tact the retailer where you purchased the unit.
The unit does not turn on.
eIf the remaining battery charge is too low, the unit will not turn on.
Supply power to the unit through the DC plug or the USB micro-B
port
eHas the automatic power saving function put the unit to sleep?
Turn the volume knob counterclockwise to turn the unit off once.
No sound is output.
eUse the volume knob to adjust the volume.
eConfirm that the connected device is playing back.
eConfirm the PHONES jack connection.
DAC-HA300_OM_vA_CS6.indb 17 2015/01/29 18:01:59

18
Specifications
Frequency response ..................10 Hz – 80 kHz (when using LINE IN)
Distortion ..........................................................0.004%
(32 Ω, 1 kHz, 100 mW + 100 mW output, JEITA)
Supported headphone impedance ...............................8–600 Ω
Maximum input (LINE IN) ...........................................2 Vrms
Effective maximum headphone output
170 mW + 170 mW (32 Ω, 1 kHz, 10%, JEITA)
80 mW + 80 mW (300 Ω, 1 kHz, 10%, JEITA)
40 mW + 40 mW (600 Ω, 1 kHz, 10%, JEITA)
Operating temperature ........................................ 0°C to 35°C
Continuous battery operation time
(when load is 32 Ω, output is 1 mW + 1 mW and PWR MODE=LOW)
Apple iOS device ...........................................About 7 hours
oThe operation time when using batteries will differ depending on use
and other conditions.
Charging time ..................................About 9 hours (using USB)
About 4 hours (using PS-P515U with DC input)
External dimensions .........69.6 × 123 × 21.5 mm (2 3/4”× 4 7/8”× 7/8”)
(W × D × H, not including protrusions)
Weight ......................................................280 g (5/8 lb)
Supported sampling frequency/bit depth. . . . . . . PCM: up to 192 kHz/24-bit
DSD: up to 5.6448 MHz/1-bit
Recommended AC adapter ............TASCAM/PS-P515U (sold separately)
Compatible media...........................microSD cards (64 MB – 2 GB)
microSDHC cards (4 GB – 32 GB)
microSDXC cards (64 GB – 128 GB)
oNot all media are necessarily compatible with this unit.
Supported file systems ................................FAT16, FAT32, exFAT
oDesign and specifications are subject to change without notice.
oWeight and dimensions are approximate.
oIllustrations may differ slightly from production models.
DAC-HA300_OM_vA_CS6.indb 18 2015/01/29 18:01:59

19
FR
INSTRUCTIONS DE SÉCURITÉ
IMPORTANTES
oDes précautions doivent être prises pour l’emploi d’écouteurs ou
d’un casque avec le produit car une pression acoustique (volume)
excessive dans les écouteurs ou dans le casque peut provoquer une
perte d’audition.
AVERTISSEMENT
Pour éviter les dommages auditifs, n’écoutez pas à un volume
élevé pendant de longues périodes.
CAUTION
oN’exposez pas cet appareil aux gouttes ni aux éclaboussures.
oSi le produit utilise des batteries (y compris un pack d’accus ou des
batteries fixes), elles ne doivent pas être exposées au soleil, au feu
ou à une chaleur excessive.
Modèle pour le Canada
Conformité de brouillage
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
Modèles pour l’Europe
Déclaration de Conformité
Nous déclarons, sous notre seule responsabilité,
que le produit est conforme aux normes :
- Sécurité
- Limites et méthodes de mesure des caractéris-
tiques des perturbations radioélectriques
- Limites pour les émissions de courant harmonique
- Limitation des variations de tension, des fluctuations de tension et du
papillotement
- Directive RoHS, 2011/65/UE
WEEE
http://www.onkyo.com/manual/weee/weee.pdf
ATTENTION
Les changements ou modifications apportés à cet équipement et dont la
conformité n’est pas expressément approuvée par Onkyo CORPORATION
invalideront la garantie de l’utilisateur.
DAC-HA300_OM_vA_CS6.indb 19 2015/01/29 18:01:59

20
Accessoires fournis
Vérifiez que vous disposez bien de tous les accessoires représentés ci-des-
sous. Veuillez contacter le magasin dans lequel vous avez acheté cette
unité si l'un de ces accessoires manque ou a été endommagé durant le
transport.
Câble d'alimentation CC (fiche CC vers connecteur USB A) × 1
Câble USB pour connexion à l'ordinateur
(connecteur USB micro-B vers connecteur USB A) × 1
Câble de conversion (RCA vers mini-jack) × 1
Bandes de caoutchouc pour la fixation* × 2
Mode d’emploi (ce document) × 1
*Servent à fixer un lecteur de musique ou autre appareil à cette unité.
Caractéristiques
Ce convertisseur N/A /amplificateur de casque / lecteur audio SD prend
en charge les produits iOS Apple. Utilisant un monde asynchrone qui gère
l'audio (192kHz/24bits et DSD 128 à 5,6MHz) par USB, cette unité peut
fidèlement convertir les signaux numériques en analogique au moyen de
son horloge intégrée de haute précision pour permettre la reproduction
de données audio à haute résolution.
Introduction
Nous vous remercions d’avoir choisi Onkyo.
Lisez ce mode d'emploi avec attention pour tirer les meilleures perfor-
mances de cette unité.
Après avoir lu ce mode d'emploi, gardez-le en lieu sûr pour vous y référer
ultérieurement.
INSTRUCTIONS DE SÉCURITÉ IMPORTANTES.............................19
Introduction............................................................20
Accessoires fournis .....................................................20
Caractéristiques ........................................................20
Précautions concernant l'emplacement.................................21
Recyclage des batteries rechargeables ..................................21
Produits Apple qui peuvent être utilisés avec cette unité ................21
Logiciel de lecture ......................................................21
Systèmes d'exploitation pris en charge..................................22
Nomenclature et fonctions des parties..................................22
Recharge ...............................................................26
Fonction d'économie automatique d'énergie ...........................27
Fonctionnement de base ...............................................27
Écran d'accueil .........................................................28
Écran de lecture (PLAY) .................................................29
Écran MUSIC............................................................31
Fichiers audio lisibles par cette unité ....................................32
Réglages ...............................................................32
Téléchargement du dernier firmware ...................................33
Guide de dépannage ...................................................33
Caractéristiques techniques. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
DAC-HA300_OM_vA_CS6.indb 20 2015/01/29 18:01:59
