DV-SP800

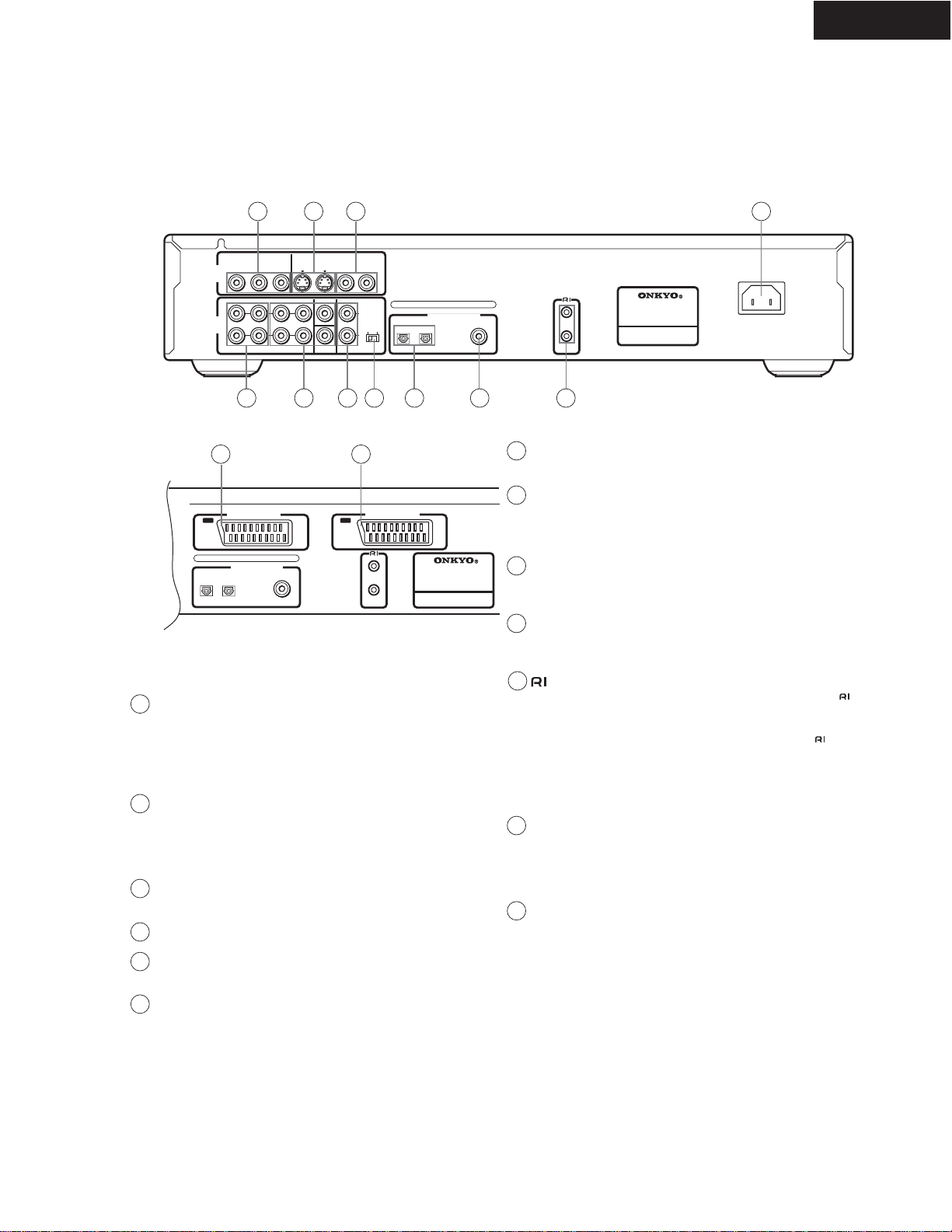

PANEL VIEW-3
VIDEO OUTPUT COMPONENT jacks
If your TV has component inputs, you can connect a component
video cable to your TV and to your DVD Player for ideal video
quality. The component Video Cable only carries the video signal;
remember to connect the left and right audio cables. If you connect
a TV that is compatible with a Progressive scan signal, you can
enjoy both Interlaced and Progressive scan.
VIDEO OUTPUT S VIDEO jack
If your TV or monitor has an S-video input, clear picture
reproduction is possible by connecting the player to your TV or
monitor via the S-Video jack.
You can switch between [S1] and [S2] S-video output from the
Setup menu.
VIDEO OUTPUT VIDEO jack
Connect to the video input on a TV or monitor orAV amplifier or
receiver with video input capability.
AC INLET
Use to connect the power cord to the wall outlet.
ANALOG OUTPUT CH 1/CH 2 jacks
Use to output two-channel audio (analog) to the audio stereo
inputs on a TV or stereo amplifier.
ANALOG OUTPUT FRONT/SURR 1/CENTER/
SUBWOOFER jacks
Use to output 5.1 channel audio (analog) to the 5.1 channel
discrete inputs on an amplifier. If you are connecting to a
receiver that has both digital and analog input jacks for DVD
player connection, it may be beneficial to make both connections.
SURR 2 jacks
Use when making connections to 7.1 channel analog inputs.
(Make sure the SURR 1/1+2 selector switch is set to 1+2.)
SURR 1/1+2 selector switch
When using 2 channel surround, select 1, when using 4 channel
surround, select 1+2. Audio will be output 3dB lower when 1+2 is
selected. The same audio is output from SURR 1 and from
SURR 2.
DIGITALOUTPUT OPTICALjack
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the optical output jack to an AV amplifier
or receiver.
DIGITALOUTPUT COAXIALjack
Use to output the digital audio signal recorded on discs. You can
output the digital signal via the coaxial output jack to an AV
amplifier or receiver.
jack
Use to connect this player to another component bearing the
mark. This lets you control this unit as though it were a component
in a system.
(The components will not function as a system with only
connections. Be sure to connect the audio connection cables
correctly as well).
(European models)
AV CONNECTOR 1 (IN/OUT) jack
Use a 21-pin SCART cable to connect to a TV, monitor or video
component compatible with this type of connection. Outputs both
audio and video (composite only) when the unit is powered on.
When the unit is in standby mode, this jack becomes an input for
audio and video (RGB, S, and composite).
AV CONNECTOR 2 (OUT) jack
Use a 21-pin SCART cable to connect to a TV or monitor
compatible with this type of connection. Outputs audio and video
(RGB, S, and composite) when the unit is powered on.
When the unit is in standby mode, this jack outputs the audio and
video input from the AV CONNECTOR 1 jack.
Shapes of jacks vary depending on the area in which it was
purchased.
European models.
