Onkyo HTP-990 User manual

HTP-990
Front speakers (SKF-980) Center speaker (SKC-980)
Surround speakers (SKR-980)
Surround back speakers (SKB-980)
Front speakers
Speaker cables 11 ft.
(3.5 m)
Center speaker Speaker cable 10 ft.
(3.0 m)
Surround speakers
Surround back speakers
Speaker cables 26 ft. (8.0 m)
Cork stoppers (12 pcs.)
for front and center speakers
(White) (Red)
(Green)
(Blue) (Gray)
(Brown) (Tan)
Powered subwoofer (SKW-980)
Subwoofer
RCA cable 10 ft. (3.0 m)
7.1ch Home Theater Speaker Package
Black model
MODEL HTP-990(B)
120V AC, 60HzB MDC
Ref. No. 4314
052011
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR
RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE MEASUREMENTS TO DETERMINE THAT EXPOSED ARTS ARE ACCEPTABLY
INSULATED FROM THE SUPPLY CIRCUIT BEFORE RETURNING THE APPLIANCE TO THE CUSTOMER.

HTP-990

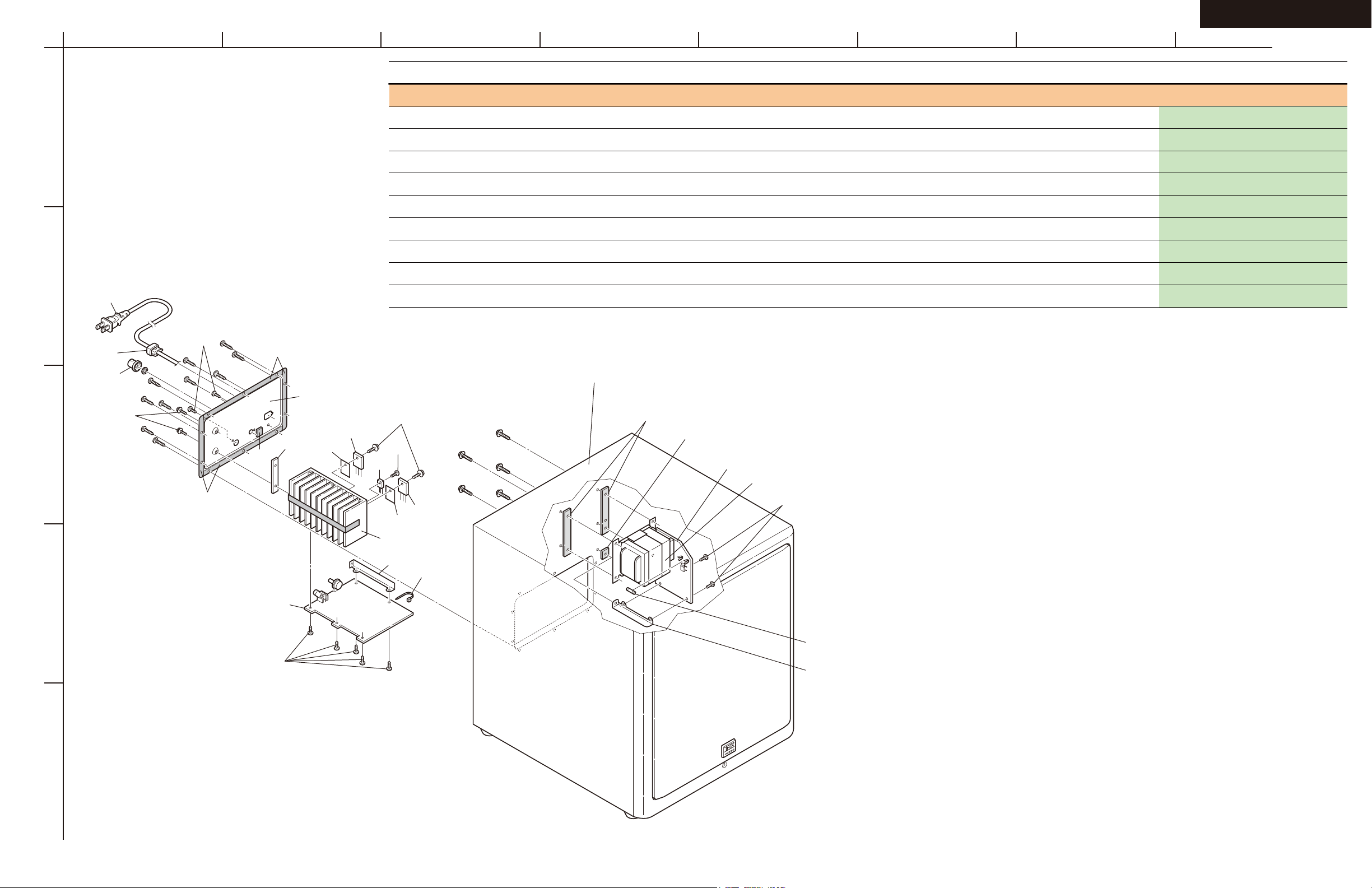

EXPLODED VIEWS - 1
SKW-980
A
1
2
3
4
5
B C D E F G H
A008
x 2 pcs.
A104
x 2 pcs.
A016
x 2 pcs.
A005
x 5 pcs.
A103
A102
P901
SP05
x 2 pcs.
A016
x 2 pcs.
U0011
SP06 (NSP)
A011
E801
A001
U0001
A007
A007
A101
A002
A002
U0012 A005
Q515
Q516
Q541
F901
A012
T901
A003
See "EXPLODED VIEWS-3"
R E F. N O . P AR T N AM E D E S C R IP T IO N Q 'T Y P AR T N O . (S N )
S K W-980
SP01A SPK SYSTEM ASSY SKW-980(B)MDC 1 000-SKW-980BMDC
SP01B SUBWOOFER ASSY Without AMP unit,SPEAKER unit and Power transformer 1 000-SKW-980BMDCESER
SP02 GRILLE BOARD ASSY SKW-960 CARB P 1 113-0BW960-11
SP02 FOOT SKW-540 FOOT SKW-540 4 D249-W54001B-00
SP03 WOOFER (FPI) SUB WF NS-424 (FPI) 1 300-DNS4243000
SP04 LED HARNESS ASSY SKW750 1 335-SKW750-01
SP05 CUSHION CR RUBBER SKW-460 2 442-902138-00
SP06 CUSHION CR RUBBER SKW-538 1 442-902143-00
SP07 CUSHION DIA 17.5*2T 4 442-902133-00

HTP-990
EXPLODED VIEWS - 2
SKW-980
A
1
2
3
4
5
B C D E F G H
SP03
SP02
SP02
x 4 pcs.
SP07
x 4 pcs.
SP04
SP01A : SPK SYSTEM ASS’Y (All)
SP01B : SPK SYSTEM ASS’Y (Without amplifier unit, power transformer and speaker unit.)
R E F. N O . P AR T N AM E D ES C R IP T IO N Q 'T Y P AR T N O . (S N )
S K W-980
SP01A SPK SYSTEM ASSY SKW-980(B)MDC 1 000-SKW-980BMDC
SP01B SUBWOOFER ASSY Without AMP unit,SPEAKER unit and Power transformer 1 000-SKW-980BMDCESER
SP02 GRILLE BOARD ASSY SKW-960 CARB P 1 113-0BW960-11
SP02 FOOT SKW-540 FOOT SKW-540 4 D249-W54001B-00
SP03 WOOFER (FPI) SUB WF NS-424 (FPI) 1 300-DNS4243000
SP04 LED HARNESS ASSY SKW750 1 335-SKW750-01
SP05 CUSHION CR RUBBER SKW-460 2 442-902138-00
SP06 CUSHION CR RUBBER SKW-538 1 442-902143-00
SP07 CUSHION DIA 17.5*2T 4 442-902133-00

HTP-990
EXPLODED VIEWS - 3

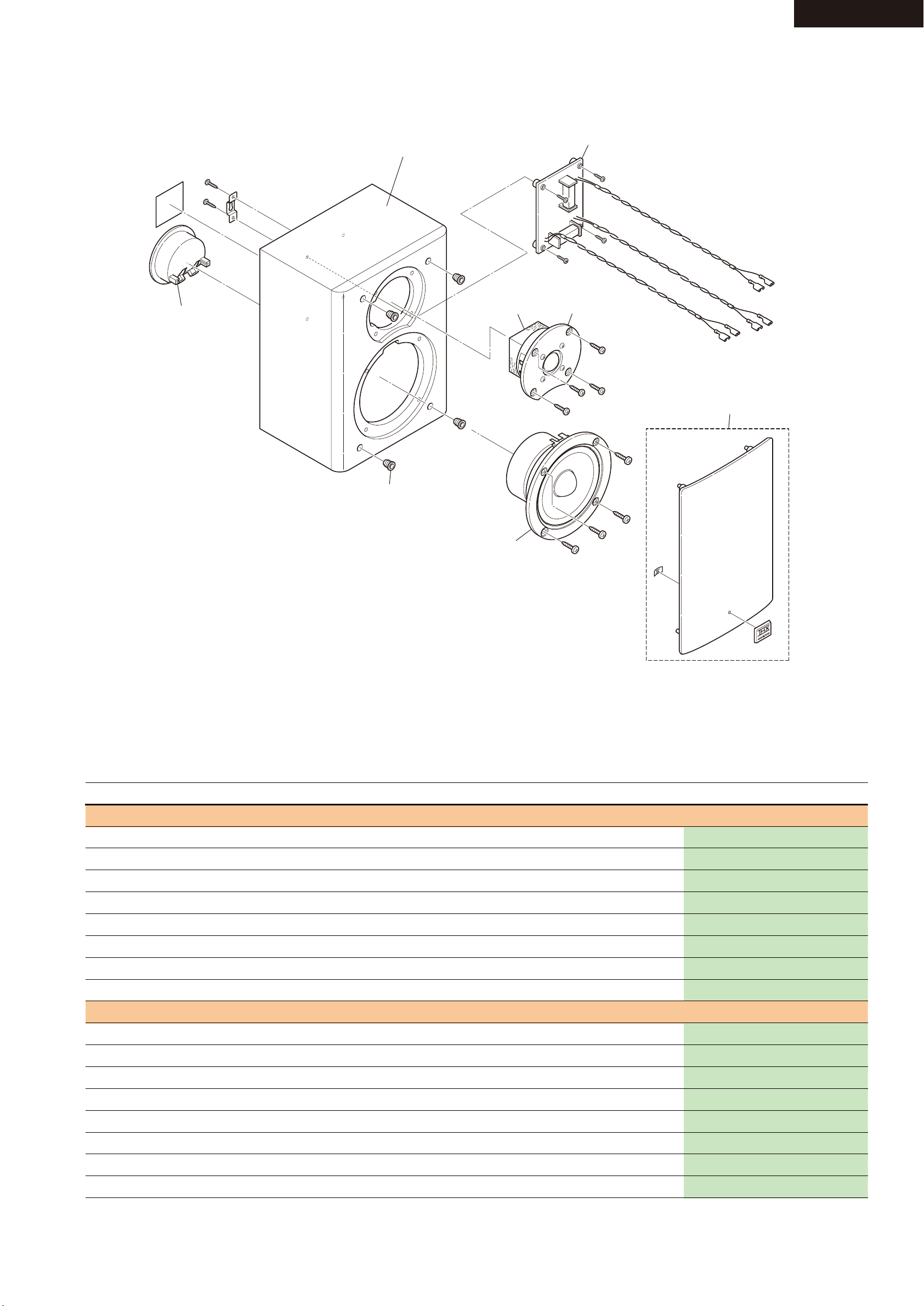

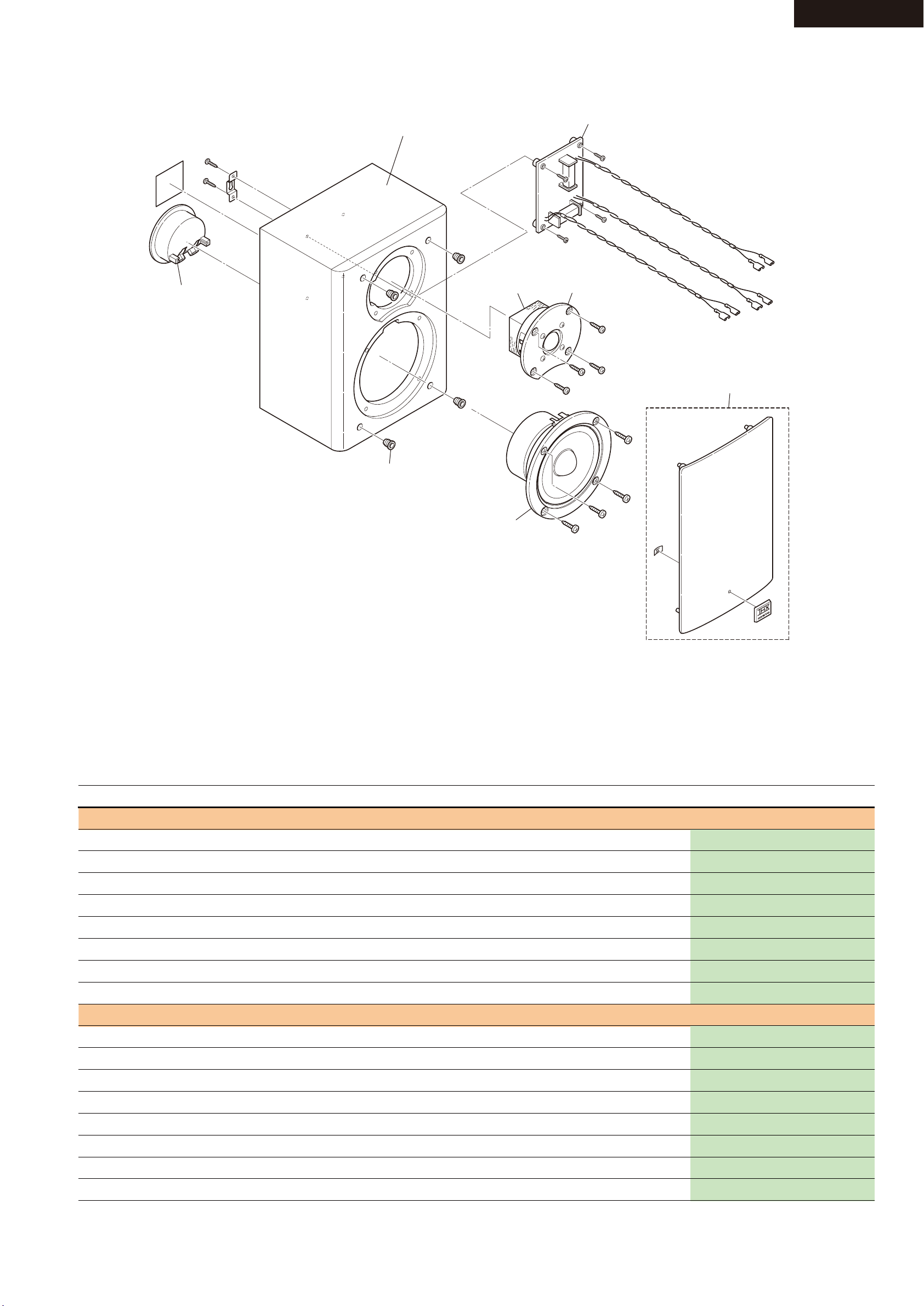

SKF-980L / SKF-980R
SP04A/B
SP01A/B : SPK SYSTEM ASS’Y (ALL)
SP06
SP05
SP02
x 4 pcs.
SP06
SP07
SP03
Lch
TERMINAL :
White / Black
Rch
TERMINAL :
Red / Black
INPUT
(Terminal)
WOOFER
WOOFER
TWEETER
R E F. N O . P AR T N AM E D ES C R IP T IO N Q 'T Y P AR T N O . (S N )
S K F -980L (B )
SP01A SPK SYSTEM ASSY SKF-990FL(B)MDC WITH SPEC LABEL 1 000-SKF990FLBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKF-960(B) with Grille Cloth and Logo 1 D201-F96001B-50
SP04A TERMINAL H8107B BLK/WHITE 1 332-H8107B-42
SP05 CROSSOVER SKF/C-940 1 311-SKF940-00
SP06 Woofer (ONKYO) OAE(JITRA) 2 W1277C
SP07 Tweeter (ONKYO) OAE(JITRA) 1 TW3208B
S K F-980R (B )
SP01B SPK SYSTEM ASSY SKF-990FR(B)MDC WITH SPEC LABEL 1 000-SKF990FRBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKF-960(B) with Grille Cloth and Logo SKF-960(B) 1 D201-F96001B-50
SP04B TERMINAL H8107B BLK/RED 1 332-H8107B-02
SP05 CROSSOVER SKF/C-940 1 311-SKF940-00
SP06 Woofer (ONKYO) OAE(JITRA) 2 W1277C
SP07 Tweeter (ONKYO) OAE(JITRA) 1 TW3208B

HTP-990
EXPLODED VIEWS - 4

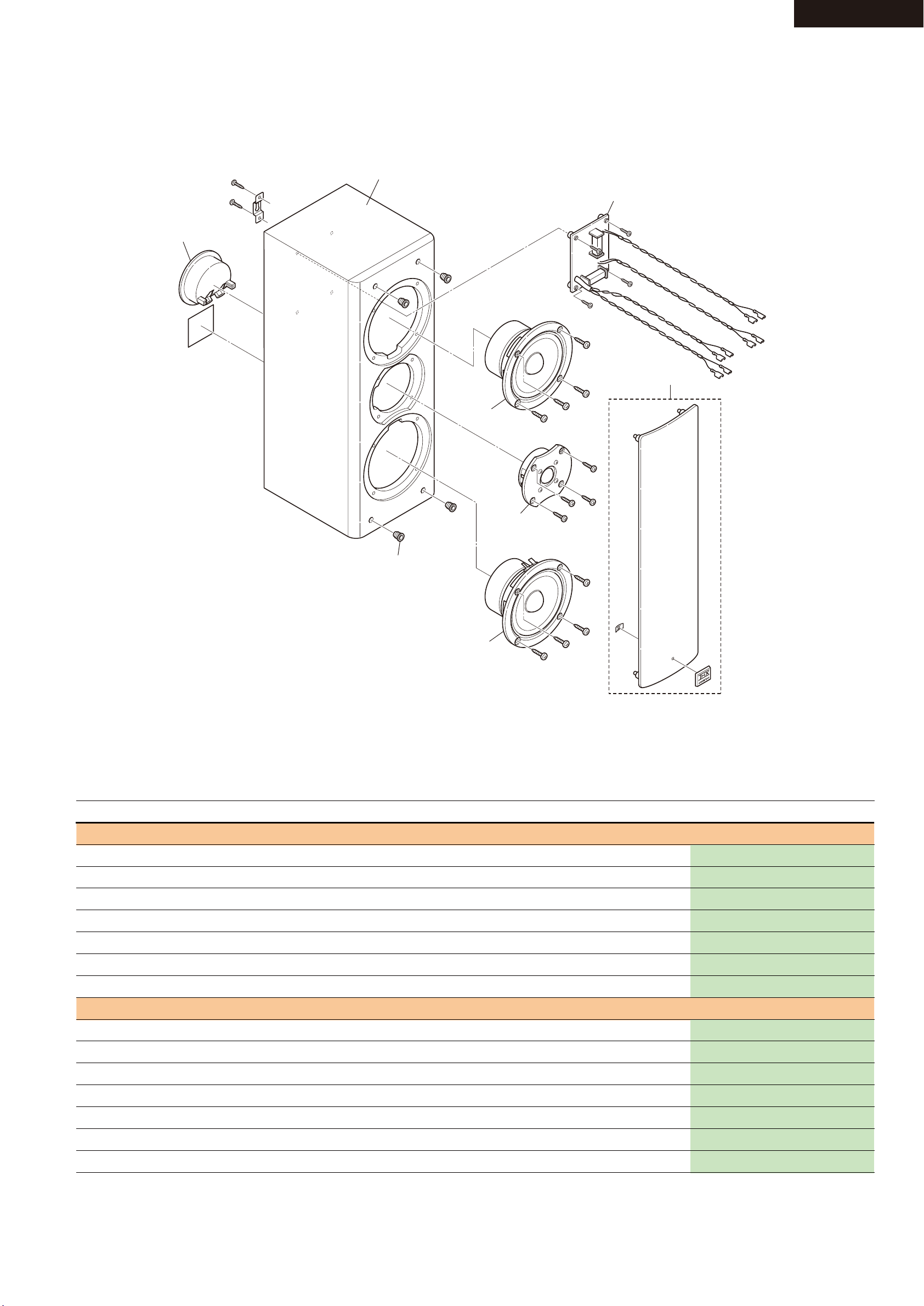

SKC-980
SP04
SP01 : SPK SYSTEM ASS’Y (ALL)
SP05
SP02
x 4 pcs.
SP06
SP07
SP06
SP03
TERMINAL :
Green / Black
INPUT
(Terminal)
WOOFER
WOOFER
TWEETER
R E F. N O . P AR T N AM E D E S C R IP T IO N Q 'T Y P AR T N O . (S N )
S K C -980(B )
SP01 SPK SYSTEM ASSY SKC-990C(B)MDC WITH SPEC LABEL 1 000-SKC990CBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKC-960(B) with Grille Cloth and Logo 1 D201-C96001B-50
SP04 TERMINAL H8107B BLK/GREEN 1 332-H8107B-32
SP05 CROSSOVER SKF/C-940 1 311-SKF940-00
SP06 Woofer (ONKYO) OAE(JITRA) 2 W1277C
SP07 Tweeter (ONKYO) OAE(JITRA) 1 TW3208B

HTP-990
EXPLODED VIEWS - 5
SKR-980L / SKR-980R
SP04A/B
SP01A/B : SPK SYSTEM ASS’Y (ALL)
SP03
SP08
SP05
SP07
SP02
x 4 pcs.
SP06
INPUT
(Terminal)
WOOFER
TWEETER
Lch
TERMINAL :
Blue / Black
Rch
TERMINAL :
Gray / Black
R E F. N O . P AR T N AM E D E S C R IP T IO N Q 'T Y P AR T N O . (S N )
S K R -980L(B )
SP01A SPK SYSTEM ASSY SKR-990SL(B)MDC Completed unit, with SPEC LABEL 1 000-SKR990SLBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASS'Y SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
SP04A TERMINAL H8107B BLK/BLUE 1 332-H8107B-82
SP05 CROSSOVER SKM/B-940 1 311-SKM940-00
SP06 S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
SP07 Woofer (ONKYO) OAE(JITRA) 1 W1367B
SP08 Tweeter (ONKYO) OAE(JITRA) 1 TW3223A
S K R -980R (B )
SP01B SPK SYSTEM ASSY SKR-990SR(B)MDC Completed unit, with SPEC LABEL 1 000-SKR990SRBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASS'Y SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
SP04B TERMINAL H8107B BLK/GRAY 1 332-H8107B-22
SP05 CROSSOVER SKM/B-940 1 311-SKM940-00
SP06 S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
SP07 Woofer (ONKYO) OAE(JITRA) 1 W1367B
SP08 Tweeter (ONKYO) OAE(JITRA) 1 TW3223A

HTP-990
EXPLODED VIEWS - 6
SKB-980L / SKB-980R
SP04A/B
SP01A/B : SPK SYSTEM ASS’Y (ALL)
SP03
SP08
SP05
SP07
SP02
x 4 pcs.
SP06
INPUT
(Terminal)
WOOFER
TWEETER
Lch
TERMINAL :
Brown / Black
Rch
TERMINAL :
Tan / Black
R E F. N O . P AR T N AM E D E S C R IP T IO N Q 'T Y P AR T N O . (S N )
S K B -980L(B )
SP01A SPK SYSTEM ASSY SKB-990BL(B)MDC Completed unit, with SPEC LABEL 1 000-SKB990BLBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
SP04A TERMINAL BLK/BROWN 1 332-H8107B-92
SP05 CROSSOVER SKM/B-940 1 311-SKM940-00
SP06 S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
SP07 Woofer (ONKYO) OAE(JITRA) 1 W1367B
SP08 Tweeter (ONKYO) OAE(JITRA) 1 TW3223A
S K B -980R (B )
SP01B SPK SYSTEM ASSY SKB-990BR(B)MDC 1 000-SKB990BRBMDCCSER
SP02 CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
SP03 CLOTH FRAME ASSY SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
SP04B TERMINAL H8107B BLK/TAN 1 332-H8107B-A2
SP05 CROSSOVER SKM/B-940 1 311-SKM940-00
SP06 S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
SP07 Woofer (ONKYO) OAE(JITRA) 1 W1367B
SP08 Tweeter (ONKYO) OAE(JITRA) 1 TW3223A

SKW-204D,SKW-540D,SKW-750D,SKW-960D,SKW-538,SKW-501E,SKW-770D,SKW-580D,SW-51AD,SKW-780D,SKW-980D,SKW-938,SKW-208
SCHEMATIC DIAGRAM
A
1
2
3
4
5
B C D E F G H
6
7
8
IJ K
HOT
COLD
AGND
GND
-10V
+10V
GND
+10V
+10V -10V
GND
27mA(MAX70mA)
5mAMAX
AC8.89V
ADJUST. IDLING
SPEAKER
POWER NEED TO CONFIRM
BAAF-0491
Vin=6.7Vmin
BLUE RED
LED
<Note>
NC : No mount of parts.
Latch
relay
GND
SP
+B
BAETC-0493
1mA
F901 BASW-0494
U05 POWER SWITCH PC BOARD
OUTPUT LEVEL
R984
120V
T901(MAIN)F901
470(1W)NPT-1539DQ NPT-1520JQ
J995
NC
Q515
150W 2SC5359-O/R
T902(SUB) Q516
2SA1987-O/R
C905,C906
5600/71
R305 J316(FILTER)C921
104M
AC
22K
NC NC
NIS-PWB
150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M 22K120V NPT-1539D NPT-1520JQ
Output Power
120V NPT-1562D NPT-1520JQ
120V 5A/125V NPT-1520JQ
150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M TA10 223J
5A/125V
5A/125V
5A/125V
MODEL
SKW-204DMWT
NPT-1539D
BAAF-0491-2A
150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M 2.2K 22K TA10 223J
230V 1.6A/250V NPT-1568M NPT-1520GQ
230V 1.6A/250V NPT-1568M NPT-1520GQ
230V 1.6A/250V NPT-1568M NPT-1520GQ
100W NC TA5 2SC5242-O/R 2SA1962-O/R 4700/50 NC TA10 223J
100W NC TA5 2SC5242-O/R 2SA1962-O/R 4700/50 NC 27K 33K TA10 223J
100W NC TA5 2SC5242-O/R 2SA1962-O/R 4700/50 NC 27K 33K TA10 223J
100W NC TA5 2SC5242-O/R 2SA1962-O/R 4700/50 NC 27K 33K TA10 223J
150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M TA10 223J
150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M TA10 223J
120V 5A/125V NPT-1520JQ
230V
230V
1.6A/250V
1.6A/250V
NPT-1568M NPT-1520GQ
NPT-1520GQ
230V 1.6A/250V NPT-1539P NPT-1520GQ
NPT-1588M
150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 104M TA10 223J
120V 5A/125V NPT-1539D NPT-1520JQ 150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M TA10
NPT-1578D
NC NC
BAAF-0491-1A
BAAF-0491-1C
BAAF-0491-2E
BAPS-0492
BAAF-0491-2B
U01 MAIN PC BOARD
ONLY FOR FILTER CONTROL SKW-204/208
ONLY FOR FILTER CONTROL SKW-204/208
POWERED SUBWOOFER
27K 33K
33K
33K
27K 33K
33K
2.2K
27K
27K
R304
2.2K
BAAF-0491-2C
BAAF-0491-2G
SKW-204DMDD
SKW-540DMDD
SKW-750DMDD
SKW-960DMPP
SKW-538MPP
SKW-501EMPP
SKW-501EMMP
SKW-501EMMB
SKW-770DMMO
SKW-770DMDD
2.2K 8.2K
SKW-960DMDD
5600/63
NC
NC
NC
NC
NC
NC
NC
J991,J992(AC SW)
NC
P535A(SP CABLE)
2009991188UL
2009991188UL
2009991188UL
2009991188UL
2009991188UL
2009991188UL
2009991188UL
2009991188UL
2009991188UL
2009991188UL
2009991188UL
2009991199UL
SKW-204DMWT
SKW-960DMDD
MODELR714
68K
68K
68K
68K
47K
47K
47K
47K
47K
47K
47K
47K
TA7.5
TA7.5
TA7.5
TA7.5
SKW-204DMDD
SKW-540DMDD
SKW-750DMDD
SKW-960DMPP
SKW-538MPP
SKW-501EMPP
SKW-501EMMP
SKW-501EMMB
SKW-770DMMO
SKW-770DMDD
C303 C503
223J
224J
224J
224J
224J
224J
224J
224J
224J
224J
224J
224J
82K 474J
TA10 223J
TA10 223J
TA10
TA10
223J
223J
TA10 223J
TA10 223J
NC NC
33K
33K
33K
8.2K
8.2K
33K
33K NC
2009991188UL
2009991188UL
2009991188UL
2009991199UL
2009991199UL
2009991188UL
2009991188UL
47K
47K
47K
47K
47K
TA7.5
TA7.5
TA7.5
TA7.5
TA7.5
TA7.5
SKW-580DMMO
SKW-580DMMQ
SKW-780DMDD
SKW-980DMDD
SKW-938MPP
SKW-208MPP
68K
68K
SW-51ADMDD224J
224J
224J
224J
474J
474J
474J230V 1.6A/250V NPT-1520GQNPT-1588M 150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M
120V 5A/125V NPT-1520JQ 150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104MNPT-1578D
120V
120V
5A/125V
5A/125V
NPT-1578D
NPT-1539D
NPT-1520JQ
NPT-1520JQ
150W
150W
470(1W)
470(1W)
NC
NC
2SC5359-O/R
2SC5359-O/R
2SA1987-O/R
2SA1987-O/R 5600/71
104M
104M
230V 1.6A/250V NPT-1588M NPT-1520GQ 150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M
230V 1.6A/250V NPT-1539P NPT-1520GQ 150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M
230V 1.6A/250V NPT-1539P NPT-1520GQ 150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/71 104M
BAAF-0491-2D
BAAF-0491-1F
BAAF-0491-2F
BAAF-0491-1B
27K
SKW-580DMMO
SKW-580DMMQ
SKW-780DMDD
SKW-980DMDD
SKW-938MPP
SKW-208MPP
2.2K
2.2K
27K
SW-51ADMDDBAAF-0491-2C
BAAF-0491-2H 5600/63 82K
82K
82K
SKW-580DMDD 120V 5A/125V NPT-1578D NPT-1520JQ 150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/63 104M 82K 33K TA10 223J 474J TA7.5 47K 2009991188UL SKW-580DMDD
120V 5A/125V NPT-1578D NPT-1520JQ 150W 470(1W) NC 2SC5359-O/R 2SA1987-O/R 5600/63 104M 82K 33K TA10 223J 474J TA7.5 47K 2009991188UL SKW-580DMDDSKW-580DMDS
BAAF-0491-2H
AV
CAUTION
AND RATING INDICATED.
ONLY WITH FUSE OF SAME TYPE
AGAINST FIRE HAZARD, REPLACE
FOR CONTINUED PROTECTION
CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
A LENT, E POUR UNE PROTECTION PERMANENTE,N'UTILISER
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.
ARE CRITICAL FOR SAFETY.
+
THAT THE FUSE USED IS SLOW OPERATING TYPE
RATING REFER TO THE MAKING ADJACENT TO THE SYMBOL.
THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
FOR CONTINUED PROTECTION AGAINST FIRE FUSE
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
AFIN D'ASSURER UNE PROTECTION
PERMANENTE CONTRE LES RISQUES
D'INCENDIE, REMPLACER UNIQUEMENT
PAR UN FUSIBLE DE MEME TYPE
ET CALIBRATION COMME INDIQUE.
ATTENTION
V A
AV
CAUTION
AND RATING INDICATED.
ONLY WITH FUSE OF SAME TYPE
AGAINST FIRE HAZARD, REPLACE
FOR CONTINUED PROTECTION
CE SYMBOLE INDIQUE QUE LE FUSIBLE UTLISE EST
A LENT, E POUR UNE PROTECTION PERMANENTE,N'UTILISER
QUE DES FUSIBLES DE MEME TYPE. CE DARNIER EST
INDIQUE LA QU LE PRESENT SYMBOL EST APPOSE.
ARE CRITICAL FOR SAFETY.
+
THAT THE FUSE USED IS SLOW OPERATING TYPE
RATING REFER TO THE MAKING ADJACENT TO THE SYMBOL.
THIS SYMBOL LOCATED NEAR THE FUSE INDICATES
FOR CONTINUED PROTECTION AGAINST FIRE FUSE
HAZARD,REPLACE WITH SAME TYPE FUSE. FOR FUSE
AFIN D'ASSURER UNE PROTECTION
PERMANENTE CONTRE LES RISQUES
D'INCENDIE, REMPLACER UNIQUEMENT
PAR UN FUSIBLE DE MEME TYPE
ET CALIBRATION COMME INDIQUE.
ATTENTION
V A
D917
1SS133
J996
J997
J998
C915
224J
P903C 1
P903D 1
R981
470(1W) C919
104J
D911
1SS133
1 2
D913
1SS133
2 1
D920
MTZJ9.1B
D918
1SS133
R983
470(1W)
R954
33(1/2W)
R982
470(1W)
P908B
CN05 NPLG-5P133
1
2
3
4
5
C914
1000/25
C911
1000/25
C912
1000/25
RL901
4
3 2
1
C916
MKP_R46_103M
R984
Val
P903B 1
T901
TRANS
Val
14
12
10
7
1
5
6
8
R604
180
R603
150K
C602
10/50
R605
22
R609
39K
R610
560K
R611
820K
R614
120K
Q602
KRC103M
Q605
2SA933S
Q606
KRA103M
R620
100K
R626
2.2M
R624
100K
R627
680K
0.6
Q609
NC
R625
180K
R629
NC
R628
330K
R701
NC
Q505
2SA949-Y(TPE6_F)
R612
39K
R522
220
D501
MTZJ5.6B
R504
2.2K
R510
100K
R521
220
R507
33K
R509
1K
-0.6
R511
82(1/4W)
R505
1K(1/4W)
R506
1K(1/4W)
Q510
2SC2229-Y(TPE6_F)
Q507
2SA949-Y(TPE6_F)
R508
47(1/4W)
R512
68(1/4W)
R527
270
R516
12K
R515
12K
R543
180
R542
150
0
R517
3.3K
Q517
2SA933S-S
+1.6
Q518
2SC2235-Y(TPE6_F)
R528
390(1/2W)
R526
82(1/2W)
R533
3.3(1W)
-1
1
0.05
5.0
Q506
2SC2229-Y(TPE6_F)
R514
82(1/4W)
C506
CERA C
070D
C514
101J
C906
4700/50
R906
22(1/2W)
R907
22(1/2W)
R905
0.47(1/2W)
R616
100K
R621
1K
D607
1SS133
R617
1K
Q509
2SA949-Y(TPE6_F)
C519
TF C
224J
C520
TF C
224J
R319
100K
D901
D3SBA20
R544
100B
1
2
3
R301
1K
R322
47K
R601
5.6K
R602
100K
Q502
2SC2240-BL(TPE2_F)
C505
CERA C
020C
2.1V
+39V
-39V
D651
1SS133
2.7V
C527
1/50
R904
0.22(1/2W)
C918
NC
+8.6V
C917
22/50
Q604
2SA933S
R531
0.22(5W)
C903
104J/100
C904
104J/100
P531
NPLG-2P29
1
2
P631
NPLG-2P29
1
2
Q302:A
NJM4558LD
4
2
3
8
1
Q302:B
NJM4558LD
6
5
7
D919
RL1N4003
D951
MTZJ15B
D952
MTZJ15B
R501
1K
Q503
2SC2240-BL(TPE2_F)
0
C502
NC
Q501
2SC2240-BL(TPE2_F)
C501
47/50
-33.5V
-1.6
C504
220/25
C951
220/25
C952
220/25
Q541
2SC3423
3
C314
47/50
R503
5.6K
R306
NC
C302
47/50
C601
10/50
Q902
78M05AHF
1
I
2G
3O
R311
100K
C312
334J
C315
334J
R313
3.3K
R314
3.3K
R315
3.3K
R317
2.2K
C316
104J
C313
104J
R316
4.7K
C317
473J
P301pinjack
NPJ-1PDB556
1
2
C955
223J
E801
-10V
Q303:A
NJM4558LD
4
2
3
8
1
R303
47K
Q303:B
NJM4558LD
7
6
5
R321
270
R305
Val
R307
270
1.0V
R613
470K
R615
22K
R619
22K
D605
1SS133
Q612
2SC1740S-S
Q610
2SA933S
D601
MTZJ3.6B
D602
MTZJ3.6B
Q603
2SC1740S-S
D652
1SS133
P302BVal
9
8
7
6
5
4
3
2
1
C907
220/25
C908
220/25
P535A
1
P535B
1
R630
10K
R631
10K
R320
5.6K
R312
100K
D603
1SS133
C311
25/100
C604
4.7/50
C605
4.7/50
R653
680K R652 470K
+5.0V
P903A
NPLG-4P151
1
2
3
4
R951
3.3K(2W)
R952
3.3K(2W)
Q513
2SC5171(ONK_Q)
C301
221J
C950
NC
Q301:B
NJM4558LD
5
6
7
Q301:A
NJM4558LD
3
2
4
1
8
R302
N17RGL20KB15M
1
2
3
R651
10K(1W)
J390
R513
82(1/4W)
R541
820
P908A
NSAS-10P1152
5
4
3
2
1
R654
330K
C526
22/100
C528
22/100
C517
22/100
R623
22K
Q607
2SA933S
R622
10K
Q608
2SC1740S-S
D606
1SS133
P632A
NPLG-3P131
1
2
3
C603
470/10
Q901
DTC123JS
D709
1SS133
Q704
2SC1740S-S
Q705 2SA933S
R714
47K
R717
10K
R716
1K
R715
10K
D708
1SS133
C704
470/10
Q703
2SC1740S-S
+10V
Q519
2SA965-Y(TPE6_F)
Q514
2SA1930(ONK_Q)
Q706
DTC123JS
S101
SLIDESW
8
6 3
41
5 2
7
R101A
20K
8
9
6
75
R101B
20K
3
2
1
P302ANSAS-18P1831
1
2
3
4
5
6
7
8
9
T902
NPT-1520GQ
6
5
8
94
1
NSCT-1P2506
Q515
2SC5242-O/R
Q516
2SA1962-O/R
P906B
1
J999
J316
C921
MKP_R46_104M
C905
4700/50
D707
1SS133
R704
100K
C303
223J
C707
223J
C709
223J
J995
J992
J991
S901 NRC-11007P
2 1
C920 DE1007E472M-KY
P906A
NPLG-2P632
1
2
P906C
1
P902A
NPLG-2P632
2
1
P902A
NPLG-2P632
2
1
AC_CORD
R304
Val
R502
33K
C503
Val
ADJUSTMENT OF IDLING CURRENT
[When]
1. Exchange transistors (Q505 - Q519).
2. Exchange MAIN PC board ass'y (NAAF-8829).
[Procedure]
<Note> No speaker load and No input signal.
1. Short test point P631 for amplifier is under active mode.
2. Adjust the trimming resistor R544 so that the reading of multimeter becomes 52 ohm to 53 ohm.
3. Connect the DC voltmeter to test point P531. <Fig-1>
4. Connect the power cord into the AC outlet.
5. Confirm the voltage of above point after 6 minutes to 8 minutes. (Heat running)
6. When less than 3.20 mV : Readjust the trimming resistor above so that the voltage becomes 4.5 mV to 5.0 mV.
When 3.30 mV to 5.20 mV : Not necessary to adjust.
When 5.21 mV to 10.0 mV : Readjust the trimming resistor above so that the voltage becomes 5.0 mV to 5.5 mV.
When 10.1 mV to 20.0 mV : Readjust the trimming resistor above so that the voltage becomes 5.6 mV to 6.0 mV.
7. Disconnect the power cord from the AC outlet.
8. Disconnect the DC voltmeter.
Test point
DC voltmeter
100 ohm
(1/4W)
P531
<Fig-1>

1/11 PAGE
HTP-990
<Note>
Parts marked by "NSP" are generally unavailable because
they are not in our Master Spare Parts List.
HTP-990
EXPLODED VIEWS PARTS LIST
REF. NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS
SKF-980L(B)
SPK SYSTEM ASSY SKF-990FL(B)MDC Completed unit, with SPEC LABEL 1 000-SKF990FLBMDCCSER
CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
CLOTH FRAME ASSY SKF-960(B) with Grille Cloth and Logo 1 D201-F96001B-50
TERMINAL H8107B BLK/WHITE 1 332-H8107B-42
CROSSOVER SKF/C-940 1 311-SKF940-00
Woofer (ONKYO) OAE(JITRA) 2 W1277C
Tweeter (ONKYO) OAE(JITRA) 1 TW3208B
SKF-980R(B)
SPK SYSTEM ASSY SKF-990FR(B)MDC Completed unit, with SPEC LABEL 1 000-SKF990FRBMDCCSER
CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
CLOTH FRAME ASSY SKF-960(B) with Grille Cloth and Logo SKF-960(B) 1 D201-F96001B-50
TERMINAL H8107B BLK/RED 1 332-H8107B-02
CROSSOVER SKF/C-940 1 311-SKF940-00
Woofer (ONKYO) OAE(JITRA) 2 W1277C
Tweeter (ONKYO) OAE(JITRA) 1 TW3208B
SKC-980(B)
SPK SYSTEM ASSY SKC-990C(B)MDC Completed unit, with SPEC LABEL 1 000-SKC990CBMDCCSER
CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
CLOTH FRAME ASSY SKC-960(B) with Grille Cloth and Logo 1 D201-C96001B-50
TERMINAL H8107B BLK/GREEN 1 332-H8107B-32
CROSSOVER SKF/C-940 1 311-SKF940-00
NOTE : THE COMPONENTS IDENTIFIED BY THE MARK
! ARE CRITICAL FOR RISK OF FIRE AND
ELECTRIC SHOCK. REPLACE ONLY WITH PART
NUMBER SPECIFIED.

2/11 PAGE
Woofer (ONKYO) OAE(JITRA) 2 W1277C
Tweeter (ONKYO) OAE(JITRA) 1 TW3208B
SKR-980L(B)
SPK SYSTEM ASSY SKR-990SL(B)MDC Completed unit, with SPEC LABEL 1 000-SKR990SLBMDCCSER
CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
CLOTH FRAME ASS'Y SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
TERMINAL H8107B BLK/BLUE 1 332-H8107B-82
CROSSOVER SKM/B-940 1 311-SKM940-00
S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
Woofer (ONKYO) OAE(JITRA) 1 W1367B
Tweeter (ONKYO) OAE(JITRA) 1 TW3223A
SKR-980R(B)
SPK SYSTEM ASSY SKR-990SR(B)MDC Completed unit, with SPEC LABEL 1 000-SKR990SRBMDCCSER
CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
CLOTH FRAME ASS'Y SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
TERMINAL H8107B BLK/GRAY 1 332-H8107B-22
CROSSOVER SKM/B-940 1 311-SKM940-00
S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
Woofer (ONKYO) OAE(JITRA) 1 W1367B
Tweeter (ONKYO) OAE(JITRA) 1 TW3223A
SKB-980L(B)
SPK SYSTEM ASSY SKB-990BL(B)MDC Completed unit, with SPEC LABEL 1 000-SKB990BLBMDCCSER
CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
CLOTH FRAME ASSY SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
TERMINAL BLK/BROWN 1 332-H8107B-92
CROSSOVER SKM/B-940 1 311-SKM940-00
S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
Woofer (ONKYO) OAE(JITRA) 1 W1367B
Tweeter (ONKYO) OAE(JITRA) 1 TW3223A
SKB-980R(B)
SPK SYSTEM ASSY SKB-990BR(B)MDC Completed unit, with SPEC LABEL 1 000-SKB990BRBMDCCSER
CATCHING HOLDER D-N3X 4 D230-DN3X01B-01
CLOTH FRAME ASSY SKM-960(B) with Grille Cloth and Logo 1 D201-M96001B-50
TERMINAL H8107B BLK/TAN 1 332-H8107B-A2

3/11 PAGE
CROSSOVER SKM/B-940 1 311-SKM940-00
S.ABSORBER for TWEETER : 25tx50x50 1 443-925404-00
Woofer (ONKYO) OAE(JITRA) 1 W1367B
Tweeter (ONKYO) OAE(JITRA) 1 TW3223A
SKW-980
SP01A SPK SYSTEM ASSY SKW-980(B)MDC Completed unit, with SPEC LABEL 1 000-SKW-980BMDC
SP01B SUBWOOFER ASSY Without AMP unit,SPEAKER unit and Power transformer 1 000-SKW-980BMDCESER
SP02 GRILLE BOARD ASSY SKW-960 CARB P 1 113-0BW960-11
SP02 FOOT SKW-540 FOOT SKW-540 4 D249-W54001B-00
SP03 WOOFER (FPI) SUB WF NS-424 (FPI) 1 300-DNS4243000
SP04 LED HARNESS ASSY SKW750 1 335-SKW750-01
SP05 CUSHION CR RUBBER SKW-460 2 442-902138-00 For Power Transformer
SP06 CUSHION CR RUBBER SKW-538 1 442-902143-00
SP07 CUSHION DIA 17.5*2T 4 442-902133-00 for FOOT
[SEMI CONDUCTOR]
Q515 TR 2SC5359-R 1 2203082
Q515 or TR 2SC5359-O ( 1) 2203083
Q516 TR 2SA1987-R(Q) 1 2203072
Q516 or TR 2SA1987-O ( 1) 2203073GR
Q541 TR 2SC3423-Y 1 2202104
Q541 or TR 2SC3423-O ( 1) 2202103
[CHASSIS SCREW]
A001 HEAT SINK 230 1 27160591
A002 CUSHION --- 2 28141682
A003 CUSHION --- 1 28141691
A005 SCREW 3TTB+8B(3BC) 6 838430088GR
A007 ISO SHEET AC262 2 223025
A008 SCREW 3SMS8W.SW+14B(CU) 2 801634
A011 RETAINER (PCB) 1 27142025
A012 RETAINER (TRANS)SKW-538 1 27142177A
A016 SCREW 3TTB+8B(3BC) 4 838430088GR
A101 REAR PANEL SKW-980DAMP(X)MDD/MDC(S&V) 1 27124184B N
A102 BUSHING S-RELIEF #2271 1 27300750
A103 KNOB (VOL) 1 28326463

4/11 PAGE
A104 SCREW 3SMS8W.SW+14B(3BC) 2 801433GR
A601 LABEL LABEL SHEET 1 29360840A
A602 TAPE (SEROHAN)NITTO NO.29 1 29110149
A604 TAPE TAPE(CLOTH-16U) 1 29110083
A903 SHEET 200x150t0.5 1 29095961
[TRANS COIL]
T901 P TRANS NPT-1539D 1 2301863 !
[SW TRM]
F901 FUSE 5A-UL/T-233 1 252326GR !
F901C LABEL 5A/125V 1 29360462
P901 AC CORD AS-UC-2 1 253368BLTK !
P901 or AC CORD AS-UC-2 ( 1) 253368AYUN !
[OTHERS]
E801 WIRE TIE BSK-1 1 260208
[TUNER UNIT]
U001 U0010 ~ U0012 BAAF-0491-2F * 1 1B139591-2F N
U0010 MAIN PCB AS BAAF-0491-2F 1 1B1395491-2F N
U0011 POWER SUPPLY PCB AS BAPS-0492-2F 1 1B1395492-2F
U0012 ETC BAETC-0498-2F 1 NSP
HTP-990
PC BOARD PARTS LIST
U001 U0010 ~ U0012 BAAF-0491-2F * 11B139591-2F N
U0010 MAIN PCB AS BAAF-0491-2F 11B1395491-2F N
U0011 POWER SUPPLY PCB AS BAPS-0492-2F 11B1395492-2F
U0012 ETC BAETC-0498-2F 1NSP
CIRCUIT NO. PART NAME DESCRIPTION Q'TY PART NO. (SN) REMARKS
[SEMI CONDUCTOR]
D501 ZENER D MTZJ5.6B 1 224470562T
D601 ZENER D MTZJ3.6B 1 224470362T
D602 ZENER D MTZJ3.6B 1 224470362T
D603 DIODE 1SS133 1 223163T

5/11 PAGE
D605 DIODE 1SS133 1 223163T
D606 DIODE 1SS133 1 223163T
D607 DIODE 1SS133 1 223163T
D651 DIODE 1SS133 1 223163T
D652 DIODE 1SS133 1 223163T
D707 DIODE 1SS133 1 223163T
D708 DIODE 1SS133 1 223163T
D709 DIODE 1SS133 1 223163T
D901 DIODE D3SBA60 1 22380272F
D901 or DIODE RBV402 ( 1) 22380022F
D911 DIODE 1SS133 1 223163T
D913 DIODE 1SS133 1 223163T
D917 DIODE 1SS133 1 223163T
D918 DIODE 1SS133 1 223163T
D919 DIODE RL1N4003 1 22380260T
D920 ZENER D MTZJ9.1B 1 224470912T
Q301 IC NJM4558L-D 1 22240293
Q501 TR 2SC2240-BL(TPE2_F) 1 2211406T
Q502 TR 2SC2240-BL(TPE2_F) 1 2211406T
Q503 TR 2SC2240-BL(TPE2_F) 1 2211406T
Q505 TR 2SA949-O(TPE6_F) 1 2211353T
Q505 or TR 2SA949-Y(TPE6_F) ( 1) 2211354T
Q505 or TR KTA1024-Y ( 1) 2215844T
Q506 TR 2SC2229-O(TPE6_F) 1 2211633T
Q506 or TR 2SC2229-Y(TPE6_F) ( 1) 2211634T
Q506 or TR KTC3206-Y ( 1) 2215854T
Q507 TR 2SA949-O(TPE6_F) 1 2211353T
Q507 or TR 2SA949-Y(TPE6_F) ( 1) 2211354T
Q507 or TR KTA1024-Y ( 1) 2215844T
Q509 TR 2SA949-O(TPE6_F) 1 2211353T
Q509 or TR 2SA949-Y(TPE6_F) ( 1) 2211354T
Q509 or TR KTA1024-Y ( 1) 2215844T
Q510 TR 2SC2229-O(TPE6_F) 1 2211633T
Q510 or TR 2SC2229-Y(TPE6_F) ( 1) 2211634T

6/11 PAGE
Q510 or TR KTC3206-Y ( 1) 2215854T
Q513 TR 2SC5171(ONK_Q) 1 2203010
Q513 or TR KTD2061-Y ( 1) 2203434
Q514 TR 2SA1930(ONK_Q) 1 2203000
Q514 or TR KTB1369-Y ( 1) 2203424
Q517 TR 2SA933S-S 1 2213355T
Q517 or TR 2SA933S-R ( 1) 2213354T
Q517 or TR KTA1267-GR ( 1) 2215995T
Q518 TR 2SC2235-Y(TPE6_F) 1 2211654T
Q519 TR 2SA965-Y(TPE6_F) 1 2211644T
Q602 TR KRC103M 1 2215810T
Q602 or TR DTC124ES ( 1) 2213160T
Q603 TR 2SC1740S-S 1 2213285T
Q603 or TR 2SC1740S-R ( 1) 2213284T
Q603 or TR KTC3199-GR ( 1) 2215864T
Q604 TR 2SA933S-S 1 2213355T
Q604 or TR 2SA933S-R ( 1) 2213354T
Q604 or TR KTA1267-GR ( 1) 2215995T
Q605 TR 2SA933S-S 1 2213355T
Q605 or TR 2SA933S-R ( 1) 2213354T
Q605 or TR KTA1267-GR ( 1) 2215995T
Q606 TR KRA103M 1 2215780T
Q606 or TR DTA124ES ( 1) 2212600T
Q607 TR 2SA933S-S 1 2213355T
Q607 or TR 2SA933S-R ( 1) 2213354T
Q607 or TR KTA1267-GR ( 1) 2215995T
Q608 TR 2SC1740S-S 1 2213285T
Q608 or TR 2SC1740S-R ( 1) 2213284T
Q608 or TR KTC3199-GR ( 1) 2215864T
Q610 TR 2SA933S-S 1 2213355T
Q610 or TR 2SA933S-R ( 1) 2213354T
Q610 or TR KTA1267-GR ( 1) 2215995T
Q612 TR 2SC1740S-S 1 2213285T
Q612 or TR 2SC1740S-R ( 1) 2213284T

7/11 PAGE
Q612 or TR KTC3199-GR ( 1) 2215864T
Q703 TR 2SC1740S-S 1 2213285T
Q703 or TR 2SC1740S-R ( 1) 2213284T
Q703 or TR KTC3199-GR ( 1) 2215864T
Q704 TR 2SC1740S-S 1 2213285T
Q704 or TR 2SC1740S-R ( 1) 2213284T
Q704 or TR KTC3199-GR ( 1) 2215864T
Q705 TR 2SA933S-S 1 2213355T
Q705 or TR 2SA933S-R ( 1) 2213354T
Q705 or TR KTA1267-GR ( 1) 2215995T
Q706 TR DTC123JS 1 2213640T
Q901 TR DTC123JS 1 2213640T
Q902 IC 78M05AHF(MPC78M05AHF) 1 222780055NEC
Q902 or IC 78M05(NJM78M05FA) ( 1) 222780055JRC
[TRANS COIL]
T902 P TRANS NPT-1520JQ 1 2301812A
[CAPACITOR]
C301 UPZ C 2AUPZTF221JE 1 376332214T
C302 UTSP C CE04W50V 47M(UTSP) 1 397584707T
C303 TF C ECQ-V50V-223J 1 374722234T
C501 UTSP C CE04W50V 47M(UTSP) 1 397584707T
C503 TF C ECQ-V50V-224J 1 374722244T
C504 UTSP C CE04W25V-220M(UTSP) 1 397552217T
C505 CERA C CC45CH50V-020C 1 345340201T
C506 CERA C CC45CH50V-070D 1 345340702T
C514 UPZ C 2AUPZTF101JE 1 376331014T
C517 VR C CE04W100V-22M(VR) 1 394692207T
C519 TF C ECQ-V50V-224J 1 374722244T
C520 TF C ECQ-V50V-224J 1 374722244T
C526 VR C CE04W100V-22M(VR) 1 394692207T
C527 UTSP C CE04W50V-1M(UTSP) 1 397580107T
C528 VR C CE04W100V-22M(VR) 1 394692207T
C601 UTSP C CE04W50V-10M(UTSP) 1 397581007T
C602 UTSP C CE04W50V-10M(UTSP) 1 397581007T

8/11 PAGE
C603 UTSP C CE04W10V-470M(UTSP) 1 397534717T
C604 UTSP C CE04W50V-4.7M(UTSP) 1 397580477T
C605 UTSP C CE04W50V-4.7M(UTSP) 1 397580477T
C704 UTSP C CE04W10V-470M(UTSP) 1 397534717T
C707 TF C ECQ-V50V-223J 1 374722234T
C709 TF C ECQ-V50V-223J 1 374722234T
C903 TF C ECQ-V100V-104J 1 374731044T
C904 TF C ECQ-V100V-104J 1 374731044T
C905 ELECT C CE62W71V5600M 1 3504444
C905 or ELECT C CE69W71V-5600M ( 1) 3504484
C906 ELECT C CE62W71V5600M 1 3504444
C906 or ELECT C CE69W71V-5600M ( 1) 3504484
C907 UTSP C CE04W25V-220M(UTSP) 1 397552217T
C908 UTSP C CE04W25V-220M(UTSP) 1 397552217T
C911 UTSK C CE04W25V-1000M(UTSK) 1 398351027S
C912 UTSK C CE04W25V-1000M(UTSK) 1 398351027S
C914 UTSK C CE04W25V-1000M(UTSK) 1 398351027S
C915 TF C ECQ-V50V-224J 1 374722244T
C916 IS C MKP R46 103M 1 3500202S !
C917 UTSP C CE04W50V-22M(UTSP) 1 397582207T
C919 TF C ECQ-V50V-104J 1 374721044T
C921 PLA C MKP R46 104M 1 3800041S
C955 TF C ECQ-V50V-223J 1 374722234T
[RESISTOR]
R301 CARBON R R16J-1K 1 417341024T
R302 VARI R N17RGL20KB15M 1 5151508
R303 CARBON R R16J-47K 1 417344734T
R304 CARBON R R16J-2.2K 1 417342224T
R305 CARBON R R16J-8.2K 1 417348224T
R307 CARBON R R16J-270 1 417342714T
R501 CARBON R R16J-1K 1 417341024T
R502 CARBON R R16J-33K 1 417343334T
R503 CARBON R R16J-5.6K 1 417345624T
R504 CARBON R R16J-2.2K 1 417342224T

9/11 PAGE
R505 NF CARBON R R25J-1.0K 1 415471024T
R506 NF CARBON R R25J-1.0K 1 415471024T
R507 CARBON R R16J-33K 1 417343334T
R508 NF CARBON R R25J-47 1 415474704T
R509 CARBON R R16J-1K 1 417341024T
R510 CARBON R R16J-100K 1 417341044T
R511 NF CARBON R R25J-82 1 415478204T
R512 NF CARBON R R25J-68 1 415476804T
R513 NF CARBON R R25J-82 1 415478204T
R514 NF CARBON R R25J-82 1 415478204T
R515 CARBON R R16J-12K 1 417341234T
R516 CARBON R R16J-12K 1 417341234T
R517 CARBON R R16J-3.3K 1 417343324T
R521 CARBON R R16J-220 1 417342214T
R522 CARBON R R16J-220 1 417342214T
R526 METAL O R RS1/2WBJ-82 1 443528204T
R527 CARBON R R16J-270 1 417342714T
R528 METAL O R RS1/2WBJ-390 1 443523914T
R531 METAL PR RF-5EGKR22 1 4000201
R531 or METAL PR RGC55 0.22 ( 1) 4000132
R531 or METAL P R RGC55C 0.22 K ( 1) 4000157
R531 or METAL PR MPR5W+5W 0R22 ( 1) 4000233
R533 METAL R RNU1WCJ-3.3 1 453630334T
R541 NF CARBON R R25J-820 1 415478214T
R542 CARBON R R16J-150 1 417341514T
R543 CARBON R R16J-180 1 417341814T
R544 TRIM R N06HR100BC 1 5210399T
R601 CARBON R R16J-5.6K 1 417345624T
R602 CARBON R R16J-100K 1 417341044T
R603 CARBON R R16J-150K 1 417341544T
R604 CARBON R R16J-180 1 417341814T
R605 CARBON R R16J-22 1 417342204T
R609 CARBON R R16J-39K 1 417343934T
R610 CARBON R R16J-560K 1 417345644T

10/11 PAGE
R611 CARBON R R16J-820K 1 417348244T
R612 CARBON R R16J-39K 1 417343934T
R613 CARBON R R16J-470K 1 417344744T
R614 CARBON R R16J-120K 1 417341244T
R615 CARBON R R16J-22K 1 417342234T
R616 CARBON R R16J-100K 1 417341044T
R617 CARBON R R16J-1K 1 417341024T
R619 CARBON R R16J-22K 1 417342234T
R620 CARBON R R16J-100K 1 417341044T
R621 CARBON R R16J-1K 1 417341024T
R622 CARBON R R16J-10K 1 417341034T
R623 CARBON R R16J-22K 1 417342234T
R624 CARBON R R16J-100K 1 417341044T
R625 CARBON R R16J-180K 1 417341844T
R626 CARBON R R16J-2.2M 1 417342254T
R627 CARBON R R16J-680K 1 417346844T
R628 CARBON R R16J-330K 1 417343344T
R630 CARBON R R16J-10K 1 417341034T
R631 CARBON R R16J-10K 1 417341034T
R651 METAL O R RS1WBJ-10K 1 443621034T
R652 CARBON R R16J-470K 1 417344744T
R653 CARBON R R16J-680K 1 417346844T
R654 CARBON R R16J-330K 1 417343344T
R704 CARBON R R16J-100K 1 417341044T
R714 CARBON R R16J-68K 1 417346834T
R715 CARBON R R16J-10K 1 417341034T
R716 CARBON R R16J-1K 1 417341024T
R717 CARBON R R16J-10K 1 417341034T
R904 METAL R RNU1/2WCJ-0.22 1 453532294T
R905 METAL R RNU1/2WCJ-0.47 1 453534794T
R906 METAL O R RS1/2WBJ-22 1 443522204T
R907 METAL O R RS1/2WBJ-22 1 443522204T
R954 METAL O R RS1/2WBJ-33 1 443523304T
R981 METAL O R RS1WBJ-470 1 443624714T

11/11 PAGE
R982 METAL O R RS1WBJ-470 1 443624714T
R983 METAL O R RS1WBJ-470 1 443624714T
R984 METAL O R RS1WBJ-470 1 443624714T
[SW TRM]
E801 RETAINER KANAGU(EARTH) 1 27141059
F901A FUSE HOL NSCT-1P2506 1 25052609T
F901Aor FUSE HOL NSCT-1P2031 ( 1) 25052133T
F901B FUSE HOL NSCT-1P2506 1 25052609T
F901Bor FUSE HOL NSCT-1P2031 ( 1) 25052133T
P301 PIN JACK NPJ-1PDB581 1 25045801
P301 or PIN JACK NPJ-1PDBL382 ( 1) 25045567
P301 or PIN JACK NPJ-1PDB556 ( 1) 25045774
P531 PLUG NPLG-2P29 1 25055038
P535A SOCKET AS NSAS-2P1865 1 2009991199UL
P631 PLUG NPLG-2P29 1 25055038
P632A PLUG NPLG-3P131 1 25055147
P902A PLUG NPLG-2P632 1 25055676
P903A PLUG NPLG-4P151 1 25055167
P903B SOCKET AS NSAS-7P1834 1 20099900740UL
P908A SOCKET AS NSAS-10P1152 1 2002A391040UL
P908B PLUG NPLG-5P133 1 25055149
RL901 RELAY NRL-1P5A-DC9-179 1 25065669 !

HTP-990
ONKYO EUROPE ELECTRONICS GmbH (UK BRANCH)
The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK
Tel: [phone] Fax: [phone]
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: [phone] Fax: [phone]
http://www.us.onkyo.com/
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: [phone] Fax: [phone]
http://www.eu.onkyo.com/
Technical Support, Service Dept.: 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: [phone] Fax: [phone]
ONKYO SOUND & VISION CORPORATION
ONKYO CHINA LIMITED
Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.
Tel: [phone] Fax: [phone]
http://www.ch.onkyo.com/
