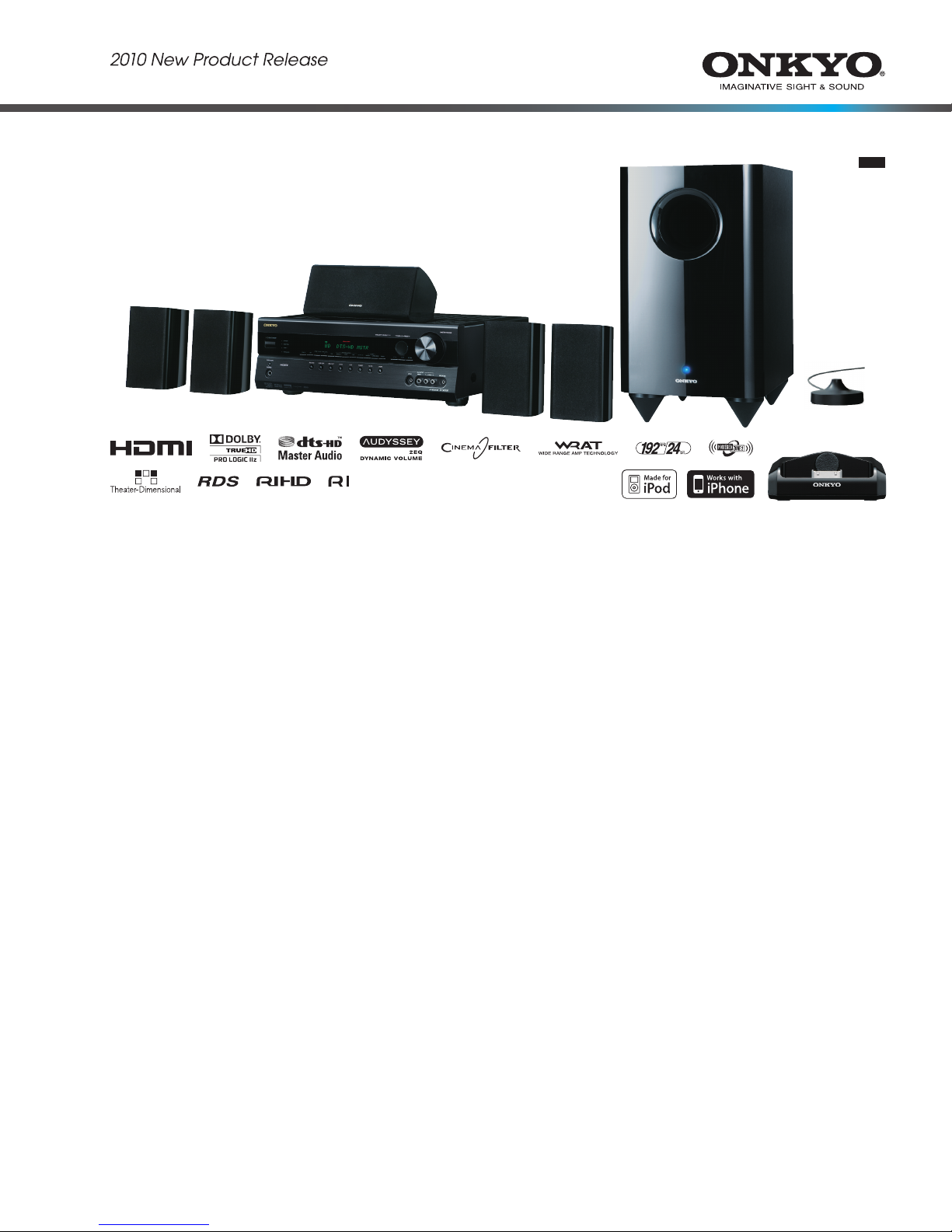

Onkyo HT-S6305 User manual

HT-S6305
5.1-Channel Home Cinema Receiver/Speaker Package
(with Dock for iPhone /iPod®)
BLACK
Enjoy the Convenience of Packaged Home Cinema Without
Sacrificing Quality
With the HT-S6305, Onkyo offers a choice selection of today’s key home cinema features in a superbly integrated and user-friendly
package. Four HDMI®1.4a inputs take care of your high-def sources and provide compatibility with upcoming 3D video content. Other
inputs include a Universal Port for Onkyo peripherals and the UP-A1 dock for your iPhone or iPod. Belying its status as a packaged
system, the HT-S6305 brings master-quality HD audio to your living room in the form of lossless Dolby and DTS codecs. What’s more,
if you complement the included five-speaker set with two extra satellites, you have the option of powered audio in a second room or
the immersive “front height” channels of Dolby®ProLogic®IIz. During speaker set-up, a full suite of Audyssey equalization and room-
correction technologies ensure a properly balanced soundstage and an enveloping presentation. And when you need to fine-tune A/V
settings on the fly, Onkyo’s new overlaid on-screen display makes it easy and seamless. The bedrock underpinning it all is Onkyo’s
hallmark high-current power supply and precision-honed WRAT amplification.
TX-SR508 7.1-Ch nnel Home Cinem Receiver
• 130 W/Ch at 6 Ω, 1 kHz, 1 Channel Driven, IEC
• HDMI®(Version 1.4a to Support 3D and Audio Return
Channel) with Deep Color™, x.v.Color™, LipSync,
Dolby®TrueHD, DTS-HD Master Audio™, DVD-
Audio, Super Audio CD, Multichannel PCM, and CEC
• Audio and 1080p Video Processing via HDMI
(4 Inputs and 1 Output)
• Dolby®TrueHD, DTS-HD Master Audio™, Dolby®
Digital Plus, DTS-HD High-Resolution Audio™Decoding
• Dolby®Pro Logic®IIz for ew Surround Channels
• Burr-Brown 192 kHz/24-Bit DACs (PCM1690) for
All Channels
• Jitter-Cleaning Circuit Technology
• Audyssey 2EQ™for Room Acoustic Correction
• Audyssey Dynamic Volume™
• Audyssey Dynamic EQ™for Loudness Correction
• Powered Zone 2 and Zone 2 Line-Out for Playback of
Separate Source in Another Room
• Bi-Amping Capability
• Overlaid On-Screen Display (OSD) via HDMI
• WRAT (Wide Range Amplifier Technology)
• H.C.P.S. (High Current Power Supply) Massive High
Power Transformer
• Optimum Gain Volume Circuitry
• Advanced 32-Bit Processing DSP Chip
• 4 DSP Modes for Gaming: Rock, Sports, Action, and
RPG (Role Playing Game)
• Music Optimizer™for Compressed Digital Music Files
• Direct Mode
• Pure Audio Mode
• Double Bass Function
• CinemaFILTER™
• Theater-Dimensional Virtual Surround Function
• on-Scaling Configuration
• A-Form Listening Mode Memory
• Universal Port for Single-Cable Connection of Optional
Onkyo Dock for iPhone/iPod or DAB+ Radio Tuner
• HDTV-Capable (720p/1080i) Component Video
Switching (2 Inputs and 1 Output)
• Front-Panel Audio Input for Portable Devices
• Front-Panel Auxiliary A/V Input
• 4 Digital Inputs (2 Optical and 2 Coaxial)
• 4 A/V Inputs and 1 Output
• Video Output (Monitor)
• 1 Audio Input
• Subwoofer Pre Out
• Color-Coded, Banana Plug-Compatible Speaker Posts
(Except Front High or Zone 2)
• Headphone Jack
• Crossover Adjustment (40/50/60/80/100/120/150/
200 Hz)
• A/V Sync Control Function (Up to 100 ms in
10 ms Steps)
• Tone Control (Bass/Treble) for Front L/R Channels
• Display Dimmer ( ormal/Dim/Dimmer)
• RDS (PS/RT/PTY/TP)
• 40 FM/AM Random Presets
• RIHD (Remote Interactive over HDMI) for
System Control
• Compatible with RI (Remote Interactive) Dock for iPod
• Preprogrammed RI Remote Control
HTP-638 5.1-Ch nnel Home Cinem Spe ker
System
SKF-538 Full-R nge B ss Reflex Front Spe kers
• 8 cm Cone
• Max. Input Power: 120 W
• Gloss Finished
• Magnetically Shielded
SKC-538 Full-R nge B ss Reflex Center Spe ker
• 8 cm Cone
• Max. Input Power: 120 W
• Gloss Finished
• Magnetically Shielded
SKR-538 Full-R nge B ss Reflex Surround Spe kers
• 8 cm Cone
• Max. Input Power: 120 W
• Gloss Finished
Note: All speakers feature an impedance of 6 Ω, color-coded speaker
terminals and cable, and wall-mounting capability.
SKW-501E B ss Reflex Powered Subwoofer
• 20 cm Cone
• Max. Output Power: 150 W (Dynamic power)
• Down-Firing
• Output Level Control
UP-A1 Dock for iPhone/iPod
• Audio and Video Playback with iPhone/iPod
• Easy Connection via Universal Port
• Recharges iPhone/iPod
UP-A1 Dock for iPhone/iPod
Microphone for
Audyssey
HT-S6305_EU_HT-S6305 10/03/29 15:23 ページ 1Downloaded from www.Manualslib.com manuals search engine

Onkyo Corporation 2-1 Nisshin-cho, Neyagawa-shi, Osaka 572-8540, JAPAN Tel: [phone] Fax: [phone] http://www.onkyo.com/
Onkyo Europe E ectronics GmbH Liegnitzerstrasse 6, 82194 Grobenzell, GERMANY Tel: [phone] Fax: [phone] http://www.eu.onkyo.com/
Onkyo UK Office The Coach House, 81A High Street, Marlow, Buckinghamshire SL7 1AB, UNITED KINGDOM Tel: [phone] Fax: [phone] http://www.onkyo.co.uk/
Due to a pol cy of cont nuous product mprovement, Onkyo reserves the r ght to change spec f cat ons and appearance w thout not ce. Manufactured under l cense from Dolby Laborator es. Dolby, Pro Log c, and the double-D symbol are trademarks of Dolby Laborator es. DTS s a
reg stered trademark and the DTS logos and Symbol are trademarks of DTS, Inc. Pod s a trademark of Apple Inc., reg stered n the U.S. and other countr es. Phone s a trademark of Apple Inc. "Made for Pod" means that an electron c accessory has been des gned to connect
spec f cally to Pod and has been cert f ed by the developer to meet Apple performance standards. "Works w th Phone" means that an electron c accessory has been des gned to connect spec f cally to Phone and has been cert f ed by the developer to meet Apple performance
standards. Manufactured under l cense from Audyssey Laborator es. U.S. and fore gn patents pend ng. 2EQ, Dynam c EQ, and Dynam c Volume are trademarks of Audyssey Laborator es. HDMI, the HDMI logo, and H gh-Def n t on Mult med a Interface are trademarks or reg stered
trademarks of HDMI L cens ng LLC n the Un ted States and other countr es. x.v.Color s a trademark of Sony Corporat on. WRAT, Mus c Opt m zer, C nemaFILTER, and Theater-D mens onal are trademarks of Onkyo Corporat on. All other trademarks and reg stered trademarks are the
property of the r respect ve holders.
HT-S6305 5.1-Channel Home Cinema Receiver/Speaker Package (with Dock for iPhone /iPod®)
NPR No. 10N26 03/10
HDMI®1.4 Support for 3D Video nd
Audio Return Ch nnel
The four HDMI 1.4 inputs on the HT-S6305’s A/V
receiver let you simult neously connect high-def
sources such s Blu-r y pl yer, g ming console,
nd c ble/s tellite tuner. A single output then
sends pristine sign l to your connected high-
resolution displ y. As the l test version of this
connector, HDMI 1.4 dds the exciting possibilities
of 3D video nd n Audio Return Ch nnel. 3D
video is the next big thing in home entert inment,
with movie, g me, nd bro dc st content on the
incre se nd 3D-comp tible displ ys on the ne r
horizon. This system lso offers the convenience of
n Audio Return Ch nnel vi HDMI. Audio content
received directly by your HDTV’s tuner c n be sent
“upstre m” to the A/V receiver, without the need
for sep r te S/PDIF udio c ble.
Dolby®Pro Logic®IIz Adds New
Dimensions to Surround Sound
Although the HT-S6305 p ck ge comprises
5.1-ch nnel spe ker set, the included A/V receiver
ctu lly h ndles up to 7.1 spe ker ch nnels. By
dding two option l s tellite spe kers, you c n t ke
dv nt ge of the front height ch nnels of Dolby
Pro Logic IIz. These ch nnels c rry mbient, non-
direction l udio th t helps immerse you even more
deeply into your movies nd g mes.
192 kHz/24-Bit Burr-Brown DACs
Improve Jitter Perform nce to Deliver
Cle rer Sound
High-qu lity Burr-Brown DACs (PCM1690) work to
optimize n log udio perform nce on the
HT-S6305’s A/V receiver. These DACs perform
dv nced 24-bit sign l processing nd support
s mpling r tes of up to 192 kHz, while displ ying
high resist nce to clock jitter nd offering 113 dB
dyn mic r nge.
Convenient Overl id On-Screen Displ y
vi HDMI
Ch nging your A/V receiver’s settings is now more
se mless th n ever, th nks to Onkyo’s new overl id
On-Screen Displ y (OSD) fe ture. On-screen set-up
menus ppe r overl id on the video im ge you’re
w tching. This me ns you c n djust the settings
immedi tely, without h ving to switch b ck nd forth
from bl nk screen b ckground.
A Suite of Audyssey Technologies for the
Ide l Listening Environment
(1) Audyssey 2EQ™ t ilors multi-ch nnel udio for
your home cinem spe ker set-up by me suring
three room positions nd pplying resolution
filter to the s tellite spe kers to correct for room
coustics.
(2) Audyssey Dynamic Volume™utom tic lly
compens tes for volume fluctu tions in different
udio content—for ex mple, during commerci l
bre ks—while optimizing the dyn mic r nge.
(3) Audyssey Dynamic EQ™m int ins consistent
b ss response, ton l b l nce, nd surround-sound
effect t different volume levels, so you c n enjoy
the n tur l dyn mics of your content reg rdless of
the volume.
SPECIFICATIONS
■A/V RECEIVER
AMPLIFIER SECTION
Power Output
Front L/R 130 W/Ch (6 Ω, 1 kHz, 1 channel riven, IEC)
Center 130 W (6 Ω, 1 kHz, 1 channel riven, IEC)
Surroun L/R 130 W/Ch (6 Ω, 1 kHz, 1 channel riven, IEC)
Surroun Back L/R, Front High L/R, or Zone 2 L/R
130 W/Ch (6 Ω, 1 kHz, 1 channel riven, IEC)
Dynamic Power 180 W (3 Ω, Front)
160 W (4 Ω, Front)
100 W (8 Ω, Front)
THD (Tota Harmonic Distortion)
0.08% (1 kHz, 1 W)
Damping Factor 60 (Front, 1 kHz, 8 Ω)
Input Sensitivity and Impedance
200 mV/47 kΩ(Line)
Output Leve and Impedance
200 mV/2.2 kΩ(Rec out)
Frequency Response 5 Hz–100 kHz/+1 B, -3 B (DSP bypass)
Tone Contro ±10 B, 50 Hz (Bass)
±10 B, 20 kHz (Treble)
Signa -to-Noise Ratio 106 B (Line, IHF-A)
Speaker Impedance 4 Ω–16 Ωor 6 Ω–16 Ω
VIDEO SECTION
Input Sensitivity/Output Leve and Impedance
Vi eo 1.0 Vp–p/75 Ω(Component)
0.7 Vp–p/75 Ω(Component PB/CB,PR/CR)
1.0 Vp–p/75 Ω(Composite)
Component Video Frequency Response
5 Hz–100 MHz/0 B, -3 B
TUNER SECTION
Tuning Frequency Range
FM 87.5 MHz–108 MHz
AM 522 kHz–1,611 kHz
530 kHz–1,710 kHz
FM/AM Preset Memory 40 stations
GENERAL
Power Supp y AC 230 V~, 50 Hz
Power Consumption 450 W
Dimensions (W x H x D) 435 x 151.5 x 328.5 mm
Weight 9.4 kg
■SPEAKER SYSTEM
Speaker Type
Front Full-range, Bass reflex
Center Full-range, Bass reflex
Surroun Full-range, Bass reflex
Subwoofer Bass reflex, Powere
Drivers
Front 8 cm cone
Center 8 cm cone
Surroun 8 cm cone
Subwoofer 20 cm cone
Frequency Response
Front 80 Hz–20 kHz
Center 80 Hz–20 kHz
Surroun 80 Hz–20 kHz
Subwoofer 27 Hz–150 Hz
Output Sound Pressure Leve
Front 82 B/W/m
Center 82 B/W/m
Surroun 82 B/W/m
Max. Input Power
Front/Center/Surroun 120 W
Max. Output Power
Subwoofer 150 W (Dynamic power)
Nomina Impedance
Front/Center/Surroun 6 Ω
Input Sensitivity/Impedance
Subwoofer 140 mV/20 kΩ
GENERAL
Dimensions (W x H x D)
Front 101 x 161 x 111 mm
Center 230 x 102 x 113 mm
Surroun 101 x 161 x 111 mm
Subwoofer 230 x 425 x 412 mm
Weight
Front 0.8 kg
Center 0.9 kg
Surroun 0.7 kg
Subwoofer 9.1 kg
■CARTON
Dimensions (W x H x D) 566 x 716 x 480 mm
Weight 32.5 kg
■Supplied Accessories
• In oor FM loop antenna • AM loop antenna • Speaker cable labels
• Speaker set-up microphone • Subwoofer cable
• Color-co e speaker cable • Instruction manual • Quick start gui e
• Remote controller • AA (R6) batteries x 2
TX-SR508
