Before You Begin
Read these instructions before installing or operating this product.
Note: This installation should be made by a qualified service person and should conform to local codes.
This manual provides installation and operation information. To use this document, you must have the
following minimum qualifications:
A basic knowledge of CCTV systems and components
A basic knowledge of electrical wiring and low-voltage electrical connections
Intended use
Only use this product for its designated purpose; refer to the product specification and user documentation.
Customer Support
For assistance in installing, operating, maintaining and troubleshooting this product refer to this document and
any other documentation provided. If you still have questions, please contact Norbain Technical Support and
Sales:
Norbain SD, Inspired, Easthampstead Road, Bracknell, RG12 1YQ.
UK [phone]
Note: You should be at the equipment and ready with details before calling Technical Support.
Conventions Used in this Manual
Boldface or button icons highlight command entries. The following WARNING, CAUTION and Note
statements identify potential hazards that can occur if the equipment is not handled properly:
* WARNING:
Improper use of this equipment can cause severe bodily injury or equipment damage.
** Caution:
Improper use of this equipment can cause equipment damage.
Note: Notes contain important information about a product or procedure.
This apparatus is manufactured to comply with the radio interference.
A Declaration of Conformity in accordance with the following EU standards has been made. The
manufacturer declares that the product supplied with this document is compliant the provisions of
the EMC Directive 2004/108/EC, the CE Marking Directive 93/68 EEC and all associated
amendments.
All lead-free products offered by the company comply with the requirements of the European
law on the Restriction of Hazardous Substances (RoHS) directive: 2011/65/EU, which means
our manufacture processes and products are strictly “lead-free” and without the hazardous
substances cited in the directive.
The crossed-out wheeled bin mark symbolizes that within the European Union the product must
be collected separately at the product end-of-life. This applies to your product and any
peripherals marked with this symbol. Do not dispose of these products as unsorted municipal
waste.
* This symbol indicates electrical warnings and cautions.
** This symbol indicates general warnings and cautions.
NORBAIN SD reserves the right to make changes to the product and specification of the product from time to
time without prior notice.
WARNINGS AND CAUTIONS:
To reduce the risk of fire or electric shock, do not insert any metallic objects through the ventilation grills or other
openings on the equipment.

3
VK2-12MP360EXTIR User Manual V1.0
VVV
IMPORTANT SAFEGUARDS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's
instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that product heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has
two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
14. CAUTION - THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED SERVICE
PERSONNEL ONLY. TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT PERFORM
ANY SERVICING OTHER THAN THAT CONTAINED IN THE OPERATING INSTRUCTIONS
UNLESS YOU ARE QUALIFIED TO DO SO.
15. IEC60950-1/UL60950-1 or Certified/Listed Class 2 power source only.

4
VK2-12MP360EXTIR User Manual V1.0
Contents
1Introduction 5
1.1 Components 5
1.2 Key Features 6
2Installation 7
2.1 Overview 7
2.2 Connection 11
2.3 Resetting to the factory default settings 12
2.4 Network Connection & IP assignment 13
3Operation 14
3.1 Access from a browser 14
3.2 Access from the internet 15
3.3 Setting the admin password over a secure connection 15
3.4 Live View Page 16
3.6 Playback 19
3.7 Network Camera Setup 21
3.6.1 Basic Configuration 21
3.6.2 Video & Image 26
3.6.3 Audio 35
3.6.4 Event 36
3.6.5 System 61
3.7 Help 81
AAppendix 82
A.1 Troubleshooting 82
A.2 Alarm Connection 83
A.3 Preventive Maintenance 83
A.4 System Requirement for Web Browser 84
A.5 General Performance Considerations 84
A.6 Product Specification 85

5
VK2-12MP360EXTIR User Manual V1.0
1 Introduction
The VK2-12MP360EXTIR vandal resistant 360 degree fisheye camera is highly featured CCTV
cameras offering the installer and user the following:
1. 360-degree complete coverage
2. Upto 12 Mega Pixel resolution
3. H265 / H264 Compression
4. Vandal resistant IK10 housing
5. IR Illumination
6. Hi-Stream bandwidth / storage optimizer function
7. Alarms, Audio and edge recording
1.1 Components
This system comes with the followingcomponents;
Network Camera 1
Installation Guide/CD 1
Accessory Kit
- Mount Screw 3
- Plastic Rawl plugs 3
- RJ45 connector 1
- Spot BNC cable 1
- L- shaped Allen key 1
- Side cap 1
Note 1. Check your package to make sure that you received the complete system, including all
components listed above.
Note 2. Adapter for DC 12V is not supplied.

6
VK2-12MP360EXTIR User Manual V1.0
1.2 Key Features
• Brilliant video quality
The network camera offers the highly efficient H.265 or H.264 video compression, which
drastically reduces bandwidth and storage requirements without compromising image quality.
Motion JPEG is also supported for increased flexibility.
• Quad streams
The network camera can deliver four video streams simultaneously using H.264/H.265
and Motion JPEG. This means that several video streams can be configured with different
compression formats, resolutions and frame rates for different needs.
• Intelligent video capabilities
The network camera includes intelligent capabilities such as enhanced video motion
detection. The network cameras external inputs and outputs can be connected to devices
such as sensors and relays, enabling the system to react to alarms and activate lights or
open/closedoors.
• Improved security
The network camera logs all user access, and lists currently connected users. Also, its full
frame rate video can be provided overHTTPS.
• PoE (Power over Ethernet)
This network camera can be powered through PoE (IEEE802.3af), which simplifies installation
since only onecableis needed for carrying power, as well asvideocontrols.
• ONVIF certificate
This is a global interface standard that makes it easier for end users, integrators, consultants,
and manufacturers to take advantage of the possibilities offered by network video technology.
ONVIF enables interoperability between different vendor products, increased flexibility,
reduced cost, and future-proofsystems.
• Micro-SD recording support
The network camera also supports a micro-SD memory slot for local recording with removable
storage of type SDHC and SDXC.
• Audio support
The Network Camera also supports two-wayaudio.

7
VK2-12MP360EXTIR User Manual V1.0
2 Installation
The VK2-12MP360EXTIR can be installed using a single Cat5e cable to supply power and also to
transmit network video traffic. Additional cabling is required for Alarms and audio connections.
2.1 Overview
• Dimension
Dimensions Unit: mm

8
VK2-12MP360EXTIR User Manual V1.0
• Connectors
NO
Item
Description
1
Power
DC12V Power input(2pin terminal block)
2
RJ-45
Ethernet, RJ-45 port compatible
with 10/100Mbps PoE Modular Jack
3
CVBS
Analog test video out(2pin connector)
4
ALO: Alarm Out
Alarm input and output, 3pin terminal
ALI: Alarm In
GND: Ground
12Vo
Audio in/out terminal and 12V out for external
sensor.
GND
AI: Audio In
AO: Audio Out

9
VK2-12MP360EXTIR User Manual V1.0

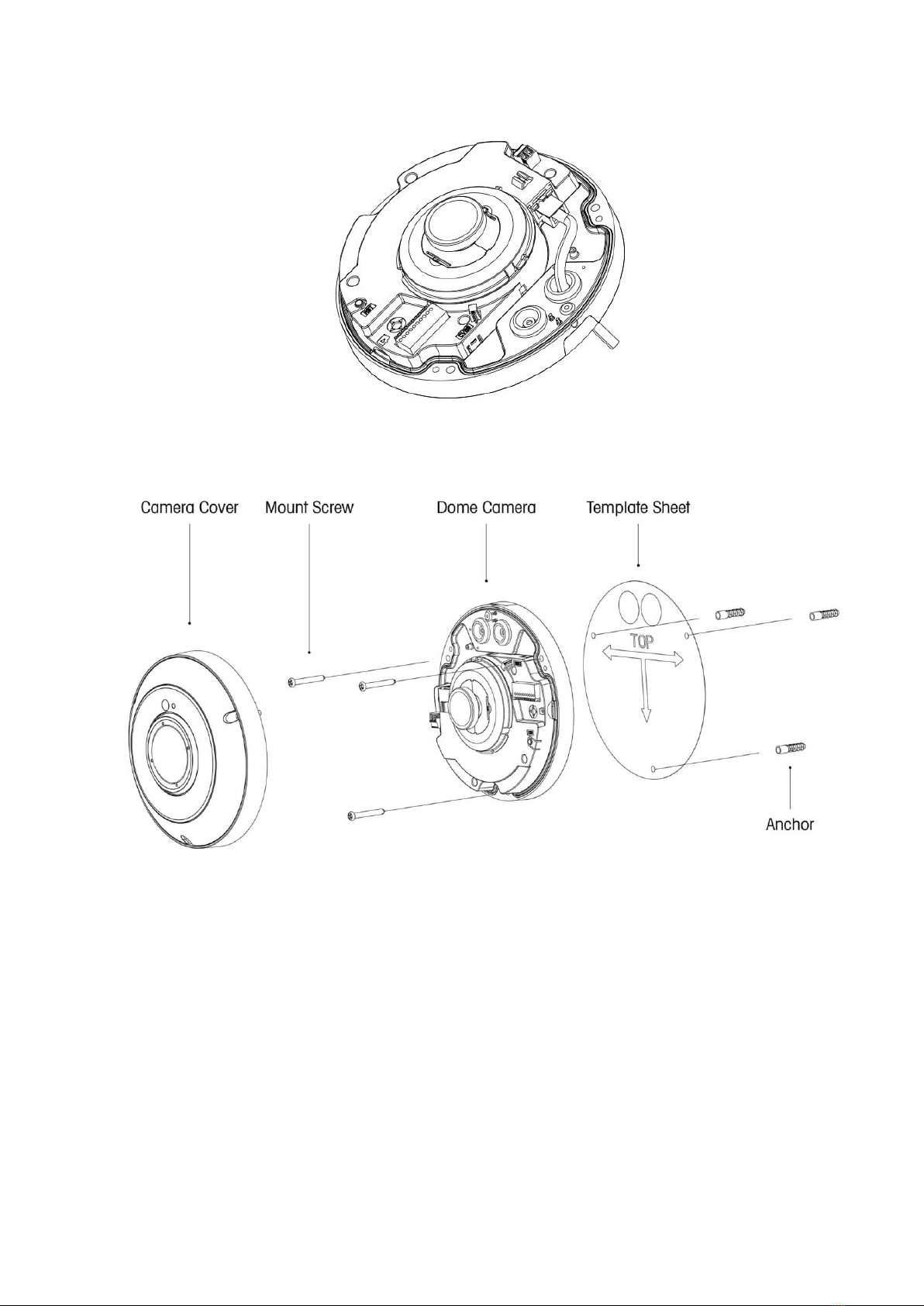

• Installing Camera
1. Open the top cover using L-wrench..
2. Drill a hole on the rubber grommet
and insert an UTP(Ethernet) cable.
3. Assemble the RJ45 connector and UTP cable using crimping tool.
4. Feed the UTP cable from the bottom of the camera and through the hole(①) and
plug in the RJ45 connector to Ethernet port(②)
Pin Color
1Orange-White
2Orange
3Green –White
4Blue
5Blue-White
6Green
7Brown-White
8Brown

10
VK2-12MP360EXTIR User Manual V1.0
5. Fix the rubber grommet on the bottom for water proof.
6. Make mounting holes and cable hole using the template sheet.

11
VK2-12MP360EXTIR User Manual V1.0
2.2 Connection
• Micro SD memory card
Insert the SD card on the bottom of the dome.
• Connecting to the RJ-45
Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over
cable is used for directly connection to PC, while a direct cable is used for connection to a hub. You
can also use a router featuring PoE (Power over Ethernet) to supply power to thecamera.
• Connecting Alarms
AI(Alarm In): Youcan use external devices to signal the network camera to react on
events. Mechanical or electrical switches can be wired to the AI (Alarm In) and G (Ground)
connectors.
G(Ground): Connect the ground side of the alarm input and/or alarm output to the G (Ground)
connector.
AO(Alarm Out): The network camera can activate external devices such as buzzers or lights.
Connect the device to the AO (Alarm Out) and G (Ground)connectors.
• Connecting the Power
Connect the power of 12VDC for the network camera. Connect the positive(+) pole to the ‘+’ position
and the negative (-) pole to the ‘-’position for the DC power.
– Be careful not to reverse the polarity when connecting the power cable.
– A router featuring PoE (Power over Ethernet) can also be used to supply power to the
camera.
– For the power specifications, refer to the appendix, product specification.
– If PoE and 12 VDC are both applied, the camera will be supplied with power from PoE.
• ConnectingAudio
Connect speaker to audio line output and external Mic to audio input line.
• Connecting Test Monitor Out(CVBS)
Connect 2pin connecter test video cable(Optional) to check test video.

12
VK2-12MP360EXTIR User Manual V1.0
2.3 Resetting to the factory default settings
To reset the network camera to the original factory settings, go to the Setup > System >
Maintenance web page (described in “System > Maintenance” of User Manual) or use the Reset
button on the network camera inside the bottom cap.
• Using the Reset button:
Follow the instructions below to reset the network camera to the factory default settings using the
Reset button.
1) Switch off the network camera by disconnecting the power adapter.
2) Open the top cover.
3) Press and hold the Reset button with a straightened paperclip while reconnecting the
power.
4) Keep the Reset button pressed about 5 or more seconds.
5) Release the Resetbutton.
6) The network camera resets to factory defaults and restarts after completing the factory reset.
7) Close the cover tightly to ensurewaterproof.
CAUTION: When performing a Factory Reset, you will lose any settings that have been
saved. (Default IP192.168.30.220)

13
VK2-12MP360EXTIR User Manual V1.0
2.4 Network Connection & IP assignment

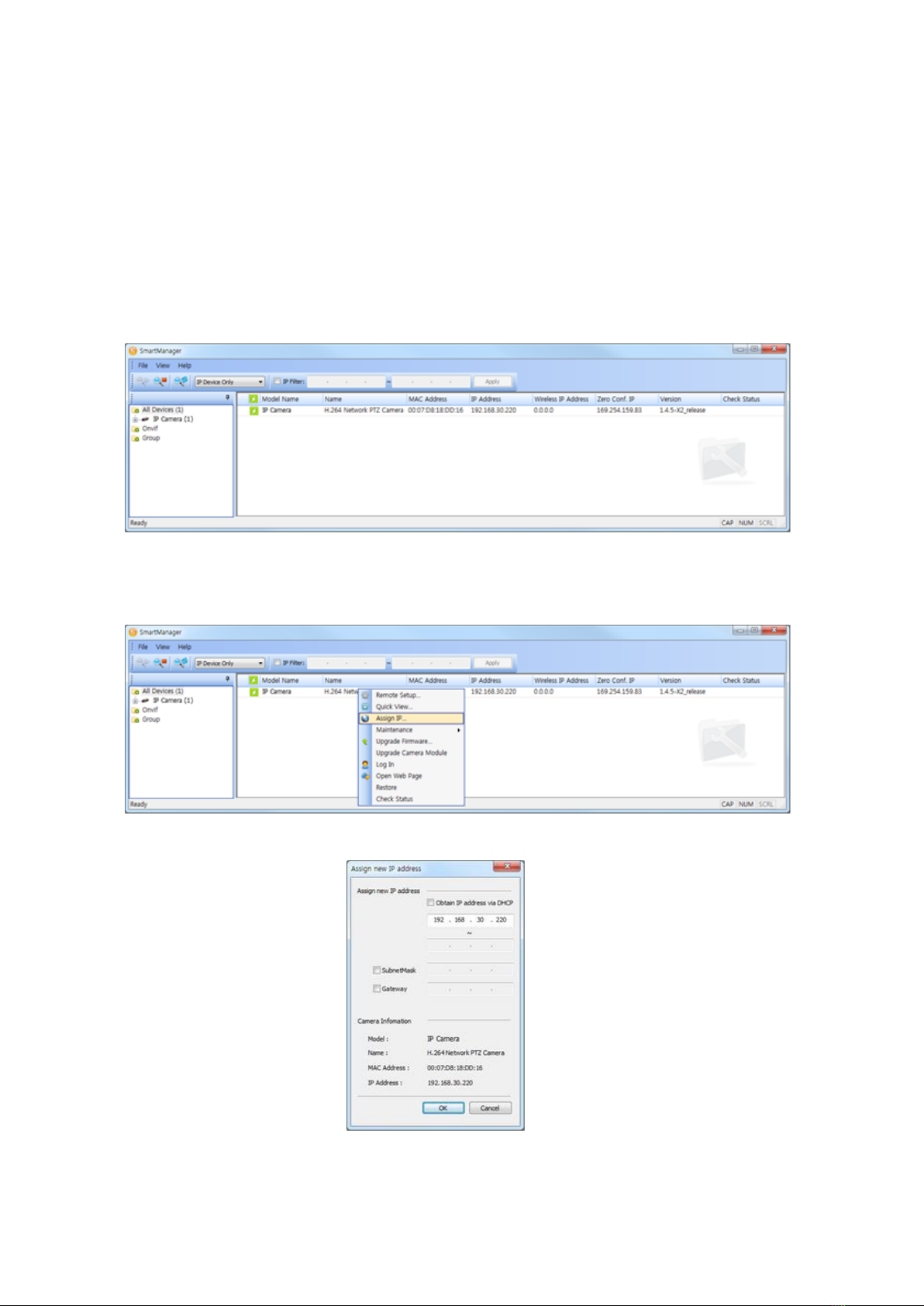

The camera supports the operation through the network. When a camera is first connected to the
network, it is necessary to allocate an IP address to the device with the “SmartManager” utility on
the CD. (Default IP192.168.30.220)
1) Connect the network camera/device to the network and power up.
2) Start SmartManager utility (Start > All programs > SmartManager > SmartManager). The main
window will display, and after a short while any network devices connected to the network will be
displayed in thelist.
3) Select the camera on the list and click right button of the mouse. You can see the pop-up menu
as below.
4) Select Assign IP Address. The Assign IP window will display. Enter the required IP address.
NOTE: For more information, refer to the SmartManager UserManual.

14
VK2-12MP360EXTIR User Manual V1.0
3 Operation
The network camera can be used with Windows operating system and browsers. The rec-
ommended browsers are Internet Explorer, Safari, Firefox, Opera and Google Chrome with
Windows.
NOTE: To view streaming video in Microsoft Internet Explorer, set your browser to allow
ActiveXcontrols.
3.1 Access from a browser
• Start a browser (Internet Explorer).
• Enter the IP address or host name of the network camera in the Location/Address field of your
browser.
• You can see a starting page. Click Live View, Playback, or Setup to enter web page.
• The network cameras Live View page appears in yourbrowser.

15
VK2-12MP360EXTIR User Manual V1.0
3.2 Access from the internet
Once connected, the network camera is accessible on your local network (LAN). To access the
network camera from the Internet you must configure your broadband router to allow incoming
data traffic to the network camera. To do this, enable the NAT traversal feature, which will attempt
to automatically configure the router to allow access to the network cam- era. This is enabled from
Setup > System > Network > NAT. For more information, please see “System > Network > NAT”
of User Manual.
3.3 Setting the admin password over a secure connection
To gain access to the product, the password for the default administrator user must be set. This is
done in the “Admin Password” dialog, which is displayed when the network camera is accessed for
the setup at the first time. Enter your admin name and password, set by the administrator.
NOTE: The default administrator user name and password is “admin”. If the password is
lost, the
network camera must be reset to the factory default settings. Please see “Resetting to the factory
defaultsettings.”
To prevent network eavesdropping when setting the admin password, this can be done via
an
encrypted HTTPS connection, which requires an HTTPS certificate (see NOTEbelow). Tosetthe
passwordviaastandardHTTPconnection,enterit directlyin thefirstdialogshown below. To set the
password via an encrypted HTTPS connection, please see “System
> Security > HTTPS” of User Manual.
NOTE: HTTPS (Hypertext Transfer Protocol over SSL) is a protocol used to encrypt the
traffic
between web browsers and servers. The HTTPS certificate controls the encrypted exchange of
information.

16
VK2-12MP360EXTIR User Manual V1.0
3.4 Live View Page
The Live View page comes in several screen modes. Users are allowed to select the most suitable
one out of those modes. Adjust the mode in accordance with your PC specifications and monitoring
purposes.
1) General controls
Live ViewPage PlaybackPage Setup Page Help Page
The video drop-down list allows you to select a customized or pre-
programmed video stream on the Live View page. Stream profiles are con-
figured under Setup > Basic Configuration > Video & Image. For more in-
formation, pleasesee “Basic Configuration> Video&Image” of User Manual.
The resolution drop-down list allows you to select the most suitable one out of
video resolutions to be displayed on Live View page.
The protocol drop-down list allows you to select which combination of protocols
and methods to use depending on your viewing requirements, and on the
properties of your network.
2) Control toolbar
The live viewer toolbar is available in the web browser page only. It displays the following buttons:
The Stop button stops the video stream being played. Pressing the key againtoggles the start
and stop. The Start button connects to the network camera or starts playing a video stream.
The Pause button pauses the video stream being played.
The Snapshot button takes a snapshot of the current image. The location where the image is
saved can be specified.

17
VK2-12MP360EXTIR User Manual V1.0
The Digital Zoom button activates a zoom-in or zoom-out function for video image on
the live
screen.
The Full Screen button causes the video image to fill the entire screen area. No other windows
will be visible. Press the ‘Esc’ button on the computer keyboard to cancel full screen view.
The Manual Trigger button activates a pop-up window to manually start or stop the event.
The Relay Output button manually triggers relay out. (This Icon appears only if “En- able
alarm out” is selected in “Event Out - AlarmOut”.)
The Speaker button activates/deactivates externalspeaker.
The Mic button activates/deactivates microphoneinput.
Use this scale to control the volume of the speakers and microphones.
3) Video Streams
The network camera provides several images and video stream formats. Your requirements and
the properties of your network will determine the type youuse.
The Live View page in the network camera provides access to H.264, H.265 and Motion JPEG
video streams, and to the list of available video streams. Other applications and clients can also
access these video streams/images directly, without going via the Live View page.
Click the right mouse button on the image, then a pop up window will appear as shown in the
followingfigure.
• Freeze
Pause the video stream beingplayed.
• Shown OSD
A toggle switch to show or hide current frame rate, date, and time on the video image.
• Snapshot
Takes a snapshot of the current image. The location where the image is saved can be
specified.
• Buffering
Play a little delayed for natural video playback..
• FullScreen
Causes the video image to fill the entire screenarea.

18
VK2-12MP360EXTIR User Manual V1.0
• Filter: This camera provides the following five filter options, one toggle filter andchoice
among 5 filters.
Menu
View
Description
Panomorph Ceiling
Two horizontal dewarped images for ceiling
mount. User can change FoV by dragging
mouse on the image, which pans image.
Panomorph Wall
Single dewarped image for wall mount.
Quad Ceiling
Quad dewarped images for ceiling mount. User
can change FoV of each window by dragging
mouse or roll mouse wheel on the image, which
pans, tilts, or zoom image.
Quad Wall
Quad dewarped images for wall mount. User can
change FoV of each window by dragging mouse
or roll mouse wheel on the image, which pans,
tilts, or zoom image.
Dual Corridor
Two vertical dewarped images. User can change
FoV of each window by dragging mouse or roll
mouse wheel on the image, which pans, tilts, or
zoom image.

19
VK2-12MP360EXTIR User Manual V1.0
3.6 Playback
The Playback window contains a list of recordings made to the memory card. It shows each
recording’s start time, length, the event type used to start the recording, calendar and time slice bar
indicates if the recording is existed ornot.
The description of playback window follows.
1) Video Screen
Youcan see the video screen when playing the video clip in the Micro SDmemory.
2) Playback Buttons
To view a recording data in the SD local storage, select it from the list and click the
Playbackbuttons.
Go to the first: go to the beginning of the videoclip.
Fast backward play: fast play backward of the video clip.
Backward play: play backward of the videoclip.
Step backward play: go back one frame of the video clip.
Pause: pause playback of the videoclip.
Step forward play: go forward one frame of the video clip.
Forward Play: play forward the videoclip.
Fast forward play: play fast forward of the video clip. Go
to the last: go to the end of the videoclip.
Clip copy: copy the video clip.
Zoom In: zoom in the videoclip.
Full Screen: display full screen of thevideo.

20
VK2-12MP360EXTIR User Manual V1.0
3) Time Chart
Display an hour-based search screen for the chosen date. If there is recording data, a blue
section will be displayed on a 24-hour basis. If you select a particular hour in the chart, a
yellow square on the hour will bedisplayed.
4) Speaker Control Bar
Use this scale to control the volume of thespeakers.
5) Search Calendar
Search results from the SD local storage in the network camera connected are displayed
monthly. If there is a recorded data for a particular date, a blue square on the date will be
displayed. If you select a particular date in the calendar, a yellow square on the date will be
displayed.
6) Play Time
Displays time of the videoplaying.
7) Event SearchWindow
Select a search option in the drop-down list and click GO button. You can also enter the
time period for searching. If you click Start Date or End Date zone, displays Search Calendar.
8) Event List Window
Event List displays the event(s) that were recorded in the SD local storage. Select a list and
click the play button. The video clip will beplayed.
