Opel CD 60 User manual

CD 60 / DVD 100 NAVI .................. 3
CDC 40 OPERA .......................... 71
CD 30 / CD 30 MP3 Type 1 ....... 109
CD 30 / CD 30 MP3 Type 2 ....... 135
Mobile phone portal ................... 161
Contents

Introduction .................................... 4
Radio ........................................... 19
CD Player .................................... 27
Navigation .................................... 36
Index ............................................ 68
CD 60 / DVD 100 NAVI

4Introduction
Introduction
General information ....................... 4
Theft-deterrent feature ................... 5
Overview ........................................ 7
Operation ....................................... 9
Tone settings ............................... 16
Volume settings ........................... 17
General information
The Infotainment system provides
you with state-of-the-art in-car
infotainment.
The radio has ten automatic station
memories for each available
waveband and the same number of
manual station memories.
The integrated CD player will
entertain you with audio CDs and
MP3 CDs.
The integrated changer unit (if
available) can take up to six CDs.
Furthermore, you can connect
external sources, e. g. a mobile
phone to the Infotainment system.
The digital sound processor provides
you with several preset equalizer
modes for sound optimisation.
The navigation system with dynamic
route planning will reliably guide you
to your destination, and, if desired,
will automatically avoid traffic jams or
other traffic problems.
Optionally, the Infotainment system
can be operated using controls on the
steering wheel.
In addition the Infotainment system
can be equipped with a Mobile phone
portal.
The well-thought-out design of the
control elements and the clear
displays enable you to control the
system easily and intuitively.
Important information on
operation and traffic safety
9Warning
The Infotainment system has to be
used so that the vehicle can be
driven safely at all times. If in doubt
stop your vehicle and operate the
Infotainment system while the
vehicle is stationary.

Introduction 5
9Warning
The usage of the navigation
system does not release the driver
from the responsibility for
a correct, vigilant attitude in road
traffic. The related traffic
regulations must always be
followed.
Only make entries (e. g.
addresses) with the vehicle
stationary.
If a navigation instruction
contradicts traffic regulations, the
traffic regulations always apply.
9Warning
In some areas one-way streets
and other roads and entrances
(e. g. pedestrian zones) that you
are not allowed to turn into are not
marked on the map. In such areas
the Infotainment system will issue
a warning that must be accepted.
Here you must pay particular
attention to one-way streets, roads
and entrances that you are not
allowed to drive into.
Radio reception
Radio reception may be disrupted by
static, noise, distortion or loss of
reception due to
■ changes in distance from the
transmitter,
■ multi-path reception due to
reflection,
■ shadowing.
Theft-deterrent feature
The Infotainment system is equipped
with an electronic security system for
the purpose of theft deterrent.
The Infotainment system therefore
functions only in your vehicle and is
worthless for a thief.

6Introduction

Introduction 7
Overview

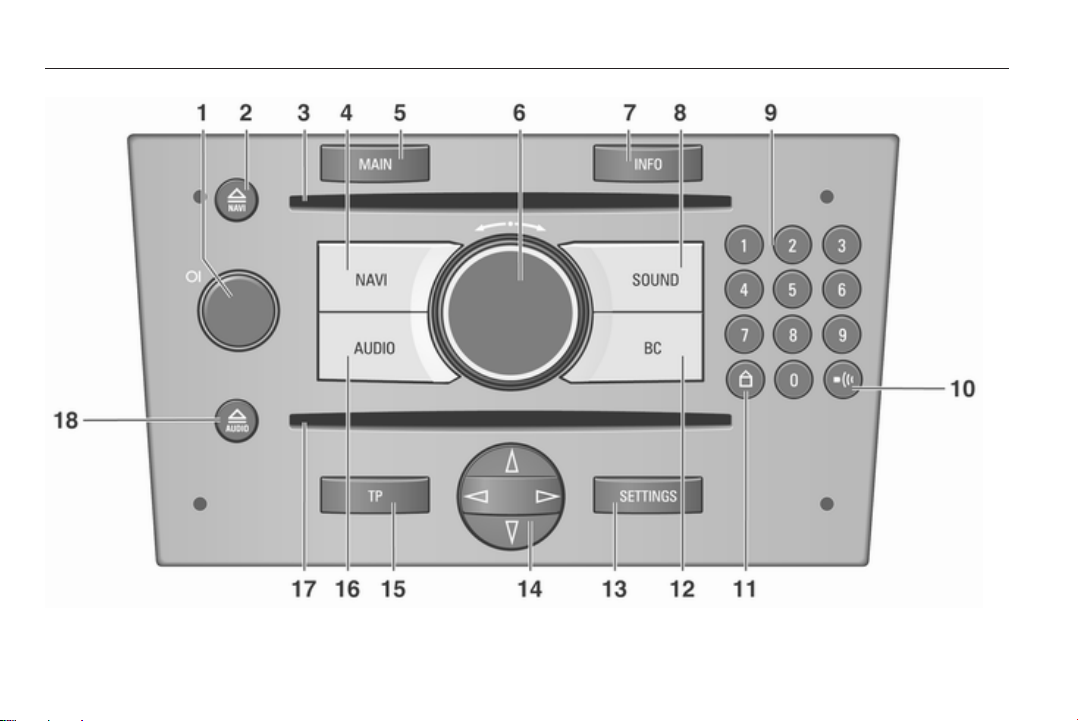

Control elements on instrument
panel
1e knob ................................... 9
Briefly press: switch on/off
Infotainment system ................ 9
Press and hold: activate/
deactivate mute ....................... 9
Turn: adjust volume ................ 9
2b button ............................... 38
Eject navigation CD/DVD ..... 38
3Navigation CD/DVD slot ........ 38
4NAVI ...................................... 38
Navigation menu ................... 38
5MAIN ....................................... 9
Recall main display ................ 9
6Multifunction knob ................... 9
Turn: select menu items
and commands ....................... 9
Press: confirm a selection
(OK) ........................................ 9
7INFO ....................................... 9
Additional, situation-
dependent information ............ 9
8SOUND ................................. 16
Sound settings ...................... 16
90...9 station buttons .............. 19
Long press: save station ....... 19
Short press: select station ....19
10 u button ............................... 56
Repeat last navigation
message ............................... 56
11 G button ................................ 41
Recall home address ............ 41
12 BC ........................................... 6
Trip computer (if available) ..... 6
13 SETTINGS .............................. 9
Settings menu, depending
on the selected function .......... 9
14 Rocker switch ........................ 21
Radio: search backwards/
forwards ................................ 21
CD/MP3: skip track
backwards/forwards .............. 28
Navigation: scroll through
map displays and select
options .................................. 61
15 TP ......................................... 23
Activate or deactivate
radio traffic service ................ 23
16 AUDIO ................................... 19
Switch between radio and
CD menu ............................... 19
17 Audio/MP3 CD slot ................ 28
18 a button ................................ 28
Eject audio/MP3 CD .............. 28

8Introduction
Steering wheel audio controls
1Thumbwheel ........................... 9
Turn: select menu items
and commands ....................... 9
Press: confirm a selection
(OK) ........................................ 9
2q button ............................... 19
Radio: select station
button .................................... 19
CD: CD restart ...................... 28
MP3: next album ................... 28
3p button .............................. 28
Switch between radio and
CD/MP3 mode ...................... 28
4c button ................................. 21
Radio: search backwards,
scroll down in station
memory ................................. 21
CD/MP3: skip track
backwards, fast rewind ......... 28
5d button ................................. 21
Radio: search forwards,
scroll up in station memory ... 21
CD/MP3: skip track
forwards, fast forward ........... 28
6Thumbwheel ......................... 17
Turn: adjust volume .............. 17
Symbols in the main display
Audio function
AM =AM waveband is selected.
FM =FM waveband is selected.
AS =FM or AM Autostore level is
selected.
[ ] =Traffic programme is
active, however no TP
station is being received.
TP =The station selected
transmits traffic
announcements.
[TP] =Traffic programme is
active, traffic
announcements will be
relayed.
TMC =RDS TMC traffic
information is being
received.
REG =Regionalisation is active.
CD in =An audio/MP3 CD is
inserted in the audio CD
slot.
MP3 =The loaded CD contains
MP3 files.

Introduction 9
Navigation function
y=Route option Fastest route is
selected.
x= Route option Shortest route
is selected.
z= Route option Main streets is
selected.
A= Route option Secondary
roads is selected.
C= Route option Toll-free is
selected.
B= Route option Dyn. Guidance
is active.
w= No or insufficient GPS
reception (e.g. under
bridges, in forests or between
high buildings).
v= The volume of the acoustic
directions is switched off.
Operation
Control elements
The Infotainment system is operated
via function buttons, multifunctional
knobs and menus that are shown on
the display.
Inputs are made optionally via:
■ the central control unit in the
instrument panel 3 6
■ controls on the steering wheel 3 6.
Switching the Infotainment
system on or off
Press the e knob briefly. After
switching on the last selected
Infotainment source is active.
Switching on and off with the ignition
key (ignition logic)
If ignition logic is activated, the
Infotainment system is automatically
switched off/on by removing or
inserting and turning the ignition key.
Automatic switch-off
If the Infotainment system was
switched on using the e knob, it
switches off automatically one hour
after the ignition key is removed.
Setting the volume
Turn the e knob.
When the Infotainment system is
switched on, the last selected volume
is set, if that volume is lower than the
maximum start up volume.
The following can be set separately:
■ the maximum start up volume
3 17.
■ the volume of the traffic
announcements 3 17.
■ the volume of the navigation
messages 3 17.
Speed dependent volume control
(SDVC)
When SDVC is activated 3 17, the
volume is adapted automatically to
make up for the road and wind noise
when driving.
Mute
Press and hold the e knob to mute
the audio sources.
To cancel mute again: turn the e
knob or press and hold the e knob
again.

10 Introduction
Multifunction knob
The multifunction knob is the central
control element for the menus.
Turn:
Select commands, menu options or
letters.
Press:
Confirm the displayed selection.
Info Menu
Pressing the INFO button displays
a summary of the most important
information on the selected audio
source, navigation and the current
traffic situation via RDS TMC.
The following information is available
in the info menu:
Audio parameters
The top two lines show information
about the audio function.
Symbols for the audio source settings
(e.g. FM/AM for the selected
waveband, [TP], REG, etc.).
Set radio station or current CD/MP3
track.
Display symbols 3 6.
Navigation parameters
The lower area of the info menu
displays information on the
navigation.
■ Current altitude above sea level
(provided adequate GPS reception
is available).
■ Selected route option, e.g. y.
■ Avoidance of toll roads C.
■ Dynamic guidance active B.
When active guidance is selected, the
following are also shown:
■ Distance remaining to destination.
■ Arrival or remaining travel time,
depending on navigation settings.
Display symbols 3 6.
If navigation is inactive:
Current geographical position with
latitude and longitude (provided
adequate GPS reception is
available).
TMC
You can receive up-to-date
messages on the traffic situation via
the TMC interface.

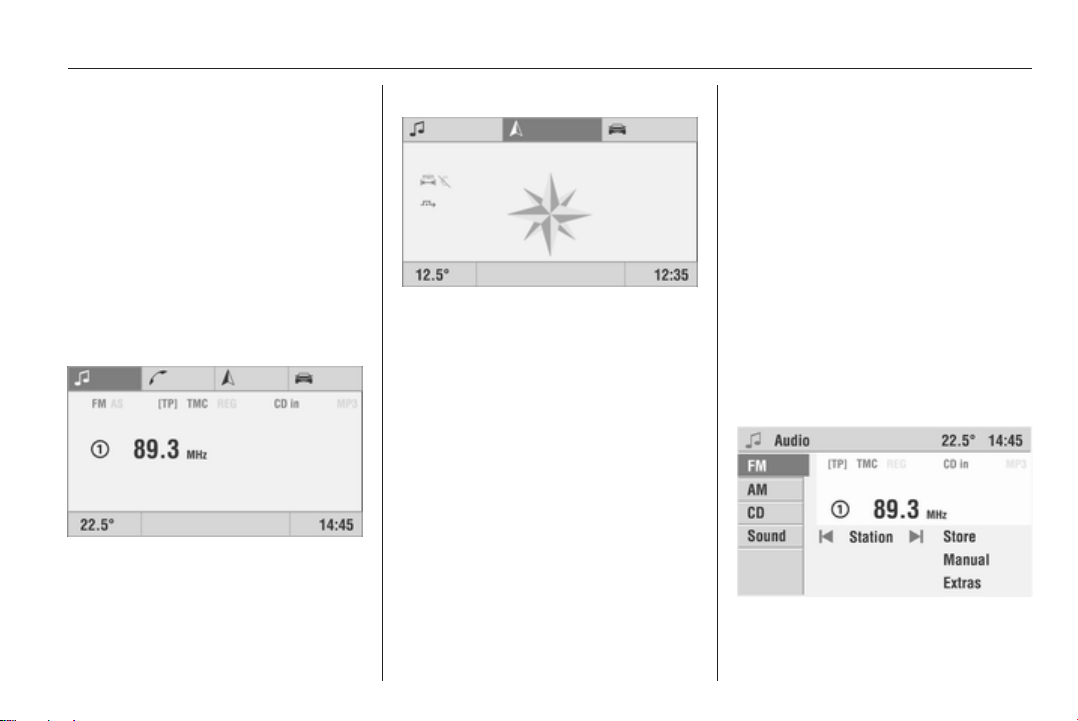

Main display
The main display is the display shown
after switching on the Infotainment
system. It can be recalled at any time
from a different menu display using
the MAIN button.
The various functions are displayed
depending on the equipment of the
vehicle.

Introduction 11
■t Audio
■K Navigation
■J Trip computer (if available)
■I Mobile phone portal (if
available)
Turn the multifunction knob to call up
the display of the required function.
Depending on the selected function,
the following information is displayed
on the main page:
Audio
Information about the currently
selected audio source (e.g.
waveband, station name or frequency
or CD track and track number, etc.).
Navigation
Guidance information (if guidance is
activated) and navigation
parameters.
Trip computer
(if available)
The following information is displayed
in all functions of the main page:
■ Outside temperature
■ Time of day
■ Information on the climate control
system (if available)
When the Infotainment system is off
and the ignition is on, the outside
temperature, time of day and date (if
available) are displayed.
Mobile phone portal
(if available)
Mobile phone portal information.
Menu concept
The menu structure of the
Infotainment system consists of
different types of menu pages:
■ Selection pages
■ Feature pages
■ Settings pages
The different pages have different
functionalities:
Selection pages

12 Introduction

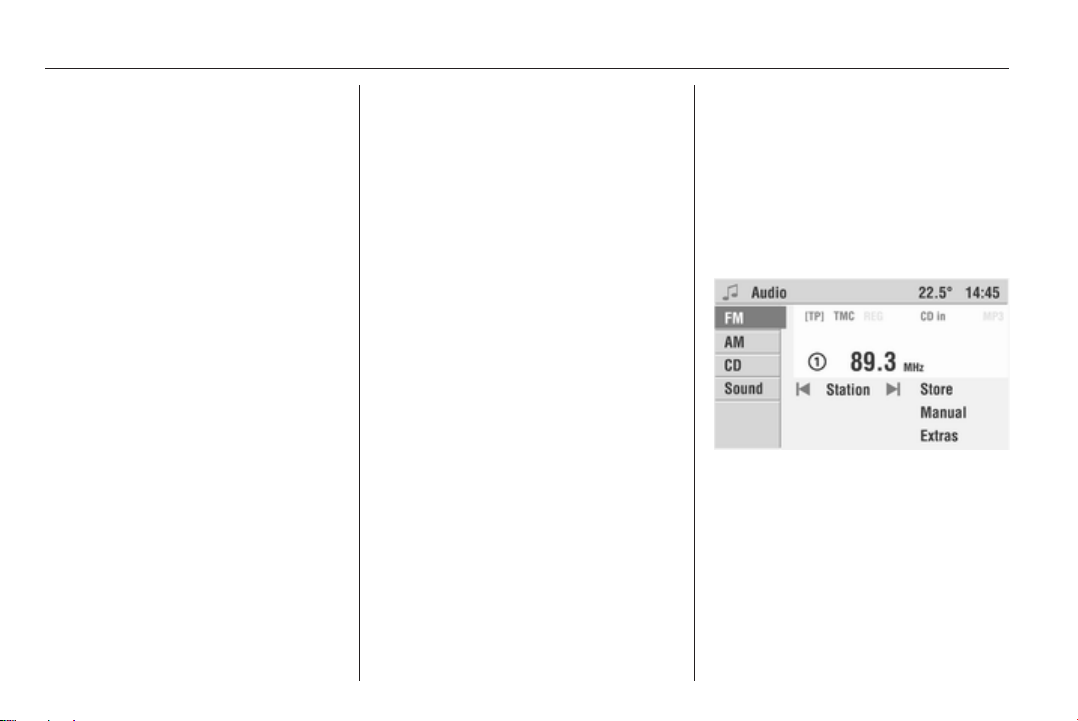

Selection pages have a selection
menu with a preview of each menu
item on the left margin of the screen.
Selection pages lead you to feature or
settings pages.
The Audio menu is an example of
a selection page.
Feature pages
Feature pages are menu pages
where you stay, e.g. when you are
listening to the radio or a CD.
Feature pages also have menu items
that can be executed and that will lead
you to further feature or settings
pages.

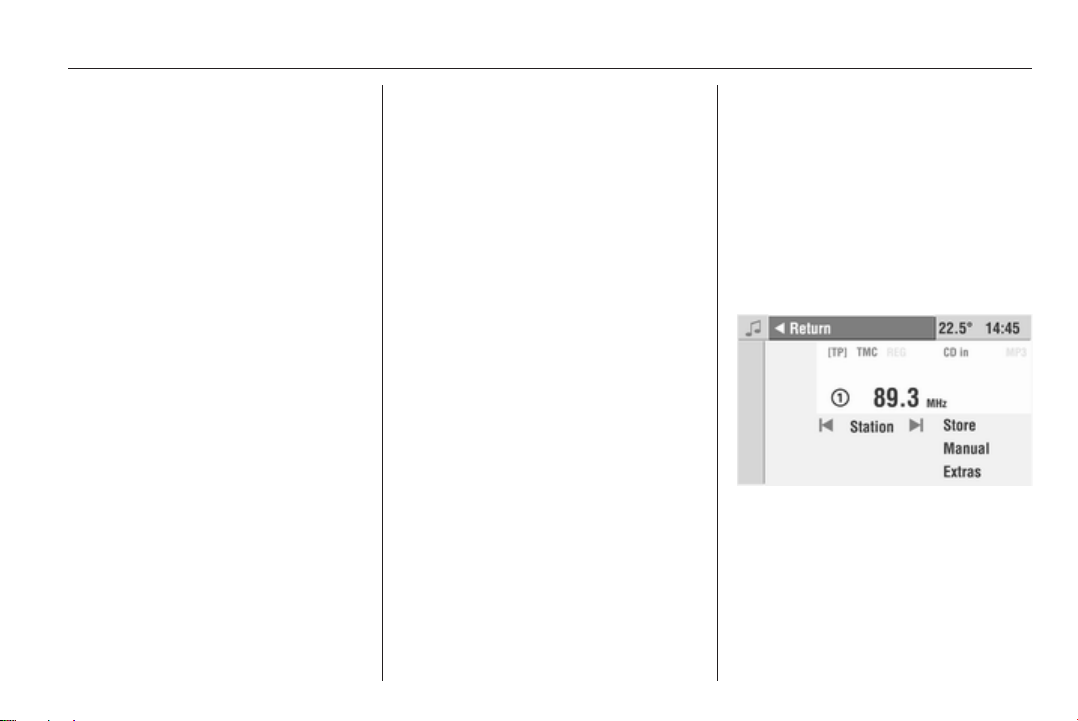

The FM menu is an example of
a feature page.
Settings pages
Settings pages are menu pages
where you can make settings, e.g.
sound, system settings, etc.
The CD Extras menu is an example
of a settings page.
Menu levels
The menus of the Infotainment
system are divided into levels. The
current menu level is shown by
vertical lines at the left-hand side of
the screen (e.g. main display = no
line, FM feature page = 1 line, etc.).
Menu operation
By turning the multifunction knob the
menu items available in a menu can
be selected. Each selected menu
item has an inverse field designated
as the cursor.
Many of the available functions are
executed directly by pressing the
multifunction knob. Some open
a submenu with further functions.
Each menu has the hidden Return
menu item. This menu item only
becomes visible if you get to the top
end of a menu (turn the multifunction
knob anti-clockwise).
Select Return to go to the next highest
menu.

Introduction 13
Each menu also has the hidden
Main menu item. This menu item only
becomes visible if you get to the
bottom end of a menu (turn the
multifunction knob clockwise).
Select Main to recall the main display.
This function can also be executed at
any time by pressing the MAIN
button.
Selecting from a menu
The cursor shows which menu item is
to be selected.
Move the cursor to the desired menu
item by turning the multifunction
knob.
Press the multifunction knob to
confirm your selection.
The corresponding function is
executed or the corresponding
submenu displayed.
For some menu items settings are
made after selecting them by turning
the multifunction knob.
Selecting from a list
For some menu items lists are called
up. You can navigate these lists using
the cursor.
Press the multifunction knob to
confirm your selection.
Move cursor up or down by turning
the multifunction knob.
Further list entries are displayed
when the cursor is moved to the top
or bottom area of the display. A scroll
bar at the right-hand display area
shows the current cursor position
within the entire list.
The number of list entries appears in
the top display line. In some lists the
last selected list entries are marked
with a l before the list entry.
Pop-up menus
In certain cases the display shows
additional notes and information of
the Infotainment system or other
vehicle components as a pop-up.
For this purpose, the currently
displayed menu is overlaid with the
pop-up.

14 Introduction
You have to confirm some of the pop-
ups (e.g. the safety warnings of the
navigation), others will automatically
disappear after a short period.
In CD mode, for example, the traffic
station is displayed during a traffic
announcement when TP is active.
Recalling main functions
The main functions are recalled using
the NAVI, AUDIO, SOUND and BC
buttons:
■ To recall the navigation menu,
press the NAVI button.
■ Press the AUDIO button to access
the radio, CD/MP3 CD sources.
■ Press the SOUND button to open
the sound settings menu.
■ Press the BC button to display the
functions of the trip computer (if
available).
Audio sources
The available audio sources are radio
(AM/FM) and CD (audio/MP3).
Radio:
You can choose between the FM and
AM (MW) wavebands.
CD/MP3:
The CD player/CD changer (if
available) integrated into the
Infotainment system supports both
audio CDs and CDs in MP3 format.
Selecting an audio source
If the radio or CD menu is displayed:
Press the AUDIO button to switch
between the radio and CD/MP3 CD
audio sources.
If one of the other menus (e.g.
navigation, settings, etc.) is active:
Press the AUDIO button once.
The radio or CD/MP3 menu appears
in the display.
Press the AUDIO button again to
change audio source.
If no CD (audio or MP3) is inserted
into the audio CD slot of the
Infotainment system, the
Infotainment system prompts you to
insert a CD.
Selecting audio source using the
Audio menu
1. Press the MAIN button.
2. Select the t audio function in the
main display.
3. Press the multifunction knob.
4. Select the Return menu item.
The Audio menu is displayed.
5. Select the FM, AM or CD menu
item to switch to the desired audio
source.
The selected audio source is played
and the Infotainment system
automatically switches to the display
page of the selected audio source
(FM, AM or CD menu).

Introduction 15
Settings
The Infotainment system provides
you with various options to customise
the behaviour and functions of the
system according to your personal
preferences.
Use the SETTINGS button to access
the relevant Settings menu,
depending on the selected function
(main page, radio, navigation, Mobile
phone portal).
The following settings menus are
available:
■ System settings (see below)
■ Audio settings 3 23
■ Navigation settings 3 38
■ Mobile phone portal (see chapter
for Mobile phone portal)
System settings
From the main page, you can make
all the settings that influence the
displays and functions of the entire
Infotainment system.
To recall the main page, press the
MAIN button.
Press the SETTINGS button.
The Settings menu for the system
settings is displayed.
The following settings are described
in the vehicle owner's manual:
Time, Date
Units
Day / Night
Setting the language
You can change the language of
menu texts and navigation prompts.
You need the languages CD in order
to change the prompt language.
In the Settings menu for the system
settings:
1. Select the Language menu item.
The list of available languages is
displayed.
2. Select the desired language from
the list.
You are prompted as to whether
you want to change the prompt
language in addition to the
language of menu texts.

16 Introduction
3. Answer No:
The language of menu texts is
changed.
The prompt language remains
unchanged.
4. Answer Yes:
You will be prompted to insert the
languages CD in the navigation
DVD/ CD slot for the Infotainment
system.
5. Remove the navigation DVD/CD
by pressing the b button.
6. Insert the languages CD and
select the Continue menu item.
7. Select the desired language from
the list.
The selected prompt language is
loaded from the languages CD.
Loading can take several minutes.
Caution
Do not switch off the Infotainment
system or the ignition under any
circumstances while loading is in
progress.
Do not start the engine under any
circumstances while loading is in
progress.
Do not press any button on the unit
while loading is in progress.
After successful loading, you will be
prompted to remove the languages
CD and to re-insert the navigation
DVD/CD.
Ignition lock logic
The Infotainment system is normally
switched on and off with the e knob.
When the system is switched on, it
can be switched off and back on again
by retracting and/or inserting and
turning the ignition key.
This ignition lock logic is activated as
a factory setting, but can be
bypassed.
Switching ignition lock logic on/off
Switch the ignition lock logic on or off
by confirming the Ign. logic menu
item.
With the ignition lock logic switched
off, the Infotainment system can only
be switched on and off with the e
knob.
The automatic switch-off is
independent of the ignition lock logic
and therefore always remains active.
Tone settings
The settings for Bass, Treble and
Sound can be set separately for radio
and CD/MP3).
The settings for Fader and Balance
apply to all sources and cannot be set
separately.
Select the desired source (FM/AM or
CD/MP3) for which you want to adjust
the sound.
Press the SOUND button to recall the
Sound menu.

Introduction 17
The display automatically shows the
menu items for sound settings.
Setting bass and treble
Select Bass or Treble.
Set the desired value for the option
selected and confirm by pressing the
multifunction knob.
Setting the volume distribution
between front - rear and left -
right
Select Fader or Balance.
Set the desired value for the option
selected and confirm by pressing the
multifunction knob.
Setting the sound
If you prefer a preset sound style
there are five options to select from.
Select the Sound menu item.
The list of available sound styles is
displayed.
Activate the desired sound style.
Under the User sound style you can
store your own personal settings for
treble and bass.
When you adjust treble and bass the
User sound style is automatically
selected.
Volume settings
Press the AUDIO button to recall the
Audio menu.
Press the SETTINGS button.
The audio Settings menu appears.
The submenu Volumes allows you to
customise the following volumes to
your requirements:
TA Volume:
This function allows you to set the
volume for traffic announcements.

18 Introduction
SDVC (Speed Dependent Volume
Control):
The purpose of the SDVC function is
to compensate for outside and road
noises. To this effect, the volume of
the unit is increased at higher speeds.
Navi announc.:
Volume of the navigation
announcements 3 38.
Start-up volume:
With this setting, the maximum
volume when switching on the unit
can be set.
External In:
An external source (e.g. hands-free
kit) can be connected to the
Infotainment system.
With External In the volume of an
external source can be set in addition
to the volume of the audio sources.
The external source is relayed
automatically by means of a control
signal from the connected unit.

Radio 19
Radio
Usage .......................................... 19
Station search .............................. 21
Autostore lists .............................. 23
Radio data system (RDS) ............ 23
Usage
Activating the radio mode
For CD mode and when displaying
the CD menu:
Press the AUDIO button.
The display shows the radio menu
and the last station selected will be
played.
If the station is stored under one of the
memory locations, the memory
location number is displayed before
the station name or the reception
frequency.
If you are in one of the other menus
(e.g. navigation, settings, etc.):
Press the AUDIO button once.
The display shows the radio menu
and the currently selected audio
source (in this case, CD) will be
played.
Press the AUDIO button again.
The audio source is changed.
Selecting a waveband
The Infotainment system provides
two wavebands: FM and AM. In
addition, each of the wavebands has
an autostore memory location (AS)
where stations can be automatically
stored 3 23.
To change the waveband, proceed as
follows:
In the radio menu:
Select the Return menu item.
The Audio menu is displayed.

20 Radio
Select the desired waveband, FM or
AM.
The radio menu is displayed.
The autostore levels are accessed
using the Extras menu item.
The following functions are available
in the radio menu:
■|k and l|: automatic search
upwards or downwards.
■Station: selecting a station from the
station list.
■Store: storing the currently selected
station under one of the memory
locations 0 ... 9.
■Manual: enabling manual search.
■Extras: see below.
Extras
The following options are available in
the Extras submenu:
AS level
This option is used to change to the
autostore level of the current
waveband.
Detailed information about the
autostore function 3 23.
TMC Info
Select this option to receive
messages on current traffic delays.
For detailed information on TMC
(Traffic Message Channel) 3 23.
Traffic stations
This function is used to select one of
the traffic stations currently
receivable.
PTY selection (FM only)
Many RDS stations 3 23 transmit
a PTY code that indicates the type of
programme being broadcast (e.g.
news). The PTY code enables
selection of the station according to
programme type.
After selecting the PTY selection
menu item the list of selectable
programme types appears.
